Model Whirlpool RS675PXBH0 COOKTOP – Common Parts & Diagrams

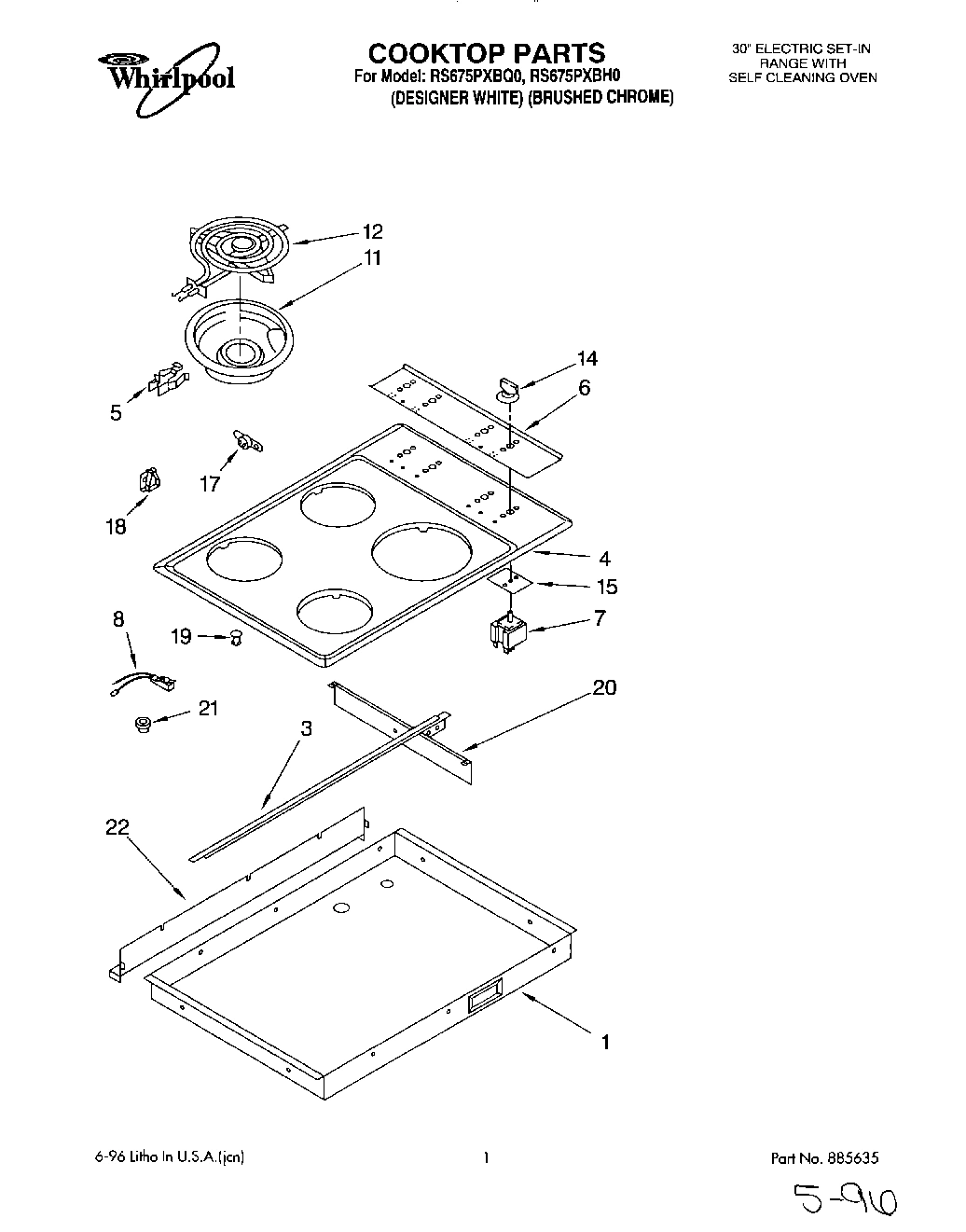

01 - COOKTOP

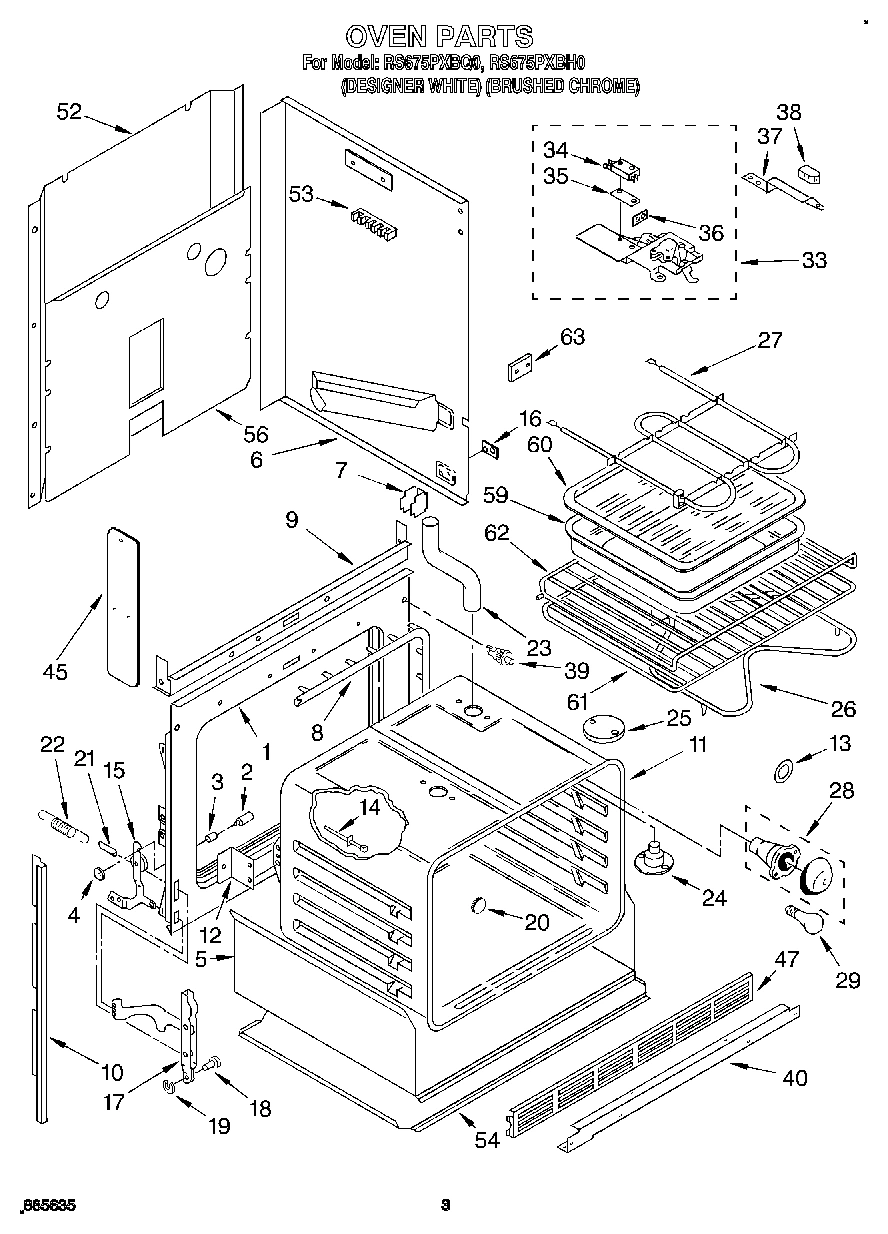

03 - OVEN, LITERATURE

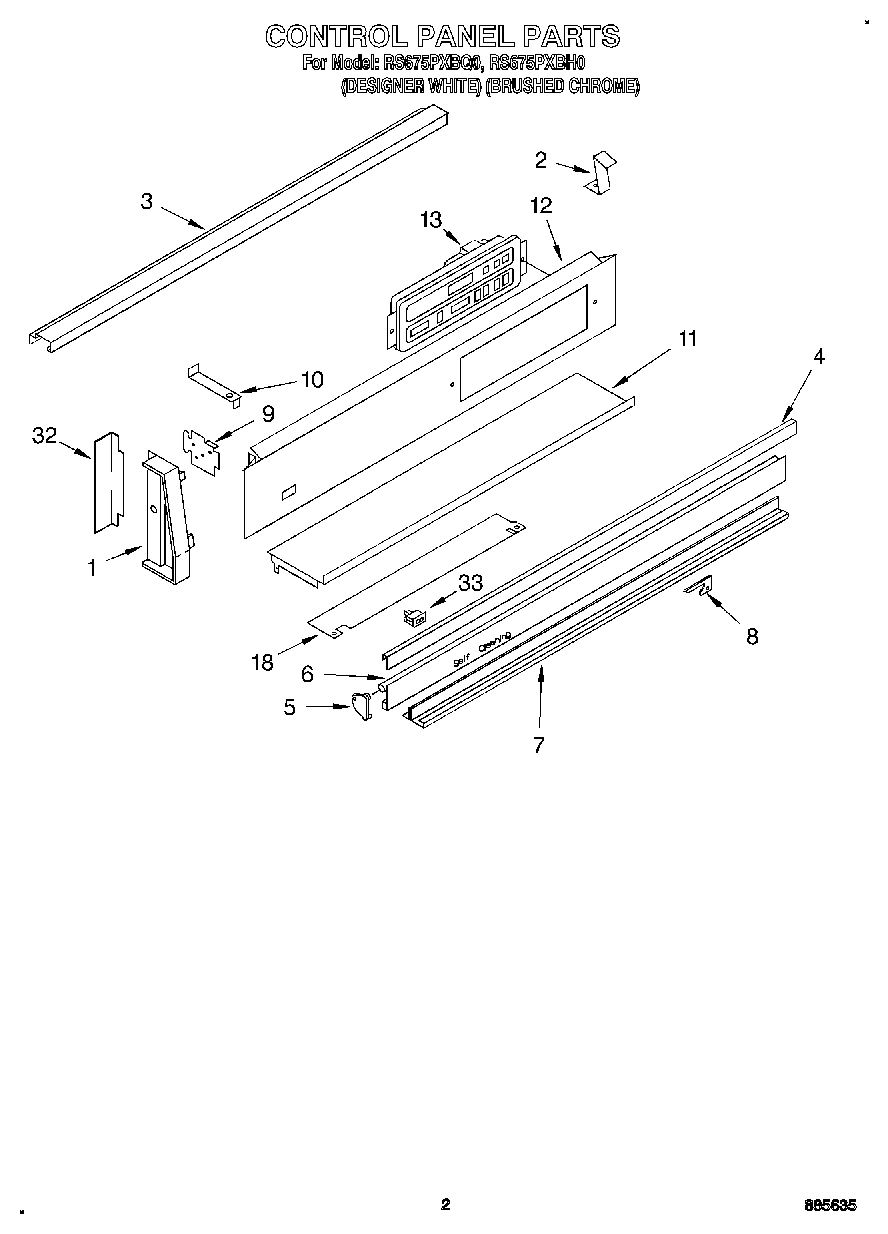

02 - CONTROL PANEL

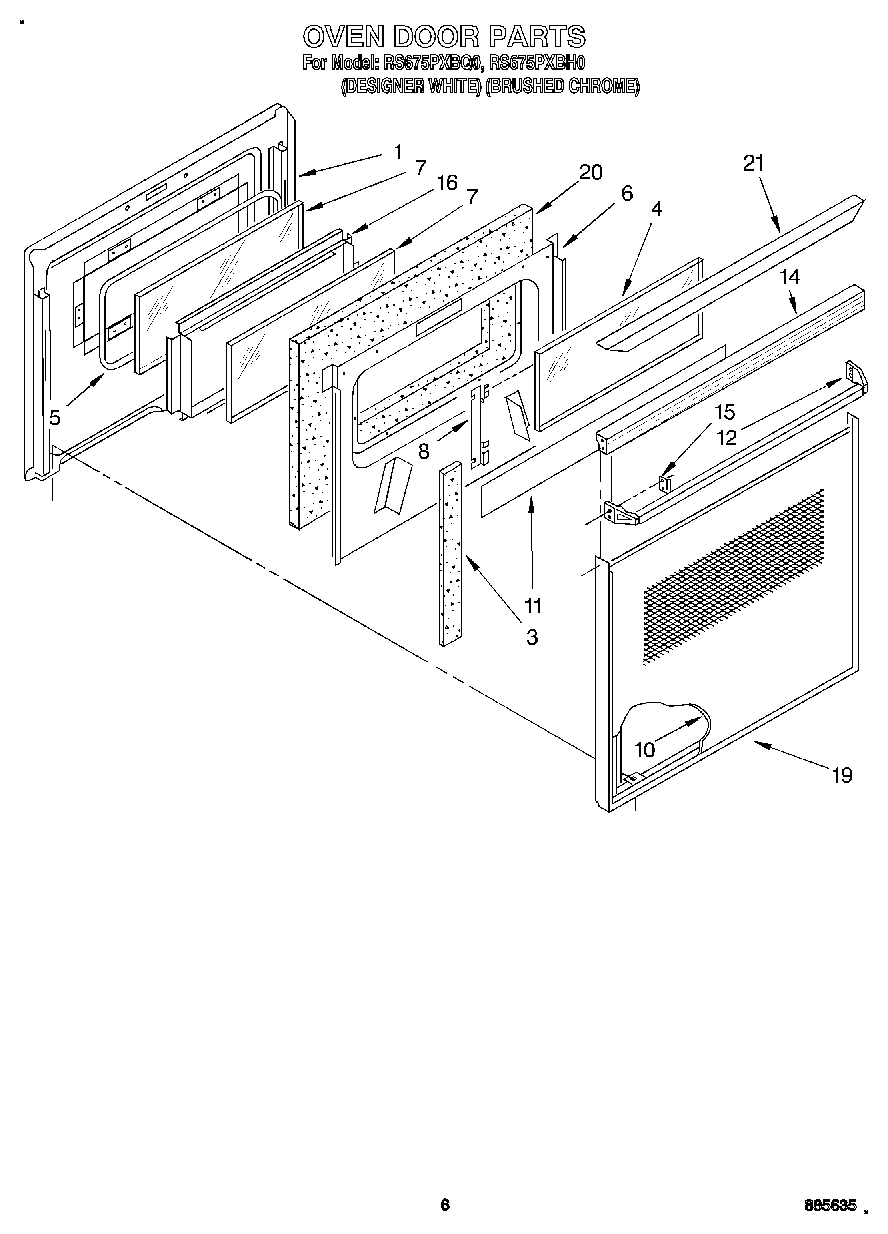

05 - OVEN DOOR, OPTIONAL

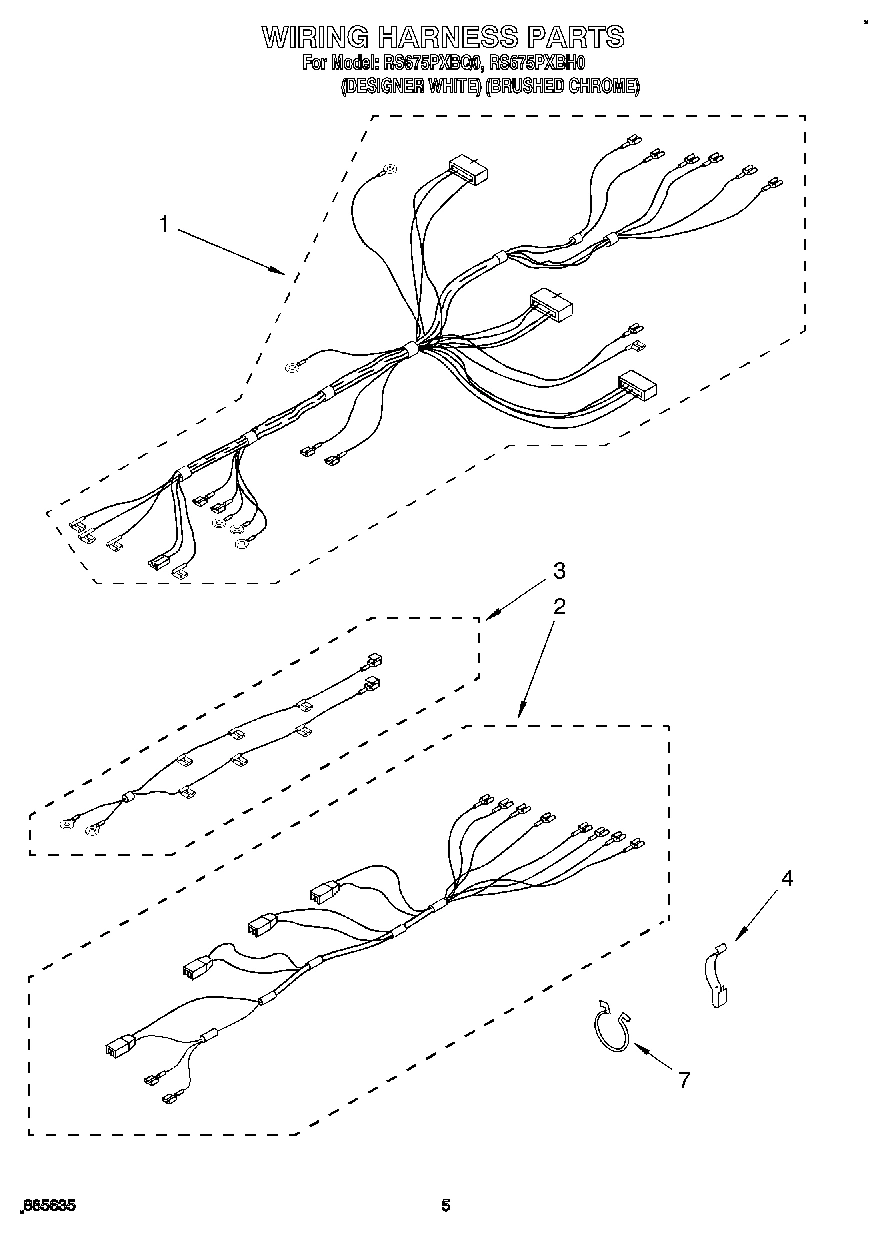

04 - WIRING HARNESS
Common parts from model Whirlpool RS675PXBH0 COOKTOP
WPL LIT3188575 WPL LIT3188575 Contact Us For Availability
1
Frame Front WPL 3176718 Contact Us For Availability
1
End Cap (Right Hand (Black)) WPL 3148444 Contact Us For Availability
1
End Cap (Left Hand (Black)) WPL 3148445 Contact Us For Availability
1
End Cap (Left Hand (White)) WPL 3150013 Contact Us For Availability
1
End Cap (Right Hand (White)) WPL 3150014 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
1
Harness, Wire (Main) WPL 3188443 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Bracket, Control WPL 3184395 Contact Us For Availability
2
Screw, WPL 312318 Contact Us For Availability
2
Harness, Wire (Surface Unit) WPL 3188449 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Rail, Top WPL 3148616 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 3188566 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Trim, Center (Black) WPL 3148620 Contact Us For Availability
4
Trim, Center (White) WPL 3149350 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
4
Screw WPL 3185647 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Insulation Tray WPL 3185944 Contact Us For Availability
5
Trim, Vent Door (Left Hand (Rosemont Grey)) WPL 3148471 Contact Us For Availability
5
Trim, Vent Door (Right Hand (Rosemont Grey)) WPL 3148472 Contact Us For Availability
5
Trim, Vent Door Left Hand (Black) WPL 3148697 Contact Us For Availability
5
Trim, Vent Door (Right Hand (Black)) WPL 3148698 Contact Us For Availability
6
Side Wrapper R.H. WPL 3185954 Contact Us For Availability
6
Side Wrapper L.H. WPL 3185957 Contact Us For Availability
6
Door, Vent (Black) WPL 3183505 Contact Us For Availability
6
Door, Vent (Brushed Aluminum) WPL 3183506 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Screw (4) WPL 4173601 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Screw (4) WPL 342043 Contact Us For Availability
7
Trim, Bottom WPL 3148618 Contact Us For Availability
7
Screw (2) WPL 307748 Contact Us For Availability
8
Gasket, Door WPL 3185197 Contact Us For Availability
8
Shield, Air WPL 3149142 Contact Us For Availability
8
Retainer, Glass (2) WPL 3188720 Contact Us For Availability
9
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
9
Cover, Side (Right Side) WPL 3149027 Contact Us For Availability
9
Cover, Side (Left Side) WPL 3149028 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
10
Bracket, Support WPL 312752 Contact Us For Availability
10
Glass, Panel (White Model) WPL 3188053 Contact Us For Availability
10
Glass, Panel (Black) WPL 3188054 Contact Us For Availability
11
Oven (30`` Pyro) WPL 3182032 Contact Us For Availability
11
Shield, Heat WPL 3188534 Contact Us For Availability
11
Foil, Door WPL 3188706 Contact Us For Availability
12
Handle, Door (White) WPL 3187941 Contact Us For Availability
12
Handle, Door (Black) WPL 3187940 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Panel, Control (Black) WPL 3182301 Contact Us For Availability
12
Panel, Control (White) WPL 3182302 Contact Us For Availability
13
Control, Electronic (Screw (2)) WPL 98520 Contact Us For Availability
13
Control, Electronic (Black) WPL 3169256 Contact Us For Availability
13
Control, Electronic (White) WPL 3169257 Contact Us For Availability
14
Knob, Control (Black) WPL 3183120 Contact Us For Availability
14
Knob, Control (White) WPL 3183119 Contact Us For Availability
14
Sensor, Heat WPL 3148440 Contact Us For Availability
14
Top, Door (Black) WPL 3148223 Contact Us For Availability
14
Top, Door (Grey) WPL 3149355 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
15
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
16
Frame, Glass WPL 3148234 Contact Us For Availability
17
Channel Arm (2) WPL 3185664 Contact Us For Availability
18
Shield, Control WPL 3183992 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
19
Frame, Glass Panel WPL 3148235 Contact Us For Availability
19
Screw WPL 3179117 Contact Us For Availability
20
Button, Plug WPL 3182814 Contact Us For Availability
20
Insulation, Door WPL 3147951 Contact Us For Availability
21
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
21
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
21
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
21
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
21
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
21
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
21
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
21
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
21
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
21
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
21
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
21
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
21
Grease WPL 261582 Contact Us For Availability
21
Cap, Top WPL 3181363 Contact Us For Availability
23
Tube, Vent Extension WPL 310835 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
27
Screw, 10-32 x 5/8 (4) WPL 3150532 Contact Us For Availability
32
Trim, End Cap (Black) WPL 3149900 Contact Us For Availability
32
Trim, End Cap (White) WPL 3149901 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3183801 Contact Us For Availability
33
Switch, Rocker (Black) WPL 3182717 Contact Us For Availability
33
Switch, Rocker (White) WPL 3182718 Contact Us For Availability
34
Safety Switch WPL 3178671 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
36
Screw, 6 x 3/8 (2) WPL 309258 Contact Us For Availability
36
Terminal, Shield WPL 313035 Contact Us For Availability
37
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
37
Latch, Handle WPL 310825 Contact Us For Availability
38
Screw, 8-32 x 1/4 WPL 3183294 Contact Us For Availability
38
Knob, Latch Ha WPL 3184039 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
40
WPL 3188431 WPL 3188431 Contact Us For Availability
45
WPL 311256 WPL 311256 Contact Us For Availability
45
WPL 3148442 WPL 3148442 Contact Us For Availability
47
WPL 309029 WPL 309029 Contact Us For Availability
47
WPL 310668 WPL 310668 Contact Us For Availability
47
WPL 3149359 WPL 3149359 Contact Us For Availability
52
WPL 247326 WPL 247326 Contact Us For Availability
52
WPL 3185960 WPL 3185960 Contact Us For Availability
53
WPL 308043 WPL 308043 Contact Us For Availability
54
WPL 3185945 WPL 3185945 Contact Us For Availability
56
WPL 3182052 WPL 3182052 Contact Us For Availability
61
WPL 3185641 WPL 3185641 Contact Us For Availability
62
WPL 3185640 WPL 3185640 Contact Us For Availability
63
WPL 310433 WPL 310433 Contact Us For Availability
63
WPL 310435 WPL 310435 Contact Us For Availability
63
WPL 3149328 WPL 3149328 Contact Us For Availability
63
WPL 3183005 WPL 3183005 Contact Us For Availability
× ![]()
