Model Whirlpool RS660BXYH2 – Common Parts & Diagrams

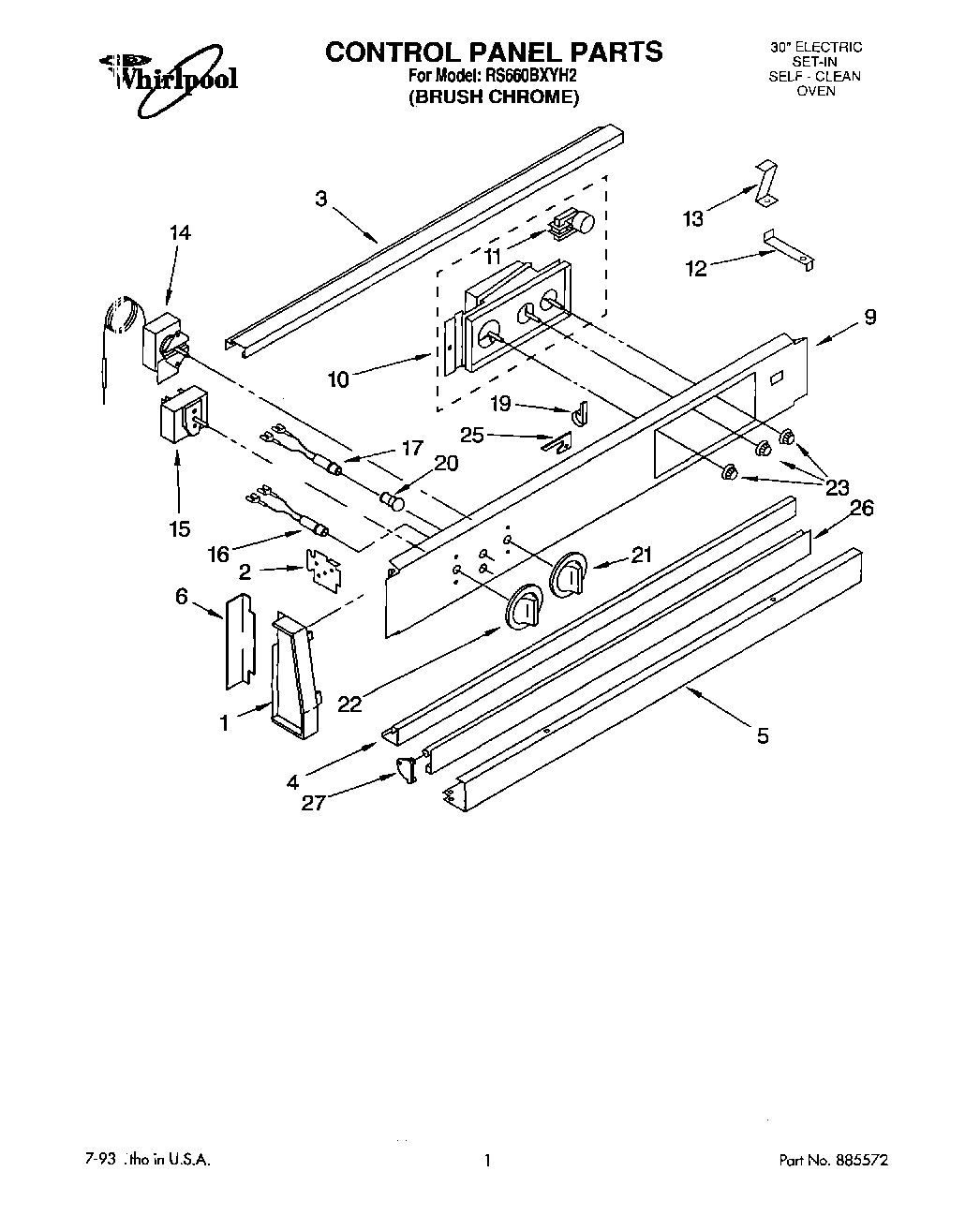

01 - CONTROL PANEL, LITERATURE

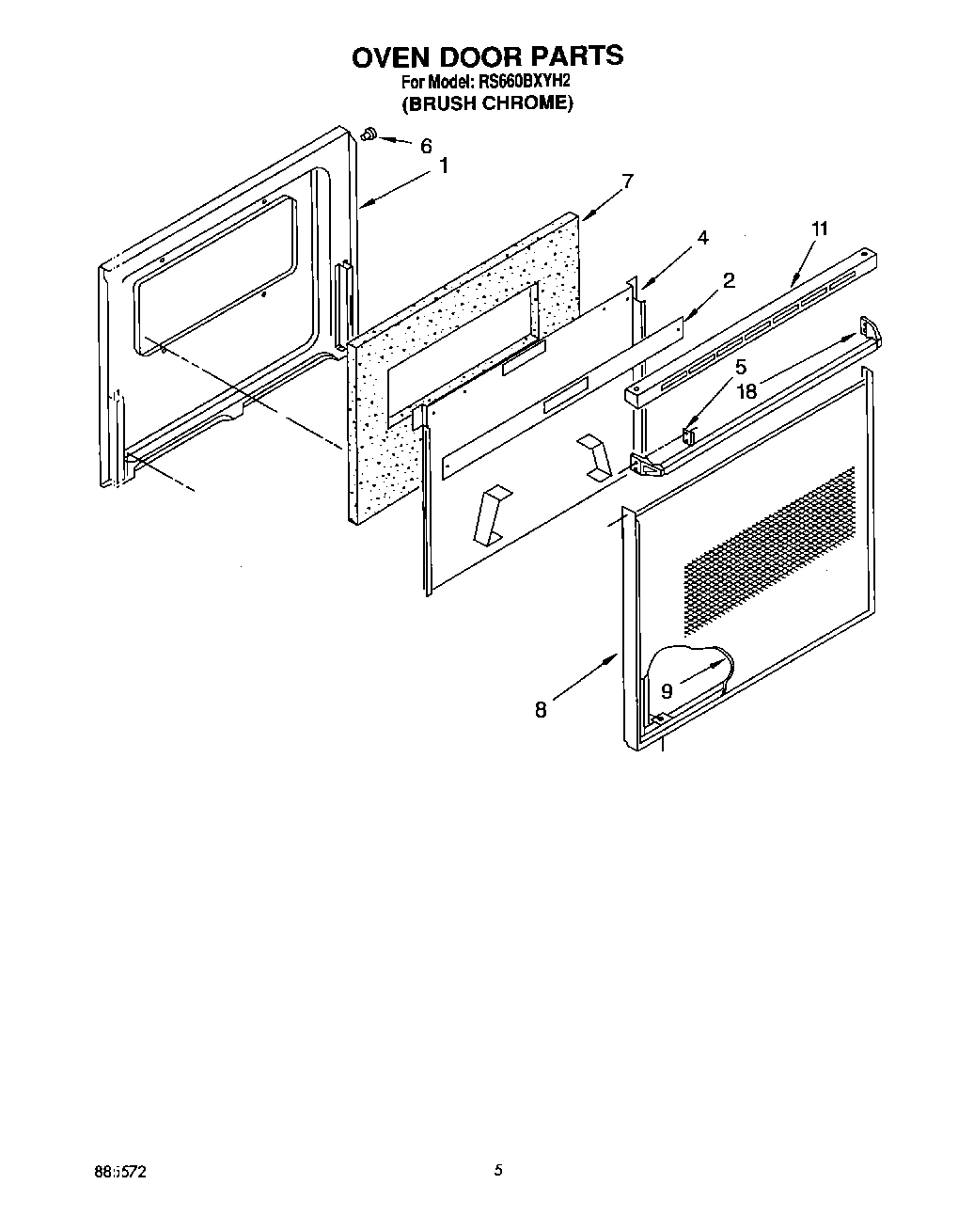

03 - OVEN DOOR
04 - COOKTOP
02 - OVEN
05 - WIRING HARNESS, OPTIONAL
Common parts from model Whirlpool RS660BXYH2
1
Screw (5) WPL 3149333 Contact Us For Availability
1
Liner, Door WPL 3172219 Contact Us For Availability
1
Support, Burner Box (2) WPL 310718 Contact Us For Availability
1
Frame, Front WPL 3176698 Contact Us For Availability
1
Harness, Wire (Oven) WPL 3182744 Contact Us For Availability
2
Shield, Door WPL 3148680 Contact Us For Availability
2
Box, Burner WPL 311021 Contact Us For Availability
2
Screw, WPL 312318 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Harness, Wire (Surface Unit) WPL 3185666 Contact Us For Availability
3
Shield, Switch WPL 310716 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 313464 Contact Us For Availability
4
Retainer, Insulation WPL 3148160 Contact Us For Availability
4
Screw (4) WPL 3148443 Contact Us For Availability
4
Support, Cooktop WPL 310717 Contact Us For Availability
4
screw (2) WPL 342043 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Adaptor, Terminal WPL 3147832 Contact Us For Availability
5
Clip, Handle Mtg. (2) WPL 3148282 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
5
Screw (2) WPL 308504 Contact Us For Availability
6
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
6
PAINT, BULK (1 QT.) (WH WPL 799344 Contact Us For Availability
6
Bumper, Door WPL 3148182 Contact Us For Availability
6
Bushing WPL 258109 Contact Us For Availability
6
Side Wrapper L.H. WPL 3187352 Contact Us For Availability
6
Side Wrapper R.H. WPL 3187353 Contact Us For Availability
6
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
6
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
6
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
6
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
6
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
6
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
6
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
6
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
6
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
6
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
6
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
6
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
6
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
6
Grease WPL 261582 Contact Us For Availability
6
Touch-Up, Oven (1/2 Pt.) WPL 261810 Contact Us For Availability
6
Coffee WPL 261886 Contact Us For Availability
6
Coffee (Uncut) WPL 261887 Contact Us For Availability
6
New Avocado WPL 261888 Contact Us For Availability
6
New Avocado (Uncut) WPL 261889 Contact Us For Availability
6
Harvest Gold WPL 261890 Contact Us For Availability
6
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
6
Wire, Jumper WPL 310795 Contact Us For Availability
6
Mounting Hardwar WPL 3171507 Contact Us For Availability
6
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
6
WPL 799832 WPL 799832 Contact Us For Availability
6
WPL 814128 WPL 814128 Contact Us For Availability
6
WPL 978883 WPL 978883 Contact Us For Availability
7
Insulation, Door WPL 3147951 Contact Us For Availability
7
Cover, Top Rear WPL 3147565 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
8
Frame, Door WPL 3148235 Contact Us For Availability
8
Cooktop (Brushed Chrome) WPL 3183904 Contact Us For Availability
8
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
9
screw (2) WPL 254225 Contact Us For Availability
9
Glass, Outer Pano WPL 3148186 Contact Us For Availability
9
Side Trim R.S. WPL 310685 Contact Us For Availability
9
Side Trim L.S. WPL 310689 Contact Us For Availability
10
Panel, Control WPL 3185692 Contact Us For Availability
10
Oven 30`` WPL 3182032 Contact Us For Availability
11
Screw WPL 307748 Contact Us For Availability
11
Top, Door Frame WPL 3148223 Contact Us For Availability
12
Switch, Infinite (Use W/6`` Surface Unit (2)) WPL 3148968 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
13
Indicator Light (2) (Includes Lens No. 313602 WPL 313462 Contact Us For Availability
13
Button, Plug WPL 3182814 Contact Us For Availability
14
Thermostat, Oven WPL 3148933 Contact Us For Availability
14
Lens, Light WPL 313602 Contact Us For Availability
15
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
15
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
16
Light, Indicator (250V) WPL 314031 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Channel Arm (2) WPL 3185664 Contact Us For Availability
18
Handle, Oven Door WPL 3148228 Contact Us For Availability
19
Retainer Ring (2) WPL 307594 Contact Us For Availability
21
Knob, Thermostat WPL 3183103 Contact Us For Availability
21
Medallion, Surface Unit WPL 309195 Contact Us For Availability
22
Knob, Control (4) WPL 3183120 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Knob (Selector) WPL 3183115 Contact Us For Availability
23
Bracket, Sensor WPL 3147830 Contact Us For Availability
23
Extension, Vent WPL 310835 Contact Us For Availability
24
Thermostat WPL 3185885 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
27
Screw (2) WPL 3150532 Contact Us For Availability
30
Switch, Door WPL 310345 Contact Us For Availability
31
Plate, Cover WPL 3184208 Contact Us For Availability
33
Cover, Bottom & Top WPL 310458 Contact Us For Availability
35
Screw, Black 8-15 x 1/2 (3) WPL 309029 Contact Us For Availability
35
Grill, Bottom WPL 310668 Contact Us For Availability
38
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
39
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
40
Panel, Back WPL 3182052 Contact Us For Availability
41
Cover, Rear WPL 311012 Contact Us For Availability
42
Seal, Door WPL 3185197 Contact Us For Availability
43
Latch & Switch Assembly WPL 3171148 Contact Us For Availability
45
Insulator, Switch WPL 309245 Contact Us For Availability
46
Safety Switch WPL 308185 Contact Us For Availability
46
Screw (2) WPL 98106 Contact Us For Availability
47
Screw (2) WPL 311056 Contact Us For Availability
47
Screw (2) WPL 309258 Contact Us For Availability
47
Terminal, WPL 313035 Contact Us For Availability
48
WPL 308422 WPL 308422 Contact Us For Availability
48
WPL 310825 WPL 310825 Contact Us For Availability
49
WPL 3183294 WPL 3183294 Contact Us For Availability
49
WPL 3184039 WPL 3184039 Contact Us For Availability
50
WPL 314209 WPL 314209 Contact Us For Availability
51
WPL 314215 WPL 314215 Contact Us For Availability
51
WPL 314210 WPL 314210 Contact Us For Availability
52
WPL 3148669 WPL 3148669 Contact Us For Availability
53
WPL 3147864 WPL 3147864 Contact Us For Availability
54
WPL 308043 WPL 308043 Contact Us For Availability
54
WPL 3183005 WPL 3183005 Contact Us For Availability
57
WPL 311256 WPL 311256 Contact Us For Availability
57
WPL 3148442 WPL 3148442 Contact Us For Availability
58
WPL 310433 WPL 310433 Contact Us For Availability
58
WPL 310435 WPL 310435 Contact Us For Availability
58
WPL 3149270 WPL 3149270 Contact Us For Availability
58
WPL 3149328 WPL 3149328 Contact Us For Availability
× ![]()
