Model Whirlpool RS660BXBH0 – Common Parts & Diagrams
05 - WIRING HARNESS, OPTIONAL
02 - OVEN

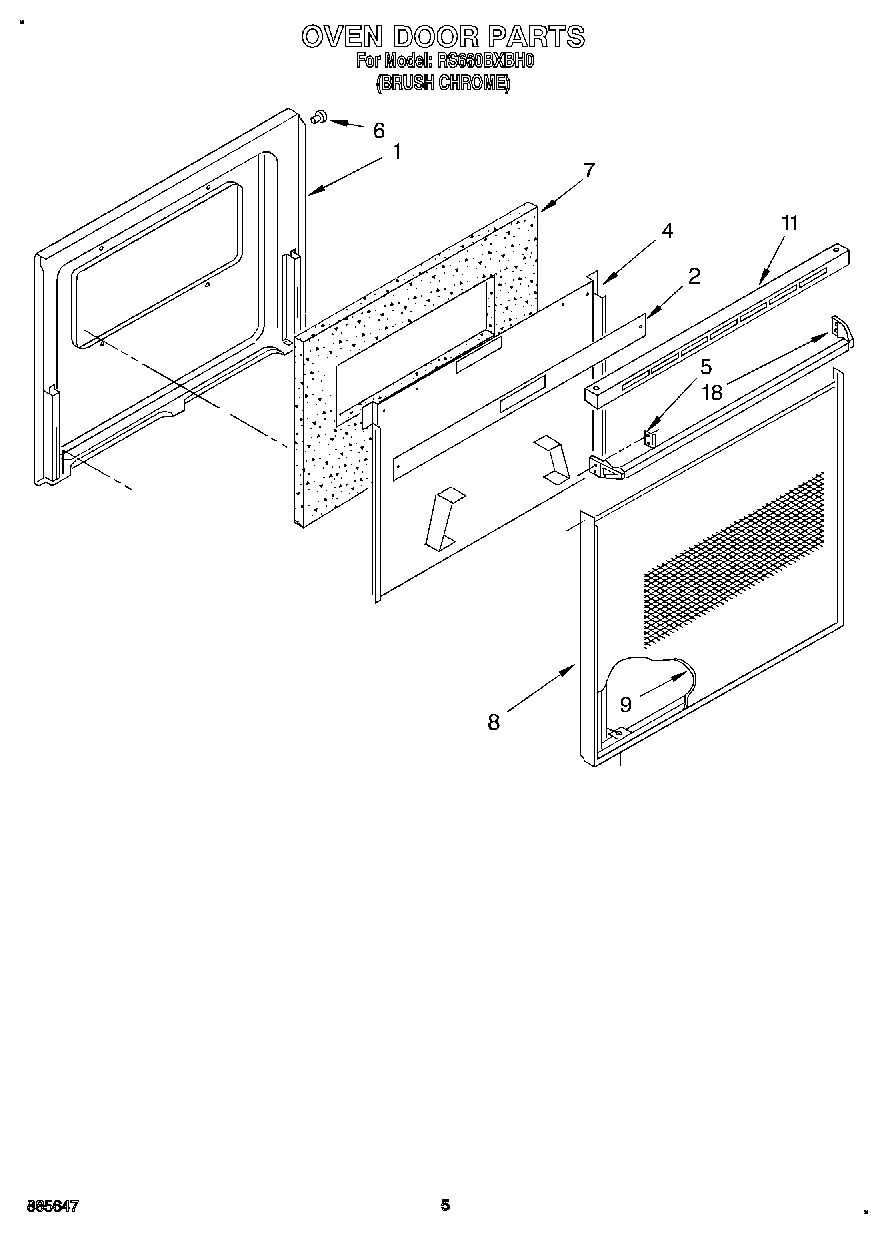

03 - OVEN DOOR

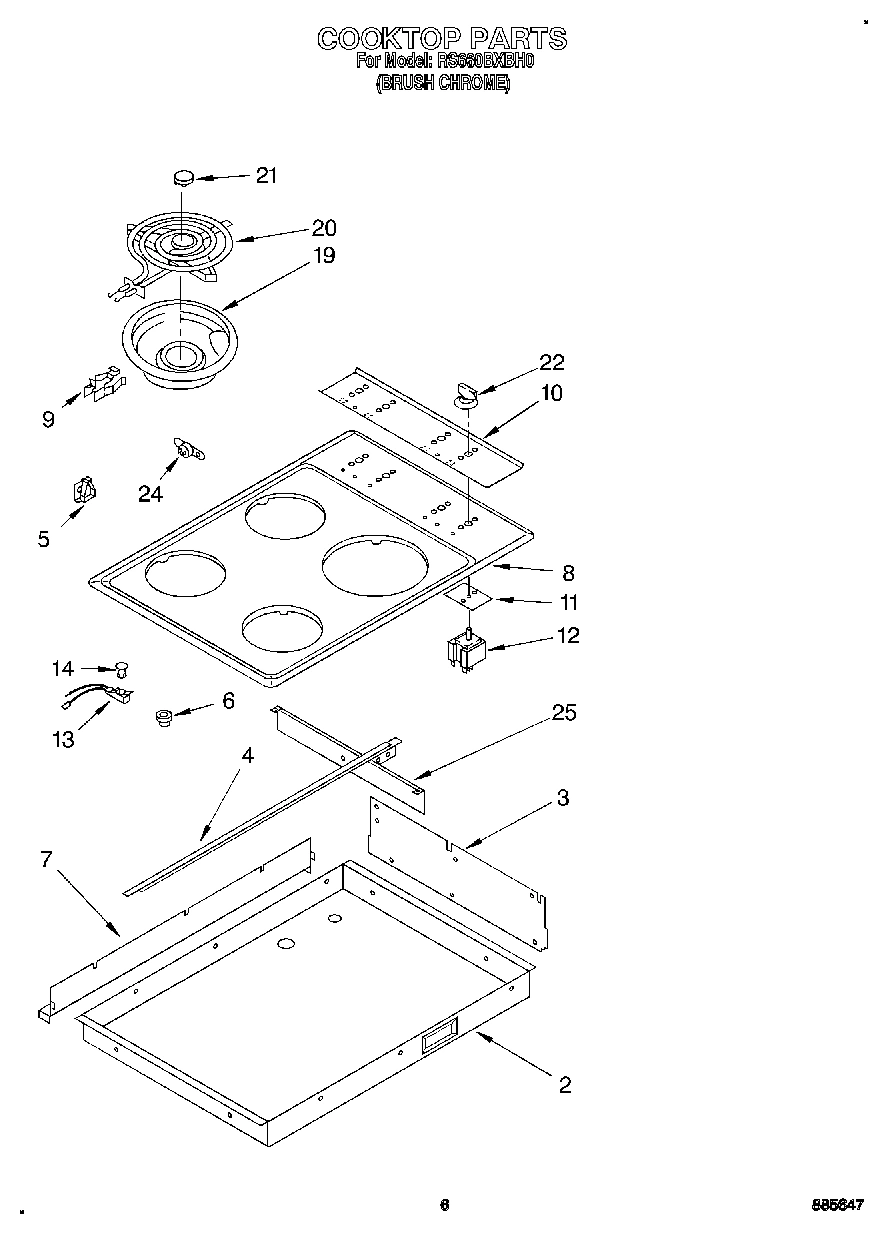

04 - COOKTOP

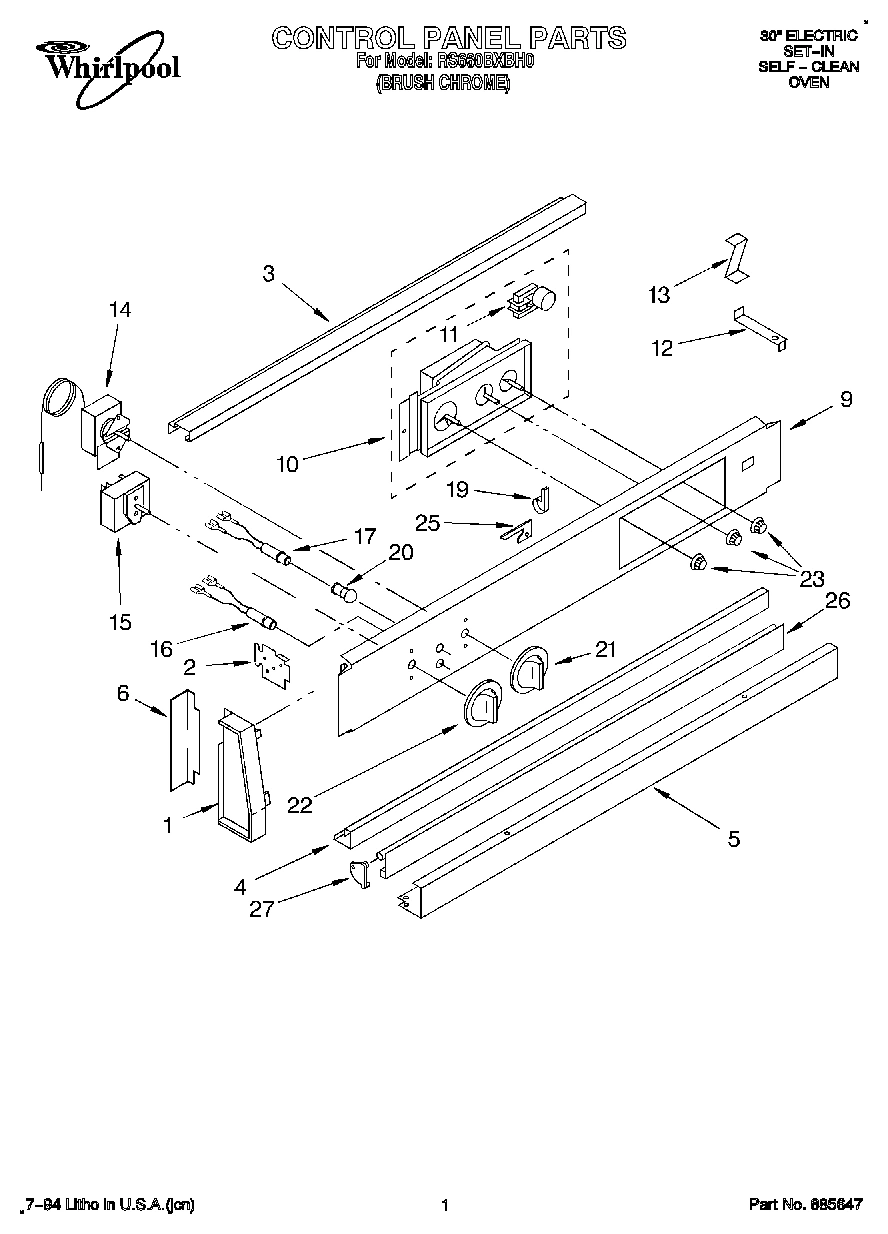

01 - CONTROL PANEL, LITERATURE
Common parts from model Whirlpool RS660BXBH0
Installation Instructions WPL LIT3147396 Contact Us For Availability
Use & Care Guide WPL LIT3188559 Contact Us For Availability
Tech Sheet WPL LIT3188577 Contact Us For Availability
1
Screw (5) WPL 3149333 Contact Us For Availability
1
Frame, Front WPL 3176705 Contact Us For Availability
1
Liner, Door WPL 3172219 Contact Us For Availability
1
End Cap (R.H.) WPL 3148444 Contact Us For Availability
1
End Cap (L.H.) WPL 3148445 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Shield, Door WPL 3148680 Contact Us For Availability
2
Box, Burner WPL 3188769 Contact Us For Availability
2
Cover, Side (Right Side) WPL 3149027 Contact Us For Availability
2
Cover, Side (Left Side) WPL 3149028 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Plate, Cooktop Mounting WPL 3188527 Contact Us For Availability
3
Rail, Top WPL 3148616 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Retainer, Insulation WPL 3148160 Contact Us For Availability
4
Screw (4) WPL 3185647 Contact Us For Availability
4
Bracket, Mounting WPL 3188766 Contact Us For Availability
4
screw (2) WPL 342043 Contact Us For Availability
4
Trim, Center WPL 3148620 Contact Us For Availability
5
Clip, Handle Mtg. (2) WPL 3148282 Contact Us For Availability
5
Insulation Tray WPL 3185944 Contact Us For Availability
5
Rail, Bottom WPL 3148618 Contact Us For Availability
6
Side Wrapper R.H. WPL 3185954 Contact Us For Availability
6
Side Wrapper L.H. WPL 3185957 Contact Us For Availability
6
Bumper, Door WPL 3148182 Contact Us For Availability
6
Bushing WPL 258109 Contact Us For Availability
6
Trim, End Cap WPL 3149900 Contact Us For Availability
7
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
7
WPL 799344 WPL 799344 Contact Us For Availability
7
Mounting Hardware WPL 3171507 Contact Us For Availability
7
Jumper, Selector WPL 3186663 Contact Us For Availability
7
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
7
WPL 799832 WPL 799832 Contact Us For Availability
7
WPL 814128 WPL 814128 Contact Us For Availability
7
WPL 978883 WPL 978883 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Insulation, Door WPL 3147951 Contact Us For Availability
7
Cover, Rear WPL 3188528 Contact Us For Availability
8
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
8
Frame, Door WPL 3148235 Contact Us For Availability
8
Cooktop (Brushed Chrome) WPL 3183904 Contact Us For Availability
9
Side Trim R.S. WPL 310685 Contact Us For Availability
9
Side Trim L.S. WPL 310689 Contact Us For Availability
9
screw (2) WPL 254225 Contact Us For Availability
9
Glass, Outer Pano WPL 3148186 Contact Us For Availability
9
Panel, Control WPL 3183340 Contact Us For Availability
10
Oven 30`` WPL 3182032 Contact Us For Availability
10
Panel, Control WPL 3185692 Contact Us For Availability
10
Timer, Auto WPL 661459 Contact Us For Availability
11
Screw WPL 307748 Contact Us For Availability
11
Top, Door Frame WPL 3148223 Contact Us For Availability
11
Motor, Timer WPL 309822 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
12
Switch, Infinite (Use W/6`` Surface Unit (2)) WPL 3148968 Contact Us For Availability
12
Support, Top Rail WPL 312752 Contact Us For Availability
13
Button, Plug WPL 3182814 Contact Us For Availability
13
Indicator WPL 3187778 Contact Us For Availability
13
Bracket, Support WPL 3184395 Contact Us For Availability
14
Lens, Light WPL 313602 Contact Us For Availability
14
Thermostat, Oven WPL 3185630 Contact Us For Availability
14
Screw (2) WPL 3186941 Contact Us For Availability
15
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
15
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
15
Switch, Selector (5 Position) WPL 3148419 Contact Us For Availability
15
Screw (2) WPL 3186940 Contact Us For Availability
16
Light, Indicator (250V) WPL 314031 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Channel Arm (2) WPL 3185664 Contact Us For Availability
17
Light, Indicator WPL 3148719 Contact Us For Availability
18
Handle, Oven Door WPL 3187940 Contact Us For Availability
19
Retainer Ring (2) WPL 307594 Contact Us For Availability
20
Lens, Amber (2) WPL 313101 Contact Us For Availability
21
Knob, Thermostat WPL 3183103 Contact Us For Availability
21
Medallion, Surface Unit WPL 309195 Contact Us For Availability
22
Knob, Control (4) WPL 3183120 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Knob (Selector) WPL 3183115 Contact Us For Availability
23
Extension, Vent WPL 310835 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
25
Screw WPL 4159456 Contact Us For Availability
25
Shield, Heat WPL 3187446 Contact Us For Availability
25
Screw WPL 98520 Contact Us For Availability
25
Shield, Air WPL 3149142 Contact Us For Availability
26
Door, Vent WPL 3183505 Contact Us For Availability
27
Screw (2) WPL 3150532 Contact Us For Availability
27
End, Trim (Left Hand) WPL 3148697 Contact Us For Availability
27
End, Trim (Right Hand) WPL 3148698 Contact Us For Availability
30
Switch, Door WPL 310345 Contact Us For Availability
31
Plate, Cover WPL 3184208 Contact Us For Availability
33
Cover, Bottom & Top WPL 3185945 Contact Us For Availability
35
Screw, Black 8-15 x 1/2 (3) WPL 309029 Contact Us For Availability
35
Grill, Bottom WPL 310668 Contact Us For Availability
38
Rack, Oven (Straight) WPL 3185641 Contact Us For Availability
39
Rack, Oven Offset WPL 3185640 Contact Us For Availability
40
Panel, Back WPL 3182052 Contact Us For Availability
41
Screw WPL 247326 Contact Us For Availability
41
Cover, Rear WPL 3185960 Contact Us For Availability
42
Seal, Door WPL 3185197 Contact Us For Availability
43
Latch & Switch Assembly WPL 3171148 Contact Us For Availability
45
Insulator, Switch WPL 309245 Contact Us For Availability
46
Safety Switch WPL 3186934 Contact Us For Availability
46
Screw (2) WPL 98106 Contact Us For Availability
47
Screw (2) WPL 311056 Contact Us For Availability
47
Screw (2) WPL 309258 Contact Us For Availability
47
Terminal, Shield WPL 313035 Contact Us For Availability
48
Sc WPL 308422 Contact Us For Availability
48
WPL 310825 WPL 310825 Contact Us For Availability
49
WPL 3183294 WPL 3183294 Contact Us For Availability
49
WPL 3184039 WPL 3184039 Contact Us For Availability
50
WPL 314209 WPL 314209 Contact Us For Availability
51
WPL 314215 WPL 314215 Contact Us For Availability
51
WPL 314210 WPL 314210 Contact Us For Availability
52
WPL 3148669 WPL 3148669 Contact Us For Availability
53
WPL 3147864 WPL 3147864 Contact Us For Availability
54
WPL 308043 WPL 308043 Contact Us For Availability
54
WPL 3183005 WPL 3183005 Contact Us For Availability
57
WPL 311256 WPL 311256 Contact Us For Availability
57
WPL 3148442 WPL 3148442 Contact Us For Availability
58
WPL 310433 WPL 310433 Contact Us For Availability
58
WPL 310435 WPL 310435 Contact Us For Availability
58
WPL 3149270 WPL 3149270 Contact Us For Availability
58
WPL 3149328 WPL 3149328 Contact Us For Availability
× ![]()
