Model Whirlpool RS630PXYH3 – Common Parts & Diagrams
05 - WIRING HARNESS
02 - COOKTOP

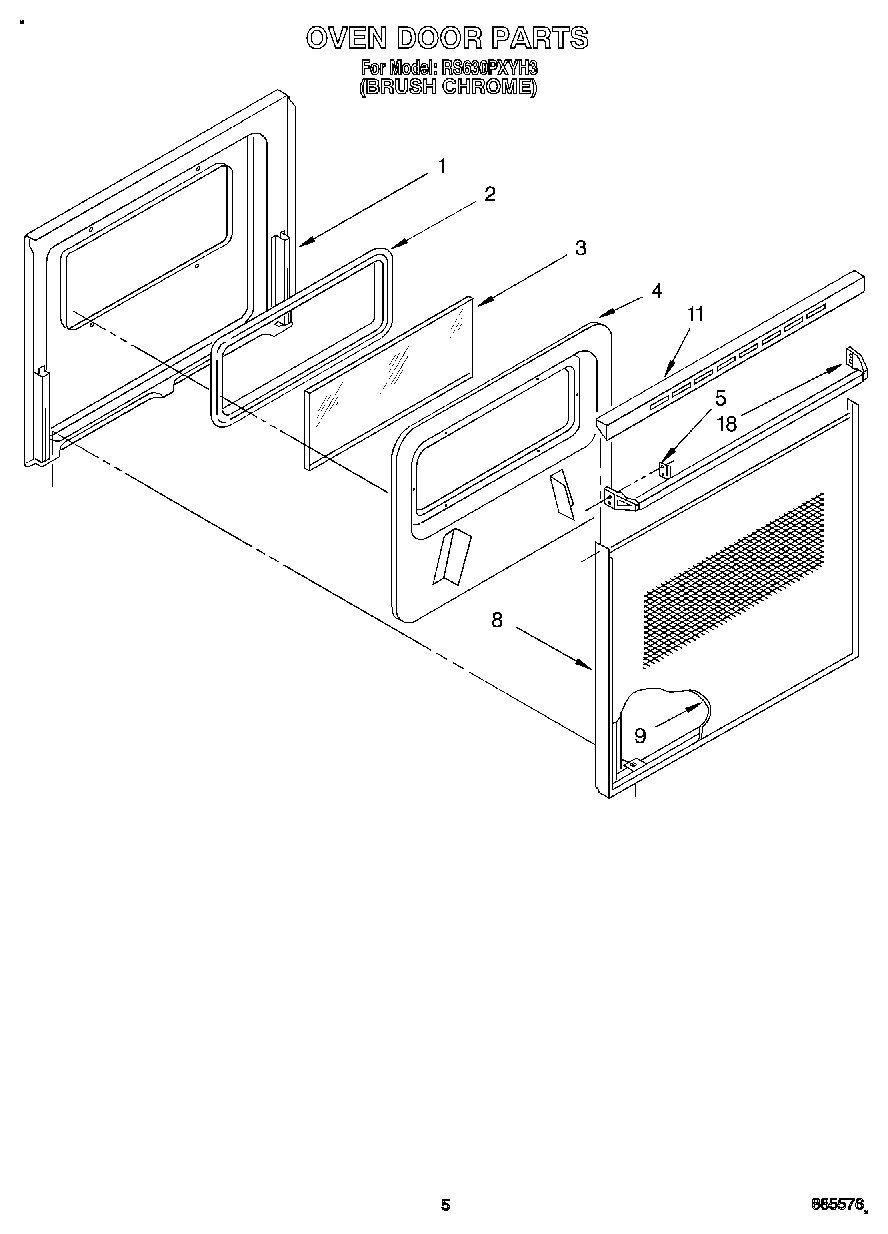

04 - OVEN DOOR

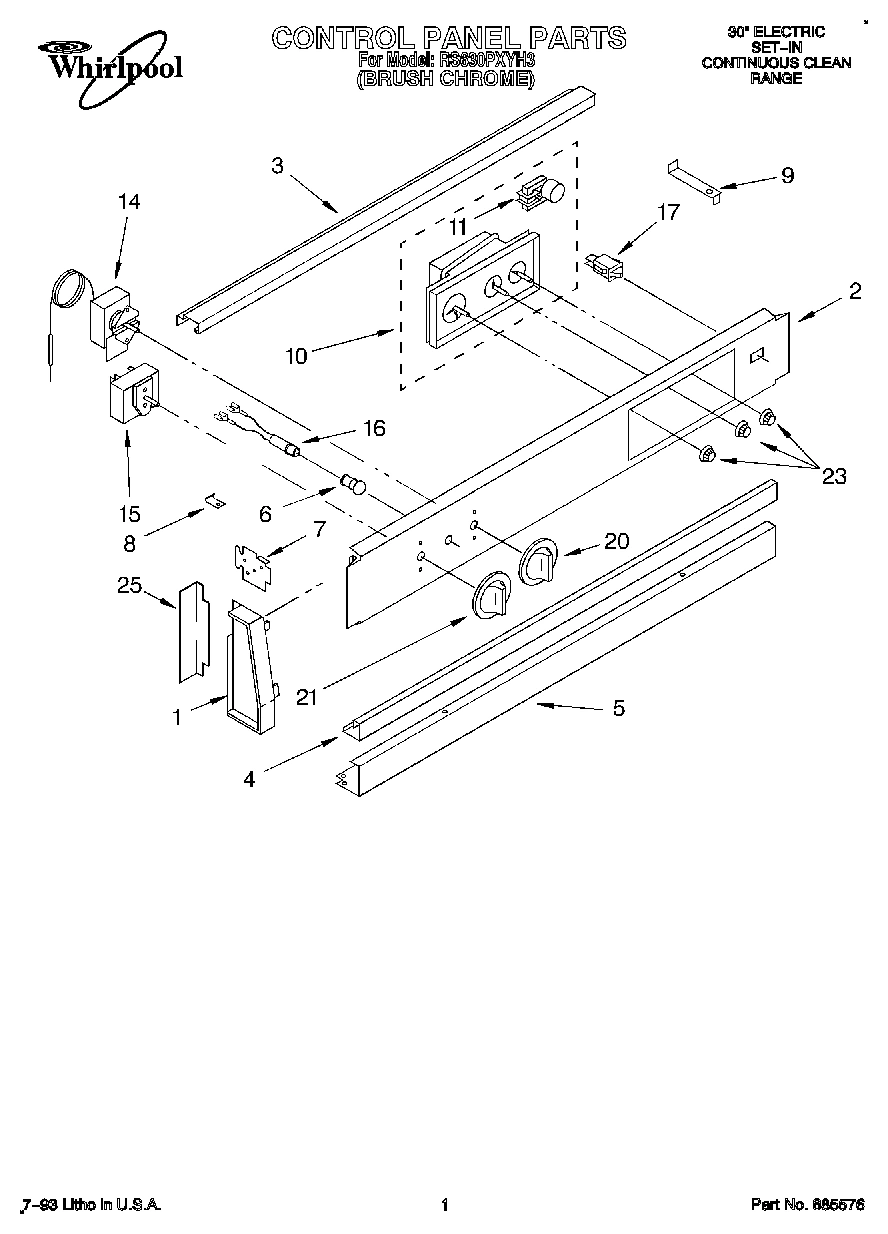

01 - CONTROL PANEL, LITERATURE

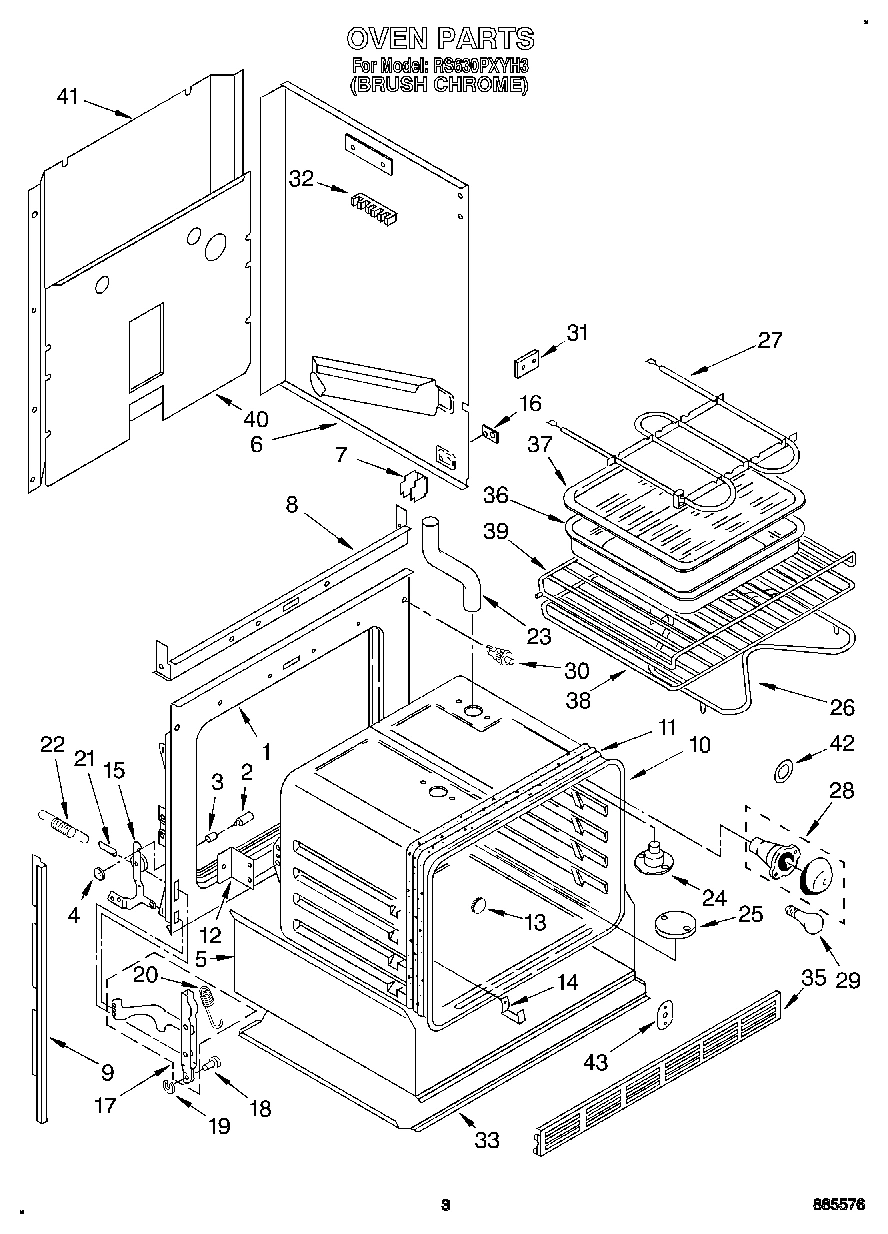

03 - OVEN
Common parts from model Whirlpool RS630PXYH3
Installation Instructions WPL LIT3147396 Contact Us For Availability
Tech Sheet WPL LIT3182751 Contact Us For Availability
Use & Care Guide WPL LIT3183766 Contact Us For Availability
1
Screw, 8-18 x 1/2 (3) WPL 3148443 Contact Us For Availability
1
Liner, Door WPL 3170710 Contact Us For Availability
1
End Cap (Screw (2)) WPL 308504 Contact Us For Availability
1
End Cap (R.H.) WPL 3148444 Contact Us For Availability
1
End Cap (L.H.) WPL 3148445 Contact Us For Availability
1
Frame, Front WPL 3176714 Contact Us For Availability
2
Seal, Glass WPL 3148183 Contact Us For Availability
2
Panel, Control WPL 3182829 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
3
Glass, Inner WPL 3169202 Contact Us For Availability
3
Rail, Top WPL 3148616 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
4
Baffle, Insulation WPL 3148287 Contact Us For Availability
4
Trim, Center WPL 3183358 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
5
Clip, Handle Mtg. (2) WPL 3148282 Contact Us For Availability
5
Rail, Bottom WPL 3183523 Contact Us For Availability
5
Screw, 8A x 5/16 (3) WPL 98520 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
6
Lens, Amber WPL 313101 Contact Us For Availability
6
Side Wrapper L.H. WPL 3187352 Contact Us For Availability
6
Side Wrapper R.H. WPL 3187353 Contact Us For Availability
7
Cover, Side (Right Side) WPL 3149027 Contact Us For Availability
7
Cover, Side (Left Side) WPL 3149028 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
8
screw (3) WPL 307748 Contact Us For Availability
8
Frame, Door WPL 3148235 Contact Us For Availability
8
Screw WPL 342043 Contact Us For Availability
8
Bracket, Support WPL 3184170 Contact Us For Availability
8
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
9
Glass, Outer Pano WPL 3148185 Contact Us For Availability
9
Support, Top Rail WPL 312752 Contact Us For Availability
9
Side Trim R.S. WPL 310685 Contact Us For Availability
9
Side Trim L.S. WPL 310689 Contact Us For Availability
10
Panel, Control WPL 3185692 Contact Us For Availability
10
Timer, Auto WPL 661459 Contact Us For Availability
10
Screw (3) WPL 311056 Contact Us For Availability
10
Oven (30`` Continuous Clean) WPL 3184219 Contact Us For Availability
11
Screw (5) WPL 3149333 Contact Us For Availability
11
Top, Door Frame WPL 3148223 Contact Us For Availability
11
Motor, Timer WPL 309822 Contact Us For Availability
11
Heat Seal WPL 3169283 Contact Us For Availability
12
Switch, Infinite (Use W/6`` Surface Unit (2)) WPL 3148968 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
13
Indicator, Light (Includes No. 14) WPL 313462 Contact Us For Availability
13
Button, Plug WPL 3182814 Contact Us For Availability
14
Lens, Indicator WPL 313602 Contact Us For Availability
14
Thermostat, Oven WPL 3183708 Contact Us For Availability
15
Switch, Selector (4 Position) WPL 3149886 Contact Us For Availability
15
Screw (2) WPL 4159448 Contact Us For Availability
15
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
15
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
16
Light, Indicator (250V) WPL 314031 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Switch, Rocker WPL 3182717 Contact Us For Availability
17
Channel, Arm (2) WPL 3185665 Contact Us For Availability
18
Handle, Oven Door WPL 3148228 Contact Us For Availability
19
Retainer Ring (2) WPL 307594 Contact Us For Availability
20
Knob, Thermostat WPL 3183106 Contact Us For Availability
20
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
21
Knob, Selector WPL 3183112 Contact Us For Availability
21
Medallion, Surface Unit WPL 309195 Contact Us For Availability
22
Knob, Control (4) WPL 3183120 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
23
Bracket, Sensor WPL 3147830 Contact Us For Availability
23
Extension, Vent WPL 310835 Contact Us For Availability
24
Thermostat WPL 3185885 Contact Us For Availability
24
Eliminator, Smoke WPL 310840 Contact Us For Availability
25
Trim, End Cap Top Rail WPL 3149900 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Screw (4) WPL 3150532 Contact Us For Availability
28
Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability
30
Switch, Door WPL 310345 Contact Us For Availability
31
Plate, Cover Broil WPL 3183005 Contact Us For Availability
33
Cover, Bottom WPL 3185945 Contact Us For Availability
35
Screw, Black 8-15 x 1/2 (3) WPL 309029 Contact Us For Availability
35
Grill, Bottom WPL 310668 Contact Us For Availability
38
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
39
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
40
Panel, Back WPL 3182052 Contact Us For Availability
41
Cover, Rear WPL 311012 Contact Us For Availability
43
Insulation, Wrap WPL 309961 Contact Us For Availability
43
Insulation, Back WPL 311458 Contact Us For Availability
43
Plate, Cover WPL 3184208 Contact Us For Availability
× ![]()
