Model Whirlpool RS630PXYH0 – Common Parts & Diagrams
03 - COOKTOP
05 - OVEN DOOR, OPTIONAL

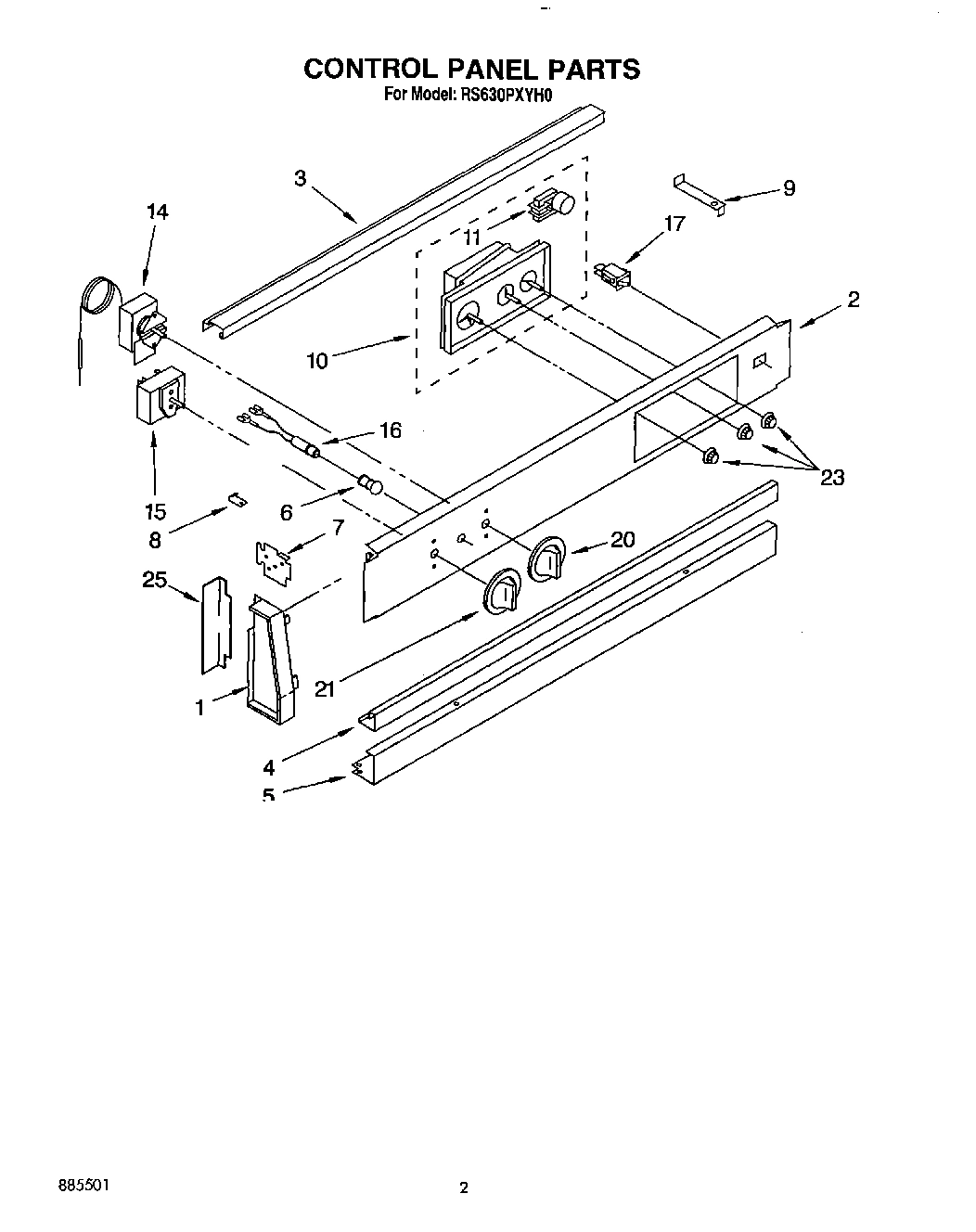

02 - CONTROL PANEL, LIT/OPTIONAL

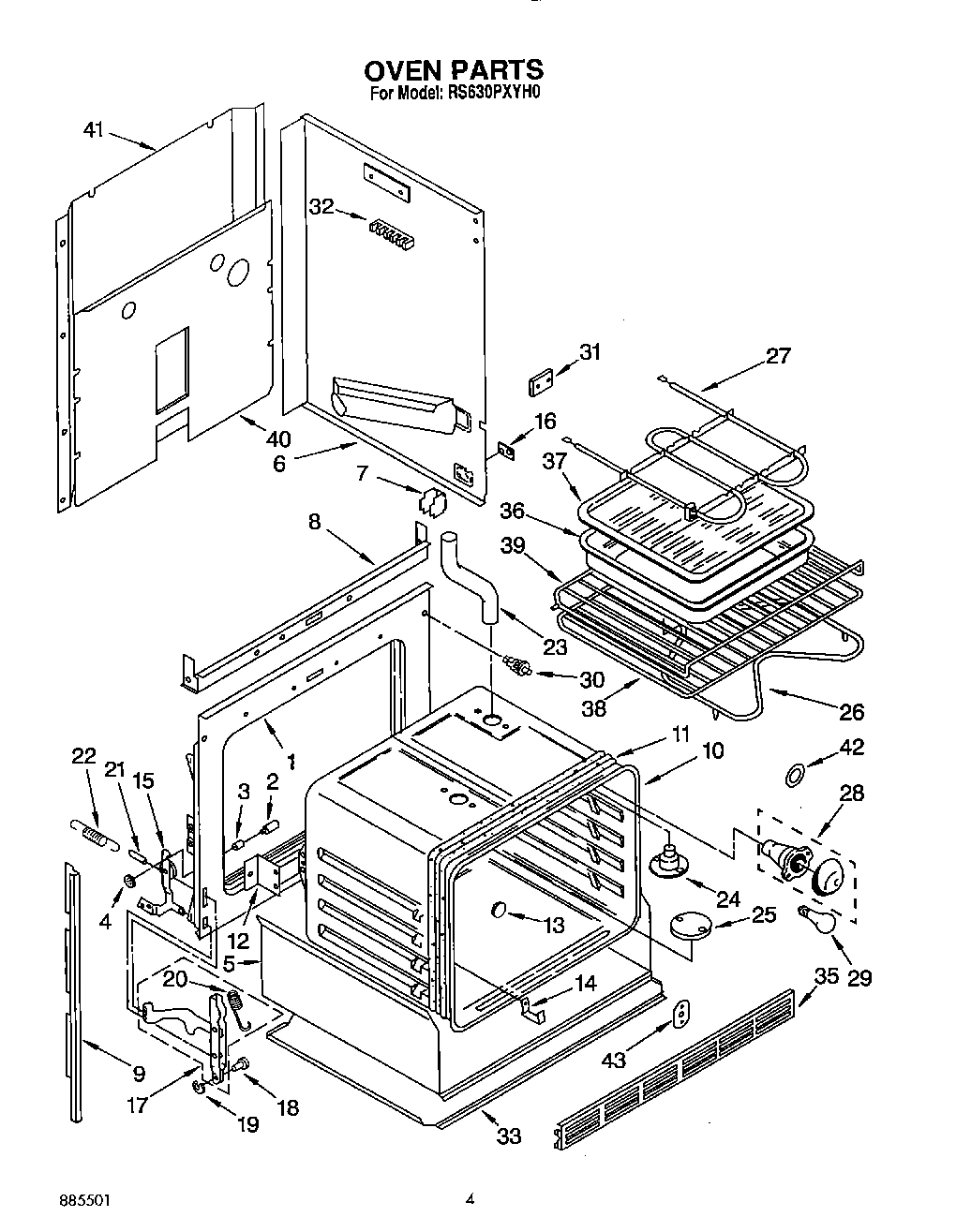

04 - OVEN

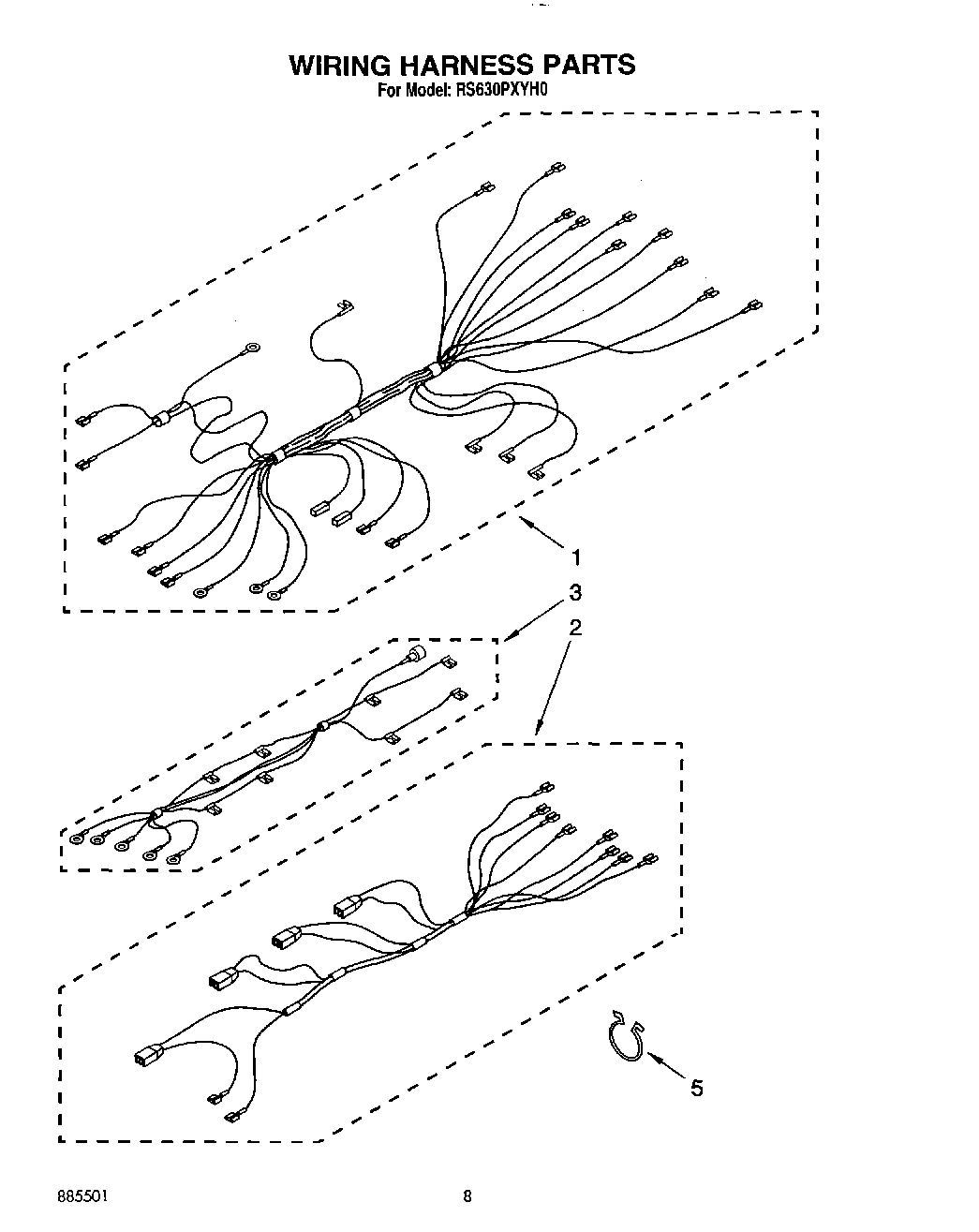

06 - WIRING HARNESS
Common parts from model Whirlpool RS630PXYH0
Installation Instructions WPL LIT3147396 Contact Us For Availability
Tech Sheet WPL LIT3182751 Contact Us For Availability
Use & Care Guide WPL LIT3183766 Contact Us For Availability
Repair Parts List WPL LIT885501 Contact Us For Availability
1
End Cap (Screw (2)) WPL 308504 Contact Us For Availability
1
End Cap (R.H.) WPL 3148444 Contact Us For Availability
1
End Cap (L.H.) WPL 3148445 Contact Us For Availability
1
Frame, Front WPL 3172204 Contact Us For Availability
1
Harness, Wire (Oven) WPL 3182750 Contact Us For Availability
2
Seal, Glass WPL 3148183 Contact Us For Availability
2
Panel, Control WPL 3182829 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Harness, Wire (Surface Unit) WPL 3147828 Contact Us For Availability
3
Rail, Top WPL 3148616 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 313464 Contact Us For Availability
4
Trim, Center WPL 3183358 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
5
Clip, Handle Mtg. (2) WPL 3148282 Contact Us For Availability
5
Rail, Bottom WPL 3183523 Contact Us For Availability
5
Screw, 8A x 5/16 (3) WPL 98520 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
6
Lens, Amber WPL 313101 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
7
Cover, Side (Right Side) WPL 3149027 Contact Us For Availability
7
Cover, Side (Left Side) WPL 3149028 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
8
Screw WPL 342043 Contact Us For Availability
8
Bracket, Support WPL 3184170 Contact Us For Availability
8
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
9
Support, Top Rail WPL 312752 Contact Us For Availability
9
Side Trim R.S. WPL 310685 Contact Us For Availability
9
Side Trim L.S. WPL 310689 Contact Us For Availability
10
Timer, Auto WPL 3183342 Contact Us For Availability
10
Screw (3) WPL 311056 Contact Us For Availability
10
Oven (30`` Continuous Clean) WPL 3184219 Contact Us For Availability
11
Heat Seal WPL 309107 Contact Us For Availability
11
Screw (5) WPL 3149333 Contact Us For Availability
11
Top, Door Frame WPL 3148223 Contact Us For Availability
11
Motor, Timer WPL 309822 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
13
Button, Plug WPL 3182814 Contact Us For Availability
14
Thermostat, Oven WPL 3183708 Contact Us For Availability
15
Switch, Selector (4 Position) WPL 3149886 Contact Us For Availability
15
Screw (2) WPL 4159448 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
16
Light, Indicator (250V) WPL 314031 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Switch, Rocker WPL 3182717 Contact Us For Availability
17
Channel Arm (2) WPL 329714 Contact Us For Availability
18
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
18
WPL 799344 WPL 799344 Contact Us For Availability
18
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
18
Grease WPL 261582 Contact Us For Availability
18
Touch-Up, Oven (1/2 Pt.) WPL 261810 Contact Us For Availability
18
Coffee WPL 261886 Contact Us For Availability
18
Coffee (Uncut) WPL 261887 Contact Us For Availability
18
New Avocado WPL 261888 Contact Us For Availability
18
New Avocado (Uncut) WPL 261889 Contact Us For Availability
18
Harvest Gold WPL 261890 Contact Us For Availability
18
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
18
Handle, Oven Door WPL 3148228 Contact Us For Availability
18
Mounting Hardware WPL 3171507 Contact Us For Availability
18
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
18
WPL 799832 WPL 799832 Contact Us For Availability
18
WPL 978883 WPL 978883 Contact Us For Availability
19
Retainer Ring (2) WPL 307594 Contact Us For Availability
20
Knob, Thermostat WPL 3183106 Contact Us For Availability
20
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
21
Knob, Selector WPL 3183112 Contact Us For Availability
22
Knob, Control (4) WPL 3183120 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
23
Extension, Vent WPL 310835 Contact Us For Availability
24
Thermostat WPL 3147833 Contact Us For Availability
24
Eliminator, Smoke WPL 310840 Contact Us For Availability
25
Trim, End Cap Top Rail WPL 3149900 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Screw (4) WPL 3150532 Contact Us For Availability
28
Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability
30
Switch, Door WPL 310345 Contact Us For Availability
31
Plate, Cover Broil WPL 3183005 Contact Us For Availability
33
Cover, Bottom WPL 310458 Contact Us For Availability
35
Screw, Black 8-15 x 1/2 (3) WPL 309029 Contact Us For Availability
35
Grill, Bottom WPL 310668 Contact Us For Availability
38
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
39
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
40
Panel, Back WPL 3182052 Contact Us For Availability
41
Cover, Rear WPL 311012 Contact Us For Availability
43
Insulation, Wrap WPL 309961 Contact Us For Availability
43
Insulation, Back WPL 311458 Contact Us For Availability
43
Plate, Cover WPL 3184208 Contact Us For Availability
× ![]()
