Model Whirlpool RS6105XYN6 – Common Parts & Diagrams

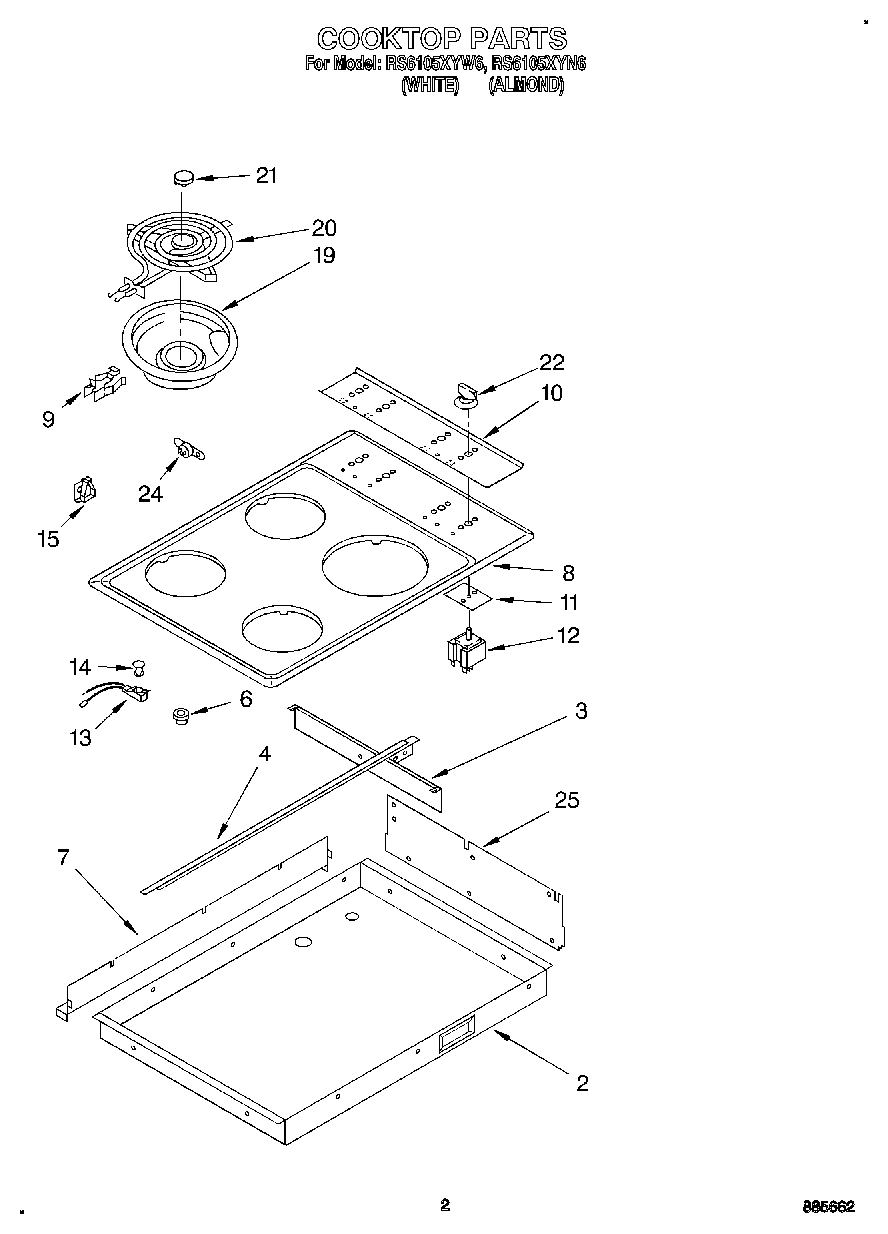

02 - COOKTOP

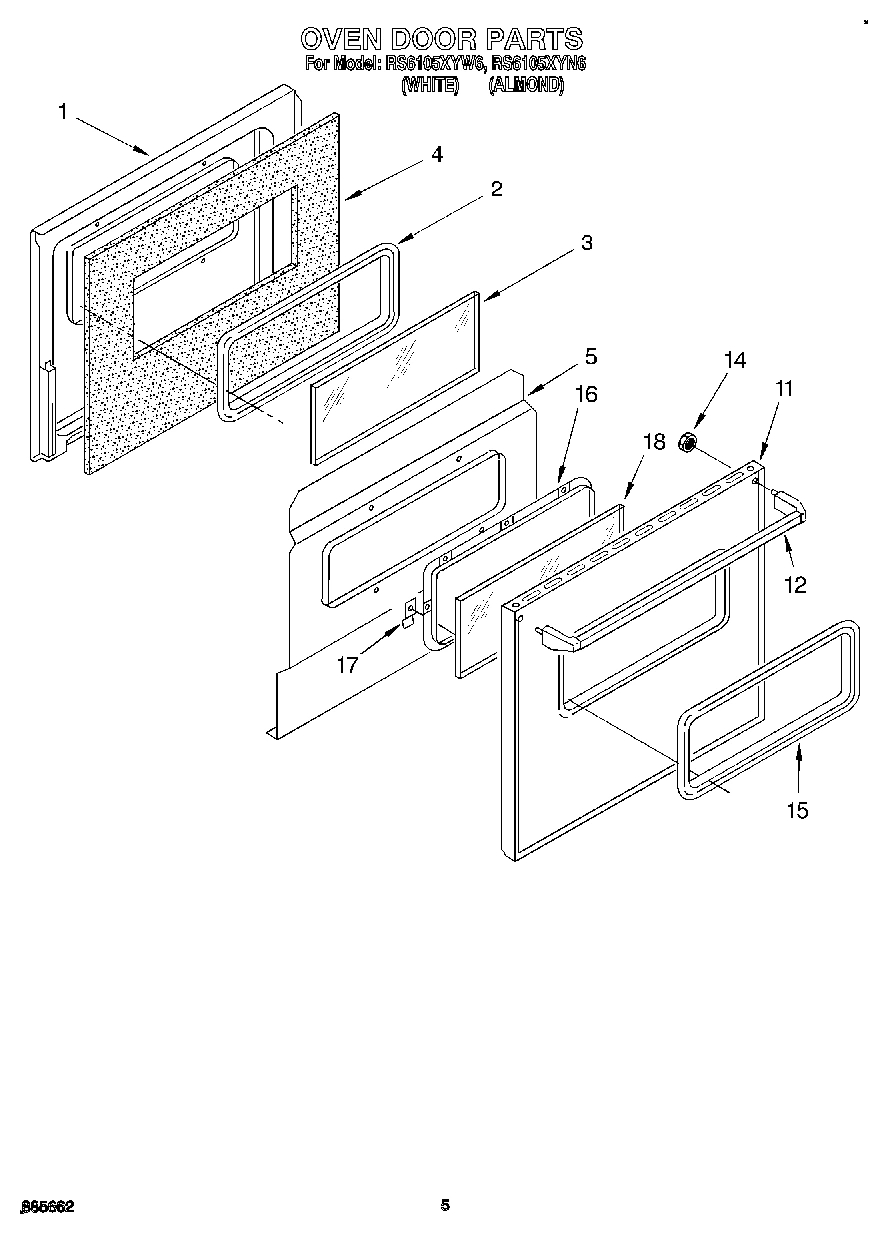

04 - OVEN DOOR
03 - OVEN, LITERATURE
01 - CONTROL PANEL
05 - WIRING HARNESS, OPTIONAL
Common parts from model Whirlpool RS6105XYN6
WPL LIT3147396 WPL LIT3147396 Contact Us For Availability
WPL LIT3188557 WPL LIT3188557 Contact Us For Availability
WPL LIT3188576 WPL LIT3188576 Contact Us For Availability
1
Frame, Front WPL 3186977 Contact Us For Availability
1
End Cap (R.H.) WPL 3148444 Contact Us For Availability
1
End Cap (L.H.) WPL 3148445 Contact Us For Availability
1
Harness, Wire (Oven) WPL 3188446 Contact Us For Availability
2
Seal, Pano Glass WPL 3148183 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Panel, Control WPL 3182829 Contact Us For Availability
2
Screw, WPL 312318 Contact Us For Availability
2
Harness, Wire (Surface Unit) WPL 3188449 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Rail, Top WPL 3148616 Contact Us For Availability
3
Harness, Wire (Infinite Switch) WPL 3188566 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Trim, Center WPL 3183358 Contact Us For Availability
5
Insulation Tray WPL 3185944 Contact Us For Availability
5
Screw (4) WPL 342043 Contact Us For Availability
5
Rail, Bottom WPL 3184045 Contact Us For Availability
6
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
6
Side Wrapper R.H. WPL 3185954 Contact Us For Availability
6
Side Wrapper L.H. WPL 3185957 Contact Us For Availability
6
Lens, Amber WPL 313101 Contact Us For Availability
6
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
6
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
6
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
6
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
6
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
6
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
6
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
6
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
6
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
6
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
6
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
6
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
6
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
6
Grease WPL 261582 Contact Us For Availability
6
console WPL 261825 Contact Us For Availability
6
Coffee WPL 261886 Contact Us For Availability
6
Coffee (Uncut) WPL 261887 Contact Us For Availability
6
New Avocado WPL 261888 Contact Us For Availability
6
New Avocado (Uncut) WPL 261889 Contact Us For Availability
6
Harvest Gold WPL 261890 Contact Us For Availability
6
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
6
Toast WPL 285365 Contact Us For Availability
6
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
6
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
6
Platinum (Uncut) WPL 285368 Contact Us For Availability
6
Mounting Hardware WPL 3171507 Contact Us For Availability
6
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
6
WPL 72112 WPL 72112 Contact Us For Availability
6
WPL 799832 WPL 799832 Contact Us For Availability
6
WPL 978883 WPL 978883 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
7
Cover, Side (Right Side) WPL 3149027 Contact Us For Availability
7
Cover, Side (Lewft Side) WPL 3149028 Contact Us For Availability
8
Baffle, Top Insulation WPL 3183796 Contact Us For Availability
8
Bracket, Support WPL 3184170 Contact Us For Availability
9
Side Trim R.S. WPL 310685 Contact Us For Availability
9
Side Trim L.S. WPL 310689 Contact Us For Availability
9
Support, Top Rail WPL 312752 Contact Us For Availability
10
Screw (3) WPL 311056 Contact Us For Availability
10
Oven, 30`` Standard WPL 3182032 Contact Us For Availability
10
Screw (4) WPL 98520 Contact Us For Availability
10
Timer, Auto WPL 661459 Contact Us For Availability
11
Panel, Door (Almond) WPL 307896 Contact Us For Availability
11
Heat Seal WPL 3169283 Contact Us For Availability
11
Motor, Timer WPL 309822 Contact Us For Availability
12
Handle, Door WPL 311563 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
13
Button, Plug WPL 3182814 Contact Us For Availability
14
Thermostat, Oven WPL 3169306 Contact Us For Availability
14
Screw (2) WPL 3186941 Contact Us For Availability
15
Window Frame 30`` WPL 3149277 Contact Us For Availability
15
Screw (3) WPL 3149333 Contact Us For Availability
15
Hinge, Ear (Right Side) WPL 3185662 Contact Us For Availability
15
Hinge, Ear (Left Side) WPL 3185663 Contact Us For Availability
15
Switch, Selector (4 Position) WPL 3149886 Contact Us For Availability
15
Screw (2) WPL 3186940 Contact Us For Availability
16
Light, Indicator (250V) WPL 314031 Contact Us For Availability
16
Glass Retainer 30`` WPL 307792 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Clip, Frame WPL 307731 Contact Us For Availability
17
Channel, Arm (2) WPL 3185665 Contact Us For Availability
17
Switch, Rocker WPL 3182717 Contact Us For Availability
18
Glass, Outer 30`` WPL 307732 Contact Us For Availability
18
Screw, 7-19 x 3/8 (8) WPL 313045 Contact Us For Availability
19
Retainer Ring (2) WPL 307594 Contact Us For Availability
20
Spring, Door Stop (2) WPL 311092 Contact Us For Availability
20
Knob, Thermostat WPL 3183106 Contact Us For Availability
21
Knob, Selector WPL 3183112 Contact Us For Availability
22
Knob, Control (4) WPL 3183120 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
23
Extension, Vent WPL 310835 Contact Us For Availability
24
Eliminator, Smoke WPL 310840 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
25
Trim, End Cap WPL 3149900 Contact Us For Availability
27
Screw (4) WPL 3150532 Contact Us For Availability
30
Switch, Door WPL 310345 Contact Us For Availability
31
Plug, Oven WPL 3169107 Contact Us For Availability
32
Screw (2) WPL 308043 Contact Us For Availability
33
Cover, Bottom & Top WPL 3185945 Contact Us For Availability
35
Screw, Black 8-15 x 1/2 (3) WPL 309029 Contact Us For Availability
35
Grill, Bottom WPL 310668 Contact Us For Availability
38
Rack, Oven (Straight) WPL 3185641 Contact Us For Availability
39
Rack, Oven Offset WPL 3185640 Contact Us For Availability
40
Panel, Back WPL 3182052 Contact Us For Availability
41
WPL 3185960 WPL 3185960 Contact Us For Availability
42
WPL 3183005 WPL 3183005 Contact Us For Availability
44
WPL 309961 WPL 309961 Contact Us For Availability
44
WPL 311458 WPL 311458 Contact Us For Availability
44
WPL 3184208 WPL 3184208 Contact Us For Availability
× ![]()
