Model Maytag RS520 MICROWAVE – Common Parts & Diagrams
01 - CONTROL PANEL
02 - EXTERIOR

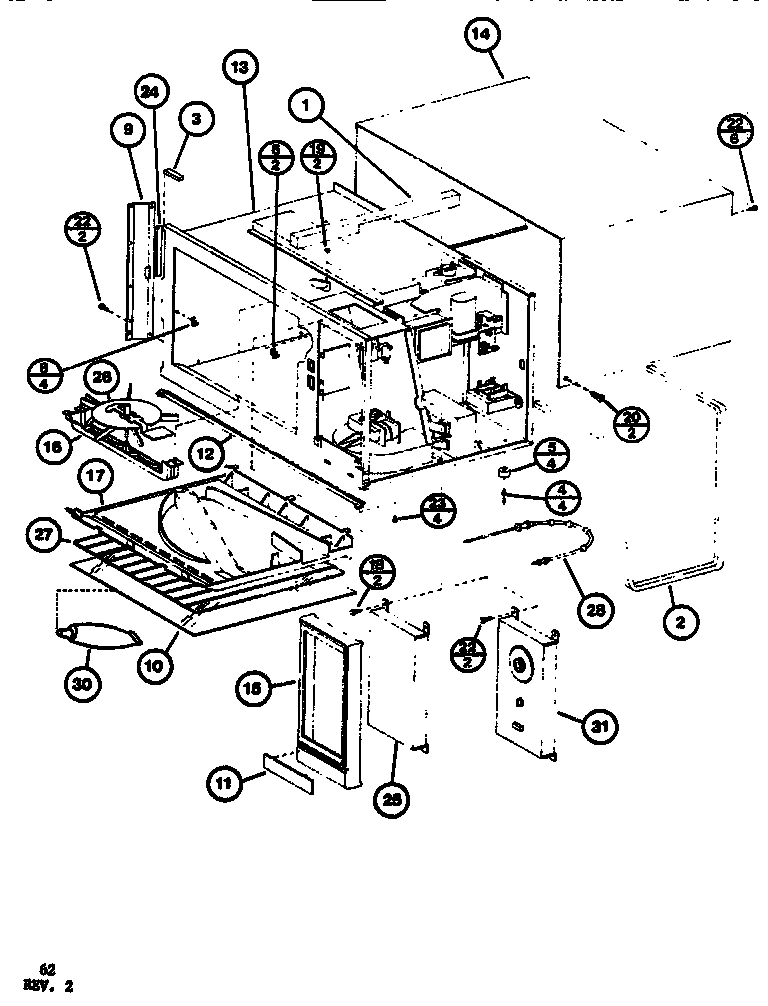

03 - INTERIOR

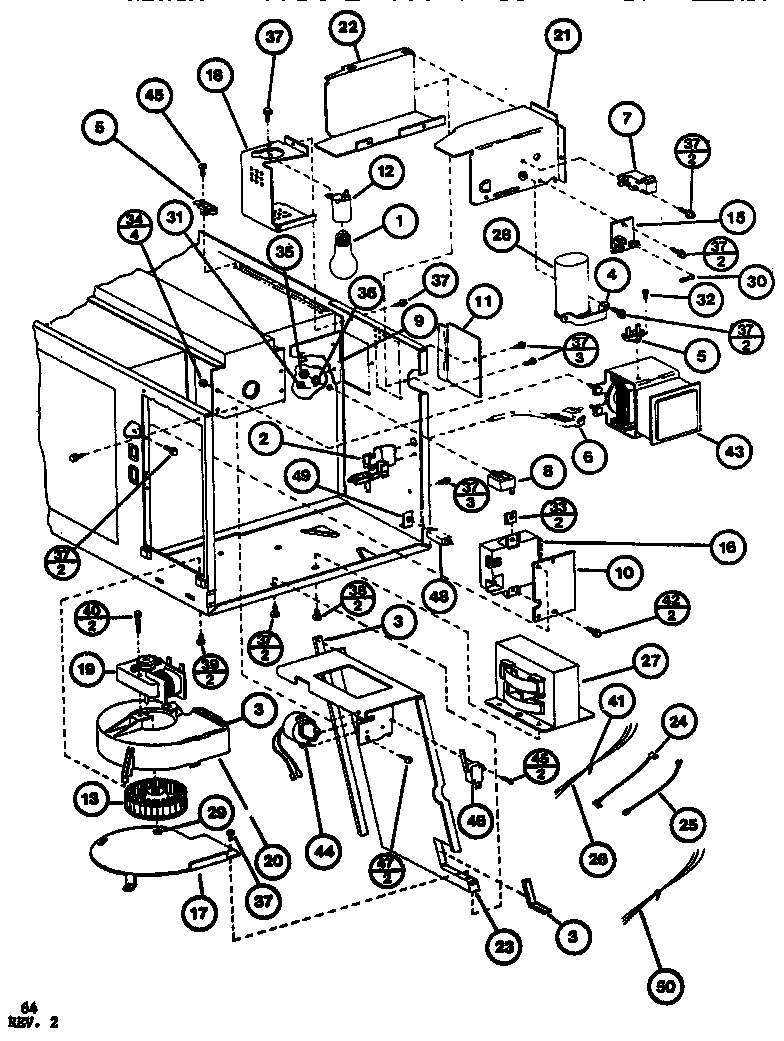

04 - INTERIOR
Common parts from model Maytag RS520 MICROWAVE
1
MAY A1050101 MAY A1050101 Contact Us For Availability
1
MAY B8369901 MAY B8369901 Contact Us For Availability
1
BULB, LIGHT(240) MAY A0282802 Contact Us For Availability
2
MAY D7671602 MAY D7671602 Contact Us For Availability
2
MAY A3030341 MAY A3030341 Contact Us For Availability
2
MAY B8354401 MAY B8354401 Contact Us For Availability
3
MAY A3030302 MAY A3030302 Contact Us For Availability
3
MAY C8846503 MAY C8846503 Contact Us For Availability
3
MAY A3263905 MAY A3263905 Contact Us For Availability
3
MAY A3030301 MAY A3030301 Contact Us For Availability
4
MAY C8933602 MAY C8933602 Contact Us For Availability
4
MAY A4539601 MAY A4539601 Contact Us For Availability
4
MAY A4539625 MAY A4539625 Contact Us For Availability
4
MAY A4055404 MAY A4055404 Contact Us For Availability
5
MAY C8942103 MAY C8942103 Contact Us For Availability
5
MAY B8370301 MAY B8370301 Contact Us For Availability
5
MAY B5732506 MAY B5732506 Contact Us For Availability
5
MAY B5795305 MAY B5795305 Contact Us For Availability
6
MAY C8952301 MAY C8952301 Contact Us For Availability
6
MAY B8370401 MAY B8370401 Contact Us For Availability
6
MAY B8374901 MAY B8374901 Contact Us For Availability
6
MAY B5669004 MAY B5669004 Contact Us For Availability
7
MAY D7711101 MAY D7711101 Contact Us For Availability
7
MAY B8371101 MAY B8371101 Contact Us For Availability
7
MAY B5767804 MAY B5767804 Contact Us For Availability
8
MAY D7685306 MAY D7685306 Contact Us For Availability
8
MAY B8371201 MAY B8371201 Contact Us For Availability
9
MAY D7688502 MAY D7688502 Contact Us For Availability
9
MAY C8893502 MAY C8893502 Contact Us For Availability
9
MAY C8935901 MAY C8935901 Contact Us For Availability
9
MAY B8367701 MAY B8367701 Contact Us For Availability
10
MAY M0230015 MAY M0230015 Contact Us For Availability
10
MAY C8936101 MAY C8936101 Contact Us For Availability
10
MAY C8936902 MAY C8936902 Contact Us For Availability
10
MAY B8370601 MAY B8370601 Contact Us For Availability
11
SCREW MAY M0234114 Contact Us For Availability
11
MAY C8936201 MAY C8936201 Contact Us For Availability
11
MAY C8942001 MAY C8942001 Contact Us For Availability
11
MAY B8370702 MAY B8370702 Contact Us For Availability
12
MAY B8308602 MAY B8308602 Contact Us For Availability
12
MAY C8943601 MAY C8943601 Contact Us For Availability
12
MAY B8371401 MAY B8371401 Contact Us For Availability
13
MAY B5705707 MAY B5705707 Contact Us For Availability
13
MAY D7684114 MAY D7684114 Contact Us For Availability
13
MAY C8793501 MAY C8793501 Contact Us For Availability
14
MAY D7683304 MAY D7683304 Contact Us For Availability
14
MAY C7684902 MAY C7684902 Contact Us For Availability
15
MAY D7685106 MAY D7685106 Contact Us For Availability
15
MAY C8374101 MAY C8374101 Contact Us For Availability
16
MAY D7683502 MAY D7683502 Contact Us For Availability
16
MAY D7685501 MAY D7685501 Contact Us For Availability
16
SWITCH, INTERLOCK MAY C8935802 Contact Us For Availability
17
MAY D7692501 MAY D7692501 Contact Us For Availability
17
MAY C8942501 MAY C8942501 Contact Us For Availability
18
MAY R0156518 MAY R0156518 Contact Us For Availability
18
MAY C8942901 MAY C8942901 Contact Us For Availability
19
MAY M0288808 MAY M0288808 Contact Us For Availability
19
MAY D7670302 MAY D7670302 Contact Us For Availability
20
MAY M0010214 MAY M0010214 Contact Us For Availability
20
MAY M0243318 MAY M0243318 Contact Us For Availability
20
MAY D7684601 MAY D7684601 Contact Us For Availability
21
MAY M0234016 MAY M0234016 Contact Us For Availability
21
MAY D7684702 MAY D7684702 Contact Us For Availability
22
MAY M0243418 MAY M0243418 Contact Us For Availability
22
MAY D7684801 MAY D7684801 Contact Us For Availability
23
MAY M0259218 MAY M0259218 Contact Us For Availability
23
MAY M1200107 MAY M1200107 Contact Us For Availability
23
MAY D7685403 MAY D7685403 Contact Us For Availability
24
MAY C8941901 MAY C8941901 Contact Us For Availability
24
MAY A3263904 MAY A3263904 Contact Us For Availability
24
MAY D7685629 MAY D7685629 Contact Us For Availability
24
MAY D7685630 MAY D7685630 Contact Us For Availability
25
MAY D7685656 MAY D7685656 Contact Us For Availability
26
MAY C8943001 MAY C8943001 Contact Us For Availability
27
MAY D7686904 MAY D7686904 Contact Us For Availability
28
MAY D8547909 MAY D8547909 Contact Us For Availability
29
MAY M0118903 MAY M0118903 Contact Us For Availability
30
MAY M0805103 MAY M0805103 Contact Us For Availability
31
SEE NOTE CONTROL ASSEMBLY -- (SEE PARTS BREAK MAY Y00000000 Contact Us For Availability
31
MAY M0310316 MAY M0310316 Contact Us For Availability
33
MAY M0288213 MAY M0288213 Contact Us For Availability
34
MAY M0282801 MAY M0282801 Contact Us For Availability
38
SCREW MAY M0251030 Contact Us For Availability
39
MAY M0254706 MAY M0254706 Contact Us For Availability
40
MAY M0254713 MAY M0254713 Contact Us For Availability
41
MAY M0321204 MAY M0321204 Contact Us For Availability
42
MAY M0216517 MAY M0216517 Contact Us For Availability
43
MAY C8761713 MAY C8761713 Contact Us For Availability
44
MAY B5699807 MAY B5699807 Contact Us For Availability
45
MAY M0229005 MAY M0229005 Contact Us For Availability
46
MAY B8339901 MAY B8339901 Contact Us For Availability
47
MAY M0215831 MAY M0215831 Contact Us For Availability
48
MAY B5717801 MAY B5717801 Contact Us For Availability
49
MAY B5696103 MAY B5696103 Contact Us For Availability
× ![]()
