Model Fisher & Paykel RS3084SLHK1-26168-C Refrigerator – Common Parts & Diagrams

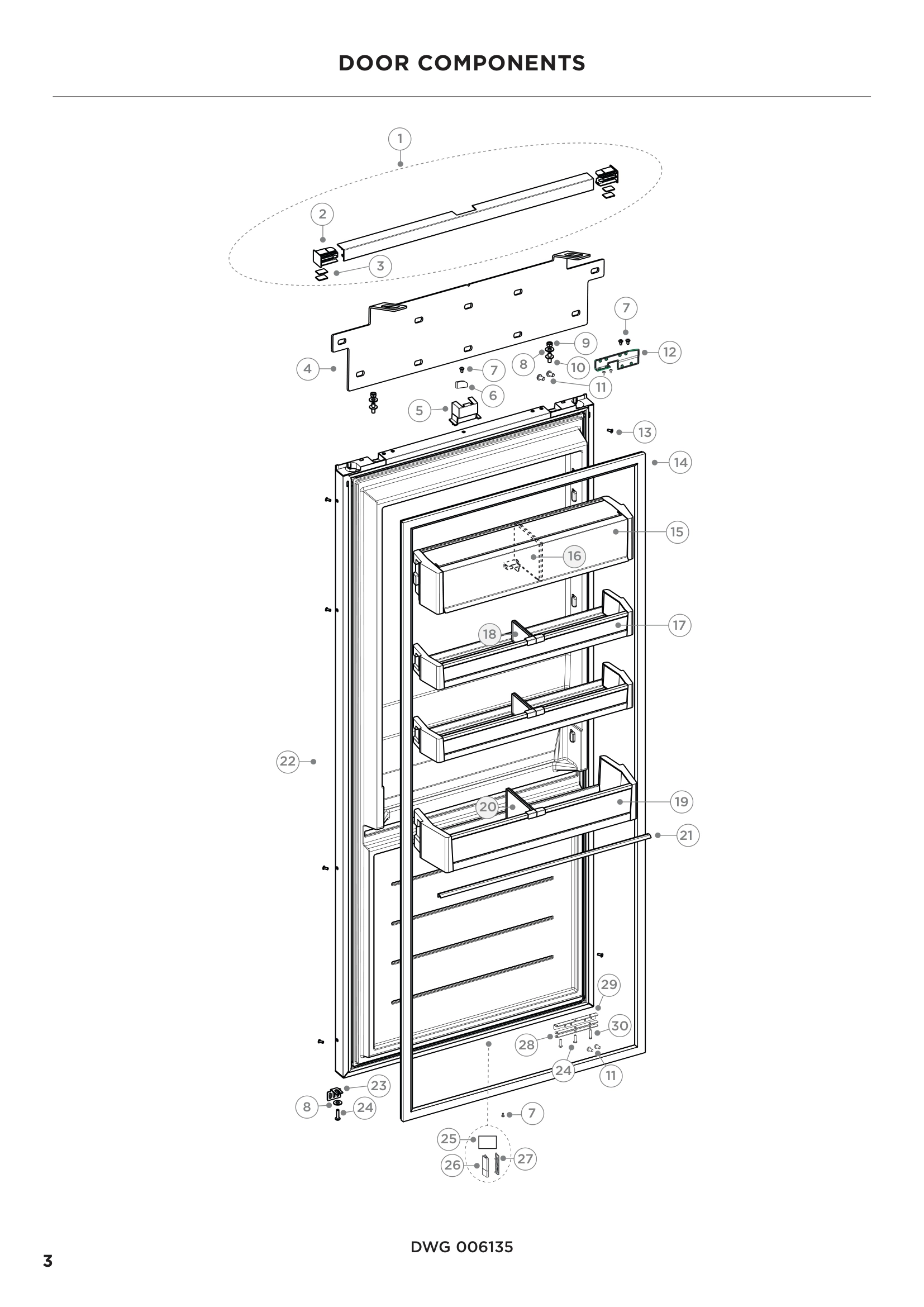

DOOR COMPONENTS

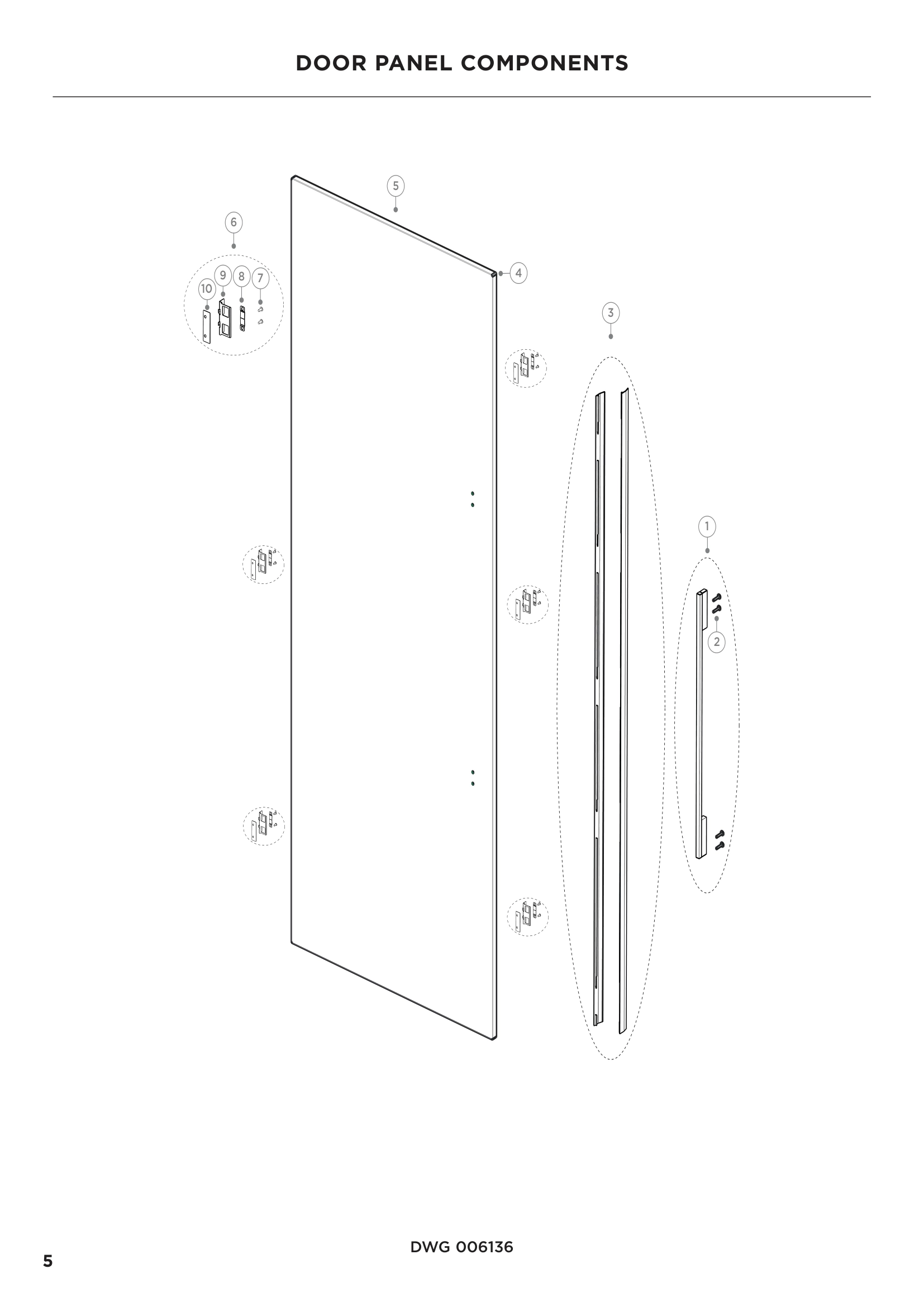

DOOR PANEL COMPONENTS
SHELVES & BINS AREA
CABINET INTERIOR COMPONENTS
CABINET INTERIOR COMPONENTS
TERMINAL, PLUGS & SOCKETS
PLINTH COMPONENTS
PLINTH COMPONENTS
PLINTH COMPONENTS
SINGLE INSTALLATION COMPONENTS
DOUBLE INSTALLATION COMPONENTS
STABILITY COMPONENTS
Common parts from model Fisher & Paykel RS3084SLHK1-26168-C Refrigerator
1
SPACER COVER DRAIN ASSY FPA 848128 Contact Us For Availability
1
TERMINAL SYF-01T PKT 10 FPA 819607P Contact Us For Availability
1
KIT ALCOVE TRIM FPA 868352 Contact Us For Availability
1
KIT BRACE ANIT TIP FPA 847164P Contact Us For Availability
2
PIN/TERM SYM-01T PKT 10 FPA 819609P Contact Us For Availability
2
DIVIDER PLINTH REAR FPA 843139 Contact Us For Availability
2
KIT DUAL INSTALL FPA 867910 Contact Us For Availability
3
JST SOCKET 2PIN YLR-02V FPA 819615 Contact Us For Availability
4
SCREW ST #8X15-M6X12 WASHER KIT FPA 840421P Contact Us For Availability
4
DIVIDER PLINTH FRONT FPA 842779 Contact Us For Availability
5
CLIP EDGE EARTH TAB AR EPF255 FPA 846732P Contact Us For Availability
5
RETAINER 2 WAY YLS-02V FPA 819620 Contact Us For Availability
6
BLOCKER CONDSR AIRFLOW BYPASS FPA 845772 Contact Us For Availability
7
DUCT CVR SEAL LWR SS RS30 ASSY FPA 849243P Contact Us For Availability
7
SCREW ST 8X1/2 SD TRS NIB PH P FPA 611977P Contact Us For Availability
8
GROMMET CONDNSR AIR B/PASS FPA 848130 Contact Us For Availability
9
KIT DUCT COVER SEAL UPR RS30W FPA 862712P Contact Us For Availability
9
LOCKING PLATE REAR PLINTH 30 FPA 842251 Contact Us For Availability
10
NAMEPLATE FP CHROME LETTERS FPA 847363 Contact Us For Availability
13
POCKET HINGE TOP LH FPA 843719 Contact Us For Availability
13
CLIP SPIRE SIZE 8 FPA 841023P Contact Us For Availability
14
SPACER BRACKET HINGE TOP FPA 847537 Contact Us For Availability
14
PLUG VALVE ICE WATER 1/4IN FPA 865444 Contact Us For Availability
15
BRACKET HINGE TOP RS FPA 842944 Contact Us For Availability
17
KIT MAT BIN UPR RS30S FPA 844048P Contact Us For Availability
18
SHELF HCL LWR RS30 ASSY FPA 847178P Contact Us For Availability
18
TUBE COPPER U-BEND FPA 845861 Contact Us For Availability
19
DIVIDER BIN LWR FPA 844809 Contact Us For Availability
20
CONNECTOR WATER STRAIGHT FPA 839111 Contact Us For Availability
20
COVER COMMS PORT FPA 884505 Contact Us For Availability
21
KIT MAT BIN LWR RS30S FPA 844043P Contact Us For Availability
21
BRACKET VALVE DISPENSER IW FPA 866091 Contact Us For Availability
22
TUBE ADAPTOR PROCESS RS FPA 842972 Contact Us For Availability
23
VALVE WATER DISP FPA 866046 Contact Us For Availability
23
TUBE ADAPTOR SUCTION RS FPA 842989 Contact Us For Availability
24
END CAP UI RH RS FPA 844971 Contact Us For Availability
26
GROMMET 26MM KIT FPA 843824P Contact Us For Availability
27
BRACKET ALCOVE TOP LH FPA 847006 Contact Us For Availability
27
POST COMP MTG 26MM PKT X4 FPA 841291P Contact Us For Availability
28
END CAP UI LH RS FPA 844970 Contact Us For Availability
28
SCREW M4X16 PLASTITE PH T15 PK FPA 847532P Contact Us For Availability
29
COVER INTEGRATED SIDE LIGHT GR FPA 848428 Contact Us For Availability
29
CLIP R COVER COMP M1.6 S4HPP16 FPA 207419 Contact Us For Availability
30
COVER PROTECTOR VEM FPA 207310 Contact Us For Availability
32
BRACKET INVERTER MOLEX CONN FPA 849714 Contact Us For Availability
36
CLIP SENSOR FPA 845878 Contact Us For Availability
37
MOUNTING PLATE KICK STRIP 30 FPA 843253 Contact Us For Availability
38
COVER PLUG TYCO FPA 821745 Contact Us For Availability
42
SHIELD HEAT 30 UPR FC FPA 844107 Contact Us For Availability
43
HOUSING FAN ASSY WHITE FPA 862891 Contact Us For Availability
43
BLOCKER AIR BYPASS KICKSTRIP FPA 846405 Contact Us For Availability
44
SHIELD HEAT 30 LWR FC FPA 844108 Contact Us For Availability
44
TUBE DISCHARGE RS3084 FPA 842988 Contact Us For Availability
45
SHIELD DRAIN LWR 30PC FPA 844877 Contact Us For Availability
45
BRACKET KICK STRIP ADJUSTING FPA 842018 Contact Us For Availability
46
CLIP HARNESS HT 151-000367 FPA 845740P Contact Us For Availability
47
WIRE DRAIN HEATER RS FPA 847315 Contact Us For Availability
47
WASHER FLAT M6X12X1.2 PKT10 FPA 843453P Contact Us For Availability
48
SHIELD DRAIN UPR 30PC FPA 844876 Contact Us For Availability
49
DRAIN PLINTH FPA 845859 Contact Us For Availability
50
SCREW MC M5X12 HXW NIB ZP PKT10 FPA 845515P Contact Us For Availability
50
TRAY WATER EVAP COLUMNS FPA 841476 Contact Us For Availability
51
DRAIN TUBE PLINTH UPPER RS30 FPA 845858 Contact Us For Availability
52
BRACKET HINGE LOWER LEFT FPA 843027 Contact Us For Availability
53
BRACKET PLINTH FRONT RIGHT FPA 842882 Contact Us For Availability
53
KIT LEVELLING SYSTEM FNT LONG - POST 20 APR 2 FPA 869085P Contact Us For Availability
55
KIT LEVELLING SYSTEM REAR LONG - POST 20 APR FPA 869086P Contact Us For Availability
62
HARNESS WIFI GEA WIRE FPA 862641 Contact Us For Availability
NI
SCREW CAP M5X20 NZ PKT10 FPA 847984P Contact Us For Availability
NI
KIT INSTALL FASTENERS FPA 848192 Contact Us For Availability
× ![]()
