Model Fisher & Paykel RS3084SL1-26127-B Refrigerator – Common Parts & Diagrams

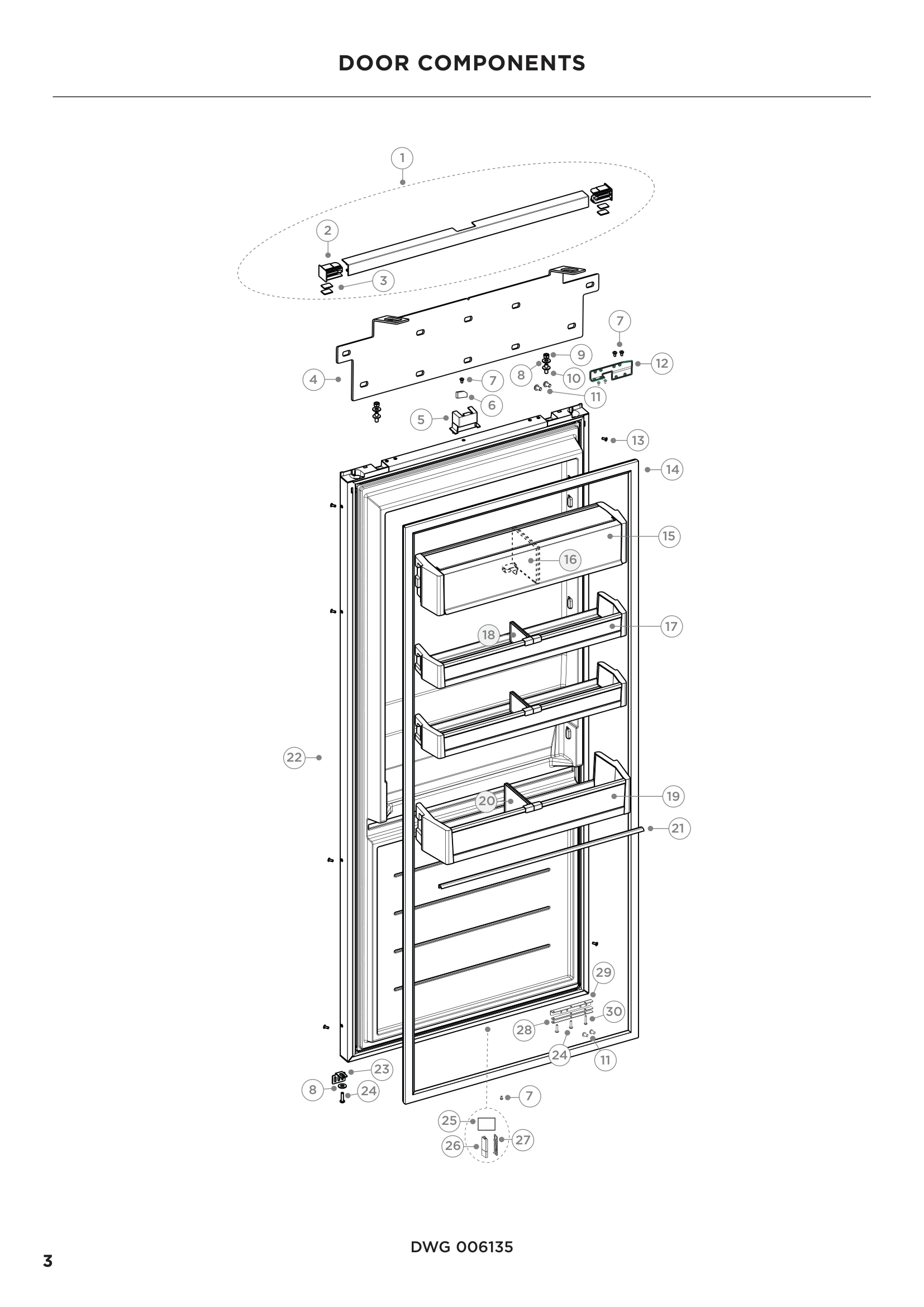

DOOR COMPONENTS

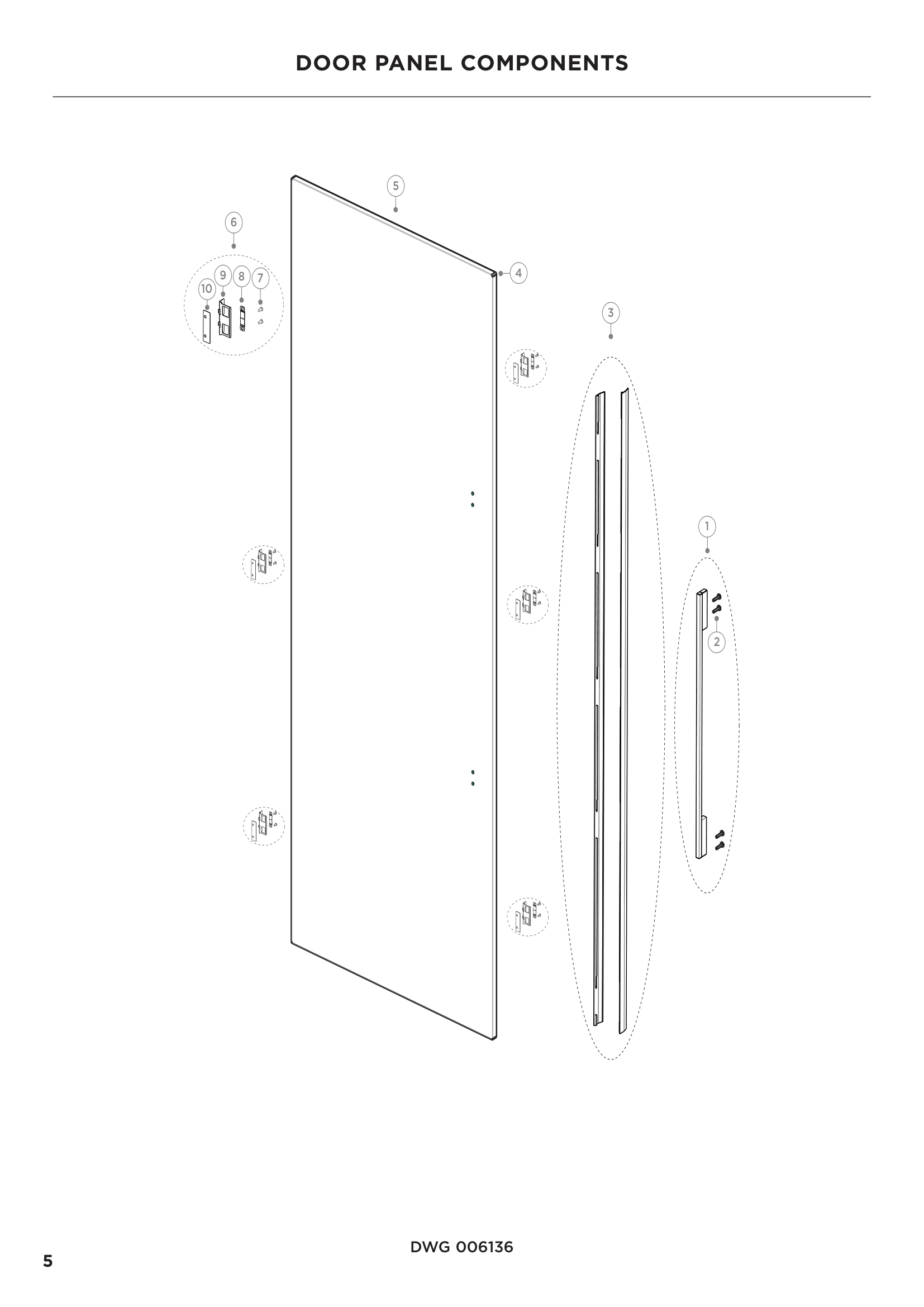

DOOR PANEL COMPONENTS

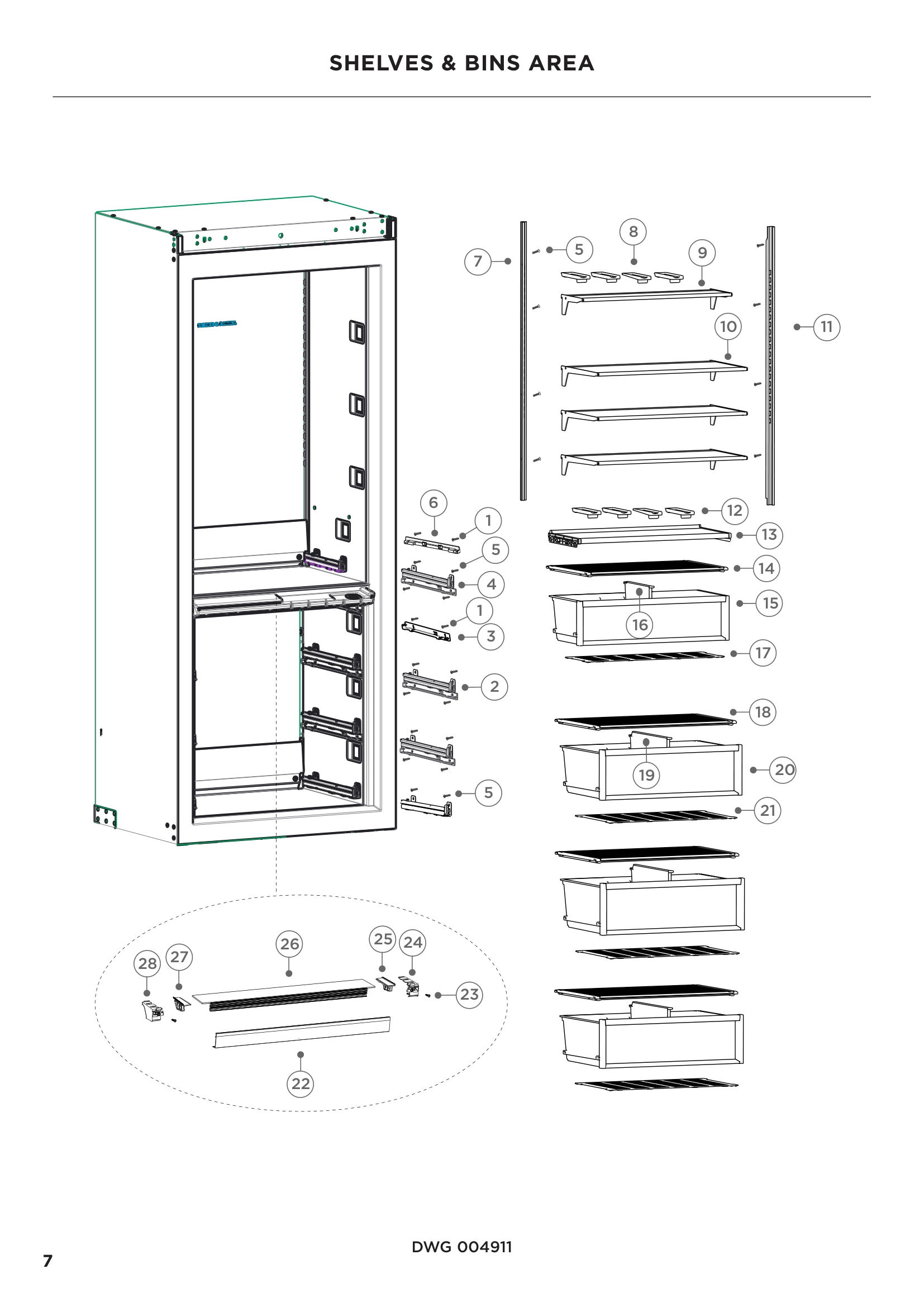

SHELVES & BINS AREA

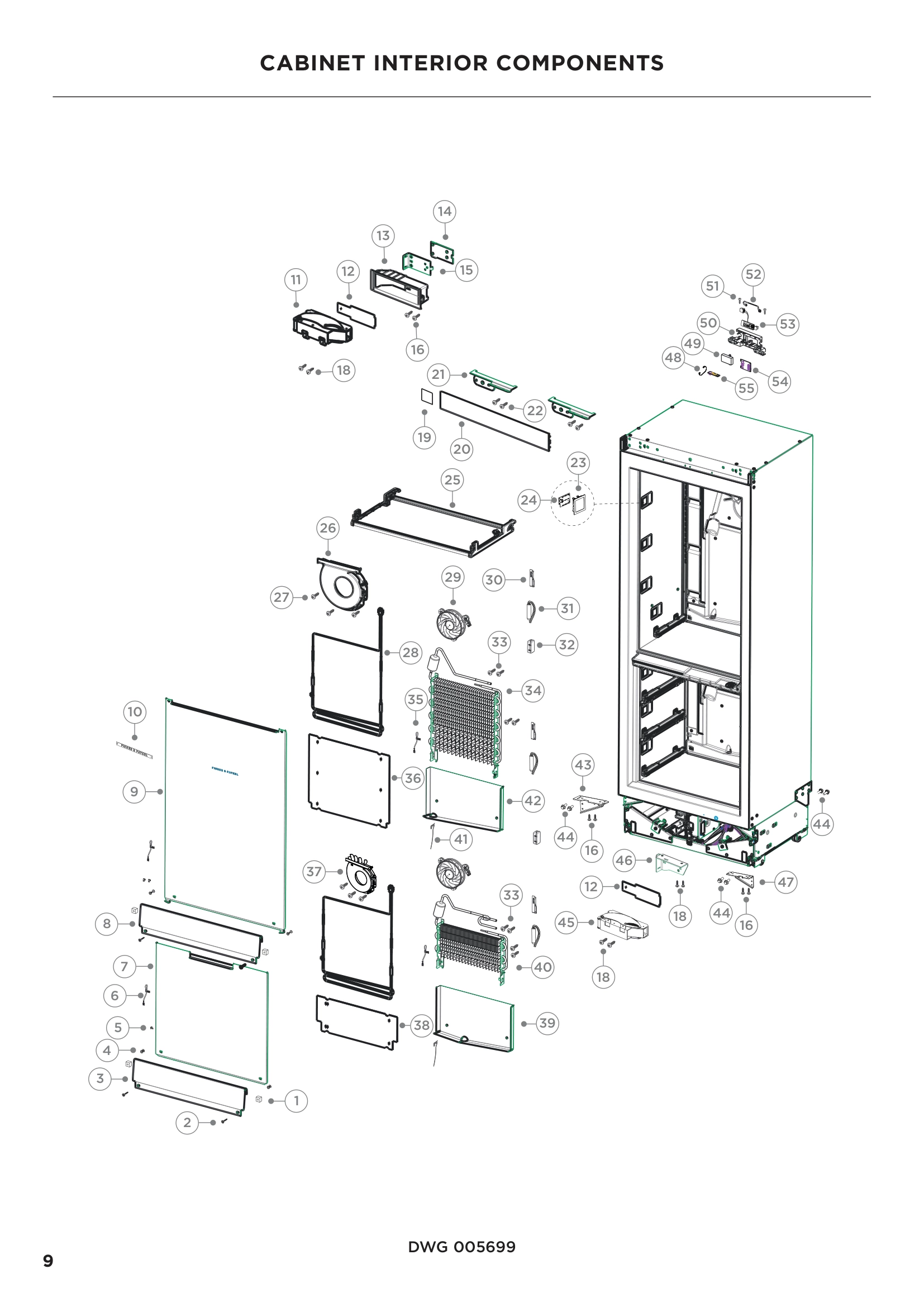

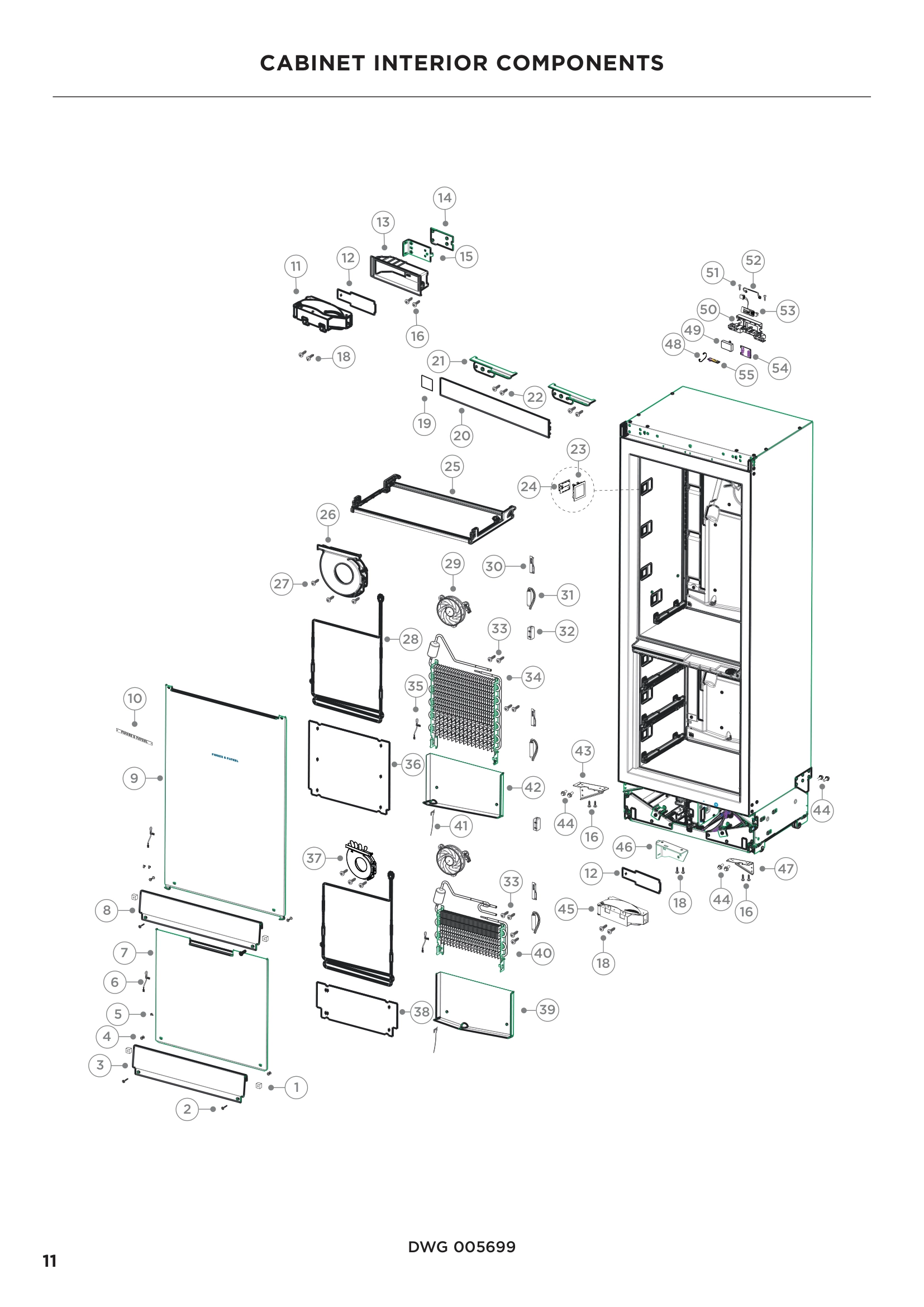

CABINET INTERIOR COMPONENTS
CABINET INTERIOR COMPONENTS

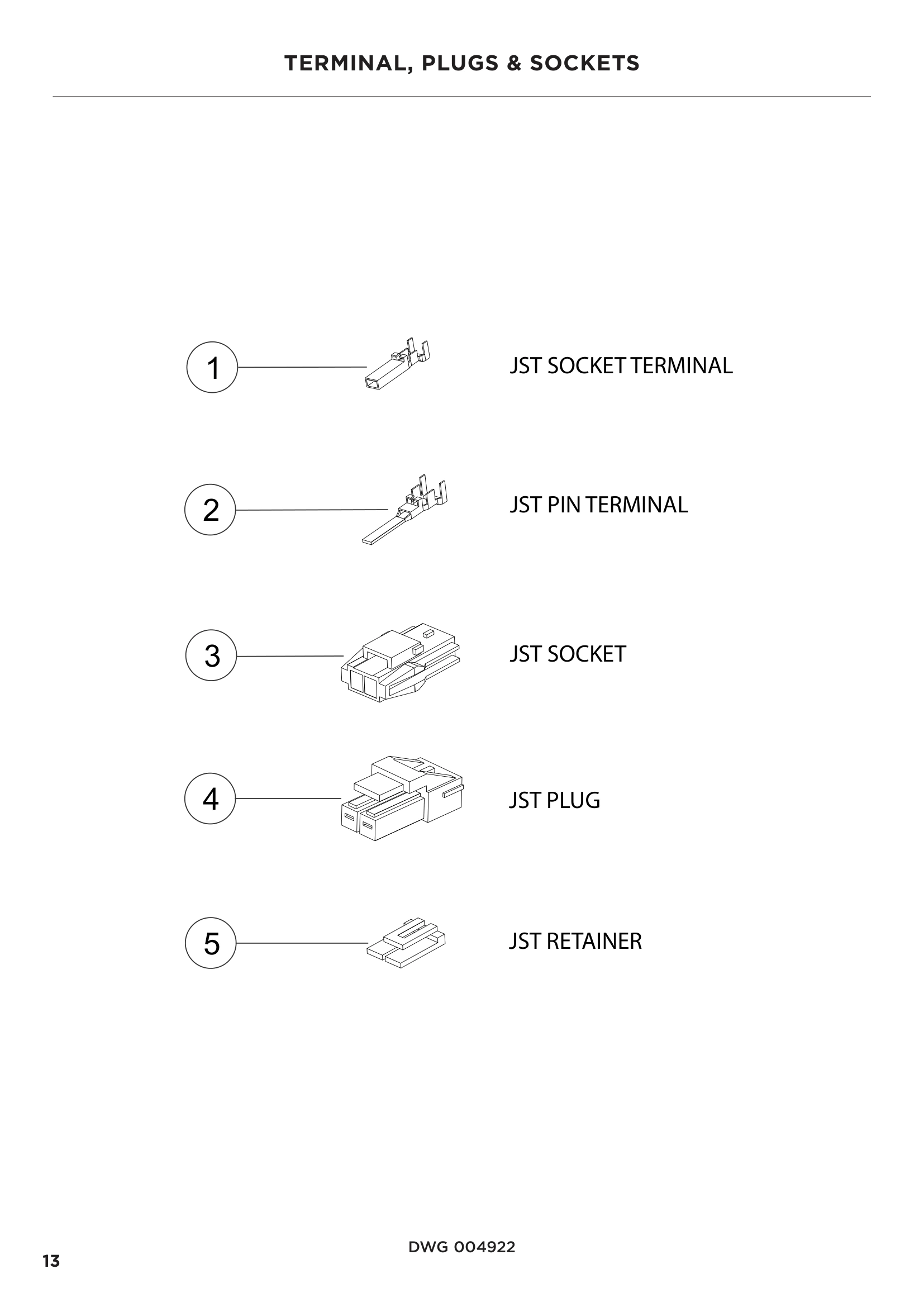

TERMINAL, PLUGS & SOCKETS

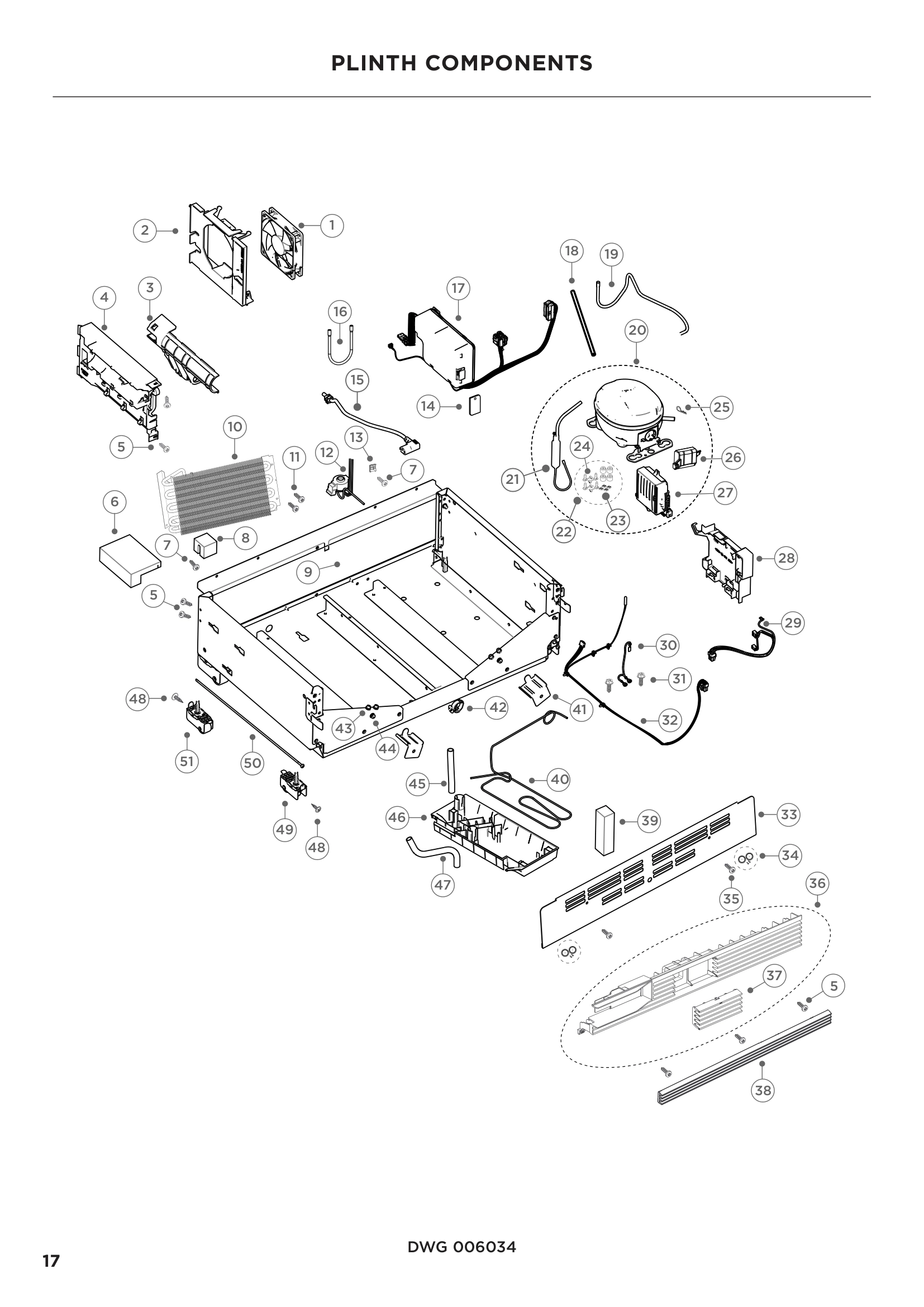

PLINTH COMPONENTS
PLINTH COMPONENTS

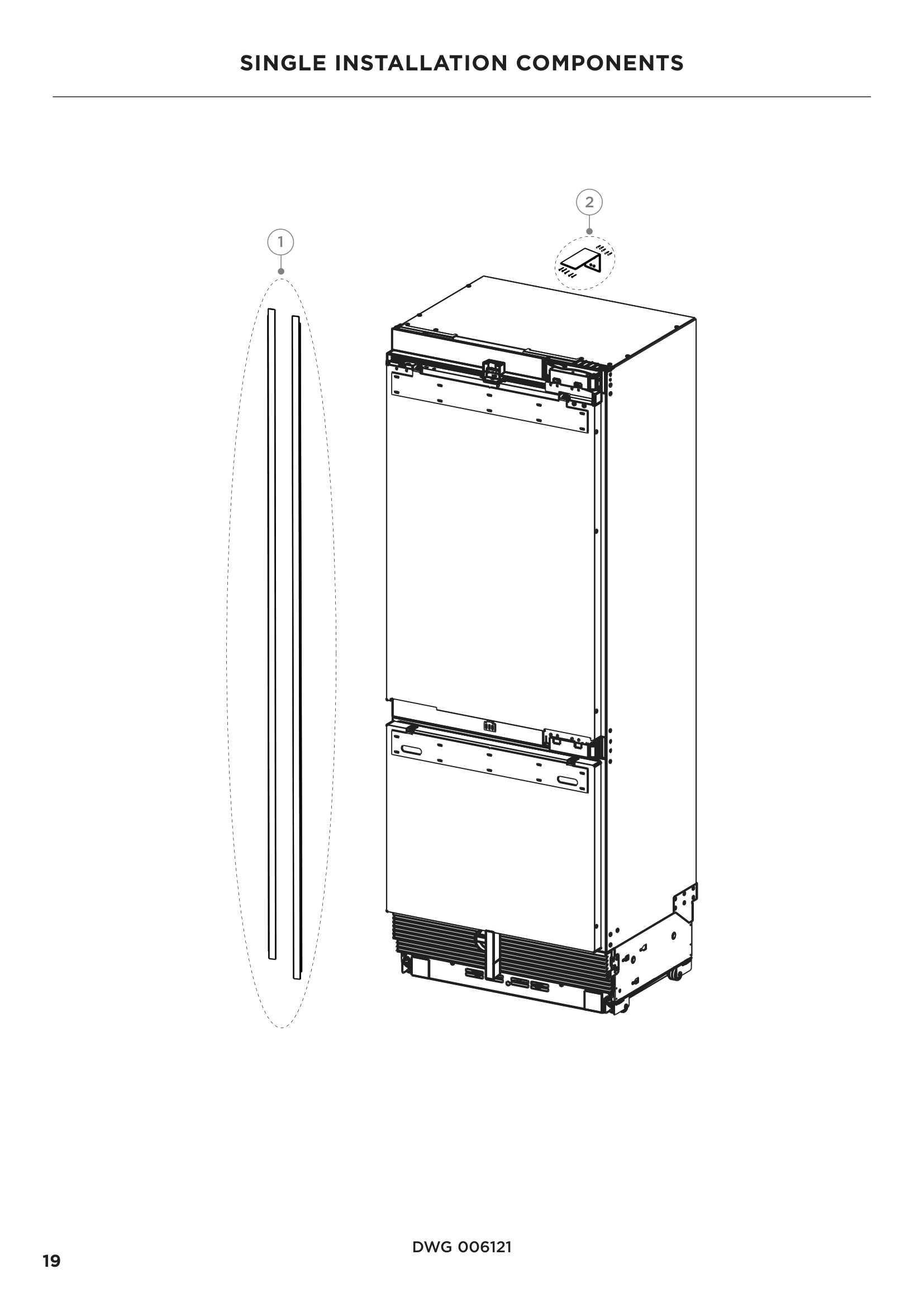

SINGLE INSTALLATION COMPONENTS

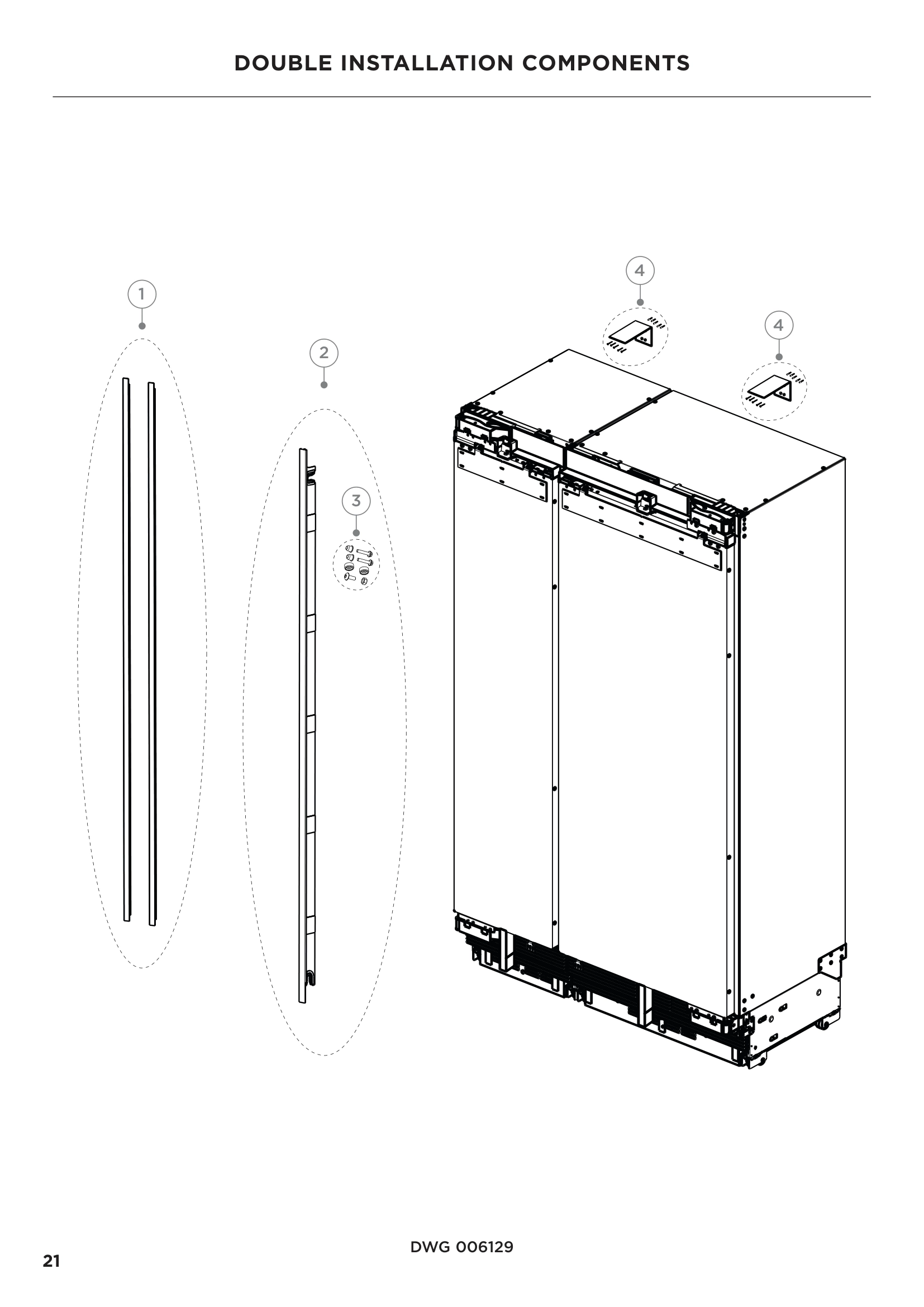

DOUBLE INSTALLATION COMPONENTS

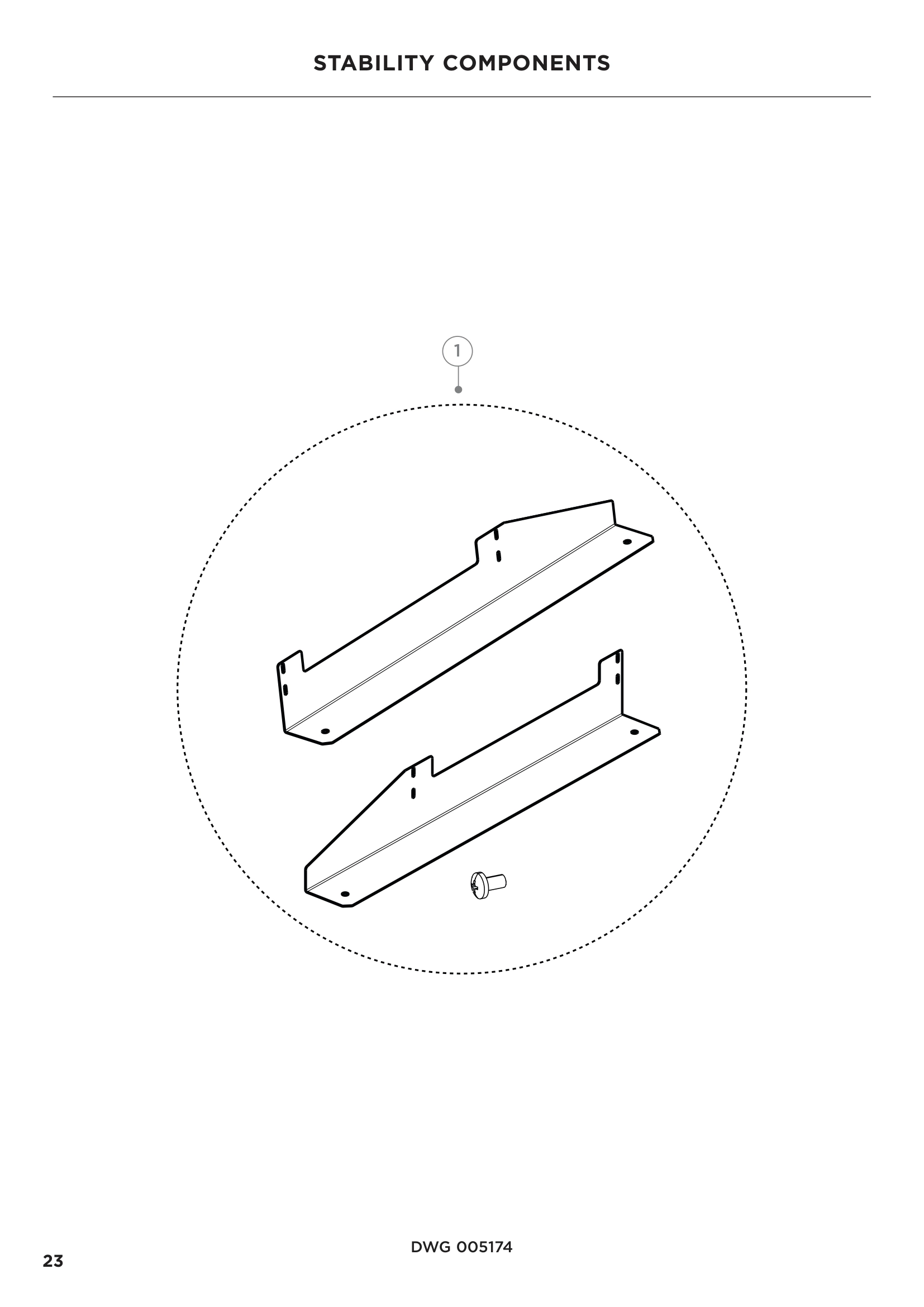

STABILITY COMPONENTS
Common parts from model Fisher & Paykel RS3084SL1-26127-B Refrigerator
1
FAN CONDENSER 120X25 FPA 838855P Contact Us For Availability
1
EXTRUSION DOOR TOP RS30 FPA 843507P Contact Us For Availability
1
SPACER COVER DRAIN ASSY FPA 848128 Contact Us For Availability
1
TERMINAL SYF-01T PKT 10 FPA 819607P Contact Us For Availability
1
KIT ALCOVE TRIM FPA 868352 Contact Us For Availability
1
KIT BRACE ANIT TIP FPA 847164P Contact Us For Availability
2
SCREW WSH M5X25 KIT FPA 842292P Contact Us For Availability
2
SCREW M4X35 PAN TX15 SS PKT10 FPA 848120P Contact Us For Availability
2
SLIDE 337R SC FPA 844646 Contact Us For Availability
2
PIN/TERM SYM-01T PKT 10 FPA 819609P Contact Us For Availability
2
DIVIDER PLINTH REAR FPA 843139 Contact Us For Availability
2
KIT DUAL INSTALL FPA 867910 Contact Us For Availability
3
STRIP 6 DUAL LOCK TABS PKT 4 FPA 846179P Contact Us For Availability
3
COVER DRAIN LWR RS30 WH FPA 843791 Contact Us For Availability
3
JST SOCKET 2PIN YLR-02V FPA 819615 Contact Us For Availability
3
COVER DIVIDER FRONT FPA 847033 Contact Us For Availability
3
KIT BRACKET JOINER V2 FPA 867898 Contact Us For Availability
4
KIT CORNER FLAT DOOR PKT4 FPA 527679P Contact Us For Availability
4
SCREW ST #8X15-M6X12 WASHER KIT FPA 840421P Contact Us For Availability
4
JST PLUG 2PIN YLP-02V FPA 819611 Contact Us For Availability
4
DIVIDER PLINTH FRONT FPA 842779 Contact Us For Availability
4
BRACKET ANTI TIP ASSY FPA 843934 Contact Us For Availability
5
BRACKET DOOR MAGNET FPA 844632 Contact Us For Availability
5
CLIP EDGE EARTH TAB AR EPF255 FPA 846732P Contact Us For Availability
5
RETAINER 2 WAY YLS-02V FPA 819620 Contact Us For Availability
6
HARNESS EARTH 100MM FPA 814460 Contact Us For Availability
6
BLOCKER CONDSR AIRFLOW BYPASS FPA 845772 Contact Us For Availability
7
SCREW MC M5X10 PAN PH MS ZP PKT10 FPA 841568P Contact Us For Availability
7
DUCT COVER SEAL LWR RS30 ASSY FPA 846863P Contact Us For Availability
7
SCREW ST 8X1/2 SD TRS NIB PH P FPA 611977P Contact Us For Availability
8
WASHER M8X21X1.6 ZP PKT10 FPA 842456P Contact Us For Availability
8
COVER DRAIN UPR RS30 GR FPA 843793 Contact Us For Availability
8
GROMMET CONDNSR AIR B/PASS FPA 848130 Contact Us For Availability
9
NUT M8 HEX MS ZP PKT10 FPA 838158P Contact Us For Availability
9
KIT DUCT COVER SEAL UPR RS30W FPA 862712P Contact Us For Availability
9
LOCKING PLATE REAR PLINTH 30 FPA 842251 Contact Us For Availability
10
BOLT SKIN DOOR BI PKT10 FPA 838153P Contact Us For Availability
10
NAMEPLATE FP CHROME LETTERS FPA 847363 Contact Us For Availability
10
CONDENSER FOT 260X177 1 PASS FPA 847876P Contact Us For Availability
11
HINGE K05-B 115GRAD M6 "S" FPA 839474 Contact Us For Availability
11
SCREW ST 8X12MM TAB MTS PKT10 FPA 546692P Contact Us For Availability
12
BOTTLE HOLDER SINGLE ASSY FPA 860593 Contact Us For Availability
12
COVER POCKET HINGE FPA 843720 Contact Us For Availability
12
VALVE SANKYO NSCE001RA9 FPA 846688P Contact Us For Availability
13
SHELF FIXED UPR ASSY RS30S FPA 847814P Contact Us For Availability
13
POCKET HINGE TOP LH FPA 843719 Contact Us For Availability
13
CLIP SPIRE SIZE 8 FPA 841023P Contact Us For Availability
14
HCL SUBASSY RS30 FPA 847768P Contact Us For Availability
14
SPACER BRACKET HINGE TOP FPA 847537 Contact Us For Availability
14
COVER COMMS PORT FPA 884505 Contact Us For Availability
15
HARNESS CORDSET IEC LP ASSY US FPA 846809 Contact Us For Availability
15
BIN ASSY UPR RS30S FPA 845272P Contact Us For Availability
15
BRACKET HINGE TOP RS FPA 842944 Contact Us For Availability
16
DIVIDER BIN UPR FPA 844810 Contact Us For Availability
16
SCREW M5X12 CSK PH NP PKT10 FPA 845428P Contact Us For Availability
16
TUBE COPPER U-BEND FPA 845861 Contact Us For Availability
17
KIT MAT BIN UPR RS30S FPA 844048P Contact Us For Availability
17
ASSY CTRL RS WIFI WTR RX SVC FPA 868090P Contact Us For Availability
18
SHELF HCL LWR RS30 ASSY FPA 847178P Contact Us For Availability
18
SCREW M6X16CSK DIN965 PH MS ZP PKT10 FPA 839692P Contact Us For Availability
18
TUBE ADAPTOR PROCESS RS FPA 842972 Contact Us For Availability
19
TAPE DUALLOCK SJ3540 50MMX10MM FPA 847675P Contact Us For Availability
19
DIVIDER BIN LWR FPA 844809 Contact Us For Availability
19
TUBE ADAPTOR SUCTION RS FPA 842989 Contact Us For Availability
20
KIT COMPR EMB VESF9C 115V FPA 207376P Contact Us For Availability
20
TRIM TOP EXTRUSION RS30 FPA 843717 Contact Us For Availability
20
BIN ASSY LWR RS30S FPA 845271P Contact Us For Availability
21
KIT MAT BIN LWR RS30S FPA 844043P Contact Us For Availability
21
BRACKET ALCOVE TOP LH FPA 847006 Contact Us For Availability
21
FILTER DRYER DUAL 5G FPA 845758P Contact Us For Availability
22
COVER DIVIDER COLUMNS 30 FPA 844711 Contact Us For Availability
22
SCREW M4X16 PLASTITE PH T15 PK FPA 847532P Contact Us For Availability
22
GROMMET 26MM KIT FPA 843824P Contact Us For Availability
23
SCREW ST 8X5/8TA MTS PH H5ZNPL FPA 611933P Contact Us For Availability
23
CLIP FOOT COMPRESSOR (PKT 4) FPA 855270P Contact Us For Availability
23
COVER INTEGRATED SIDE LIGH WH FPA 843244 Contact Us For Availability
24
MOD SIDE LIGHT-WT COVER KIT FPA 849936P Contact Us For Availability
24
END CAP UI RH RS FPA 844971 Contact Us For Availability
24
POST COMP MTG 26MM PKT X4 FPA 841291P Contact Us For Availability
25
GASKET UI END CAP RS30 RH FPA 847484 Contact Us For Availability
25
ASSY LIGHT CEILING PANEL RS30 FPA 843760P Contact Us For Availability
25
CLIP R COVER COMP M1.6 S4HPP16 FPA 207419 Contact Us For Availability
26
MOD DISP RS30S SVC FPA 865126P Contact Us For Availability
26
HOUSING FAN CNTFGL D125 ASSY FPA 844551 Contact Us For Availability
26
COVER PROTECTOR VEM FPA 207310 Contact Us For Availability
27
INVERTER EMB VESF9C 115V FA FPA 207393 Contact Us For Availability
27
GASKET UI END CAP RS30 LH FPA 847483 Contact Us For Availability
28
HEATER DEF 3PV 30 120V FPA 846242P Contact Us For Availability
28
END CAP UI LH RS FPA 844970 Contact Us For Availability
28
BRACKET INVERTER MOLEX CONN FPA 849714 Contact Us For Availability
29
FAN CNTFGL D125 ASSY FPA 844545P Contact Us For Availability
29
HARNESS INVERTER EMB RS FPA 842765 Contact Us For Availability
30
CLIP SENSOR FPA 845878 Contact Us For Availability
30
HARNESS EARTH PLINTH FPA 846708 Contact Us For Availability
31
CABINET THERMISTOR KIT FPA 813822P Contact Us For Availability
31
SCREW ST M4X12 XTITE HXW PKT10 FPA 556082P Contact Us For Availability
32
COVER PLUG TYCO FPA 821745 Contact Us For Availability
32
HARNESS REF VALVE SNSR RS FPA 846709 Contact Us For Availability
33
MOUNTING PLATE KICK STRIP 30 FPA 843253 Contact Us For Availability
34
EVAP EARTH TAB UPR CU CLEAR FPA 865874P Contact Us For Availability
34
KIT TOEKICK MAGNET (4 SETS) FPA 866753 Contact Us For Availability
35
SCREW M5X12MUSH PH MT ST PKT10 FPA 845432P Contact Us For Availability
35
HARNESS EARTH DEFROST HEATER FPA 862917 Contact Us For Availability
36
SHIELD HEAT 30 UPR FC FPA 844107 Contact Us For Availability
36
GRILLE FIXED ASSEMBLY RS30 LH FPA 847371 Contact Us For Availability
37
COVER FILTER GRILLE FPA 843298 Contact Us For Availability
37
HOUSING FAN ASSY WHITE FPA 862891 Contact Us For Availability
38
SHIELD HEAT 30 LWR FC FPA 844108 Contact Us For Availability
39
SHIELD DRAIN LWR 30PC FPA 844877 Contact Us For Availability
39
BLOCKER AIR BYPASS KICKSTRIP FPA 846405 Contact Us For Availability
40
EVAP EARTH TAB LWR CU CLEAR FPA 865873P Contact Us For Availability
40
TUBE DISCHARGE RS3084 FPA 842988 Contact Us For Availability
41
WIRE DRAIN HEATER RS FPA 847315 Contact Us For Availability
41
BRACKET KICK STRIP ADJUSTING FPA 842018 Contact Us For Availability
42
SHIELD DRAIN UPR 30PC FPA 844876 Contact Us For Availability
42
CLIP HARNESS HT 151-000367 FPA 845740P Contact Us For Availability
43
BRACKET PLINTH FRONT LEFT FPA 842883 Contact Us For Availability
43
WASHER FLAT M6X12X1.2 PKT10 FPA 843453P Contact Us For Availability
44
SCREW MC M5X12 HXW NIB ZP PKT10 FPA 845515P Contact Us For Availability
45
HINGE K05-A 115GRAD M6 "S" FPA 837842 Contact Us For Availability
45
DRAIN PLINTH FPA 845859 Contact Us For Availability
46
BRACKET HINGE LOWER LEFT FPA 843027 Contact Us For Availability
46
TRAY WATER EVAP COLUMNS FPA 841476 Contact Us For Availability
47
BRACKET PLINTH FRONT RIGHT FPA 842882 Contact Us For Availability
47
DRAIN TUBE PLINTH UPPER RS30 FPA 845858 Contact Us For Availability
48
HARNESS HUMIDITY SNSR FPA 846972 Contact Us For Availability
48
SCREW AB #8X13 HEX PH PKT10 FPA 849237P Contact Us For Availability
49
MOD WIFI GEA3 LITE FPA 563774P Contact Us For Availability
49
PLINTH SUPPORT RAIL ASSY FPA 842085 Contact Us For Availability
50
HOUSING SENSOR FPA 843872 Contact Us For Availability
50
ROD BK LEVELLING FPA 843475 Contact Us For Availability
51
PLINTH SUPPORT RAIL ASSY BK FPA 843478 Contact Us For Availability
52
HARNESS WIFI GEA WIRE FPA 862641 Contact Us For Availability
53
MOD HALL SWITCH RS SVC FPA 851352P Contact Us For Availability
54
MOD GEA COMMS V2 SVC FPA 864736P Contact Us For Availability
55
MOD HUMIDITY SENSOR W SVC FPA 851381P Contact Us For Availability
NI
SCREW 8GX16 MUSH WASH (PKT10) FPA 840371P Contact Us For Availability
NI
KIT HINGE CHANGE RS30 RH TO LH FPA 848189P Contact Us For Availability
NI
TERMINAL REMOVAL TOOL FPA 150807 Contact Us For Availability
NI
SCREW CAP M5X20 NZ PKT10 FPA 847984P Contact Us For Availability
NI
KIT INSTALLATION RS V2 FPA 867906 Contact Us For Availability
NI
KIT BRACKET PANEL ATTACH V2 FPA 867900 Contact Us For Availability
NI
BOLT LIMITING HINGE K05 FPA 843662 Contact Us For Availability
NI
KIT INSTALL FASTENERS FPA 848192 Contact Us For Availability
× ![]()
