Model RS24F9WT1C – Common Parts & Diagrams
02 - FREEZER DOOR PARTS
03 - REFRIGERATOR DOOR PARTS

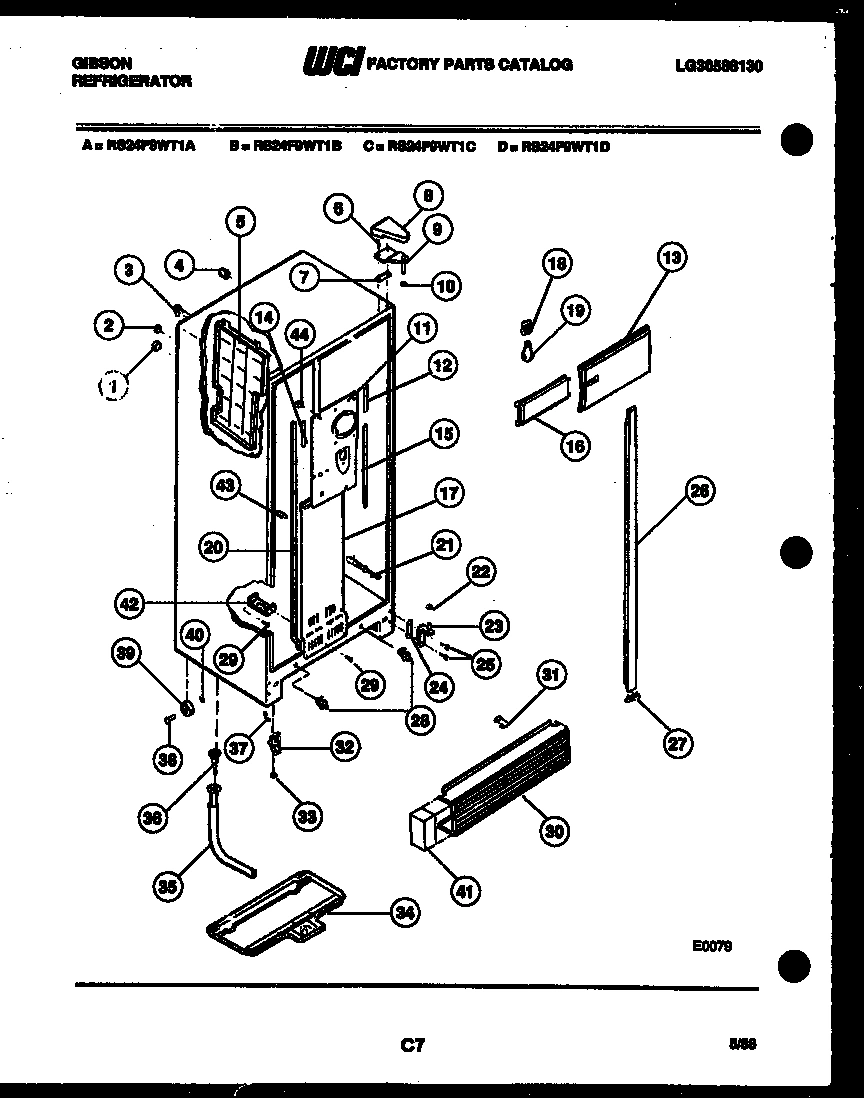

04 - CABINET PARTS

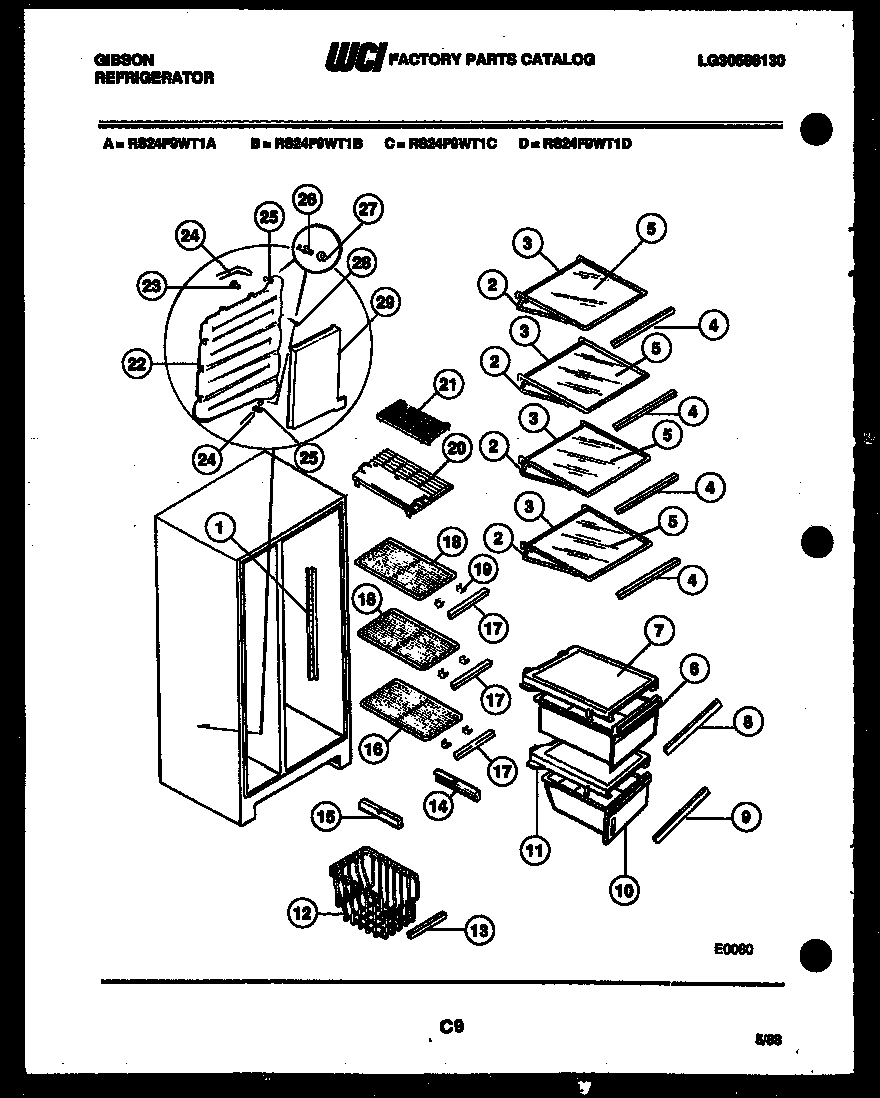

05 - SHELVES AND SUPPORTS

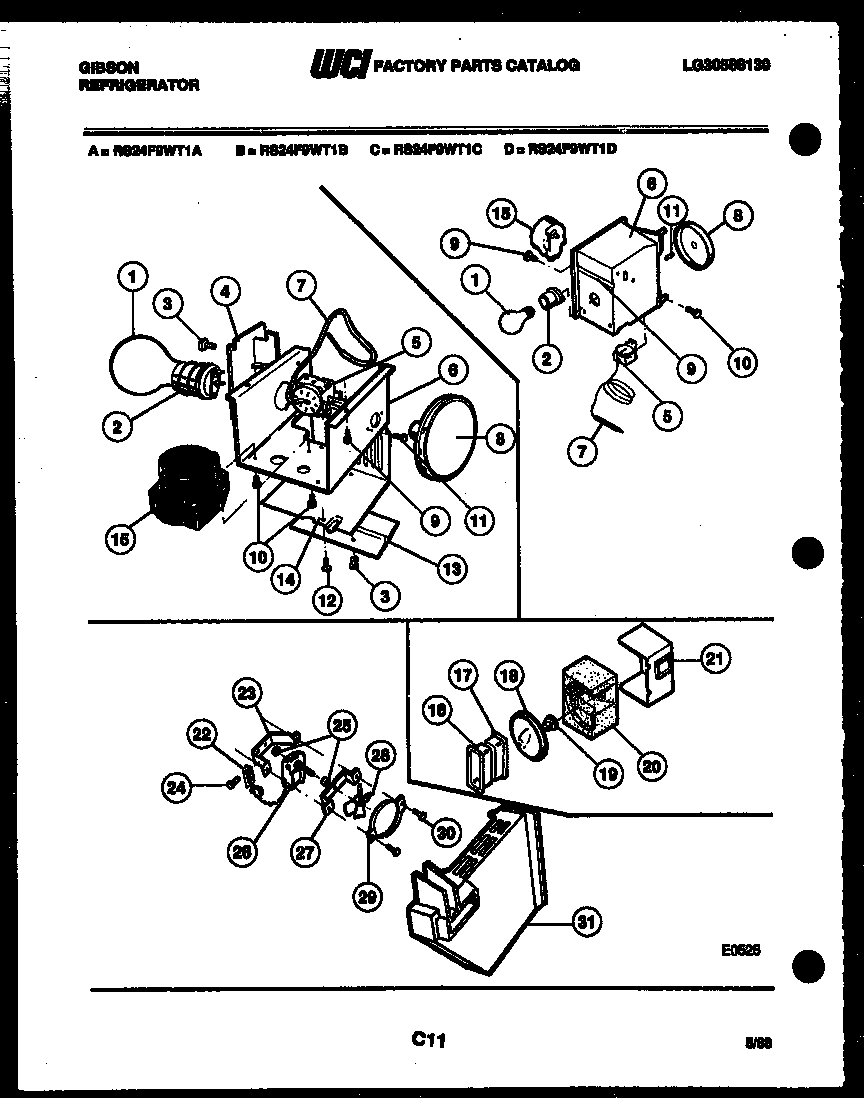

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

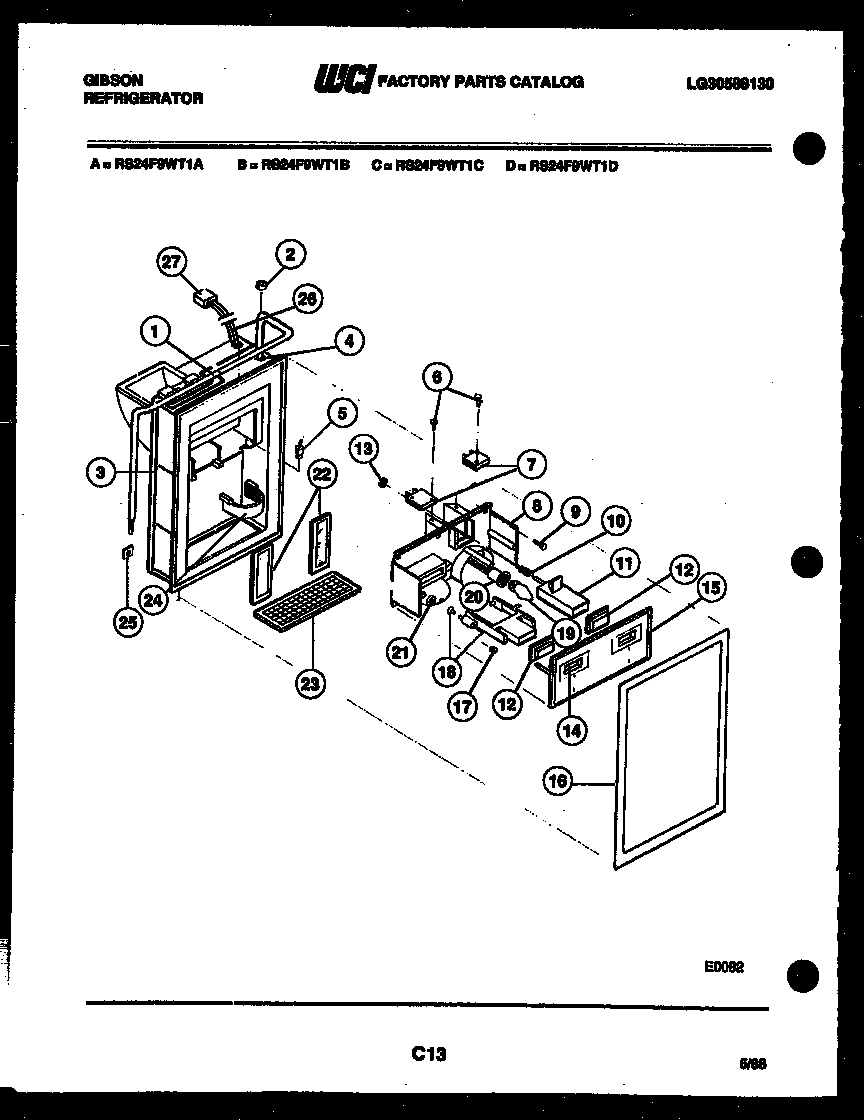

07 - ICE DOOR, DISPENSER AND WATER TANK

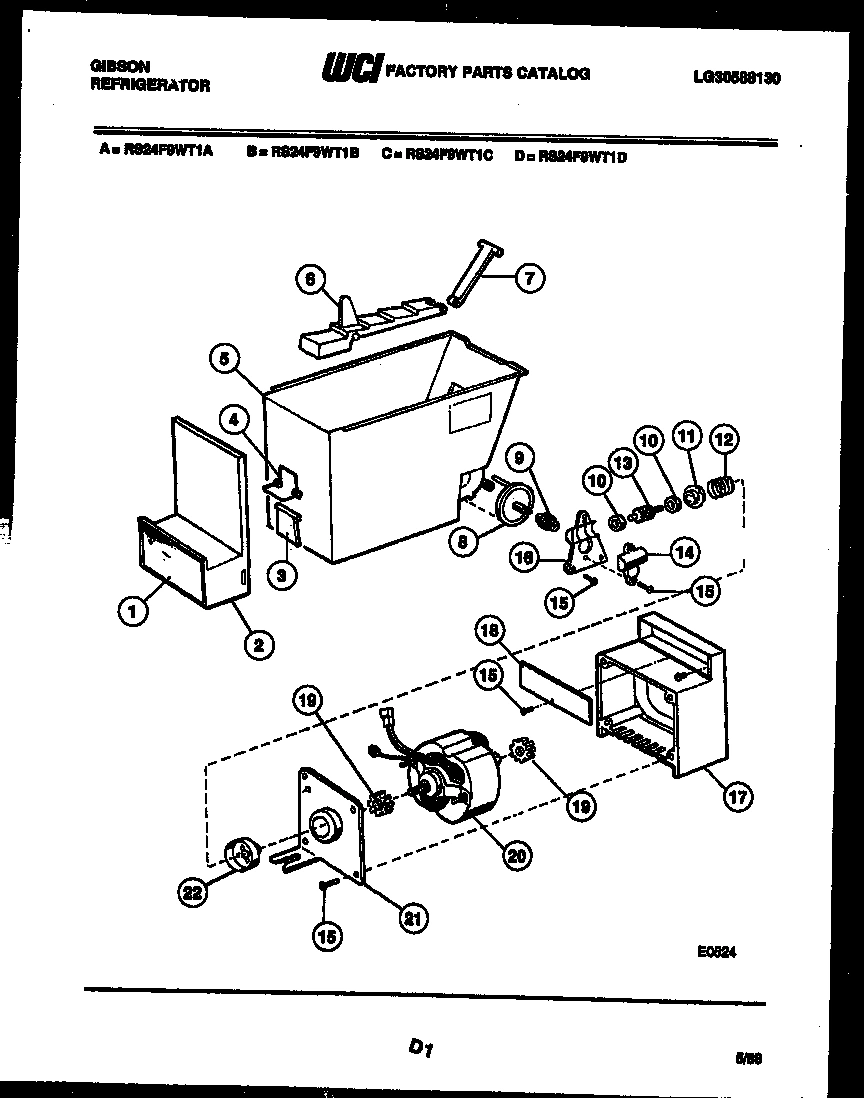

08 - ICE DISPENSER

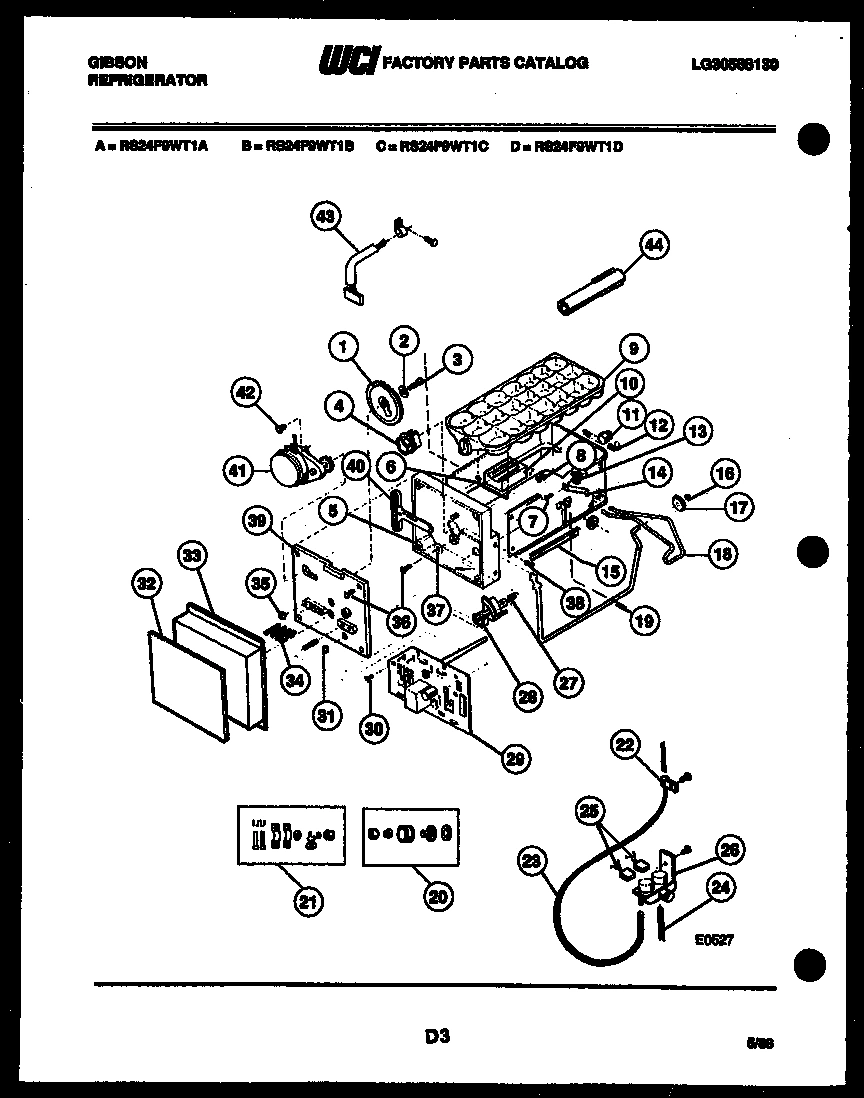

09 - ICE MAKER PARTS

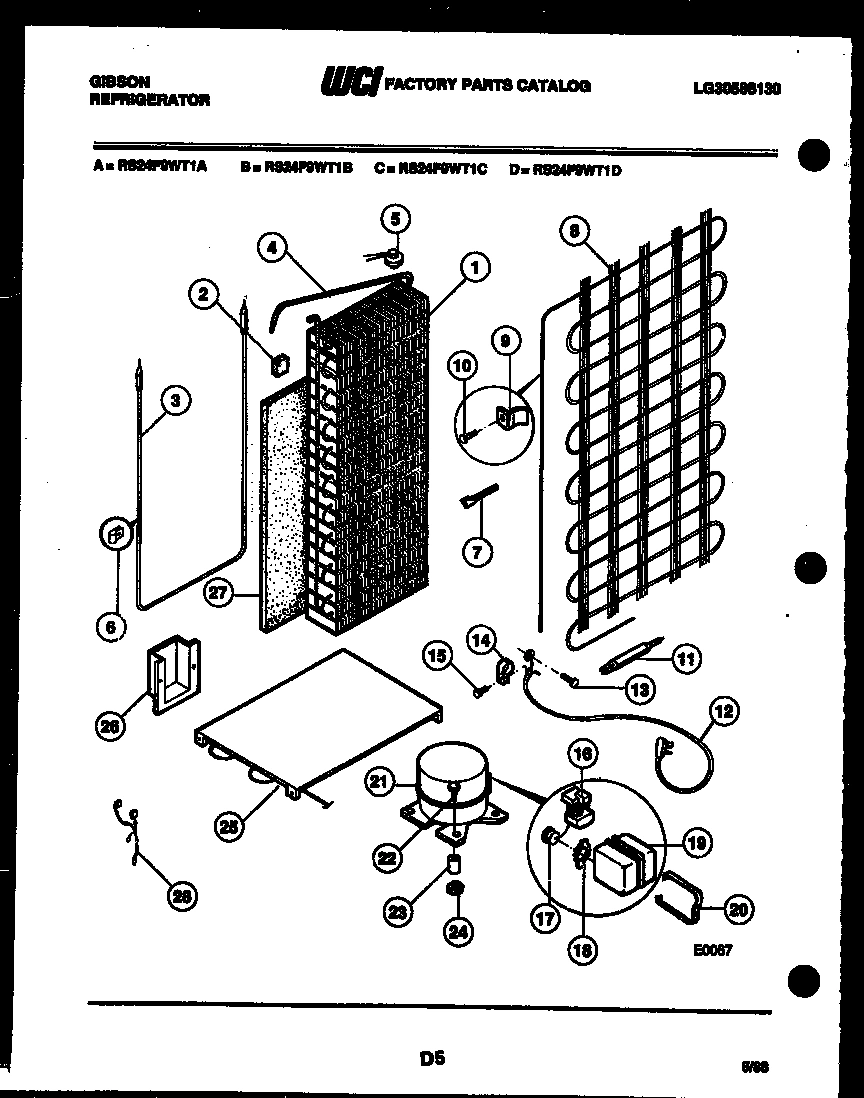

10 - SYSTEM AND AUTOMATIC DEFROST PARTS
