Model Electrolux RS249MCD0 REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER DOOR PARTS
03 - REFRIGERATOR DOOR PARTS

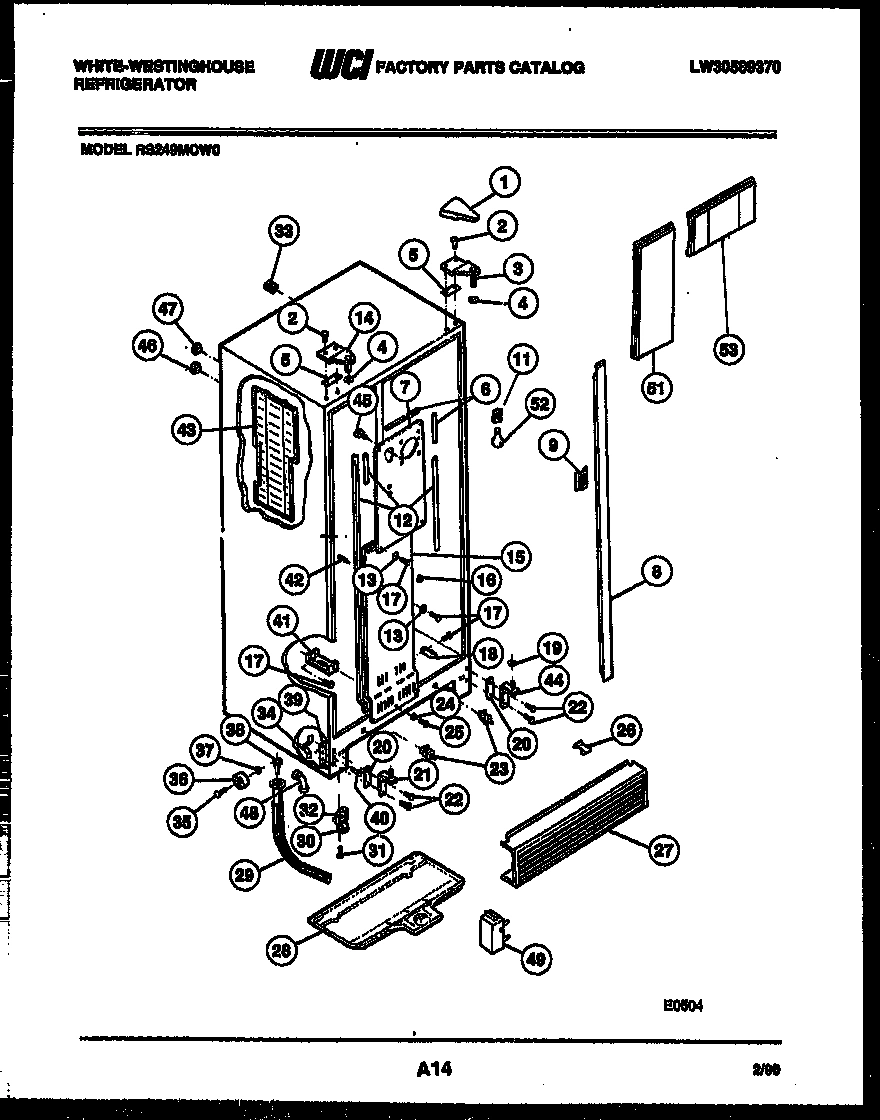

04 - CABINET PARTS

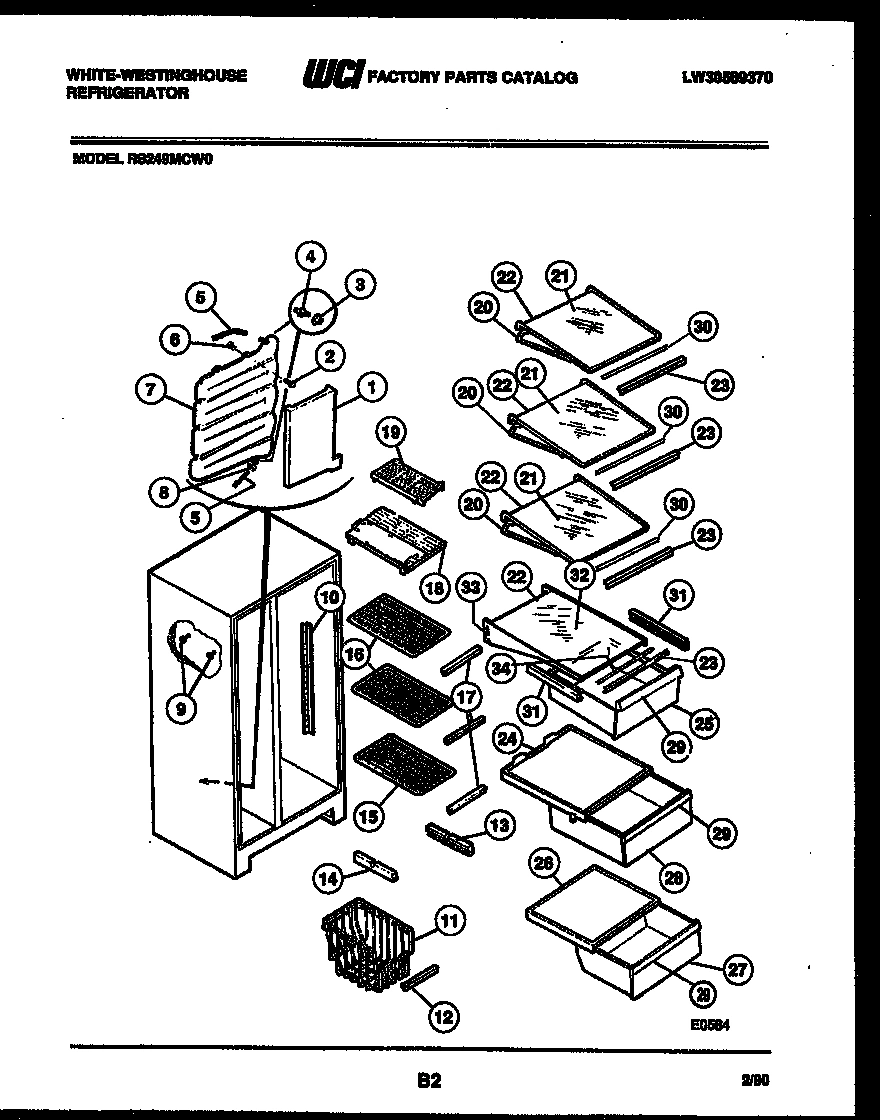

05 - SHELVES AND SUPPORTS

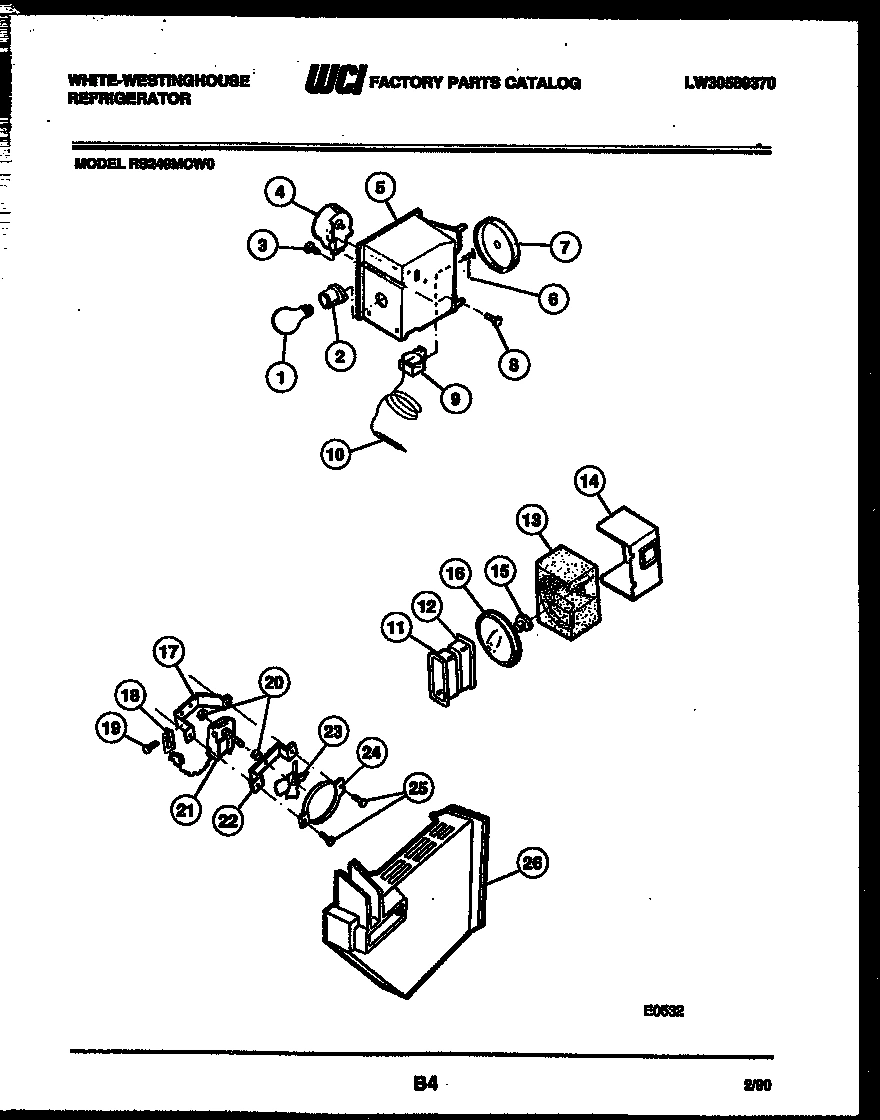

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

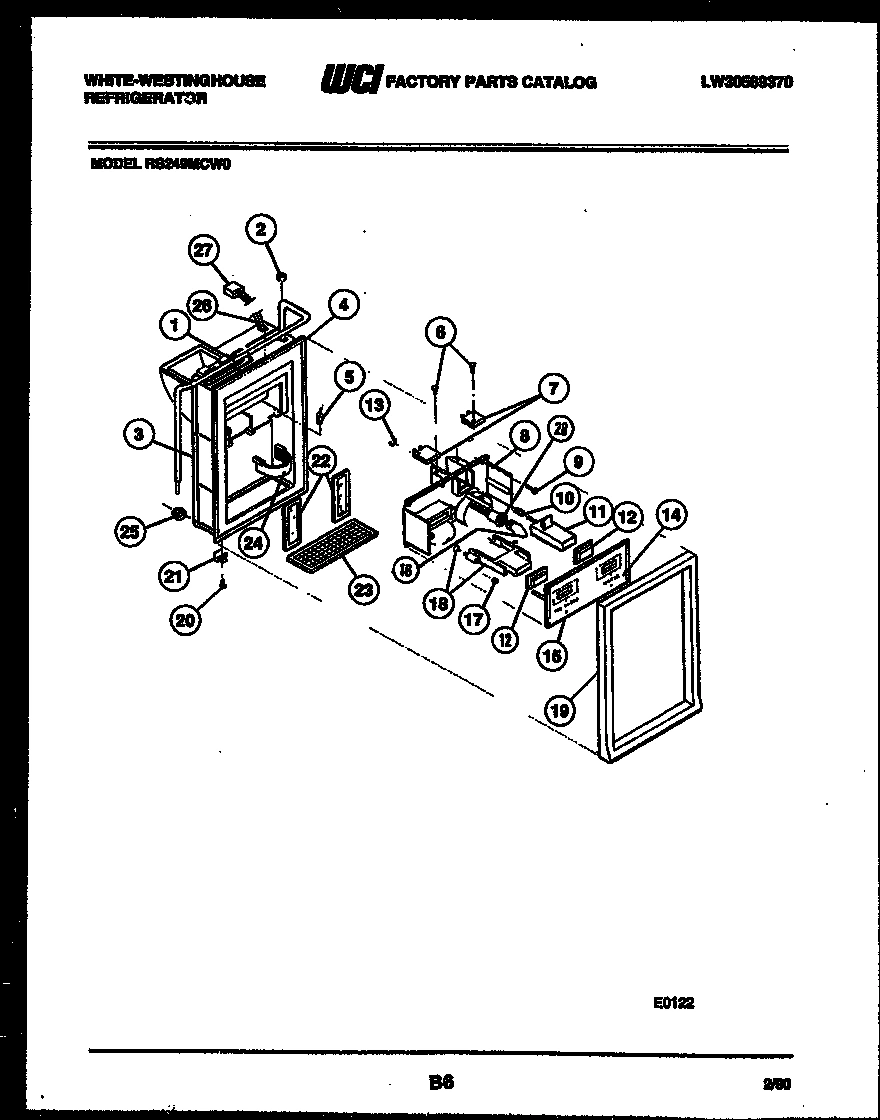

07 - ICE DOOR, DISPENSER AND WATER TANKS

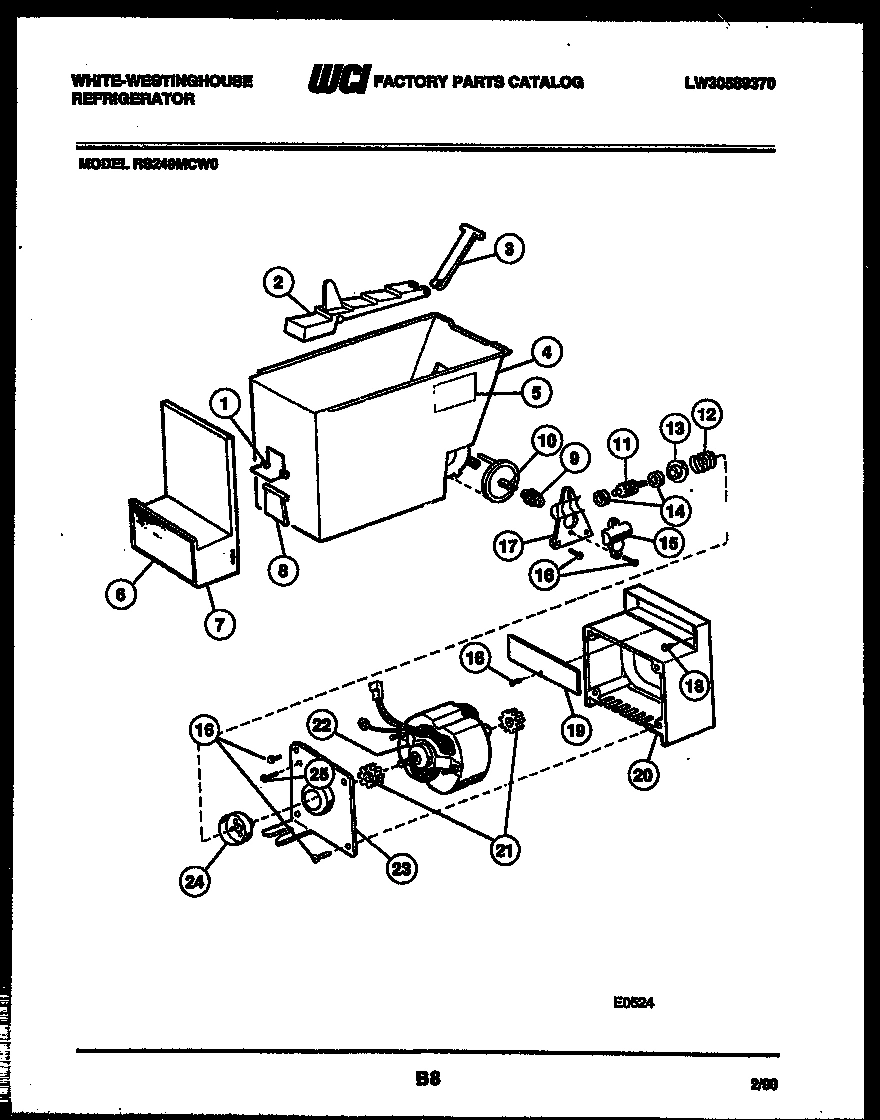

08 - ICE DISPENSER

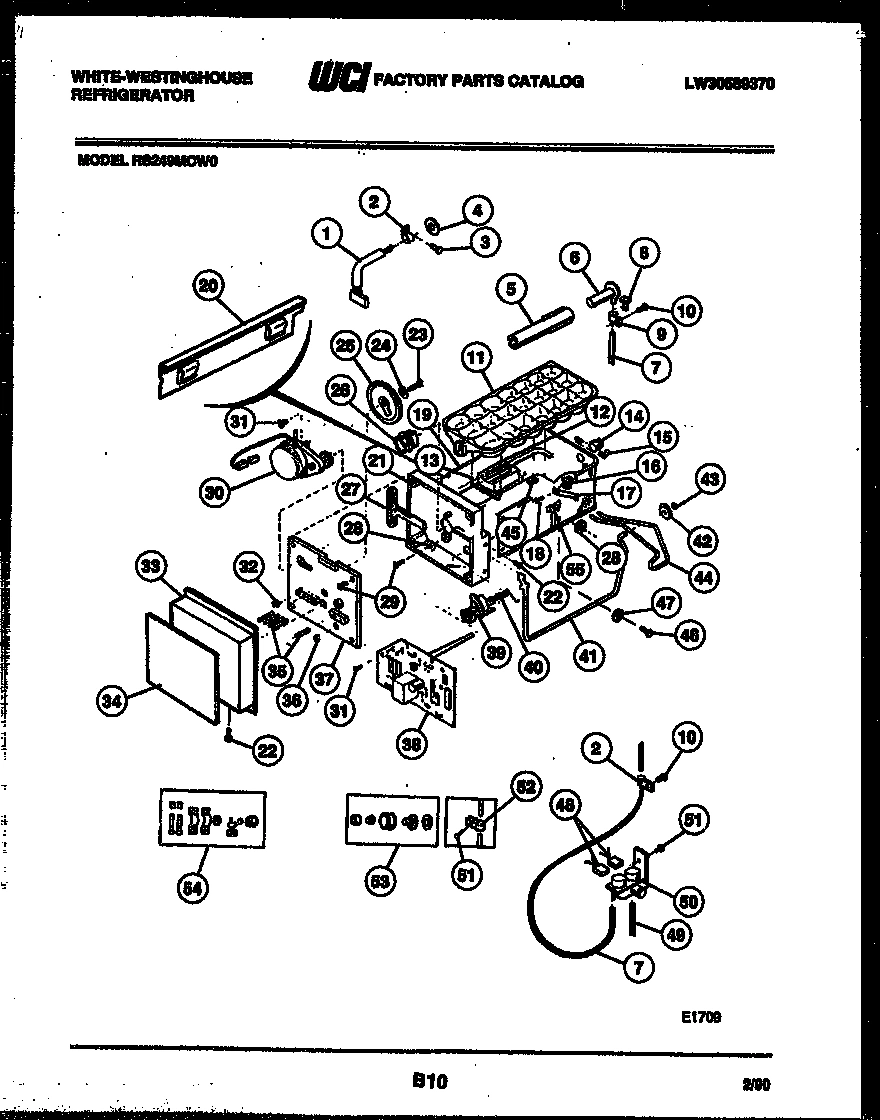

09 - ICE MAKER AND INSTALLATION PARTS

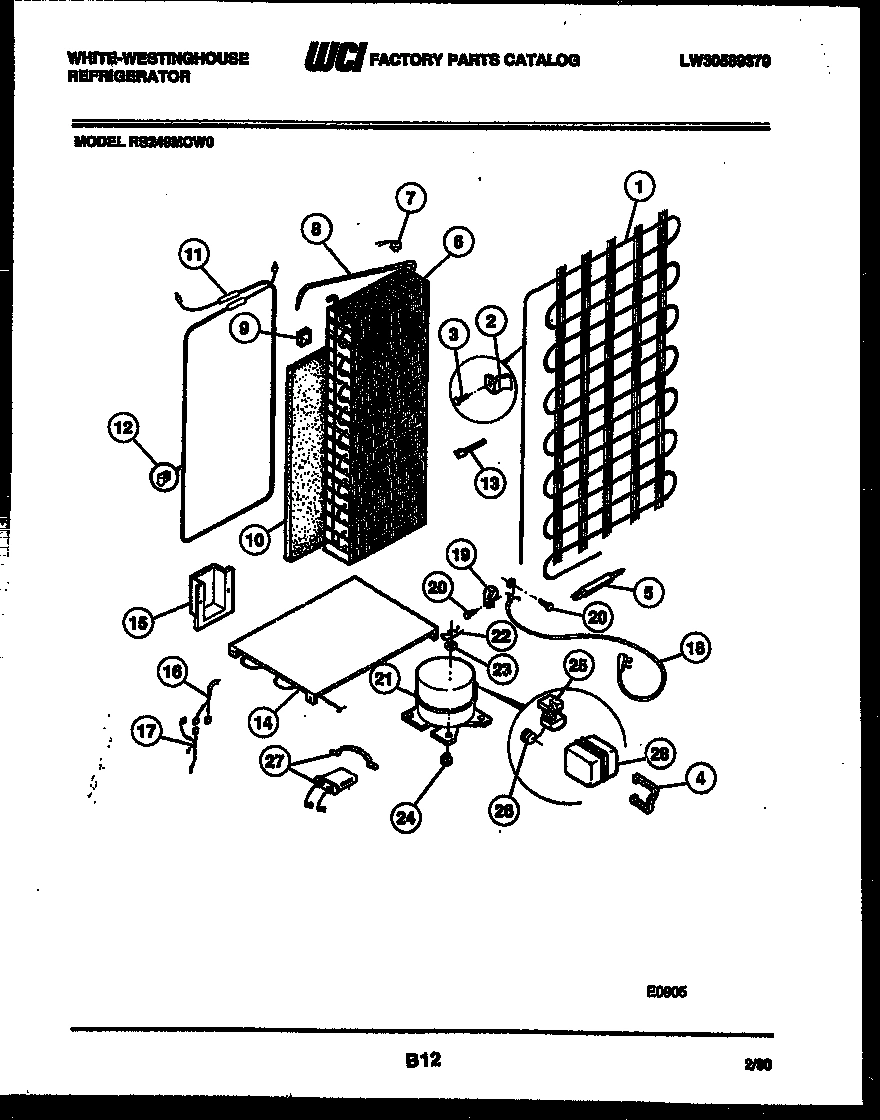

10 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RS249MCD0 REFRIGERATOR
*25772
INSULATION, BULK WCI 5303007739 Contact Us For Availability
*25784
SUPPORT-SPECIAL BARREL (2) WCI 5303001213 Contact Us For Availability
*25784
TAPPING-PLATE (2) WCI 5308012296 Contact Us For Availability
*25790
WCI 5303206533 WCI 5303206533 Contact Us For Availability
*25790
GASKET-REAR WCI 5303207090 Contact Us For Availability
*25794
WCI 5308000808 WCI 5308000808 Contact Us For Availability
*25794
WCI 5308000809 WCI 5308000809 Contact Us For Availability
*25798
WCI 5303001074 WCI 5303001074 Contact Us For Availability
*25798
WCI 5318653301 WCI 5318653301 Contact Us For Availability
*25802
WCI 3001247 WCI 3001247 Contact Us For Availability
*25807
WCI 5303207333 WCI 5303207333 Contact Us For Availability
*25813
HOT TUBE REPAIR KIT WCI 5300189379 Contact Us For Availability
1
REFR DOOR-ALMD WCI 5303916540 Contact Us For Availability
1
HINGE COVER-ALMD (2) WCI 5308012933 Contact Us For Availability
1
WCI 5308010332 WCI 5308010332 Contact Us For Availability
1
WCI 5303001779 WCI 5303001779 Contact Us For Availability
1
TUBE-WATER INLET & PILOT ASSY WCI 5308017048 Contact Us For Availability
1
SPRING-ICE DOOR WCI 5300184853 Contact Us For Availability
1
WIRING HARNESS-ICE & WATER-IM WCI 5303001245 Contact Us For Availability
1
WCI 5308017119 WCI 5308017119 Contact Us For Availability
1A
DOOR PLUG-BOTTOM (NON-ILLUSTRATED) WCI 5315230801 Contact Us For Availability
2
SOCKET-LIGHT WCI 5308000129 Contact Us For Availability
2
WCI 5303001066 WCI 5303001066 Contact Us For Availability
2
WCI 5301123547 WCI 5301123547 Contact Us For Availability
2
WCI 5308000296 WCI 5308000296 Contact Us For Availability
3
BEARING-UPPER HINGE WCI 5303001022 Contact Us For Availability
3
HINGE TOP, RH WCI 5308012934 Contact Us For Availability
3
WCI 5308015613 WCI 5308015613 Contact Us For Availability
3
HEATER-DOOR HSG WCI 5308015588 Contact Us For Availability
3
DEFLECTOR-ICE DISPENSER WCI 5317769703 Contact Us For Availability
3A
WCI 5308009617 WCI 5308009617 Contact Us For Availability
4
WASHER-NYLON (2) WCI 5308000186 Contact Us For Availability
4
HANDLE END-TOP WCI 5300177142 Contact Us For Availability
4
WCI 5308015614 WCI 5308015614 Contact Us For Availability
4
WCI 3202406 WCI 3202406 Contact Us For Availability
4
WCI 5301138760 WCI 5301138760 Contact Us For Availability
4A
TRIM-HANDLE END-TOP (NON-ILLUSTRATED) WCI 5300179270 Contact Us For Availability
4B
HANDLE END-BOTTOM (NON-ILLUSTRATED) WCI 5300177143 Contact Us For Availability
4C
TRIM-HANDLE END-BTM (NON-ILLUSTRATED) WCI 5300179271 Contact Us For Availability
4D
CLIP-DOOR HANDLE (NON-ILLUSTRATED) WCI 5300177144 Contact Us For Availability
5
NAMEPLATE WCI 3206159 Contact Us For Availability
5
SHIM-UPPER HINGE (2) WCI 5303001037 Contact Us For Availability
5
WCI 5308017561 WCI 5308017561 Contact Us For Availability
5
WCI 5308010326 WCI 5308010326 Contact Us For Availability
5
LABEL-ICE DISPENSER WCI 5303016895 Contact Us For Availability
5
WCI 5308015765 WCI 5308015765 Contact Us For Availability
5A
WCI 3001269 WCI 3001269 Contact Us For Availability
6
WCI 5303200272 WCI 5303200272 Contact Us For Availability
6
GASKET-COIL COVER (2) WCI 5303001219 Contact Us For Availability
6
SUPPORT-TANK (3) WCI 5303001185 Contact Us For Availability
6
WCI 5303001260 WCI 5303001260 Contact Us For Availability
6
SCREW (4) WCI 5303001073 Contact Us For Availability
6
WCI 5303208862 WCI 5303208862 Contact Us For Availability
6
WCI 5303916605 WCI 5303916605 Contact Us For Availability
6A
INSULATOR-FRZR COIL TOP (NON-ILLUSTRATED) WCI 5308009619 Contact Us For Availability
6B
WCI 3206414 WCI 3206414 Contact Us For Availability
7
HANDLE-REFRIGERATOR WCI 5303207069 Contact Us For Availability
7
COVER-COIL UPPER WCI 5303001222 Contact Us For Availability
7
WATER TANK WCI 5308950104 Contact Us For Availability
7
KNOB-TEMP CONTROL WCI 5308000778 Contact Us For Availability
7
WCI 5303001078 WCI 5303001078 Contact Us For Availability
7
WCI 5303015828 WCI 5303015828 Contact Us For Availability
7A
WCI 5308011745 WCI 5308011745 Contact Us For Availability
7A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI 5308000126 Contact Us For Availability
8
GASKET-REFRIGERATOR WCI 5303205400 Contact Us For Availability
8
MULLION-ALMD WCI 5303916448 Contact Us For Availability
8
WCI 5303204887 WCI 5303204887 Contact Us For Availability
8
PLATE-SWITCH MTG WCI 5303204878 Contact Us For Availability
8
WCI 5303017843 WCI 5303017843 Contact Us For Availability
8
WCI 5303001191 WCI 5303001191 Contact Us For Availability
8
HEAT EXCHANGER TUBE WCI 5308017565 Contact Us For Availability
9
WCI 5308000068 WCI 5308000068 Contact Us For Availability
9
PANEL-INNER DOOR WCI G179992-01 Contact Us For Availability
9
CLIP-MULLION (3) WCI 5300169100 Contact Us For Availability
9
WCI 5303001291 WCI 5303001291 Contact Us For Availability
9
SCREW (4) WCI 5303001083 Contact Us For Availability
9
WORM GEAR-DRIVE WCI 5301123566 Contact Us For Availability
9
INSUL-BLOCK-EVAP (4) WCI 5308000828 Contact Us For Availability
9A
WCI 5303001281 WCI 5303001281 Contact Us For Availability
9A
SCREW-SUPPORT (2) (NON-ILLUSTRATED) WCI 5303001292 Contact Us For Availability
10
WCI 5303207066 WCI 5303207066 Contact Us For Availability
10
CHANNEL-SHELF MTG (2) WCI 5308002744 Contact Us For Availability
10
SPRING-WATER ACTUATOR WCI 5303001072 Contact Us For Availability
10
DISC-DRIVE WCI 5301123568 Contact Us For Availability
10
WCI 5303001235 WCI 5303001235 Contact Us For Availability
11
WCI 5303007568 WCI 5303007568 Contact Us For Availability
11
WCI 5302832432 WCI 5302832432 Contact Us For Availability
11
BEARING-LOWER HINGE WCI 5308012007 Contact Us For Availability
11
BASKET-FRZR (2) WCI 5308001015 Contact Us For Availability
11
WCI 5303001276 WCI 5303001276 Contact Us For Availability
11
WCI 5303001077 WCI 5303001077 Contact Us For Availability
11
WORM-DRIVE WCI 5301124161 Contact Us For Availability
12
WCI 5303206692 WCI 5303206692 Contact Us For Availability
12
WCI 5303208853 WCI 5303208853 Contact Us For Availability
12
WCI 5303001277 WCI 5303001277 Contact Us For Availability
12
BUTTONS-WATER & ICE (2) WCI 5303205889 Contact Us For Availability
12
SPRING-DRIVE WCI 5301123767 Contact Us For Availability
12
WCI 5303001141 WCI 5303001141 Contact Us For Availability
12
WCI 5308002777 WCI 5308002777 Contact Us For Availability
12A
WCI 5303001280 WCI 5303001280 Contact Us For Availability
12A
LABEL-BUTTONS (2) (NON-ILLUSTRATED) WCI 3001155 Contact Us For Availability
13
SUPPORT-RH (4) WCI 5303206680 Contact Us For Availability
13
HANGER-BASKET RS (2) WCI 5303001098 Contact Us For Availability
13
WCI 5308000771 WCI 5308000771 Contact Us For Availability
13
WCI 5302832214 WCI 5302832214 Contact Us For Availability
13
COUPLING-ICE DISPENSER CONTAINER WCI 5308017407 Contact Us For Availability
13
WCI 5301138379 WCI 5301138379 Contact Us For Availability
14
SUPPORT-LH (4) WCI 5303206681 Contact Us For Availability
14
HINGE-TOP LH WCI 5303001062 Contact Us For Availability
14
HANGER-BASKET LS (2) WCI 5303001099 Contact Us For Availability
14
WCI 5303001252 WCI 5303001252 Contact Us For Availability
14
WCI 5303208251 WCI 5303208251 Contact Us For Availability
14
WCI 5301123508 WCI 5301123508 Contact Us For Availability
14
WCI 5300618683 WCI 5300618683 Contact Us For Availability
14
DEFROST PLATE WCI 5308017118 Contact Us For Availability
14A
BRACKET-PLATE MTG (4) (NON-ILLUSTRATED) WCI 5308002782 Contact Us For Availability
14C
BRACKET-DEFROST PAN MTG (NON-ILLUSTRATED) WCI 5308002780 Contact Us For Availability
15
WCI 5318062901 WCI 5318062901 Contact Us For Availability
15
COVER-COIL LOWER WCI 5308017223 Contact Us For Availability
15
WCI 08001031 WCI 08001031 Contact Us For Availability
15
WCI 5308013429 WCI 5308013429 Contact Us For Availability
15
FRONT PANEL WCI 5318264301 Contact Us For Availability
15
COVER-DRIVE HSG WCI 5301123570 Contact Us For Availability
15
WCI 5303001132 WCI 5303001132 Contact Us For Availability
15
WCI 5303001197 WCI 5303001197 Contact Us For Availability
15A
PLUG-SHORT TEST HOLE (NON-ILLUSTRATED) WCI 5303203044 Contact Us For Availability
16
BULB-LIGHT WCI 5304506475 No Longer Available
16
WCI 5303208841 WCI 5303208841 Contact Us For Availability
16
WCI 5308000790 WCI 5308000790 Contact Us For Availability
16
CLIP-GROUNDING WCI 5303001231 Contact Us For Availability
16
SHELF-WIRE-UPPER (2) WCI 08001032 Contact Us For Availability
16
WCI 5316521701 WCI 5316521701 Contact Us For Availability
16
WCI 5300174436 WCI 5300174436 Contact Us For Availability
16
WIRING HARNESS, CONTROLS WCI 5303015098 Contact Us For Availability
17
SUPPORT-RH (5) WCI 5303204848 Contact Us For Availability
17
TRIM-DOOR WCI 5303205834 Contact Us For Availability
17
TRIM-SHELF (3) WCI 5303206528 Contact Us For Availability
17
BRACKET-MOTOR REAR WCI 5303001227 Contact Us For Availability
17
WCI 5303001081 WCI 5303001081 Contact Us For Availability
17
HOUSING-ICE DISP DRIVE WCI 5300174408 Contact Us For Availability
17
WCI 5301121700 WCI 5301121700 Contact Us For Availability
17
WIRING HARNESS-COMPR & LIGHT SWITCHES WCI 5308009616 Contact Us For Availability
18
WCI 5308000107 WCI 5308000107 Contact Us For Availability
18
SUPPORT-LH (5) WCI 5303204849 Contact Us For Availability
18
WCI 5308017447 WCI 5308017447 Contact Us For Availability
18
ACTUATOR AND CUP WCI 5300190359 Contact Us For Availability
18
WCI 5301121694 WCI 5301121694 Contact Us For Availability
18
WCI 5316254901 WCI 5316254901 Contact Us For Availability
18A
LABEL-SHELF (NON-ILLUSTRATED) WCI 5303001104 Contact Us For Availability
18B
SUPPORT-SHELF (2) (NON-ILLUSTRATED) WCI 5308000244 Contact Us For Availability
18C
SCREW-SUPPORT (2) (NON-ILLUSTRATED) WCI 5303001290 Contact Us For Availability
19
WASHER-NYLON-5/16 X 5/8 OD WCI 5303001038 Contact Us For Availability
19
SHELF-PLASTIC-UPPER WCI 5303001152 Contact Us For Availability
19
WCI 5303205853 WCI 5303205853 Contact Us For Availability
19
COVER-MOTOR HSG WCI 5308010346 Contact Us For Availability
19
WCI 5301138166 WCI 5301138166 Contact Us For Availability
19A
LABEL-SHELF (NON-ILLUSTRATED) WCI 3001153 Contact Us For Availability
19A
WCI 5303208871 WCI 5303208871 Contact Us For Availability
20
SHIM-LOWER HINGE (3) WCI 5303001272 Contact Us For Availability
20
WCI 5303200758 WCI 5303200758 Contact Us For Availability
20
WCI 5308010330 WCI 5308010330 Contact Us For Availability
20
HOUSING-MOTOR WCI 5308010343 Contact Us For Availability
20
WCI 01124226 WCI 01124226 Contact Us For Availability
21
HINGE-BOTTOM LH WCI 5303001043 Contact Us For Availability
21
WCI 5303208857 WCI 5303208857 Contact Us For Availability
21
WCI 5300179966 WCI 5300179966 Contact Us For Availability
21
MOUNT-MOTOR (2) WCI 5301123769 Contact Us For Availability
21
WCI 5303001143 WCI 5303001143 Contact Us For Availability
21
COMPRESSOR W/ELECTRICALS WCI 5303916009 Contact Us For Availability
21A
BUSHING-PROTECTOR (NON-ILLUSTRATED) WCI 5308010374 Contact Us For Availability
22
WCI 5306588927 WCI 5306588927 Contact Us For Availability
22
SCREW-HINGE MTG (4) WCI 5303001041 Contact Us For Availability
22
TRIM-SHELF REAR (4) WCI 5303207080 Contact Us For Availability
22
BRACKET-MOTOR FRONT WCI 5303001226 Contact Us For Availability
22
WCI 5308015598 WCI 5308015598 Contact Us For Availability
22
MOTOR-ICE DISPENSER WCI 5308017049 Contact Us For Availability
22
CLIP (4) WCI 5308003596 Contact Us For Availability
23
WCI 5303207081 WCI 5303207081 Contact Us For Availability
23
WCI 5303208845 WCI 5303208845 Contact Us For Availability
23
BRACKET-MOTOR WCI 5303001106 Contact Us For Availability
23
WCI 5303001119 WCI 5303001119 Contact Us For Availability
23
WASHER (4) WCI 5308003633 Contact Us For Availability
23A
CLIP-LIGHT SWITCH CABLE (2) WCI 08009775 Contact Us For Availability
24
RING, ORIFICE WCI 5308000124 Contact Us For Availability
24
COVER-UPPER PAN WCI 08009642 Contact Us For Availability
24
WCI 5318000402 WCI 5318000402 Contact Us For Availability
24
COUPLING-MOTOR WCI 5301123771 Contact Us For Availability
24
WCI 5303001117 WCI 5303001117 Contact Us For Availability
24A
GASKET-COVER (2) (NON-ILLUSTRATED) WCI 5303205880 Contact Us For Availability
25
WCI 5303007173 WCI 5303007173 Contact Us For Availability
25
SCREW-8-32 X 9/16 WCI 5303001230 Contact Us For Availability
25
WCI 5303207092 WCI 5303207092 Contact Us For Availability
25
NUT-SELF THREAD (12) WCI 5308017047 Contact Us For Availability
25
WCI 5301124984 WCI 5301124984 Contact Us For Availability
26
WCI 5308000847 WCI 5308000847 Contact Us For Availability
26
COVER, LOWER PAN WCI 5316972401 Contact Us For Availability
26
WCI 5308015764 WCI 5308015764 Contact Us For Availability
26
WIRING HARNESS FRZR DOOR WCI 5303001567 Contact Us For Availability
26
WCI 5301124972 WCI 5301124972 Contact Us For Availability
26
WCI 5308017526 WCI 5308017526 Contact Us For Availability
27
WCI 5303001032 WCI 5303001032 Contact Us For Availability
27
WCI 5303207078 WCI 5303207078 Contact Us For Availability
27
PLUG-HARNESS BOTTOM WCI 5303001047 Contact Us For Availability
27
WCI 5303001136 WCI 5303001136 Contact Us For Availability
27
CAPACITOR ASSY WCI 5303916391 Contact Us For Availability
28
DEFROST PAN WCI 5303001026 Contact Us For Availability
28
WCI 5303207077 WCI 5303207077 Contact Us For Availability
28
LAMPHOLDER WCI 5303001076 Contact Us For Availability
28
WCI 5301124979 WCI 5301124979 Contact Us For Availability
29
TRIM-PANS (3) WCI 5303207076 Contact Us For Availability
29
WCI 5308010350 WCI 5308010350 Contact Us For Availability
30
ROLLER ASSY-FRONT (2) WCI 5308000118 Contact Us For Availability
30
RETAINER-GLASS (3) WCI 3200683 Contact Us For Availability
30
WCI 5301124982 WCI 5301124982 Contact Us For Availability
31
SCREW-ROLLER MTG (2) WCI 5308017044 Contact Us For Availability
31
WCI 5303207088 WCI 5303207088 Contact Us For Availability
31
WCI 5301124507 WCI 5301124507 Contact Us For Availability
31A
HANGER-MEAT PAN-LH (NON-ILLUSTRATED) WCI 5303207087 Contact Us For Availability
31B
SCREW-HANGER (2) (NON-ILLUSTRATED) WCI 08014528 Contact Us For Availability
32
SCREW-ROLLER ADJ (2) WCI 5308009568 Contact Us For Availability
32
GLASS-M.K. SHELF WCI 5303207082 Contact Us For Availability
32
NUT-HEX 10-32 LH THD WCI 5303001118 Contact Us For Availability
32A
RAIL-GLASS SUPT (2) (NON-ILLUSTRATED) WCI 3204640 Contact Us For Availability
33
TUBE-RUBBER (4) WCI 5303001198 Contact Us For Availability
33
WCI 5303207089 WCI 5303207089 Contact Us For Availability
33
FRONT-ICE MAKER WCI 5303015830 Contact Us For Availability
34
SPEED NUT (2) WCI 5300077210 Contact Us For Availability
34
RETAINER/GASKET-FRONT WCI 5303207091 Contact Us For Availability
34
WCI 5303208861 WCI 5303208861 Contact Us For Availability
35
PIN-REAR ROLLER (2) WCI 5308000266 Contact Us For Availability
35
WCI 5301124987 WCI 5301124987 Contact Us For Availability
36
WCI 5303001030 WCI 5303001030 Contact Us For Availability
36
WCI 5308010348 WCI 5308010348 Contact Us For Availability
37
PUSH NUT (2) WCI 5303001028 Contact Us For Availability
37
WCI 5301124981 WCI 5301124981 Contact Us For Availability
38
WCI 5308000853 WCI 5308000853 Contact Us For Availability
38
WCI 5308011238 WCI 5308011238 Contact Us For Availability
39
TWIN NUT-SPECIAL (4) WCI 5303001273 Contact Us For Availability
39
WCI 5301124983 WCI 5301124983 Contact Us For Availability
40
SHOULDER PIN (2) WCI 5308000013 Contact Us For Availability
40
WCI 5303001139 WCI 5303001139 Contact Us For Availability
41
BRACKET-COIL COVER WCI 5308000738 Contact Us For Availability
41
SENSING ARM WCI 5301124988 Contact Us For Availability
42
SUPPORT-COIL COVER (4) WCI 5303001250 Contact Us For Availability
42
WCI 5301123459 WCI 5301123459 Contact Us For Availability
43
WCI 5308010353 WCI 5308010353 Contact Us For Availability
43
WCI 5301138171 WCI 5301138171 Contact Us For Availability
43A
SUPPORT-SPEC SCREW MTG (2) (NON-ILLUSTRATED) WCI 5303001211 Contact Us For Availability
43B
SCREW (2) (NON-ILLUSTRATED) WCI 3001212 Contact Us For Availability
44
HINGE-BOTTOM-RH WCI 5303001271 Contact Us For Availability
44
WCI 5301138222 WCI 5301138222 Contact Us For Availability
45
SUPPORT-COIL COVER WCI 5308000097 Contact Us For Availability
45
WCI 5303001125 WCI 5303001125 Contact Us For Availability
46
FERRULE-INNER (2) WCI 5303001286 Contact Us For Availability
46
SCREW-ICE MAKER MTG WCI 5308012819 Contact Us For Availability
47
WASHER-SCREW WCI 5303001216 Contact Us For Availability
47
FERRULE-OUTER (2) WCI 5303001287 Contact Us For Availability
48
WCI 5308010289 WCI 5308010289 Contact Us For Availability
48
WIRING HARNESS-ICE & WATER (LOWER) WCI 5308017050 Contact Us For Availability
48A
NUT-NYLON (2) (NON-ILLUSTRATED) WCI 5308000200 Contact Us For Availability
49
COVER-BOTTOM HINGE WCI 5317465801 Contact Us For Availability
49B
WCI 5308010293 WCI 5308010293 Contact Us For Availability
50
WATER VALVE-DUAL SOLENOID WCI 5308017599 Contact Us For Availability
50A
CAP-WATER VALVE (NON-ILLUSTRATED) WCI 5303015102 Contact Us For Availability
51
WCI G174712-01 WCI G174712-01 Contact Us For Availability
51A
WCI 5308010367 WCI 5308010367 Contact Us For Availability
53
WATER SUPPLY ADAPTER KIT WCI 3206360 Contact Us For Availability
53
WCI 5303207095 WCI 5303207095 Contact Us For Availability
54
WCI 5308000247 WCI 5308000247 Contact Us For Availability
55
WCI 5308012818 WCI 5308012818 Contact Us For Availability
× ![]()
