Model Electrolux RS249JCD1 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - DOOR PARTS

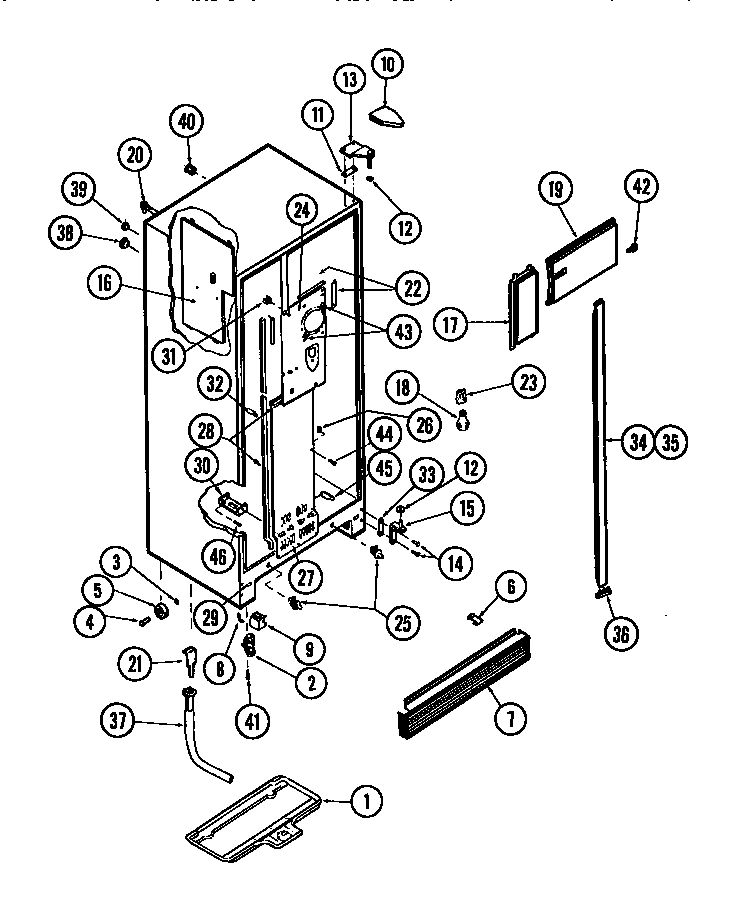

04 - CABINET PARTS

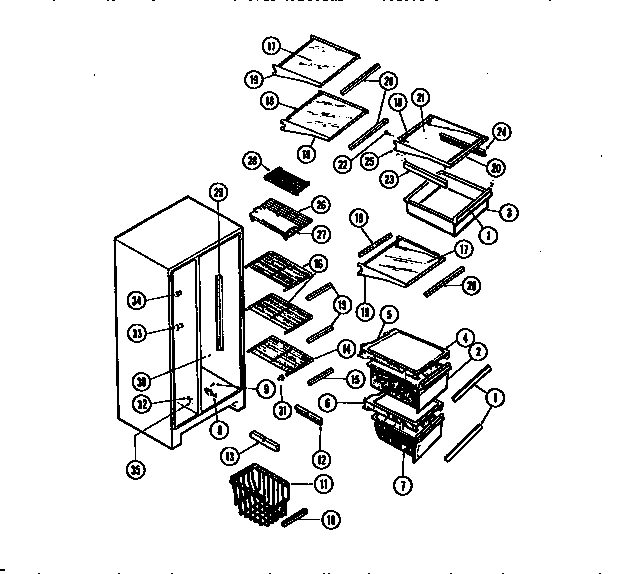

05 - SHELVES AND SUPPORTS

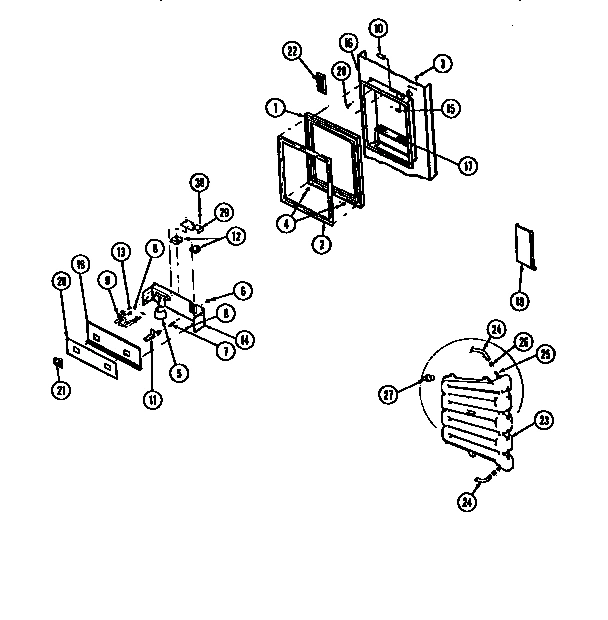

06 - ICE DOOR, DISPENSER AND WATER TANK

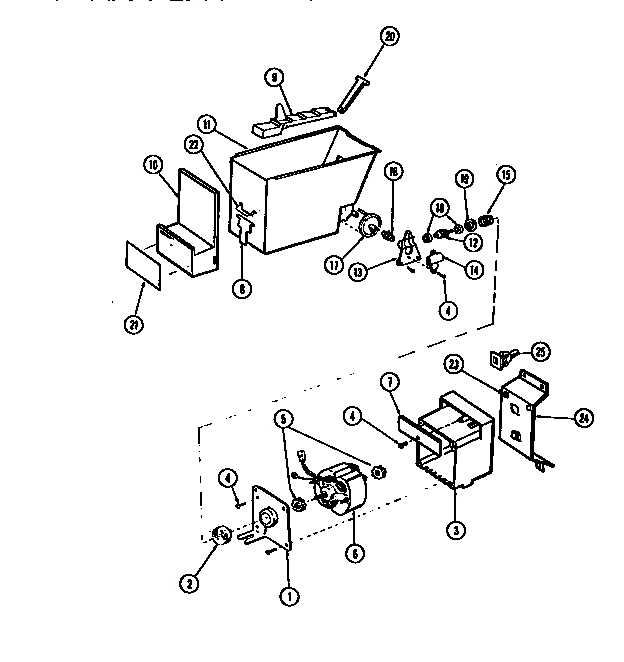

07 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

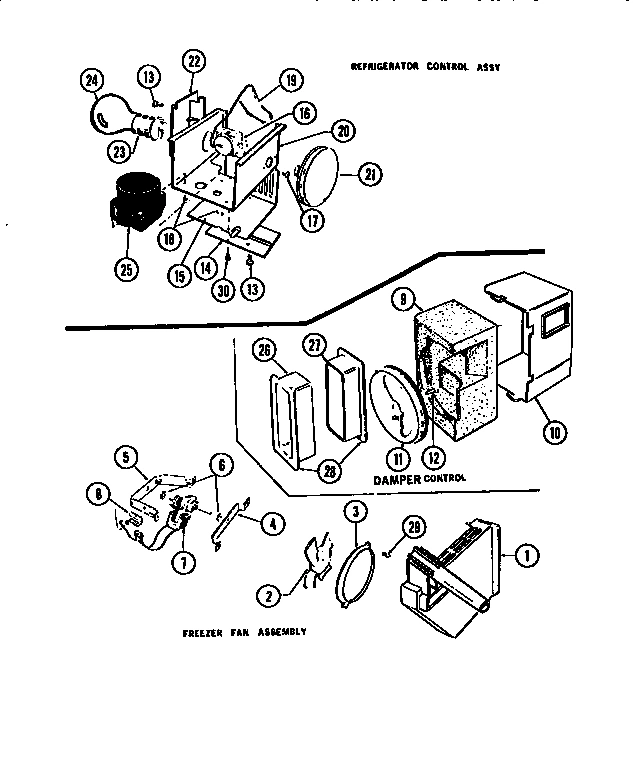

08 - ICE DISPENSER

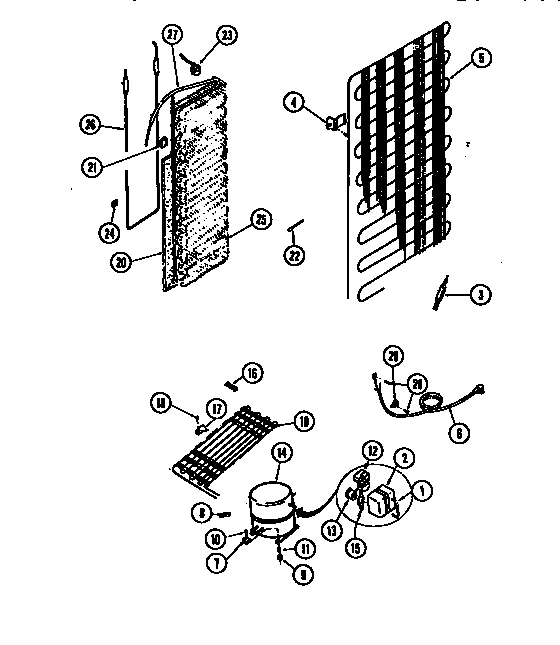

09 - SYSTEM AND AUTOMATIC DEFROST PARTS

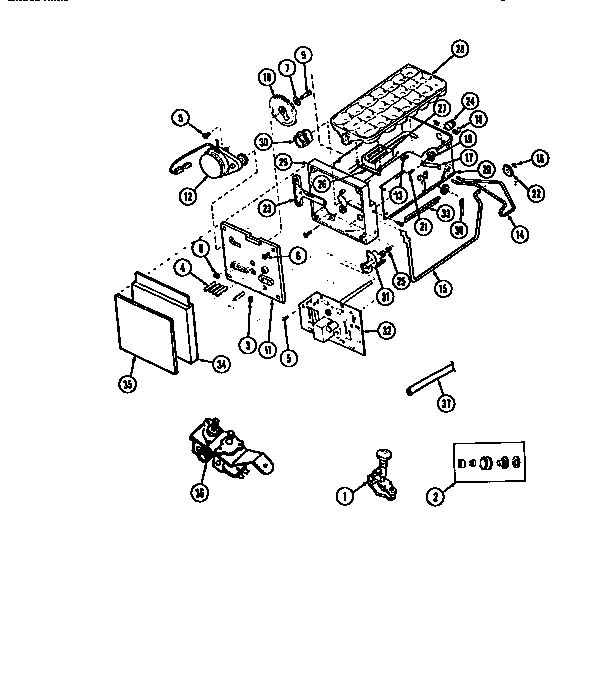

10 - ICE MAKER PARTS
11 - SYSTEM PARTS
Common parts from model Electrolux RS249JCD1 REFRIGERATOR
*17022
WTR. INLET & PILOT TUBE WCI G188233 Contact Us For Availability
*17023
BTN-PLUG BTM DOOR WCI G152308-01 Contact Us For Availability
*17023
HARNESS-DOOR WCI G185266 Contact Us For Availability
*17085
SUPT DIVIDER & L.T. COVER WCI G177641 Contact Us For Availability
*17128
HEATER-HOUSING WCI G182738 Contact Us For Availability
*17128
FOAM INSUL. SIDES (2) WCI G189634 Contact Us For Availability
*17129
FOAM INSUL. TOP & BTM (2) WCI G189635 Contact Us For Availability
*17202
SCREW-STRAP-BTM WCI G177428 Contact Us For Availability
*17204
WCI G183076 WCI G183076 Contact Us For Availability
1
PAN, DEFROST WCI G171125 Contact Us For Availability
1
TRIM WCI G177343-06 Contact Us For Availability
1
FRAME-HSNG. WCI G182518-05 Contact Us For Availability
1
COVER & TUBE WCI R900978 Contact Us For Availability
1
BRACKET-MTR. WCI G174403 Contact Us For Availability
1
WCI C83120 WCI C83120 Contact Us For Availability
1
HARNESS I & W LOWER WIRING WCI G188236 Contact Us For Availability
2
DOOR-DAIRY WCI G179976-01 Contact Us For Availability
2
ROLLER ASSY WCI G186731 Contact Us For Availability
2
PAN WCI G179709-01 Contact Us For Availability
2
LABEL WCI G182955-01 Contact Us For Availability
2
COUPLING WCI G174409 Contact Us For Availability
2
ADAPTER ASSY WCI G159415 Contact Us For Availability
2
HARNESS ICE MAKER WCI G174737 Contact Us For Availability
2A
NUT 1/8`` SLF THRD (NON-ILLUSTRATED) WCI G188218 Contact Us For Availability
2B
SCREW NO. 8-16 X 1/2 (4) (NON-ILLUSTRATED) WCI G185567 Contact Us For Availability
3
INSULATION WCI G175208 Contact Us For Availability
3
WCI G179992-01 WCI G179992-01 Contact Us For Availability
3
NUT, PUSH WCI G162662 Contact Us For Availability
3
PAN WCI G179915-01 Contact Us For Availability
3
GROMMET-TUBE WCI G175246 Contact Us For Availability
3
RING-ORIFICE WCI G167217 Contact Us For Availability
3
HOUSING WCI G175019 Contact Us For Availability
3
DRIER-BURNED SYS. WCI R900125 Contact Us For Availability
3
WCI R900983 WCI R900983 Contact Us For Availability
3
RING-RTNG. WCI G174422 Contact Us For Availability
3
HARNESS COMPR. & LT. SW. WCI R900979 Contact Us For Availability
4
INSULATION WCI G175336 Contact Us For Availability
4
GASKET WCI G180551-02 Contact Us For Availability
4
PIN-ROLLER WCI G162809 Contact Us For Availability
4
COVER-UPR. WCI G169711-01 Contact Us For Availability
4
CLIP-TRIM (2) WCI G179966 Contact Us For Availability
4
WCI G185302 WCI G185302 Contact Us For Availability
4
BRACKET (4) WCI G169666-01 Contact Us For Availability
4
CORD, SERVICE WCI G162549-01 Contact Us For Availability
4
WCI G174445 WCI G174445 Contact Us For Availability
5
FLIPPER-ICE DR WCI G175040-03 Contact Us For Availability
5
WCI G101890 WCI G101890 Contact Us For Availability
5
ROLLER WCI G162808 Contact Us For Availability
5
GASKET WCI G180108-03 Contact Us For Availability
5
SKIRT WCI G180004-02 Contact Us For Availability
5
WCI G185303 WCI G185303 Contact Us For Availability
5
MOUNT-MTR. (2) WCI G177711 Contact Us For Availability
5
WCI G188643 WCI G188643 Contact Us For Availability
5
SCREW (3) WCI G174457 Contact Us For Availability
5
HARNESS CONTROL WCI G168541 Contact Us For Availability
6
DOOR, ICE WCI G180637 Contact Us For Availability
6
END CAP LH (4) WCI G163780-01 Contact Us For Availability
6
CLIP, GRILLE WCI G170328 Contact Us For Availability
6
COVER-LWR. WCI G169724-01 Contact Us For Availability
6
CLIP WCI G174411 Contact Us For Availability
6
WCI G188235 WCI G188235 Contact Us For Availability
6
WCI G183584 WCI G183584 Contact Us For Availability
6
SCREW (4) WCI G174469 Contact Us For Availability
6A
PIN-ICE DR. (NON-ILLUSTRATED) WCI G179017 Contact Us For Availability
7
GASKET WCI G180551-06 Contact Us For Availability
7
END CAP RH (4) WCI G163781-01 Contact Us For Availability
7
GRILLE WCI G174597-01 Contact Us For Availability
7
PAN-LWR. WCI G179710-01 Contact Us For Availability
7
SPRING WCI G174700 Contact Us For Availability
7
COVER WCI G177710 Contact Us For Availability
7
WASHER WCI G164634 Contact Us For Availability
7
WCI G174430 WCI G174430 Contact Us For Availability
8
RACK (4) WCI G164109-18 Contact Us For Availability
8
ELBOW-WTR. TUBE WCI G177743 Contact Us For Availability
8
SHUTTER WCI G164912-03 Contact Us For Availability
8
STUD-ANCHOR (2) WCI G177724 Contact Us For Availability
8
BRACKET WCI G164571 Contact Us For Availability
8
DOOR WCI G174407-03 Contact Us For Availability
8
CLIP WCI G163204 Contact Us For Availability
8
WCI G174434 WCI G174434 Contact Us For Availability
8A
SCREW (8) (NON-ILLUSTRATED) WCI G167115 Contact Us For Availability
8A
NUT-ELBOW (NON-ILLUSTRATED) WCI G143689 Contact Us For Availability
9
SUPT. RH WCI G179946-01 Contact Us For Availability
9
BUMPER WCI G165376 Contact Us For Availability
9
WCI G174658-01 WCI G174658-01 Contact Us For Availability
9
ACTUATOR & CUP WCI G177725 Contact Us For Availability
9
DEFL.-AIR WCI G164575 Contact Us For Availability
9
WCI G174413 WCI G174413 Contact Us For Availability
9
SHAFT WCI G174444 Contact Us For Availability
10
SUPT. LH WCI G179947-01 Contact Us For Availability
10
WCI R304001 WCI R304001 Contact Us For Availability
10
COVER-HNG ALMD WCI G183558-11 Contact Us For Availability
10
WCI G168625-07 WCI G168625-07 Contact Us For Availability
10
SOCKET-LIGHT WCI G177729 Contact Us For Availability
10
BOX-DMPR. CONT. WCI G164523 Contact Us For Availability
10
WCI G74416-03 WCI G74416-03 Contact Us For Availability
10
WCI G174484 WCI G174484 Contact Us For Availability
11
RACK-DR. WCI G490079-08 Contact Us For Availability
11
CLOSER WCI G161119 Contact Us For Availability
11
SHIM WCI G183861 Contact Us For Availability
11
BASKET WCI G169661 Contact Us For Availability
11
ACTUATOR-WTR WCI G185063-01 Contact Us For Availability
11
KNOB WCI G165217-01 Contact Us For Availability
11
WCI G177213-03 WCI G177213-03 Contact Us For Availability
11
WCI G174504 WCI G174504 Contact Us For Availability
12
COVER WCI G174402-01 Contact Us For Availability
12
WASHER (NYLON) WCI G164355 Contact Us For Availability
12
HANGER R.H. WCI G168986 Contact Us For Availability
12
SWITCH (2) WCI G185542 Contact Us For Availability
12
RIVET-EXP. WCI G185373 Contact Us For Availability
12
GEAR-DRIVE WCI G174406 Contact Us For Availability
12
WCI G182225-05 WCI G182225-05 Contact Us For Availability
12
WCI G174505 WCI G174505 Contact Us For Availability
13
SCREW WCI G169729 Contact Us For Availability
13
PANEL-INNER WCI G180629-01 Contact Us For Availability
13
HINGE RH WCI G183715 Contact Us For Availability
13
WCI G186987 WCI G186987 Contact Us For Availability
13
SCREW-ADJ. WCI R900674 Contact Us For Availability
13
RIVET-PLASTIC WCI G165545 Contact Us For Availability
13
HOUSING WCI G174408 Contact Us For Availability
13
WCI G188608 WCI G188608 Contact Us For Availability
13
RETAINER (2) WCI G174417 Contact Us For Availability
13A
HINGE LH (NON-ILLUSTRATED) WCI G183716 Contact Us For Availability
14
PANEL-OUTER-ALMD WCI 467B377A05 Contact Us For Availability
14
SCREW WCI G99167 Contact Us For Availability
14
SHELF WCI G180425-05 Contact Us For Availability
14
PLATE-MTG. WCI G185754 Contact Us For Availability
14
WCI G166068 WCI G166068 Contact Us For Availability
14
COVER-HSNG. WCI G174412 Contact Us For Availability
14
COMPR. W/ ELECT WCI G189461 Contact Us For Availability
14
WIRE-SHUT OFF WCI G174420 Contact Us For Availability
15
BULB, LIGHT WCI 5304506475 No Longer Available
15
SPRING-FLIPPER WCI G184726 Contact Us For Availability
15
BEARING-HNG WCI G183138 Contact Us For Availability
15
HINGE RH WCI G162383 Contact Us For Availability
15
WCI G187267-15 WCI G187267-15 Contact Us For Availability
15
COVER-CONT. BKT. WCI G164778 Contact Us For Availability
15
SPRING WCI G174701 Contact Us For Availability
15
RETAINER-O.L. WCI G188957 Contact Us For Availability
15
WCI G174424 WCI G174424 Contact Us For Availability
15A
HINGE LH (NON-ILLUSTRATED) WCI G175068 Contact Us For Availability
15B
WCI G141673 WCI G141673 Contact Us For Availability
15C
NUT-SPEED (NON-ILLUSTRATED) WCI G77210 Contact Us For Availability
15D
WCI G142361 WCI G142361 Contact Us For Availability
16
INSULATION WCI G187880 Contact Us For Availability
16
BEARING-HNG WCI G183139 Contact Us For Availability
16
DIVIDER I.M. WCI G174559 Contact Us For Availability
16
WCI G180426-06 WCI G180426-06 Contact Us For Availability
16
WCI G188308-02 WCI G188308-02 Contact Us For Availability
16
CONTROL WCI G162205-05 Contact Us For Availability
16
GEAR-DRIVE WCI G174702 Contact Us For Availability
16
BRACKET (4) WCI G171111 Contact Us For Availability
16
RING-RTNG. WCI G174426 Contact Us For Availability
17
HANDLE WCI G177141-09 Contact Us For Availability
17
SHIELD-LT. FZR. WCI G174712-03 Contact Us For Availability
17
WCI G171654-31 WCI G171654-31 Contact Us For Availability
17
WCI G182551 WCI G182551 Contact Us For Availability
17
WCI G107080 WCI G107080 Contact Us For Availability
17
DISC. WCI G177694 Contact Us For Availability
17
BRACKET-PAN WCI G171123 Contact Us For Availability
17
SPRING-REST. WCI G174428 Contact Us For Availability
18
END CAP WCI G177142 Contact Us For Availability
18
TRIM REAR (4) WCI G172409-11 Contact Us For Availability
18
COVER-TANK WCI G163925-02 Contact Us For Availability
18
BEARING (2) WCI G177695 Contact Us For Availability
18
SPRING-TRAY-RET. WCI G174435 Contact Us For Availability
19
END CAP WCI G177143 Contact Us For Availability
19
SHIELD-LT. REFR. WCI G169601-13 Contact Us For Availability
19
FRAME (3) WCI G178323-07 Contact Us For Availability
19
PANEL, FRONT WCI G182643-01 Contact Us For Availability
19
COUPLING WCI G189278 Contact Us For Availability
19
WCI G188555 WCI G188555 Contact Us For Availability
19
WCI G174436 WCI G174436 Contact Us For Availability
20
CLIP (4) WCI G177144 Contact Us For Availability
20
SLEEVE-INSERT (NON-ILLUSTRATED) WCI G154156 Contact Us For Availability
20
TRIM (4) WCI G187267-13 Contact Us For Availability
20
WCI G182654-01 WCI G182654-01 Contact Us For Availability
20
BRACKET-CONT. WCI G164788 Contact Us For Availability
20
DEFLECTOR WCI G177697-03 Contact Us For Availability
20
INSULATOR WCI G169641 Contact Us For Availability
20
FRAME WCI G174440 Contact Us For Availability
21
TRIM WCI G179270 Contact Us For Availability
21
CONDUCTOR, HEAT WCI G171193 Contact Us For Availability
21
SHELF, GLASS WCI G171654-32 Contact Us For Availability
21
BUTTON (2) WCI G180649 Contact Us For Availability
21
KNOB-CONT. WCI G164906-01 Contact Us For Availability
21
WCI G180632 WCI G180632 Contact Us For Availability
21
BLOCK (4) WCI G169493 Contact Us For Availability
21
SCREW WCI G174442 Contact Us For Availability
22
TRIM WCI G179271 Contact Us For Availability
22
GASKET (2) WCI G165233 Contact Us For Availability
22
SCREW (2) WCI G184823 Contact Us For Availability
22
LABEL-PAD WCI G182929 Contact Us For Availability
22
BRACKET-CAP TUBE WCI G165543 Contact Us For Availability
22
WCI G174459 WCI G174459 Contact Us For Availability
23
TRIM WCI G180613-01 Contact Us For Availability
23
TRIM-TOP WCI G178328-04 Contact Us For Availability
23
HANGER, LH WCI G187215-02 Contact Us For Availability
23
TANK-WTR. WCI R900930 Contact Us For Availability
23
SOCKET LIGHT WCI G168302 Contact Us For Availability
23
SPRING, DOOR WCI G184853 Contact Us For Availability
23
RACK, GEAR WCI G174461 Contact Us For Availability
24
WCI G178328-05 WCI G178328-05 Contact Us For Availability
24
WCI G185566 WCI G185566 Contact Us For Availability
24
WCI Q63749 WCI Q63749 Contact Us For Availability
24
COVER-UPPER WCI G174738 Contact Us For Availability
24
HANGER, RH WCI G187216-02 Contact Us For Availability
24
WCI G174739 WCI G174739 Contact Us For Availability
24
SUPPORT-HTR. WCI G167363 Contact Us For Availability
24
WCI G174462 WCI G174462 Contact Us For Availability
25
FRAME - M.K. WCI G187217-03 Contact Us For Availability
25
WCI R900929 WCI R900929 Contact Us For Availability
25
ANCHOR WCI R175095 Contact Us For Availability
25
EVAPORATOR WCI G175350 Contact Us For Availability
25
SPRING-ARM WCI G174485 Contact Us For Availability
26
CONTAINER-EGG WCI G173948-19 Contact Us For Availability
26
CLIP, GROUNDING WCI G162703 Contact Us For Availability
26
SHELF-LWR. WCI G174571-01 Contact Us For Availability
26
WCI R900928 WCI R900928 Contact Us For Availability
26
FERRULE-FC WCI G166802 Contact Us For Availability
26
HEATER-DEFR. WCI G175351 Contact Us For Availability
26
RETAINER-INSUL. WCI G174427 Contact Us For Availability
27
COVER-LOWER WCI G169477-03 Contact Us For Availability
27
LABEL WCI G177706-02 Contact Us For Availability
27
SUPPORT (3) WCI G163938 Contact Us For Availability
27
FERRULE-PC WCI G166803 Contact Us For Availability
27
HEAT-EXCH. WCI G189609 Contact Us For Availability
27
INSULATOR-THERMO. WCI G174479 Contact Us For Availability
28
BUSHING WCI G175070 Contact Us For Availability
28
GASKET KIT WCI G188853 Contact Us For Availability
28
SHELF-UPR. WCI G174556-01 Contact Us For Availability
28
GASKET WCI G167582 Contact Us For Availability
28
TRAY WCI G174487 Contact Us For Availability
28A
LABEL-UPP SHELF (NON-ILLUSTRATED) WCI G177706-01 Contact Us For Availability
29
WCI G177635 WCI G177635 Contact Us For Availability
29
CHANNEL-SHELF (2) WCI G170694 Contact Us For Availability
29
SHIELD-SWITCH WCI G174400 Contact Us For Availability
29
HOUSING WCI G174490 Contact Us For Availability
30
WCI 467B376A05 WCI 467B376A05 Contact Us For Availability
30
WCI G185022 WCI G185022 Contact Us For Availability
30
SCREW-SW. WCI G177686 Contact Us For Availability
30
GEAR-SLDNG. SPUR. WCI G174492 Contact Us For Availability
31
SUPPORT-COVER WCI G163669 Contact Us For Availability
31
CAM-ICE LVL. WCI G174497 Contact Us For Availability
32
SUPPORT-CVR (4) WCI G169471 Contact Us For Availability
32
WCI G163952 WCI G163952 Contact Us For Availability
32
PC BOARD WCI G181942 Contact Us For Availability
33
SHIM WCI G162903 Contact Us For Availability
33
SUPT. ICE CONT. SHLF (2) WCI G163105 Contact Us For Availability
33
EXTENSION-FRAME WCI G175135 Contact Us For Availability
33A
SCREW ICE CONT. SHLF (2) (NON-ILLUSTRATED) WCI G163104 Contact Us For Availability
34
MULLION-ALMD WCI G164643-11 Contact Us For Availability
34
SUPT. ICE MKR. (2) WCI G175103 Contact Us For Availability
34
WCI G177709-03 WCI G177709-03 Contact Us For Availability
34A
SCREW ICE MKR SUPT. (2) (NON-ILLUSTRATED) WCI G177636 Contact Us For Availability
35
CLIP (3) WCI G169297 Contact Us For Availability
35
WCI G166800 WCI G166800 Contact Us For Availability
35
WCI G180633 WCI G180633 Contact Us For Availability
35A
CLIP (2) WCI G169100 Contact Us For Availability
35A
WCI G166801 WCI G166801 Contact Us For Availability
35C
BTN PLUG-LINER (4) WCI G162892-01 Contact Us For Availability
36
TRIM-ALMD WCI G169745-11 Contact Us For Availability
36
VALVE-WTR. WCI G189174 Contact Us For Availability
38
WCI G174733 WCI G174733 Contact Us For Availability
38
WCI G175041 WCI G175041 Contact Us For Availability
39
WCI G174734 WCI G174734 Contact Us For Availability
40
TUQE WCI G85642 Contact Us For Availability
41
SCREW WCI G145103 Contact Us For Availability
43
SUPPORT (4) WCI G165177 Contact Us For Availability
44A
WASHER NYLON (8) WCI G170839 Contact Us For Availability
× ![]()
