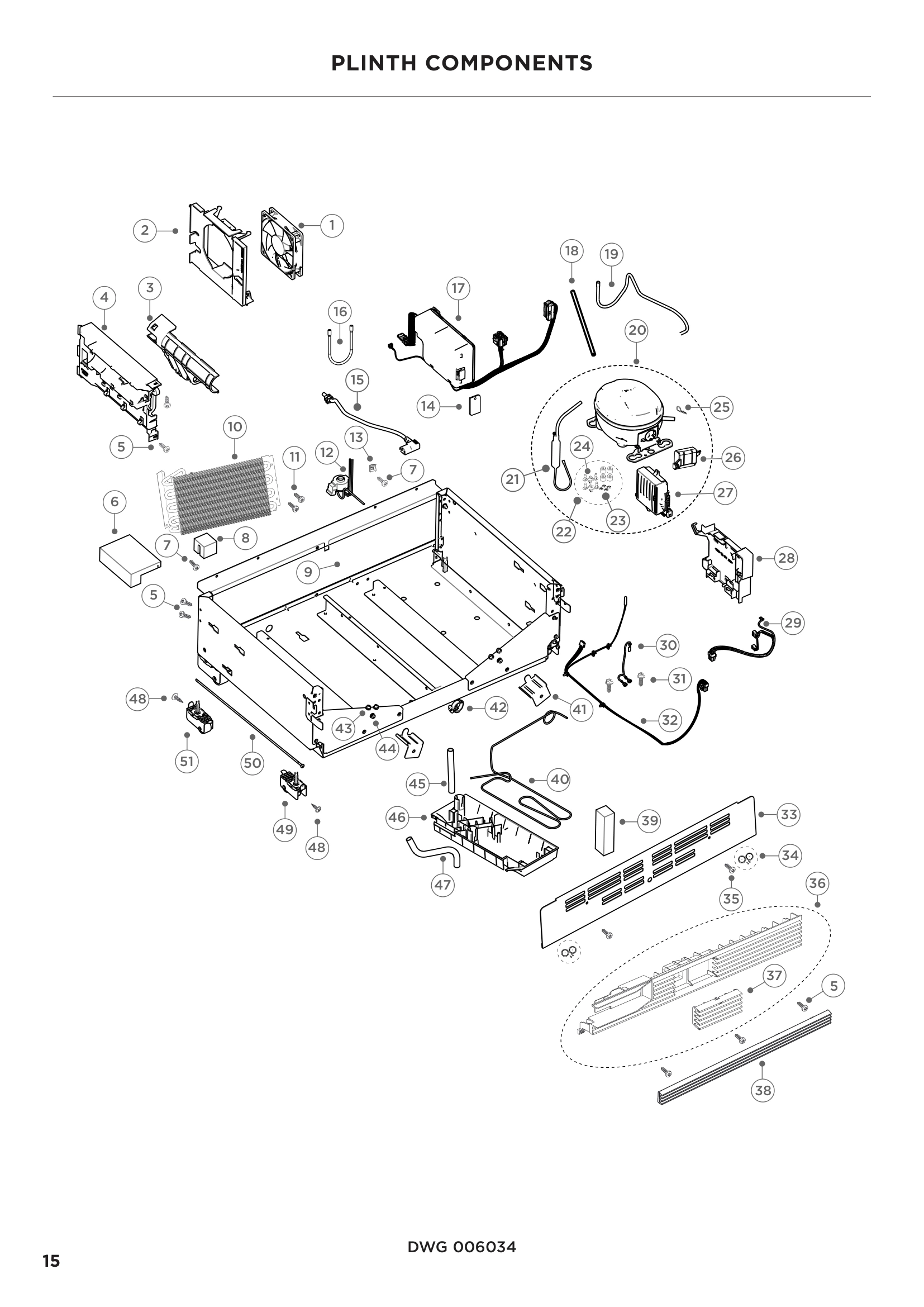

Model Fisher &amp; Paykel RS2484SL1-26119-C Refrigerator – Common Parts &amp; Diagrams

1

SPACER COVER DRAIN ASSY FPA 848128 Contact Us For Availability

1

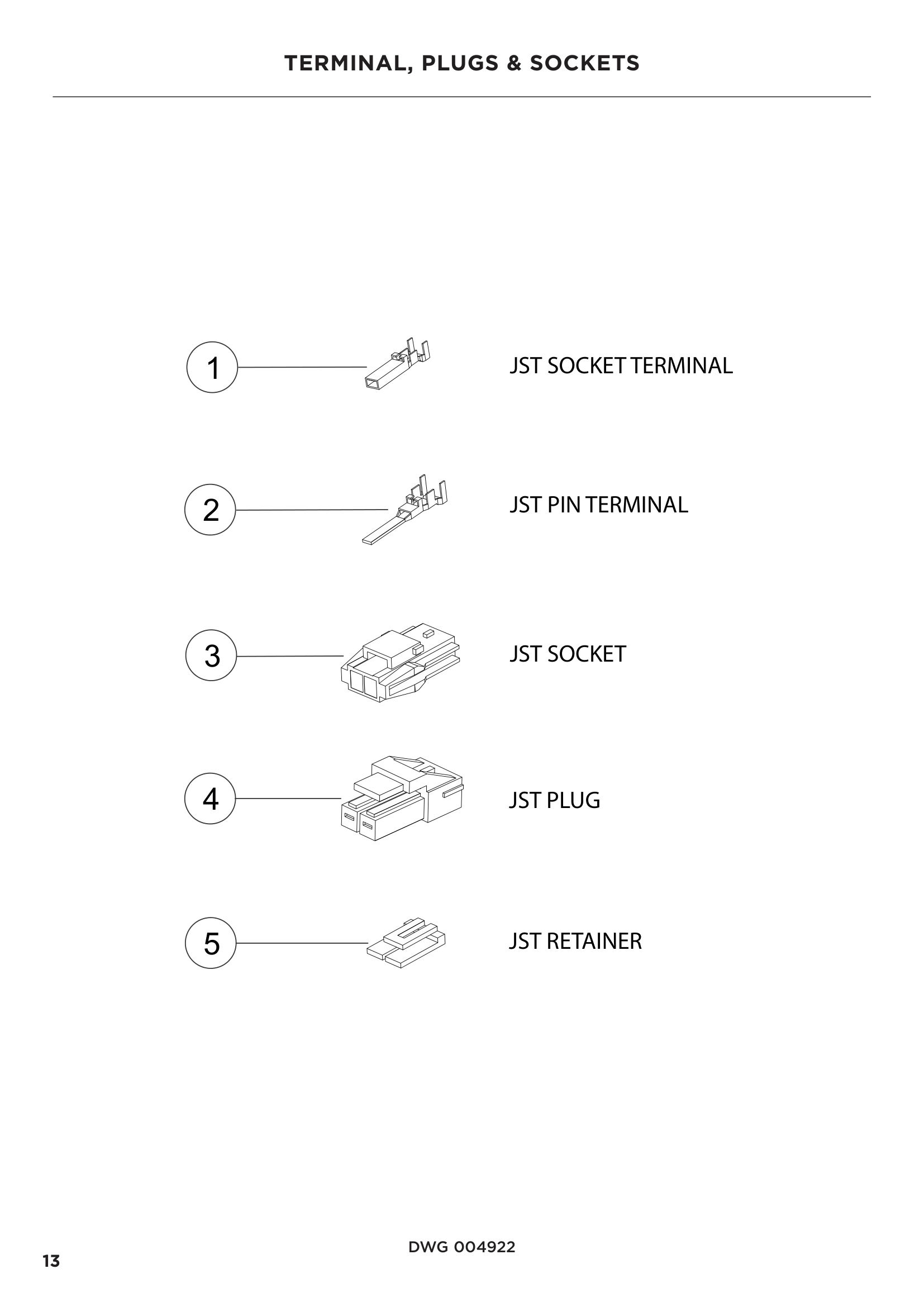

TERMINAL SYF-01T PKT 10 FPA 819607P Contact Us For Availability

1

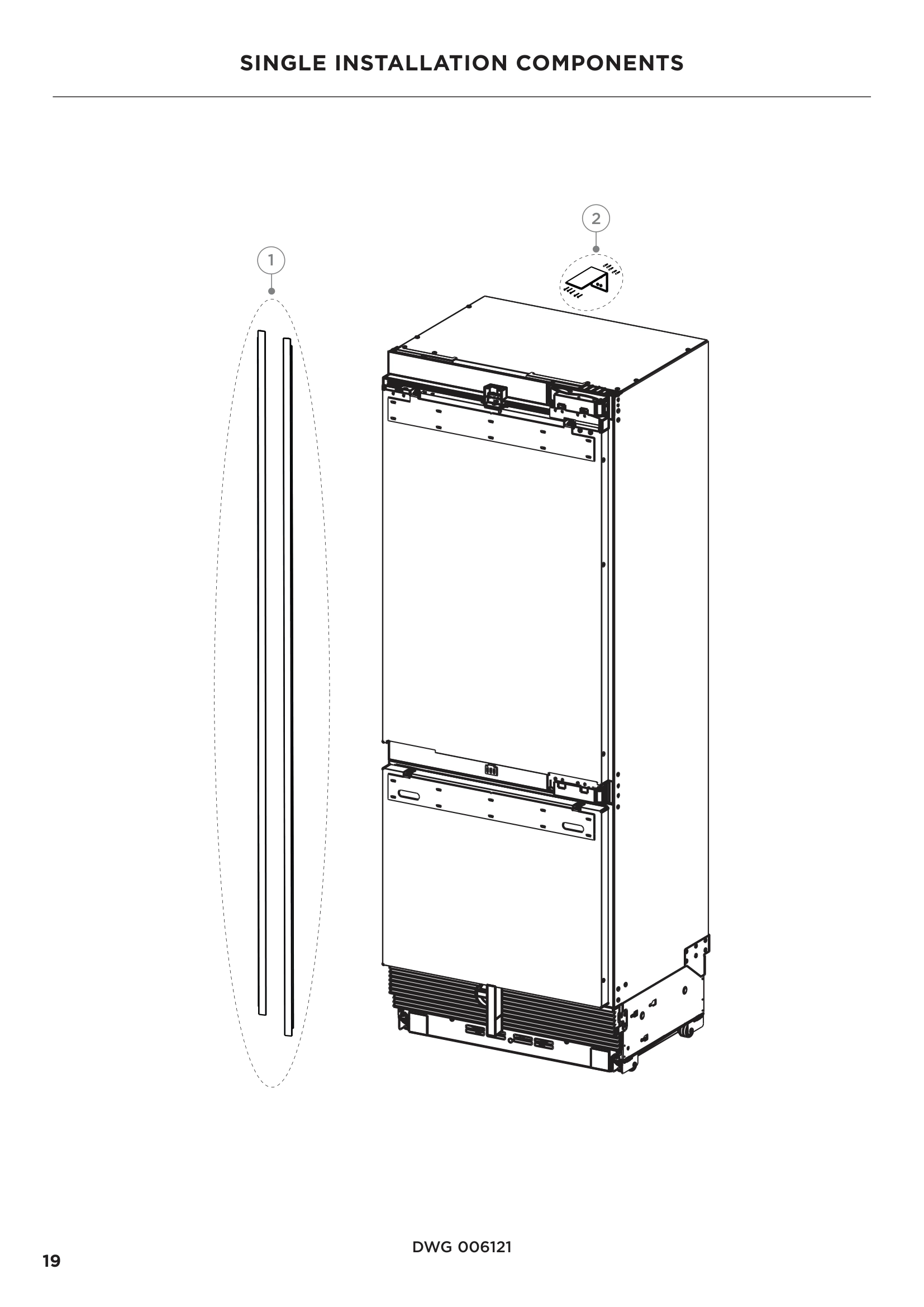

KIT ALCOVE TRIM FPA 868352 Contact Us For Availability

1

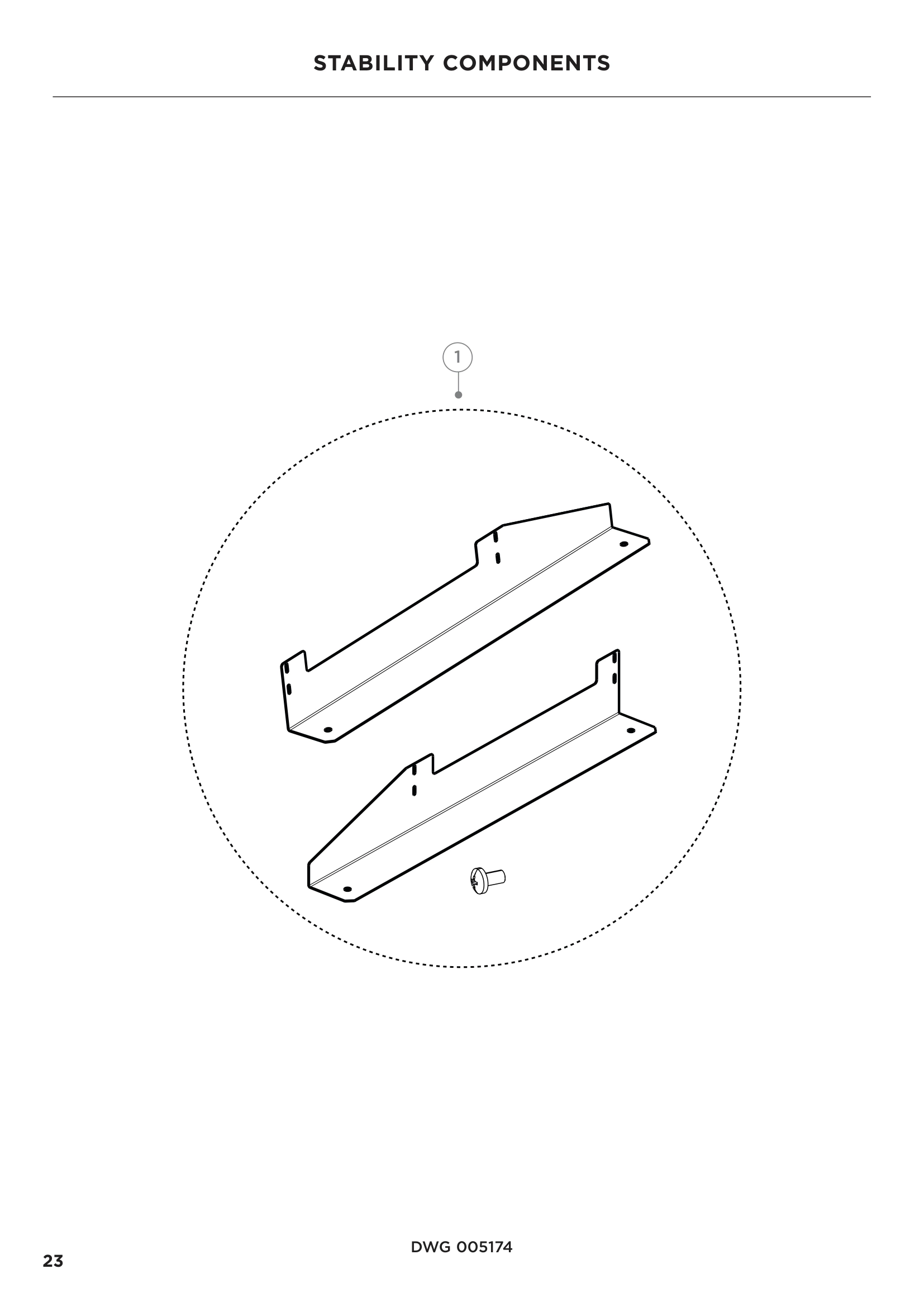

KIT BRACE ANIT TIP FPA 847164P Contact Us For Availability

2

842292P Fisher & Paykel Refrigerator Screw Wa In Stock FPA 842292P $20.42

2

844646 Fisher & Paykel Refrigerator Slide 337 Backorder FPA 844646 $102.32

2

848120P Fisher & Paykel Refrigerator M4x35 St Backorder FPA 848120P $43.59

2

PIN/TERM SYM-01T PKT 10 FPA 819609P Contact Us For Availability

2

DIVIDER PLINTH REAR FPA 843139 Contact Us For Availability

2

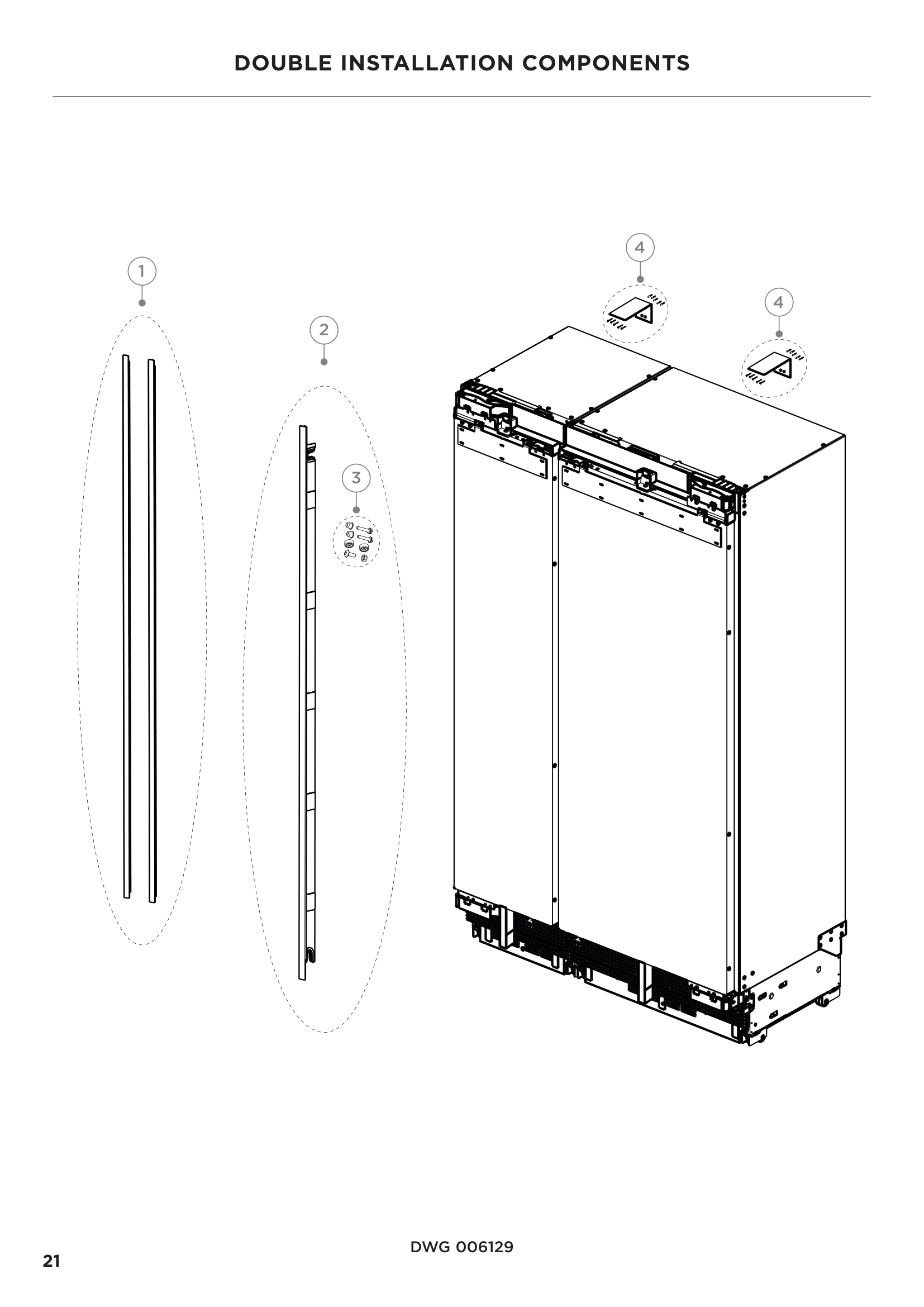

KIT DUAL INSTALL FPA 867910 Contact Us For Availability

3

846179P Fisher & Paykel Refrigerator Dual Loc In Stock FPA 846179P $54.88

3

847033 Fisher & Paykel Refrigerator Front Cov Backorder FPA 847033 $7.30

3

867898 Fisher & Paykel Refrigerator Joiner Fa Backorder FPA 867898 $16.63

3

COVER DRAIN LWR RS24 WH FPA 846701 Contact Us For Availability

3

JST SOCKET 2PIN YLR-02V FPA 819615 Contact Us For Availability

4

527679P Fisher & Paykel Dishwasher Door Corne Backorder FPA 527679P $51.00

4

819611 Fisher & Paykel Refrigerator JST Plug Backorder FPA 819611 $6.20

4

843934 Fisher & Paykel Refrigerator Anti-Tip Backorder FPA 843934 $21.76

4

851575 Fisher & Paykel Refrigerator Right Sli Backorder FPA 851575 $101.65

4

SCREW ST #8X15-M6X12 WASHER KIT FPA 840421P Contact Us For Availability

4

DIVIDER PLINTH FRONT FPA 842779 Contact Us For Availability

5

844632 Fisher & Paykel Refrigerator Door Magn Backorder FPA 844632 $6.37

5

CLIP EDGE EARTH TAB AR EPF255 FPA 846732P Contact Us For Availability

5

RETAINER 2 WAY YLS-02V FPA 819620 Contact Us For Availability

6

814460 Fisher & Paykel Earth Harness 100mm Backorder FPA 814460 $6.20

6

BLOCKER CONDSR AIRFLOW BYPASS FPA 845772 Contact Us For Availability

7

841568P Fisher & Paykel Refrigerator Screw M5 In Stock FPA 841568P $9.42

7

DUCT COVER SEAL LWR RS24 ASSY FPA 846442P Contact Us For Availability

7

SCREW ST 8X1/2 SD TRS NIB PH P FPA 611977P Contact Us For Availability

8

842456P Fisher & Paykel Refrigerator Washer M In Stock FPA 842456P $16.40

8

COVER DRAIN UPR RS24 GR FPA 846700 Contact Us For Availability

8

GROMMET CONDNSR AIR B/PASS FPA 848130 Contact Us For Availability

9

838158P Fisher & Paykel Refrigerator Hex Nut In Stock FPA 838158P $17.09

9

KIT COVER DUCT UPR RS24W SS AS FPA 862711P Contact Us For Availability

9

LOCKING PLATE REAR PLINTH 24 FPA 846485 Contact Us For Availability

838153P Fisher & Paykel Refrigerator Door Ski In Stock FPA 838153P $80.22

847876P Fisher & Paykel Condenser 260x177 1-P In Stock FPA 847876P $107.01

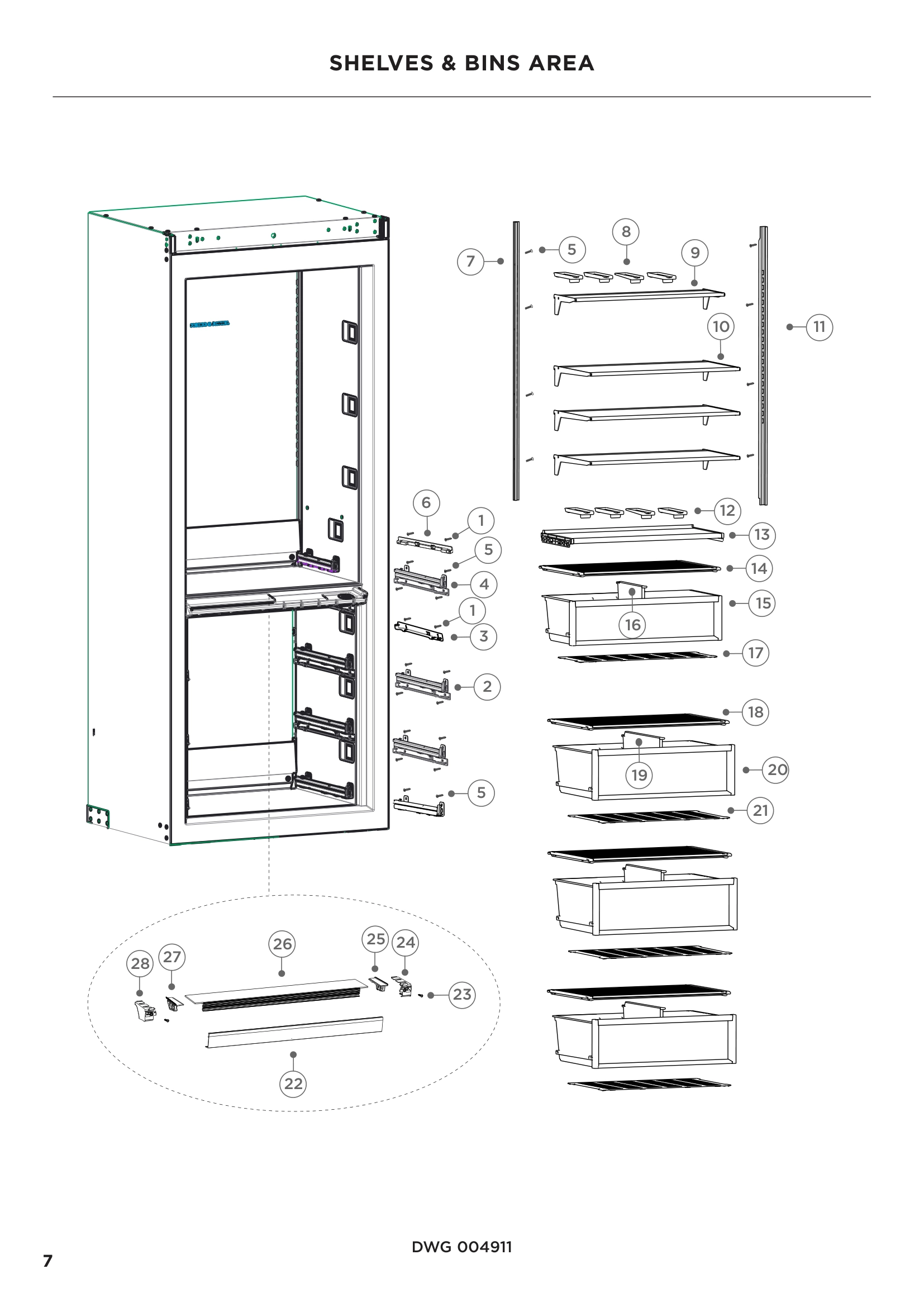

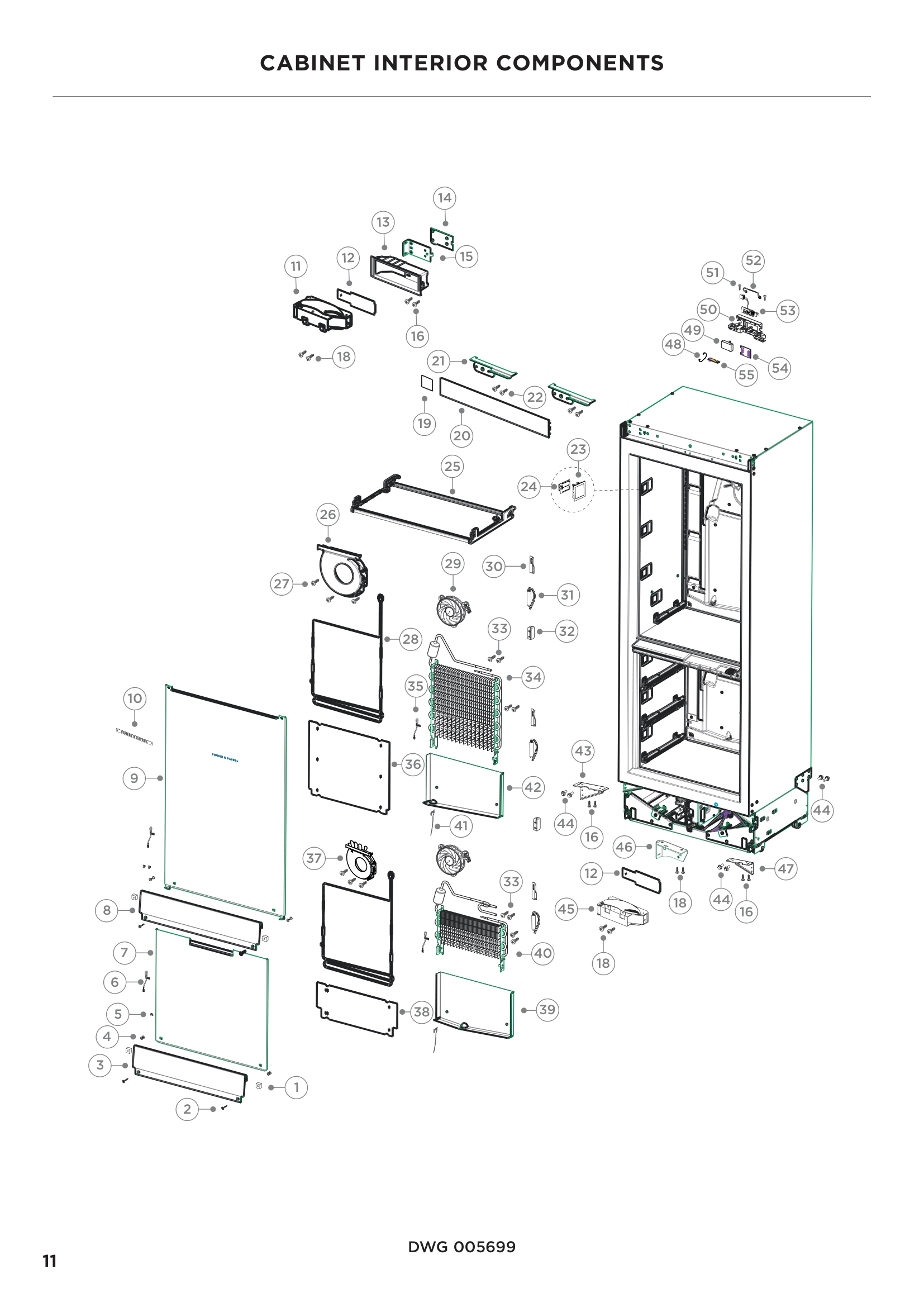

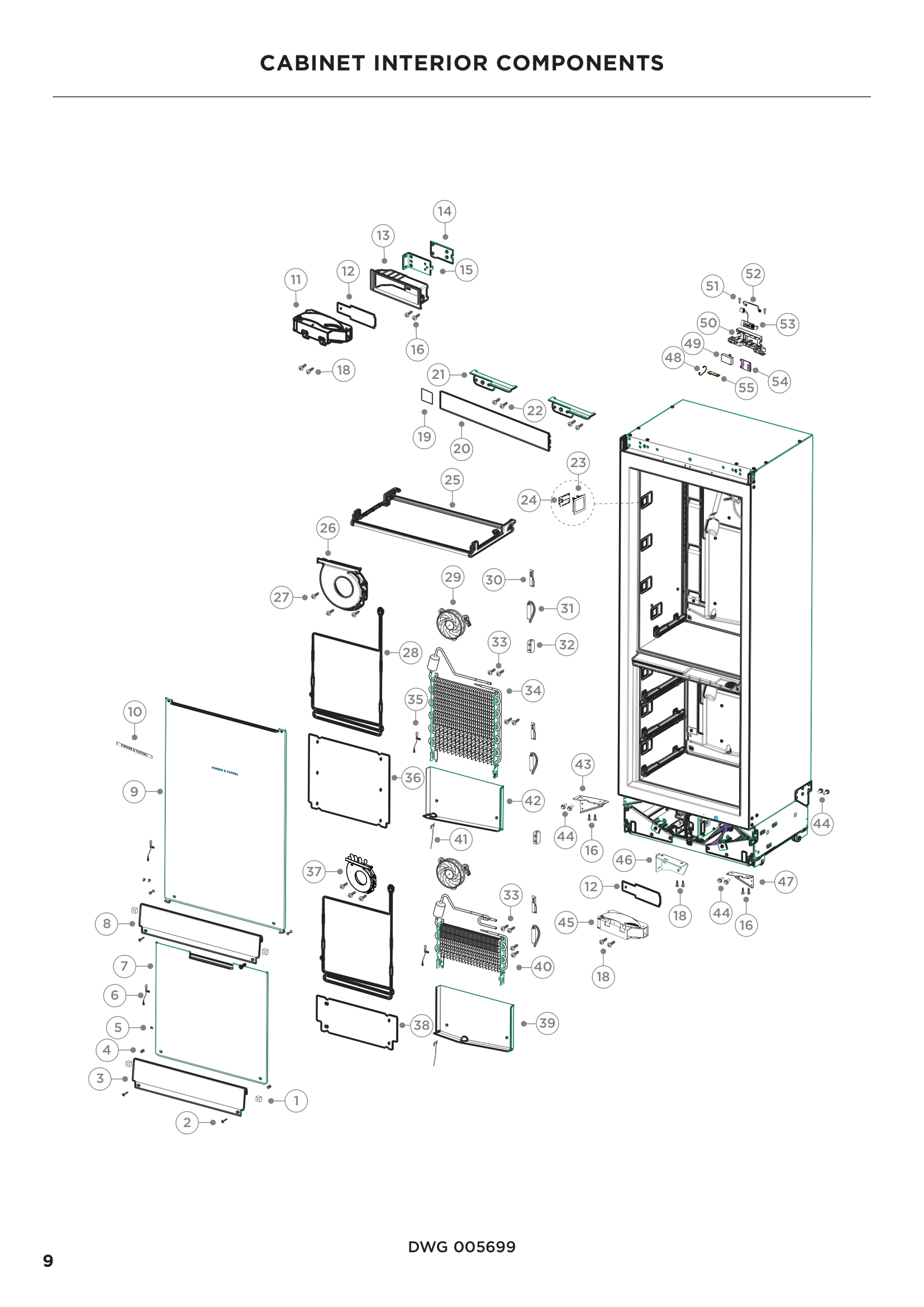

SHELF CANTI 24S ASSY FPA 846466P Contact Us For Availability

NAMEPLATE FP CHROME LETTERS FPA 847363 Contact Us For Availability

11

546692P Fisher & Paykel Dishwasher Screw St. Backorder FPA 546692P $9.41

11

839474 Fisher & Paykel Refrigerator M6-S Hing In Stock FPA 839474 $160.92

11

RAIL CANTI RH FPA 844756 Contact Us For Availability

12

843720 Fisher & Paykel Refrigerator Hinge Poc Backorder FPA 843720 $6.20

12

846688P Fisher & Paykel Refrigerator Sankyo V In Stock FPA 846688P $83.88

12

860593 Fisher & Paykel Refrigerator Single Bo In Stock FPA 860593 $9.04

13

SHELF FIXED UPR ASSY RS24S FPA 847815P Contact Us For Availability

13

POCKET HINGE TOP LH FPA 843719 Contact Us For Availability

13

CLIP SPIRE SIZE 8 FPA 841023P Contact Us For Availability

14

HCL SUBASSY RS24 FPA 847770P Contact Us For Availability

14

SPACER BRACKET HINGE TOP FPA 847537 Contact Us For Availability

14

COVER COMMS PORT FPA 884505 Contact Us For Availability

15

846809 Fisher & Paykel Refrigerator IEC LP Co Backorder FPA 846809 $54.79

15

BIN ASSY UPR RS24S FPA 847211P Contact Us For Availability

15

BRACKET HINGE TOP RS FPA 842944 Contact Us For Availability

16

844810 Fisher & Paykel Refrigerator Divider B Backorder FPA 844810 $11.16

16

845428P Fisher & Paykel Refrigerator Screw M5 Backorder FPA 845428P $16.58

16

TUBE COPPER U-BEND FPA 845861 Contact Us For Availability

17

868090P-includeCORE Fisher & Paykel 868090P R Backorder FPA 868090P-includeCORE $433.14

17

KIT MAT BIN UPR RS24S FPA 846543P Contact Us For Availability

18

839692P Fisher & Paykel Refrigerator M6X16 Cs Backorder FPA 839692P $16.25

18

SHELF HCL LWR RS24 ASSY FPA 847250P Contact Us For Availability

18

TUBE ADAPTOR PROCESS RS FPA 842972 Contact Us For Availability

19

847675P Fisher & Paykel Refrigerator Dual Loc In Stock FPA 847675P $20.09

19

DIVIDER BIN LWR FPA 844809 Contact Us For Availability

19

TUBE ADAPTOR SUCTION RS FPA 842989 Contact Us For Availability

20

207376P Fisher & Paykel Refrigerator Compress Backorder FPA 207376P $311.71

20

846927 Fisher & Paykel Refrigerator Top Trim Backorder FPA 846927 $39.73

20

BIN ASSY LWR RS24S FPA 847213P Contact Us For Availability

21

845758P Fisher & Paykel Dual 5 Gallon Dryer F Backorder FPA 845758P $32.65

21

KIT MAT BIN LWR RS24S FPA 846542P Contact Us For Availability

21

BRACKET ALCOVE TOP LH FPA 847006 Contact Us For Availability

22

COVER DIVIDER COLUMNS 24 FPA 846588 Contact Us For Availability

22

GROMMET 26MM KIT FPA 843824P Contact Us For Availability

23

611933P Fisher & Paykel Refrigerator Screw 8X Backorder FPA 611933P $12.63

23

855270P Fisher & Paykel Refrigerator Compress Backorder FPA 855270P $19.31

23

COVER INTEGRATED SIDE LIGH WH FPA 843244 Contact Us For Availability

24

849936P Fisher & Paykel Refrigerator Light Co Backorder FPA 849936P $47.29

24

END CAP UI RH RS FPA 844971 Contact Us For Availability

24

POST COMP MTG 26MM PKT X4 FPA 841291P Contact Us For Availability

25

843759P Fisher & Paykel Refrigerator Ceiling Backorder FPA 843759P $213.77

25

847484 Fisher & Paykel Gasket Ui End Cap Rs30 Backorder FPA 847484 $6.20

25

CLIP R COVER COMP M1.6 S4HPP16 FPA 207419 Contact Us For Availability

26

844551 Fisher & Paykel Refrigerator Fan Housi Backorder FPA 844551 $12.15

26

MOD DISP RS24S SVC FPA 865130P Contact Us For Availability

26

COVER PROTECTOR VEM FPA 207310 Contact Us For Availability

27

207393 Fisher & Paykel Refrigerator Inverter In Stock FPA 207393 $170.51

27

847483 Fisher & Paykel Gasket Ui End Cap Rs30 Backorder FPA 847483 $6.20

28

846242P Fisher & Paykel Refrigerator Heater D Backorder FPA 846242P $84.33

28

END CAP UI LH RS FPA 844970 Contact Us For Availability

28

BRACKET INVERTER MOLEX CONN FPA 849714 Contact Us For Availability

29

842765 Fisher & Paykel Refrigerator Inverter Backorder FPA 842765 $16.01

29

844545P Fisher & Paykel Refrigerator D125 Fan Backorder FPA 844545P $101.87

30

846708 Fisher & Paykel Refrigerator Earth Pli Backorder FPA 846708 $6.20

30

CLIP SENSOR FPA 845878 Contact Us For Availability

31

556082P Fisher & Paykel Screw M4x12 Xtite Hex Backorder FPA 556082P $6.20

31

813822P Fisher & Paykel Refrigerator Thermist Backorder FPA 813822P $95.93

32

Backorder FPA 846709 $28.90

32

COVER PLUG TYCO FPA 821745 Contact Us For Availability

33

SCREW M4X16 PLASTITE PH T15 PK FPA 847532P Contact Us For Availability

33

MOUNTING PLATE KICK STRIP 24 FPA 846483 Contact Us For Availability

34

865874P Fisher & Paykel Refrigerator Upper Cl Backorder FPA 865874P $213.33

34

866753 Fisher & Paykel Refrigerator Toekick M In Stock FPA 866753 $32.70

35

862917 Fisher & Paykel Refrigerator Defrost H Backorder FPA 862917 $6.70

36

847373 Fisher & Paykel Refrigerator Left Fixe Backorder FPA 847373 $38.89

36

SHIELD HEAT 30 UPR FC FPA 844107 Contact Us For Availability

37

843298 Fisher & Paykel Refrigerator Grille Fi Backorder FPA 843298 $6.20

37

HOUSING FAN ASSY WHITE FPA 862891 Contact Us For Availability

38

GRILLE MOVING ASSY RS24 FPA 847542 Contact Us For Availability

38

SHIELD HEAT 30 LWR FC FPA 844108 Contact Us For Availability

39

SHIELD DRAIN LWR 30PC FPA 844877 Contact Us For Availability

39

BLOCKER AIR BYPASS KICKSTRIP FPA 846405 Contact Us For Availability

40

846490 Fisher & Paykel Tube Discharge Rs24 Backorder FPA 846490 $86.50

40

865873P Fisher & Paykel Refrigerator Lower Cl Backorder FPA 865873P $193.32

41

WIRE DRAIN HEATER RS FPA 847315 Contact Us For Availability

41

BRACKET KICK STRIP ADJUSTING FPA 842018 Contact Us For Availability

42

SHIELD DRAIN UPR 30PC FPA 844876 Contact Us For Availability

42

CLIP HARNESS HT 151-000367 FPA 845740P Contact Us For Availability

43

842883 Fisher & Paykel Plinth Bracket Front L Backorder FPA 842883 $19.23

43

WASHER FLAT M6X12X1.2 PKT10 FPA 843453P Contact Us For Availability

44

SCREW MC M5X12 HXW NIB ZP PKT10 FPA 845515P Contact Us For Availability

45

837842 Fisher & Paykel Refrigerator Hinge K05 In Stock FPA 837842 $203.03

45

DRAIN PLINTH FPA 845859 Contact Us For Availability

46

BRACKET HINGE LOWER LEFT FPA 843027 Contact Us For Availability

46

TRAY WATER EVAP COLUMNS FPA 841476 Contact Us For Availability

47

BRACKET PLINTH FRONT RIGHT FPA 842882 Contact Us For Availability

47

DRAIN TUBE PLINTH UPPER RS24 FPA 845860 Contact Us For Availability

48

846972 Fisher & Paykel Refrigerator Humidity Backorder FPA 846972 $6.20

48

849237P Fisher & Paykel Refrigerator Screw #8 Backorder FPA 849237P $16.54

49

563774P Fisher & Paykel Washer Automatic Mod Backorder FPA 563774P $82.86

49

KIT LEVELLING SYSTEM FNT LONG - POST 20 APR 2 FPA 869085P Contact Us For Availability

50

843475 Fisher & Paykel Refrigerator Back Leve Backorder FPA 843475 $23.68

50

843872 Fisher & Paykel Refrigerator Housing S In Stock FPA 843872 $6.20

51

KIT LEVELLING SYSTEM REAR LONG - POST 20 APR FPA 869086P Contact Us For Availability

52

HARNESS WIFI GEA WIRE FPA 862641 Contact Us For Availability

53

851352P Fisher & Paykel Refrigerator Hall Mod Backorder FPA 851352P $29.35

54

864736P Fisher & Paykel Refrigerator GE Appli Backorder FPA 864736P $69.49

55

851381P Fisher & Paykel Refrigerator Humidity Backorder FPA 851381P $49.25

840371P Fisher & Paykel Refrigerator 8G x 16 In Stock FPA 840371P $9.79

843662 Fisher & Paykel Refrigerator Limiting Backorder FPA 843662 $6.20

845432P Fisher & Paykel Refrigerator Mounting In Stock FPA 845432P $15.92

848188P Fisher & Paykel Refrigerator Hinge Ch Backorder FPA 848188P $151.53

867900 Fisher & Paykel Refrigerator Bracket P Backorder FPA 867900 $66.10

867906 Fisher & Paykel Installation Kit RS V2 Backorder FPA 867906 $213.28

TERMINAL REMOVAL TOOL FPA 150807 Contact Us For Availability

SCREW CAP M5X20 NZ PKT10 FPA 847984P Contact Us For Availability

KIT INSTALL FASTENERS FPA 848192 Contact Us For Availability
