Model Fisher & Paykel RS2484FLJK1-26124-C Vertical Freezer – Common Parts & Diagrams
DOOR COMPONENTS
DOOR PANEL COMPONENTS

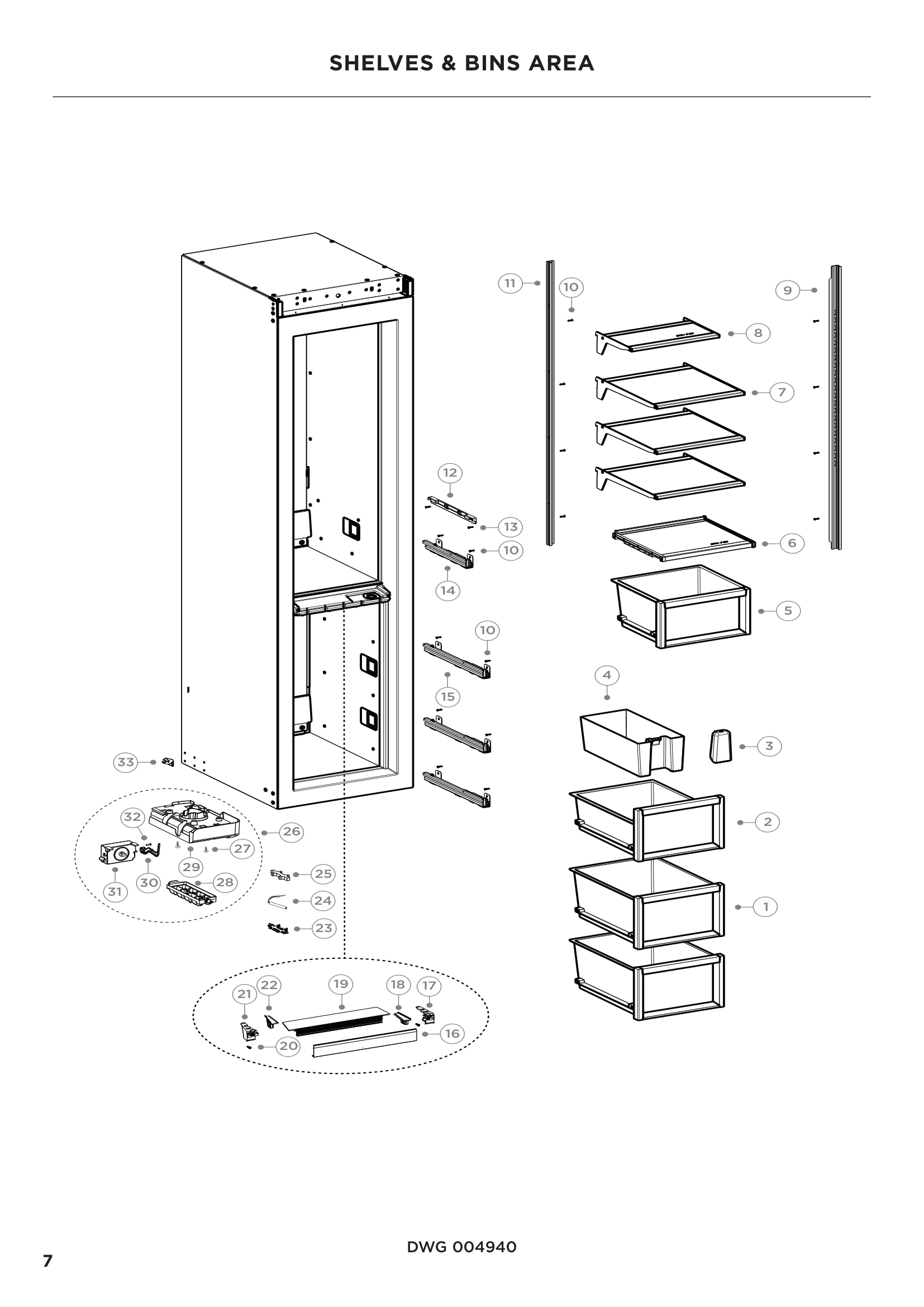

SHELVES & BINS AREA

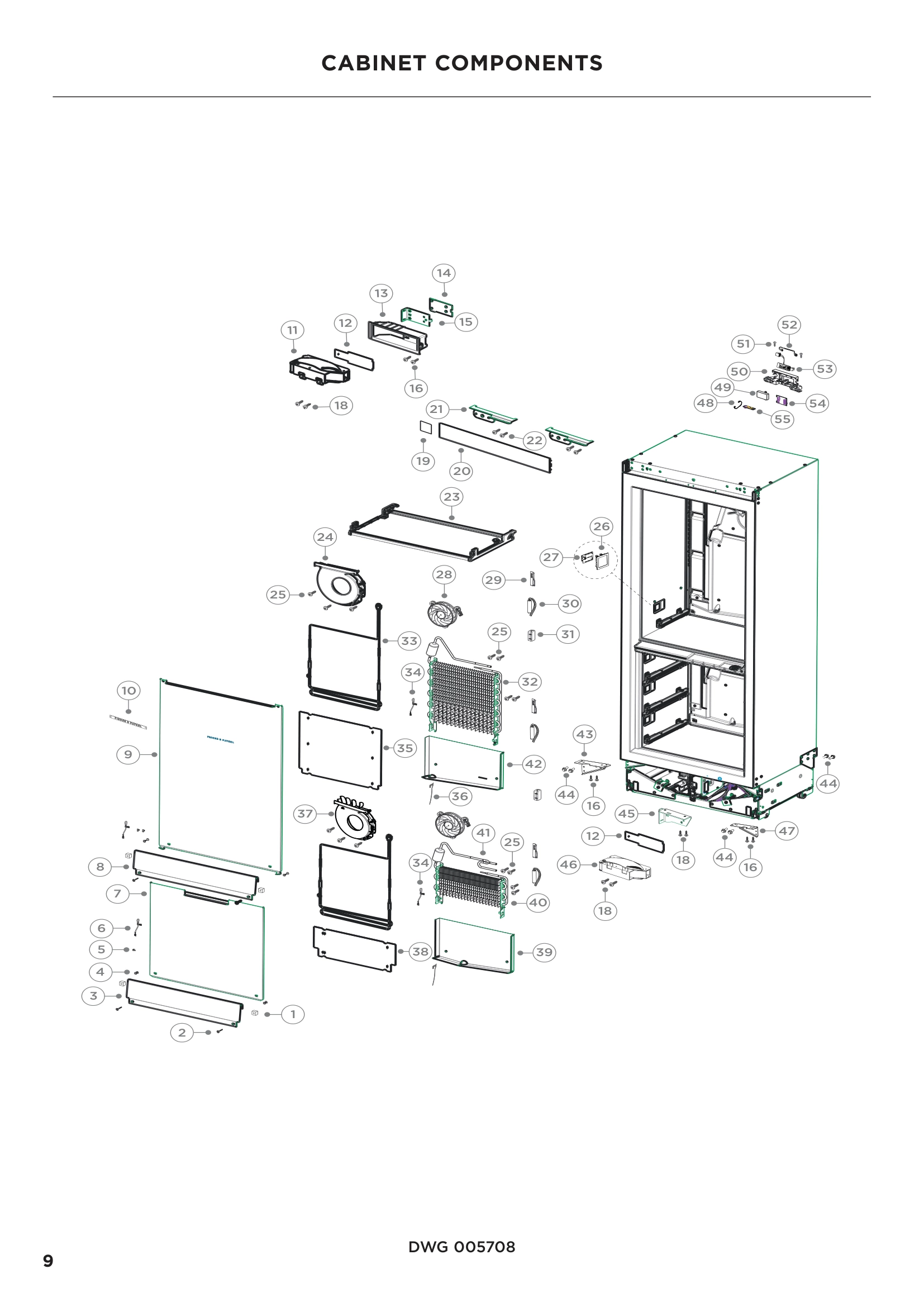

CABINET COMPONENTS
CABINET COMPONENTS

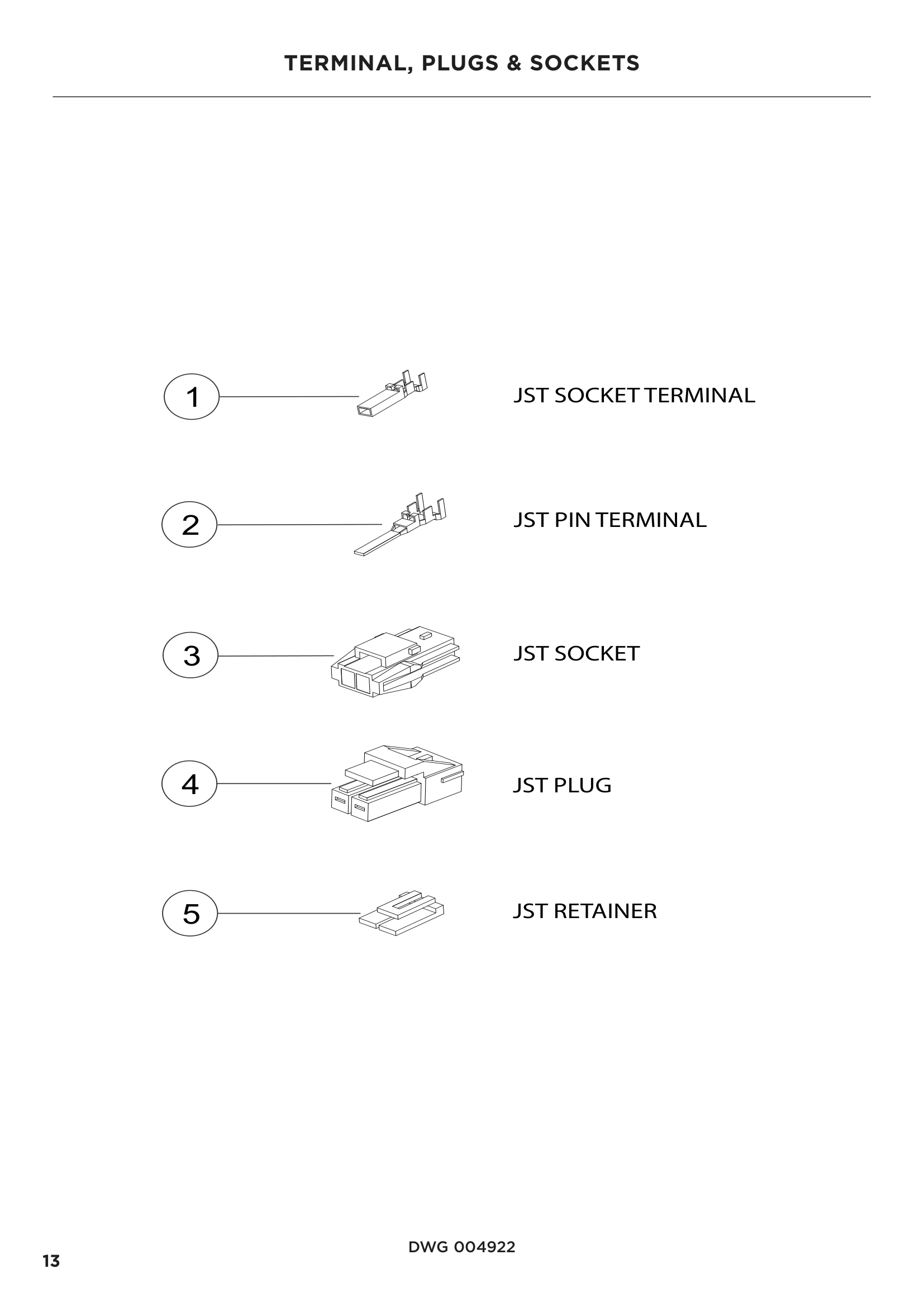

TERMINAL, PLUGS & SOCKETS

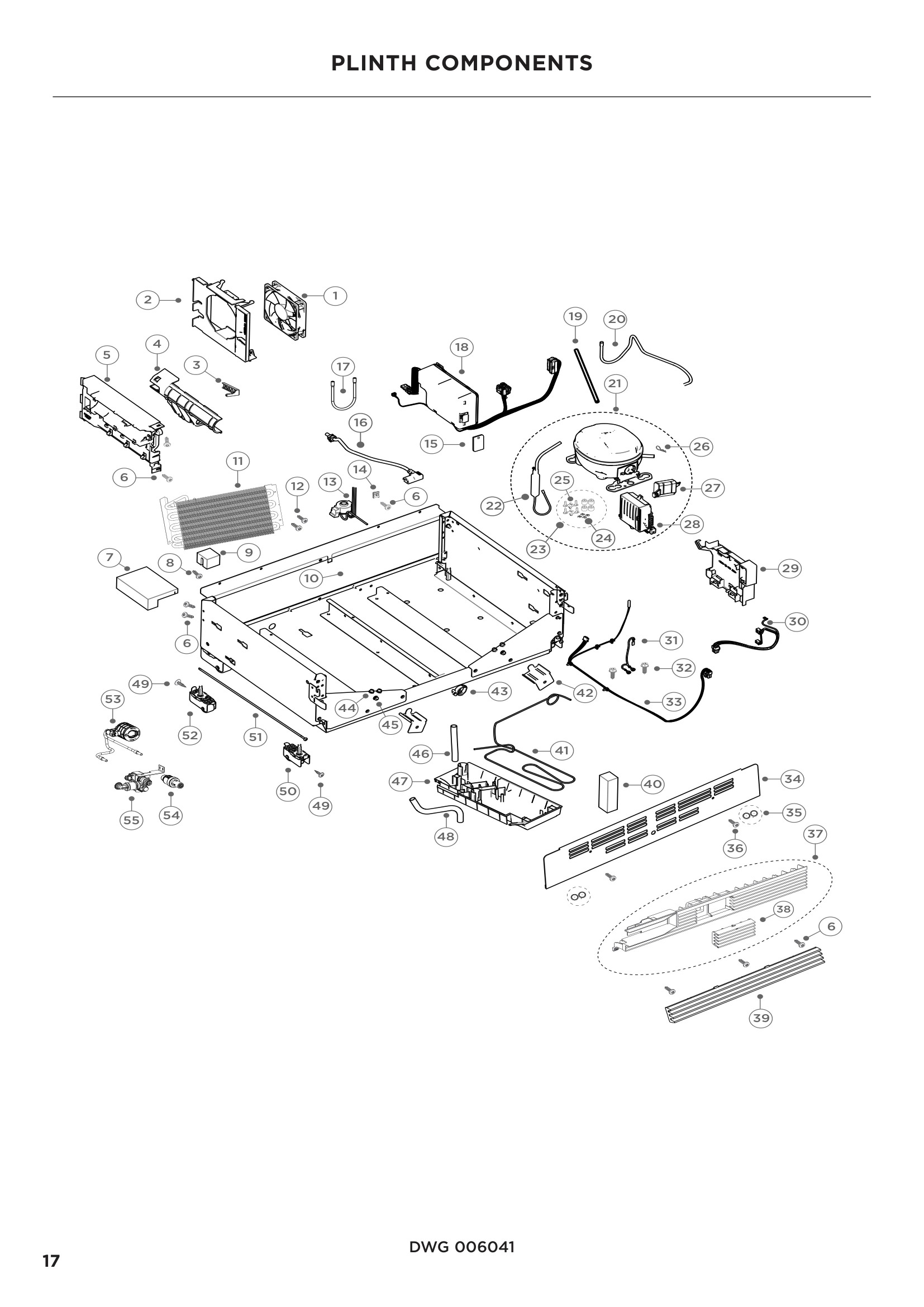

PLINTH COMPONENTS
PLINTH COMPONENTS
PLINTH COMPONENTS

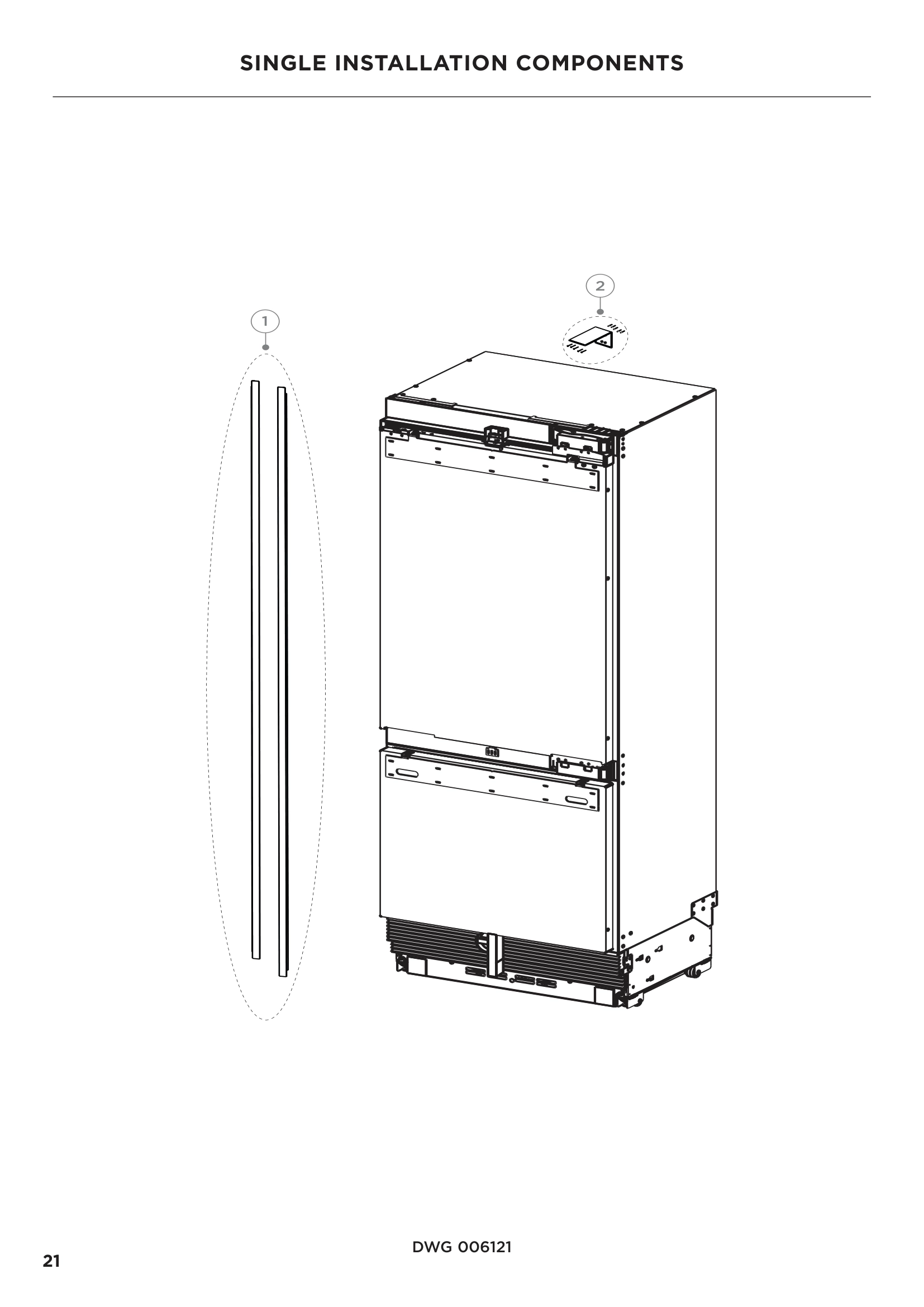

SINGLE INSTALLATION COMPONENTS

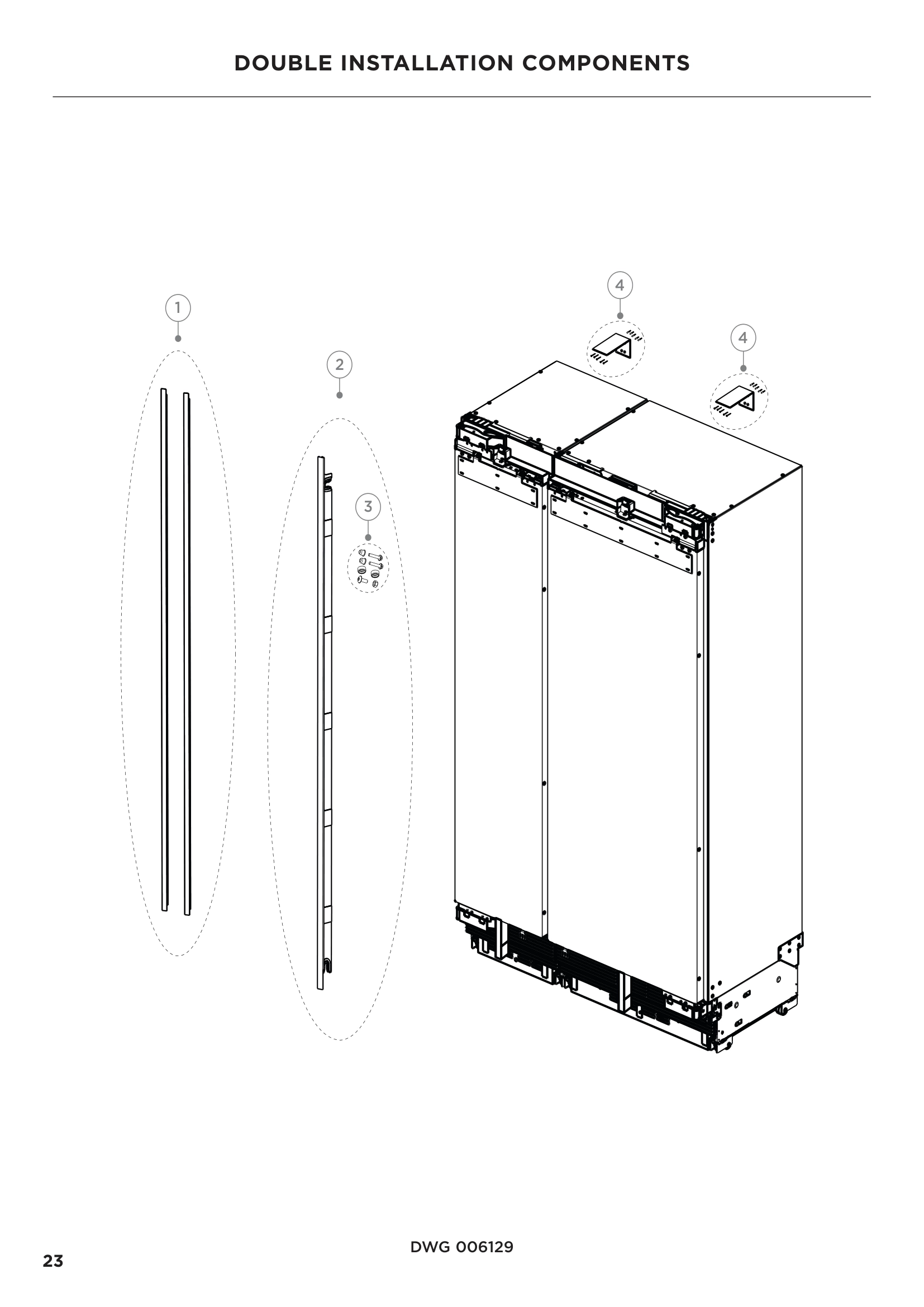

DOUBLE INSTALLATION COMPONENTS

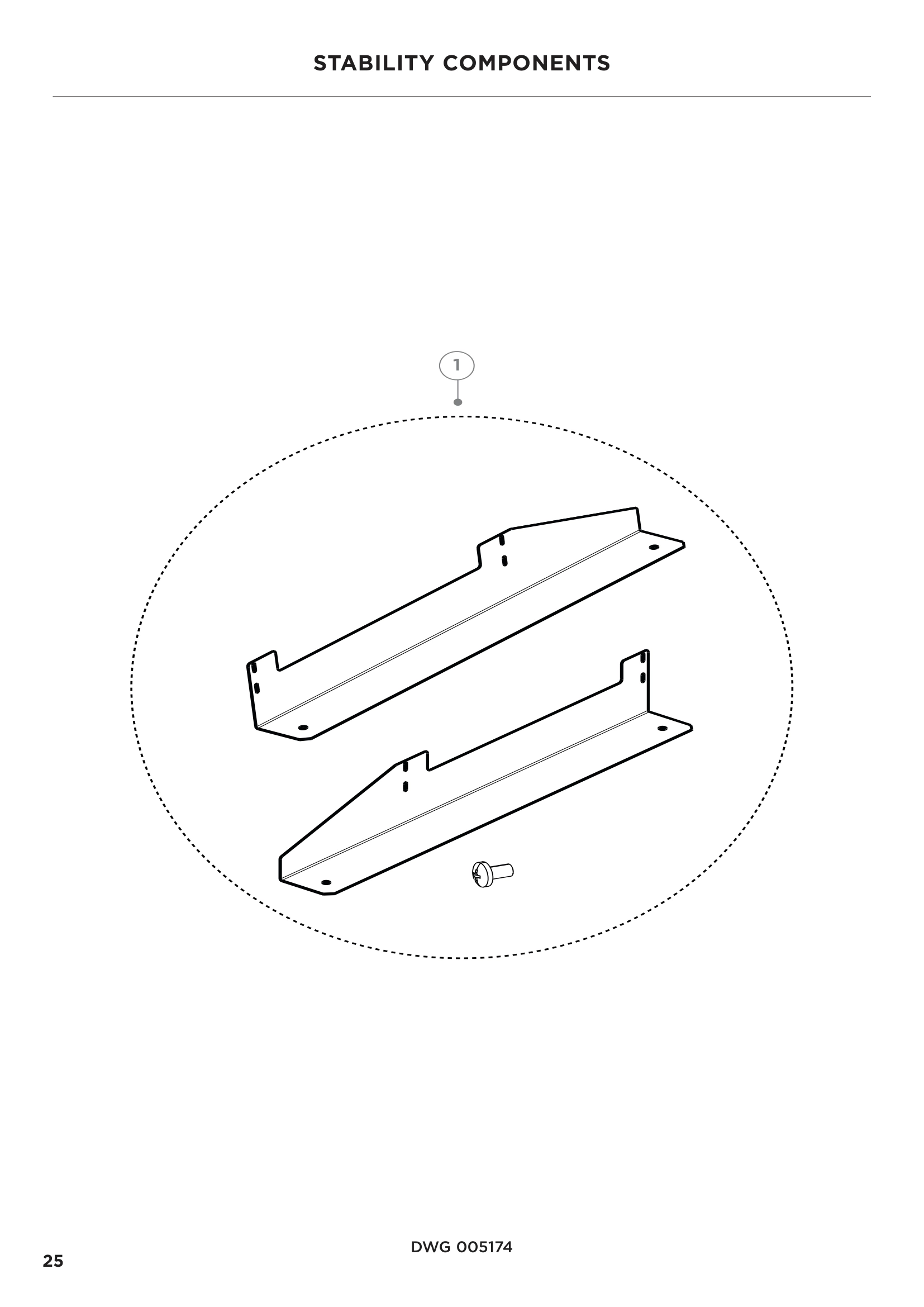

STABILITY COMPONENTS
Common parts from model Fisher & Paykel RS2484FLJK1-26124-C Vertical Freezer
1
SPACER COVER DRAIN ASSY FPA 848128 Contact Us For Availability
1
TERMINAL SYF-01T PKT 10 FPA 819607P Contact Us For Availability
1
KIT ALCOVE TRIM FPA 868352 Contact Us For Availability
1
KIT BRACE ANIT TIP FPA 847164P Contact Us For Availability
2
PIN/TERM SYM-01T PKT 10 FPA 819609P Contact Us For Availability
2
DIVIDER PLINTH REAR FPA 843139 Contact Us For Availability
2
KIT DUAL INSTALL FPA 867910 Contact Us For Availability
3
COVER DRAIN LWR RS24 BRUSHED S FPA 848747 Contact Us For Availability
3
JST SOCKET 2PIN YLR-02V FPA 819615 Contact Us For Availability
4
SCREW ST #8X15-M6X12 WASHER KIT FPA 840421P Contact Us For Availability
5
CLIP EDGE EARTH TAB AR EPF255 FPA 846732P Contact Us For Availability
5
RETAINER 2 WAY YLS-02V FPA 819620 Contact Us For Availability
5
DIVIDER PLINTH FRONT FPA 842779 Contact Us For Availability
7
DUCT CVR SEAL LWR SS RS24 ASSY FPA 849242P Contact Us For Availability
7
BLOCKER CONDSR AIRFLOW BYPASS FPA 845772 Contact Us For Availability
8
COVER DRAIN UPR RS24 BRUSHED S FPA 848744 Contact Us For Availability
8
SCREW ST 8X1/2 SD TRS NIB PH P FPA 611977P Contact Us For Availability
9
KIT COVER DUCT UPR RS24W SS AS FPA 862711P Contact Us For Availability
9
GROMMET CONDNSR AIR B/PASS FPA 848130 Contact Us For Availability
10
NAMEPLATE FP CHROME LETTERS FPA 847363 Contact Us For Availability
10
LOCKING PLATE REAR PLINTH 24 FPA 846485 Contact Us For Availability
13
POCKET HINGE TOP LH FPA 843719 Contact Us For Availability
14
SPACER BRACKET HINGE TOP FPA 847537 Contact Us For Availability
14
CLIP SPIRE SIZE 8 FPA 841023P Contact Us For Availability
15
BRACKET HINGE TOP RS FPA 842944 Contact Us For Availability
15
COVER COMMS PORT FPA 884505 Contact Us For Availability
17
TUBE COPPER U-BEND FPA 845861 Contact Us For Availability
19
TUBE ADAPTOR PROCESS RS FPA 842972 Contact Us For Availability
20
TUBE ADAPTOR SUCTION RS FPA 842989 Contact Us For Availability
21
BRACKET ALCOVE TOP LH FPA 847006 Contact Us For Availability
23
GROMMET 26MM KIT FPA 843824P Contact Us For Availability
25
SCREW M4X16 PLASTITE PH T15 PK FPA 847532P Contact Us For Availability
25
POST COMP MTG 26MM PKT X4 FPA 841291P Contact Us For Availability
26
COVER INTEGRATED SIDE LIGHT GR FPA 848428 Contact Us For Availability
26
CLIP R COVER COMP M1.6 S4HPP16 FPA 207419 Contact Us For Availability
27
COVER PROTECTOR VEM FPA 207310 Contact Us For Availability
29
CLIP SENSOR FPA 845878 Contact Us For Availability
29
BRACKET INVERTER MOLEX CONN FPA 849714 Contact Us For Availability
31
GEARBOX ICE MAKER FPA 836934 Contact Us For Availability
31
COVER PLUG TYCO FPA 821745 Contact Us For Availability
32
EVAP ASSY UPR 30 FC FPA 843060P Contact Us For Availability
34
MOUNTING PLATE KICK STRIP 24 FPA 846483 Contact Us For Availability
35
SHIELD HEAT 30 UPR FC FPA 844107 Contact Us For Availability
36
WIRE DRAIN HEATER RS FPA 847315 Contact Us For Availability
37
HOUSING FAN ASSY WHITE FPA 862891 Contact Us For Availability
38
SHIELD HEAT 30 LWR FC FPA 844108 Contact Us For Availability
39
GRILLE MOVING ASSY RS24 FPA 847542 Contact Us For Availability
39
SHIELD DRAIN LWR 30PC FPA 844877 Contact Us For Availability
40
BLOCKER AIR BYPASS KICKSTRIP FPA 846405 Contact Us For Availability
41
TUBE ADAPTOR EVAP IN FPA 847463 Contact Us For Availability
42
SHIELD DRAIN UPR 30 PC FPA 844876 Contact Us For Availability
42
BRACKET KICK STRIP ADJUSTING FPA 842018 Contact Us For Availability
43
CLIP HARNESS HT 151-000367 FPA 845740P Contact Us For Availability
44
SCREW MC M5X12 HXW NIB ZP PKT10 FPA 845515P Contact Us For Availability
44
WASHER FLAT M6X12X1.2 PKT10 FPA 843453P Contact Us For Availability
45
BRACKET HINGE LOWER LH FPA 843027 Contact Us For Availability
46
DRAIN PLINTH FPA 845859 Contact Us For Availability
47
BRACKET PLINTH FRONT RIGHT FPA 842882 Contact Us For Availability
47
TRAY WATER EVAP COLUMNS FPA 841476 Contact Us For Availability
48
DRAIN TUBE PLINTH UPPER RS24 FPA 845860 Contact Us For Availability
50
KIT LEVELLING SYSTEM FNT LONG - POST 20 APR 2 FPA 869085P Contact Us For Availability
52
HARNESS WIFI GEA WIRE FPA 862641 Contact Us For Availability
52
KIT LEVELLING SYSTEM REAR LONG - POST 20 APR FPA 869086P Contact Us For Availability
NI
EXTRACTION TOO MML AMP 1897271 FPA 855288 Contact Us For Availability
NI
SCREW CAP M5X20 NZ PKT10 FPA 847984P Contact Us For Availability
NI
KIT INSTALL FASTENERS FPA 848192 Contact Us For Availability
× ![]()
