Model Fisher &amp; Paykel RS2484FLJK1-25590-A Vertical Freezer – Common Parts &amp; Diagrams

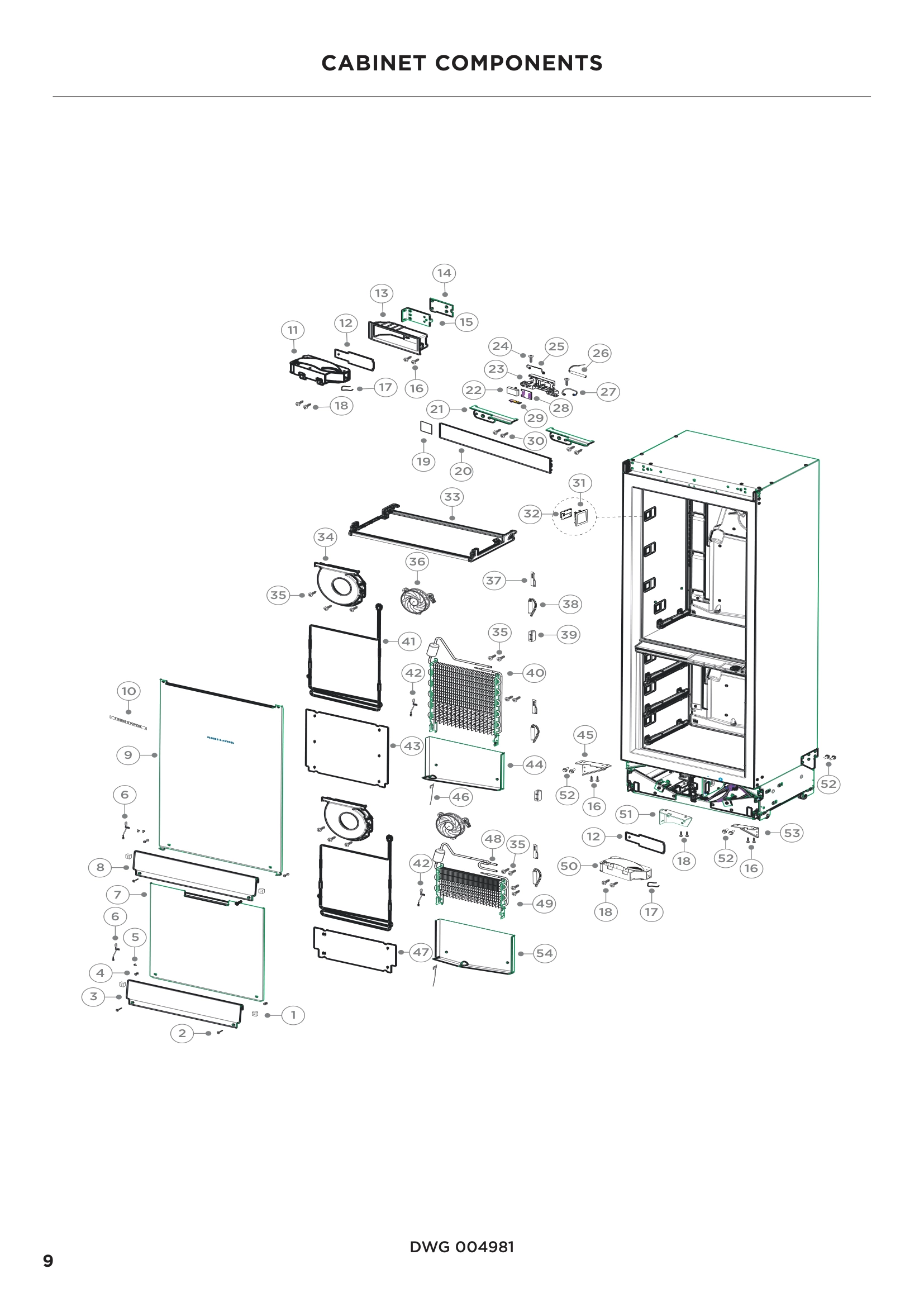

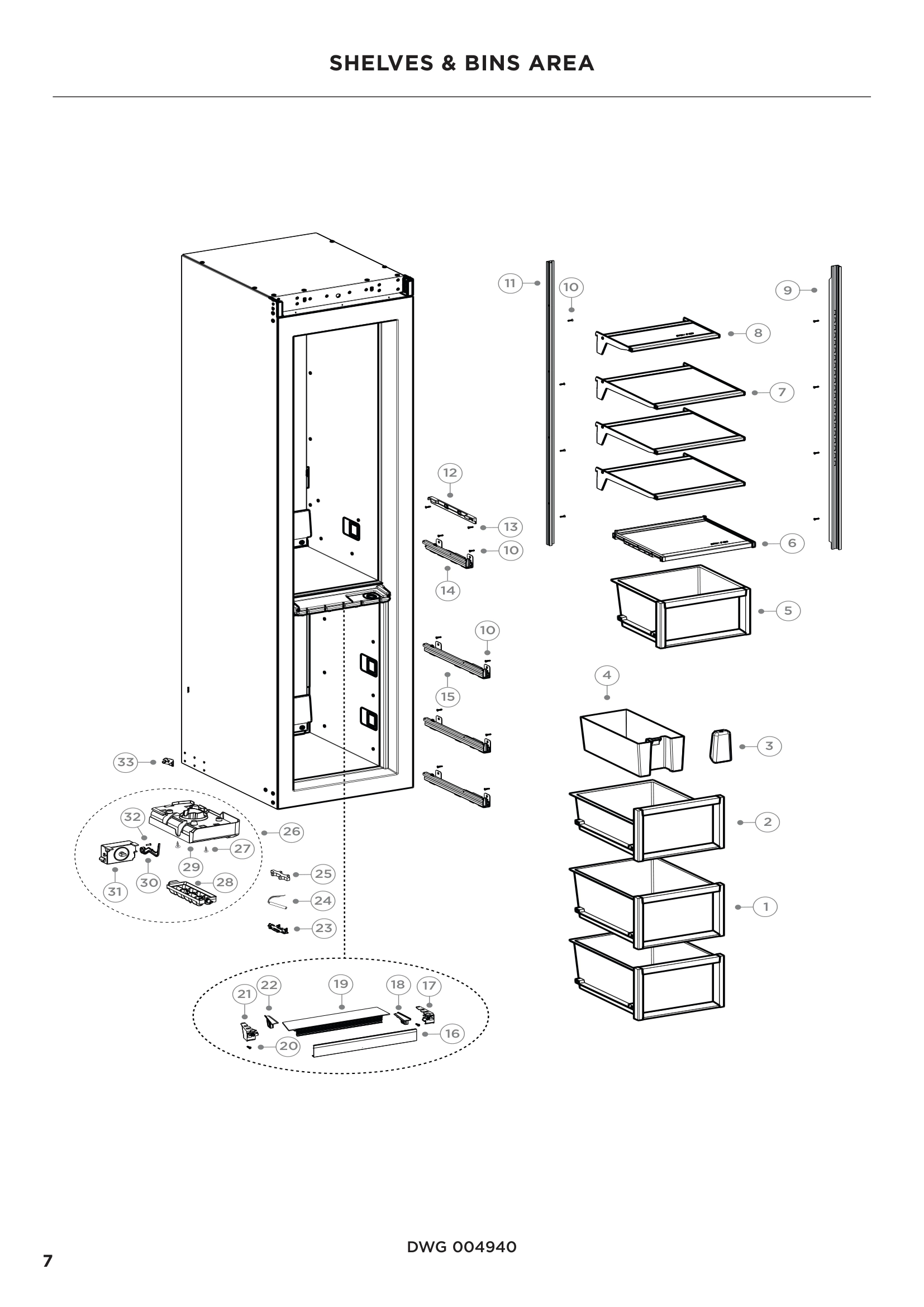

1

847792P Fisher & Paykel Refrigerator Dual Loc In Stock FPA 847792P $37.28

1

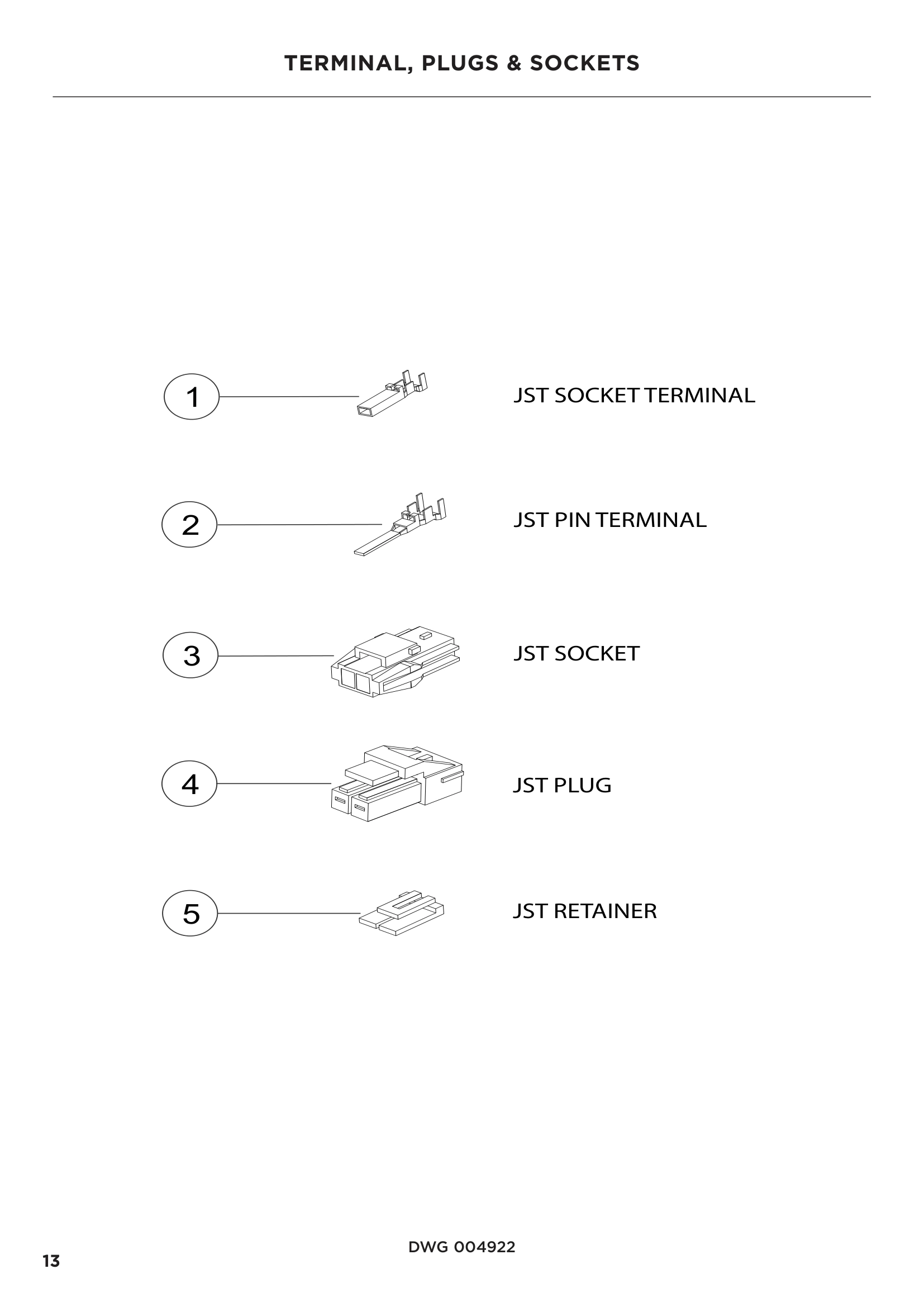

TERMINAL SYF-01T PKT 10 FPA 819607P Contact Us For Availability

1

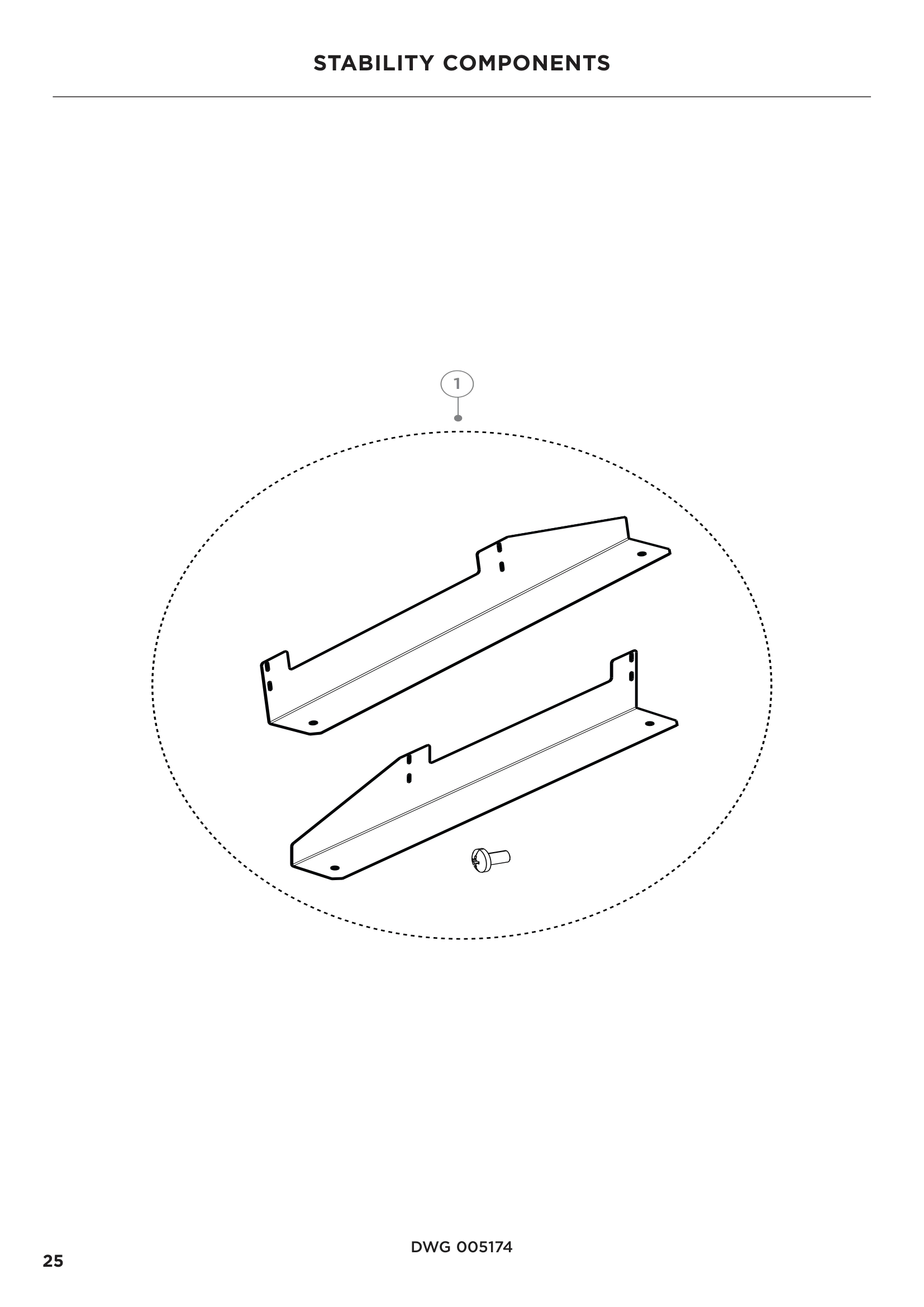

KIT BRACE ANIT TIP FPA 847164P Contact Us For Availability

2

842292P Fisher & Paykel Refrigerator Screw Wa Backorder FPA 842292P $20.42

2

848120P Fisher & Paykel Refrigerator M4x35 St Backorder FPA 848120P $43.59

2

848193 Fisher & Paykel Refrigerator Alcove Si Backorder FPA 848193 $83.44

2

PIN/TERM SYM-01T PKT 10 FPA 819609P Contact Us For Availability

2

DIVIDER PLINTH REAR FPA 843139 Contact Us For Availability

3

836929 Fisher & Paykel Refrigerator Ice Scoop Backorder FPA 836929 $6.31

3

843266 Fisher & Paykel Refrigerator Door Extr In Stock FPA 843266 $25.38

3

847176 Fisher & Paykel Refrigerator Water Fil In Stock FPA 847176 $6.31

3

867910P Fisher & Paykel Refrigerator Dual Ins In Stock FPA 867910P $208.37

3

JST SOCKET 2PIN YLR-02V FPA 819615 Contact Us For Availability

4

819611 Fisher & Paykel Refrigerator JST Plug Backorder FPA 819611 $6.20

4

842456P Fisher & Paykel Refrigerator Washer M In Stock FPA 842456P $16.40

4

847033 Fisher & Paykel Refrigerator Front Cov Backorder FPA 847033 $7.30

4

848311 Fisher & Paykel Refrigerator Top Joine Backorder FPA 848311 $6.37

5

838158P Fisher & Paykel Refrigerator Hex Nut In Stock FPA 838158P $17.09

5

RETAINER 2 WAY YLS-02V FPA 819620 Contact Us For Availability

5

DIVIDER PLINTH FRONT FPA 842779 Contact Us For Availability

6

838201 Fisher & Paykel Refrigerator Slider Br In Stock FPA 838201 $6.31

6

KIT FASTENER JOINER TOP FPA 848313 Contact Us For Availability

7

843934 Fisher & Paykel Refrigerator Anti-Tip Backorder FPA 843934 $21.76

7

BLOCKER CONDSR AIRFLOW BYPASS FPA 845772 Contact Us For Availability

8

838183 Fisher & Paykel Refrigerator Side Skin In Stock FPA 838183 $6.31

8

846179P Fisher & Paykel Refrigerator Dual Loc In Stock FPA 846179P $54.88

8

SCREW ST 8X1/2 SD TRS NIB PH P FPA 611977P Contact Us For Availability

9

883315 Fisher & Paykel Refrigerator Door Magn In Stock FPA 883315 $6.31

9

GROMMET CONDNSR AIR B/PASS FPA 848130 Contact Us For Availability

10

844632 Fisher & Paykel Refrigerator Door Magn Backorder FPA 844632 $6.37

10

LOCKING PLATE REAR PLINTH 24 FPA 846485 Contact Us For Availability

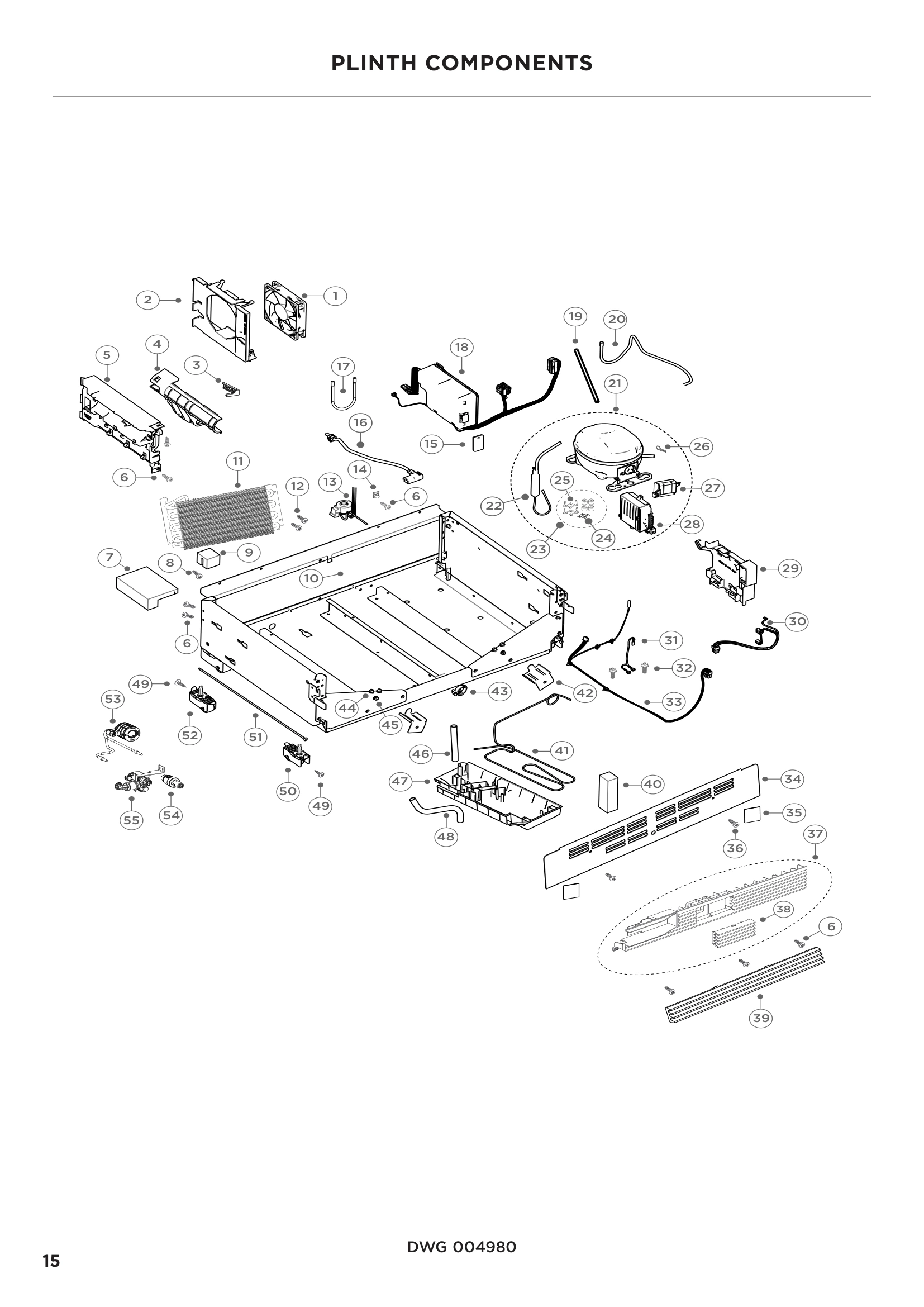

527679P Fisher & Paykel Dishwasher Door Corne In Stock FPA 527679P $51.00

839474 Fisher & Paykel Refrigerator M6-S Hing In Stock FPA 839474 $160.92

841568P Fisher & Paykel Refrigerator Screw M5 In Stock FPA 841568P $9.42

847876P Fisher & Paykel Condenser 260x177 1-P In Stock FPA 847876P $107.01

12

546692P Fisher & Paykel Dishwasher Screw St. Backorder FPA 546692P $9.41

12

843720 Fisher & Paykel Refrigerator Hinge Poc Backorder FPA 843720 $6.20

13

846688P Fisher & Paykel Refrigerator Sankyo V Backorder FPA 846688P $83.88

14

CLIP SPIRE SIZE 8 FPA 841023P Contact Us For Availability

15

COVER COMMS PORT FPA 884505 Contact Us For Availability

16

846809 Fisher & Paykel Refrigerator IEC LP Co Backorder FPA 846809 $54.79

17

TUBE COPPER U-BEND FPA 845861 Contact Us For Availability

18

851795P Fisher & Paykel Refrigerator Module A Backorder FPA 851795P $356.42

19

847675P Fisher & Paykel Refrigerator Dual Loc In Stock FPA 847675P $20.09

19

TUBE ADAPTOR PROCESS RS FPA 842972 Contact Us For Availability

20

611933P Fisher & Paykel Refrigerator Screw 8X Backorder FPA 611933P $12.63

20

TUBE ADAPTOR SUCTION RS FPA 842989 Contact Us For Availability

21

207376P Fisher & Paykel Refrigerator Compress Backorder FPA 207376P $311.71

21

BRACKET ALCOVE TOP LH FPA 847006 Contact Us For Availability

22

845758P Fisher & Paykel Dual 5 Gallon Dryer F Backorder FPA 845758P $32.65

23

837180 Fisher & Paykel Refrigerator Ice Tray In Stock FPA 837180 $6.31

23

843872 Fisher & Paykel Refrigerator Housing S Backorder FPA 843872 $6.20

23

GROMMET 26MM KIT FPA 843824P Contact Us For Availability

24

321107 Fisher & Paykel Refrigerator Icemaker In Stock FPA 321107 $26.35

24

855270P Fisher & Paykel Refrigerator Compress Backorder FPA 855270P $19.31

25

836909 Fisher & Paykel Refrigerator Sensor Fo Backorder FPA 836909 $6.31

25

POST COMP MTG 26MM PKT X4 FPA 841291P Contact Us For Availability

26

CLIP R COVER COMP M16 S4HPP16 Backorder FPA 207419 $6.31

26

814443P Fisher & Paykel Refrigerator Field Fi In Stock FPA 814443P $54.57

26

841488 Fisher & Paykel Refrigerator Icemaker In Stock FPA 841488 $99.62

27

817825P Fisher & Paykel Refrigerator 8x22 Waf Backorder FPA 817825P $11.84

27

846972 Fisher & Paykel Refrigerator Humidity Backorder FPA 846972 $6.20

27

COVER PROTECTOR VEM FPA 207310 Contact Us For Availability

28

207393 Fisher & Paykel Refrigerator Inverter Backorder FPA 207393 $170.51

28

820841 Fisher & Paykel Refrigerator Large Aut In Stock FPA 820841 $6.31

28

NOT SERVICEABLE IN THIS MODEL FPA NSV Contact Us For Availability

29

841796P Fisher & Paykel Refrigerator Humidity In Stock FPA 841796P $136.92

29

BRACKET INVERTER PC ABS RS FPA 843491 Contact Us For Availability

30

836910 Fisher & Paykel Refrigerator Ice Lever Backorder FPA 836910 $6.31

30

842765 Fisher & Paykel Refrigerator Inverter Backorder FPA 842765 $16.01

30

845432P Fisher & Paykel Refrigerator Mounting In Stock FPA 845432P $15.92

31

846708 Fisher & Paykel Refrigerator Earth Pli Backorder FPA 846708 $6.20

31

GEARBOX ICE MAKER FPA 836934 Contact Us For Availability

31

COVER INTEGRATED SIDE LIGHT GR FPA 848428 Contact Us For Availability

32

556082P Fisher & Paykel Screw M4x12 Xtite Hex Backorder FPA 556082P $6.20

32

849937P Fisher & Paykel Refrigerator Side Lig Backorder FPA 849937P $55.78

33

843759P Fisher & Paykel Refrigerator Ceiling Backorder FPA 843759P $213.77

33

Backorder FPA 846709 $28.90

33

860640 Fisher & Paykel Refrigerator Ice Maker Backorder FPA 860640 $6.31

34

844551 Fisher & Paykel Refrigerator Fan Housi Backorder FPA 844551 $12.15

34

MOUNTING PLATE KICK STRIP 24 FPA 846483 Contact Us For Availability

35

847959 Fisher & Paykel Refrigerator Kickstrip Backorder FPA 847959 $6.31

35

SCREW M4X16 PLASTITE PH T15 PK FPA 847532P Contact Us For Availability

36

844545P Fisher & Paykel Refrigerator D125 Fan Backorder FPA 844545P $101.87

36

SCREW MC M5X12 PAN PH MS ZP PK FPA 841570P Contact Us For Availability

37

847373 Fisher & Paykel Refrigerator Left Fixe Backorder FPA 847373 $38.89

37

CLIP SENSOR FPA 845878 Contact Us For Availability

38

813822P Fisher & Paykel Refrigerator Thermist Backorder FPA 813822P $95.93

38

843298 Fisher & Paykel Refrigerator Grille Fi Backorder FPA 843298 $6.20

39

GRILLE MOVING ASSY RS24 FPA 847542 Contact Us For Availability

39

COVER PLUG TYCO FPA 821745 Contact Us For Availability

40

EVAP ASSY UPR 30 FC FPA 843060P Contact Us For Availability

40

BLOCKER AIR BYPASS KICKSTRIP FPA 846405 Contact Us For Availability

41

846242P Fisher & Paykel Refrigerator Heater D Backorder FPA 846242P $84.33

41

846490 Fisher & Paykel Tube Discharge Rs24 Backorder FPA 846490 $86.50

42

HARNESS EARTH FPA 847453 Contact Us For Availability

42

BRACKET KICK STRIP ADJUSTING FPA 842018 Contact Us For Availability

43

SHIELD HEAT 30 UPR FC FPA 844107 Contact Us For Availability

43

CLIP HARNESS HT 151-000367 FPA 845740P Contact Us For Availability

44

SHIELD DRAIN UPR 30PC Backorder FPA 844876 $28.49

44

WASHER FLAT M6X12X1.2 PKT10 FPA 843453P Contact Us For Availability

45

842883 Fisher & Paykel Plinth Bracket Front L Backorder FPA 842883 $19.23

46

WIRE DRAIN HEATER RS FPA 847315 Contact Us For Availability

46

DRAIN PLINTH FPA 845859 Contact Us For Availability

47

SHIELD HEAT 30 LWR FC FPA 844108 Contact Us For Availability

47

TRAY WATER EVAP COLUMNS FPA 841476 Contact Us For Availability

48

TUBE ADAPTOR EVAP IN FPA 847463 Contact Us For Availability

48

DRAIN TUBE PLINTH UPPER RS24 FPA 845860 Contact Us For Availability

49

849237P Fisher & Paykel Refrigerator Screw #8 Backorder FPA 849237P $16.54

49

851045P Fisher & Paykel Refrigerator Lower Ev Backorder FPA 851045P $91.91

50

837842 Fisher & Paykel Refrigerator Hinge K05 In Stock FPA 837842 $203.03

50

842085 Fisher & Paykel Refrigerator Plinth Su Backorder FPA 842085 $41.14

51

843475 Fisher & Paykel Refrigerator Back Leve Backorder FPA 843475 $23.68

51

BRACKET HINGE LOWER LH FPA 843027 Contact Us For Availability

52

843478 Fisher & Paykel Refrigerator Plinth Su Backorder FPA 843478 $45.59

52

SCREW MC M5X12 HXW NIB ZP PKT10 FPA 845515P Contact Us For Availability

53

869407P Fisher & Paykel Manifold Filter FPWF1 Backorder FPA 869407P $202.12

53

BRACKET PLINTH FRONT RIGHT FPA 842882 Contact Us For Availability

54

821756 Fisher & Paykel Refrigerator Valve Pre Backorder FPA 821756 $99.79

54

SHIELD DRAIN LWR 30PC FPA 844877 Contact Us For Availability

55

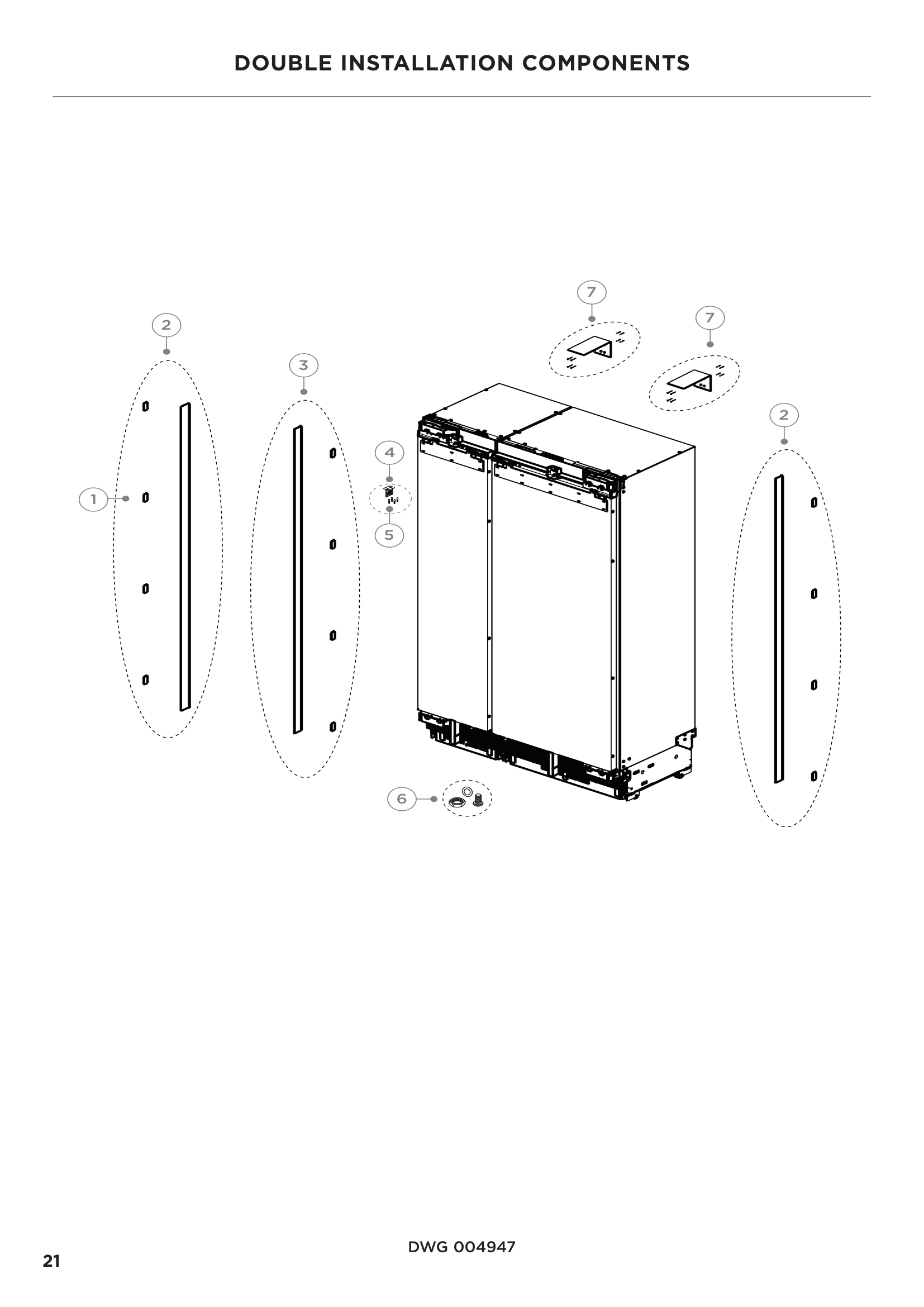

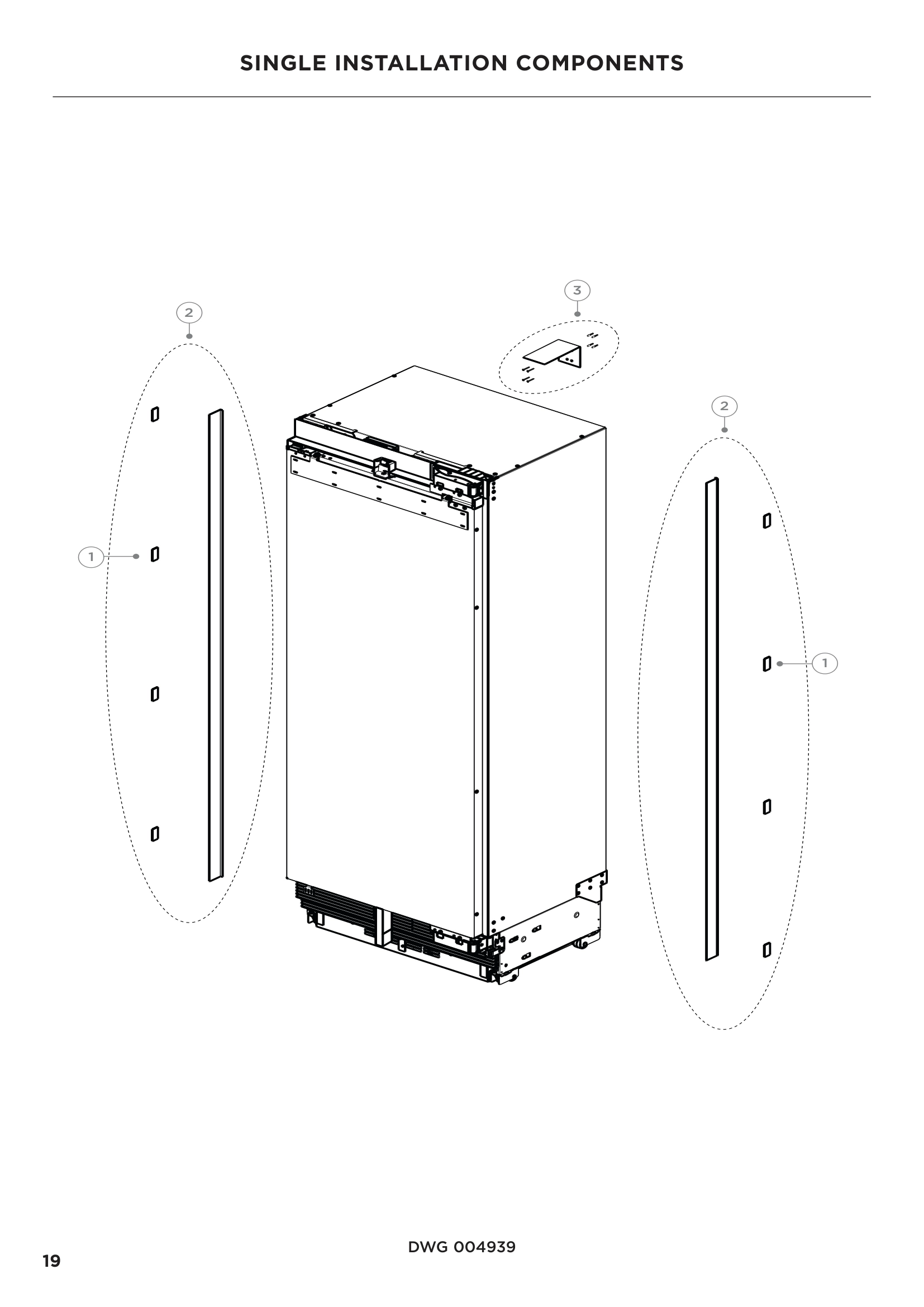

847466 Fisher & Paykel Refrigerator Single Ic Backorder FPA 847466 $65.87

840371P Fisher & Paykel Refrigerator 8G x 16 In Stock FPA 840371P $9.79

841679 Fisher & Paykel Adaptor 1/4" Stem x 7/ Backorder FPA 841679 $37.88

843662 Fisher & Paykel Refrigerator Limiting Backorder FPA 843662 $6.20

847200 Fisher & Paykel Refrigerator Water Fil In Stock FPA 847200 $112.50

847678 Fisher & Paykel Refrigerator Water Fil Backorder FPA 847678 $215.30

847700 Fisher & Paykel Refrigerator Locking C In Stock FPA 847700 $6.31

SCREW CAP M5X20 NZ PKT10 Backorder FPA 847984P $33.87

848188P Fisher & Paykel Refrigerator Hinge Ch Backorder FPA 848188P $151.53

848191 Fisher & Paykel Refrigerator Panel Att Backorder FPA 848191 $186.45

KIT FASTENER JOINER BOTTOM Backorder FPA 848312 $6.31

867906 Fisher & Paykel Installation Kit RS V2 Backorder FPA 867906 $213.28

EXTRACTION TOO MML AMP 1897271 FPA 855288 Contact Us For Availability

KIT INSTALL FASTENERS FPA 848192 Contact Us For Availability
