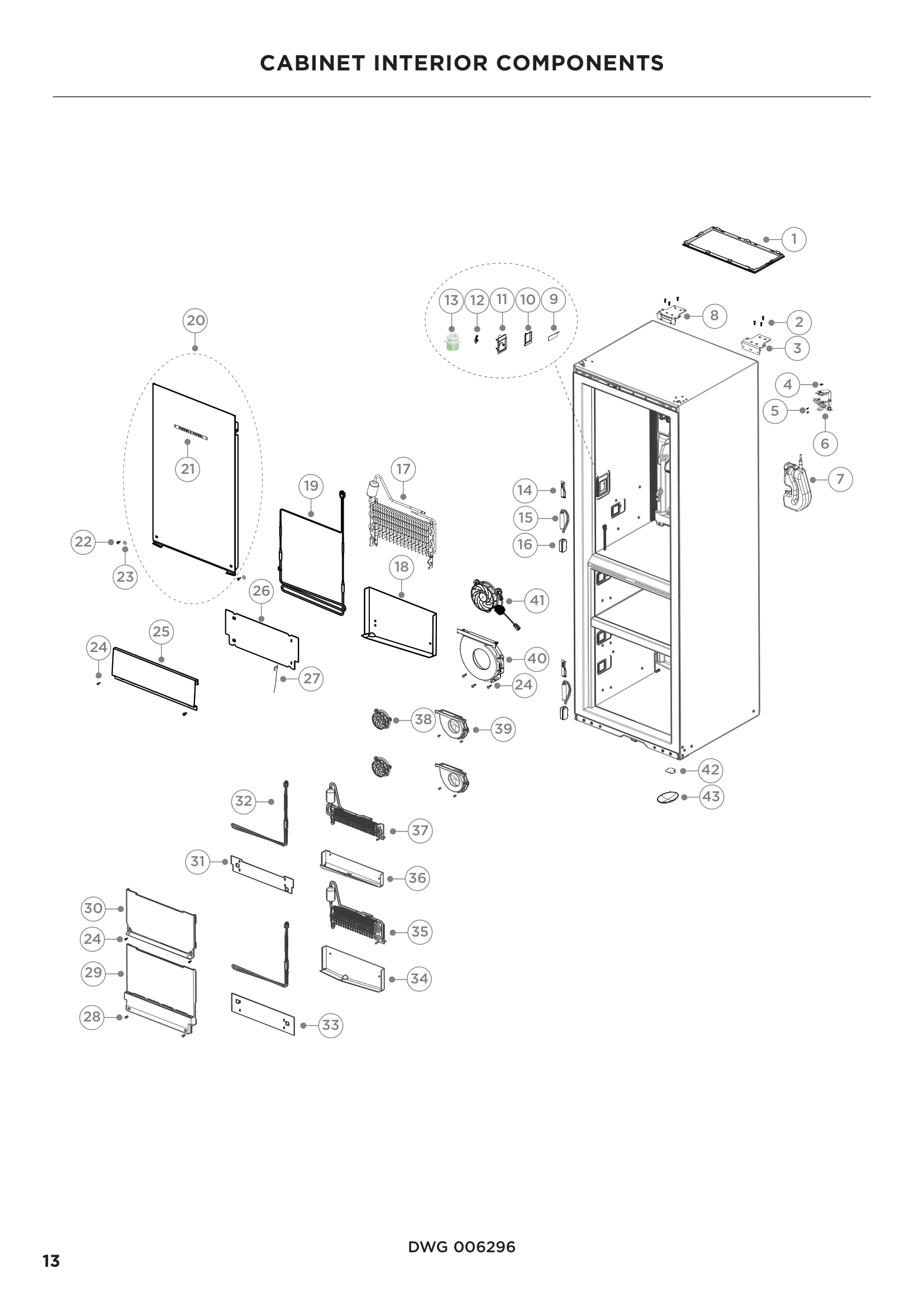

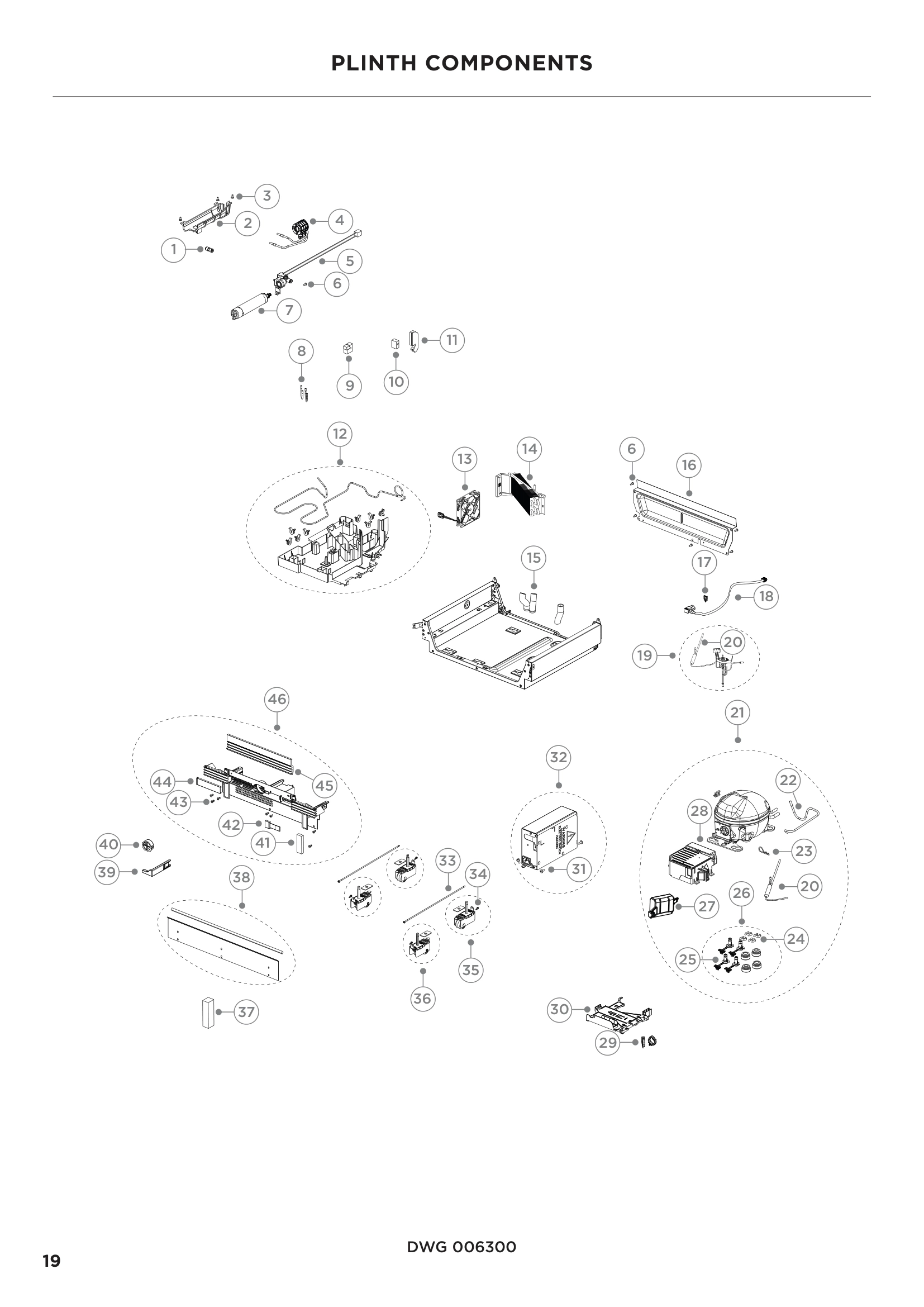

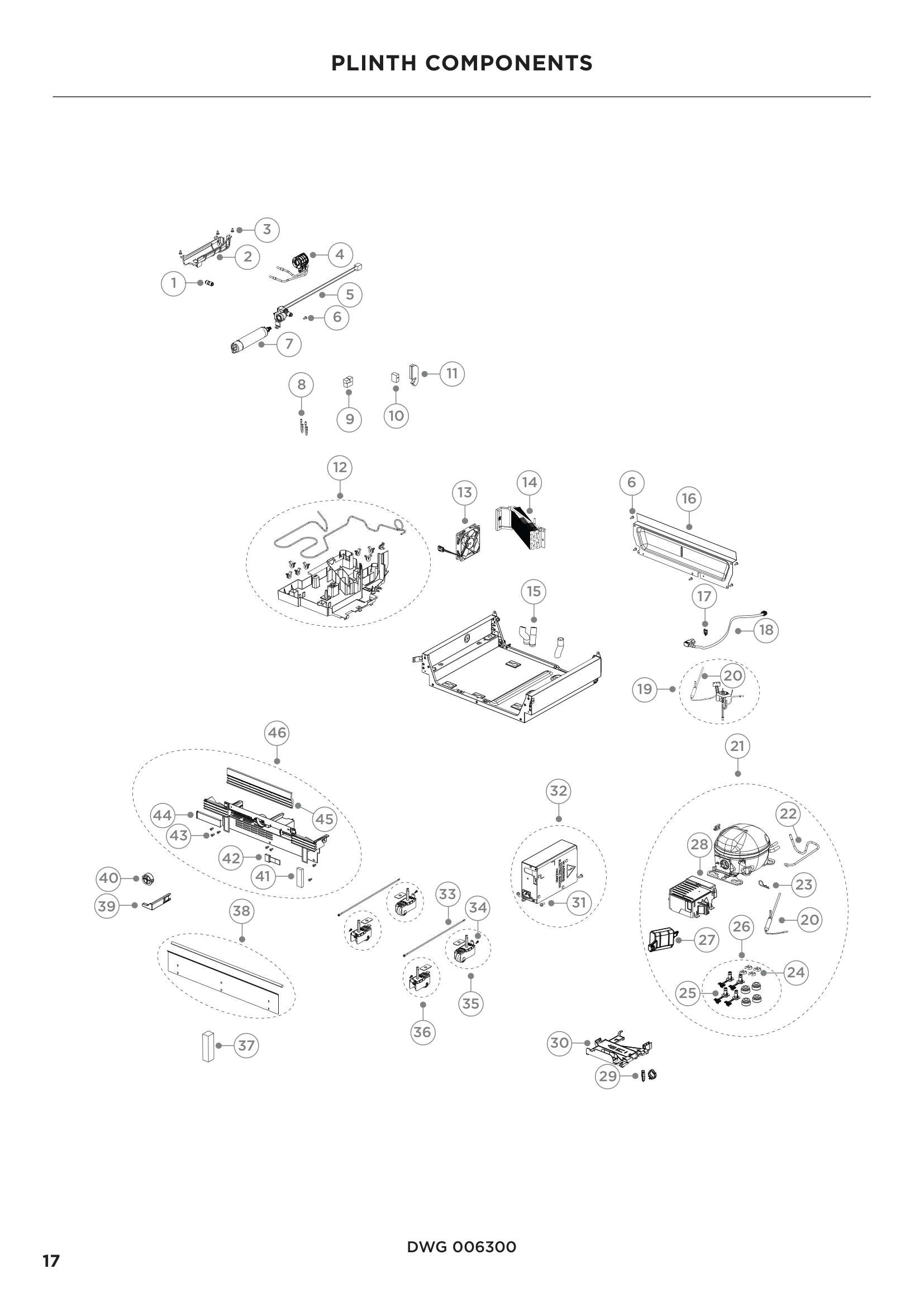

Model Fisher &amp; Paykel RS2474S3RH1FP-26202-A Refrigerator – Common Parts &amp; Diagrams

1

842292P Fisher & Paykel Refrigerator Screw Wa In Stock FPA 842292P $20.42

1

CEILING LIGHT ASSY FPA 863960P Contact Us For Availability

1

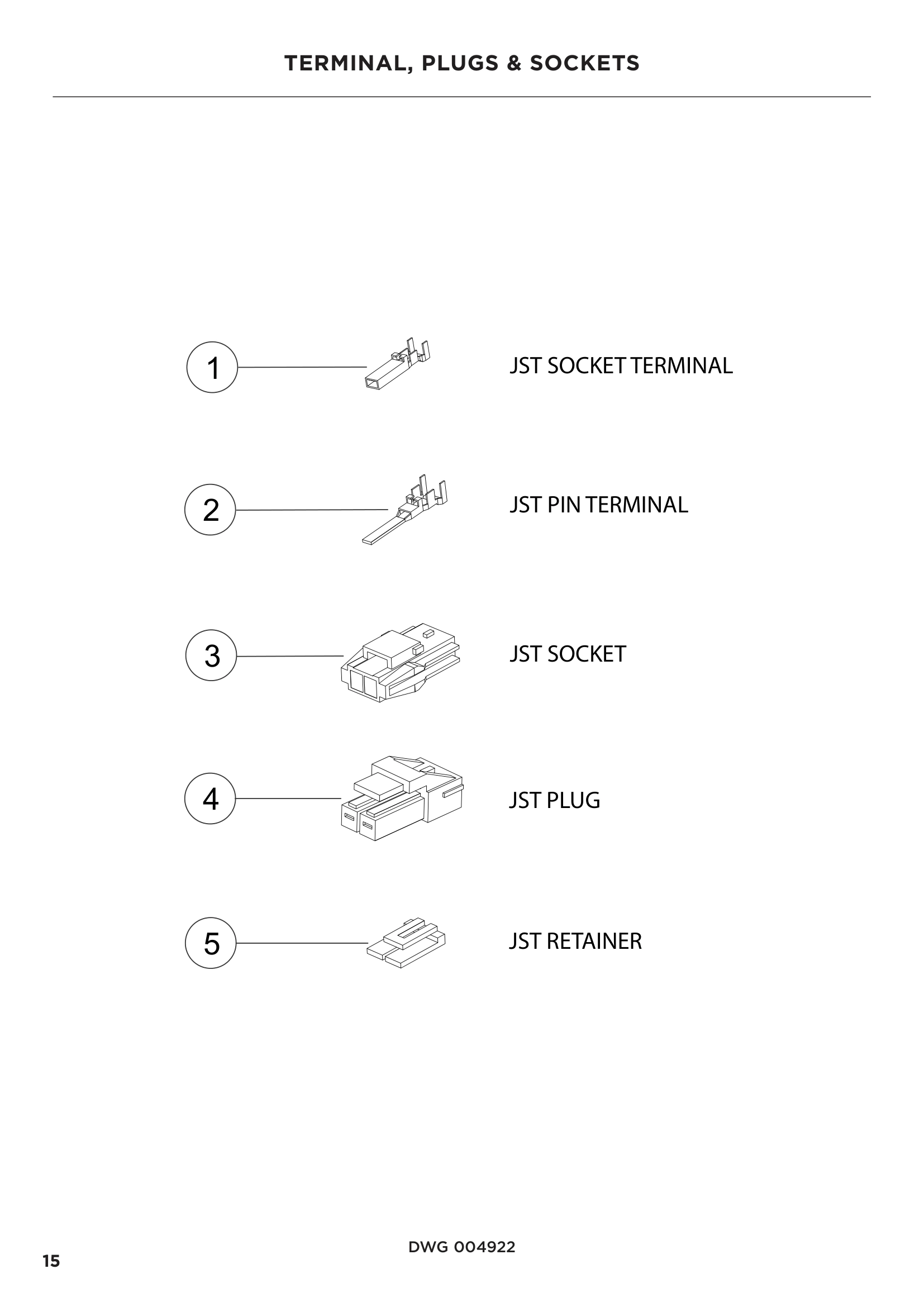

TERMINAL SYF-01T PKT 10 FPA 819607P Contact Us For Availability

1

REDUCER WATER JG 5/16 TO 1/4 FPA 866117P Contact Us For Availability

1

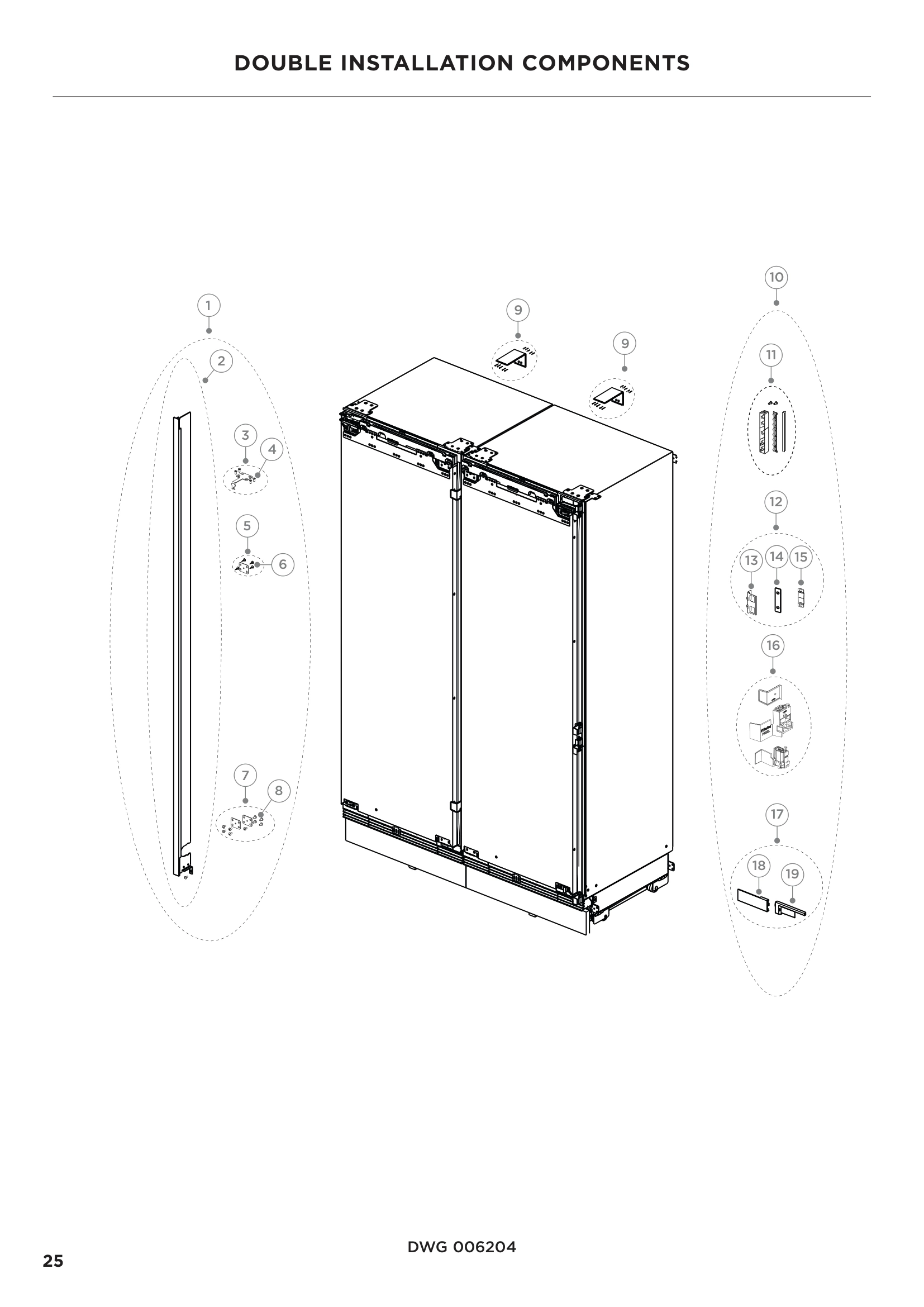

JOINER KIT AJRS74LR FP US FPA 26264 Contact Us For Availability

1

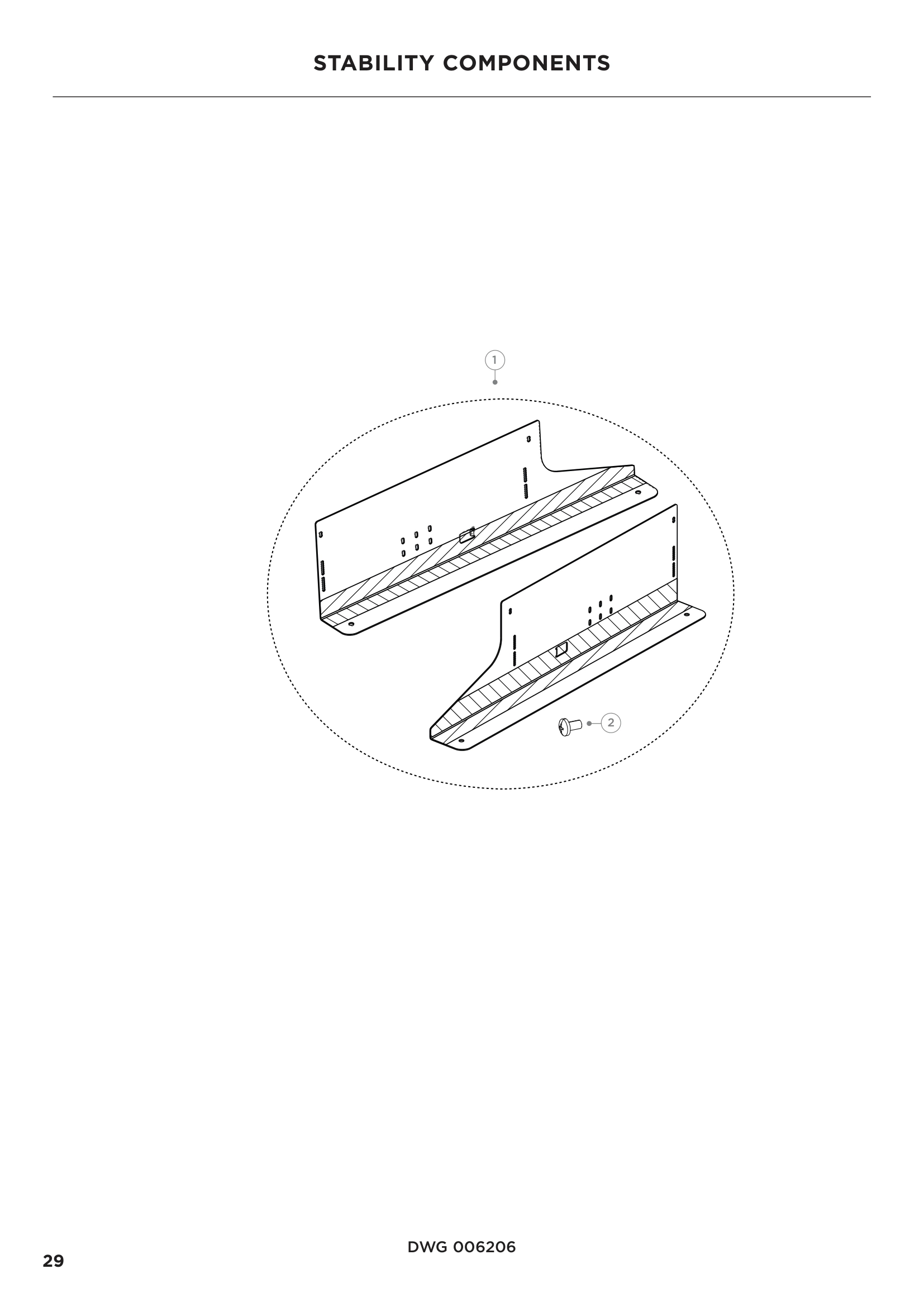

KIT ANTI TIP BRKT 60CM FPA 866506P Contact Us For Availability

2

611933P Fisher & Paykel Refrigerator Screw 8X Backorder FPA 611933P $12.63

2

842456P Fisher & Paykel Refrigerator Washer M In Stock FPA 842456P $16.40

2

SCREW M5X12 CSK TORX ZP PK FPA 862027P Contact Us For Availability

2

PIN/TERM SYM-01T PKT 10 FPA 819609P Contact Us For Availability

2

COVER WATER FILTER RS60 FPA 866122P Contact Us For Availability

2

SCREW MAT M5X15 HXW PH ZP PKT10 FPA 867442P Contact Us For Availability

2

TRIM CENTRE DUAL INSTALL 60CM FPA 865578P Contact Us For Availability

3

838153P Fisher & Paykel Refrigerator Door Ski In Stock FPA 838153P $80.22

3

MOD DISP RS60 SVC FPA 868399P Contact Us For Availability

3

BRACKET HINGE TOP RS60 FPA 862127P Contact Us For Availability

3

JST SOCKET 2PIN YLR-02V FPA 819615 Contact Us For Availability

3

SCREW M5X10 PH SHOULDER ZNPL PK FPA 865887P Contact Us For Availability

3

KIT BRACKET JOINER TOP FPA 867476P Contact Us For Availability

4

563774P Fisher & Paykel Washer Automatic Mod Backorder FPA 563774P $82.86

4

819611 Fisher & Paykel Refrigerator JST Plug Backorder FPA 819611 $6.20

4

845428P Fisher & Paykel Refrigerator Screw M5 Backorder FPA 845428P $16.58

4

847700 Fisher & Paykel Refrigerator Locking C In Stock FPA 847700 $6.31

4

869409P Fisher & Paykel Manifold Filter FPWF1 Backorder FPA 869409P $145.73

5

836948P Fisher & Paykel Refrigerator Stainles Backorder FPA 836948P $18.89

5

868577P Fisher & Paykel Water Inlet Valve 120 Backorder FPA 868577P $50.84

5

RETAINER 2 WAY YLS-02V FPA 819620 Contact Us For Availability

5

KIT BRACKET JOINER REAR FPA 867915P Contact Us For Availability

6

840371P Fisher & Paykel Refrigerator 8G x 16 In Stock FPA 840371P $9.79

6

866531P Fisher & Paykel Refrigerator Water Di Backorder FPA 866531P $75.89

6

RAIL CANTI LH RS60 ASSY FPA 864538P Contact Us For Availability

7

847200 Fisher & Paykel Refrigerator Water Fil In Stock FPA 847200 $112.50

7

864197 Fisher & Paykel Refrigerator Clb Water Backorder FPA 864197 $84.09

7

KIT BRACKET JOINER PLINTH FPA 867477P Contact Us For Availability

8

SCREW TORX CSK SS 8X16 PKT10 FPA 847036P Contact Us For Availability

8

BRACKET ALCOVE TOP FPA 864920P Contact Us For Availability

8

COPPER U BEND 60CM FPA 865405P Contact Us For Availability

9

843934 Fisher & Paykel Refrigerator Anti-Tip Backorder FPA 843934 $21.76

9

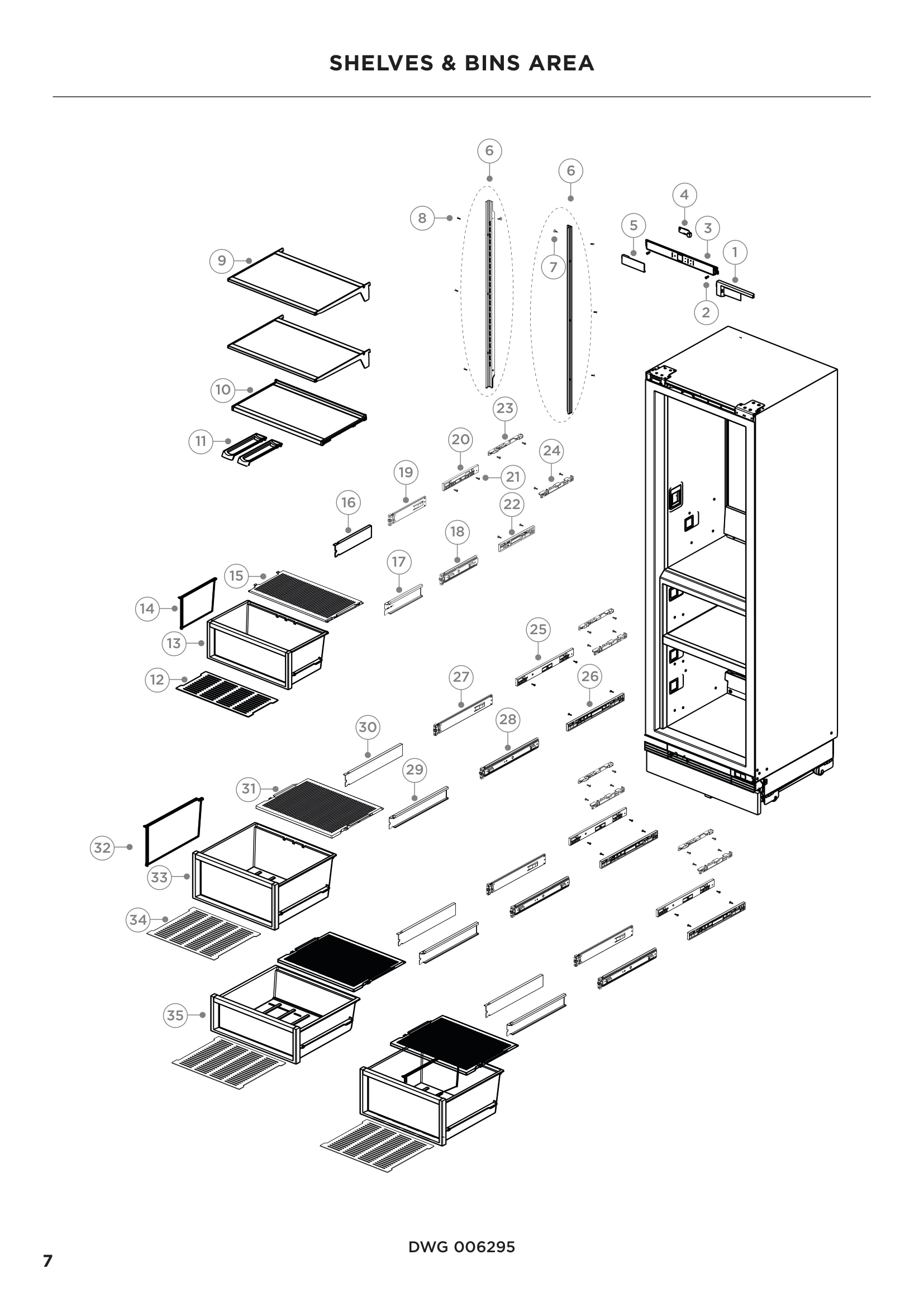

SHELF CANTI RS60 ASSY FPA 864544P Contact Us For Availability

9

FASCIA DISPENSER B-MOD WH FPA 864788 Contact Us For Availability

9

FOAM BLOCK SEAL FRONT RS60 FPA 867108P Contact Us For Availability

839226 Fisher & Paykel Refrigerator Hinge Typ In Stock FPA 839226 $121.59

SHELF FIXED UPR RS60 PC ASSY FPA 864729P Contact Us For Availability

DISPENSER B-MOD PADDLE WH FPA 864787 Contact Us For Availability

FOAM BLOCK REAR BTM FPA 867857P Contact Us For Availability

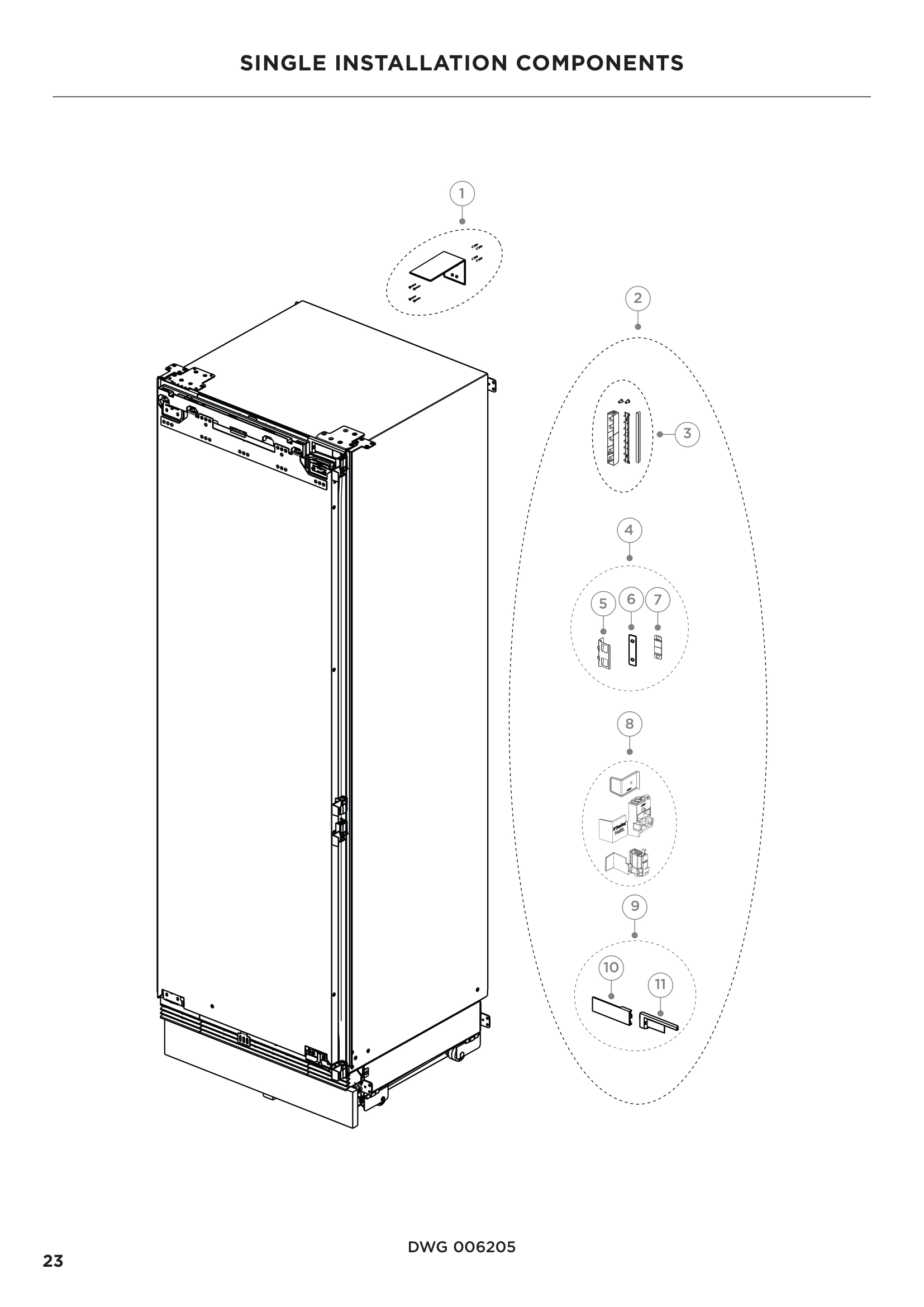

KIT INSTALLATION RS60 FPA 864932 Contact Us For Availability

860593 Fisher & Paykel Refrigerator Single Bo In Stock FPA 860593 $9.04

DISPENSER B-MOD SPOUT WH FPA 864786 Contact Us For Availability

FOAM BLOCK REAR FPA 867107P Contact Us For Availability

KIT FLOW DIVIDER RS60 FPA 867470 Contact Us For Availability

527679P Fisher & Paykel Dishwasher Door Corne Backorder FPA 527679P $51.00

862169 Fisher & Paykel Refrigerator Switch Mi Backorder FPA 862169 $23.11

MAT BIN UPR ASSY RS24W FPA 863448P Contact Us For Availability

TRAY EVAP RS60 KIT FPA 864398P Contact Us For Availability

KIT PANEL ATTACH FPA 867472 Contact Us For Availability

838855P Fisher & Paykel Refrigerator Condense Backorder FPA 838855P $90.23

BIN ASSEMBLY UC RS60 FPA 865271P Contact Us For Availability

GROMMET TUBE WATER FPA 851476P Contact Us For Availability

BRACKET TRIM SIDE DOOR FPA 864933P Contact Us For Availability

DIVIDER BIN UC RS60 FPA 866162P Contact Us For Availability

CLIP SENSOR FPA 845878 Contact Us For Availability

CONDENSER FOT 213 X 84 3 PASS KIT FPA 862277P Contact Us For Availability

SPACER BRACKET SIDE DR 60CM FPA 867266P Contact Us For Availability

813822P Fisher & Paykel Refrigerator Thermist Backorder FPA 813822P $95.93

HCL SHELF ASSEM UPR RS60 FPA 865499P Contact Us For Availability

DRAIN TUBE RS60 FPA 867740P Contact Us For Availability

SLIDER BRACKET SKIN DR 60CM FPA 867267P Contact Us For Availability

COVER SLIDE 223MM LH FPA 866160P Contact Us For Availability

COVER PLUG TYCO FPA 821745 Contact Us For Availability

LOCKING PLATE REAR PLINTH RS60 FPA 862432P Contact Us For Availability

KIT HINGE SPACER & DEPTH GAUGE FPA 867469 Contact Us For Availability

COVER SLIDE 223MM RH FPA 866161P Contact Us For Availability

EVAP PC UPR 5 PASS 290MM FPA 866807P Contact Us For Availability

CLIP SADDLE 9MM PKT 10 FPA 847961P Contact Us For Availability

KIT UI TRIMS FPA 867860 Contact Us For Availability

837843 Fisher & Paykel Refrigerator Hinge Typ In Stock FPA 837843 $121.59

SHIELD DRAIN UPR 30PC Backorder FPA 844876 $28.49

862788P Fisher & Paykel Power Cord Set (US RS Backorder FPA 862788P $70.08

TRIM UI RS60 HINGE LH FPA 865598P Contact Us For Availability

SLIDE 223MM RH ASSY FPA 865505P Contact Us For Availability

846242P Fisher & Paykel Refrigerator Heater D Backorder FPA 846242P $84.33

SLIDE 223MM LH ASSY FPA 865504P Contact Us For Availability

REF VALVE TO FILTER ASSY RS60 FPA 867103P Contact Us For Availability

TRIM UI RS60 HINGE RH FPA 864926P Contact Us For Availability

20

BRACKET SLIDE 223MM LH FPA 866158P Contact Us For Availability

20

COVER DUCT ASSY UPR RS60F FPA 865184P Contact Us For Availability

20

FILTER DRYER DUAL 5G 60CM FPA 868435P Contact Us For Availability

21

841568P Fisher & Paykel Refrigerator Screw M5 In Stock FPA 841568P $9.42

21

NAMEPLATE FP CHROME LETTERS FPA 847363 Contact Us For Availability

21

KIT COMPR EMB VESF7C RS60 115V FPA 207461P Contact Us For Availability

22

SCREW ST 8X15PH SHOULDER PKT10 FPA 840421P Contact Us For Availability

22

BRACKET SLIDE 223MM RH FPA 866159P Contact Us For Availability

22

TUBE ADAPTOR SUCTION RS60 FPA 865116P Contact Us For Availability

23

CLIP R COVER COMP M16 S4HPP16 Backorder FPA 207419 $6.31

23

BRACKET HCL RS60 L FPA 865276P Contact Us For Availability

23

WASHER PLAIN M5X16 ZNPL PKT10 FPA 611307P Contact Us For Availability

24

855270P Fisher & Paykel Refrigerator Compress Backorder FPA 855270P $19.31

24

SCREW M4X16 PLASTITE PH T15 PKT10 FPA 847532P Contact Us For Availability

24

BRACKET HCL RS60 R FPA 865275P Contact Us For Availability

25

BRACKET SLIDE 355MM LEFT FPA 865045P Contact Us For Availability

25

COVER DRAIN UPR ASSY FPA 864859P Contact Us For Availability

25

POST COMP MOUNTING 16.5MM (PKT4) FPA 849621P Contact Us For Availability

26

BRACKET SLIDE 355MM RIGHT FPA 864824P Contact Us For Availability

26

SHIELD HEAT 30 LWR FC FPA 844108 Contact Us For Availability

26

GROMMET 16.5MM KIT 4 PACK FPA 849622P Contact Us For Availability

27

836703 Fisher & Paykel Refrigerator Left Slid In Stock FPA 836703 $23.06

27

WIRE DRAIN HEATER RS FPA 847315 Contact Us For Availability

27

COVER PROTECTOR VEM FPA 207310 Contact Us For Availability

28

207444 Fisher & Paykel Inverter EMB VESF7C 11 Backorder FPA 207444 $168.67

28

836702 Fisher & Paykel Refrigerator Right Sli In Stock FPA 836702 $21.83

28

848120P Fisher & Paykel Refrigerator M4x35 St Backorder FPA 848120P $43.59

29

COVER SLIDE FC 890 RH FPA 838615 Contact Us For Availability

29

COVER DUCT LWR ASSY RS60S3 FPA 865925P Contact Us For Availability

29

CLIP SADDLE 20MM FPA 847960 Contact Us For Availability

30

COVER SLIDE FC 890 LH FPA 838804 Contact Us For Availability

30

COVER DUCT MID ASSY RS60S3 FPA 865924P Contact Us For Availability

30

BRACKET INVERTER RS60 FPA 865839P Contact Us For Availability

31

HCL LWR RS60 FPA 865010P Contact Us For Availability

31

SHIELD HEAT TRIPLE PC MID FPA 866499P Contact Us For Availability

32

DIVIDER BIN LARGE LC RS60 FPA 865007P Contact Us For Availability

32

HEATER DEF 2PV 120V ANTICOR FPA 866602P Contact Us For Availability

32

ASSY CTRL RS60 TZ KIT FPA 868328P Contact Us For Availability

33

BIN LARGE ASSEMBLY LC RS60 FPA 865376P Contact Us For Availability

33

SHIELD HEAT TRIPLE PC LWR FPA 866500P Contact Us For Availability

33

ROD BK LEVELLING RS60 FPA 868314P Contact Us For Availability

34

817834P Fisher & Paykel Refrigerator Packet S In Stock FPA 817834P $14.66

34

MAT BIN LWR RS24S WITH BUMPERS FPA 847072 Contact Us For Availability

34

SHIELD DRN LWR 60CM TZ PC FPA 865878P Contact Us For Availability

35

BIN SMALL LC ASSEMBY RS60 FPA 865483P Contact Us For Availability

35

EVAP PC 3PASS ANTICORR FPA 865881P Contact Us For Availability

35

LEVELLING SYSTEM REAR RS60 FPA 868440P Contact Us For Availability

36

SHIELD DRN MID 60CM TZ PC FPA 865877P Contact Us For Availability

36

LEVELLING SYSTEM FRONT RS60 FPA 868439P Contact Us For Availability

37

EVAP PC 2PASS ANTICORR FPA 865515P Contact Us For Availability

37

BLOCKER AIR BYPASS KICKSTRIP FPA 846405 Contact Us For Availability

38

FAN CNTFGL D100 ASSY FPA 862043P Contact Us For Availability

38

MTG PLATE TOE KICK RS60 KIT FPA 867265P Contact Us For Availability

39

847176 Fisher & Paykel Refrigerator Water Fil In Stock FPA 847176 $6.31

39

HOUSING FAN CNTFGL D100 ASSY FPA 866156P Contact Us For Availability

40

844551 Fisher & Paykel Refrigerator Fan Housi Backorder FPA 844551 $12.15

40

PLUG GRILLE RS60 FPA 867007P Contact Us For Availability

41

844545P Fisher & Paykel Refrigerator D125 Fan Backorder FPA 844545P $101.87

41

SEAL FOAM REAR RS60 FPA 867372P Contact Us For Availability

42

MOD LAMP AS SMALL SVC FPA 845008P Contact Us For Availability

42

TRIM BTM HINGE COVER 60CM FPA 865613P Contact Us For Availability

43

845432P Fisher & Paykel Refrigerator Mounting In Stock FPA 845432P $15.92

43

875318 Fisher & Paykel Refrigerator Lamp Cove Backorder FPA 875318 $6.20

44

TRIM BTM NON HINGE COVER 60CM FPA 865863P Contact Us For Availability

45

FLAP GRILLE FIXED RS60 FPA 866132P Contact Us For Availability

46

GRILLE ASSY RS60 KIT FPA 862484P Contact Us For Availability

HOSE BRAIDED 7/16 UNS 1/2 BSP FPA 847185 Contact Us For Availability

BOLT LIMITING HINGE K08 FPA 843663 Contact Us For Availability

KIT DOOR SCREW FPA 867861 Contact Us For Availability

KIT SCREW ALCOVE ATTACHMENT FPA 867473 Contact Us For Availability

KIT SCREW PANEL ATTACHMENT FPA 868180 Contact Us For Availability
