Model Fisher & Paykel RS2435V2R1-26705-A Wine Cabinet – Common Parts & Diagrams

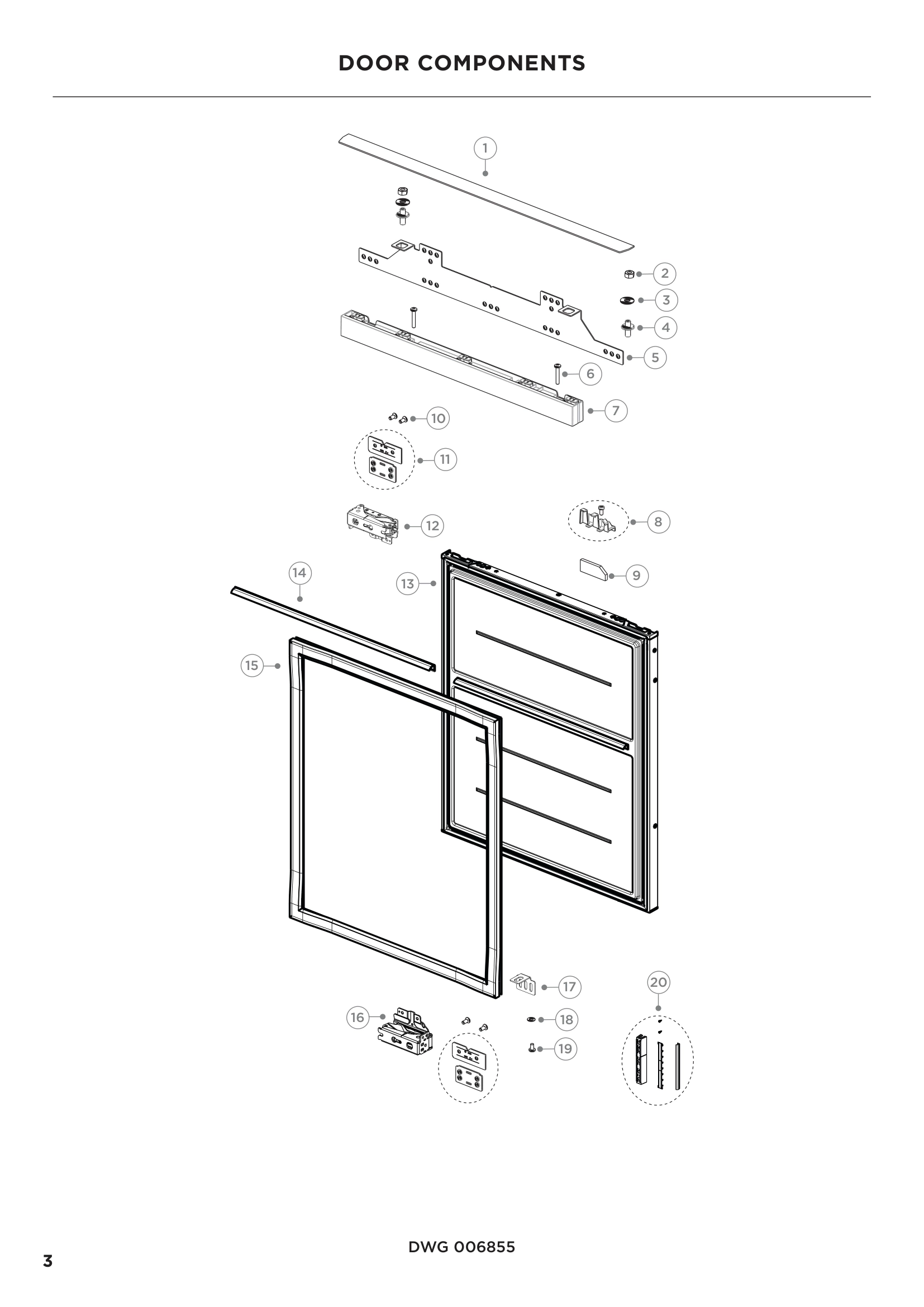

DOOR COMPONENTS

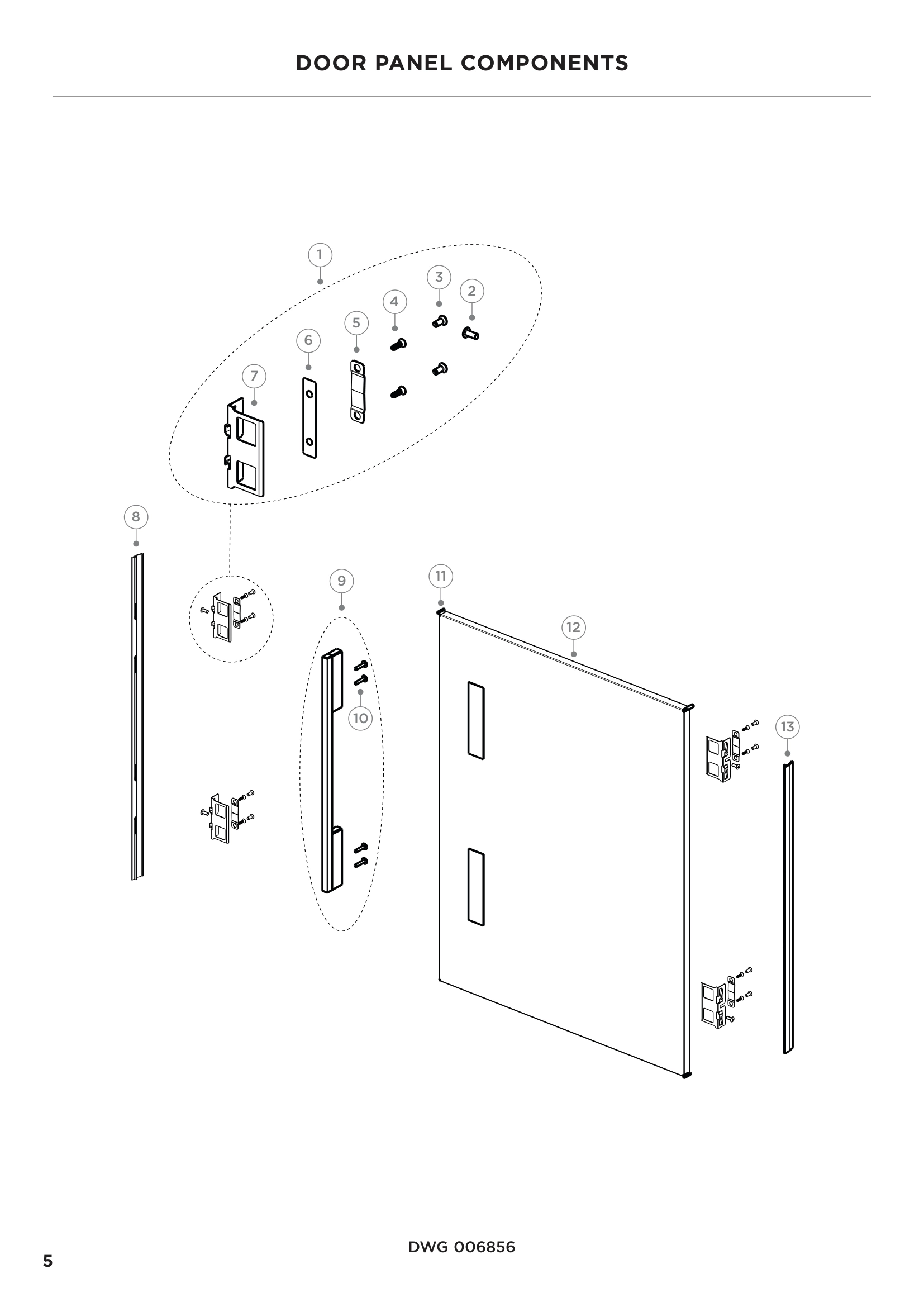

DOOR PANEL COMPONENTS
SHELVES RAILS COMPONENTS
CABINET INTERNAL COMPONENTS
TERMINAL, PLUGS & SOCKETS
PLINTH COMPONENTS
PLINTH COMPONENTS
SINGLE INSTALLATION COMPONENTS
SINGLE INSTALLATION COMPONENTS
DOUBLE INSTALLATION COMPONENTS
DOUBLE INSTALLATION COMPONENTS
STABILITY COMPONENTS
Common parts from model Fisher & Paykel RS2435V2R1-26705-A Wine Cabinet
1
KIT PANEL ATTACH UC FPA 869729P Contact Us For Availability
1
CEILING LIGHT ASSEMBLY FPA 863960P Contact Us For Availability
1
TERMINAL SYF-01T PKT 10 FPA 819607P Contact Us For Availability
1
SCREW M5X10 PH SHOULDER ZNPL PK FPA 865887P Contact Us For Availability
1
KIT BRACKET ANTI TIP RS60 UC FPA 869802P Contact Us For Availability
1
OINER KIT AJRS35LR FP US FPA 26800
J Contact Us For Availability
2
BRACKET NON HINGE ALCOVE TOP FPA 864920P Contact Us For Availability
2
PIN/TERM SYM-01T PKT 10 FPA 819609P Contact Us For Availability
2
COPPER U BEND 60CM FPA 865405P Contact Us For Availability
2
SCREW WS #10X35 T17 WFR PH ZP FPA 847398P Contact Us For Availability
2
RIM JOINER RS60UC FPA 869719P
T Contact Us For Availability
3
PCBA COMBI WIFIBT GEA FPA 869095P Contact Us For Availability
3
SCREW M5X12 CSK TORX ZP PKT10 FPA 862027P Contact Us For Availability
3
JST SOCKET 2PIN YLR-02V FPA 819615 Contact Us For Availability
3
FOAM BLOCK SEAL FRONT RS60 FPA 867108P Contact Us For Availability
3
KIT INSTALLATION RS60 UC FPA 869728 Contact Us For Availability
3
IT BRACKET JOINER REAR FPA 867915P
K Contact Us For Availability
4
KIT FLOW DIVIDER RS60 FPA 867470 Contact Us For Availability
4
HARNESS WIFI RS60 FPA 866370 Contact Us For Availability
4
BRACKET HINGE TOP RS60 FPA 862127P Contact Us For Availability
4
FOAM BLOCK REAR BTM FPA 867857P Contact Us For Availability
4
CREW 8GX16 MUSH WASH (PKT10) FPA 840371P
S Contact Us For Availability
5
MOD DISP RS60 UC FPA 869210P Contact Us For Availability
5
LOCK DIVIDER LH RS6009W FPA 862965P Contact Us For Availability
5
RETAINER 2 WAY YLS-02V FPA 819620 Contact Us For Availability
5
FOAM BLOCK REAR FPA 867107P Contact Us For Availability
5
IT BRACKET JOINER TOP FPA 867476P
K Contact Us For Availability
6
LOCK DIVIDER RH RS6009W FPA 862966P Contact Us For Availability
6
TRAY EVAP RS60 KIT FPA 864398P Contact Us For Availability
6
CREW M5X12 CSK PH NP PKT10 FPA 845428P
S Contact Us For Availability
7
SLIDE SUPPORT L MOUN RS6009 2Z FPA 869723P Contact Us For Availability
7
DIVIDER CMPTMT RS6009V 2Z FPA 862552P Contact Us For Availability
7
IT BRACKET JOINER PLINTH FPA 867477P
K Contact Us For Availability
8
TRIM SIDE HINGE DR B BTM 60CM FPA 867160P Contact Us For Availability
8
SLIDE SUPPORT R MOUN RS6009 2Z FPA 869911P Contact Us For Availability
8
CLIP SENSOR FPA 845878 Contact Us For Availability
8
CONDENSER FOT 213 X 84 3 PASS KIT FPA 862277P Contact Us For Availability
8
CREW M5X12MUSH PH MT ST PKT10 FPA 845432P
S Contact Us For Availability
9
HANDLE ASSY PRO UC 4435 FPA 885033P Contact Us For Availability
9
SCREW FLAT PLASTITE M4X8 TX BL FPA 869684P Contact Us For Availability
9
DEFLECTOR FAN RS60V 2Z FPA 862044P Contact Us For Availability
9
LOCKING PLATE REAR PLINTH RS60 FPA 862432P Contact Us For Availability
9
IT BRACKET ANTI TIP RS60 UC FPA 869802P
K Contact Us For Availability
10
ASSY RACK WINE RS6009V 2Z FPA 869717P Contact Us For Availability
10
FAN SUNON 75MM FPA 869082P Contact Us For Availability
10
CREW WS #10X35 T17 WFR PH ZP FPA 847398P
S Contact Us For Availability
11
SCREW PAN M4X21 TX15 SS FPA 869683P Contact Us For Availability
11
SCREW PAN M4X45 TX15 SS FPA 885248P Contact Us For Availability
11
CLIP SADDLE 9MM PKT 10 FPA 847961P Contact Us For Availability
11
IT INSTALLATION RS60 UC FPA 869728
K Contact Us For Availability
12
PANEL DOOR UC SO RH FPA 885361P Contact Us For Availability
12
SHIELD DRN UPR RS60V DZ FPA 869011P Contact Us For Availability
12
IT FLOW DIVIDER RS60 FPA 867470
K Contact Us For Availability
13
TRIM SIDE DR B BTM 60CM FPA 865580P Contact Us For Availability
13
SHIELD DRAIN LWR RS60V DZ FPA 869012P Contact Us For Availability
13
REF VALVE TO FILTER ASSY RS60 FPA 867103P Contact Us For Availability
13
KIT PANEL ATTACH UC FPA 869729 Contact Us For Availability
14
SLIDER BRACKET SKIN DR 60CM FPA 867267P Contact Us For Availability
14
EVAP 2P W/O DEF HEATER FPA 869002P Contact Us For Availability
14
FILTER DRYER DUAL 5G 60CM FPA 868435P Contact Us For Availability
15
SPACER BRACKET SIDE DR 60CM FPA 867266P Contact Us For Availability
15
SHIELD HEAT RS60V DZ FPA 869010P Contact Us For Availability
15
COMPR EMB FMXD4C (US MODEL) FPA 207466P Contact Us For Availability
16
BRACKET TRIM SIDE DOOR FPA 864933P Contact Us For Availability
16
COVER DUCT UPR RS6009V 2Z ASSY FPA 869068P Contact Us For Availability
16
TUBE ADAPTOR SUCTION RS60 BEV FPA 869184P Contact Us For Availability
17
NAMEPLATE FP CHROME LETTERS FPA 847363 Contact Us For Availability
17
CLIP R COVER COMP M1.6 S4HPP16 FPA 207419 Contact Us For Availability
17
KIT HINGE SPACER & DEPTH GAUGE FPA 867469 Contact Us For Availability
18
COVER DUCT LWR 6009V 2Z ASSY FPA 869067P Contact Us For Availability
18
GROMMET 16.5MM KIT 4 PACK FPA 849622P Contact Us For Availability
18
KIT UI TRIMS FPA 867860 Contact Us For Availability
19
TRIM UI RS60 HINGE LH FPA 865598P Contact Us For Availability
19
POST COMP MOUNTING 16.5MM (PKT4) FPA 849621P Contact Us For Availability
20
TRIM UI RS60 HINGE RH FPA 864926P Contact Us For Availability
21
COVER PROTECTOR FMX FPA 207471 Contact Us For Availability
22
INVERTER EMB FMXD4C 115V FA FPA 207468 Contact Us For Availability
23
ASSY CTRL RS60 UC FPA 869209P Contact Us For Availability
24
SCREW MAT M5X15 HXW PH ZP PKT10 FPA 867442P Contact Us For Availability
25
DRAIN TUBE RS60 FPA 867740P Contact Us For Availability
26
GRILLE ASSY RS60 KIT FPA 862484P Contact Us For Availability
27
FLAP GRILLE FIXED RS60 FPA 866132P Contact Us For Availability
28
SEAL FOAM REAR RS60 FPA 867372P Contact Us For Availability
29
TRIM BTM HINGE COVER 60CM FPA 865613P Contact Us For Availability
30
TRIM BTM NON HINGE COVER 60CM FPA 865863P Contact Us For Availability
31
PLUG GRILLE RS60 FPA 867007P Contact Us For Availability
33
MTG PLATE TOE KICK RS60 KIT FPA 867265P Contact Us For Availability
34
BLOCKER AIR BYPASS KICKSTRIP FPA 846405 Contact Us For Availability
35
LEVELLING SYSTEM FRONT LONG FPA 869085P Contact Us For Availability
37
ROD BK LEVELLING RS60 FPA 868314P Contact Us For Availability
38
LEVELLING SYSTEM REAR LONG FPA 869086P Contact Us For Availability
39
BRACKET INVERTER RS60 FPA 865839P Contact Us For Availability
40
CLIP SADDLE 20MM FPA 847960 Contact Us For Availability
NI
KIT SCREW PANEL ATTACHMENT UC FPA 869733 Contact Us For Availability
NI
BOLT LIMITING HINGE K08 FPA 843663 Contact Us For Availability
NI
KIT DOOR SCREW UC FPA 869732 Contact Us For Availability
NI
KIT SCREW ALCOVE ATTACHMENT FPA 867473 Contact Us For Availability
× ![]()
