Model Electrolux RS22F9WS1H REFRIGERATOR – Common Parts & Diagrams

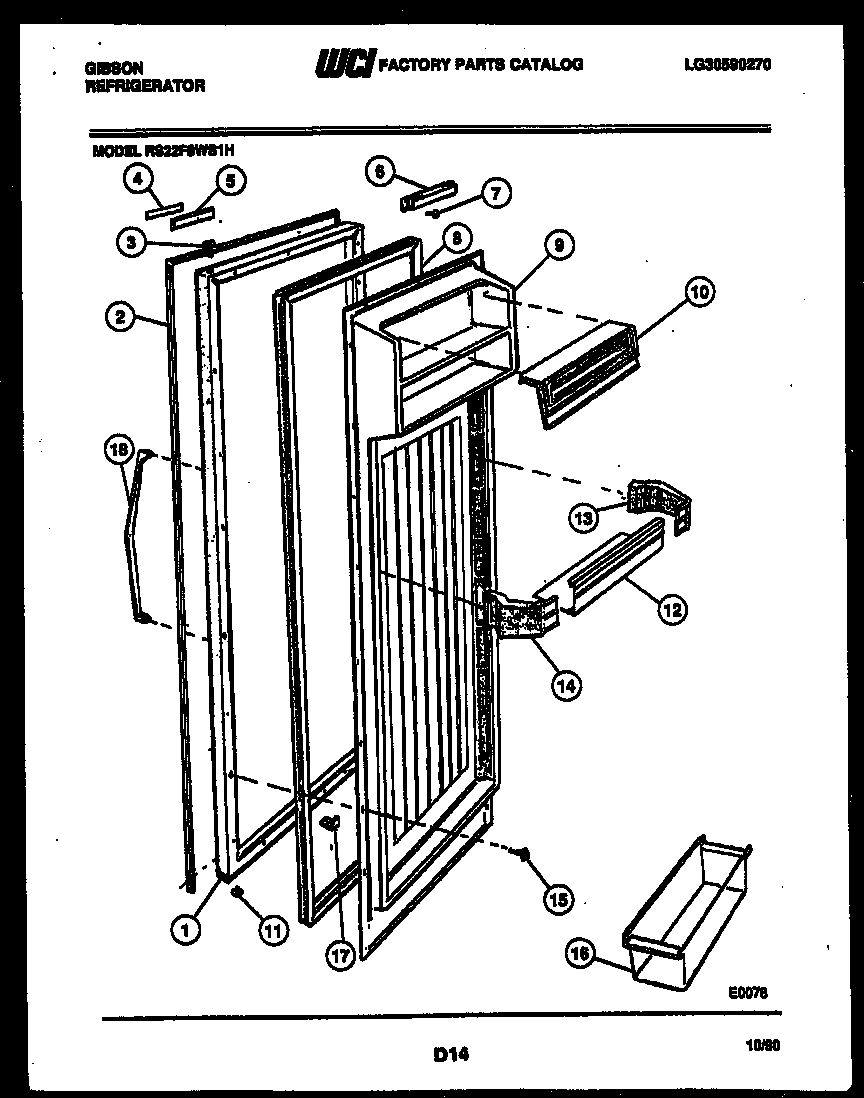

02 - FREEZER DOOR PARTS

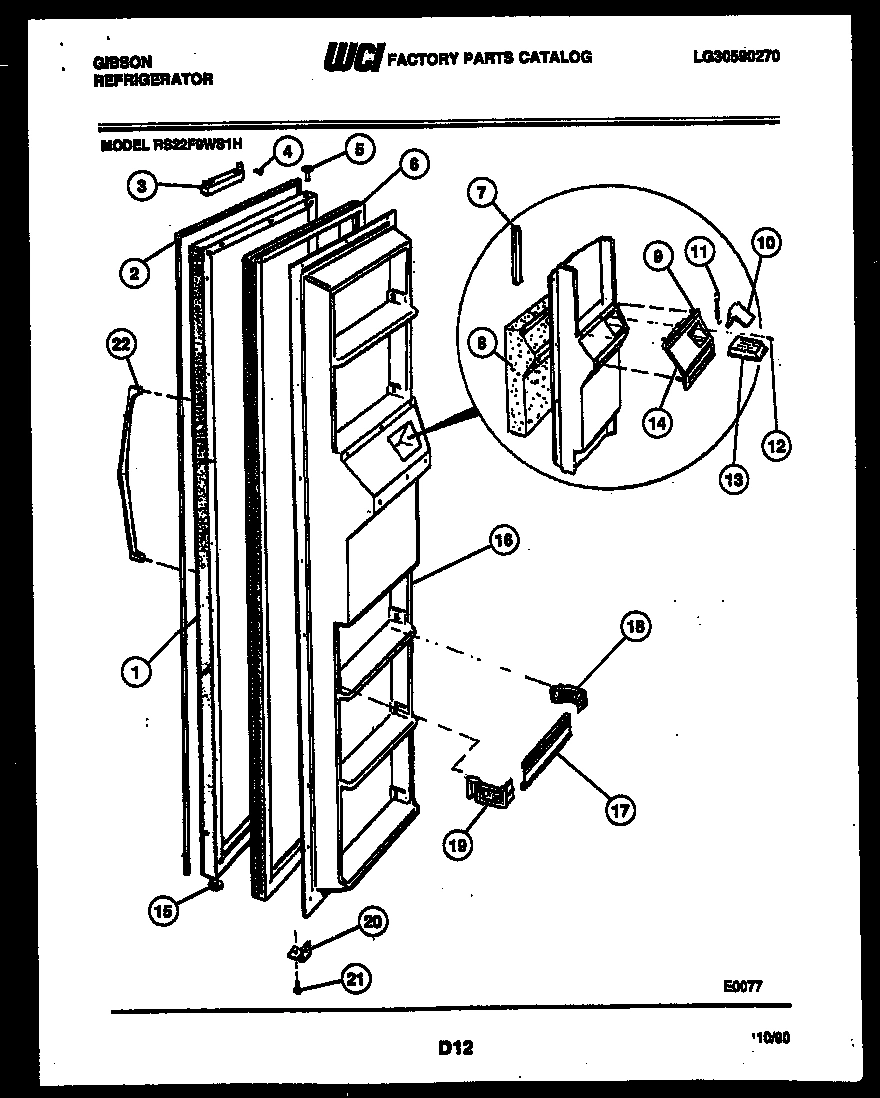

03 - REFRIGERATOR DOOR PARTS
04 - CABINET PARTS
05 - SHELVES AND SUPPORTS
06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP
07 - ICE DOOR, DISPENSER AND WATER TANK
08 - ICE DISPENSER
09 - ICE MAKER AND INSTALLATION PARTS
10 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RS22F9WS1H REFRIGERATOR
*30580
NUT - PUSH WCI 5308010293 Contact Us For Availability
*30580
SHIM-HANDLE (2) WCI G176752 Contact Us For Availability
*30580
SCREW-HANDLE MOUNTING (2) WCI G185565 Contact Us For Availability
*30585
SUPPORT-SPECIAL BARREL (2) WCI 5303001213 Contact Us For Availability
*30585
PLUG, REFRIGERATOR LINER (4) WCI 5303001288 Contact Us For Availability
*30585
PLATE-TAPPING (2) WCI 5308012296 Contact Us For Availability
*30589
CLIP-GROUNDING WCI 5303001231 Contact Us For Availability
*30589
FOAM TAPE-COVER WCI G167795-04 Contact Us For Availability
*30592
WCI 5318653301 WCI 5318653301 Contact Us For Availability
*30601
HOT TUBE REPAIR KIT WCI 5300189379 Contact Us For Availability
1
WCI 5300177745 WCI 5300177745 Contact Us For Availability
1
WCI G177745-08 WCI G177745-08 Contact Us For Availability
1
REFRIGERATOR DOOR-WHEAT WCI G177745-09 Contact Us For Availability
1
WCI G177745-10 WCI G177745-10 Contact Us For Availability
1
WCI G177745-11 WCI G177745-11 Contact Us For Availability
1
FERRULE-INNER (2) WCI 5303001286 Contact Us For Availability
1
CHANNEL - RH & LH WCI 5308002744 Contact Us For Availability
1
TUBE - WATER INLET & PILOT ASSEMBLY WCI 5300188233 Contact Us For Availability
1
WCI G182031-06 WCI G182031-06 Contact Us For Availability
1
WIRING HARNESS - ICE & WATER WCI 5303017210 Contact Us For Availability
1
WCI 3206421 WCI 3206421 Contact Us For Availability
1A
DOOR PLUG-BOTTOM (NON-ILLUSTRATED) WCI 5315230801 Contact Us For Availability
2
LIGHT SOCKET - REFRIGERATOR WCI 5308000129 Contact Us For Availability
2
TRIM-REFRIGERATOR DOOR WCI G167404-08 Contact Us For Availability
2
FERRULE-OUTER (2) WCI 5303001287 Contact Us For Availability
2
FRAME-SHELF (4) WCI 5303209744 Contact Us For Availability
2
WCI 5303001066 WCI 5303001066 Contact Us For Availability
2
WCI G185970 WCI G185970 Contact Us For Availability
2
COIL BLOCK WCI 5308000828 Contact Us For Availability
3
WCI 5303007568 WCI 5303007568 Contact Us For Availability
3
BEARING-UPPER HINGE WCI 5303001022 Contact Us For Availability
3
WCI 5303211143 WCI 5303211143 Contact Us For Availability
3
WCI 5308015588 WCI 5308015588 Contact Us For Availability
3
WCI G182151-04 WCI G182151-04 Contact Us For Availability
3
CLAMP - TUBE (3) WCI 5303001558 Contact Us For Availability
4
WCI 3019041 WCI 3019041 Contact Us For Availability
4
TUBE - RUBBER (3) WCI 5303001198 Contact Us For Availability
4
WCI 5303211142 WCI 5303211142 Contact Us For Availability
4
DOOR HOUSING & LABEL ASSEMBLY WCI 3017350 Contact Us For Availability
4
WCI 5318252401 WCI 5318252401 Contact Us For Availability
4
HEATER EXCHANGER WCI 5308017565 Contact Us For Availability
4A
LABEL-NAMEPLATE UPPER WCI G188378-06 Contact Us For Availability
5
WCI 5308000068 WCI 5308000068 Contact Us For Availability
5
FRAME - NAMEPLATE WCI 5317511702 Contact Us For Availability
5
DIVIDER - ICE & WATER WCI 5303017208 Contact Us For Availability
5
GLASS - SHELF (4) WCI 5303211144 Contact Us For Availability
5
WCI 5308010326 WCI 5308010326 Contact Us For Availability
5
WCI 5308015583 WCI 5308015583 Contact Us For Availability
5
WCI 5308015765 WCI 5308015765 Contact Us For Availability
6
WCI 5303200272 WCI 5303200272 Contact Us For Availability
6
PAN-STORAGE UPPER WCI G179709-03 Contact Us For Availability
6
CONTROL BOX WCI 5308017561 Contact Us For Availability
6
SCREW (4) WCI 5303001073 Contact Us For Availability
6
SPRING & PIN ASSEMBLY (2) WCI 5308015594 Contact Us For Availability
6
WCI 5308015579 WCI 5308015579 Contact Us For Availability
6
WCI 5308002777 WCI 5308002777 Contact Us For Availability
6A
INSULATOR-REAR (NON-ILLUSTRATED) WCI 3001269 Contact Us For Availability
7
SCREW - CLOSER MOUNTING WCI 3001020 Contact Us For Availability
7
WCI 5303001037 WCI 5303001037 Contact Us For Availability
7
COVER, PAN UPPER WCI 5316971102 Contact Us For Availability
7
WCI 5303001078 WCI 5303001078 Contact Us For Availability
7
WCI 08017101 WCI 08017101 Contact Us For Availability
7A
GASKET - COVER UPPER (2) (NON-ILLUSTRATED) WCI 5303205880 Contact Us For Availability
8
GASKET, REFRIGERATOR DOOR WCI 5303200473 Contact Us For Availability
8
HINGE COVER, AVOCADO WCI 5303001664 Contact Us For Availability
8
WCI 5303001665 WCI 5303001665 Contact Us For Availability
8
WCI 5303001666 WCI 5303001666 Contact Us For Availability
8
WCI 5308012820 WCI 5308012820 Contact Us For Availability
8
WCI 5308012933 WCI 5308012933 Contact Us For Availability
8
TRIM-PAN UPPER WCI G177343-12 Contact Us For Availability
8
KNOB, TEMPERATURE CONTROL WCI 5308010380 Contact Us For Availability
8
PLATE - SWITCH MOUNTING WCI 5303204878 Contact Us For Availability
8
WCI 5308015558 WCI 5308015558 Contact Us For Availability
8
WCI 5303001191 WCI 5303001191 Contact Us For Availability
8
WCI 5303007521 WCI 5303007521 Contact Us For Availability
9
PANEL-INNER DOOR WCI G171411-02 Contact Us For Availability
9
HINGE TOP, RH WCI 5308012934 Contact Us For Availability
9
TRIM-PAN LOWER WCI G177343-11 Contact Us For Availability
9
WCI 5308015584 WCI 5308015584 Contact Us For Availability
9
BRACKET - CONDENSER MOUNTING WCI 5308000296 Contact Us For Availability
9A
WCI 5303001062 WCI 5303001062 Contact Us For Availability
10
WASHER-HINGE (2) WCI 5308000186 No Longer Available
10
DAIRY DOOR (2) WCI G170930-14 Contact Us For Availability
10
PAN-STORAGE LOWER WCI G179710-02 Contact Us For Availability
10
SPRING-WATER ACTUATOR WCI 5303001072 Contact Us For Availability
10
WCI 5308015596 WCI 5308015596 Contact Us For Availability
10
INSULATOR WCI 5303001141 Contact Us For Availability
11
SPRING-FLIPPER WCI 5308010300 Contact Us For Availability
11
BEARING-LOWER HINGE WCI 5308012007 Contact Us For Availability
11
WCI 3017209 WCI 3017209 Contact Us For Availability
11
COVER-PAN (LOWER) WCI 5316972401 Contact Us For Availability
11
WCI 5303001260 WCI 5303001260 Contact Us For Availability
11
WCI 5303001077 WCI 5303001077 Contact Us For Availability
11
WCI 08017100 WCI 08017100 Contact Us For Availability
11
WCI 5301138379 WCI 5301138379 Contact Us For Availability
12
DOOR SHELF (4) WCI 5303206688 Contact Us For Availability
12
GASKET-COIL COVER (2) WCI 5303001219 Contact Us For Availability
12
BASKET - FREEZER WCI 3017211 Contact Us For Availability
12
WCI G177645-01 WCI G177645-01 Contact Us For Availability
12
HOUSING - DISPENSER MOTOR WCI 5308015580 Contact Us For Availability
12
WCI 5316254901 WCI 5316254901 Contact Us For Availability
13
WCI 5303211961 WCI 5303211961 Contact Us For Availability
13
SUPPORT RH (4) WCI 5303206682 Contact Us For Availability
13
LIGHT SHIELD-REFRIGERATOR WCI 3015073 Contact Us For Availability
13
WCI 3015108 WCI 3015108 Contact Us For Availability
13
CLIP - WATER ACTUATOR WCI 3001071 Contact Us For Availability
13
WCI 5308015605 WCI 5308015605 Contact Us For Availability
13
WCI 5303017384 WCI 5303017384 Contact Us For Availability
13A
VELCRO PAD - COVER (NON-ILLUSTRATED) WCI 5303017383 Contact Us For Availability
13B
WCI 3017385 WCI 3017385 Contact Us For Availability
14
TRIM COVER - DOOR PANEL WCI G181241-03 Contact Us For Availability
14
SUPPORT LH (4) WCI 5303206683 Contact Us For Availability
14
GASKET KIT WCI 5303001233 Contact Us For Availability
14
WCI 5303001098 WCI 5303001098 Contact Us For Availability
14
WCI G182653-01 WCI G182653-01 Contact Us For Availability
14
WCI 5308015559 WCI 5308015559 Contact Us For Availability
14
WCI 5308015618 WCI 5308015618 Contact Us For Availability
14A
VELCRO PAD - HOUSING (NON-ILLUSTRATED) WCI 5303017382 Contact Us For Availability
15
BUSHING-LOWER HINGE WCI 5308010308 Contact Us For Availability
15
WCI 5303001099 WCI 5303001099 Contact Us For Availability
15
WCI G182644-01 WCI G182644-01 Contact Us For Availability
15
WCI 5300181950 WCI 5300181950 Contact Us For Availability
15
WCI 5308015576 WCI 5308015576 Contact Us For Availability
16
WCI 5303007173 WCI 5303007173 Contact Us For Availability
16
WCI G181474-02 WCI G181474-02 Contact Us For Availability
16
WCI 5317394819 WCI 5317394819 Contact Us For Availability
16
LIGHT SHIELD - FREEZER WCI G182527-01 Contact Us For Availability
16
SHELF - FREEZER BOTTOM WCI 5303007123 Contact Us For Availability
16
WCI 5303001276 WCI 5303001276 Contact Us For Availability
16
WCI G177721-02 WCI G177721-02 Contact Us For Availability
16
WCI G000182868 WCI G000182868 Contact Us For Availability
16
WCI 5303017391 WCI 5303017391 Contact Us For Availability
17
DOOR RACK (5) WCI G154541-46 Contact Us For Availability
17
WCI 5308000790 WCI 5308000790 Contact Us For Availability
17
COIL COVER - LOWER WCI 5308000823 Contact Us For Availability
17
TRIM - SNAP ON (3) WCI 3016382 Contact Us For Availability
17
WCI 5303001277 WCI 5303001277 Contact Us For Availability
17
WCI 5303001081 WCI 5303001081 Contact Us For Availability
17
WCI 5308015593 WCI 5308015593 Contact Us For Availability
17
WCI 5300182506 WCI 5300182506 Contact Us For Availability
17
WCI 5308017526 WCI 5308017526 Contact Us For Availability
17A
GASKET-FERRULE (NON-ILLUSTRATED) WCI 5303001280 Contact Us For Availability
18
SUPPORT RH (5) WCI 3204854 Contact Us For Availability
18
HANDLE - REFRIGERATOR DOOR WCI 5316355201 Contact Us For Availability
18
SHELF - FREEZER CENTER (2) WCI 5303007122 Contact Us For Availability
18
WCI 5316521701 WCI 5316521701 Contact Us For Availability
18
WCI 5300190359 WCI 5300190359 Contact Us For Availability
18
WCI 5303017717 WCI 5303017717 Contact Us For Availability
18
CAPACITOR WCI 5303916391 Contact Us For Availability
18A
WCI 08015577 WCI 08015577 Contact Us For Availability
19
SUPPORT LH (5) WCI 3204855 Contact Us For Availability
19
WCI 5308013429 WCI 5308013429 Contact Us For Availability
19
WCI 5303208984 WCI 5303208984 Contact Us For Availability
19
WCI 5300185464 WCI 5300185464 Contact Us For Availability
20
WCI 5308015608 WCI 5308015608 Contact Us For Availability
20
WCI 5308000771 WCI 5308000771 Contact Us For Availability
20
SOCKET-LIGHT BULB WCI 5303001076 Contact Us For Availability
20
WCI 5303208982 WCI 5303208982 Contact Us For Availability
20
WCI 5308015571 WCI 5308015571 Contact Us For Availability
20A
LABEL - LOWER SHELF (NON-ILLUSTRATED) WCI G177706-07 Contact Us For Availability
21
DAMPER, MEAT KEEPER WCI 5316491203 Contact Us For Availability
21
WCI 5303017212 WCI 5303017212 Contact Us For Availability
21
CONTROL BOX-DAMPER WCI 5303001252 Contact Us For Availability
21
WCI 5303001074 WCI 5303001074 Contact Us For Availability
21
LABEL-ICE DISPENSER WCI 5303016895 Contact Us For Availability
21
WCI 5303001119 WCI 5303001119 Contact Us For Availability
21
COMPRESSOR W/ELECTRICALS WCI 5303916009 Contact Us For Availability
21A
LABEL - UPPER SHELF (NON-ILLUSTRATED) WCI G177706-06 Contact Us For Availability
22
CONNECTOR BRACKET WCI 5308000107 Contact Us For Availability
22
WASHER HINGE (2) WCI 5303001038 Contact Us For Availability
22
WCI 5308950104 WCI 5308950104 Contact Us For Availability
22
PAD - FILL WCI 5308015598 Contact Us For Availability
22
WCI 5303001117 WCI 5303001117 Contact Us For Availability
22
CLIP-COMPRESSOR (4) WCI 5308003596 Contact Us For Availability
23
HINGE-BOTTOM-RH WCI 5303001271 Contact Us For Availability
23
SUPPORT-TANK (3) WCI 5303001185 Contact Us For Availability
23
WCI 5303001227 WCI 5303001227 Contact Us For Availability
23
WCI 5303208909 WCI 5303208909 Contact Us For Availability
23
WCI 5301124984 WCI 5301124984 Contact Us For Availability
23
WASHER-COMPRESSOR (4) WCI 5308003633 Contact Us For Availability
23A
HINGE-BOTTOM LH (NON-ILLUSTRATED) WCI 5303001043 Contact Us For Availability
23B
WCI 5303001273 WCI 5303001273 Contact Us For Availability
24
SHIM - BOTTOM HINGE (3) WCI 5303001272 Contact Us For Availability
24
WCI 5318000402 WCI 5318000402 Contact Us For Availability
24
WCI 5303017390 WCI 5303017390 Contact Us For Availability
24A
WCI 5308000013 WCI 5308000013 Contact Us For Availability
24B
WCI 5300077210 WCI 5300077210 Contact Us For Availability
25
NUT-SELF THREADING (12) WCI 5308017047 Contact Us For Availability
25
SCREW - HINGE MOUNTING (2) WCI 5303001041 Contact Us For Availability
25
CLAMP - TUBE (2) WCI 08000807 Contact Us For Availability
25
WCI 5300157666 WCI 5300157666 Contact Us For Availability
25
SCREW (4) WCI 5303001083 Contact Us For Availability
25
DEFROST PLATE WCI 5308017112 Contact Us For Availability
25A
BRACKET-PLATE (4) (NON-ILLUSTRATED) WCI 5308002782 Contact Us For Availability
25B
BRACKET-DEFROST PAN MOUNTING (NON-ILLUSTRATED WCI 5308002780 Contact Us For Availability
26
WCI 3916445 WCI 3916445 Contact Us For Availability
26
WCI 3916446 WCI 3916446 Contact Us For Availability
26
WCI 5303916444 WCI 5303916444 Contact Us For Availability
26
WCI 5303916447 WCI 5303916447 Contact Us For Availability
26
WCI 5303916448 WCI 5303916448 Contact Us For Availability
26
WCI 5308015614 WCI 5308015614 Contact Us For Availability
26
WCI 5303001082 WCI 5303001082 Contact Us For Availability
26
WCI 5303017392 WCI 5303017392 Contact Us For Availability
26
WCI 5303001197 WCI 5303001197 Contact Us For Availability
26A
WCI 5300169100 WCI 5300169100 Contact Us For Availability
26B
WCI 5303001281 WCI 5303001281 Contact Us For Availability
27
WCI 5308015613 WCI 5308015613 Contact Us For Availability
27
WCI 5303001226 WCI 5303001226 Contact Us For Availability
27
PLUG-HARNESS BOTTOM WCI 5303001047 Contact Us For Availability
27
WCI 5303015044 WCI 5303015044 Contact Us For Availability
27
WCI 5303001235 WCI 5303001235 Contact Us For Availability
28
WIRING HARNESS-COMPRESSOR & LIGHTS WCI 5308009616 Contact Us For Availability
29
WCI 5308000124 WCI 5308000124 Contact Us For Availability
29
WCI 5308010332 WCI 5308010332 Contact Us For Availability
29
WIRING HARNESS - CONTROL WCI 5303015135 Contact Us For Availability
30
WCI 5317459704 WCI 5317459704 Contact Us For Availability
31
CLIP, GRILLE (2) WCI 5308000847 No Longer Available
31
WCI 5308015557 WCI 5308015557 Contact Us For Availability
32
WATER VALVE SOLENOID WCI 5308017599 Contact Us For Availability
32
ROLLER - FRONT (4) WCI 5308000118 Contact Us For Availability
32A
BOLT - ROLLER (NON-ILLUSTRATED) WCI 5308009568 Contact Us For Availability
33
SCREW - ROLLER MOUNTING (4) WCI 5308017044 Contact Us For Availability
34
DEFROST PAN WCI 5303001026 Contact Us For Availability
35
DRAIN OUTLET & TUBE WCI 5303209723 Contact Us For Availability
35
WCI 5308015609 WCI 5308015609 Contact Us For Availability
36
WCI 5308000853 WCI 5308000853 Contact Us For Availability
36
WCI 5301124982 WCI 5301124982 Contact Us For Availability
37
WCI 5308010289 WCI 5308010289 Contact Us For Availability
37
NUT - HEX 10-32 LH WCI 5303001118 Contact Us For Availability
37A
NUT - ELBOW (NON-ILLUSTRATED) WCI 5308000200 Contact Us For Availability
38
WCI 5308015569 WCI 5308015569 Contact Us For Availability
39
WCI 5308015562 WCI 5308015562 Contact Us For Availability
40
WIRING HARNESS - PC BOARD WCI 5308015592 Contact Us For Availability
41
COVER-BOTTOM HINGE WCI 5317465801 Contact Us For Availability
41
WCI 5308011238 WCI 5308011238 Contact Us For Availability
42
WCI 5308000738 WCI 5308000738 Contact Us For Availability
42
COVER & LEVER ASSEMBLY WCI 5300191470 Contact Us For Availability
42A
LOCK WASHER (2) (NON-ILLUSTRATED) WCI 5308009617 Contact Us For Availability
42B
WCI 5303001230 WCI 5303001230 Contact Us For Availability
43
SUPPORT-COIL COVER (4) WCI 5303001250 Contact Us For Availability
43
RETAINER RING WCI 5308010348 Contact Us For Availability
44
SUPPORT-COIL COVER WCI 5308000097 Contact Us For Availability
44
WCI 5308000247 WCI 5308000247 Contact Us For Availability
45
WATER SUPPLY ADAPTER KIT WCI 3206360 Contact Us For Availability
× ![]()
