Model Electrolux RS22F9WS1B REFRIGERATOR – Common Parts & Diagrams

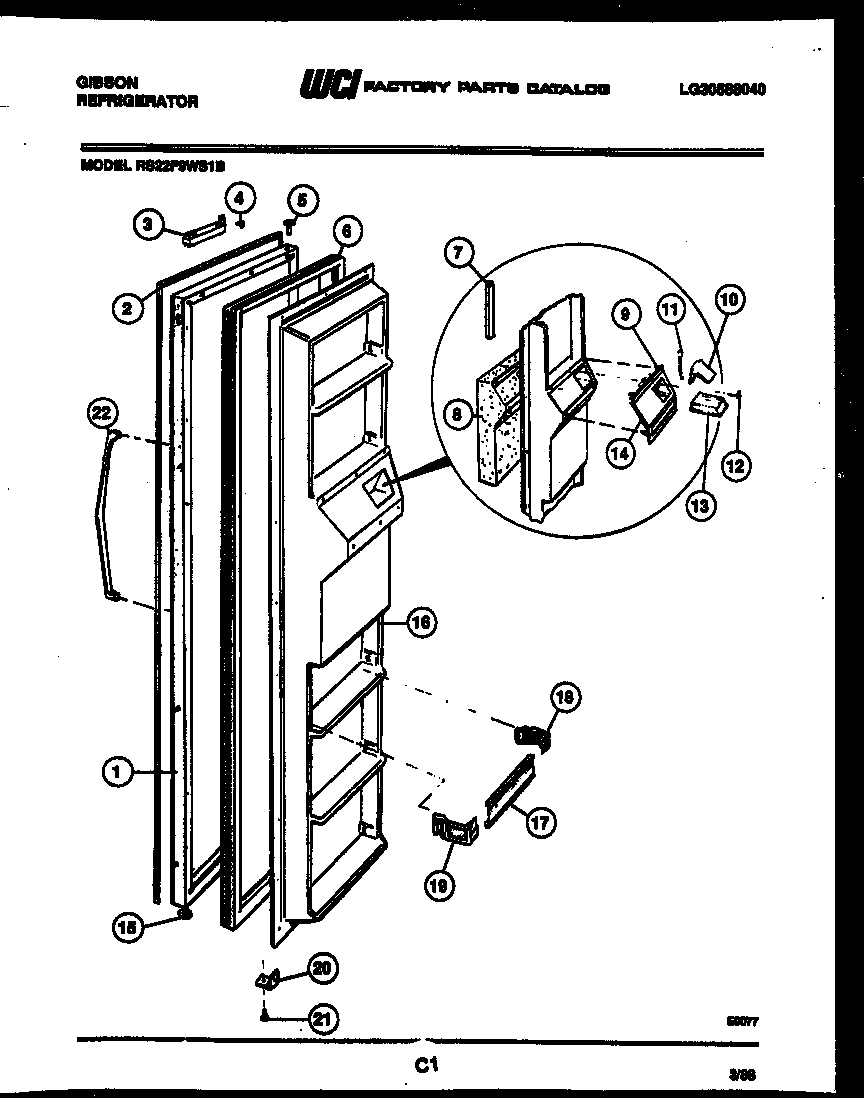

02 - FREEZER DOOR PARTS

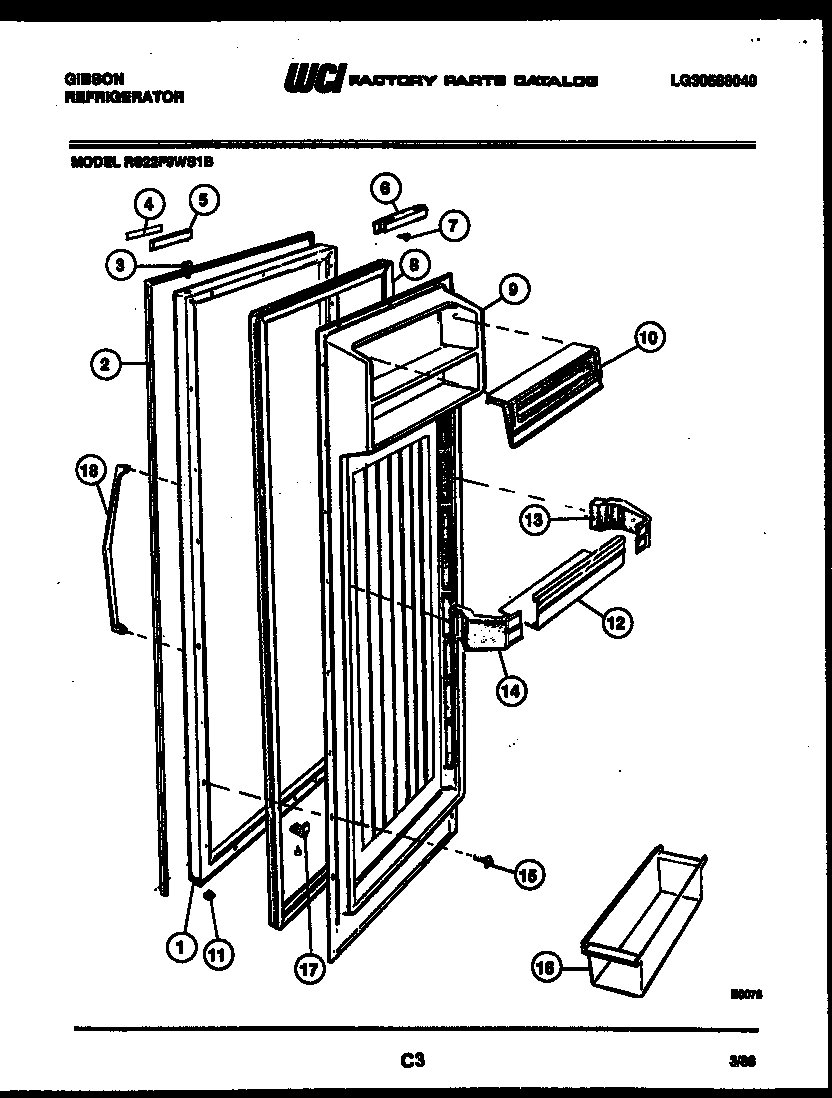

03 - REFRIGERATOR DOOR PARTS
04 - CABINET PARTS
05 - SHELVES AND SUPPORTS
06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP
07 - ICE DOOR, DISPENSER AND WATER TANK
08 - ICE DISPENSER
09 - ICE MAKER PARTS
10 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RS22F9WS1B REFRIGERATOR
*12138
SHIM-HANDLE (2) WCI G176752 Contact Us For Availability
*12138
SCREW-HANDLE MTG (2) WCI G185565 Contact Us For Availability
*12138
ANCHOR NUT (2) WCI G161863 Contact Us For Availability
*12151
PLUG-REFR LINER (4) WCI G162892-01 Contact Us For Availability
*12162
FOAM TAPE-COVER WCI G167795-04 Contact Us For Availability
*12163
CLIP, GROUNDING WCI G162703 Contact Us For Availability
*12168
WCI G186533-01 WCI G186533-01 Contact Us For Availability
*12183
HOT TUBE REPAIR KIT WCI G189379 Contact Us For Availability
1
WCI G188329 WCI G188329 Contact Us For Availability
1
WCI G188329-08 WCI G188329-08 Contact Us For Availability
1
WCI G188329-09 WCI G188329-09 Contact Us For Availability
1
WCI G188329-10 WCI G188329-10 Contact Us For Availability
1
WCI G188329-11 WCI G188329-11 Contact Us For Availability
1
REFR DOOR-WHITE WCI G177745 Contact Us For Availability
1
REFR DOOR-AVOC WCI G177745-08 Contact Us For Availability
1
REFR DOOR-WHEAT WCI G177745-09 Contact Us For Availability
1
REFR DOOR-COFFEE WCI G177745-10 Contact Us For Availability
1
REFR DOOR-ALMOND WCI G177745-11 Contact Us For Availability
1
FERRULE - INNER (2) WCI G174733 Contact Us For Availability
1
CHANNEL-RS & LS WCI G170694 Contact Us For Availability
1
TUBE-WATER INLET AND PILOT ASSY WCI G188233 Contact Us For Availability
1
WCI G182031-06 WCI G182031-06 Contact Us For Availability
1
WCI G185732 WCI G185732 Contact Us For Availability
1
WCI G189608 WCI G189608 Contact Us For Availability
1A
DOOR PLUG-BOTTOM (NON-ILLUSTRATED) WCI G152308-01 Contact Us For Availability
2
TRIM-FREEZER DOOR WCI G167404-03 Contact Us For Availability
2
WCI G167404-08 WCI G167404-08 Contact Us For Availability
2
FERRULE-OUTER (2) WCI G174734 Contact Us For Availability
2
WCI G186156-04 WCI G186156-04 Contact Us For Availability
2
LIGHT SOCKET-REFR WCI G168302 Contact Us For Availability
2
WCI G175246 WCI G175246 Contact Us For Availability
2
WCI G185970 WCI G185970 Contact Us For Availability
2
COIL BLOCK WCI G169493 Contact Us For Availability
3
BEARING-UPPER HINGE WCI G183139 Contact Us For Availability
3
WCI G172409-01 WCI G172409-01 Contact Us For Availability
3
WCI G165545 WCI G165545 Contact Us For Availability
3
WCI G182738 WCI G182738 Contact Us For Availability
3
WCI G182151-04 WCI G182151-04 Contact Us For Availability
3
WCI G161655 WCI G161655 Contact Us For Availability
3
WCI G175351 WCI G175351 Contact Us For Availability
4
LABEL-NAMEPLATE LWR WCI G175393-01 Contact Us For Availability
4
LABEL-NAMEPLATE UPR WCI G188378-06 Contact Us For Availability
4
TUBE, RUBBER WCI G85642 Contact Us For Availability
4
TRIM-SHELF FRONT (4) WCI G172410-01 Contact Us For Availability
4
WCI G165543 WCI G165543 Contact Us For Availability
4
DOOR HOUSING AND LABEL ASSY WCI 3017350 Contact Us For Availability
4
DOOR-ICE CONTAINER WCI G182524-01 Contact Us For Availability
4
HEAT EXCHANGER WCI 3017401 Contact Us For Availability
5
FRAME-NAMEPLATE WCI G175117-02 Contact Us For Availability
5
DIVIDER, ICE & WATER WCI G181983 Contact Us For Availability
5
WCI G171654-42 WCI G171654-42 Contact Us For Availability
5
CONTROL-TEMP WCI G162205-05 Contact Us For Availability
5
WCI G179999 WCI G179999 Contact Us For Availability
5
SPRING-CNTNR DOOR WCI G182525 Contact Us For Availability
5
TUBE-FILLER EXTENSION WCI G187034 Contact Us For Availability
6
DOOR CLOSER WCI G161119 Contact Us For Availability
6
GASKET-FRZR DOOR WCI G180551-03 Contact Us For Availability
6
PAN-STORAGE UPPER WCI G179709-03 Contact Us For Availability
6
WCI G164788 WCI G164788 Contact Us For Availability
6
WCI G177686 WCI G177686 Contact Us For Availability
6
SPRING & PIN ASSY (2) WCI G182869 Contact Us For Availability
6
WCI G182507 WCI G182507 Contact Us For Availability
6
WCI G167363 WCI G167363 Contact Us For Availability
6A
WCI G165434 WCI G165434 Contact Us For Availability
7
SCREW-CLOSER MTG WCI G169729 Contact Us For Availability
7
WCI G177720 WCI G177720 Contact Us For Availability
7
WCI G183861 WCI G183861 Contact Us For Availability
7
COVER-PAN UPPER WCI G169711-02 Contact Us For Availability
7
WCI G185542 WCI G185542 Contact Us For Availability
7
LOCK NUT 1/4-28 WCI G187107 Contact Us For Availability
7A
GASKET-COVER UPR (2) (NON-ILLUSTRATED) WCI G180108-03 Contact Us For Availability
8
INSULATION-HOUSING WCI G181913 Contact Us For Availability
8
WCI G180551-02 WCI G180551-02 Contact Us For Availability
8
WCI G183558-01 WCI G183558-01 Contact Us For Availability
8
WCI G183558-08 WCI G183558-08 Contact Us For Availability
8
WCI G183558-09 WCI G183558-09 Contact Us For Availability
8
WCI G183558-10 WCI G183558-10 Contact Us For Availability
8
WCI G183558-11 WCI G183558-11 Contact Us For Availability
8
TRIM-PAN UPPER WCI G177343-12 Contact Us For Availability
8
KNOB-TEMP CONT WCI G164906-01 Contact Us For Availability
8
PLATE-SWITCH MTG WCI G185754 Contact Us For Availability
8
CAM-DRIVE LINK WCI G181926 Contact Us For Availability
8
WCI G154156 WCI G154156 Contact Us For Availability
8
WCI G169746 WCI G169746 Contact Us For Availability
9
WCI G179017 WCI G179017 Contact Us For Availability
9
PANEL-INNER DOOR WCI G171411-02 Contact Us For Availability
9
HINGE-TOP RS WCI G183715 Contact Us For Availability
9
TRIM-PAN LOWER WCI G177343-11 Contact Us For Availability
9
SEAL-MOTOR SHAFT WCI G182526 Contact Us For Availability
9
BRACKET, COND. MTG (4) WCI G169666-01 Contact Us For Availability
9A
WCI G183716 WCI G183716 Contact Us For Availability
10
WCI G175040-05 WCI G175040-05 Contact Us For Availability
10
DAIRY DOOR (2) WCI G170930-14 Contact Us For Availability
10
WASHER-HINGE (2) WCI G170156 Contact Us For Availability
10
PAN-STORAGE LOWER WCI G179710-02 Contact Us For Availability
10
SPRING-WTR ACTUATOR WCI G174700 Contact Us For Availability
10
MOTOR-ICE DISPENSER WCI G182881 Contact Us For Availability
10
WCI G174479 WCI G174479 Contact Us For Availability
11
SPRING-FLIPPER WCI G184726 Contact Us For Availability
11
BEARING-LOWER HINGE WCI G183138 Contact Us For Availability
11
COIL COVER-UPPER WCI G182455 Contact Us For Availability
11
COVER-PAN LOWER WCI G169724-02 Contact Us For Availability
11
WCI G107080 WCI G107080 Contact Us For Availability
11
WCI G185063-01 WCI G185063-01 Contact Us For Availability
11
SCREW-HOUSING (3) WCI G182885 Contact Us For Availability
11
RETAINER, INSULATOR WCI G174427 Contact Us For Availability
12
DOOR SHELF (4) WCI G164109-21 Contact Us For Availability
12
GASKET, COIL COVER WCI G165233 Contact Us For Availability
12
BASKET - FREEZER WCI 3017211 Contact Us For Availability
12
WCI G177645-01 WCI G177645-01 Contact Us For Availability
12
HOUSING-DISP MOTOR WCI G182513 Contact Us For Availability
12
TRIM-ICE MAKER WCI G182833 Contact Us For Availability
12
WCI G162549-01 WCI G162549-01 Contact Us For Availability
12A
WCI G101890 WCI G101890 Contact Us For Availability
12B
SCREW-SHELF (8) (NON-ILLUSTRATED) WCI G167115 Contact Us For Availability
13
WCI G185981 WCI G185981 Contact Us For Availability
13
SUPPORT RS (4) WCI G163781-03 Contact Us For Availability
13
WCI G169601-18 WCI G169601-18 Contact Us For Availability
13
WCI 3015108 WCI 3015108 Contact Us For Availability
13
WCI G166068 WCI G166068 Contact Us For Availability
13
CLIP-WTR ACTUATOR WCI G174411 Contact Us For Availability
13
WCI G185255 WCI G185255 Contact Us For Availability
13
WCI G182783-05 WCI G182783-05 Contact Us For Availability
14
WCI G181241-03 WCI G181241-03 Contact Us For Availability
14
SUPPORT LS (4) WCI G163780-03 Contact Us For Availability
14
GASKET-COVER LS WCI G174234-08 Contact Us For Availability
14
HANGER-BASKET RS WCI G168986 Contact Us For Availability
14
COVER CONT. BRACKET WCI G164778 Contact Us For Availability
14
WCI G182653-01 WCI G182653-01 Contact Us For Availability
14
SPOOL-ICE RAM WCI G181929 Contact Us For Availability
14
HOUSING-ICE MAKER WCI G187057-01 Contact Us For Availability
15
BUSHING-LWR HINGE WCI G175070 Contact Us For Availability
15
GASKET-COVER RS WCI G174234-10 Contact Us For Availability
15
HANGER-BASKET LS WCI G168987 Contact Us For Availability
15
WCI G182644-01 WCI G182644-01 Contact Us For Availability
15
SUPPORT-SPOOL WCI G181950 Contact Us For Availability
15
WCI G182487 WCI G182487 Contact Us For Availability
16
WCI G181474-02 WCI G181474-02 Contact Us For Availability
16
WCI G173948-27 WCI G173948-27 Contact Us For Availability
16
WCI G182527-01 WCI G182527-01 Contact Us For Availability
16
SHELF-FRZR BOTTOM WCI G169658-06 Contact Us For Availability
16
WCI G166802 WCI G166802 Contact Us For Availability
16
WCI G177721-02 WCI G177721-02 Contact Us For Availability
16
SCREW-SUPPORT MTG WCI G182868 Contact Us For Availability
16
WCI 3017391 WCI 3017391 Contact Us For Availability
16
WCI G182225-05 WCI G182225-05 Contact Us For Availability
17
DOOR RACK (5) WCI G154541-46 Contact Us For Availability
17
WCI G165376 WCI G165376 Contact Us For Availability
17
COIL COVER-LOWER WCI G169477-01 Contact Us For Availability
17
TRIM-CLIP ON (3) WCI G141727-32 Contact Us For Availability
17
WCI G166803 WCI G166803 Contact Us For Availability
17
WCI G174414 WCI G174414 Contact Us For Availability
17
BELT-RAM RETURN WCI G182867 Contact Us For Availability
17
WCI G182506 WCI G182506 Contact Us For Availability
17
WCI G152989 WCI G152989 Contact Us For Availability
17A
GASKET-FERRULE (NON-ILLUSTRATED) WCI G167582 Contact Us For Availability
18
SUPPORT RS (5) WCI G170016-02 Contact Us For Availability
18
HANDLE-REFR DOOR WCI G163552-01 Contact Us For Availability
18
SHELF-FRZR CTR (2) WCI G169658-05 Contact Us For Availability
18
KNOB, DAMPER CONT. WCI G165217-01 Contact Us For Availability
18
ACTUATOR AND CUP ASSY-ICE WCI G177725 Contact Us For Availability
18
WCI G189712 WCI G189712 Contact Us For Availability
18
WCI G147941 WCI G147941 Contact Us For Availability
18A
BOX-LIGHT SOCKET (NON-ILLUSTRATED) WCI G182493-01 Contact Us For Availability
19
SUPPORT LS (5) WCI G170015-02 Contact Us For Availability
19
CLIP-SHELF TRIM (6) WCI G138399 Contact Us For Availability
19
WCI G185373 WCI G185373 Contact Us For Availability
19
WCI G188104-01 WCI G188104-01 Contact Us For Availability
19
CAP-LEVELING SCREW WCI G185464 Contact Us For Availability
19
WCI G147942 WCI G147942 Contact Us For Availability
20
GASKET-COIL COVER WCI G188000-03 Contact Us For Availability
20
SHELF-PLASTIC LOWER WCI G185494-01 Contact Us For Availability
20
WCI G164575 WCI G164575 Contact Us For Availability
20
WCI G177729 WCI G177729 Contact Us For Availability
20
RAM-ICE LS WCI G182206-01 Contact Us For Availability
20
WCI G182416 WCI G182416 Contact Us For Availability
20A
LABEL - LOWER SHELF (NON-ILLUSTRATED) WCI G177706-07 Contact Us For Availability
21
WCI G164912-03 WCI G164912-03 Contact Us For Availability
21
SHELF-PLASTIC UPPER WCI G181185-01 Contact Us For Availability
21
CONTROL BOX-DAMPER WCI G164523 Contact Us For Availability
21
WCI G177724 WCI G177724 Contact Us For Availability
21
WCI 3016895 WCI 3016895 Contact Us For Availability
21
WCI G174444 WCI G174444 Contact Us For Availability
21
COMPRESSOR WITH ELECTRICAL SERVICE WCI G189461 Contact Us For Availability
21A
LABEL - UPPER SHELF (NON-ILLUSTRATED) WCI G177706-06 Contact Us For Availability
21A
WCI G186120 WCI G186120 Contact Us For Availability
22
WASHER-HINGE (2) WCI G164355 Contact Us For Availability
22
TANK-WATER WCI G186055 Contact Us For Availability
22
CONNECTOR BRACKET WCI G164571 Contact Us For Availability
22
PAD-FILL WCI G182929 Contact Us For Availability
22
WASHER-CRANK SHAFT WCI G174430 Contact Us For Availability
22
SCREW-COMPR (3) WCI G183344 Contact Us For Availability
23
HINGE-BOTTOM RS WCI G162383 Contact Us For Availability
23
WCI G163938 WCI G163938 Contact Us For Availability
23
WCI G185303 WCI G185303 Contact Us For Availability
23
WCI G182551-01 WCI G182551-01 Contact Us For Availability
23
WCI G174484 WCI G174484 Contact Us For Availability
23
SLEEVE, COMPR. (3) WCI G154588 Contact Us For Availability
23A
HINGE-BOTTOM LS (NON-ILLUSTRATED) WCI G175068 Contact Us For Availability
23B
WCI G141673 WCI G141673 Contact Us For Availability
24
SHIM-BOT HINGE (3) WCI G162903 Contact Us For Availability
24
WCI G180004-02 WCI G180004-02 Contact Us For Availability
24
WCI G182437 WCI G182437 Contact Us For Availability
24A
WCI G142361 WCI G142361 Contact Us For Availability
24B
WCI G77210 WCI G77210 Contact Us For Availability
25
BUSHING (2) WCI G187559 Contact Us For Availability
25
NUT-SELF THD (12) WCI G188218 Contact Us For Availability
25
SCREW-HINGE MTG (2) WCI G99167 Contact Us For Availability
25
WCI G166705 WCI G166705 Contact Us For Availability
25
WCI G185567 WCI G185567 Contact Us For Availability
25
DEFROST PLATE WCI G171128 Contact Us For Availability
25A
BRACKET-PLATE (4) (NON-ILLUSTRATED) WCI G171111 Contact Us For Availability
25B
BRACKET-DFR PAN MTG (NON-ILLUSTRATED) WCI G171123 Contact Us For Availability
26
WCI G164643 WCI G164643 Contact Us For Availability
26
MULLION AVOC. WCI G164643-08 Contact Us For Availability
26
WCI G164643-09 WCI G164643-09 Contact Us For Availability
26
WCI G164643-10 WCI G164643-10 Contact Us For Availability
26
WCI G164643-11 WCI G164643-11 Contact Us For Availability
26
WCI G186058 WCI G186058 Contact Us For Availability
26
WIRING HARNESS-FRZR DOOR WCI G185226 Contact Us For Availability
26
WCI G186271 WCI G186271 Contact Us For Availability
26
WCI G183584 WCI G183584 Contact Us For Availability
26A
WCI G169100 WCI G169100 Contact Us For Availability
26A
WCI G169297 WCI G169297 Contact Us For Availability
27
MULLION TRIM-WHITE WCI G169745-01 Contact Us For Availability
27
MULLION TRIM-AVOC WCI G169745-08 Contact Us For Availability
27
MULLION TRIM-WHEAT WCI G169745-09 Contact Us For Availability
27
MULLION TRIM-COFFEE WCI G169745-10 Contact Us For Availability
27
MULLION TRIM-ALMOND WCI G169745-11 Contact Us For Availability
27
WCI G186057 WCI G186057 Contact Us For Availability
27
WCI G185302 WCI G185302 Contact Us For Availability
27
WCI G177742 WCI G177742 Contact Us For Availability
27
SENSING ARM WCI G185471 Contact Us For Availability
27
INSULATOR-EVAP WCI G169641 Contact Us For Availability
28
WIRING HARNESS-COMPRESSOR & LIGHTS WCI G164579 Contact Us For Availability
29
COVER, WATER TANK WCI G163925-02 Contact Us For Availability
29
WIRING HARNESS-CONTROL WCI G182060 Contact Us For Availability
29
WCI G167217 WCI G167217 Contact Us For Availability
30
GRILLE WCI G174597-04 Contact Us For Availability
31
WCI G170328 WCI G170328 Contact Us For Availability
31
WCI G181917-01 WCI G181917-01 Contact Us For Availability
31
WCI G182094 WCI G182094 Contact Us For Availability
32
ROLLER-FRONT (2) WCI G186731 Contact Us For Availability
32
WATER VALVE-SOL WCI G189174 Contact Us For Availability
33
SCREW-ROLLER MTG (2) WCI G187491 Contact Us For Availability
34
WCI G171125 WCI G171125 Contact Us For Availability
35
SCREW (5) WCI G185562 Contact Us For Availability
36
WCI G171193 WCI G171193 Contact Us For Availability
36
MOTOR-ICE MAKER WCI G174505 Contact Us For Availability
37
WCI G177743 WCI G177743 Contact Us For Availability
37
NUT-HEX 10-32 LH WCI G174434 Contact Us For Availability
37A
NUT-ELBOW (NON-ILLUSTRATED) WCI G143689 Contact Us For Availability
38
WCI G162809 WCI G162809 Contact Us For Availability
38
CAM FOLLOWER-PIN WCI G182234 Contact Us For Availability
39
WCI G162808 WCI G162808 Contact Us For Availability
39
WCI G182015 WCI G182015 Contact Us For Availability
40
PUSH NUT (2) WCI G162662 Contact Us For Availability
40
WIRING HARNESS-PCB WCI G182859 Contact Us For Availability
41
COVER-BOTTOM HINGE WCI G174658-01 Contact Us For Availability
41
PC BOARD WCI G181942 Contact Us For Availability
42
WCI G158022 WCI G158022 Contact Us For Availability
42
WCI G191470 WCI G191470 Contact Us For Availability
42A
LOCK WASHER (2) (NON-ILLUSTRATED) WCI G164820 Contact Us For Availability
42B
WCI G184851 WCI G184851 Contact Us For Availability
43
SUPPORT-COIL COV (4) WCI G169471 Contact Us For Availability
43
RETAINER RING WCI G174422 Contact Us For Availability
44
SUPPORT-COIL COVER WCI G163669 Contact Us For Availability
44
SADDLE VALVE KIT WCI G99428 Contact Us For Availability
45
WATER SUPPLY ADAPTER KIT WCI G159415 Contact Us For Availability
× ![]()
