Model Electrolux RS22F9DX1B REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER DOOR PARTS
03 - REFRIGERATOR DOOR PARTS

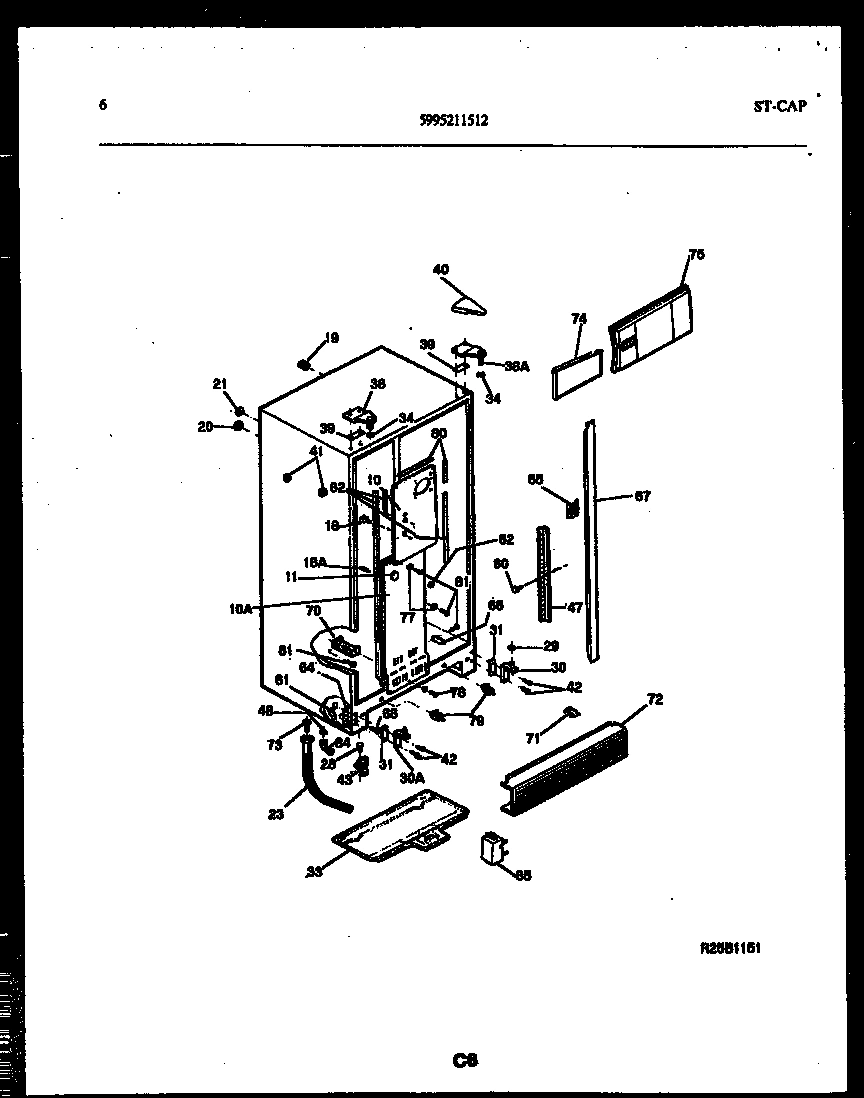

04 - CABINET PARTS

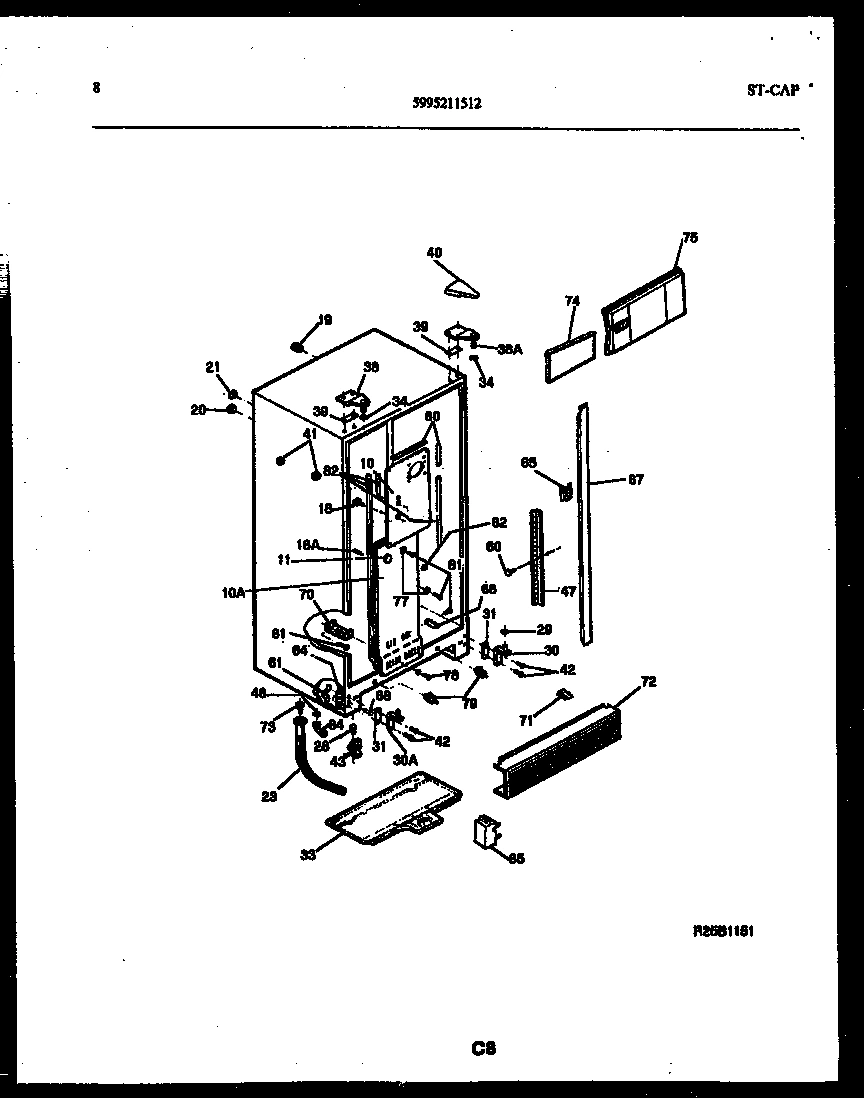

05 - CABINET PARTS

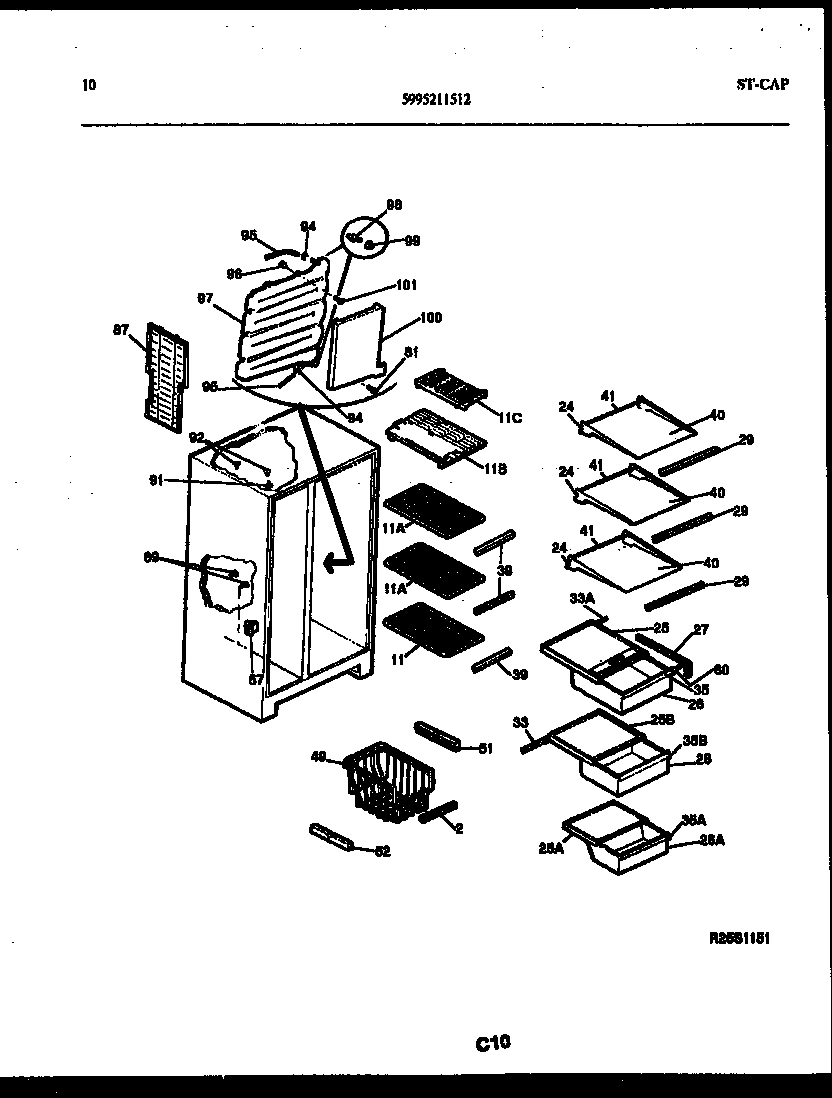

06 - SHELVES AND SUPPORTS

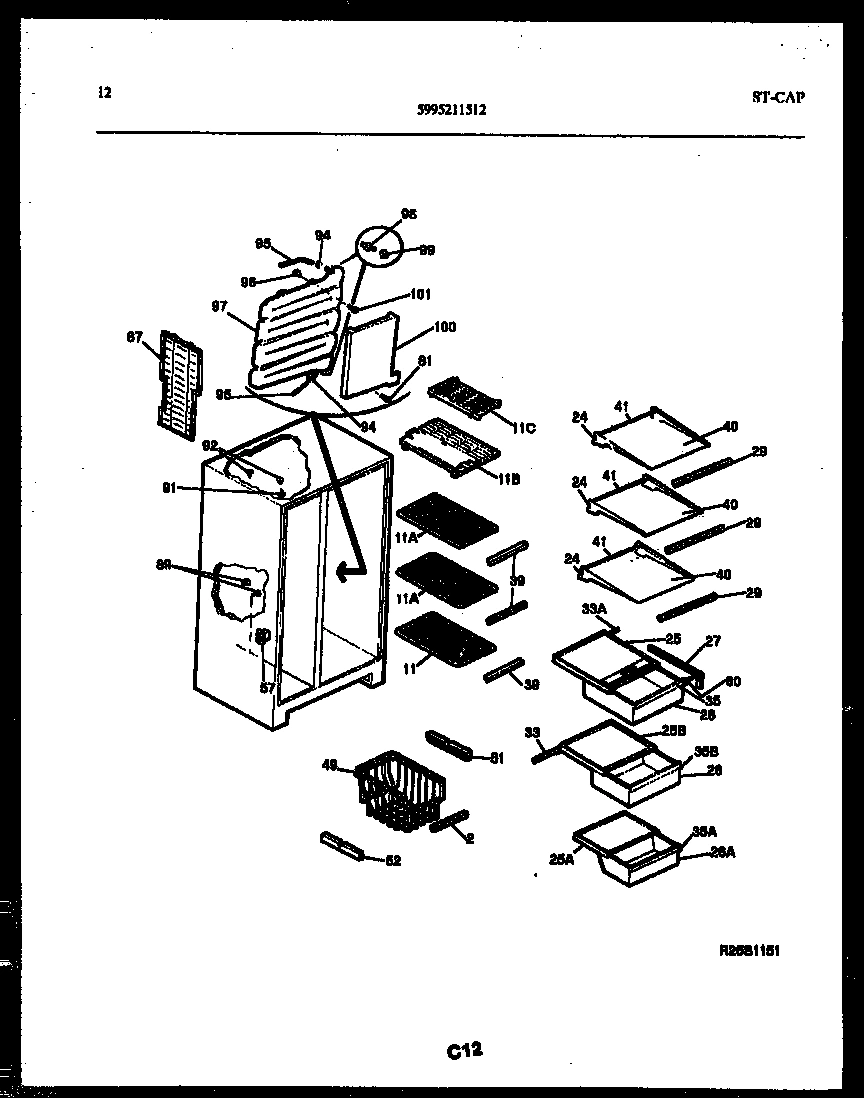

07 - SHELVES AND SUPPORTS

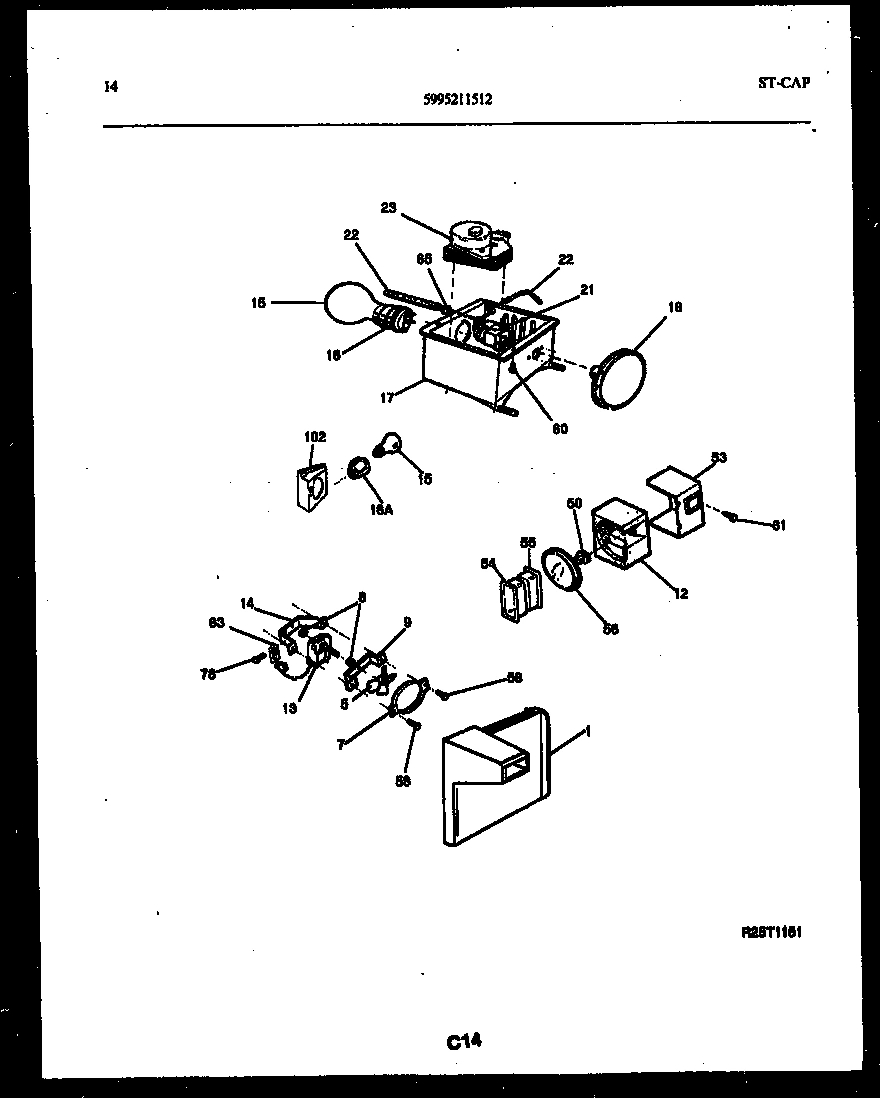

08 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

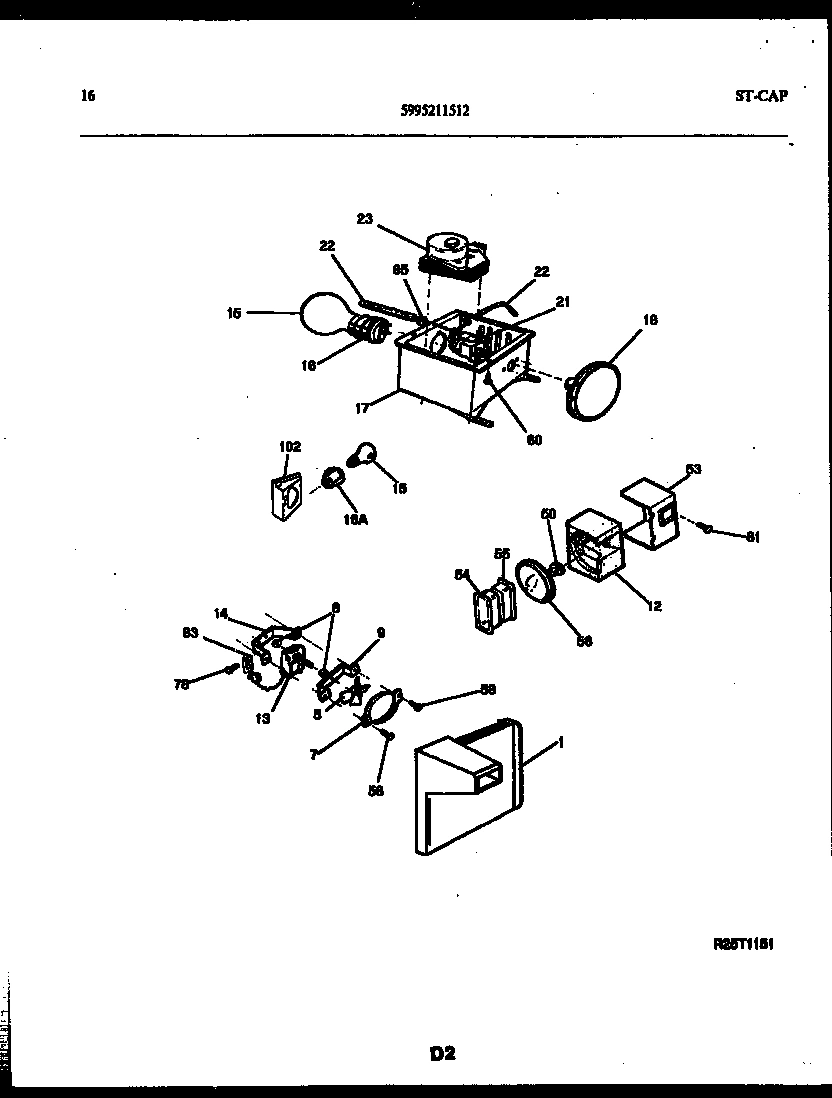

09 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

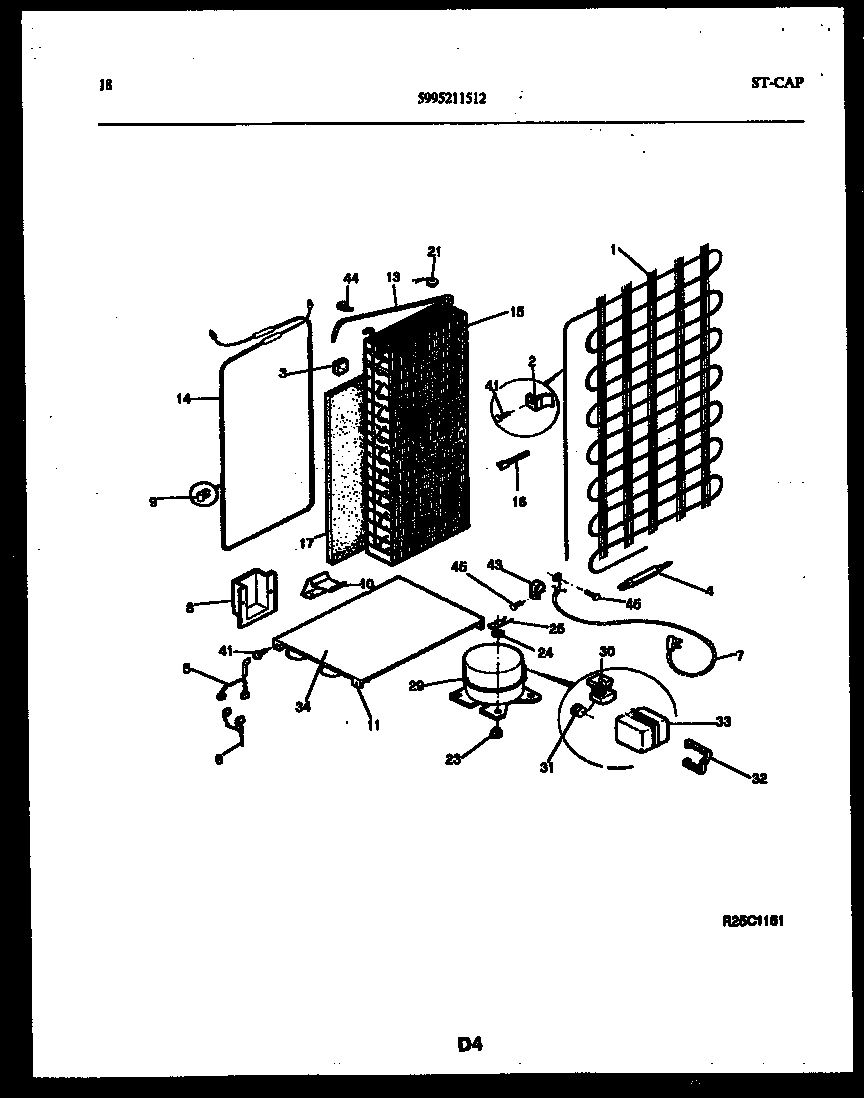

10 - SYSTEM AND AUTOMATIC DEFROST PARTS

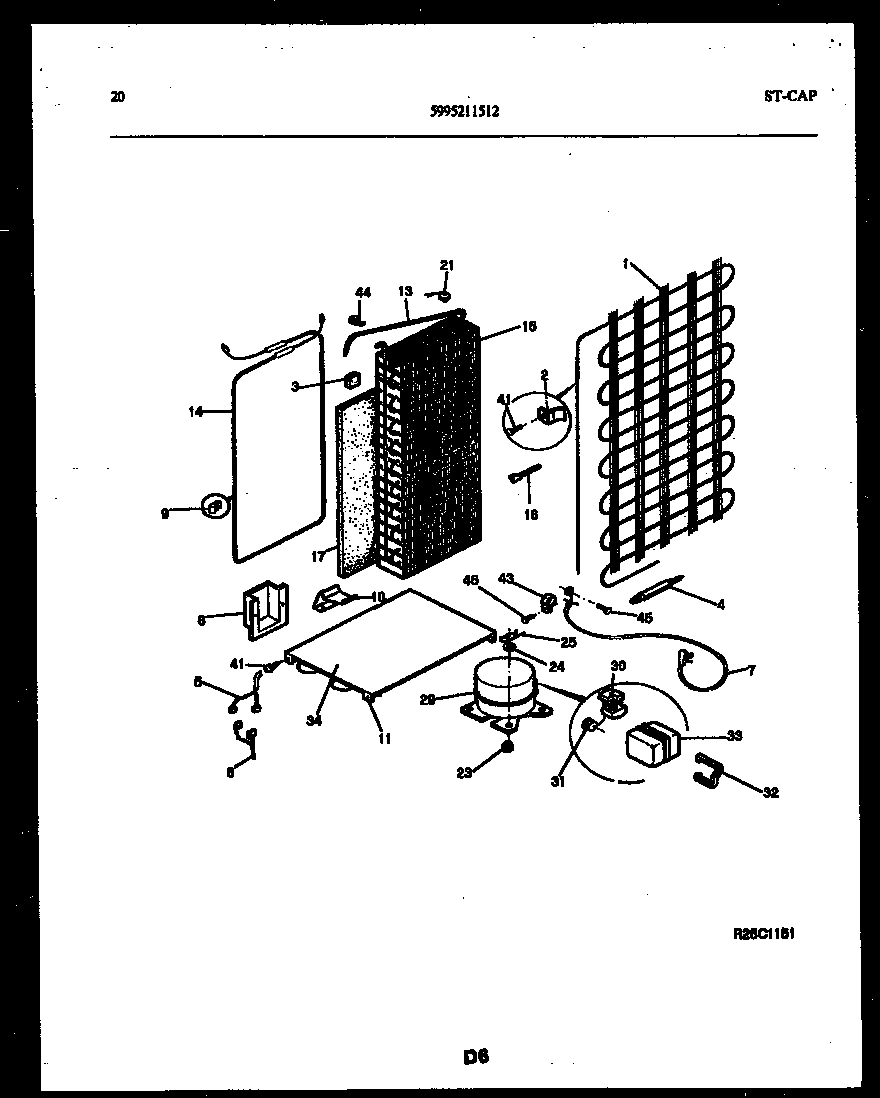

11 - SYSTEM AND AUTOMATIC DEFROST PARTS

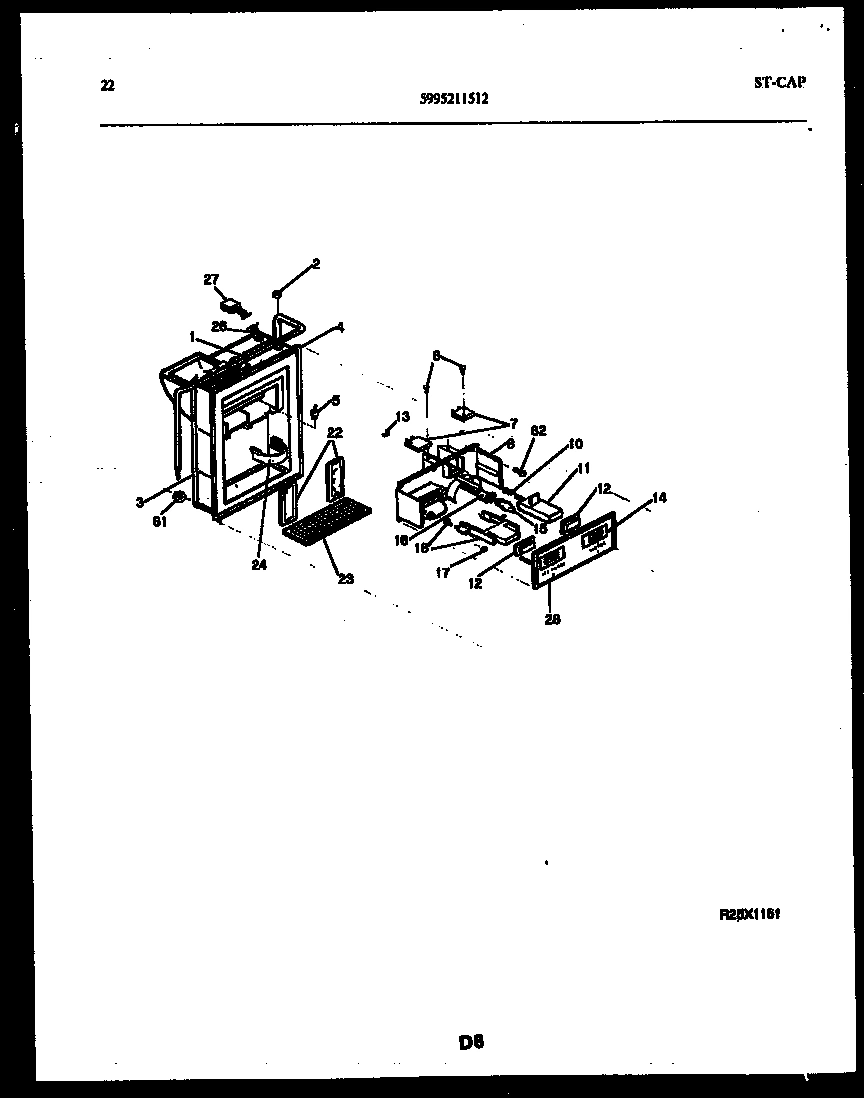

12 - ICE DOOR, DISPENSER AND WATER TANK
13 - ICE DISPENSER

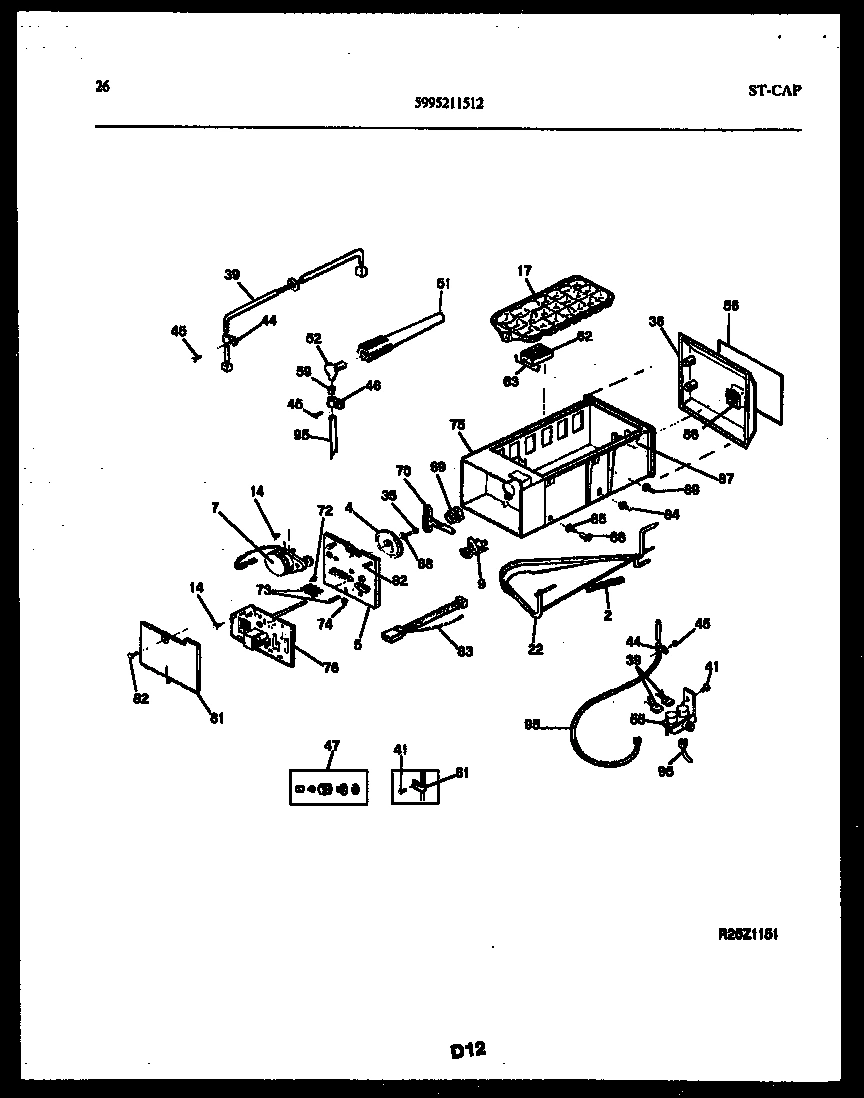

14 - ICE MAKER AND INSTALLATION PARTS

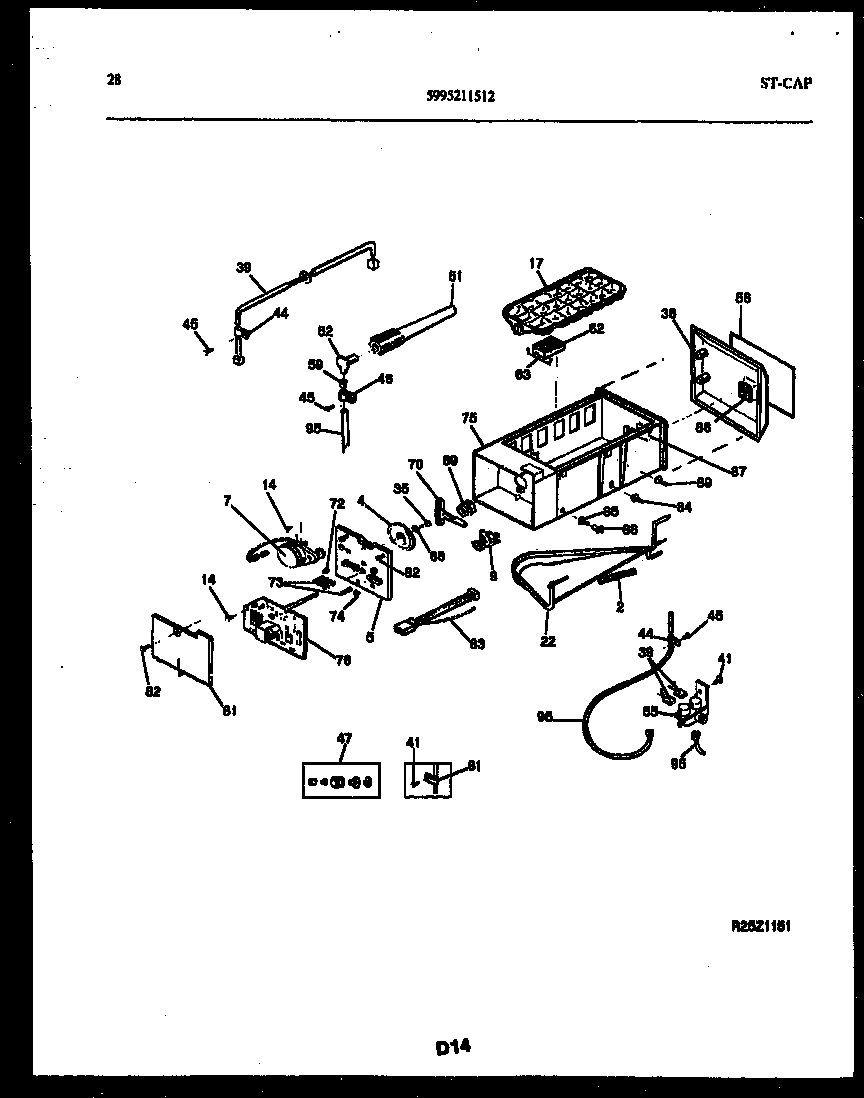

15 - ICE MAKER AND INSTALLATION PARTS
Common parts from model Electrolux RS22F9DX1B REFRIGERATOR
*38874
INSULATION, DOOR, FIBERGLASS, (BULK) WCI 5303007739 Contact Us For Availability
*38887
WCI 5308010293 WCI 5308010293 Contact Us For Availability
*38887
CLIP-WIRING HARNESS WCI 5308017046 Contact Us For Availability
*38894
CLIP-CANTILEVER SHLF WCI 5300170910 Contact Us For Availability
*38894
WCI 5308008250 WCI 5308008250 Contact Us For Availability
*38894
WCI 5308008251 WCI 5308008251 Contact Us For Availability
*38912
HOT TUBE REPAIR KIT, SERVICE WCI 5300189379 Contact Us For Availability
*38918
INSULATOR-MOTOR BOX WCI 08015619 Contact Us For Availability
*38925
WCI 5303207333 WCI 5303207333 Contact Us For Availability
*38925
WCI 5308000247 WCI 5308000247 Contact Us For Availability
1
WCI 5308015557 WCI 5308015557 Contact Us For Availability
1
WCI 5303007521 WCI 5303007521 Contact Us For Availability
1
WCI 5308017048 WCI 5308017048 Contact Us For Availability
1
SPRING-ICE CNTNR DR WCI 5308015583 Contact Us For Availability
2
WCI 5303200473 WCI 5303200473 Contact Us For Availability
2
WCI 3205569 WCI 3205569 Contact Us For Availability
2
WCI 5308000296 WCI 5308000296 Contact Us For Availability
2
WCI 5303001066 WCI 5303001066 Contact Us For Availability
2
RAM-ICE LH WCI 5303208982 Contact Us For Availability
2
WCI 5303017392 WCI 5303017392 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
2A
RAM-ICE RH WCI 5303208984 Contact Us For Availability
3
WCI 5303275354 WCI 5303275354 Contact Us For Availability
3
BLOCK-COIL (4) WCI 5308000828 Contact Us For Availability
3
WCI 5308015588 WCI 5308015588 Contact Us For Availability
3
SPRING & PIN ASSY WCI 5308015594 Contact Us For Availability
4
WCI 5303275415 WCI 5303275415 Contact Us For Availability
4
HOUSING-FRZR DR PNL WCI 5303211442 Contact Us For Availability
4
CONTAINER-ICE WCI 5308015566 Contact Us For Availability
4
WCI 5301124984 WCI 5301124984 Contact Us For Availability
5
SUPPORT-DOOR SHELF, RH, (4) WCI 5303206684 Contact Us For Availability
5
WIRING HARNESS-CONTROLS WCI 5303015135 Contact Us For Availability
5
WCI 5308010326 WCI 5308010326 Contact Us For Availability
5
WCI 5303016895 WCI 5303016895 Contact Us For Availability
5
WCI 5308015562 WCI 5308015562 Contact Us For Availability
6
SUPPORT-DOOR SHELF, LH, (4) WCI 5303206685 Contact Us For Availability
6
WIRING HARNESS, COMPR/LIGHT SW WCI 5308009616 Contact Us For Availability
6
WCI 5303001073 WCI 5303001073 Contact Us For Availability
6
WCI 5303276711 WCI 5303276711 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 5303275331 WCI 5303275331 Contact Us For Availability
7
CORD, ELEC SERVICE WCI 5316254901 Contact Us For Availability
7
WCI 5300185542 WCI 5300185542 Contact Us For Availability
7
WCI 5308015563 WCI 5308015563 Contact Us For Availability
7
WCI 5301124982 WCI 5301124982 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8
WCI 5303204878 WCI 5303204878 Contact Us For Availability
8
WCI 5318252401 WCI 5318252401 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
SUPPORT-DEFROST HTR WCI 5308002777 Contact Us For Availability
9
WCI 5303017390 WCI 5303017390 Contact Us For Availability
10
COVER-EVAP COIL, UPPER WCI 3017209 Contact Us For Availability
10
WCI 5308002780 WCI 5308002780 Contact Us For Availability
10
WCI 5303001072 WCI 5303001072 Contact Us For Availability
10
WCI 5308015558 WCI 5308015558 Contact Us For Availability
10A
NUT, ``U`` TYPE, NO. 8(A), EVAP COVER, (2) (N WCI 5303209814 Contact Us For Availability
10A
WCI 5308000823 WCI 5308000823 Contact Us For Availability
11
SHELF-FREEZER WCI 5303007123 Contact Us For Availability
11
WCI 5308002782 WCI 5308002782 Contact Us For Availability
11
WCI 5303001077 WCI 5303001077 Contact Us For Availability
11A
SHELF - FREEZER (2) WCI 5303007122 Contact Us For Availability
11B
SHELF-FREEZER, PLASTIC, LOWER WCI 5308015608 Contact Us For Availability
11C
SHELF-FREEZER, PLASTIC, UPPER WCI 5303017212 Contact Us For Availability
11D
LABEL-LWR FRZR SHELF (NON-ILLUSTRATED) WCI 5308015550 Contact Us For Availability
11E
LABEL-UPR FRZR SHELF (NON-ILLUSTRATED) WCI 08015551 Contact Us For Availability
12
WCI 5303275544 WCI 5303275544 Contact Us For Availability
12
DEFLECTOR-AIR WCI 5308000771 Contact Us For Availability
12
WCI 5303279516 WCI 5303279516 Contact Us For Availability
13
HEAT EXCHANGER, SUCTION LINE WCI 5308017565 Contact Us For Availability
13
WCI 5302832214 WCI 5302832214 Contact Us For Availability
14
WCI 5303007568 WCI 5303007568 Contact Us For Availability
14
PLUG-BUTTON, REFR/FZR DOOR WCI 5315230801 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
14
WCI 5303276710 WCI 5303276710 Contact Us For Availability
14
SCREW, TW HX CR PAN HD, 4-20 X 1/4 WCI 5308015609 Contact Us For Availability
15
WCI 5304506475 No Longer Available
15
WCI 5303916989 WCI 5303916989 Contact Us For Availability
15
WCI 5303916605 WCI 5303916605 Contact Us For Availability
15A
WCI 3206414 WCI 3206414 Contact Us For Availability
16
SOCKET-LIGHT/LAMP WCI 5308000129 Contact Us For Availability
16
WCI 5303275365 WCI 5303275365 Contact Us For Availability
16
WCI 5303001076 WCI 5303001076 Contact Us For Availability
17
WCI 5308017561 WCI 5308017561 Contact Us For Availability
17
INSULATOR-EVAP WCI 5303001235 Contact Us For Availability
17
WCI 5303001081 WCI 5303001081 Contact Us For Availability
17
TRAY-ICE WCI 5308015579 Contact Us For Availability
17A
INSULATOR-CONTRL BOX, REAR (NON-ILLUSTRATED) WCI 3001269 Contact Us For Availability
18
HANDLE-DOOR, FULL-LENGTH, TRADITIONAL OAK WCI 5303275496 Contact Us For Availability
18
SUPPORT, EVAP COVER, (2) WCI 5308000097 Contact Us For Availability
18
WCI 5308010380 WCI 5308010380 Contact Us For Availability
18
ACTUATOR-ICE, W/SUCTION CUP WCI 3001075 Contact Us For Availability
18
MOTOR-ICE DISP RAM WCI 5308015596 Contact Us For Availability
18A
SUPPORT-EVAP COVER WCI 5303001250 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
20
HOUSING-ICE DISP MTR WCI 5308015580 Contact Us For Availability
21
WCI 5308000068 WCI 5308000068 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
21A
WCI 5308011745 WCI 5308011745 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
BEARING-HINGE UPPER WCI 5303001022 Contact Us For Availability
22
BEARING-HINGE WCI 5308012007 Contact Us For Availability
22
LABEL-FILL PADS, (2) WCI 5303015822 Contact Us For Availability
22
ARM-SENSING WCI 5303015044 Contact Us For Availability
23
WCI 5303001020 WCI 5303001020 Contact Us For Availability
23
WCI 5303209723 WCI 5303209723 Contact Us For Availability
23
WCI 5303015823 WCI 5303015823 Contact Us For Availability
24
FRAME-REFR SHELF, CANTILEVER, (3) WCI 5303209744 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
24
WCI 5318000402 WCI 5318000402 Contact Us For Availability
24
WCI 5308015593 WCI 5308015593 Contact Us For Availability
25
COVER-CRISPER PAN, UPPER WCI 5303206938 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25
WCI 5308015559 WCI 5308015559 Contact Us For Availability
25A
WCI 5316972401 WCI 5316972401 Contact Us For Availability
25B
COVER-CRISPER PAN, MIDDLE WCI 5308009642 Contact Us For Availability
25C
TRIM-CRISPER COVER, UPPER (NON-ILLUSTRATED) WCI 3204600 Contact Us For Availability
25D
WCI 5303276703 WCI 5303276703 Contact Us For Availability
25E
WCI 5303206670 WCI 5303206670 Contact Us For Availability
26
WCI 5303276700 WCI 5303276700 Contact Us For Availability
26
PAN-STORAGE, UPPER & MIDDLE WCI 5303275349 Contact Us For Availability
26
WCI 5303001082 WCI 5303001082 Contact Us For Availability
26
GASKET-MOTOR HOUSING WCI 5308015605 Contact Us For Availability
26A
WCI 5303275350 WCI 5303275350 Contact Us For Availability
27
SUPPORT-CRISPER CVR, RH WCI 5303201640 Contact Us For Availability
27
WCI 5303001047 WCI 5303001047 Contact Us For Availability
27
WCI 5303279546 WCI 5303279546 Contact Us For Availability
27A
SUPPORT-CRISPER CVR, LH (NON-ILLUSTRATED) WCI 5303201639 Contact Us For Availability
28
WCI 5308009568 WCI 5308009568 Contact Us For Availability
28
WCI 5303279539 WCI 5303279539 Contact Us For Availability
28
SCREW, CR TRUSS HD, 10-32 5/16, (3) WCI 08017100 Contact Us For Availability
29
WASHER, .28 X .62 X .19, NYLON WCI 5303001038 Contact Us For Availability
29
TRIM-REFR SHELF, SNAP-ON, FRONT, (3) WCI 5303275418 Contact Us For Availability
29
WCI 5303916009 WCI 5303916009 Contact Us For Availability
29
WCI 5300181950 WCI 5300181950 Contact Us For Availability
29A
RETAINER-GLASS (3) (NON-ILLUSTRATED) WCI 5303209742 Contact Us For Availability
29A
CAPACITOR-RUN (NON-ILLUSTRATED) WCI 5303916391 Contact Us For Availability
30
WCI 5303007173 WCI 5303007173 Contact Us For Availability
30
BRACKET-LOWER HINGE, W/HINGE PIN WCI 5303001271 Contact Us For Availability
30
NUT, HI HEX CONELOCK, 1/4-28 WCI 08017101 Contact Us For Availability
30A
WCI 5303001043 WCI 5303001043 Contact Us For Availability
30B
WCI 5308010374 WCI 5308010374 Contact Us For Availability
31
SHIM-LOWER HINGE WCI 5303001272 Contact Us For Availability
31
WCI 5303279434 WCI 5303279434 Contact Us For Availability
31
WCI 5308015584 WCI 5308015584 Contact Us For Availability
33
WCI 5303001026 WCI 5303001026 Contact Us For Availability
33
GASKET-CRISPER COVER WCI 5303205880 Contact Us For Availability
33A
WCI 5308009648 WCI 5308009648 Contact Us For Availability
34
WCI 5308000186 WCI 5308000186 Contact Us For Availability
34
WCI 5308000790 WCI 5308000790 Contact Us For Availability
34
WCI 5308017112 WCI 5308017112 Contact Us For Availability
35
CLOSER-DOOR WCI 5303200272 Contact Us For Availability
35
WCI 5303276702 WCI 5303276702 Contact Us For Availability
35
WCI 5303001119 WCI 5303001119 Contact Us For Availability
35A
WCI 5303275339 WCI 5303275339 Contact Us For Availability
35B
WCI 5303276701 WCI 5303276701 Contact Us For Availability
36
WCI 5303017977 WCI 5303017977 Contact Us For Availability
38
BRACKET-UPPER HINGE, LH WCI 5303001062 Contact Us For Availability
38A
WCI 5308012934 WCI 5308012934 Contact Us For Availability
38C
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
39
TRIM-FRZR SHELF, (3) WCI 5303275333 Contact Us For Availability
39
WIRING HARNESS - ICE & WATER WCI 5303017210 Contact Us For Availability
40
COVER-UPPER HINGE, WHITE WCI 5308012820 Contact Us For Availability
40
WCI 5303276712 WCI 5303276712 Contact Us For Availability
41
TRIM-FULL SHELF, SNAP-ON, REAR, (3) WCI 5303211974 Contact Us For Availability
41A
WCI 5303211351 WCI 5303211351 Contact Us For Availability
42
SCREW-LWR HINGE MTG, REC HEX HEAD, 1/4(AB) X WCI 5303001041 Contact Us For Availability
43
ROLLER ASSY WCI 5308000118 Contact Us For Availability
43A
SCREW-ROLLER MTG, SPCL IND HEX HD, 5/16 (23) WCI 5308017044 Contact Us For Availability
47
ADAPTER-WATER SUPPLY WCI 3206360 Contact Us For Availability
47
CHANNEL-SHELF MTG, SIDE, (2) WCI 5308002744 Contact Us For Availability
48
NUT, 7/16 X 20, NYLON WCI 5308000200 Contact Us For Availability
49
WCI 3017211 WCI 3017211 Contact Us For Availability
50
WCI 5300185373 WCI 5300185373 Contact Us For Availability
51
WCI 5303001098 WCI 5303001098 Contact Us For Availability
51
WCI 5308015765 WCI 5308015765 Contact Us For Availability
52
WCI 5303001099 WCI 5303001099 Contact Us For Availability
53
WCI 5303211383 WCI 5303211383 Contact Us For Availability
54
WCI 5303001276 WCI 5303001276 Contact Us For Availability
55
WCI 5308017599 WCI 5308017599 Contact Us For Availability
55
WCI 5303001277 WCI 5303001277 Contact Us For Availability
55A
WCI 5303001280 WCI 5303001280 Contact Us For Availability
55A
WCI 5303015102 WCI 5303015102 Contact Us For Availability
56
WCI 5316521701 WCI 5316521701 Contact Us For Availability
56
WCI 5303279652 WCI 5303279652 Contact Us For Availability
57
WCI 5303017828 WCI 5303017828 Contact Us For Availability
57
WCI 5303271652 WCI 5303271652 Contact Us For Availability
57
WCI 5303271653 WCI 5303271653 Contact Us For Availability
59
ICE DOOR ASSY WCI 5303209287 Contact Us For Availability
59
WCI 5303001191 WCI 5303001191 Contact Us For Availability
60
WCI 5308010308 WCI 5308010308 Contact Us For Availability
61
NUT, SELF-THREADING, 1/8 WCI 5308017047 Contact Us For Availability
61
NUT, STUD SPEED, .094, (2) WCI 5300077210 Contact Us For Availability
62
CLIP-GROUNDING WCI 5303001231 Contact Us For Availability
62
WCI 5303001141 WCI 5303001141 Contact Us For Availability
63
WCI 5301138379 WCI 5301138379 Contact Us For Availability
64
NUT-SPECIAL TWIN (4) WCI 5303001273 Contact Us For Availability
65
CLIP-MULLION MTG, (3) WCI 5303001281 Contact Us For Availability
65A
CLIP-MULLION MTG, (3) (NON-ILLUSTRATED) WCI 5300169100 Contact Us For Availability
66
WCI 08017447 WCI 08017447 Contact Us For Availability
67
WCI 5303916444 WCI 5303916444 Contact Us For Availability
68
PIN, SHOULDER, 3/32 X 5/8, (2) WCI 5308000013 Contact Us For Availability
68
WCI 5303001117 WCI 5303001117 Contact Us For Availability
69
WCI 5308015576 WCI 5308015576 Contact Us For Availability
70
BRACKET-COVER MTG WCI 5308000738 Contact Us For Availability
70
WCI 5308015571 WCI 5308015571 Contact Us For Availability
71
WCI 5308000847 WCI 5308000847 Contact Us For Availability
72
GRILLE/KICKPLATE WCI 5303200752 Contact Us For Availability
72
WCI 5303001118 WCI 5303001118 Contact Us For Availability
73
CONDUCTOR-HEAT WCI 5308000853 Contact Us For Availability
73
FOLLOWER PIN-CAM, (5) WCI 5308015569 Contact Us For Availability
74
WCI 5303279537 WCI 5303279537 Contact Us For Availability
74
WCI 5308010348 WCI 5308010348 Contact Us For Availability
75
WCI 5303275430 WCI 5303275430 Contact Us For Availability
75
HOUSING-ICE MAKER, W/ COVER & LABEL WCI 5308015618 Contact Us For Availability
76
WCI 5308011238 WCI 5308011238 Contact Us For Availability
77
WASHER-NYLON,3/16 X 5/8 OD WCI 5303001216 Contact Us For Availability
79A
CLIP-CABLE, LIGHT SWITCH (NON-ILLUSTRATED) WCI 08009775 Contact Us For Availability
80
GASKET-COIL COVER (2) WCI 5303001219 Contact Us For Availability
81
COVER & LEVER ASSY, LEVER 08027532 WCI 5300191470 Contact Us For Availability
82
WCI 5303001083 WCI 5303001083 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
83
WIRING HARNESS - PC BOARD WCI 5308015592 Contact Us For Availability
84
WCI 5308010289 WCI 5308010289 Contact Us For Availability
84
SCREW, SPEC CR PAN HD, 8-15(A) WCI 5300182506 Contact Us For Availability
85
WCI 5317465801 WCI 5317465801 Contact Us For Availability
85
SCREW-IM LEVELING, IND HEX WSHR HD, 8-18(B) X WCI 5303017717 Contact Us For Availability
86
PAD-COVER, VELCRO WCI 5303017383 Contact Us For Availability
87
DIVIDER-ICEMAKER WCI 5303017208 Contact Us For Availability
87
PAD-HOUSING, VELCRO WCI 5303017382 Contact Us For Availability
88
WCI 3204772 WCI 3204772 Contact Us For Availability
89
SCREW-SHLF/IM MTG, IND HX WA HD SM, 8-18(AB) WCI 5303017391 Contact Us For Availability
91
SCREW-DIVIDER SUPT, CR SPEC PAN HD, 8-15(A) X WCI 3001212 Contact Us For Availability
92
WCI 5303001211 WCI 5303001211 Contact Us For Availability
94
WCI 5303204887 WCI 5303204887 Contact Us For Availability
96
WCI 5303001185 WCI 5303001185 Contact Us For Availability
97
WATER TANK ASSY WCI 5303917026 Contact Us For Availability
98
WCI 5308015614 WCI 5308015614 Contact Us For Availability
99
WCI 5300186057 WCI 5300186057 Contact Us For Availability
100
WCI 5308010332 WCI 5308010332 Contact Us For Availability
102
BOX-LIGHT SOCKET, FRZR WCI 08015577 Contact Us For Availability
× ![]()
