Model Electrolux RS22F8WV1B REFRIGERATOR – Common Parts & Diagrams

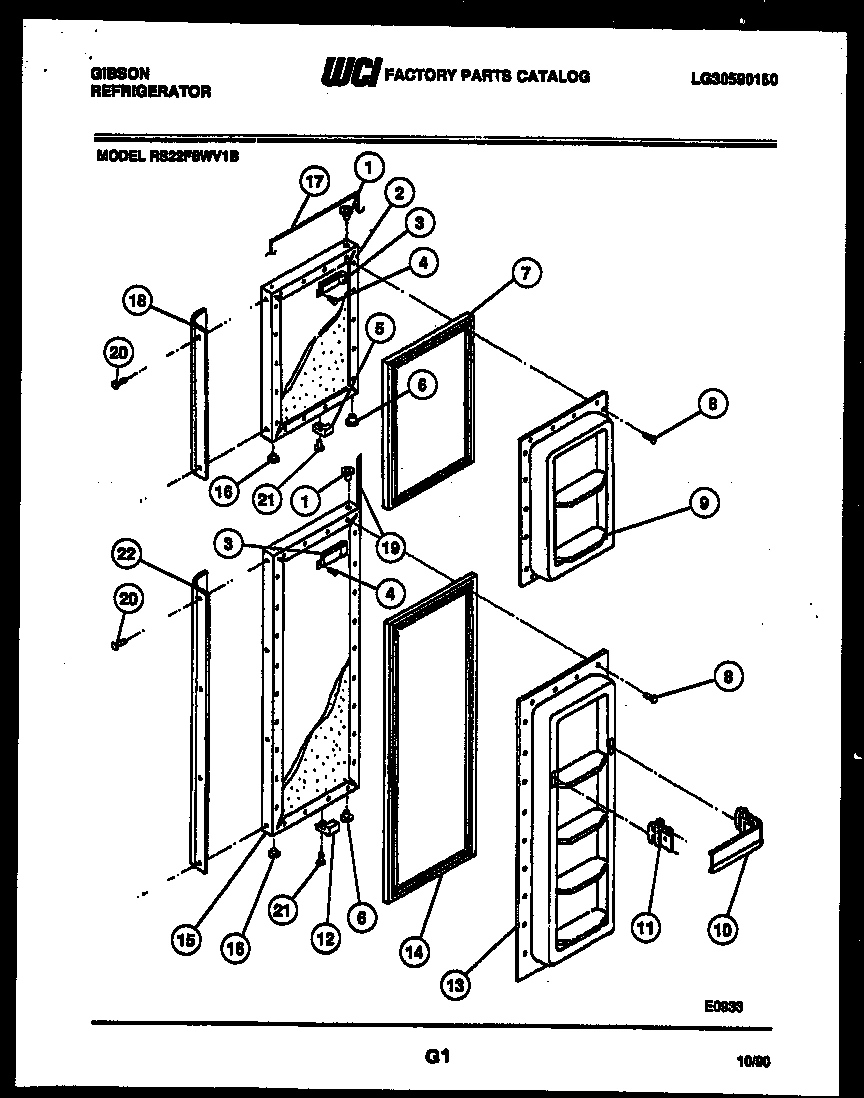

02 - DOOR PARTS

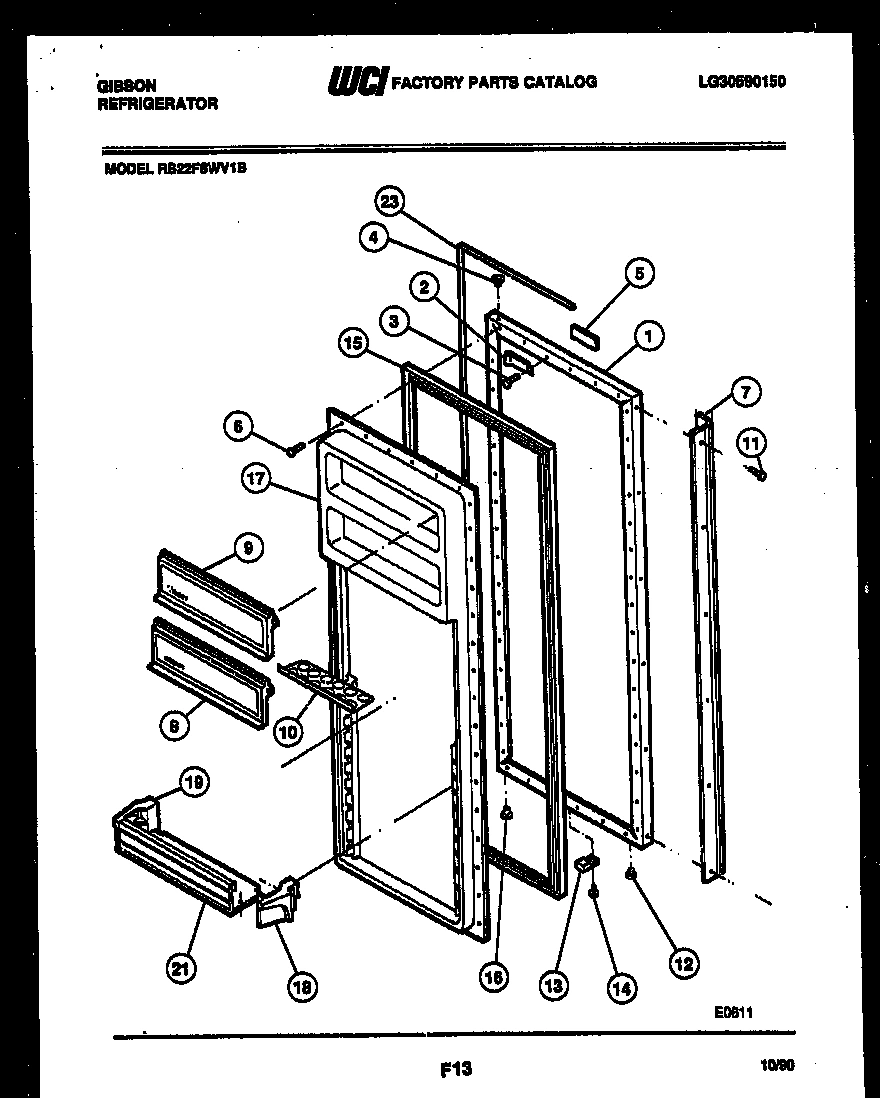

03 - DOOR PARTS
04 - CABINET PARTS
05 - SHELVES AND SUPPORTS
06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP
07 - SYSTEM AND AUTOMATIC DEFROST PARTS
08 - ICE MAKER PARTS
09 - ICE MAKER INSTALLATION PARTS
Common parts from model Electrolux RS22F8WV1B REFRIGERATOR
*22692
HOT TUBE REPAIR KIT WCI 5300189379 Contact Us For Availability
*22692
CAPACITOR-RUN WCI 5303916391 Contact Us For Availability
1
LIGHT SOCKET WCI 5308000129 Contact Us For Availability
1
WCI 3206349 WCI 3206349 Contact Us For Availability
1
BEARING-HINGE UPPER (2) WCI 5303001022 Contact Us For Availability
1
COVER - TOP HINGE - AVOCADO (2) WCI 5303001664 Contact Us For Availability
1
COVER-TOP HINGE-WHEAT (2) WCI 5303001665 Contact Us For Availability
1
COVER-TOP HINGE-COFFEE (2) WCI 5303001666 Contact Us For Availability
1
COVER-TOP HINGE-WHITE (2) WCI 5308012820 Contact Us For Availability
1
COVER - TOP HINGE - ALMOND (2) WCI 5308012933 Contact Us For Availability
1
CONTROL BOX - TEMPERATURE WCI 5300189359 Contact Us For Availability
1
WCI 3206421 WCI 3206421 Contact Us For Availability
1
WCI 3206358 WCI 3206358 Contact Us For Availability
2
WCI G179402 WCI G179402 Contact Us For Availability
2
WCI G179402-08 WCI G179402-08 Contact Us For Availability
2
WCI G179402-09 WCI G179402-09 Contact Us For Availability
2
WCI G179402-10 WCI G179402-10 Contact Us For Availability
2
WCI G179402-11 WCI G179402-11 Contact Us For Availability
2
WCI 5308101253 WCI 5308101253 Contact Us For Availability
2
COIL BLOCK WCI 5308000828 Contact Us For Availability
3
WCI 5303007568 WCI 5303007568 Contact Us For Availability
3
CLOSER (2) WCI 5303200272 Contact Us For Availability
3
HINGE - UPPER RS WCI 5308012934 Contact Us For Availability
3
WCI 3016880 WCI 3016880 Contact Us For Availability
3
WCI 301269 WCI 301269 Contact Us For Availability
3
WCI 3206299 WCI 3206299 Contact Us For Availability
4
WASHER-NYLON (3) WCI 5308000186 No Longer Available
4
SCREW - CLOSER MOUNTING (2) WCI 3001020 Contact Us For Availability
4
WCI G172409-01 WCI G172409-01 Contact Us For Availability
4
WCI 5308017565 WCI 5308017565 Contact Us For Availability
5
WCI 5308002802 WCI 5308002802 Contact Us For Availability
5
SHIM-UPPER HINGE (2) WCI 5303001037 Contact Us For Availability
5
TRIM - SHELF FRONT (4) WCI 5317241002 Contact Us For Availability
5
PLATE-MTG WCI 3206303 Contact Us For Availability
6
BEARING-HINGE LOWER (2) WCI 5308012007 Contact Us For Availability
6
HINGE - UPPER LS WCI 5303001062 Contact Us For Availability
6
WCI G186156-03 WCI G186156-03 Contact Us For Availability
6
WCI 5308002777 WCI 5308002777 Contact Us For Availability
7
GASKET - UPPER FREEZER WCI 5303200799 Contact Us For Availability
7
COVER-UPPER COIL WCI 5303006543 Contact Us For Availability
7
WCI 5308000836 WCI 5308000836 Contact Us For Availability
8
WCI 3916445 WCI 3916445 Contact Us For Availability
8
WCI 3916446 WCI 3916446 Contact Us For Availability
8
WCI 5303916444 WCI 5303916444 Contact Us For Availability
8
WCI 5303916447 WCI 5303916447 Contact Us For Availability
8
WCI 5303916448 WCI 5303916448 Contact Us For Availability
8
HANGER-BASKET RS WCI 5303001098 Contact Us For Availability
8
WCI 5303007521 WCI 5303007521 Contact Us For Availability
8
WCI 3206312 WCI 3206312 Contact Us For Availability
9
WCI 5308000068 WCI 5308000068 Contact Us For Availability
9
WCI G169488-02 WCI G169488-02 Contact Us For Availability
9
CLIP-MULLION (3) WCI 5300169100 Contact Us For Availability
9
HANGER-BASKET LS WCI 5303001099 Contact Us For Availability
9
BRACKET-CONDENSER MOUNTING (4) WCI 5308000296 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
WCI 3206360 WCI 3206360 Contact Us For Availability
10
WCI G154541-46 WCI G154541-46 Contact Us For Availability
10
CLIP-MULLION (3) WCI 5303001281 Contact Us For Availability
10
WCI 5303007123 WCI 5303007123 Contact Us For Availability
10
WCI 5303001260 WCI 5303001260 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
11
WCI 3204855 WCI 3204855 Contact Us For Availability
11
TRIM-SHELF (4) WCI 3016382 Contact Us For Availability
11
KNOB, TEMPERATURE CONTROL WCI 5308010380 Contact Us For Availability
11
WCI 08000200 WCI 08000200 Contact Us For Availability
11A
WCI 3204854 WCI 3204854 Contact Us For Availability
11B
WCI 5303001231 WCI 5303001231 Contact Us For Availability
12
WCI 3206321 WCI 3206321 Contact Us For Availability
12
WCI 5308000790 WCI 5308000790 Contact Us For Availability
12
GASKET WCI 5303001233 Contact Us For Availability
12
SHELF - FREEZER (2) WCI 5303007122 Contact Us For Availability
12
CONTROL BOX-DAMPER WCI 5303001252 Contact Us For Availability
12
WCI 5316254901 WCI 5316254901 Contact Us For Availability
13
THERMOSTAT ASSEMBLY WCI 3206322 Contact Us For Availability
13
WCI G169489-02 WCI G169489-02 Contact Us For Availability
13
WASHER - NYLON WCI 5303001216 Contact Us For Availability
13
WCI 5308001016 WCI 5308001016 Contact Us For Availability
13
WCI 5308000771 WCI 5308000771 Contact Us For Availability
13
ADAMPER PLUG - REAR PANEL WCI 3001557 Contact Us For Availability
14
GASKET - LOWER FREEZER WCI 5303200800 Contact Us For Availability
14
WCI 5300185373 WCI 5300185373 Contact Us For Availability
14
WCI 3206323 WCI 3206323 Contact Us For Availability
14
WCI 5303208650 WCI 5303208650 Contact Us For Availability
15
WCI G170478 WCI G170478 Contact Us For Availability
15
WCI G170478-08 WCI G170478-08 Contact Us For Availability
15
WCI G170478-09 WCI G170478-09 Contact Us For Availability
15
WCI G170478-10 WCI G170478-10 Contact Us For Availability
15
WCI G170478-11 WCI G170478-11 Contact Us For Availability
15
WCI G169477-02 WCI G169477-02 Contact Us For Availability
15
GASKET - COVER WCI 5303205880 Contact Us For Availability
15
WCI 5316521701 WCI 5316521701 Contact Us For Availability
16
WCI 5303007173 WCI 5303007173 Contact Us For Availability
16
BUTTON-PLUG (2) WCI 5315230801 Contact Us For Availability
16
COVER - UPPER PAN WCI 5303001092 Contact Us For Availability
16
WCI 5303001277 WCI 5303001277 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
16A
GASKET-FERRULE (NON-ILLUSTRATED) WCI 5303001280 Contact Us For Availability
17
WCI G170573-04 WCI G170573-04 Contact Us For Availability
17
GASKET-COIL COVER (2) WCI 5303001219 Contact Us For Availability
17
PAN-STORAGE UPPER WCI G179709-03 Contact Us For Availability
17
WCI 5303001276 WCI 5303001276 Contact Us For Availability
18
WCI G170619-01 WCI G170619-01 Contact Us For Availability
18
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
18
TRIM, UPPER PAN WCI G177343-12 Contact Us For Availability
18
WCI 5316465401 WCI 5316465401 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
18
WCI 3206356 WCI 3206356 Contact Us For Availability
19
WCI 5316715001 WCI 5316715001 Contact Us For Availability
19
WASHER-NYLON (3) WCI 5303001038 Contact Us For Availability
19
TRIM, LOWER PAN WCI G177343-11 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
19
WCI 5308000247 WCI 5308000247 Contact Us For Availability
20
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
20
WCI 5308011745 WCI 5308011745 Contact Us For Availability
20
SHIM-LOWER HINGE (2) WCI 5303001272 Contact Us For Availability
20
COVER, LOWER PAN WCI 5316972401 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
20A
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
21
WCI 5303206688 WCI 5303206688 Contact Us For Availability
21
HINGE-LOWER (2) WCI 5303001271 Contact Us For Availability
21
PAN-STORAGE LOWER WCI G179710-02 Contact Us For Availability
21
WCI 5308950223 WCI 5308950223 Contact Us For Availability
21
WCI 3206332 WCI 3206332 Contact Us For Availability
22
WCI G170619-02 WCI G170619-02 Contact Us For Availability
22
SCREW (4) WCI 5303001041 Contact Us For Availability
22
WCI 3015108 WCI 3015108 Contact Us For Availability
22
WCI 5303001226 WCI 5303001226 Contact Us For Availability
22
CLIP-COMPRESSOR (4) WCI 5308003596 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
WCI G170573-05 WCI G170573-05 Contact Us For Availability
23
BASKET WCI 3017211 Contact Us For Availability
23
WASHER-COMPRESSOR (4) WCI 5308003633 Contact Us For Availability
23
SCREW - 8-18 X 1 SUPPORT TO MOLD BODY (4) WCI 3206334 Contact Us For Availability
24
WASHER - EXTERIOR LOCK (2) WCI 5308009617 Contact Us For Availability
24
WCI 5308000808 WCI 5308000808 Contact Us For Availability
24
WCI 5300157666 WCI 5300157666 Contact Us For Availability
25
SCREW WCI 5303001230 Contact Us For Availability
25
WCI 5308000809 WCI 5308000809 Contact Us For Availability
25
WCI 5303001227 WCI 5303001227 Contact Us For Availability
25
DEFROST PLATE WCI 5308017112 Contact Us For Availability
25
WCI 3206336 WCI 3206336 Contact Us For Availability
25A
BRACKET-PLATE (4) (NON-ILLUSTRATED) WCI 5308002782 Contact Us For Availability
25B
BRACKET-DEFROST PAN MOUNTING (NON-ILLUSTRATED WCI 5308002780 Contact Us For Availability
26
CLIP, GRILLE (2) WCI 5308000847 No Longer Available
26
WCI 5308000107 WCI 5308000107 Contact Us For Availability
26
WCI 5303001197 WCI 5303001197 Contact Us For Availability
26
WCI 3206337 WCI 3206337 Contact Us For Availability
27
WCI 5317032601 WCI 5317032601 Contact Us For Availability
27
WCI 5303001235 WCI 5303001235 Contact Us For Availability
27
WCI 3206338 WCI 3206338 Contact Us For Availability
28
WCI 5303001026 WCI 5303001026 Contact Us For Availability
28
BUTTON-PLUG (2) WCI 5303001288 Contact Us For Availability
28
WIRING HARNESS-COMPRESSOR & LIGHTS WCI 5308009616 Contact Us For Availability
28
WCI 3206339 WCI 3206339 Contact Us For Availability
29
TUBE-DRAIN WCI 5303209723 Contact Us For Availability
29
CHANNEL-SHELF (2) WCI 5308002744 Contact Us For Availability
29
WIRING HARNESS-CONTROL WCI 3015074 Contact Us For Availability
29
LIGHT SHIELD-FREEZER UPPER WCI 3200803 Contact Us For Availability
29
SCREW-4-40 X 3/4 MOTOR SWITCH TO PLATE (4) WCI 3206340 Contact Us For Availability
30
ROLLER-FRONT (2) WCI 5308000118 Contact Us For Availability
30
SUPPORT - SHELD (6) WCI 5303001213 Contact Us For Availability
30
SCREW - 8-32 X 1 TIMING SCREW WCI 3206341 Contact Us For Availability
31
SCREW - ROLLER ADJ MOUNTING (2) WCI 5308017044 Contact Us For Availability
31
CHANNEL-WIRING WCI 08009641 Contact Us For Availability
31
LIGHT SHIELD-REFRIGERATOR WCI 3015073 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
31A
BOLT 5/16 - 24 X 3/4 ADJ - ROLLER (NON-ILLUST WCI 5308009568 Contact Us For Availability
32
DAMPER, MEAT KEEPER WCI 5316491203 Contact Us For Availability
32
WCI 5308012258 WCI 5308012258 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
NUT-STUD SPEED (2) WCI 5300077210 Contact Us For Availability
34
WCI 5300169756 WCI 5300169756 Contact Us For Availability
34
SCREW - 8 18 X 7/16 MOUNTING PLATE TO SUPPORT WCI 3206345 Contact Us For Availability
35
PIN (2) WCI 5308000266 Contact Us For Availability
35
SCREW 8 - 18 X 3/8 WCI 5300115932 Contact Us For Availability
35
WCI 3206346 WCI 3206346 Contact Us For Availability
36
WCI 5308000265 WCI 5308000265 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
37
NUT-PUSH (2) WCI 5303001028 Contact Us For Availability
37
WCI G175156 WCI G175156 Contact Us For Availability
37
WCI 3206348 WCI 3206348 Contact Us For Availability
38
CONDUCTOR-HEAT WCI 5308000853 Contact Us For Availability
38
WCI G169516 WCI G169516 Contact Us For Availability
39
NUT-SPEC TWIN (4) WCI 5303001273 Contact Us For Availability
39
STRAP-LIGHT MOUNTING WCI 08002793 Contact Us For Availability
40
PIN - SHOULDER WCI 5308000013 Contact Us For Availability
40
WCI G169530-01 WCI G169530-01 Contact Us For Availability
40
WCI G169530-08 WCI G169530-08 Contact Us For Availability
40
WCI G169530-09 WCI G169530-09 Contact Us For Availability
40
WCI G169530-10 WCI G169530-10 Contact Us For Availability
40
WCI G169530-11 WCI G169530-11 Contact Us For Availability
41
WCI 5308000738 WCI 5308000738 Contact Us For Availability
41
WCI G169490-01 WCI G169490-01 Contact Us For Availability
41
WCI G169490-08 WCI G169490-08 Contact Us For Availability
41
WCI G169490-09 WCI G169490-09 Contact Us For Availability
41
WCI G169490-10 WCI G169490-10 Contact Us For Availability
41
WCI G169490-11 WCI G169490-11 Contact Us For Availability
42
SUPPORT-COIL COVER (5) WCI 5303001250 Contact Us For Availability
43
WCI 5300169531 WCI 5300169531 Contact Us For Availability
44
WCI 08002788 WCI 08002788 Contact Us For Availability
46
FERRULE-INNER (2) WCI 5303001286 Contact Us For Availability
47
FERRULE-OUTER (2) WCI 5303001287 Contact Us For Availability
× ![]()
