Model Electrolux RS22F8WV1A REFRIGERATOR – Common Parts & Diagrams

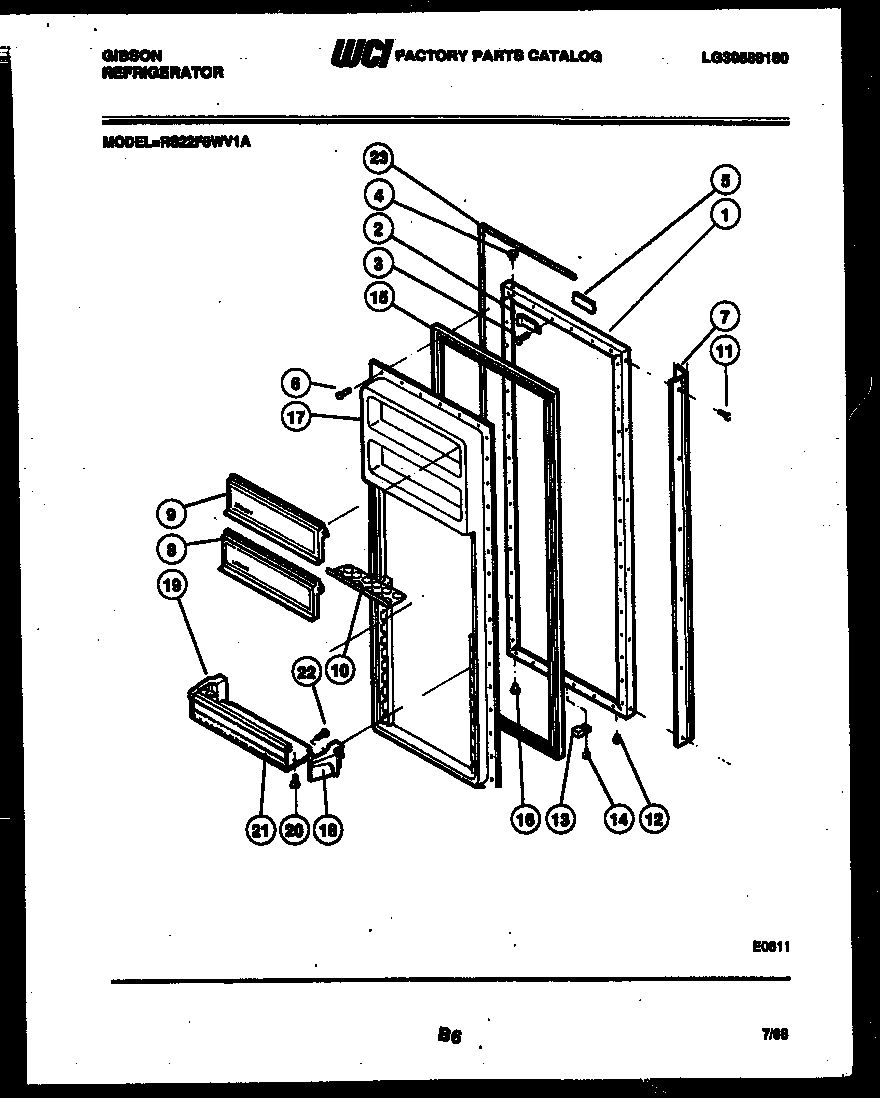

02 - DOOR PARTS

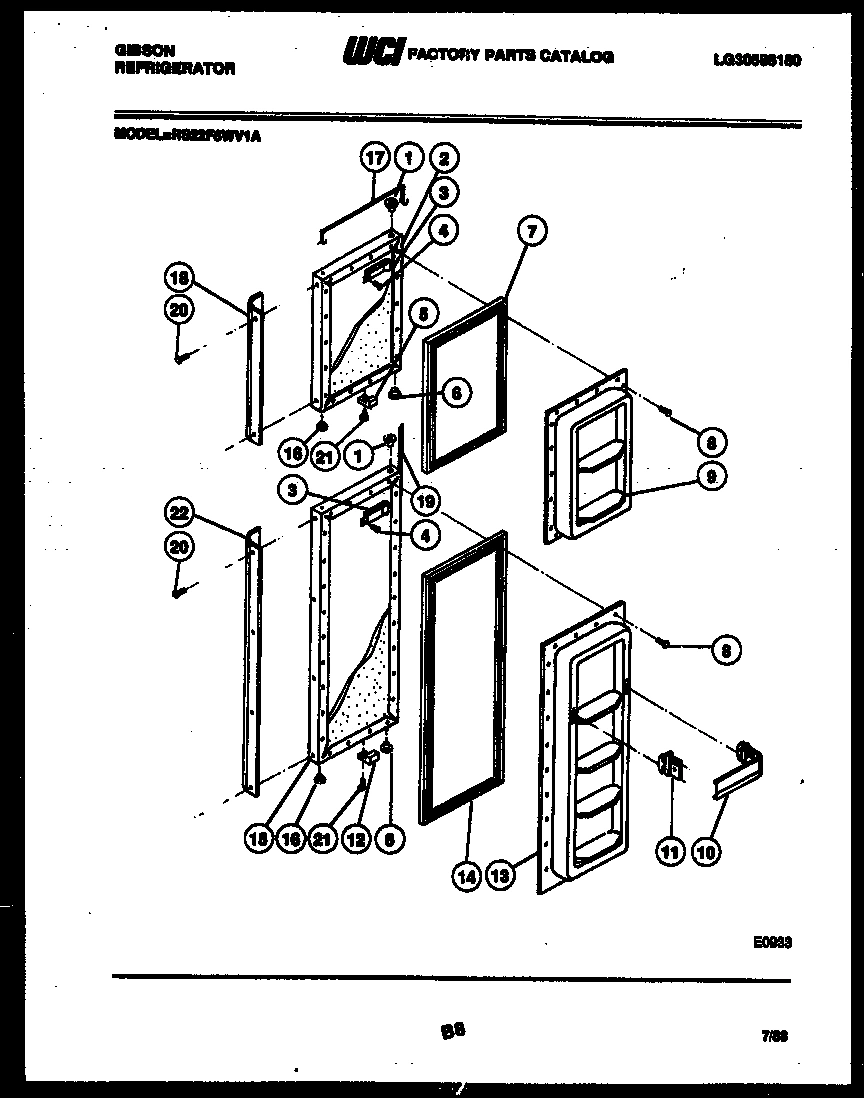

03 - DOOR PARTS

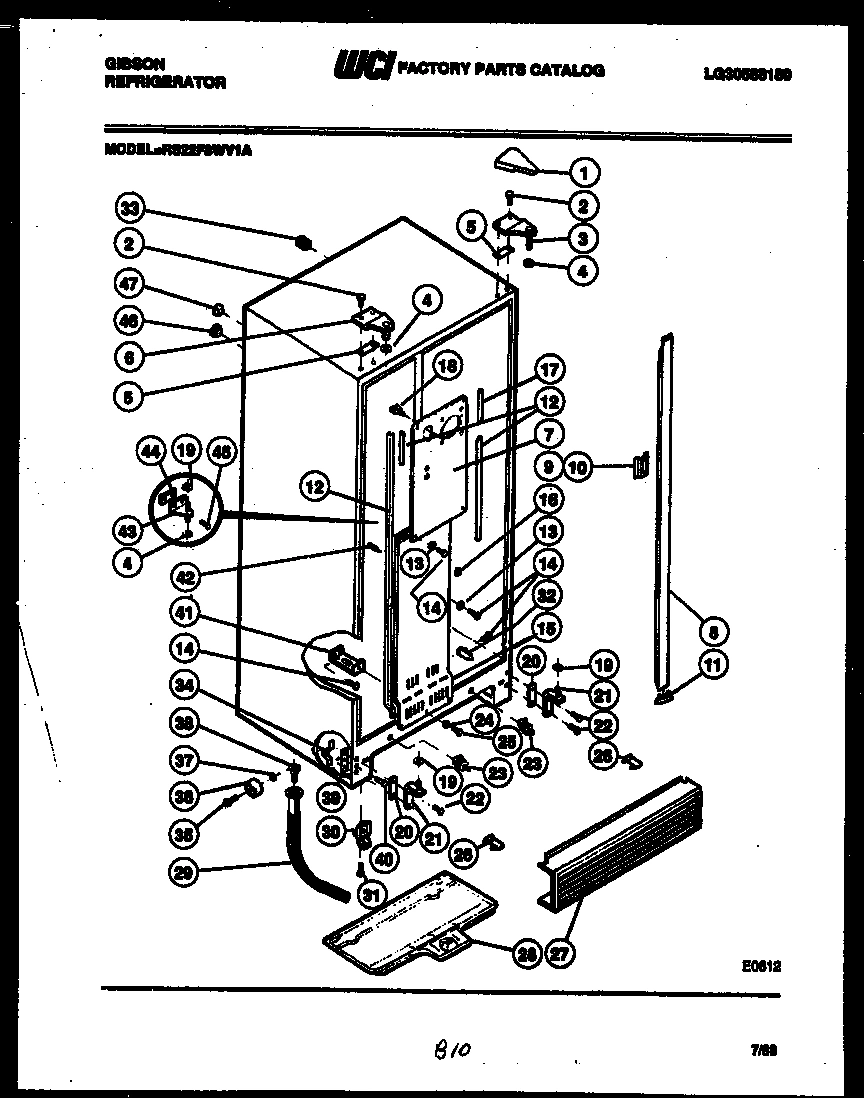

04 - CABINET PARTS

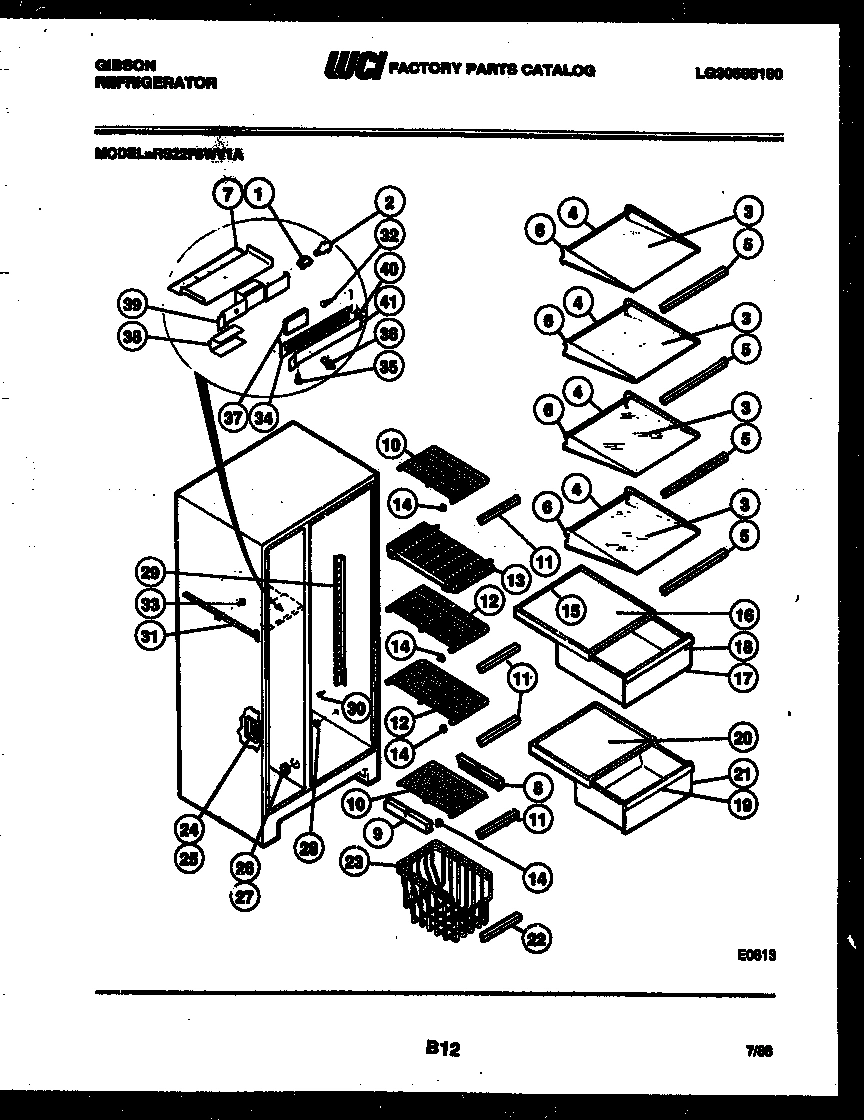

05 - SHELVES AND SUPPORTS

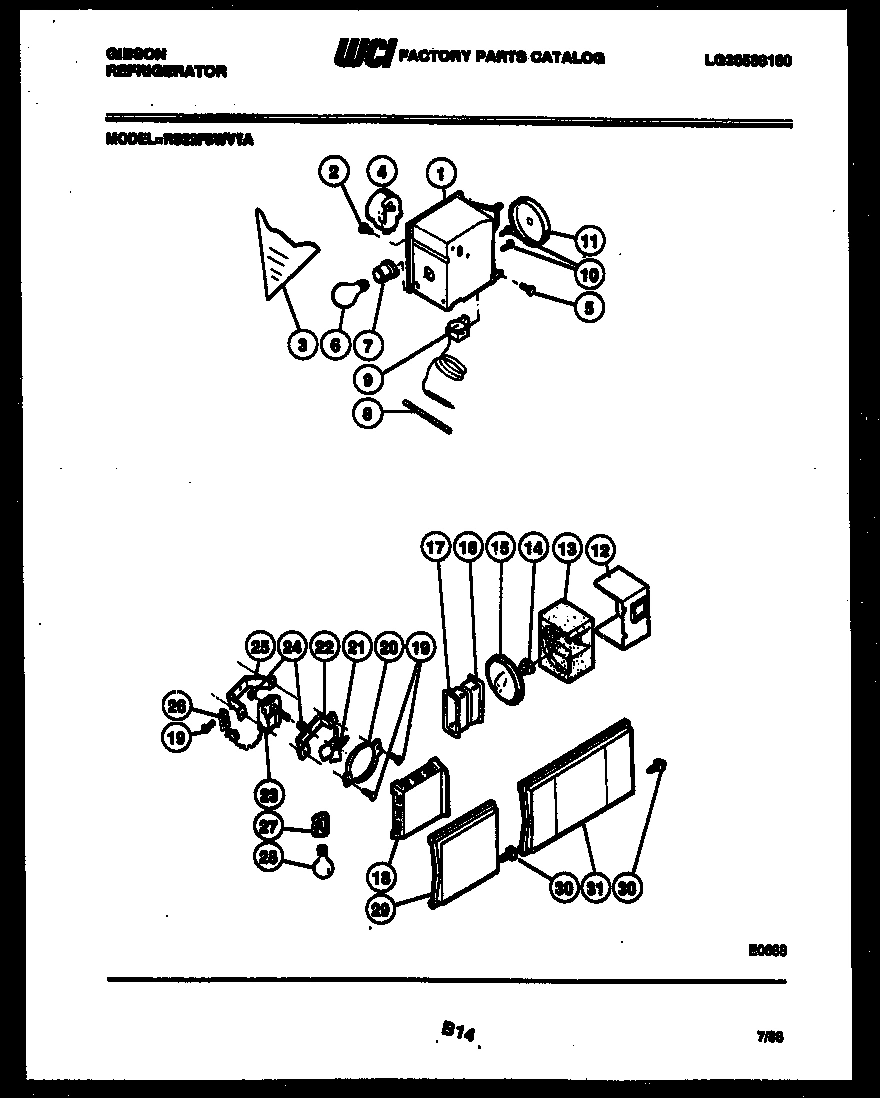

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

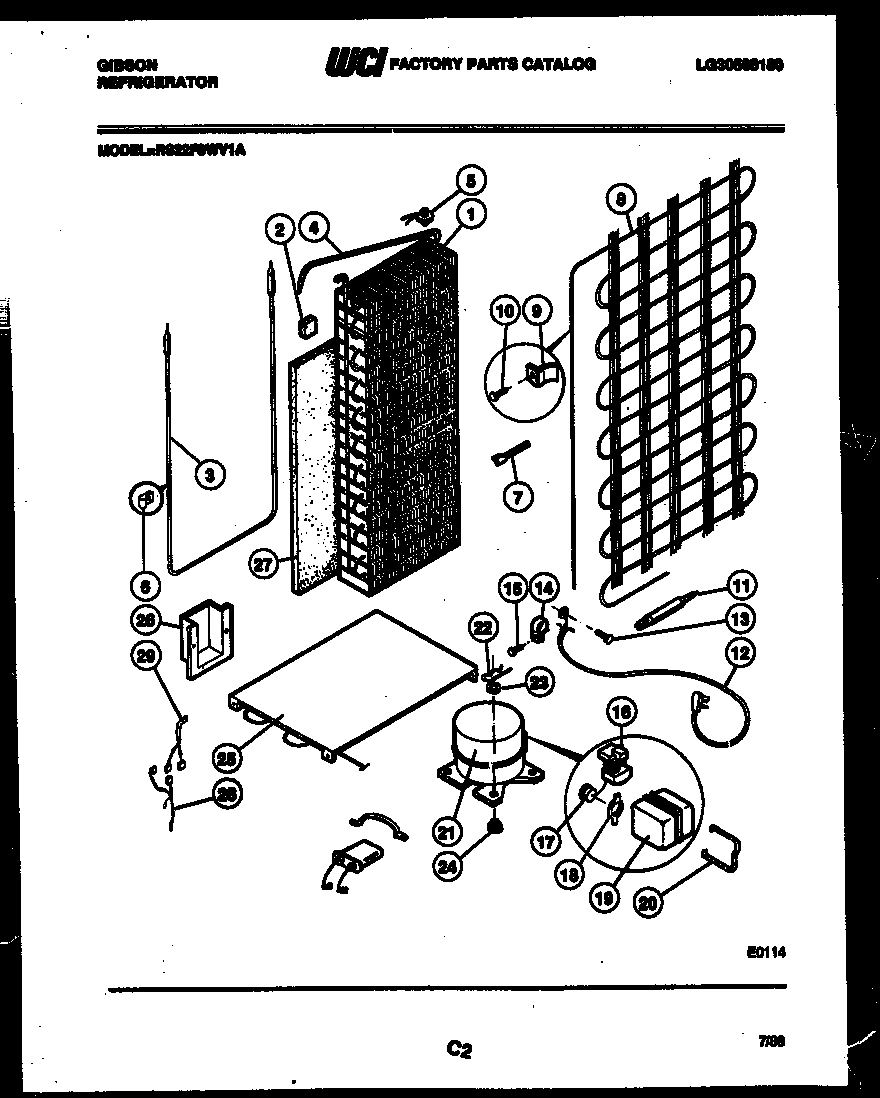

07 - SYSTEM AND AUTOMATIC DEFROST PARTS

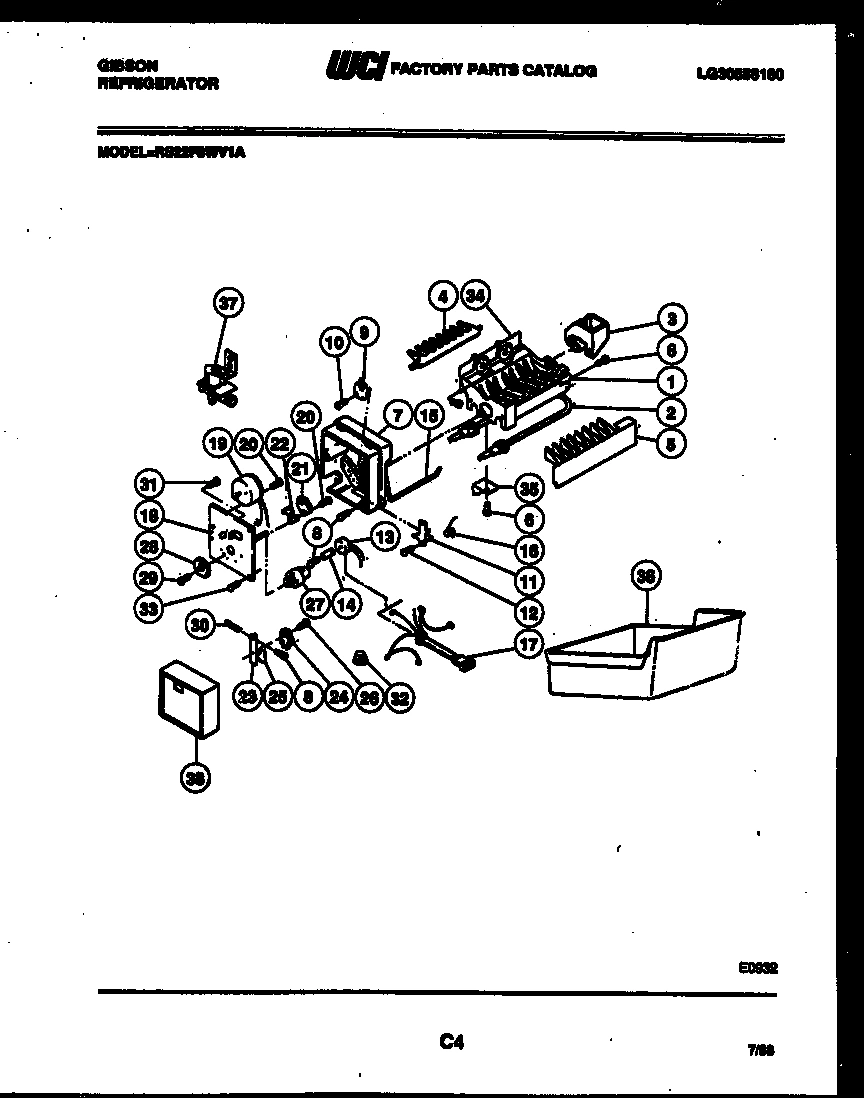

08 - ICE MAKER PARTS

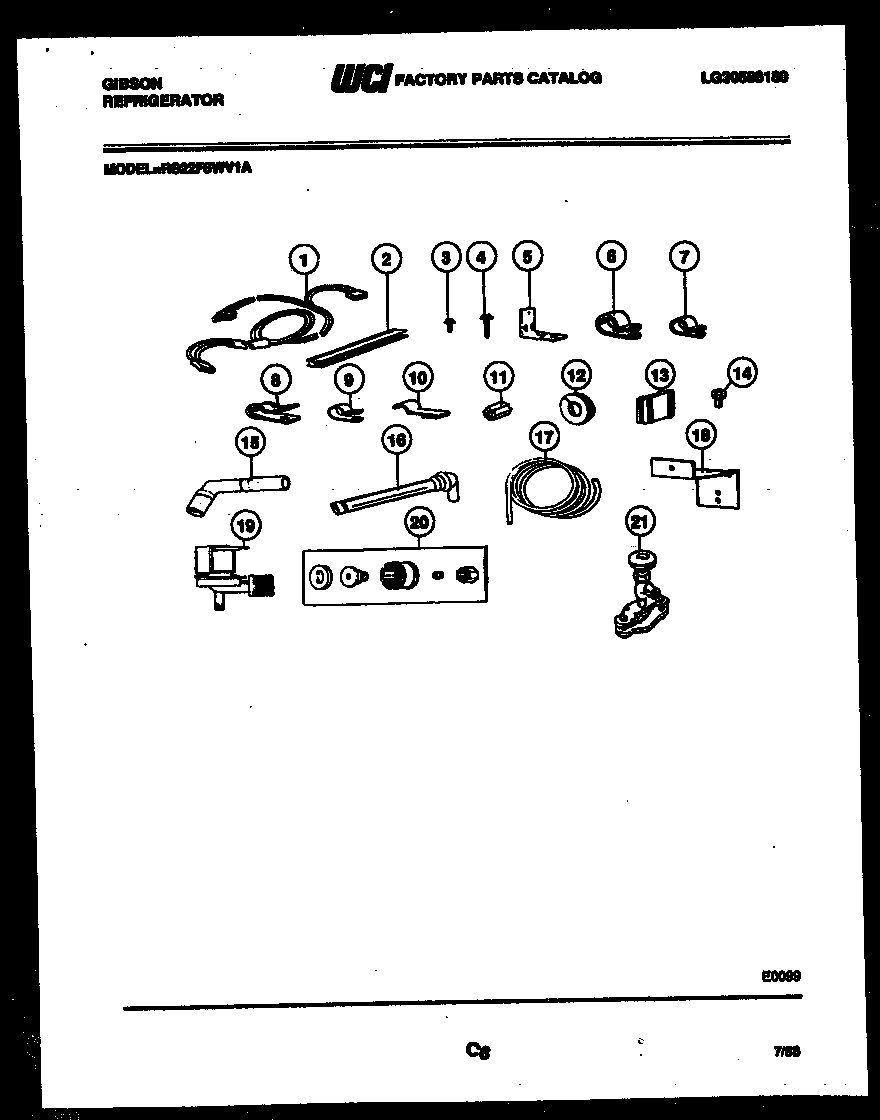

09 - ICE MAKER INSTALLATION PARTS
Common parts from model Electrolux RS22F8WV1A REFRIGERATOR
*11274
HOT TUBE REPAIR KIT WCI G189379 Contact Us For Availability
*11279
LABEL-COVER WCI 3200851 Contact Us For Availability
1
WCI G179400-08 WCI G179400-08 Contact Us For Availability
1
WCI G179400-09 WCI G179400-09 Contact Us For Availability
1
WCI G179400-10 WCI G179400-10 Contact Us For Availability
1
WCI G179400-11 WCI G179400-11 Contact Us For Availability
1
BEARING-HINGE UPPER (2) WCI G183139 Contact Us For Availability
1
COVER-TOP HINGE (2)-WHITE WCI G183558-01 Contact Us For Availability
1
COVER-TOP HINGE (2)-AVOCADO WCI G183558-08 Contact Us For Availability
1
COVER-TOP HINGE (2)-WHEAT WCI G183558-09 Contact Us For Availability
1
COVER-TOP HINGE (2)-COFFEE WCI G183558-10 Contact Us For Availability
1
COVER-TOP HINGE (2)-ALMOND WCI G183558-11 Contact Us For Availability
1
CONTROL BOX-TEMP WCI G189359 Contact Us For Availability
1
WCI 3017362 WCI 3017362 Contact Us For Availability
1
MOLD & HEATER ASSEMBLY - INCLUDES ITEM 2 WCI G159912 Contact Us For Availability
1
WIRING HARNESS-EXTERNAL WCI G185266 Contact Us For Availability
2
WCI G16119 WCI G16119 Contact Us For Availability
2
WCI G179402 WCI G179402 Contact Us For Availability
2
WCI G179402-08 WCI G179402-08 Contact Us For Availability
2
WCI G179402-09 WCI G179402-09 Contact Us For Availability
2
WCI G179402-10 WCI G179402-10 Contact Us For Availability
2
WCI G179402-11 WCI G179402-11 Contact Us For Availability
2
COIL BLOCK WCI G169493 Contact Us For Availability
2
HEATER ELEMENT WCI G137756 Contact Us For Availability
3
CLOSER (2) WCI G161119 Contact Us For Availability
3
HINGE-UPPER RS WCI G183715 Contact Us For Availability
3
GLASS-SHELF (4) WCI G171654-44 Contact Us For Availability
3
INSULATION-BOX REAR WCI G165434 Contact Us For Availability
3
WCI G190223 WCI G190223 Contact Us For Availability
3
WCI G181117 WCI G181117 Contact Us For Availability
4
SCREW-CLOSER MOUNTING (2) WCI G169729 Contact Us For Availability
4
WASHER-NYLON (3) WCI G170156 Contact Us For Availability
4
WCI G172409-01 WCI G172409-01 Contact Us For Availability
4
WCI G189609 WCI G189609 Contact Us For Availability
4
WCI G159911 WCI G159911 Contact Us For Availability
5
FRAME-NAMEPLATE WCI G175117-02 Contact Us For Availability
5
BUMBER-LIGHT SWITCH WCI G169904 Contact Us For Availability
5
SHIM-UPPER HINGE (2) WCI G183861 Contact Us For Availability
5
TRIM-SHELF FRONT (4) WCI G172410-01 Contact Us For Availability
5
WCI G159910 WCI G159910 Contact Us For Availability
5A
LABEL-NAMEPLATE UPPER WCI G188378-06 Contact Us For Availability
5B
WCI G175393-01 WCI G175393-01 Contact Us For Availability
6
BEARING-HINGE LOWER (2) WCI G183138 Contact Us For Availability
6
HINGE-UPPER LS WCI G183716 Contact Us For Availability
6
WCI G186156-03 WCI G186156-03 Contact Us For Availability
6
WCI G167363 WCI G167363 Contact Us For Availability
6
SCREW 8- 16 X 3/8 (2) WCI M1090120 Contact Us For Availability
7
WCI G170619-03 WCI G170619-03 Contact Us For Availability
7
GASKET-UPPER FREEZER WCI 3200799 Contact Us For Availability
7
COVER, UPPER COIL WCI G169481-01 Contact Us For Availability
7
WCI G168302 WCI G168302 Contact Us For Availability
7
WCI G169635 WCI G169635 Contact Us For Availability
7
SUPPORT-HOUSING WCI G137748 Contact Us For Availability
7
CLAMP-INLET TUBE WCI G161655 Contact Us For Availability
8
WCI G164643-01 WCI G164643-01 Contact Us For Availability
8
WCI G164643-08 WCI G164643-08 Contact Us For Availability
8
WCI G164643-09 WCI G164643-09 Contact Us For Availability
8
WCI G164643-10 WCI G164643-10 Contact Us For Availability
8
WCI G164643-11 WCI G164643-11 Contact Us For Availability
8
HANGER-BASKET RS WCI G168986 Contact Us For Availability
8
WCI G188597 WCI G188597 Contact Us For Availability
8
SCREW 8-32 X 1 (3) WCI 8001150 Contact Us For Availability
9
WCI G170930-14 WCI G170930-14 Contact Us For Availability
9
WCI G169488-02 WCI G169488-02 Contact Us For Availability
9
CLIP-MULLION (3) WCI G169100 Contact Us For Availability
9
WCI G166987 WCI G166987 Contact Us For Availability
9
WCI G162205-05 WCI G162205-05 Contact Us For Availability
9
BRACKET, CONDENSER MOUNTING (4) WCI G169666-01 Contact Us For Availability
10
CONTAINER-EGG WCI G173948-27 Contact Us For Availability
10
WCI G154541-46 WCI G154541-46 Contact Us For Availability
10
CLIP-MULLION (3) WCI G169297 Contact Us For Availability
10
WCI G180425-08 WCI G180425-08 Contact Us For Availability
10
WCI G107080 WCI G107080 Contact Us For Availability
10
WCI G137745 WCI G137745 Contact Us For Availability
10
CLIP, HARNESS WCI G163706 Contact Us For Availability
11
SUPPORT LS (6) WCI G170015-02 Contact Us For Availability
11
SUPPORT RS (6) WCI G170016-02 Contact Us For Availability
11
WCI G169745-01 WCI G169745-01 Contact Us For Availability
11
TRIM, MULLION, AVOCADO WCI G169745-08 Contact Us For Availability
11
WCI G169745-09 WCI G169745-09 Contact Us For Availability
11
WCI G169745-10 WCI G169745-10 Contact Us For Availability
11
WCI G169745-11 WCI G169745-11 Contact Us For Availability
11
TRIM-SHELF (4) WCI 3016382 Contact Us For Availability
11
KNOB, TEMPERATURE CONTROL WCI G164906-01 Contact Us For Availability
11
NUT-INLET TO VALVE WCI G143689 Contact Us For Availability
11B
WCI G162703 WCI G162703 Contact Us For Availability
12
WCI G165376 WCI G165376 Contact Us For Availability
12
GASKET WCI G188853 Contact Us For Availability
12
WCI G180425-07 WCI G180425-07 Contact Us For Availability
12
CONTROL BOX-DAMPER WCI G164523 Contact Us For Availability
12
WCI G162549-01 WCI G162549-01 Contact Us For Availability
12
WCI G159913 WCI G159913 Contact Us For Availability
13
WCI G169489-02 WCI G169489-02 Contact Us For Availability
13
WASHER, NYLON WCI G170839 Contact Us For Availability
13
WCI G169712 WCI G169712 Contact Us For Availability
13
WCI G164575 WCI G164575 Contact Us For Availability
13
WCI G159907 WCI G159907 Contact Us For Availability
13
PLUG-ADAPTER WCI G160347 Contact Us For Availability
14
GASKET-LOWER FREEZER WCI 3200800 Contact Us For Availability
14
WCI G185373 WCI G185373 Contact Us For Availability
14
WCI G137742 WCI G137742 Contact Us For Availability
14
WCI G154156 WCI G154156 Contact Us For Availability
15
GASKET-REFRIGERATOR WCI 3200473 Contact Us For Availability
15
WCI G170478 WCI G170478 Contact Us For Availability
15
WCI G170478-08 WCI G170478-08 Contact Us For Availability
15
WCI G170478-09 WCI G170478-09 Contact Us For Availability
15
WCI G170478-10 WCI G170478-10 Contact Us For Availability
15
WCI G170478-11 WCI G170478-11 Contact Us For Availability
15
WCI G169477-02 WCI G169477-02 Contact Us For Availability
15
GASKET-COVER WCI G180108-03 Contact Us For Availability
15
KNOB-DAMPER CNTRL WCI G165217-01 Contact Us For Availability
15
WCI G164767 WCI G164767 Contact Us For Availability
15
TUBE WATER FILL WCI G165773 Contact Us For Availability
16
BUTTON-PLUG (2) WCI G152308-01 Contact Us For Availability
16
COVER-UPPER PAN WCI G169711-02 Contact Us For Availability
16
WCI G166803 WCI G166803 Contact Us For Availability
16
WCI G182225-04 WCI G182225-04 Contact Us For Availability
16
WCI G137753 WCI G137753 Contact Us For Availability
16A
GASKET-FERRULE (NON-ILLUSTRATED) WCI G167582 Contact Us For Availability
17
WCI G171411-02 WCI G171411-02 Contact Us For Availability
17
WCI G170573-04 WCI G170573-04 Contact Us For Availability
17
GASKET-COIL COVER (2) WCI G165233 Contact Us For Availability
17
PAN-STORAGE UPPER WCI G179709-03 Contact Us For Availability
17
WCI G166802 WCI G166802 Contact Us For Availability
17
WCI G188727 WCI G188727 Contact Us For Availability
17
WIRING HARNESS INTERNAL WCI G185809 Contact Us For Availability
18
SUPPORT-SHELF RS (4) WCI G163781-03 Contact Us For Availability
18
WCI G170619-01 WCI G170619-01 Contact Us For Availability
18
WCI G163669 WCI G163669 Contact Us For Availability
18
TRIM, UPPER PAN WCI G177343-12 Contact Us For Availability
18
WCI G164654-01 WCI G164654-01 Contact Us For Availability
18
CLIP-OVERLOAD WCI G188957 Contact Us For Availability
18
WCI G186572 WCI G186572 Contact Us For Availability
18
BRACKET-WATER VALVE WCI G163309 Contact Us For Availability
19
SUPPORT-SHELF LS (4) WCI G163780-03 Contact Us For Availability
19
WCI G167150-07 WCI G167150-07 Contact Us For Availability
19
WASHER-NYLON (3) WCI G164355 Contact Us For Availability
19
TRIM, LOWER PAN WCI G177343-11 Contact Us For Availability
19
MOTOR-ICE MAKER WCI G137735 Contact Us For Availability
19
WATER VALVE-SOLENOID WCI G159914 Contact Us For Availability
20
WCI G185566 WCI G185566 Contact Us For Availability
20
WCI G101890 WCI G101890 Contact Us For Availability
20
SHIM-LOWER HINGE (2) WCI G162903 Contact Us For Availability
20
COVER-LOWER PAN WCI G169724-02 Contact Us For Availability
20
RING, FAN ORIFICE WCI G167217 Contact Us For Availability
20
WCI G137741 WCI G137741 Contact Us For Availability
20
WCI G159415 WCI G159415 Contact Us For Availability
20A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
21
WCI G164109-21 WCI G164109-21 Contact Us For Availability
21
PAN-STORAGE LOWER WCI G179710-02 Contact Us For Availability
21
COMPRESSOR WITH ELECTRICALS WCI 3916016 Contact Us For Availability
21
SADDLE VALVE KIT WCI G99428 Contact Us For Availability
22
SCREW (8) WCI G167115 Contact Us For Availability
22
WCI G170619-02 WCI G170619-02 Contact Us For Availability
22
SCREW (4) WCI G99167 Contact Us For Availability
22
WCI G172410-20 WCI G172410-20 Contact Us For Availability
22
WCI G185302 WCI G185302 Contact Us For Availability
22
CLIP-COMPRESSOR (4) WCI G163204 Contact Us For Availability
22
SPACER-HOLD SWITCH WCI G137737 Contact Us For Availability
23
WCI G170573-05 WCI G170573-05 Contact Us For Availability
23
BASKET WCI 3017211 Contact Us For Availability
23
WASHER-COMPRESSOR (4) WCI G164634 Contact Us For Availability
23
WCI G159905 WCI G159905 Contact Us For Availability
24
BUSHING (2) WCI G187559 Contact Us For Availability
24
WASHER-EXTERIOR LOCK (2) WCI G164820 Contact Us For Availability
24
WCI G166800 WCI G166800 Contact Us For Availability
24
SWITCH-FILL WCI G164770 Contact Us For Availability
25
SCREW WCI G184851 Contact Us For Availability
25
WCI G166801 WCI G166801 Contact Us For Availability
25
WCI G185303 WCI G185303 Contact Us For Availability
25
WCI G188596 WCI G188596 Contact Us For Availability
25
WCI 3018588 WCI 3018588 Contact Us For Availability
25A
BRACKET-PLATE (4) (NON-ILLUSTRATED) WCI G171111 Contact Us For Availability
25B
WCI G171123 WCI G171123 Contact Us For Availability
26
WCI G170328 WCI G170328 Contact Us For Availability
26
WCI G164571 WCI G164571 Contact Us For Availability
26
WCI G183584 WCI G183584 Contact Us For Availability
26
WCI G137744 WCI G137744 Contact Us For Availability
27
WCI G170326-01 WCI G170326-01 Contact Us For Availability
27
WCI G169641 WCI G169641 Contact Us For Availability
27
WCI G137738 WCI G137738 Contact Us For Availability
28
PAN, DEFROST WCI G171125 Contact Us For Availability
28
BUTTON PLUG (2) WCI G162892-01 Contact Us For Availability
28
WIRING HARNESS-COMPRESSOR & LIGHTS WCI G164579 Contact Us For Availability
29
CHANNEL-SHELF (2) WCI G170694 Contact Us For Availability
29
WIRING HARNESS-CONTROL WCI 3015074 Contact Us For Availability
29
LIGHT SHIELD-FREEZER UPPER WCI 3200803 Contact Us For Availability
29
WCI G159901 WCI G159901 Contact Us For Availability
30
ROLLER-FRONT (2) WCI G186731 Contact Us For Availability
30
SUPPORT-SHIELD (6) WCI G165177 Contact Us For Availability
30
WCI G159909 WCI G159909 Contact Us For Availability
31
SCREW-ROLLER ADJ (2) WCI G187491 Contact Us For Availability
31
CHANNEL-WIRING WCI G169709 Contact Us For Availability
31
LIGHT SHIELD-REFRIGERATOR WCI 3015073 Contact Us For Availability
31
SCREW 8-32 X 1/4 WCI G159898 Contact Us For Availability
32
WCI G164912-03 WCI G164912-03 Contact Us For Availability
32
SCREW (2) WCI G183103 Contact Us For Availability
32
WCI G159902 WCI G159902 Contact Us For Availability
33
TUBE, RUBBER WCI G85642 Contact Us For Availability
33
WCI M1090016 WCI M1090016 Contact Us For Availability
34
NUT-STUD SPEED (2) WCI G77210 Contact Us For Availability
34
HEATER-MULLION WCI G169756 Contact Us For Availability
34
HEAT SHIELD-WIRING WCI G164769 Contact Us For Availability
35
PIN (2) WCI G162809 Contact Us For Availability
35
SCREW 8-18 X 3/8 WCI G99660 Contact Us For Availability
35
WCI G159906 WCI G159906 Contact Us For Availability
36
ROLLER (2) WCI G162808 Contact Us For Availability
37
NUT - PUSH (2) WCI G162662 Contact Us For Availability
37
WCI G175156 WCI G175156 Contact Us For Availability
38
CONDUCTOR, HEAT WCI G171193 Contact Us For Availability
38
WCI G169516 WCI G169516 Contact Us For Availability
38
COVER-ICE MAKER WCI G159908 Contact Us For Availability
39
WCI G141673 WCI G141673 Contact Us For Availability
39
WCI G169529 WCI G169529 Contact Us For Availability
40
WCI G142361 WCI G142361 Contact Us For Availability
40
WCI G169530-01 WCI G169530-01 Contact Us For Availability
40
WCI G169530-08 WCI G169530-08 Contact Us For Availability
40
WCI G169530-09 WCI G169530-09 Contact Us For Availability
40
WCI G169530-10 WCI G169530-10 Contact Us For Availability
40
WCI G169530-11 WCI G169530-11 Contact Us For Availability
41
BRACKET, COVER MOUNTING WCI G158022 Contact Us For Availability
41
WCI G169490-01 WCI G169490-01 Contact Us For Availability
41
WCI G169490-08 WCI G169490-08 Contact Us For Availability
41
WCI G169490-09 WCI G169490-09 Contact Us For Availability
41
WCI G169490-10 WCI G169490-10 Contact Us For Availability
41
WCI G169490-11 WCI G169490-11 Contact Us For Availability
42
SUPPORT-COIL COVER (5) WCI G169471 Contact Us For Availability
43
WCI G169531 WCI G169531 Contact Us For Availability
44
WCI G169610 WCI G169610 Contact Us For Availability
46
FERRULE - INNER (2) WCI G174733 Contact Us For Availability
47
FERRULE-OUTER (2) WCI G174734 Contact Us For Availability
× ![]()
