Model Electrolux RS22F7YU1D REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER DOOR
03 - REFRIGERATOR DOOR

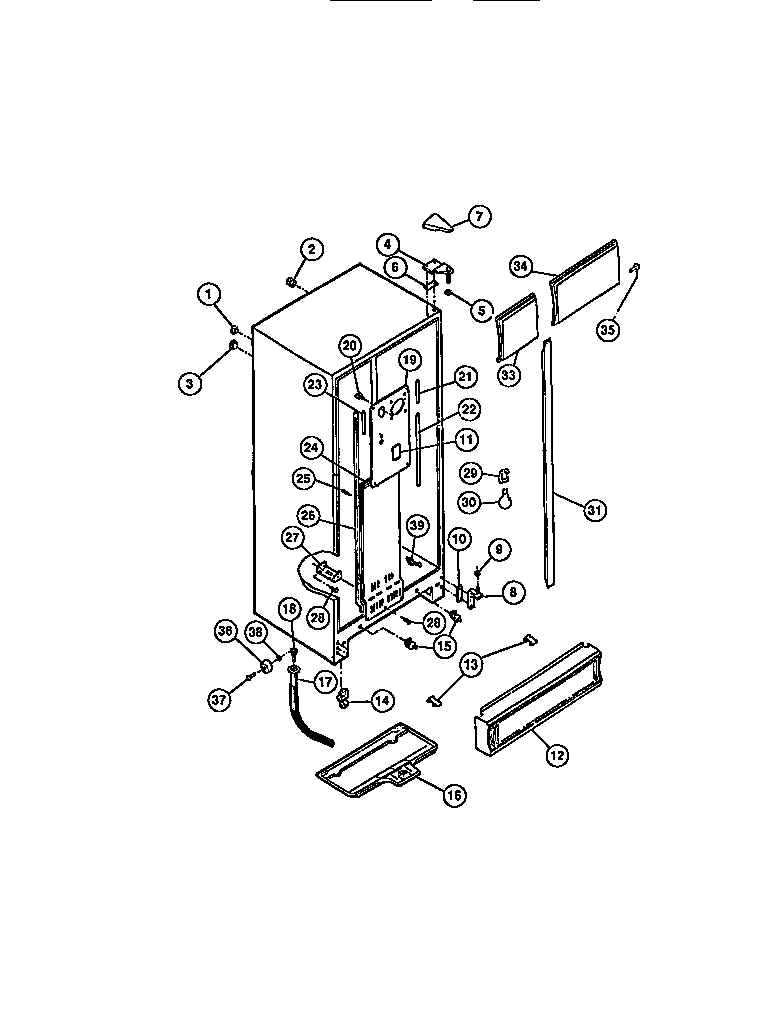

04 - CABINET

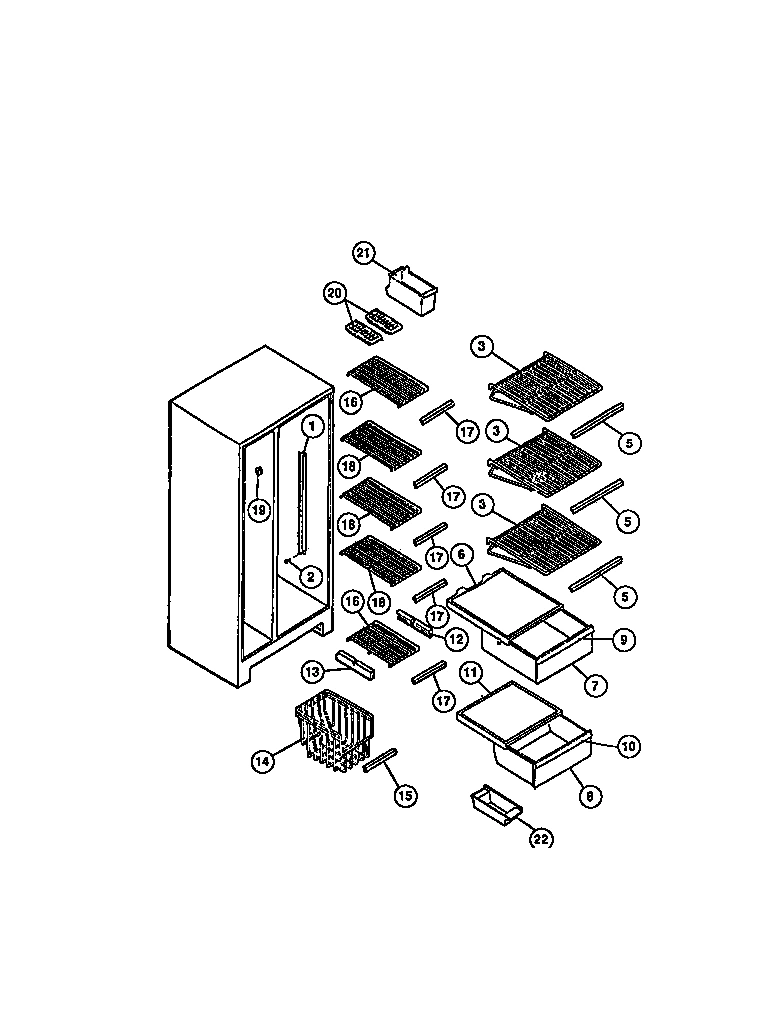

05 - SHELVES

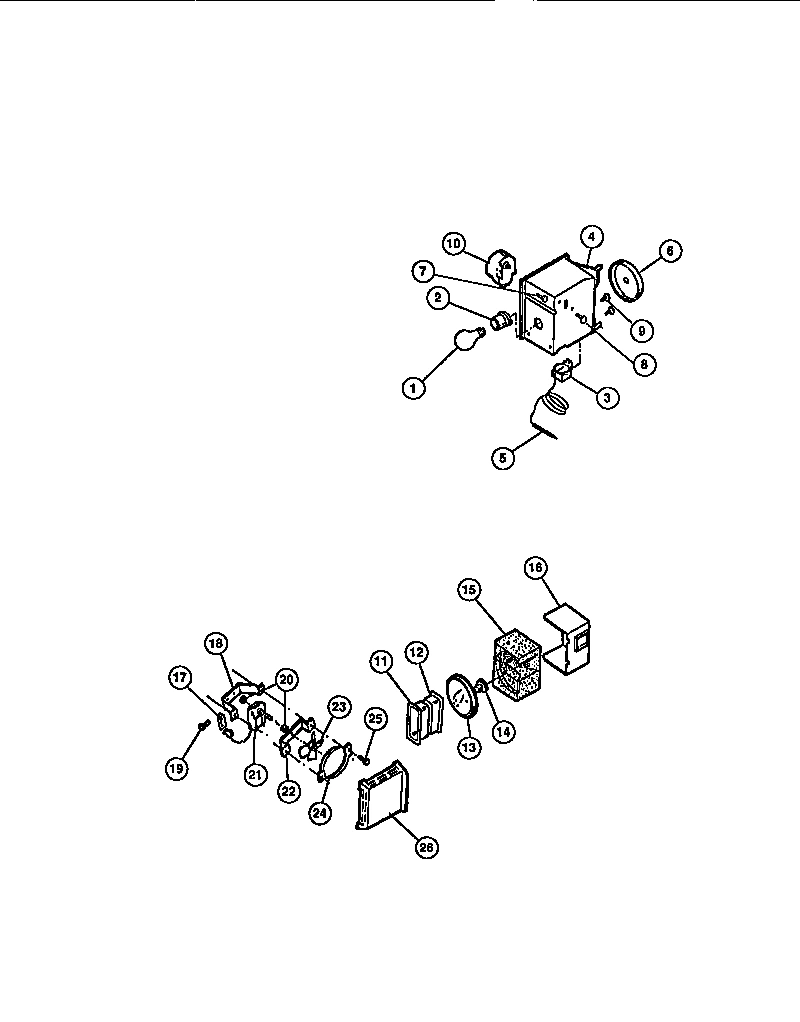

06 - AIR HANDLING PARTS

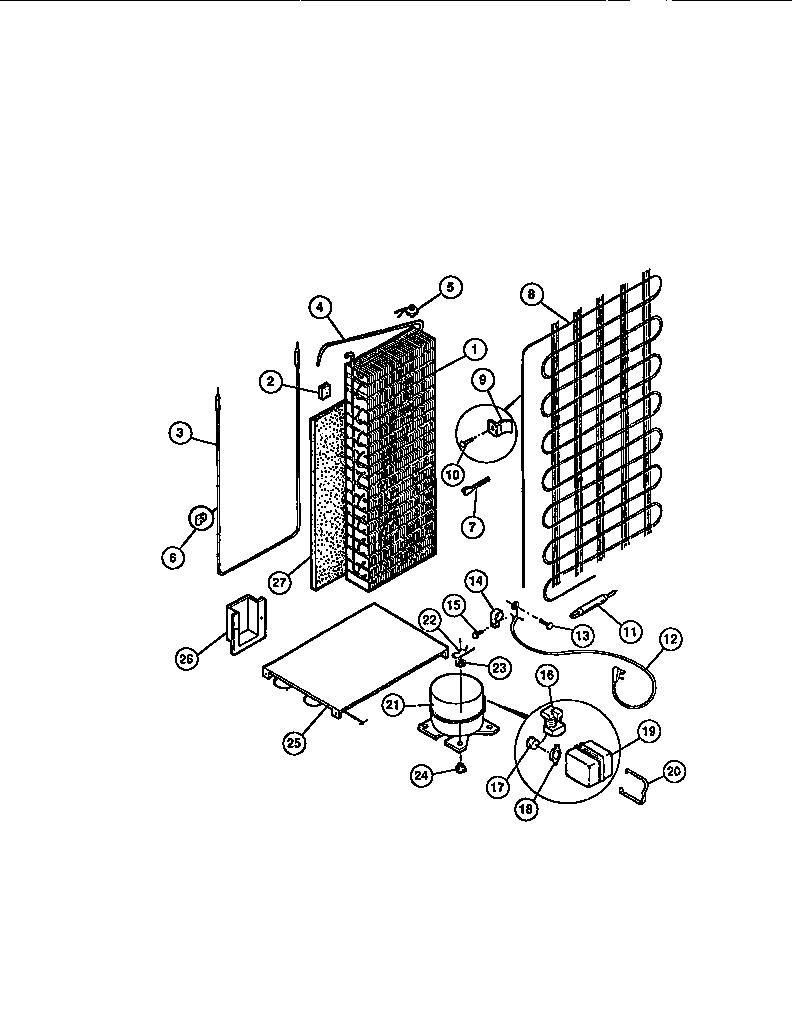

07 - SYSTEM AND AUTOMATIC DEFROST
Common parts from model Electrolux RS22F7YU1D REFRIGERATOR
*56080
PLUG, REFRIGERATOR LINER (4) WCI 5303001288 Contact Us For Availability
*56081
PLUG, FREEZER LINER (3) WCI 5308016571 Contact Us For Availability
*56082
WIRING HARNESS, COMPRESSOR AND LIGHTS WCI 5308009616 Contact Us For Availability
*56085
HOT TUBE REPAIR KIT WCI 5300189379 Contact Us For Availability
1
REFRIGERATOR DOOR-WHEAT WCI G177745-09 Contact Us For Availability
1
WCI 5303001287 WCI 5303001287 Contact Us For Availability
1
CHANNEL, RH AND LH WCI 5308002744 Contact Us For Availability
1
EVAPORATOR WCI 5303916605 Contact Us For Availability
1A
DOOR PLUG BUTTON (NOT ILLUSTRATED) WCI 5315230801 Contact Us For Availability
2
LIGHT SOCKET - REFRIGERATOR WCI 5308000129 Contact Us For Availability
2
WCI 5303001022 WCI 5303001022 Contact Us For Availability
2
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
2
COIL BLOCK WCI 5308000828 Contact Us For Availability
2A
HINGE BEARING, LOWER (NOT ILLUSTRATED) WCI 5308012007 Contact Us For Availability
3
WCI 5308000068 WCI 5308000068 Contact Us For Availability
3
WCI 5303007568 WCI 5303007568 Contact Us For Availability
3
INSULATION, BULK WCI 5303007739 Contact Us For Availability
3
WCI 5303001286 WCI 5303001286 Contact Us For Availability
3
WCI 3015097 WCI 3015097 Contact Us For Availability
4
WCI 5303200272 WCI 5303200272 Contact Us For Availability
4
HINGE TOP, RH WCI 5308012934 Contact Us For Availability
4
CONTROL BOX WCI 5308017561 Contact Us For Availability
4
WCI 5308017565 WCI 5308017565 Contact Us For Availability
4A
SCREW, MOUNTING (NOT ILLUSTRATED) WCI 5303001020 Contact Us For Availability
4A
HINGE TOP, LH (NOT ILLUSTRATED) WCI 5303001062 Contact Us For Availability
4A
INSULATOR, REAR (NOT ILLUSTRATED) WCI 3001269 Contact Us For Availability
4A
CLAMP, TUBE MOUNTING (NOT ILLUSTRATED) WCI 5303001558 Contact Us For Availability
4B
INSULATION, COIL, TOP (NOT ILLUSTRATED) WCI 5308009619 Contact Us For Availability
4C
TAPPING PLATE (2) (NOT ILLUSTRATED) WCI 5308012296 Contact Us For Availability
5
WASHER, HINGE PIN (2) WCI 5308000186 Contact Us For Availability
5
GASKET, REFRIGERATOR DOOR WCI 5303200473 Contact Us For Availability
5
TRIM, SNAP-ON (4) WCI 5317241002 Contact Us For Availability
6
WCI 3015088 WCI 3015088 Contact Us For Availability
6
SHIM, HINGE (2) WCI 5303001037 Contact Us For Availability
6
COVER, PAN UPPER WCI 5316971102 Contact Us For Availability
6
KNOB, TEMPERATURE CONTROL WCI 5308010380 Contact Us For Availability
6
WCI 5308002777 WCI 5308002777 Contact Us For Availability
6A
GASKET, UPPER PAN (2) (NOT ILLUSTRATED) WCI 5303205880 Contact Us For Availability
7
WCI 3015087 WCI 3015087 Contact Us For Availability
7
WCI 5303001665 WCI 5303001665 Contact Us For Availability
7
WCI G179709-03 WCI G179709-03 Contact Us For Availability
8
WCI G490079-33 WCI G490079-33 Contact Us For Availability
8
WCI 5303001271 WCI 5303001271 Contact Us For Availability
8
WCI G179710-02 WCI G179710-02 Contact Us For Availability
8
WCI 5303007521 WCI 5303007521 Contact Us For Availability
8A
SCREW, HINGE MOUNTING (4) (NOT ILLUSTRATED) WCI 5303001041 Contact Us For Availability
8B
TWIN NUT (4) (NOT ILLUSTRATED) WCI 5303001273 Contact Us For Availability
9
SUPPORT, RH (5) WCI 3204850 Contact Us For Availability
9
WASHER, HINGE PIN (4) WCI 5303001038 Contact Us For Availability
9
TRIM, UPPER PAN WCI G177343-12 Contact Us For Availability
9
WCI 5303001260 WCI 5303001260 Contact Us For Availability
9
BRACKET-MOUNTING (4) WCI 5308000296 Contact Us For Availability
10
SUPPORT, LH (5) WCI 3204694 Contact Us For Availability
10
WCI 5303001272 WCI 5303001272 Contact Us For Availability
10
TRIM, LOWER PAN WCI G177343-11 Contact Us For Availability
10A
SHOULDER PIN (2) (NOT ILLUSTRATED) WCI 5308000013 Contact Us For Availability
10B
SPEED NUT (2) (NOT ILLUSTRATED) WCI 5300077210 Contact Us For Availability
11
WCI 5308000790 WCI 5308000790 Contact Us For Availability
11
DECORATIVE PLUG WCI 08012270 Contact Us For Availability
11
COVER, LOWER PAN WCI 5316972401 Contact Us For Availability
11
WCI 5303001276 WCI 5303001276 Contact Us For Availability
12
NAMEPLATE - FRAME WCI 5317511702 Contact Us For Availability
12
WCI 5317154002 WCI 5317154002 Contact Us For Availability
12
WCI 5303001098 WCI 5303001098 Contact Us For Availability
12
WCI 5303001277 WCI 5303001277 Contact Us For Availability
12
WCI 5316254901 WCI 5316254901 Contact Us For Availability
12A
TAPE, MOUNTING (NOT ILLUSTRATED) WCI 5315340760 Contact Us For Availability
12A
GASKET, FERRULE (2) (NOT ILLUSTRATED) WCI 5303001280 Contact Us For Availability
12B
LABEL, UPPER (NOT ILLUSTRATED) WCI G188378-06 Contact Us For Availability
12C
LABEL, LOWER (NOT ILLUSTRATED) WCI 3019041 Contact Us For Availability
13
CLIP, GRILLE (2) WCI 5308000847 Contact Us For Availability
13
WCI 3015086 WCI 3015086 Contact Us For Availability
13
DOOR HANDLE WCI 5316355201 Contact Us For Availability
13
WCI 5303001099 WCI 5303001099 Contact Us For Availability
13
WCI 5316521701 WCI 5316521701 Contact Us For Availability
13A
SCREW, MOUNTING (2) (NOT ILLUSTRATED) WCI G185565 Contact Us For Availability
13B
SHIM, HANDLE (2) (NOT ILLUSTRATED) WCI G176752 Contact Us For Availability
13C
ANCHOR NUT (2) (NOT ILLUSTRATED) WCI G161863 Contact Us For Availability
14
WCI 5308000118 WCI 5308000118 Contact Us For Availability
14
WCI 3015096 WCI 3015096 Contact Us For Availability
14
WCI 5300185373 WCI 5300185373 Contact Us For Availability
14A
SCREW, ROLLER MOUNTING (2) (NOT ILLUSTRATED) WCI 5308017044 Contact Us For Availability
15
WCI 3015108 WCI 3015108 Contact Us For Availability
15
WCI 5308000771 WCI 5308000771 Contact Us For Availability
16
DEFROST PAN WCI 5303001026 Contact Us For Availability
16
SHELF, FREEZER (2) WCI 5316965802 Contact Us For Availability
16
CONTROL BOX, DAMPER WCI 5303211383 Contact Us For Availability
17
WCI 5308000107 WCI 5308000107 Contact Us For Availability
17
DRAIN OUTLET AND TUBE WCI 5303209723 Contact Us For Availability
17
TRIM, SNAP ON (5) WCI 3016382 Contact Us For Availability
17
WCI 5303210976 WCI 5303210976 Contact Us For Availability
18
WCI 5308000853 WCI 5308000853 Contact Us For Availability
18
WCI 5303271646 WCI 5303271646 Contact Us For Availability
18
WCI 5303205119 WCI 5303205119 Contact Us For Availability
18
CLIP-OVERLOAD WCI 5303017762 Contact Us For Availability
19
WCI 5303006543 WCI 5303006543 Contact Us For Availability
19A
NUT, U-TYPE (2) (NOT ILLUSTRATED) WCI 5303209814 Contact Us For Availability
20
SUPPORT, COVER (2) WCI 5308000097 Contact Us For Availability
21
WCI 5303001219 WCI 5303001219 Contact Us For Availability
21
ICE CONTAINER WCI G163022-03 Contact Us For Availability
21
COMPRESSOR WITH ELECTRICALS WCI 5303916803 Contact Us For Availability
22
WCI 5303006765 WCI 5303006765 Contact Us For Availability
22
WCI 5317394819 WCI 5317394819 Contact Us For Availability
22
BRACKET - FRONT WCI 5303205118 Contact Us For Availability
22
CLIP, MOUNTING (4) WCI 5308003596 Contact Us For Availability
23
WCI 5317423401 WCI 5317423401 Contact Us For Availability
23
WASHER, MOUNTING (4) WCI 5308003633 Contact Us For Availability
24
WCI 5308000124 WCI 5308000124 Contact Us For Availability
24
COIL COVER - LOWER WCI 5308000823 Contact Us For Availability
25
WCI 5303001250 WCI 5303001250 Contact Us For Availability
25
DEFROST PLATE WCI 5308017112 Contact Us For Availability
25A
BRACKET, MOUNTING (4) (NOT ILLUSTRATED) WCI 5308002782 Contact Us For Availability
25B
BRACKET, DEFROST PAN MOUNTING (NOT ILLUSTRATE WCI 5308002780 Contact Us For Availability
26
GASKET, COVER (2) WCI 5303007420 Contact Us For Availability
26
WCI 5316465401 WCI 5316465401 Contact Us For Availability
26
WCI 5303001197 WCI 5303001197 Contact Us For Availability
26A
WIRING HARNESS (NOT ILLUSTRATED) WCI 5303015098 Contact Us For Availability
26B
CLIP, GROUNDING (NOT ILLUSTRATED) WCI 5303001231 Contact Us For Availability
26C
FERRULE, INNER (NOT ILLUSTRATED) WCI 5303271653 Contact Us For Availability
26D
FERRULE, OUTER (NOT ILLUSTRATED) WCI 5303271652 Contact Us For Availability
27
WCI 5308000738 WCI 5308000738 Contact Us For Availability
27
WCI 5303001235 WCI 5303001235 Contact Us For Availability
27A
LOCK WASHER (2) (NOT ILLUSTRATED) WCI 5308009617 Contact Us For Availability
27B
SCREW, BRACKET (NOT ILLUSTRATED) WCI 5303001230 Contact Us For Availability
31
WCI 3916446 WCI 3916446 Contact Us For Availability
31A
CLIP, MULLION (3) (NOT ILLUSTRATED) WCI 5300169100 Contact Us For Availability
31B
CLIP, MULLION (3) (NOT ILLUSTRATED) WCI 5303001281 Contact Us For Availability
33
WCI 5316445232 WCI 5316445232 Contact Us For Availability
34
WCI 5303271921 WCI 5303271921 Contact Us For Availability
35
SUPPORT, SHIELD (8) WCI 5303001213 Contact Us For Availability
36
WCI 5303001030 WCI 5303001030 Contact Us For Availability
37
WCI 5308000266 WCI 5308000266 Contact Us For Availability
38
PUSH PIN (2) WCI 5303001028 Contact Us For Availability
39
DAMPER, MEAT KEEPER WCI 5316491203 Contact Us For Availability
× ![]()
