Model Electrolux RS22F7WU1D REFRIGERATOR – Common Parts & Diagrams
02 - COVER
03 - FREEZER DOOR PARTS
04 - SYSTEM/AUTOMATIC DEFROST

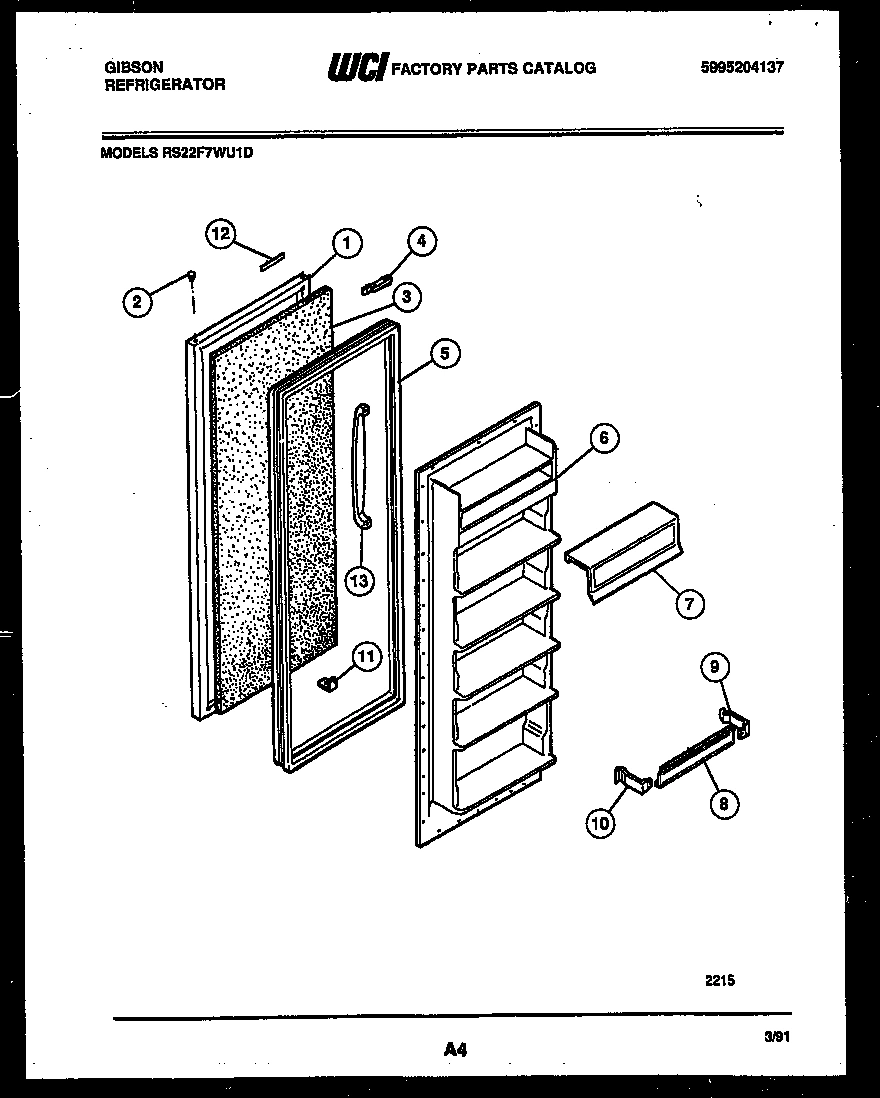

05 - REFRIGERATOR DOOR PARTS

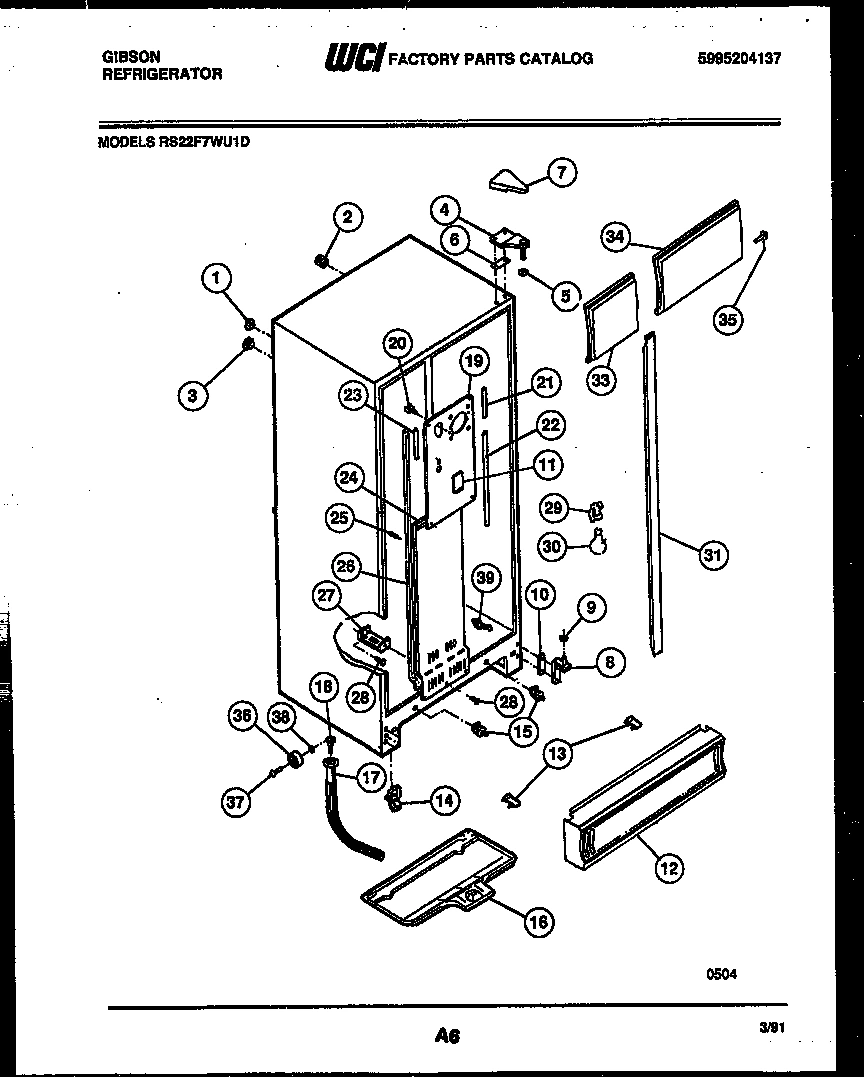

06 - CABINET

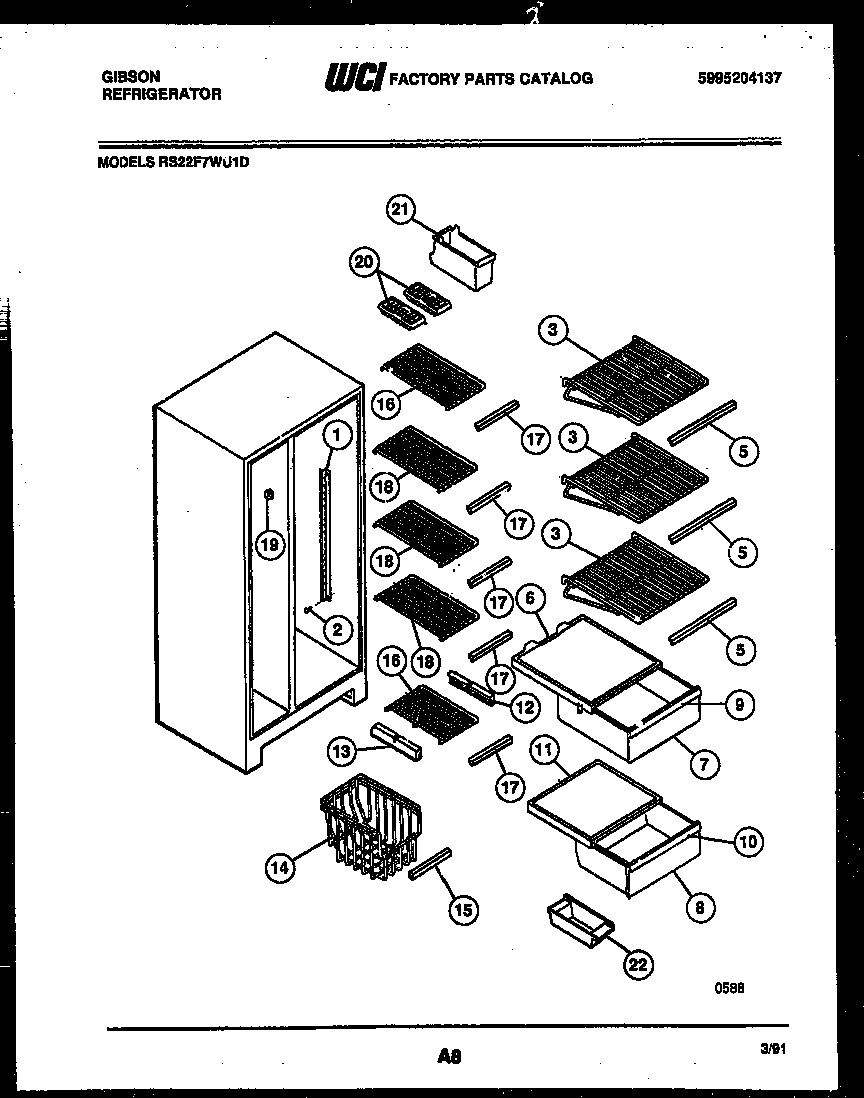

07 - SHELVES AND SUPPORT
09 - REFRIGERATOR CONTROL ASSY, DAMP
Common parts from model Electrolux RS22F7WU1D REFRIGERATOR
*40840
SCREW-MTG (2) WCI G185565 Contact Us For Availability
*40840
SHIM-HANDLE (2) WCI G176752 Contact Us For Availability
*40840
ANCHOR NUT (2) WCI G161863 Contact Us For Availability
*40850
PLUG, FREEZER LINER (3) WCI 5308016571 Contact Us For Availability
*40850
PLUG-REFRIG LINER (4) WCI 5303001288 Contact Us For Availability
*40867
HOT TUBE REPAIR KIT WCI 5300189379 Contact Us For Availability
*40867
WIRING HARNESS-COMPRESSOR & LIGHTS WCI 5308009616 Contact Us For Availability
1
EVAPORATOR WCI 5303916605 Contact Us For Availability
1
WCI 5300177745 WCI 5300177745 Contact Us For Availability
1
REFRIGERATOR DOOR-AVOC WCI G177745-08 Contact Us For Availability
1
REFRIGERATOR DOOR-WHEAT WCI G177745-09 Contact Us For Availability
1
WCI G177745-10 WCI G177745-10 Contact Us For Availability
1
WCI G177745-11 WCI G177745-11 Contact Us For Availability
1
WCI 5303001287 WCI 5303001287 Contact Us For Availability
1
CHANNEL - RH & LH WCI 5308002744 Contact Us For Availability
1A
DOOR PLUG BUTTON (NON-ILLUSTRATED) WCI 5315230801 Contact Us For Availability
2
LIGHT SOCKET - REFR WCI 5308000129 Contact Us For Availability
2
COIL BLOCK WCI 5308000828 Contact Us For Availability
2
WCI 5303001022 WCI 5303001022 Contact Us For Availability
2
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
2A
HINGE BEARING - LOWER (NON-ILLUSTRATED) WCI 5308012007 Contact Us For Availability
3
CONTROL TEMP WCI 5308000068 Contact Us For Availability
3
WCI 5303007568 WCI 5303007568 Contact Us For Availability
3
INSULATION, BULK WCI 5303007739 Contact Us For Availability
3
WCI 5303001286 WCI 5303001286 Contact Us For Availability
3
SHELF-REFRIG (4) WCI 3015097 Contact Us For Availability
4
WCI 5308017565 WCI 5308017565 Contact Us For Availability
4
WCI 5303200272 WCI 5303200272 Contact Us For Availability
4
HINGE TOP, RH WCI 5308012934 Contact Us For Availability
4
CONTROL BOX WCI 5308017561 Contact Us For Availability
4A
CLAMP-TUBE MTG (NON-ILLUSTRATED) WCI 5303001558 Contact Us For Availability
4A
SCREW MTG (NON-ILLUSTRATED) WCI 5303001020 Contact Us For Availability
4A
WCI 5303001062 WCI 5303001062 Contact Us For Availability
4A
INSUL-CONTROL BOX-REAR (NON-ILLUSTRATED) WCI 3001269 Contact Us For Availability
4B
INSULATION-COIL TOP (NON-ILLUSTRATED) WCI 5308009619 Contact Us For Availability
4C
TAPPING PLATE (2) (NON-ILLUSTRATED) WCI 5308012296 Contact Us For Availability
5
WASHER, HINGE PIN (2) WCI 5308000186 Contact Us For Availability
5
GASKET-REFRIG DOOR WCI 5303200473 Contact Us For Availability
5
TRIM, SNAP-ON (4) WCI 5317241002 Contact Us For Availability
6
WCI 5308002777 WCI 5308002777 Contact Us For Availability
6
WCI 3015088 WCI 3015088 Contact Us For Availability
6
SHIM, HINGE (2) WCI 5303001037 Contact Us For Availability
6
WCI 5316971102 WCI 5316971102 Contact Us For Availability
6
KNOB-COLD CONTROL WCI 5308010380 Contact Us For Availability
6A
GASKET-UPPER PAN (2) (NON-ILLUSTRATED) WCI 5303205880 Contact Us For Availability
7
WCI 3015087 WCI 3015087 Contact Us For Availability
7
HINGE COVER, AVOCADO WCI 5303001664 Contact Us For Availability
7
WCI 5303001665 WCI 5303001665 Contact Us For Availability
7
WCI 5303001666 WCI 5303001666 Contact Us For Availability
7
WCI 5308012820 WCI 5308012820 Contact Us For Availability
7
WCI 5308012933 WCI 5308012933 Contact Us For Availability
7
WCI G179709-03 WCI G179709-03 Contact Us For Availability
8
WCI 5303007521 WCI 5303007521 Contact Us For Availability
8
WCI G490079-33 WCI G490079-33 Contact Us For Availability
8
WCI 5303001271 WCI 5303001271 Contact Us For Availability
8
WCI G179710-02 WCI G179710-02 Contact Us For Availability
8A
SCREW-HINGE MTG (4) (NON-ILLUSTRATED) WCI 5303001041 Contact Us For Availability
8B
WCI 5303001273 WCI 5303001273 Contact Us For Availability
9
BRACKET-MTG (4) WCI 5308000296 Contact Us For Availability
9
SUPPORT, RH (5) WCI 3204850 Contact Us For Availability
9
WASHER, HINGE PIN (4) WCI 5303001038 Contact Us For Availability
9
TRIM, UPPER PAN WCI G177343-12 Contact Us For Availability
9
WCI 5303001260 WCI 5303001260 Contact Us For Availability
10
SUPPORT, LH (5) WCI 3204694 Contact Us For Availability
10
WCI 5303001272 WCI 5303001272 Contact Us For Availability
10
TRIM, LOWER PAN WCI G177343-11 Contact Us For Availability
10A
WCI 5308000013 WCI 5308000013 Contact Us For Availability
10B
WCI 5300077210 WCI 5300077210 Contact Us For Availability
11
WCI 5308000790 WCI 5308000790 Contact Us For Availability
11
DECORATIVE PLUG WCI 08012270 Contact Us For Availability
11
COVER, LOWER PAN WCI 5316972401 Contact Us For Availability
11
WCI 5303001276 WCI 5303001276 Contact Us For Availability
12
WCI 5316254901 WCI 5316254901 Contact Us For Availability
12
NAMEPLATE - FRAME WCI 5317511702 Contact Us For Availability
12
WCI 5317154002 WCI 5317154002 Contact Us For Availability
12
WCI 5303001098 WCI 5303001098 Contact Us For Availability
12
WCI 5303001277 WCI 5303001277 Contact Us For Availability
12A
TAPE-MTG (NON-ILLUSTRATED) WCI 5315340760 Contact Us For Availability
12A
WCI 5303001280 WCI 5303001280 Contact Us For Availability
12B
LABEL-UPPER (NON-ILLUSTRATED) WCI G188378-06 Contact Us For Availability
12C
LABEL-LOWER (NON-ILLUSTRATED) WCI 3019041 Contact Us For Availability
13
CLIP, GRILLE (2) WCI 5308000847 Contact Us For Availability
13
DOOR HANDLE WCI 5316355201 Contact Us For Availability
13
WCI 3015086 WCI 3015086 Contact Us For Availability
13
WCI 5303001099 WCI 5303001099 Contact Us For Availability
13
WCI 5316521701 WCI 5316521701 Contact Us For Availability
14
ROLLER ASSY (2) WCI 5308000118 Contact Us For Availability
14
WCI 3015096 WCI 3015096 Contact Us For Availability
14
WCI 5300185373 WCI 5300185373 Contact Us For Availability
14A
SCREW-ROLLER MTG (2) (NON-ILLUSTRATED) WCI 5308017044 Contact Us For Availability
15
WCI 3015108 WCI 3015108 Contact Us For Availability
15
WCI 5308000771 WCI 5308000771 Contact Us For Availability
16
DEFROST PAN WCI 5303001026 Contact Us For Availability
16
SHELF, FREEZER (2) WCI 5316965802 Contact Us For Availability
16
WCI 5303211383 WCI 5303211383 Contact Us For Availability
17
WCI 5308000107 WCI 5308000107 Contact Us For Availability
17
WCI 5303210976 WCI 5303210976 Contact Us For Availability
17
DRAIN OUTLET & TUBE WCI 5303209723 Contact Us For Availability
17
TRIM, SNAP ON (5) WCI 3016382 Contact Us For Availability
18
CLIP-OVERLOAD WCI 5303017762 Contact Us For Availability
18
WCI 5308000853 WCI 5308000853 Contact Us For Availability
18
SHELF-FZR (3) WCI 5303271646 Contact Us For Availability
18
WCI 5303205119 WCI 5303205119 Contact Us For Availability
19
WCI 5303006543 WCI 5303006543 Contact Us For Availability
19A
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
20
SUPPORT, COVER (2) WCI 5308000097 Contact Us For Availability
21
COMPRESSOR-W/ELECTRICALS WCI 5303916803 Contact Us For Availability
21
WCI 5303001219 WCI 5303001219 Contact Us For Availability
21
ICE CONTAINER WCI G163022-03 Contact Us For Availability
22
CLIP-MTG (4) WCI 5308003596 Contact Us For Availability
22
WCI 5303006765 WCI 5303006765 Contact Us For Availability
22
WCI 5317394819 WCI 5317394819 Contact Us For Availability
22
BRACKET - FRONT WCI 5303205118 Contact Us For Availability
23
WASHER-MTG (4) WCI 5308003633 Contact Us For Availability
23
WCI 5317423401 WCI 5317423401 Contact Us For Availability
24
WCI 5308000124 WCI 5308000124 Contact Us For Availability
24
COIL COVER - LOWER WCI 5308000823 Contact Us For Availability
25
DEFROST PLATE WCI 5308017112 Contact Us For Availability
25
WCI 5303001250 WCI 5303001250 Contact Us For Availability
25A
BRACKET-MTG (4) (NON-ILLUSTRATED) WCI 5308002782 Contact Us For Availability
25B
BRACKET-DEF PAN MTG (NON-ILLUSTRATED) WCI 5308002780 Contact Us For Availability
26
WCI 5303001197 WCI 5303001197 Contact Us For Availability
26
GASKET, COVER (2) WCI 5303007420 Contact Us For Availability
26
WCI 5316465401 WCI 5316465401 Contact Us For Availability
27
INSULATOR-EVAP WCI 5303001235 Contact Us For Availability
27
BRACKET-COVER MTG WCI 5308000738 Contact Us For Availability
27A
LOCK WASHER (2) (NON-ILLUSTRATED) WCI 5308009617 Contact Us For Availability
27B
WCI 5303001230 WCI 5303001230 Contact Us For Availability
31
WCI 3916445 WCI 3916445 Contact Us For Availability
31
WCI 3916446 WCI 3916446 Contact Us For Availability
31
WCI 5303916444 WCI 5303916444 Contact Us For Availability
31
WCI 5303916447 WCI 5303916447 Contact Us For Availability
31
WCI 5303916448 WCI 5303916448 Contact Us For Availability
31A
WCI 5300169100 WCI 5300169100 Contact Us For Availability
31A
WCI 5303001281 WCI 5303001281 Contact Us For Availability
33
WCI 5316445232 WCI 5316445232 Contact Us For Availability
34
LIGHT SHIELD-REF WCI 5303271921 Contact Us For Availability
35
SUPPORT, SHIELD (8) WCI 5303001213 Contact Us For Availability
36
WCI 5303001030 WCI 5303001030 Contact Us For Availability
37
WCI 5308000266 WCI 5308000266 Contact Us For Availability
38
PUSH NUT (2) WCI 5303001028 Contact Us For Availability
39
DAMPER, MEAT KEEPER WCI 5316491203 Contact Us For Availability
40858
HARNESS - WIRING WCI 5303015098 Contact Us For Availability
40859
CLIP-GROUNDING WCI 5303001231 Contact Us For Availability
40859
WCI 5303271652 WCI 5303271652 Contact Us For Availability
40859
WCI 5303271653 WCI 5303271653 Contact Us For Availability
× ![]()
