Model Electrolux RS22F7WU1B REFRIGERATOR – Common Parts & Diagrams

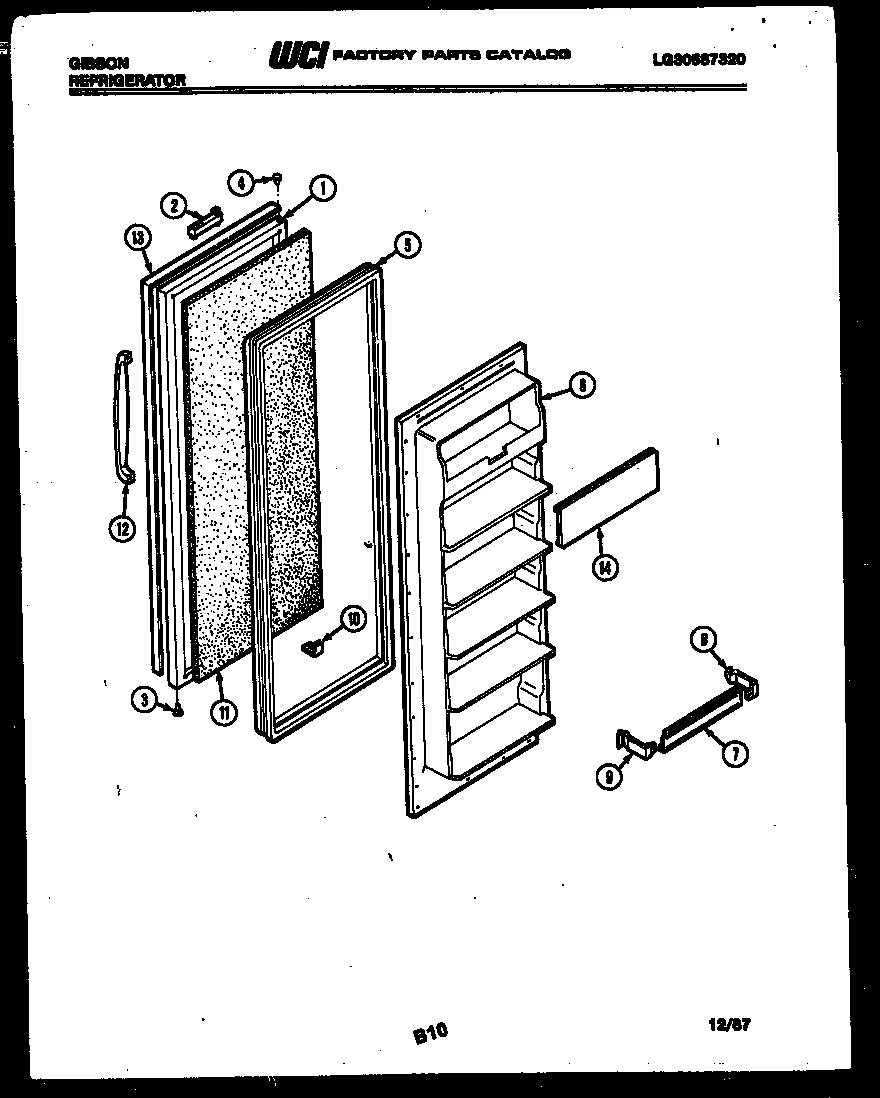

02 - FREEZER DOOR PARTS

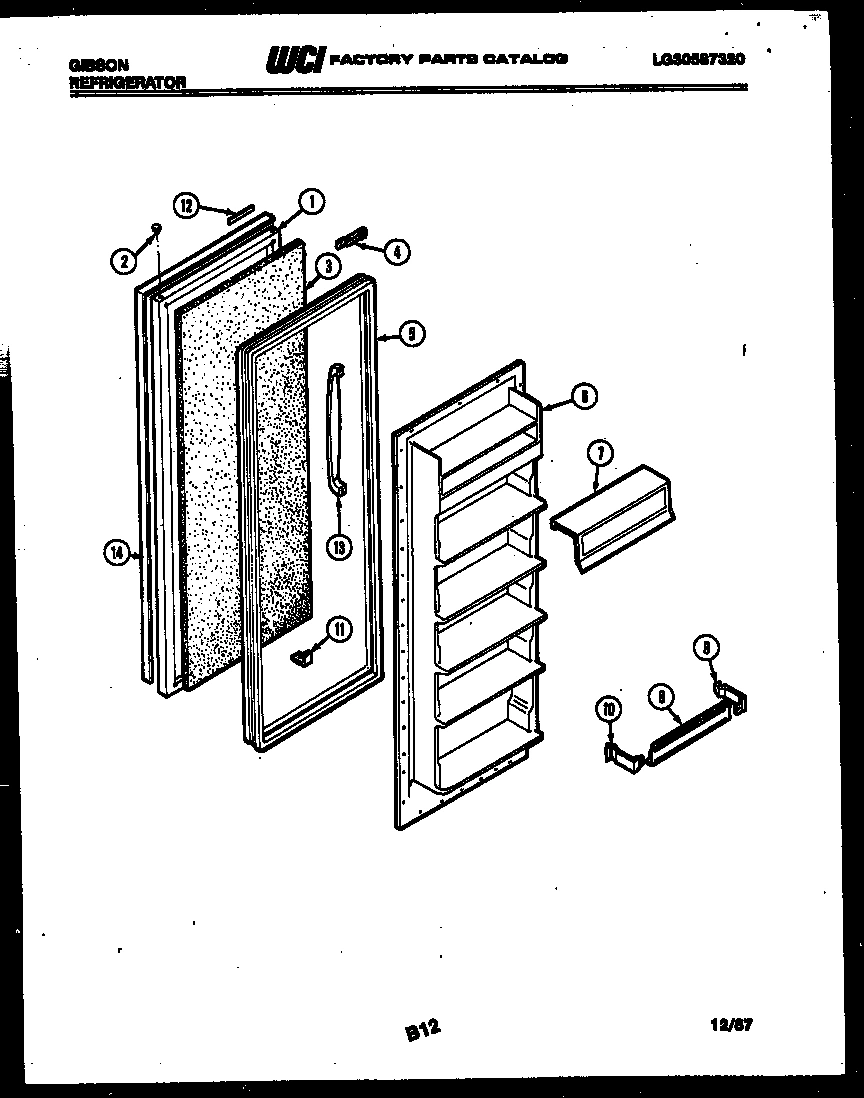

03 - REFRIGERATOR DOOR PARTS

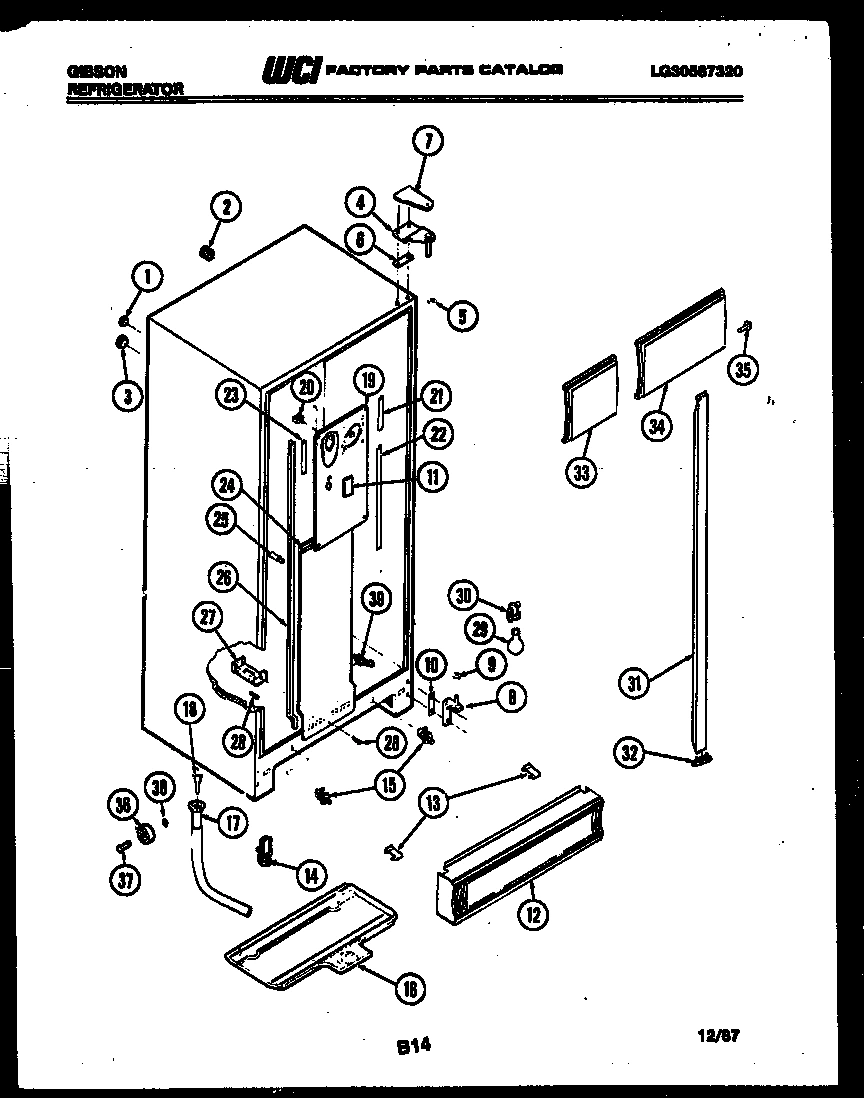

04 - CABINET PARTS

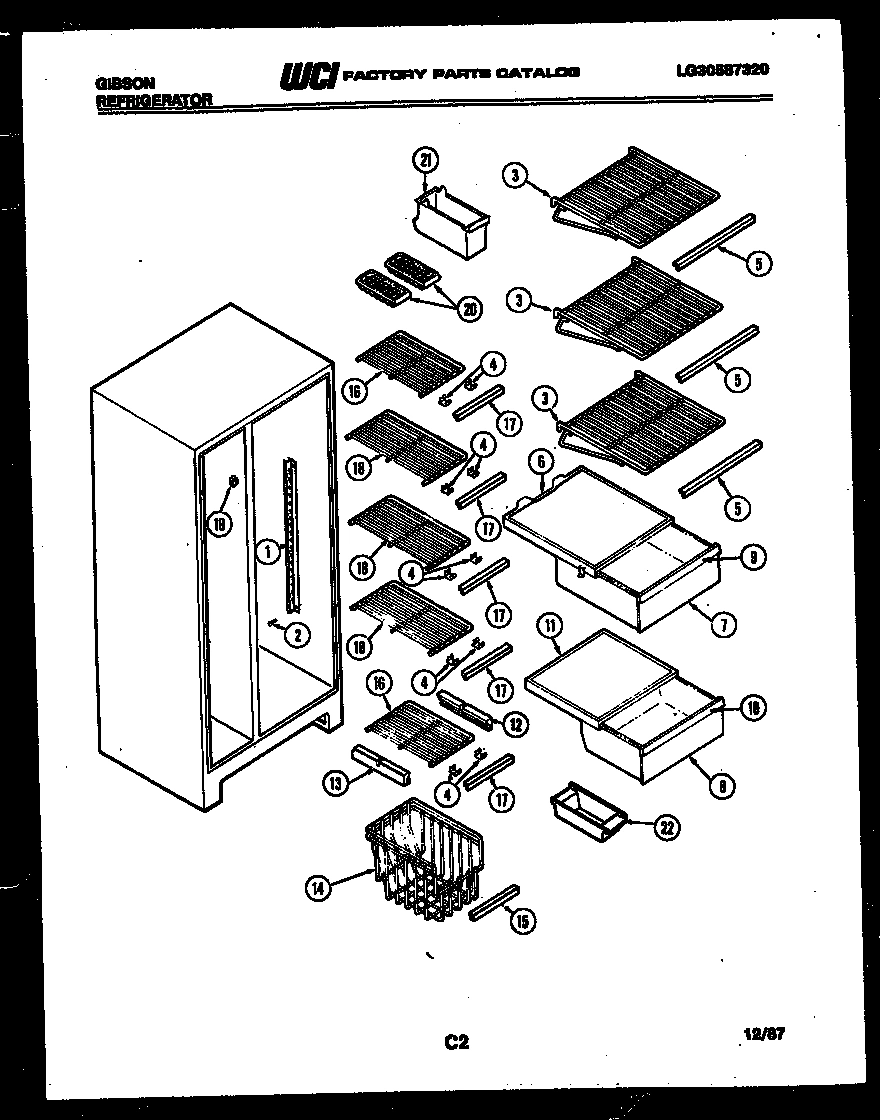

05 - SHELVES AND SUPPORTS

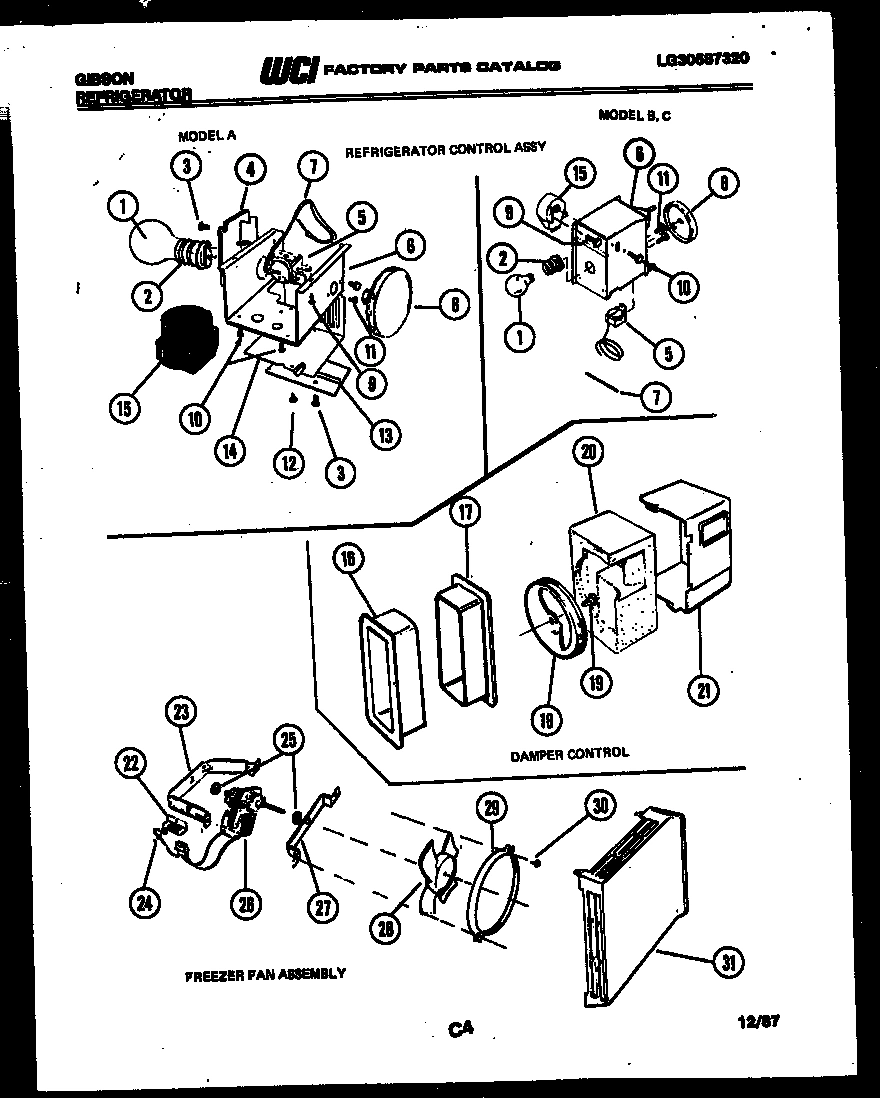

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

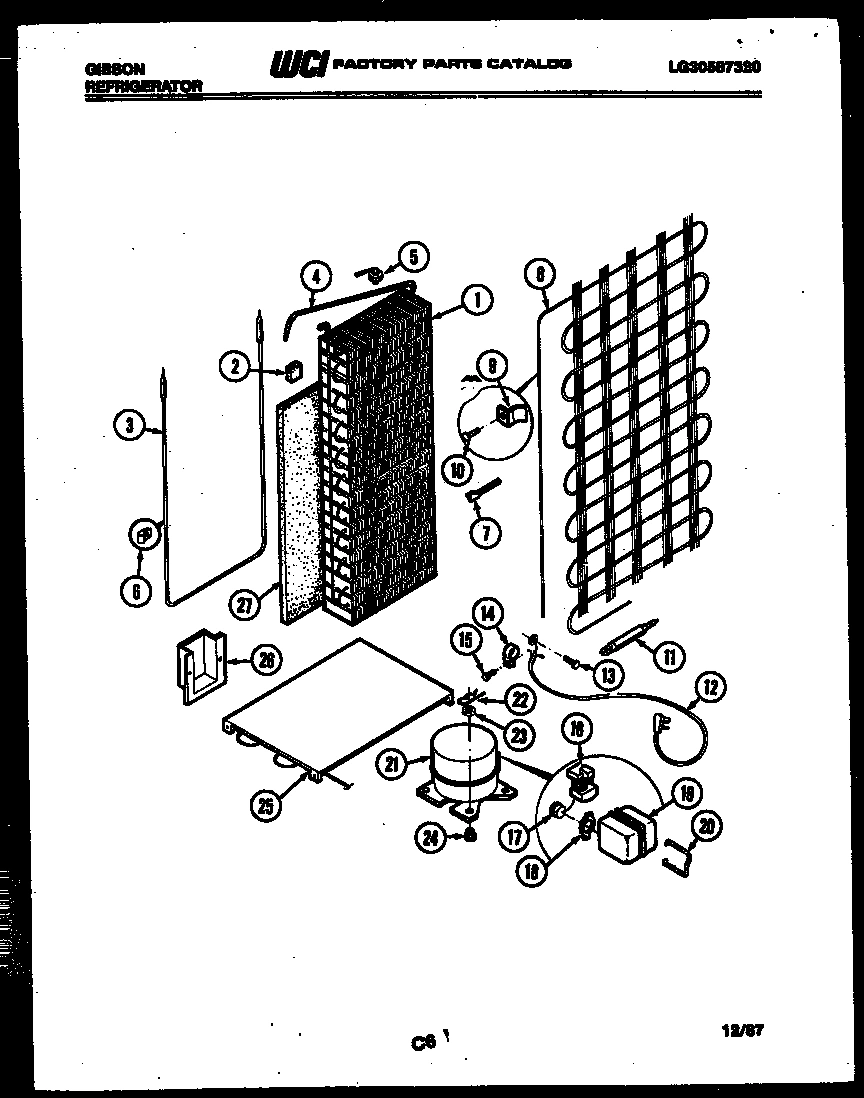

07 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RS22F7WU1B REFRIGERATOR
*38800
PLUG-REFR LINER (4) WCI 162892-01 Contact Us For Availability
*38800
PLUG-FRZR LINER (3) WCI G187599 Contact Us For Availability
*38849
WIRING HARNESS WCI 3015098 Contact Us For Availability
*38849
CLIP, GROUNDING WCI G162703 Contact Us For Availability
*38882
WIRING HARNESS-CMPR & LIGHTS WCI G164579 Contact Us For Availability
*38882
WCI G189376 WCI G189376 Contact Us For Availability
1
WCI G187978-08 WCI G187978-08 Contact Us For Availability
1
WCI G187978-09 WCI G187978-09 Contact Us For Availability
1
WCI G187978-10 WCI G187978-10 Contact Us For Availability
1
WCI G187978-11 WCI G187978-11 Contact Us For Availability
1
WCI G177745 WCI G177745 Contact Us For Availability
1
REFR DOOR-AVOC WCI G177745-08 Contact Us For Availability
1
WCI G177745-09 WCI G177745-09 Contact Us For Availability
1
REFR DOOR-COFE WCI G177745-10 Contact Us For Availability
1
REFR DOOR-ALMD WCI G177745-11 Contact Us For Availability
1
WCI G174734 WCI G174734 Contact Us For Availability
1
CHANNEL-RS & LS WCI G170694 Contact Us For Availability
1
WCI G190222 WCI G190222 Contact Us For Availability
1A
DOOR PLUG-BTM (NON-ILLUSTRATED) WCI G152308-01 Contact Us For Availability
2
HINGE BEARING-UPR WCI G183139 Contact Us For Availability
2
TUBE, RUBBER WCI G85642 Contact Us For Availability
2
LT SOCKET-REFR WCI G168302 Contact Us For Availability
2
COIL BLOCK WCI G169493 Contact Us For Availability
2A
HINGE BEARING-LWR (NON-ILLUSTRATED) WCI G183138 Contact Us For Availability
3
WCI G89643 WCI G89643 Contact Us For Availability
3
WCI G174733 WCI G174733 Contact Us For Availability
3
SHELF-REFR (4) WCI 3015097 Contact Us For Availability
3
WCI G190223 WCI G190223 Contact Us For Availability
4
DOOR CLOSER WCI G161119 Contact Us For Availability
4
HINGE-TOP RS WCI G183715 Contact Us For Availability
4
CLIP-TRIM (10) WCI G138399 Contact Us For Availability
4
WCI G189609 WCI G189609 Contact Us For Availability
4A
SCREW-MTG (NON-ILLUSTRATED) WCI G169729 Contact Us For Availability
4A
WCI G183716 WCI G183716 Contact Us For Availability
4C
TAPPING PLATE (2) (NON-ILLUSTRATED) WCI G157591 Contact Us For Availability
5
GASKET-FRZR DOOR WCI G180551-03 Contact Us For Availability
5
WCI G180551-02 WCI G180551-02 Contact Us For Availability
5
WASHER-HNG PIN (2) WCI G170156 Contact Us For Availability
5
WCI G172410-01 WCI G172410-01 Contact Us For Availability
5
CONTROL-TEMP WCI G162205-05 Contact Us For Availability
6
WCI G3015089 WCI G3015089 Contact Us For Availability
6
WCI 3015088 WCI 3015088 Contact Us For Availability
6
SHIM-HNG (2) WCI G183861 Contact Us For Availability
6
COVER-UPR PAN WCI G169711-02 Contact Us For Availability
6
CONTROL BOX WCI G189359 Contact Us For Availability
6
WCI G167363 WCI G167363 Contact Us For Availability
6A
WCI G180108-03 WCI G180108-03 Contact Us For Availability
6A
WCI G165434 WCI G165434 Contact Us For Availability
7
WCI 3015099 WCI 3015099 Contact Us For Availability
7
WCI 3015087 WCI 3015087 Contact Us For Availability
7
HINGE COVER-WHT WCI G183558-01 Contact Us For Availability
7
WCI G183558-08 WCI G183558-08 Contact Us For Availability
7
HINGE COVER-WEAT WCI G183558-09 Contact Us For Availability
7
HINGE COVER-COFE WCI G183558-10 Contact Us For Availability
7
HINGE COVER-ALMD WCI G183558-11 Contact Us For Availability
7
STORAGE PAN-UPR WCI G179709-03 Contact Us For Availability
8
WCI G490079-33 WCI G490079-33 Contact Us For Availability
8
WCI G162383 WCI G162383 Contact Us For Availability
8
STORAGE PAN-LWR WCI G179710-02 Contact Us For Availability
8
KNOB-TEMP CONT WCI G164906-01 Contact Us For Availability
8
WCI 3007521 WCI 3007521 Contact Us For Availability
8A
SCREW-HNG MTG (4) (NON-ILLUSTRATED) WCI G99167 Contact Us For Availability
8B
WCI G141673 WCI G141673 Contact Us For Availability
9
SUPPORT-RS (5) WCI G179946-02 Contact Us For Availability
9
WASHER-HNG PIN (4) WCI G164355 Contact Us For Availability
9
TRIM-UPR PAN WCI G177343-12 Contact Us For Availability
9
WCI G169666-01 WCI G169666-01 Contact Us For Availability
10
SUPPORT-LS (5) WCI G179947-02 Contact Us For Availability
10
SHIM-HNG (6) WCI G162903 Contact Us For Availability
10
TRIM-LWR PAN WCI G177343-11 Contact Us For Availability
10A
WCI G142361 WCI G142361 Contact Us For Availability
10B
WCI G77210 WCI G77210 Contact Us For Availability
11
BUMPER-LIGHT SW. WCI G165376 Contact Us For Availability
11
WCI G165416-07 WCI G165416-07 Contact Us For Availability
11
COVER-LWR PAN WCI G169724-02 Contact Us For Availability
11
WCI G107080 WCI G107080 Contact Us For Availability
12
NAMEPLATE-FRAME WCI G175117-02 Contact Us For Availability
12
WCI G171540-02 WCI G171540-02 Contact Us For Availability
12
HANGER-BASKET RS WCI G168986 Contact Us For Availability
12
WCI G162549-01 WCI G162549-01 Contact Us For Availability
12A
TAPE-MTG (NON-ILLUSTRATED) WCI G153407-60 Contact Us For Availability
12B
WCI G188378-06 WCI G188378-06 Contact Us For Availability
12C
ANCHOR NUT (2) (NON-ILLUSTRATED) WCI G161863 Contact Us For Availability
12C
LABEL-LWR (NON-ILLUSTRATED) WCI G175393-01 Contact Us For Availability
13
WCI G163552-01 WCI G163552-01 Contact Us For Availability
13
WCI G170328 WCI G170328 Contact Us For Availability
13
HANGER-BASKET LS WCI G168987 Contact Us For Availability
13A
WCI G185565 WCI G185565 Contact Us For Availability
13B
WCI G176752 WCI G176752 Contact Us For Availability
13C
WCI 161863 WCI 161863 Contact Us For Availability
14
WCI 3015086 WCI 3015086 Contact Us For Availability
14
ROLLER ASSY (2) WCI G186731 Contact Us For Availability
14
WCI 3015095 WCI 3015095 Contact Us For Availability
14A
SCREW-RLR MTG (2) (NON-ILLUSTRATED) WCI G187491 Contact Us For Availability
15
WCI 3015108 WCI 3015108 Contact Us For Availability
16
WCI G171125 WCI G171125 Contact Us For Availability
16
WCI G169658-02 WCI G169658-02 Contact Us For Availability
16
WCI G166802 WCI G166802 Contact Us For Availability
16
WCI G182225-04 WCI G182225-04 Contact Us For Availability
17
WCI G141727-32 WCI G141727-32 Contact Us For Availability
17
WCI G166803 WCI G166803 Contact Us For Availability
17
WCI G188727 WCI G188727 Contact Us For Availability
17A
GASKET-FERRULE (NON-ILLUSTRATED) WCI G167582 Contact Us For Availability
18
WCI G171193 WCI G171193 Contact Us For Availability
18
SHELF-FRZR (3) WCI G169658-01 Contact Us For Availability
18
KNOB-DMPR CONT WCI G165217-01 Contact Us For Availability
18
CLIP-OVERLOAD WCI G188957 Contact Us For Availability
19
WCI G169481-01 WCI G169481-01 Contact Us For Availability
19
WCI G185373 WCI G185373 Contact Us For Availability
19A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
20
SUPPORT, COVER (2) WCI G163669 Contact Us For Availability
20
WCI G164575 WCI G164575 Contact Us For Availability
21
WCI G165233 WCI G165233 Contact Us For Availability
21
ICE CONTAINER WCI G163022-03 Contact Us For Availability
21
CONTROL BOX-DMPR WCI G164523 Contact Us For Availability
21
WCI G189470 WCI G189470 Contact Us For Availability
22
WCI G174234-02 WCI G174234-02 Contact Us For Availability
22
WCI G173948-27 WCI G173948-27 Contact Us For Availability
22
BRACKET-CONN WCI G164571 Contact Us For Availability
22
CLIP-MTG (4) WCI G163204 Contact Us For Availability
23
WCI G174234-01 WCI G174234-01 Contact Us For Availability
23
WCI G185303 WCI G185303 Contact Us For Availability
23
WASHER-MTG (4) WCI G164634 Contact Us For Availability
24
WCI G169477-03 WCI G169477-03 Contact Us For Availability
25
BUSHING (2) WCI G187559 Contact Us For Availability
25
WCI G169471 WCI G169471 Contact Us For Availability
25
WCI G188596 WCI G188596 Contact Us For Availability
25A
WCI G171111 WCI G171111 Contact Us For Availability
25B
BRKT-DFR PAN MTG (NON-ILLUSTRATED) WCI G171123 Contact Us For Availability
26
WCI G188000-03 WCI G188000-03 Contact Us For Availability
26
WCI G183584 WCI G183584 Contact Us For Availability
27
WCI G158022 WCI G158022 Contact Us For Availability
27
WCI G185302 WCI G185302 Contact Us For Availability
27
INSULATOR-EVAP WCI G169641 Contact Us For Availability
27A
LOCK WASHER (2) (NON-ILLUSTRATED) WCI G164820 Contact Us For Availability
27B
WCI G184851 WCI G184851 Contact Us For Availability
29
WCI G167217 WCI G167217 Contact Us For Availability
31
MULLION-WHT WCI G164643 Contact Us For Availability
31
MULLION AVOC. WCI G164643-08 Contact Us For Availability
31
MULLION-WEAT WCI G164643-09 Contact Us For Availability
31
MULLION-COFE WCI G164643-10 Contact Us For Availability
31
MULLION-ALMD WCI G164643-11 Contact Us For Availability
31
WCI G164654-01 WCI G164654-01 Contact Us For Availability
31A
WCI G169100 WCI G169100 Contact Us For Availability
31B
WCI G169297 WCI G169297 Contact Us For Availability
32
MULLION TRIM-WHT WCI G169745-01 Contact Us For Availability
32
MULLION TRIM-AVOC WCI G169745-08 Contact Us For Availability
32
MULLION TRIM-WEAT WCI G169745-09 Contact Us For Availability
32
MULLION TRIM-COFE WCI G169745-10 Contact Us For Availability
32
MULLION TRIM-ALMD WCI G169745-11 Contact Us For Availability
33
LIGHT SHIELD-FRZR WCI G164452-33 Contact Us For Availability
34
WCI 3015073 WCI 3015073 Contact Us For Availability
35
SUPPORT-SHIELD (8) WCI G165177 Contact Us For Availability
36
WCI G162808 WCI G162808 Contact Us For Availability
37
WCI G162809 WCI G162809 Contact Us For Availability
38
PUSH NUT (2) WCI G162662 Contact Us For Availability
39
DAMPER-MT KEEPER WCI G164912-03 Contact Us For Availability
× ![]()
