Model Electrolux RS22F5DX1B REFRIGERATOR – Common Parts & Diagrams

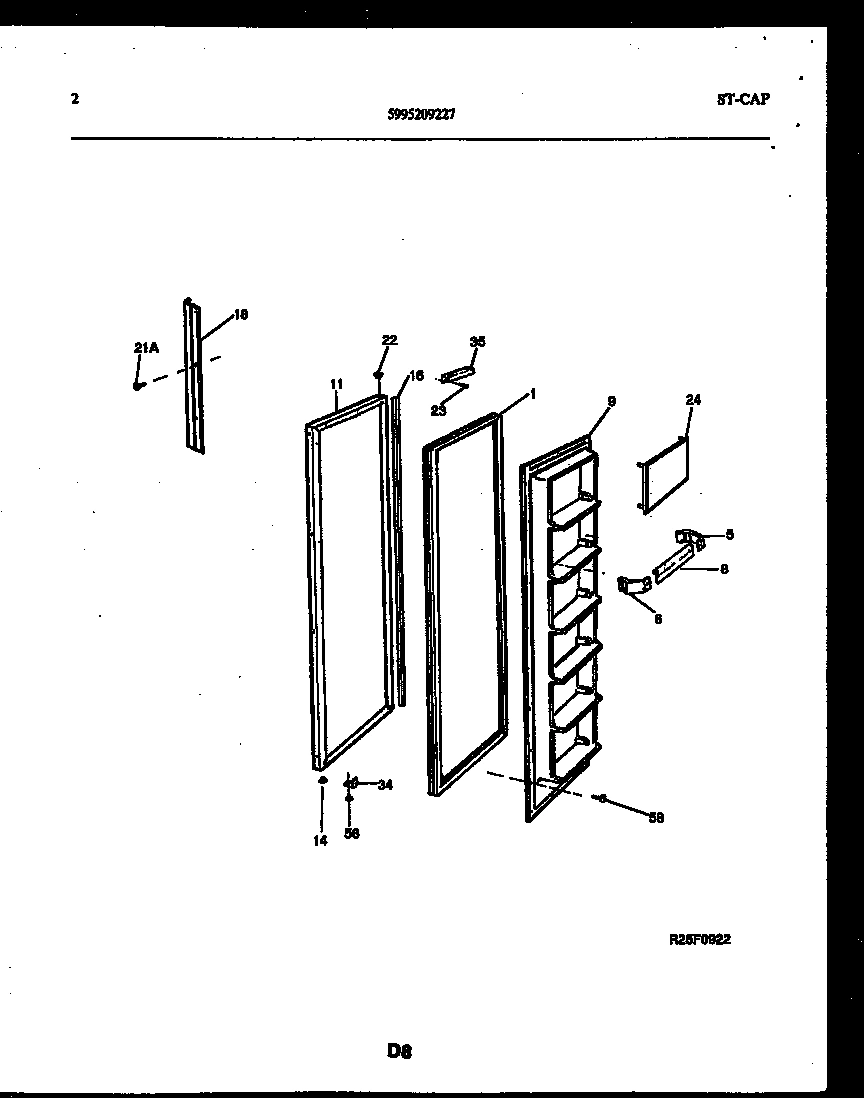

02 - FREEZER DOOR PARTS

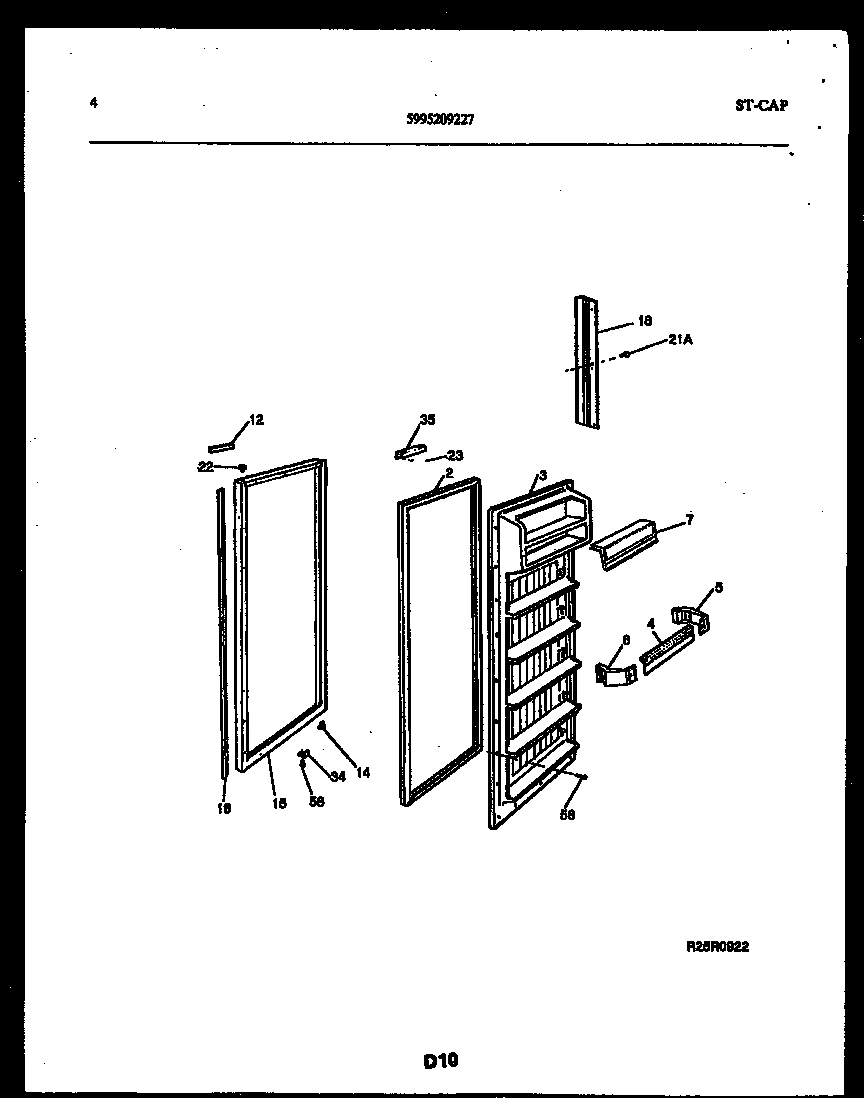

03 - REFRIGERATOR DOOR PARTS

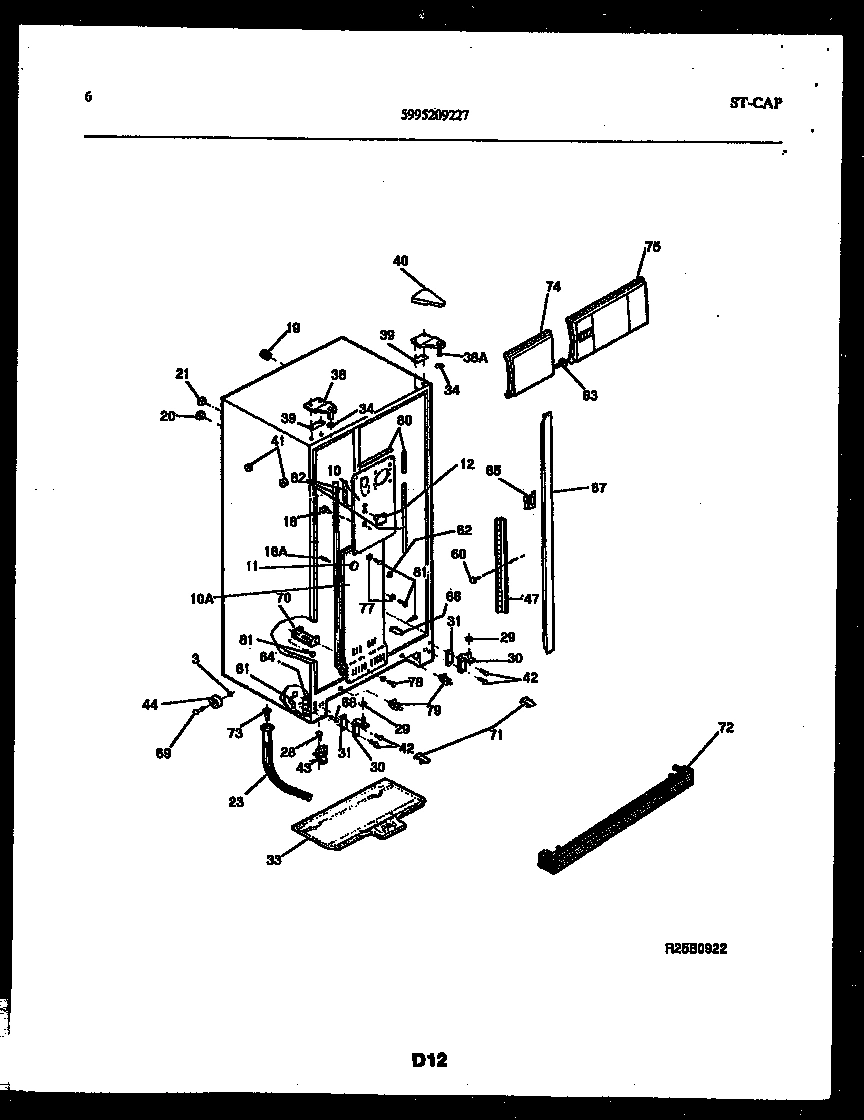

04 - CABINET PARTS

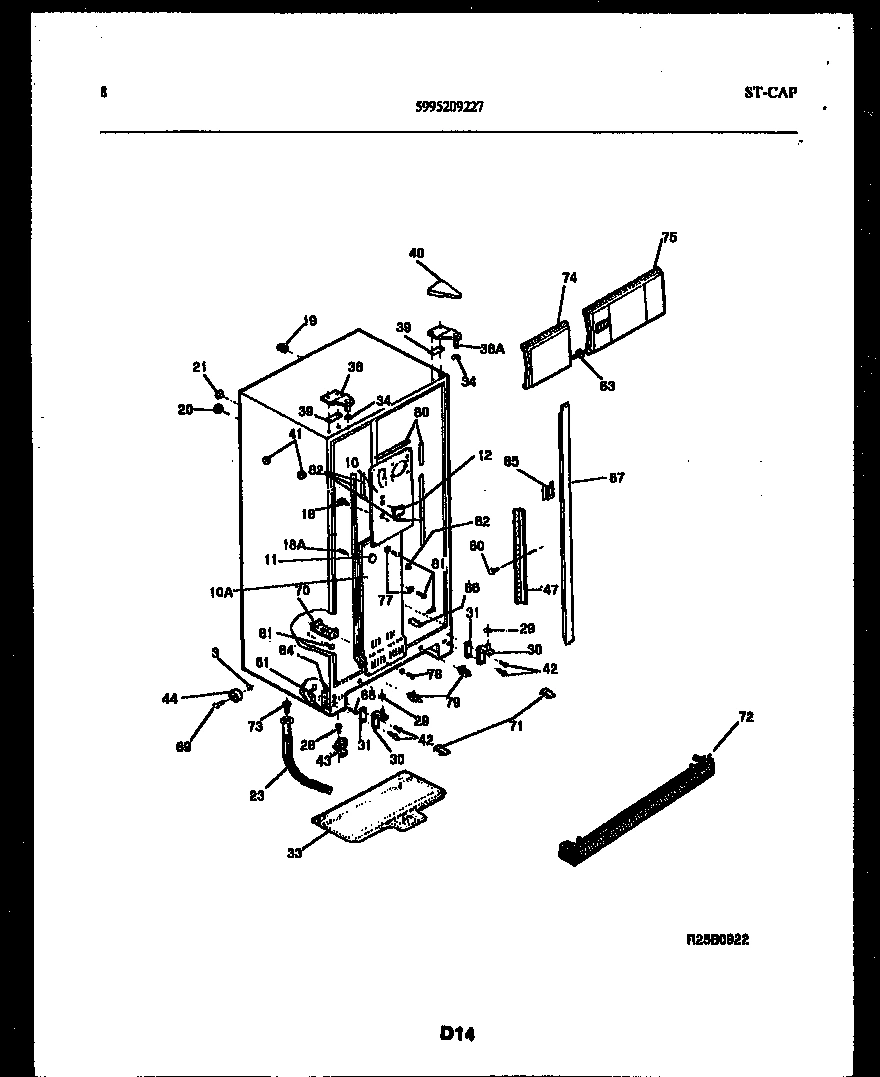

05 - CABINET PARTS

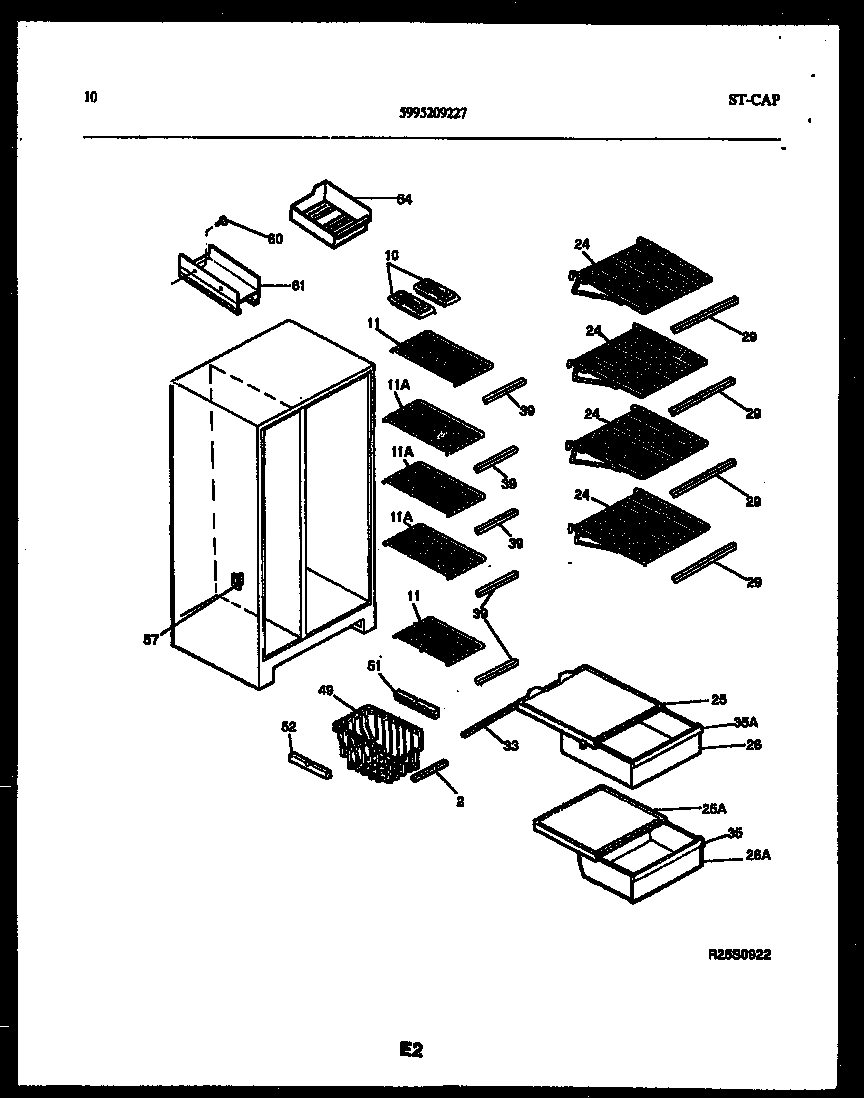

06 - SHELVES AND SUPPORTS

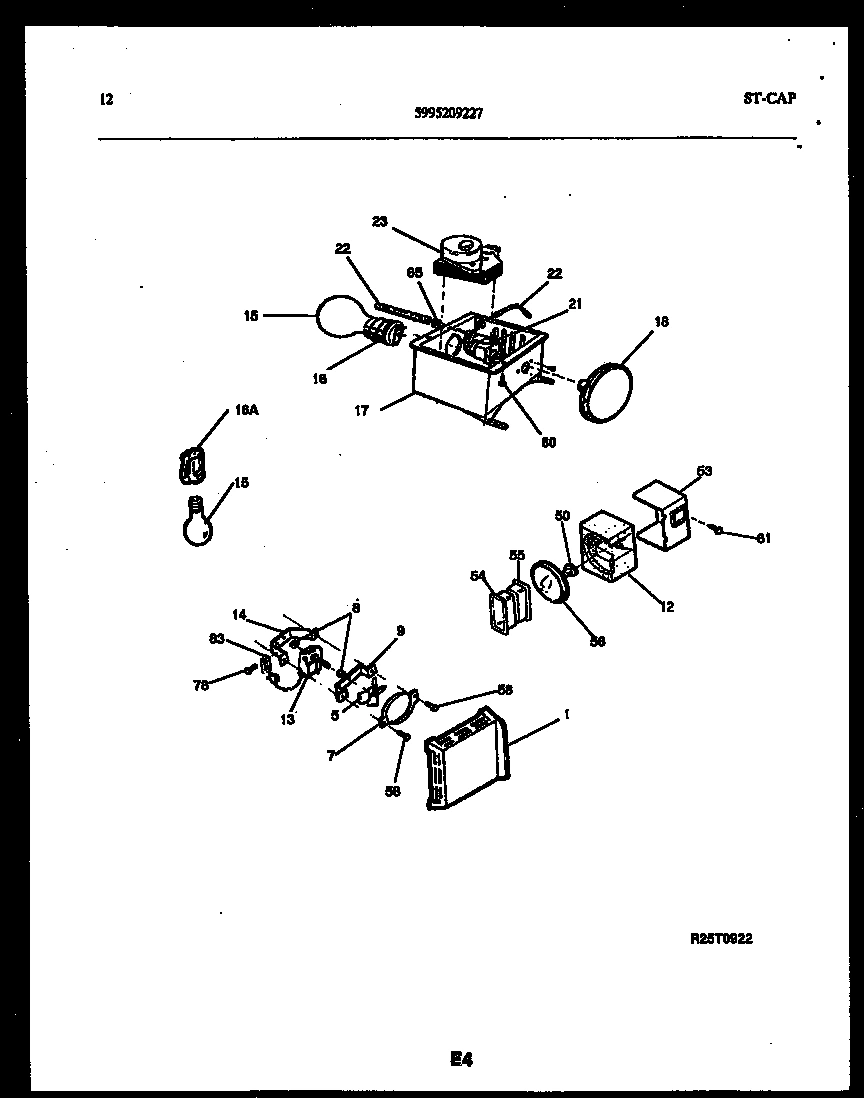

07 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

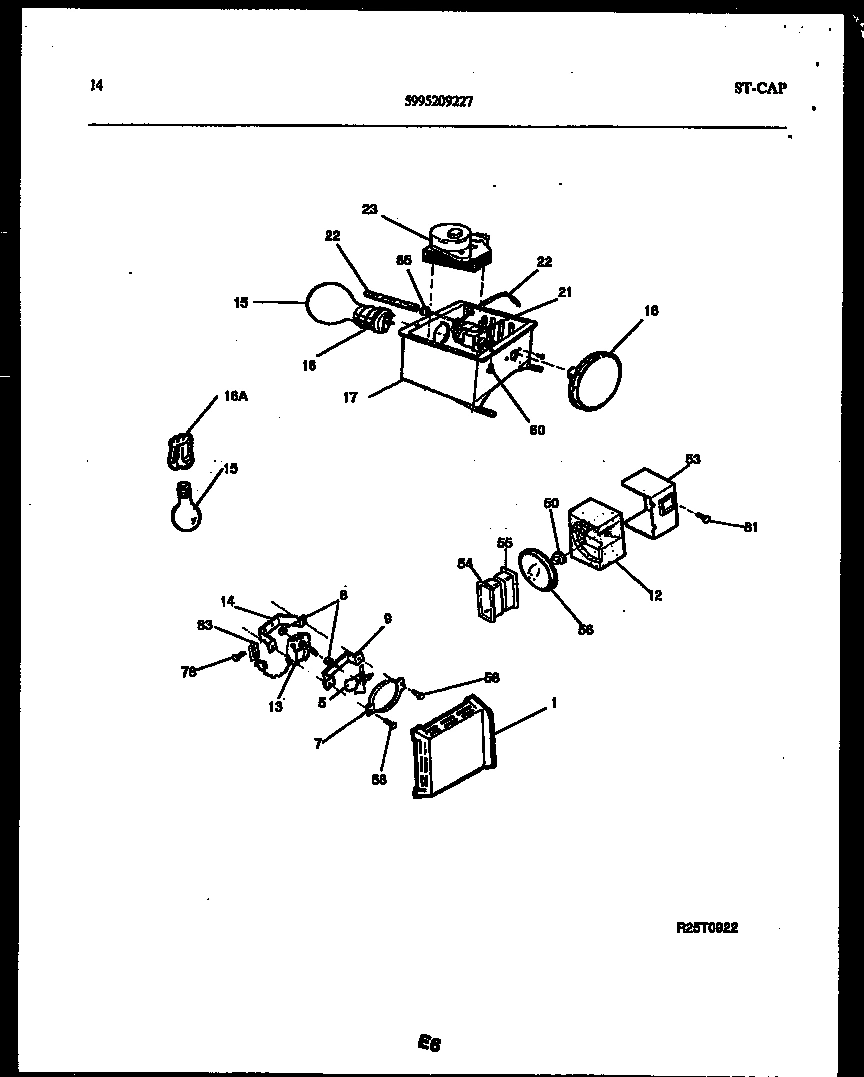

08 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

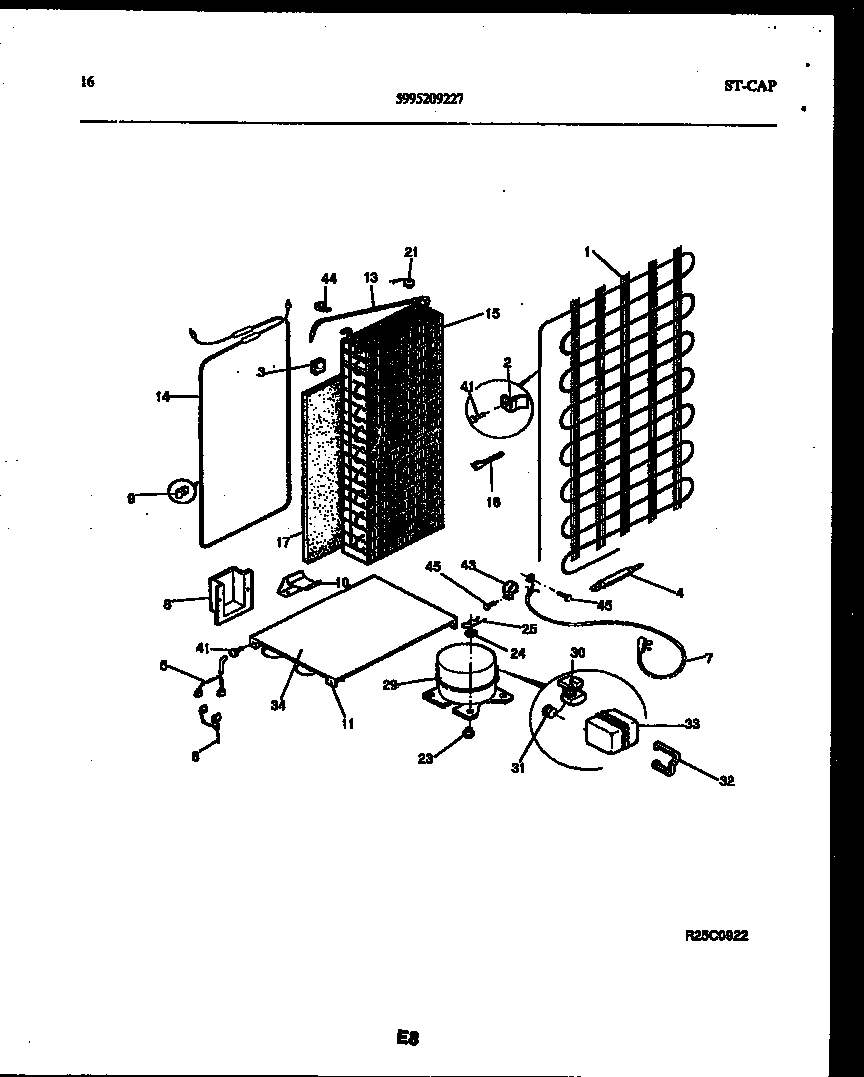

09 - SYSTEM AND AUTOMATIC DEFROST PARTS

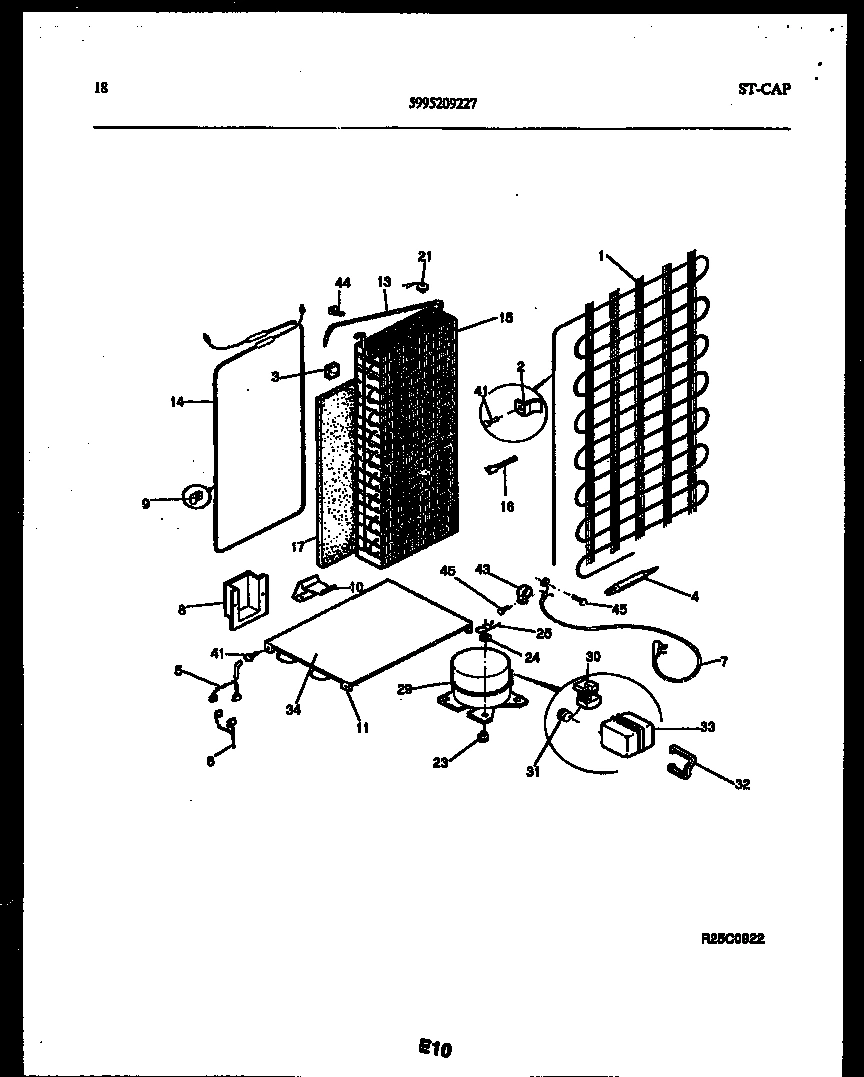

10 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RS22F5DX1B REFRIGERATOR
*45418
INSULATION, DOOR, FIBERGLASS, (BULK) WCI 5303007739 Contact Us For Availability
*45422
BUTTON PLUG-LINER WCI 5308016571 Contact Us For Availability
*45422
CLIP-WIRING HARNESS WCI 5308017046 Contact Us For Availability
*45425
CLIP-CANTILEVER SHLF WCI 5300170910 Contact Us For Availability
*45430
HOT TUBE REPAIR KIT, SERVICE WCI 5300189379 Contact Us For Availability
*45430
INSULATOR-FRZR COIL-TOP WCI 5308009619 Contact Us For Availability
1
WCI 5316465401 WCI 5316465401 Contact Us For Availability
1
WCI 5303007521 WCI 5303007521 Contact Us For Availability
2
WCI 5303200473 WCI 5303200473 Contact Us For Availability
2
WCI 3205569 WCI 3205569 Contact Us For Availability
2
WCI 5308000296 WCI 5308000296 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
WCI 5303276056 WCI 5303276056 Contact Us For Availability
3
NUT, PUSH WCI 5303001028 Contact Us For Availability
3
BLOCK-COIL (4) WCI 5308000828 Contact Us For Availability
4
WCI 5303276418 WCI 5303276418 Contact Us For Availability
5
WCI 5303276010 WCI 5303276010 Contact Us For Availability
5
WIRING HARNESS, CONTROLS WCI 5303015098 Contact Us For Availability
6
WCI 5303276011 WCI 5303276011 Contact Us For Availability
6
WIRING HARNESS, COMPR/LIGHT SW WCI 5308009616 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 5303275961 WCI 5303275961 Contact Us For Availability
7
CORD, ELEC SERVICE WCI 5316254901 Contact Us For Availability
8
WCI 5300157666 WCI 5300157666 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
SUPPORT-DEFROST HTR WCI 5308002777 Contact Us For Availability
10
COVER-EVAP COIL, UPPER WCI 5303006543 Contact Us For Availability
10
TRAY-ICE, PLASTIC, (2) WCI 5318253601 Contact Us For Availability
10
WCI 5308002780 WCI 5308002780 Contact Us For Availability
10A
WCI 5308000823 WCI 5308000823 Contact Us For Availability
10B
NUT, ``U`` TYPE, NO. 8(A), EVAP COVER, (2) (N WCI 5303209814 Contact Us For Availability
11
WCI 5303007123 WCI 5303007123 Contact Us For Availability
11
WCI 5308002782 WCI 5308002782 Contact Us For Availability
11A
WCI 5303007122 WCI 5303007122 Contact Us For Availability
12
WCI 5303275544 WCI 5303275544 Contact Us For Availability
12
WCI 5303275307 WCI 5303275307 Contact Us For Availability
12
DEFLECTOR-AIR WCI 5308000771 Contact Us For Availability
13
HEAT EXCHANGER, SUCTION LINE WCI 5308017565 Contact Us For Availability
14
WCI 5303007568 WCI 5303007568 Contact Us For Availability
14
BUTTON PLUG, REFR/FZR DOOR WCI 5315230801 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
15
WCI 5303916998 WCI 5303916998 Contact Us For Availability
15
WCI 5303916605 WCI 5303916605 Contact Us For Availability
15A
WCI 3206414 WCI 3206414 Contact Us For Availability
16
SOCKET-LIGHT/LAMP WCI 5308000129 Contact Us For Availability
16
WCI 5303275365 WCI 5303275365 Contact Us For Availability
17
WCI 5308017561 WCI 5308017561 Contact Us For Availability
17
INSULATOR-EVAP WCI 5303001235 Contact Us For Availability
17A
INSULATOR-CONTRL BOX, REAR (NON-ILLUSTRATED) WCI 3001269 Contact Us For Availability
18
HANDLE-DOOR, TRADITIONAL OAK WCI 5303275497 Contact Us For Availability
18
SUPPORT, EVAP COVER, (2) WCI 5308000097 Contact Us For Availability
18
WCI 5308010380 WCI 5308010380 Contact Us For Availability
18A
SUPPORT-EVAP COVER, (5) WCI 5303001250 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
21
WCI 5308000068 WCI 5308000068 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
21A
WCI 5308011745 WCI 5308011745 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
BEARING-HINGE UPPER WCI 5303001022 Contact Us For Availability
22
BEARING-HINGE WCI 5308012007 Contact Us For Availability
23
SCREW-DOOR CLOSER MTG, CR FLAT HEAD, 8-32(D) WCI 5303001020 Contact Us For Availability
23
WCI 5303209723 WCI 5303209723 Contact Us For Availability
24
WCI 5303272037 WCI 5303272037 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 5308009642 WCI 5308009642 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25A
WCI 5316972401 WCI 5316972401 Contact Us For Availability
26
WCI 5303275349 WCI 5303275349 Contact Us For Availability
26A
WCI 5303275350 WCI 5303275350 Contact Us For Availability
28
BOLT-ROLLER ADJ, HEX HEAD MACH, 5/16-24 X 3/4 WCI 5308009568 Contact Us For Availability
29
WASHER, .28 X .62 X .19, NYLON WCI 5303001038 Contact Us For Availability
29
WCI 5303275418 WCI 5303275418 Contact Us For Availability
29
COMPRESSOR-W/ ELEC, SERVICE WCI 5308950223 Contact Us For Availability
29A
CAPACITOR-RUN (NON-ILLUSTRATED) WCI 5303916391 Contact Us For Availability
30
WCI 5303007173 WCI 5303007173 Contact Us For Availability
30
BRACKET-LOWER HINGE, (2), W/ HINGE PIN WCI 5303001271 Contact Us For Availability
31
WCI 5303271616 WCI 5303271616 Contact Us For Availability
31
SHIM-LOWER HINGE (2) WCI 5303001272 Contact Us For Availability
33
WCI 5303001026 WCI 5303001026 Contact Us For Availability
33
GASKET-CRISPER COVER WCI 5303205880 Contact Us For Availability
34
WCI 5308000186 No Longer Available
34
WCI 5308000790 WCI 5308000790 Contact Us For Availability
34
WCI 5308017112 WCI 5308017112 Contact Us For Availability
35
CLOSER-DOOR WCI 5303200272 Contact Us For Availability
35
WCI 5303275339 WCI 5303275339 Contact Us For Availability
35A
WCI 5303275340 WCI 5303275340 Contact Us For Availability
38
BRACKET-UPPER HINGE, LH WCI 5303001062 Contact Us For Availability
38A
WCI 5308012934 WCI 5308012934 Contact Us For Availability
38C
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
39
WCI 5303275333 WCI 5303275333 Contact Us For Availability
40
COVER-UPPER HINGE, WHITE WCI 5308012820 Contact Us For Availability
42
SCREW-LWR HINGE MTG, REC HEX HEAD, 1/4(AB) X WCI 5303001041 Contact Us For Availability
43
ROLLER ASSY-FRONT (2) WCI 5308000118 Contact Us For Availability
43A
SCREW-ROLLER MTG, SPEC IND HEX HD, 5/16(23) ( WCI 5308017044 Contact Us For Availability
44
WCI 5303001030 WCI 5303001030 Contact Us For Availability
47
CHANNEL-SHELF MTG, SIDE, (2) WCI 5308002744 Contact Us For Availability
49
WCI 3017211 WCI 3017211 Contact Us For Availability
50
WCI 5300185373 WCI 5300185373 Contact Us For Availability
51
WCI 5303001098 WCI 5303001098 Contact Us For Availability
52
WCI 5303001099 WCI 5303001099 Contact Us For Availability
53
WCI 5303211383 WCI 5303211383 Contact Us For Availability
54
WCI 5303001276 WCI 5303001276 Contact Us For Availability
55
WCI 5303001277 WCI 5303001277 Contact Us For Availability
55A
WCI 5303001280 WCI 5303001280 Contact Us For Availability
56
WCI 5316521701 WCI 5316521701 Contact Us For Availability
57
WCI 5303271652 WCI 5303271652 Contact Us For Availability
57
WCI 5303271653 WCI 5303271653 Contact Us For Availability
61
NUT, STUD SPEED, .094, (2) WCI 5300077210 Contact Us For Availability
61
COMPARTMENT-ICE TRAY WCI 08009824 Contact Us For Availability
62
CLIP-GROUNDING WCI 5303001231 Contact Us For Availability
63
SUPPORT-LIGHT SHIELD, (4) WCI 5303001213 Contact Us For Availability
64
NUT-SPECIAL TWIN (4) WCI 5303001273 Contact Us For Availability
65
CLIP-MULLION MTG, (3) WCI 5303001281 Contact Us For Availability
65A
CLIP-MULLION MTG, (3) (NON-ILLUSTRATED) WCI 5300169100 Contact Us For Availability
66
WCI 08017447 WCI 08017447 Contact Us For Availability
67
WCI 5303916444 WCI 5303916444 Contact Us For Availability
68
PIN, SHOULDER, 3/32 X 5/8, (2) WCI 5308000013 Contact Us For Availability
69
WCI 5308000266 WCI 5308000266 Contact Us For Availability
70
BRACKET-COVER MTG WCI 5308000738 Contact Us For Availability
71
CLIP, GRILLE (2) WCI 5308000847 No Longer Available
72
GRILLE/KICKPLATE WCI 3200661 Contact Us For Availability
73
CONDUCTOR-HEAT WCI 5308000853 Contact Us For Availability
74
WCI 5303275302 WCI 5303275302 Contact Us For Availability
75
WCI 5303275430 WCI 5303275430 Contact Us For Availability
77
WASHER-NYLON, 3/16 X 5/8 OD, (8) WCI 5303001216 Contact Us For Availability
79A
CLIP-CABLE, LIGHT SWITCH (NON-ILLUSTRATED) WCI 08009775 Contact Us For Availability
80
GASKET-COIL COVER (2) WCI 5303001219 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
× ![]()
