Model Electrolux RS229MCD2 REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER DOOR PARTS
03 - REFRIGERATOR DOOR PARTS

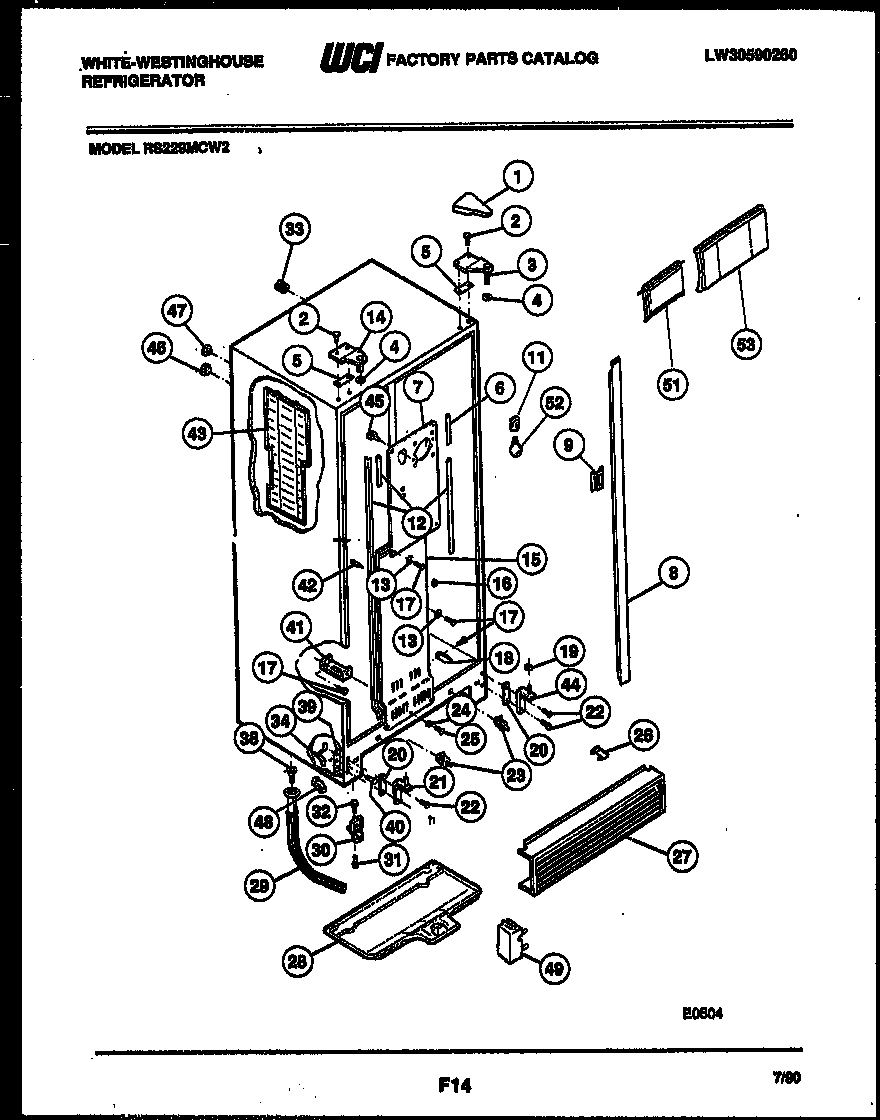

04 - CABINET PARTS

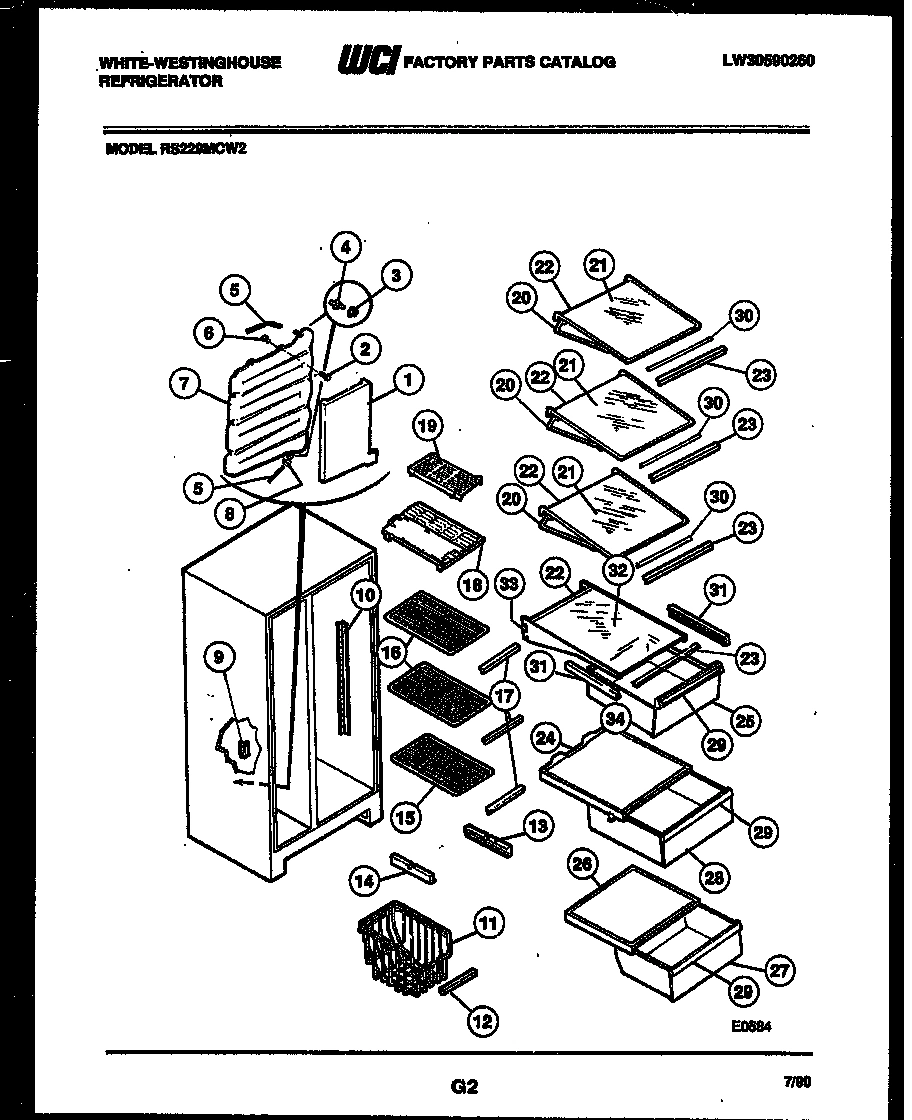

05 - SHELVES AND SUPPORTS

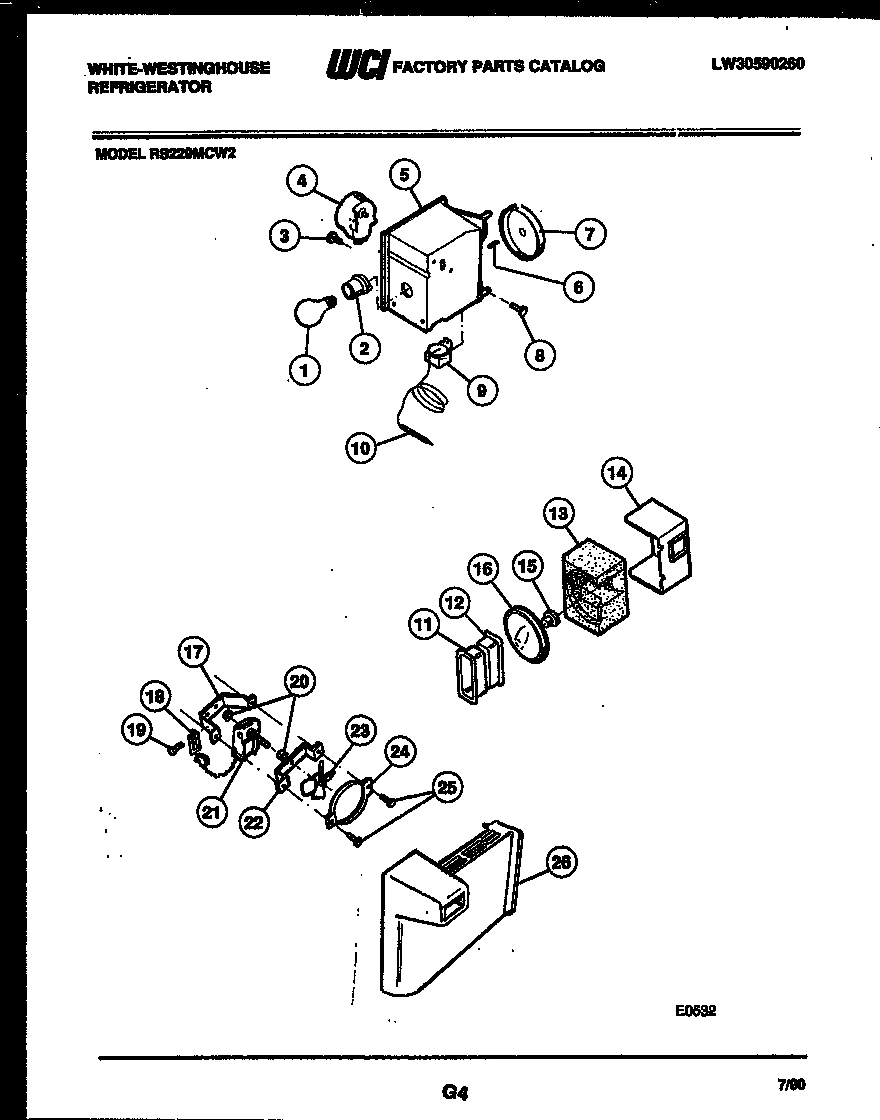

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

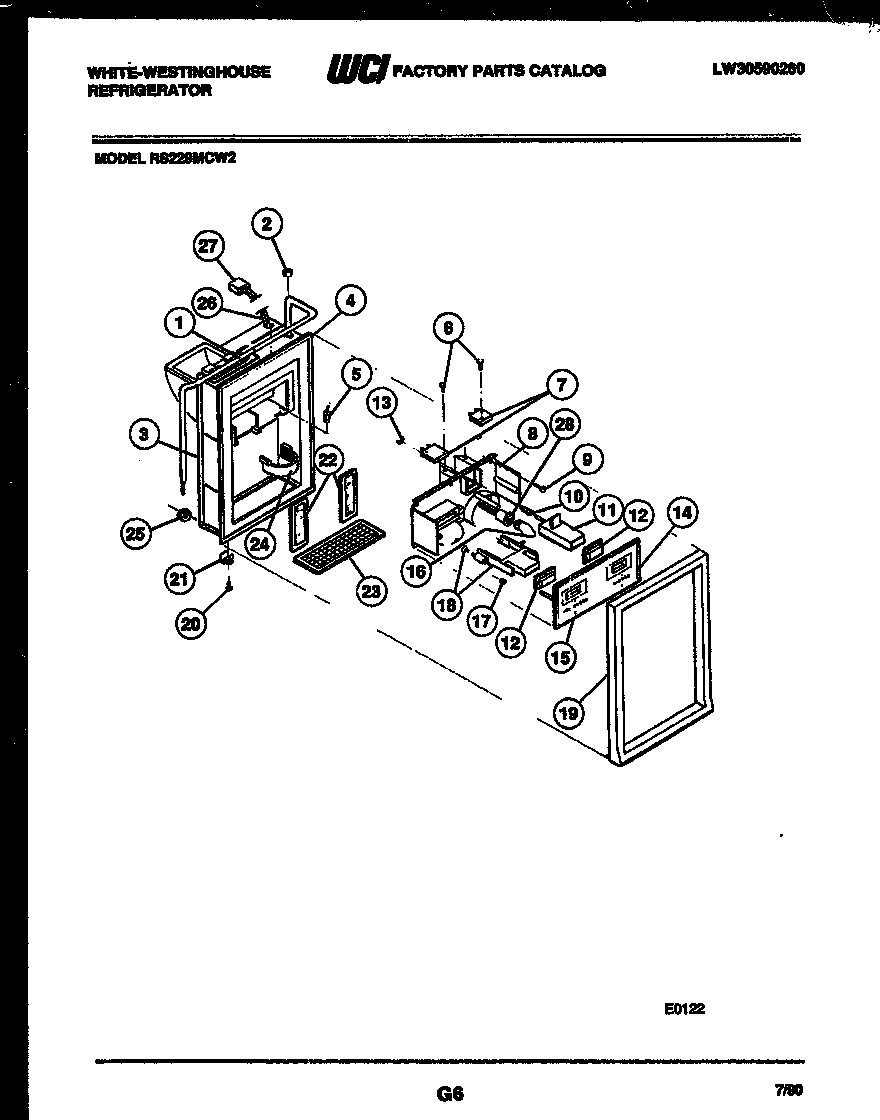

07 - ICE DOOR, DISPENSER AND WATER TANK

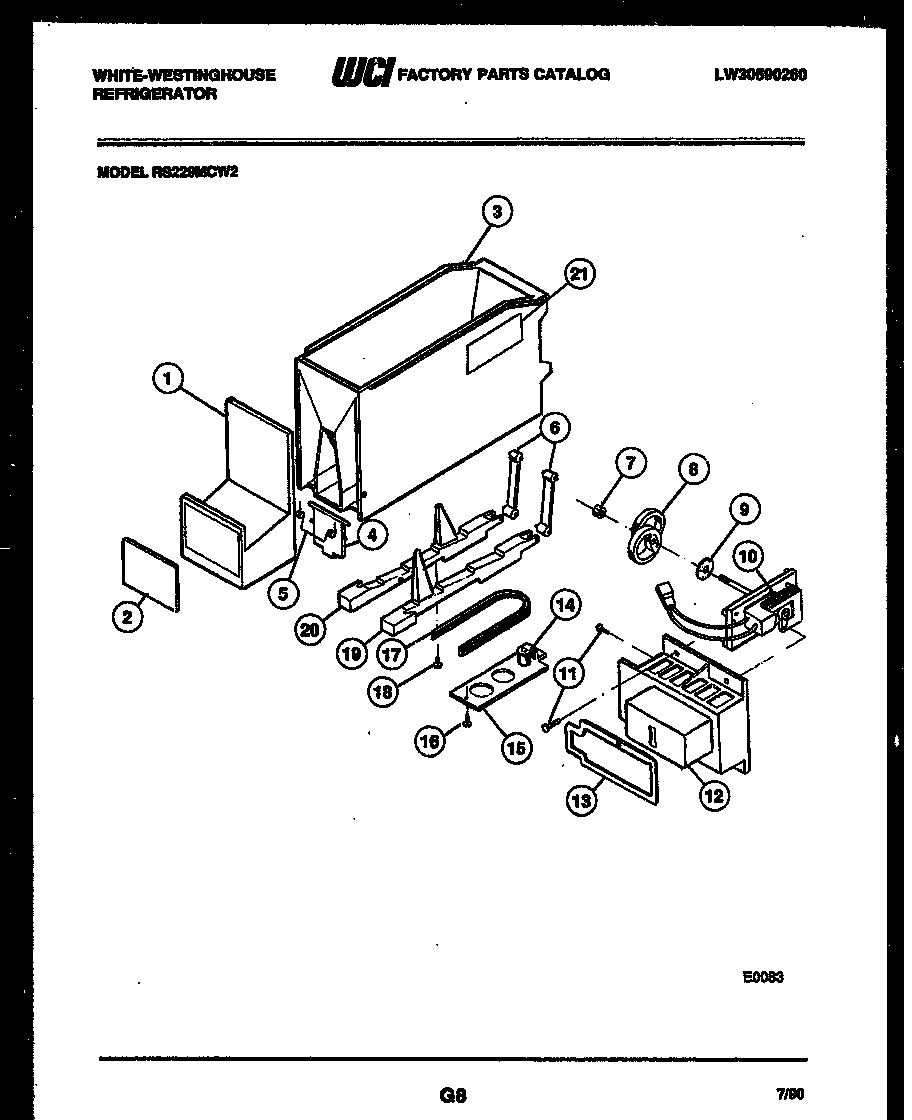

08 - ICE DISPENSER

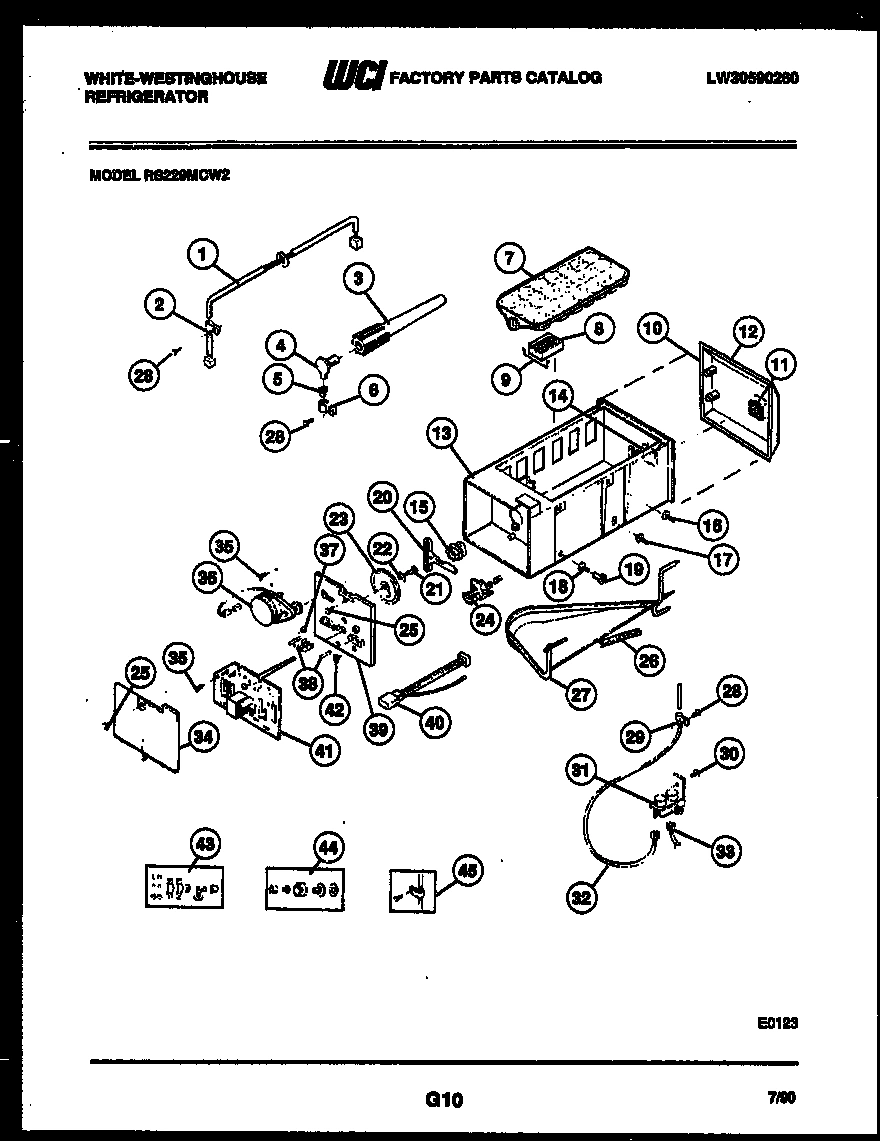

09 - ICE MAKER AND INSTALLATION PARTS

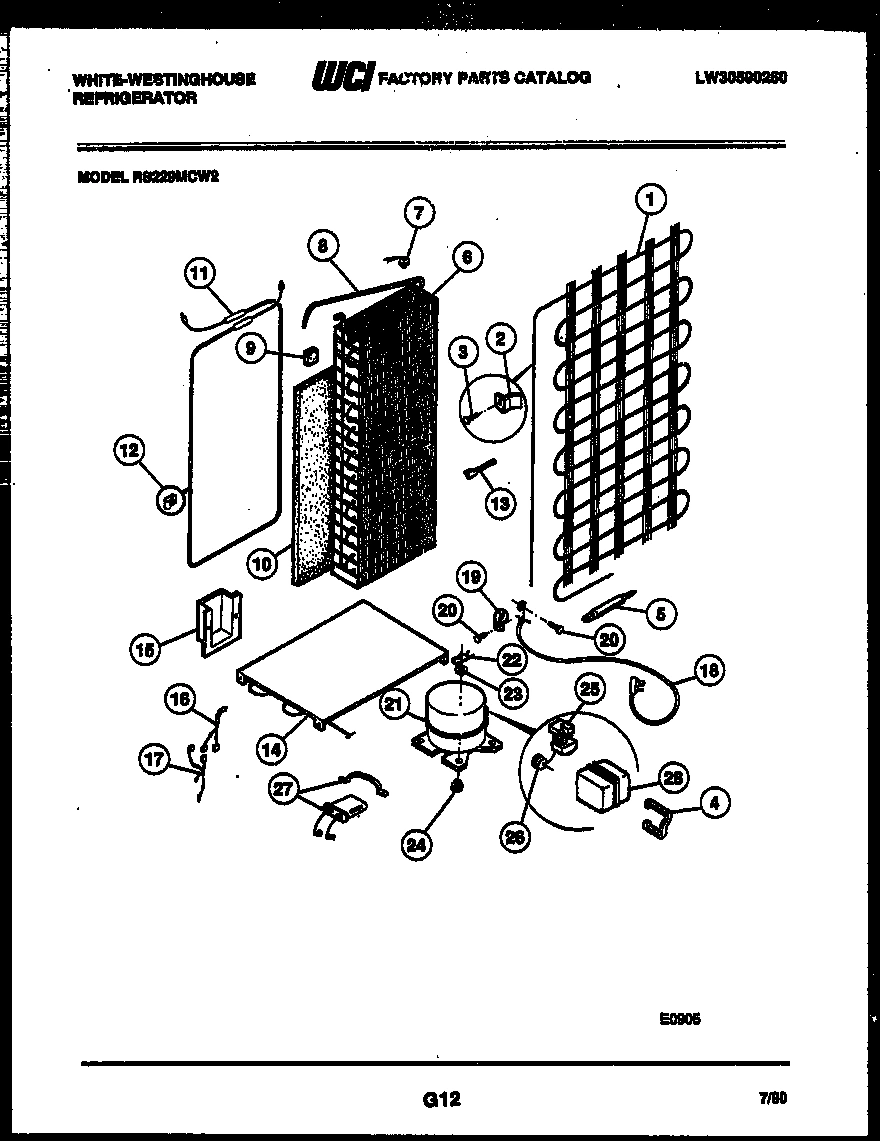

10 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RS229MCD2 REFRIGERATOR
*21929
INSULATION, BULK WCI 5303007739 Contact Us For Availability
*21942
SUPPORT-SPECIAL BARREL (2) WCI 5303001213 Contact Us For Availability
*21942
PLUG-BUTTON, LINER WCI 5303001288 Contact Us For Availability
*21942
TAPPING-PLATE (2) WCI 5308012296 Contact Us For Availability
*21948
WCI 5303206533 WCI 5303206533 Contact Us For Availability
*21948
WCI 5303209783 WCI 5303209783 Contact Us For Availability
*21956
WCI 5303001074 WCI 5303001074 Contact Us For Availability
*21956
WCI 5318653301 WCI 5318653301 Contact Us For Availability
*21958
WCI G000187125 WCI G000187125 Contact Us For Availability
*21966
WCI 5303015102 WCI 5303015102 Contact Us For Availability
*21966
WCI 5303207333 WCI 5303207333 Contact Us For Availability
*21972
HOT TUBE REPAIR KIT WCI 5300189379 Contact Us For Availability
1
REFR DOOR-ALMD WCI 5303916540 Contact Us For Availability
1
HINGE COVER-ALMD (2) WCI 5308012933 Contact Us For Availability
1
WCI 5308010332 WCI 5308010332 Contact Us For Availability
1
TUBE-WATER INLET & PILOT ASSY WCI 5308017048 Contact Us For Availability
1
WCI 3015126 WCI 3015126 Contact Us For Availability
1
WCI 5303017210 WCI 5303017210 Contact Us For Availability
1
WCI 5303007521 WCI 5303007521 Contact Us For Availability
1A
DOOR PLUG-BOTTOM (NON-ILLUSTRATED) WCI 5315230801 Contact Us For Availability
2
SOCKET-LIGHT WCI 5308000129 Contact Us For Availability
2
WCI 5303001066 WCI 5303001066 Contact Us For Availability
2
WCI 5303208862 WCI 5303208862 Contact Us For Availability
2
CLAMP-TUBE (2) WCI 5308000132 Contact Us For Availability
2
WCI 5308000296 WCI 5308000296 Contact Us For Availability
3
BEARING-UPPER HINGE WCI 5303001022 Contact Us For Availability
3
HINGE TOP, RH WCI 5308012934 Contact Us For Availability
3
WCI 5308015613 WCI 5308015613 Contact Us For Availability
3
HEATER-DOOR HSG WCI 5308015588 Contact Us For Availability
3
ICE CONTAINER WCI G182151-01 Contact Us For Availability
3
WCI 5308015765 WCI 5308015765 Contact Us For Availability
3A
WCI 5308009617 WCI 5308009617 Contact Us For Availability
4
WASHER-NYLON (2) WCI 5308000186 Contact Us For Availability
4
HANDLE END-TOP WCI 5300177142 Contact Us For Availability
4
WCI 5308015614 WCI 5308015614 Contact Us For Availability
4
WCI 5303211294 WCI 5303211294 Contact Us For Availability
4
WCI 5318252401 WCI 5318252401 Contact Us For Availability
4A
TRIM-HANDLE END-TOP (NON-ILLUSTRATED) WCI 5300179270 Contact Us For Availability
4B
HANDLE END-BOTTOM (NON-ILLUSTRATED) WCI 5300177143 Contact Us For Availability
4C
TRIM-HANDLE END-BTM (NON-ILLUSTRATED) WCI 5300179271 Contact Us For Availability
4D
CLIP-DOOR HANDLE (NON-ILLUSTRATED) WCI 5300177144 Contact Us For Availability
5
NAMEPLATE WCI 3206159 Contact Us For Availability
5
SHIM-UPPER HINGE (2) WCI 5303001037 Contact Us For Availability
5
WCI 5308017561 WCI 5308017561 Contact Us For Availability
5
WCI 5308010326 WCI 5308010326 Contact Us For Availability
5
SPRING-CNTNR DOOR WCI 5308015583 Contact Us For Availability
5
WCI 5303001191 WCI 5303001191 Contact Us For Availability
5A
WCI 3001269 WCI 3001269 Contact Us For Availability
6
WCI 5303200272 WCI 5303200272 Contact Us For Availability
6
GASKET-COIL COVER (2) WCI 5303001219 Contact Us For Availability
6
SUPPORT-TANK (3) WCI 5303001185 Contact Us For Availability
6
WCI 5303001260 WCI 5303001260 Contact Us For Availability
6
SCREW (4) WCI 5303001073 Contact Us For Availability
6
SPRING & PIN ASSY (2) WCI 5308015594 Contact Us For Availability
6
WCI 5303916605 WCI 5303916605 Contact Us For Availability
6A
SCREW-CLOSER (NON-ILLUSTRATED) WCI 3001020 Contact Us For Availability
6A
WCI 3206414 WCI 3206414 Contact Us For Availability
7
HANDLE-REFRIGERATOR WCI 5303207069 Contact Us For Availability
7
COVER-COIL UPPER WCI 3017209 Contact Us For Availability
7
WATER TANK WCI 5308950104 Contact Us For Availability
7
KNOB-TEMP CONTROL WCI 5308000778 Contact Us For Availability
7
WCI 5303001078 WCI 5303001078 Contact Us For Availability
7
WCI 08017101 WCI 08017101 Contact Us For Availability
7
WCI 5308015579 WCI 5308015579 Contact Us For Availability
7A
WCI 5308011745 WCI 5308011745 Contact Us For Availability
7A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI 5308000126 Contact Us For Availability
8
GASKET-REFRIGERATOR WCI 5303205400 Contact Us For Availability
8
MULLION-ALMD WCI 5303916448 Contact Us For Availability
8
WCI 5303204887 WCI 5303204887 Contact Us For Availability
8
PLATE-SWITCH MTG WCI 5303204878 Contact Us For Availability
8
WCI 5308015558 WCI 5308015558 Contact Us For Availability
8
WCI 5303001141 WCI 5303001141 Contact Us For Availability
8
HEAT EXCHANGER TUBE WCI 5308017565 Contact Us For Availability
9
WCI 5308000068 WCI 5308000068 Contact Us For Availability
9
PANEL-INNER DOOR WCI G179992-01 Contact Us For Availability
9
CLIP-MULLION (3) WCI 5300169100 Contact Us For Availability
9
WCI 3201957 WCI 3201957 Contact Us For Availability
9
WCI 5308015584 WCI 5308015584 Contact Us For Availability
9
WCI 5301138379 WCI 5301138379 Contact Us For Availability
9
INSUL-BLOCK-EVAP (4) WCI 5308000828 Contact Us For Availability
9A
WCI 5303001281 WCI 5303001281 Contact Us For Availability
10
WCI 5303207066 WCI 5303207066 Contact Us For Availability
10
CHANNEL-SHELF MTG (2) WCI 5308002744 Contact Us For Availability
10
SPRING-WATER ACTUATOR WCI 5303001072 Contact Us For Availability
10
WCI 5308015596 WCI 5308015596 Contact Us For Availability
10
WCI 5303017384 WCI 5303017384 Contact Us For Availability
10
WCI 5303001235 WCI 5303001235 Contact Us For Availability
11
WCI 5303007568 WCI 5303007568 Contact Us For Availability
11
BEARING-LOWER HINGE WCI 5308012007 Contact Us For Availability
11
BASKET-FRZR (2) WCI 5308017594 Contact Us For Availability
11
WCI 5303001276 WCI 5303001276 Contact Us For Availability
11
WCI 5303001077 WCI 5303001077 Contact Us For Availability
11
WCI 08017100 WCI 08017100 Contact Us For Availability
11
WCI 5303017383 WCI 5303017383 Contact Us For Availability
11A
WCI 08015577 WCI 08015577 Contact Us For Availability
12
WCI 5303206692 WCI 5303206692 Contact Us For Availability
12
WCI 5303001233 WCI 5303001233 Contact Us For Availability
12
TRIM-BASKET (2) WCI 5303207079 Contact Us For Availability
12
WCI 5303001277 WCI 5303001277 Contact Us For Availability
12
BUTTONS-WATER & ICE (2) WCI 5303205889 Contact Us For Availability
12
WCI 5308015580 WCI 5308015580 Contact Us For Availability
12
WCI 5303208981 WCI 5303208981 Contact Us For Availability
12
WCI 5308002777 WCI 5308002777 Contact Us For Availability
12A
WCI 5303001280 WCI 5303001280 Contact Us For Availability
12A
LABEL-BUTTONS (2) (NON-ILLUSTRATED) WCI 3001155 Contact Us For Availability
13
SUPPORT-RH (4) WCI 5303206680 Contact Us For Availability
13
WASHER-NYLON (8) WCI 5303001216 Contact Us For Availability
13
HANGER-BASKET RH (2) WCI 5303001098 Contact Us For Availability
13
WCI 5308000771 WCI 5308000771 Contact Us For Availability
13
WCI 5302832214 WCI 5302832214 Contact Us For Availability
13
WCI 5308015605 WCI 5308015605 Contact Us For Availability
13
WCI 5308015618 WCI 5308015618 Contact Us For Availability
14
SUPPORT-LH (4) WCI 5303206681 Contact Us For Availability
14
HINGE-TOP LH WCI 5303001062 Contact Us For Availability
14
HANGER-BASKET LH (2) WCI 5303001099 Contact Us For Availability
14
WCI 5303001252 WCI 5303001252 Contact Us For Availability
14
WCI 5303208251 WCI 5303208251 Contact Us For Availability
14
WCI 5308015559 WCI 5308015559 Contact Us For Availability
14
WCI 5303017382 WCI 5303017382 Contact Us For Availability
14
DEFROST PLATE WCI 5308017112 Contact Us For Availability
14A
BRACKET-PLATE MTG (4) (NON-ILLUSTRATED) WCI 5308002782 Contact Us For Availability
14C
BRACKET-DEFROST PAN MTG (NON-ILLUSTRATED) WCI 5308002780 Contact Us For Availability
15
WCI G183176-01 WCI G183176-01 Contact Us For Availability
15
WCI 5308017823 WCI 5308017823 Contact Us For Availability
15
SHELF-WIRE LOWER WCI 08000908 Contact Us For Availability
15
WCI 5308013429 WCI 5308013429 Contact Us For Availability
15
FRONT PANEL WCI 5318264301 Contact Us For Availability
15
WCI 5300181950 WCI 5300181950 Contact Us For Availability
15
WCI 5308015576 WCI 5308015576 Contact Us For Availability
15
WCI 5303001197 WCI 5303001197 Contact Us For Availability
15A
PLUG-SHORT TEST HOLE (NON-ILLUSTRATED) WCI 5303203044 Contact Us For Availability
16
BULB-LIGHT WCI 5304506475 No Longer Available
16
WCI 5303208979 WCI 5303208979 Contact Us For Availability
16
WCI 5308000790 WCI 5308000790 Contact Us For Availability
16
CLIP-GROUNDING WCI 5303001231 Contact Us For Availability
16
WCI 5303017391 WCI 5303017391 Contact Us For Availability
16
SHELF-WIRE UPPER (2) WCI 08000907 Contact Us For Availability
16
WCI 5316521701 WCI 5316521701 Contact Us For Availability
16
WCI G000182868 WCI G000182868 Contact Us For Availability
16
WIRING HARNESS-CONTROLS WCI 5303015135 Contact Us For Availability
17
SUPPORT-RH (5) WCI 5303204848 Contact Us For Availability
17
TRIM-DOOR WCI 5303205834 Contact Us For Availability
17
TRIM-SHELF (3) WCI 5303207093 Contact Us For Availability
17
BRACKET-MOTOR REAR WCI 5303001227 Contact Us For Availability
17
WCI 5303001081 WCI 5303001081 Contact Us For Availability
17
WCI 5308015593 WCI 5308015593 Contact Us For Availability
17
WCI 5300182506 WCI 5300182506 Contact Us For Availability
17
WIRING HARNESS-COMPR & LIGHT SWITCHES WCI 5308009616 Contact Us For Availability
18
WCI 5308000107 WCI 5308000107 Contact Us For Availability
18
SUPPORT-LH (5) WCI 5303204849 Contact Us For Availability
18
WCI 08017447 WCI 08017447 Contact Us For Availability
18
WCI 5308015608 WCI 5308015608 Contact Us For Availability
18
ACTUATOR AND SUCT CUP WCI 5300190359 Contact Us For Availability
18
WCI 5303017717 WCI 5303017717 Contact Us For Availability
18
WCI 5316254901 WCI 5316254901 Contact Us For Availability
18A
LABEL-SHELF (NON-ILLUSTRATED) WCI G177706-07 Contact Us For Availability
19
WASHER-NYLON-5/16 X 5/8 OD WCI 5303001038 Contact Us For Availability
19
WCI 5303017212 WCI 5303017212 Contact Us For Availability
19
WCI 5303205853 WCI 5303205853 Contact Us For Availability
19
RAM-ICE RH WCI 5303208984 Contact Us For Availability
19
WCI 3204772 WCI 3204772 Contact Us For Availability
19A
LABEL-SHELF (NON-ILLUSTRATED) WCI G177706-06 Contact Us For Availability
19A
WCI 5303211299 WCI 5303211299 Contact Us For Availability
20
SHIM-LOWER HINGE (3) WCI 5303001272 Contact Us For Availability
20
FRAME-SHELF (3) WCI 5303209744 Contact Us For Availability
20
WCI 5308010330 WCI 5308010330 Contact Us For Availability
20
RAM-ICE LH WCI 5303208982 Contact Us For Availability
20
WCI 5308015571 WCI 5308015571 Contact Us For Availability
21
HINGE-BOTTOM LH WCI 5303001043 Contact Us For Availability
21
WCI 5303209779 WCI 5303209779 Contact Us For Availability
21
WCI 5300179966 WCI 5300179966 Contact Us For Availability
21
LABEL-ICE DISPENSER WCI 5303016895 Contact Us For Availability
21
WCI 5303001119 WCI 5303001119 Contact Us For Availability
21
COMPRESSOR W/ELECTRICALS WCI 5303916009 Contact Us For Availability
21A
BUSHING-PROTECTOR (NON-ILLUSTRATED) WCI 5308010374 Contact Us For Availability
22
SCREW-HINGE MTG (4) WCI 5303001041 Contact Us For Availability
22
WCI 5303209778 WCI 5303209778 Contact Us For Availability
22
BRACKET-MOTOR FRONT WCI 5303001226 Contact Us For Availability
22
WCI 5308015598 WCI 5308015598 Contact Us For Availability
22
WCI 5303001117 WCI 5303001117 Contact Us For Availability
22
CLIP (4) WCI 5308003596 Contact Us For Availability
23
WCI 5303207081 WCI 5303207081 Contact Us For Availability
23
WCI 5303208845 WCI 5303208845 Contact Us For Availability
23
WCI 5301124984 WCI 5301124984 Contact Us For Availability
23
WASHER (4) WCI 5308003633 Contact Us For Availability
23A
CLIP-LIGHT SWITCH CABLE (2) WCI 08009775 Contact Us For Availability
24
RING, ORIFICE WCI 5308000124 Contact Us For Availability
24
COVER-UPPER PAN WCI 08009642 Contact Us For Availability
24
WCI 5318000402 WCI 5318000402 Contact Us For Availability
24
WCI 5303017390 WCI 5303017390 Contact Us For Availability
24A
GASKET-COVER (2) (NON-ILLUSTRATED) WCI 5303205880 Contact Us For Availability
25
WCI 5303007173 WCI 5303007173 Contact Us For Availability
25
SCREW-8-32 X 9/16 WCI 5303001230 Contact Us For Availability
25
WCI 5303207092 WCI 5303207092 Contact Us For Availability
25
SCREW (4) WCI 5303001083 Contact Us For Availability
25
NUT-SELF THREAD (12) WCI 5308017047 Contact Us For Availability
26
WCI 5308000847 WCI 5308000847 Contact Us For Availability
26
COVER, LOWER PAN WCI 5316972401 Contact Us For Availability
26
WCI 5308015557 WCI 5308015557 Contact Us For Availability
26
WIRING HARNESS FRZR DOOR WCI 5303001082 Contact Us For Availability
26
WCI 5303017392 WCI 5303017392 Contact Us For Availability
26
WCI 5308017526 WCI 5308017526 Contact Us For Availability
27
WCI 5317459704 WCI 5317459704 Contact Us For Availability
27
WCI 5303207078 WCI 5303207078 Contact Us For Availability
27
PLUG-HARNESS BOTTOM WCI 5303001047 Contact Us For Availability
27
WCI 5303015044 WCI 5303015044 Contact Us For Availability
27
CAPACITOR ASSY WCI 5303916391 Contact Us For Availability
28
DEFROST PAN WCI 5303001026 Contact Us For Availability
28
WCI 5303207077 WCI 5303207077 Contact Us For Availability
28
LAMPHOLDER WCI 5303001076 Contact Us For Availability
29
TRIM-PANS (3) WCI 5303207076 Contact Us For Availability
30
ROLLER ASSY (4) WCI 5308000118 Contact Us For Availability
31
WATER VALVE SOLENOID WCI 5308017599 Contact Us For Availability
31
SCREW-ROLLER MTG (4) WCI 5308017044 Contact Us For Availability
31
HANGER-MEAT PAN RH WCI 5303209749 Contact Us For Availability
31A
HANGER-MEAT PAN LH (NON-ILLUSTRATED) WCI 5303209748 Contact Us For Availability
31B
SCREW-HANGER (2) (NON-ILLUSTRATED) WCI 08014528 Contact Us For Availability
32
SCREW-ROLLER ADJ (4) WCI 5308009568 Contact Us For Availability
32
WCI 5303209780 WCI 5303209780 Contact Us For Availability
32A
RAIL-GLASS SUPT (2) (NON-ILLUSTRATED) WCI 3204640 Contact Us For Availability
33
TUBE - RUBBER (3) WCI 5303001198 Contact Us For Availability
33
WCI 5303209747 WCI 5303209747 Contact Us For Availability
34
SPEED NUT (2) WCI 5300077210 Contact Us For Availability
34
RETAINER/GASKET-FRONT WCI 5303209742 Contact Us For Availability
34
COVER & LEVER ASSY WCI 5308950226 Contact Us For Availability
35
WCI 5308015609 WCI 5308015609 Contact Us For Availability
36
WCI 5301124982 WCI 5301124982 Contact Us For Availability
37
NUT - HEX 10-32 LH WCI 5303001118 Contact Us For Availability
38
WCI 5308000853 WCI 5308000853 Contact Us For Availability
38
WCI 5308015569 WCI 5308015569 Contact Us For Availability
39
TWIN NUT-SPECIAL (4) WCI 5303001273 Contact Us For Availability
39
WCI 5308015562 WCI 5308015562 Contact Us For Availability
40
SHOULDER PIN (2) WCI 5308000013 Contact Us For Availability
40
WCI 5308015592 WCI 5308015592 Contact Us For Availability
41
BRACKET-COIL COVER WCI 5308000738 Contact Us For Availability
41
PRINTED CIRCUIT BOARD WCI 5308011238 Contact Us For Availability
42
SUPPORT-COIL COVER (4) WCI 5303001250 Contact Us For Availability
42
RETAINING RING WCI 5308010348 Contact Us For Availability
43
DIVIDER-ICEMAKER WCI 5303017208 Contact Us For Availability
43
WCI 5308000247 WCI 5308000247 Contact Us For Availability
43A
SUPPORT-SPEC SCREW MTG (2) (NON-ILLUSTRATED) WCI 5303001211 Contact Us For Availability
43B
SCREW (2) (NON-ILLUSTRATED) WCI 3001212 Contact Us For Availability
44
WATER SUPPLY ADAPTER KIT WCI 3206360 Contact Us For Availability
44
HINGE-BOTTOM-RH WCI 5303001271 Contact Us For Availability
45
SUPPORT-COIL COVER WCI 5308000097 Contact Us For Availability
46
FERRULE-INNER (2) WCI 5303001286 Contact Us For Availability
47
FERRULE-OUTER (2) WCI 5303001287 Contact Us For Availability
48
WCI 5308010289 WCI 5308010289 Contact Us For Availability
48A
NUT-NYLON (2) (NON-ILLUSTRATED) WCI 5308000200 Contact Us For Availability
49
COVER-BOTTOM HINGE WCI 5317465801 Contact Us For Availability
49B
WCI 5308010293 WCI 5308010293 Contact Us For Availability
51
WCI G182527-01 WCI G182527-01 Contact Us For Availability
53
WCI 5303207095 WCI 5303207095 Contact Us For Availability
× ![]()
