Model Electrolux RS229GCW2 REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER DOOR
03 - REFRIGERATOR DOOR

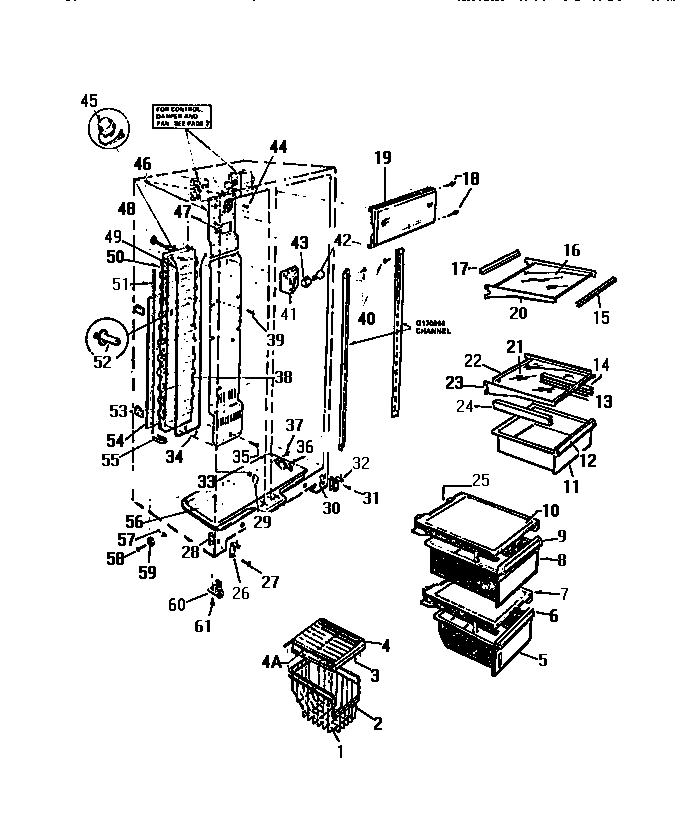

04 - EVAPORATOR, SHELVES, CRISPER PANS

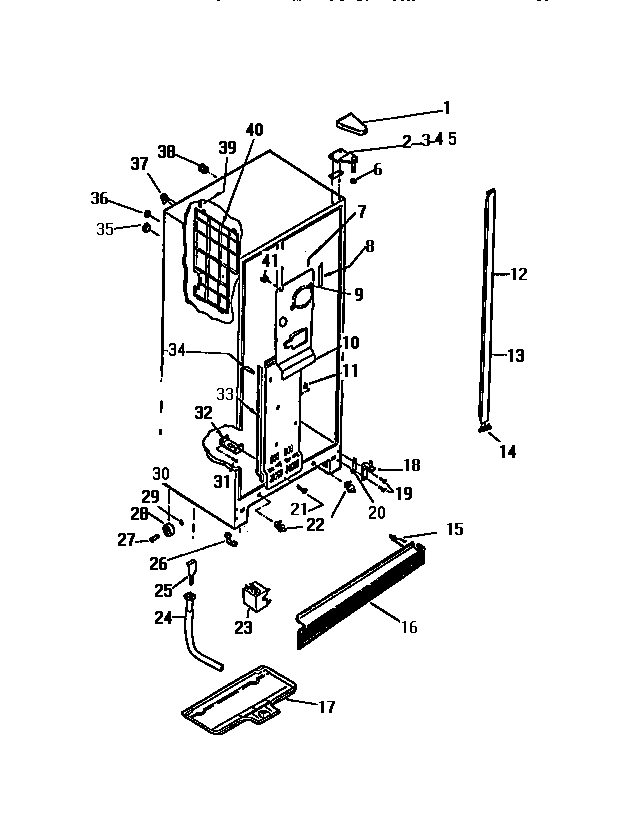

05 - CABINET

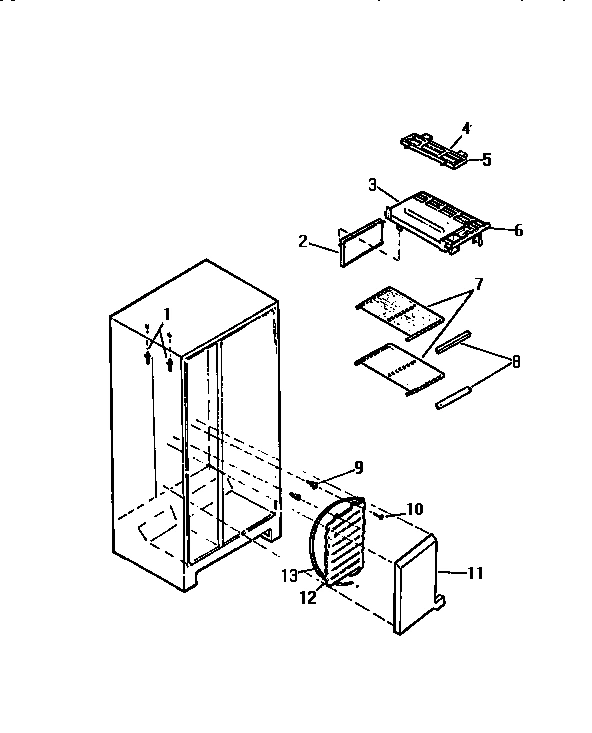

06 - FREEZER SHELVES, WATER TANK

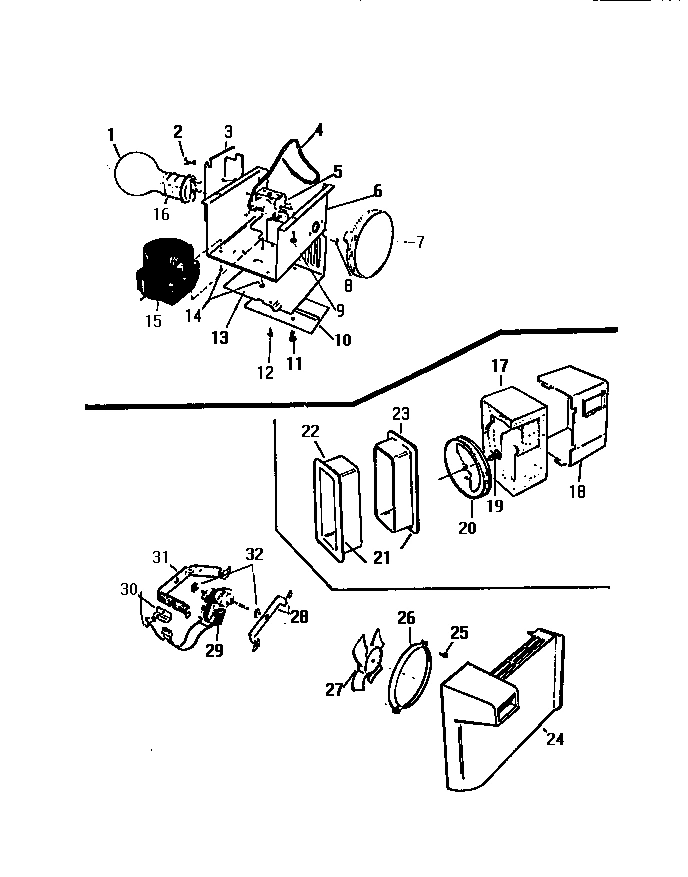

07 - CONTROL & FAN ASSEMBLIES

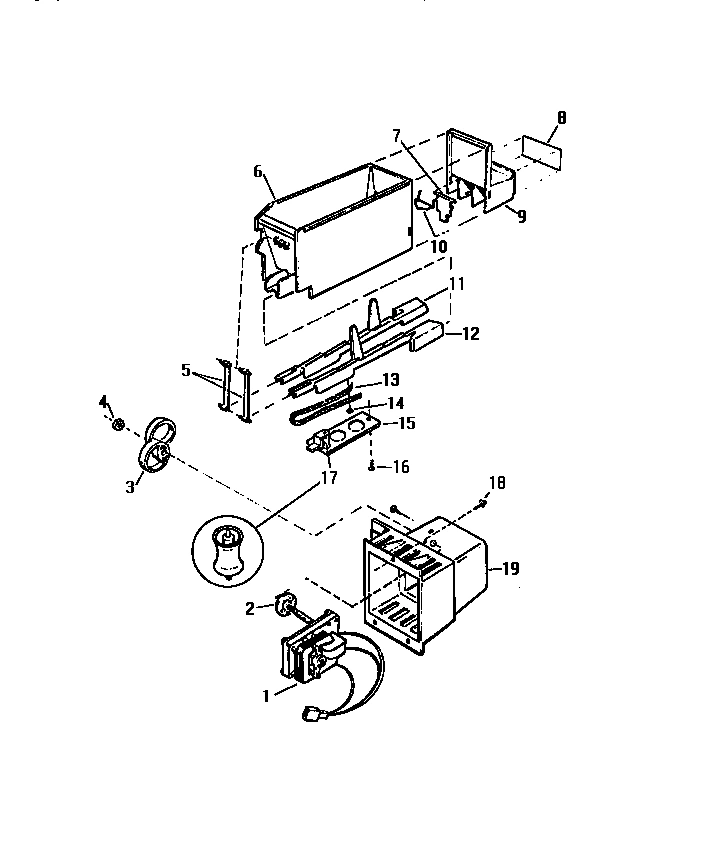

08 - ICE BUCKET & MOTOR

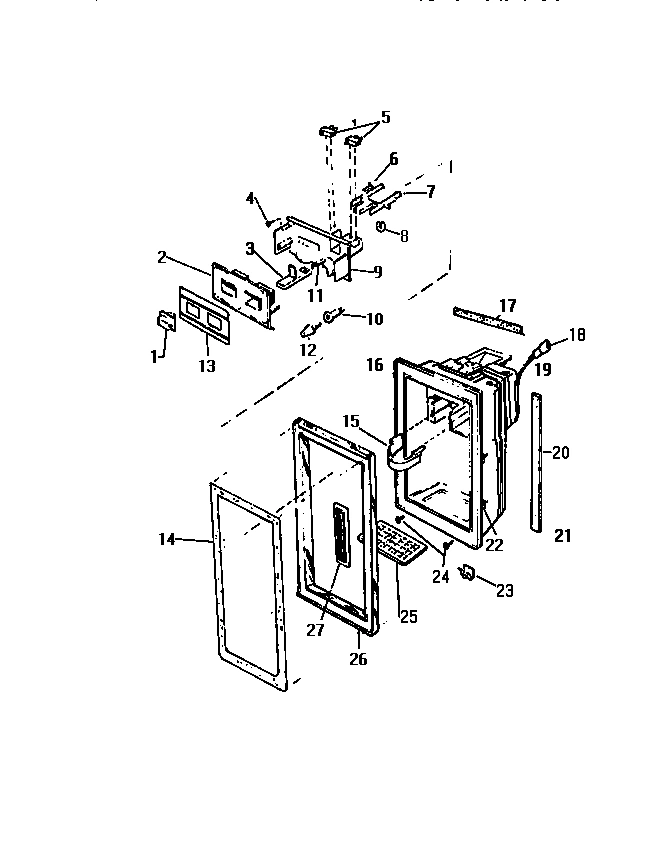

09 - ICE DOOR HOUSING

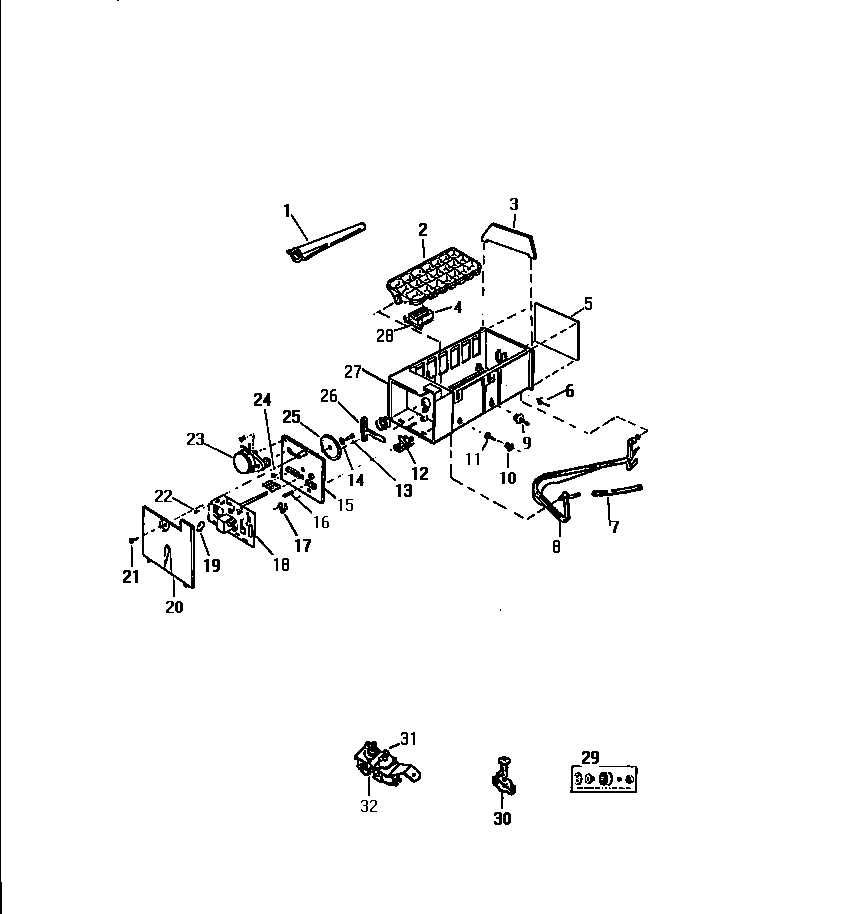

10 - ICE MAKER

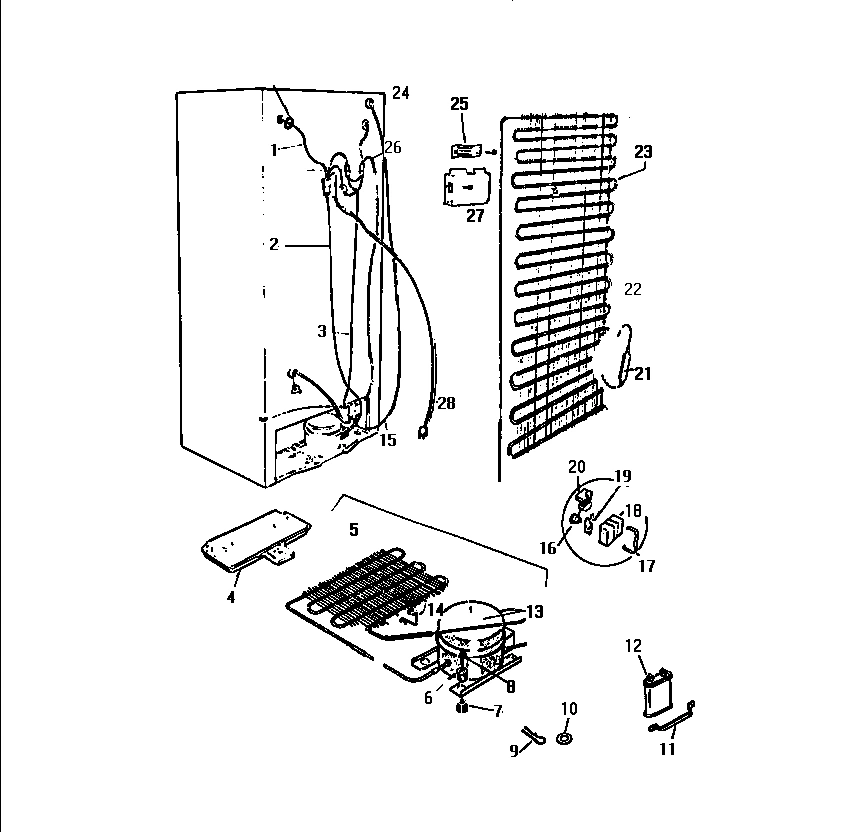

11 - UNIT
Common parts from model Electrolux RS229GCW2 REFRIGERATOR
*81163
DOUBLE FACE TAPE WCI C460947 Contact Us For Availability
*81164
MOLDING WCI G180613-01 Contact Us For Availability
*81166
WIRING HARNESS, ICE DRIVE HOUSING WCI G185226 Contact Us For Availability
1
TRIM, BOTTOM WCI G179271 Contact Us For Availability
1
BASKET WCI G184748 Contact Us For Availability
1
COVER HINGE, WHITE WCI G183558-01 Contact Us For Availability
1
SUPPORT DIVIDER WCI G177641 Contact Us For Availability
1
WCI Q63749 WCI Q63749 Contact Us For Availability
1
WCI G182881 WCI G182881 Contact Us For Availability
1
WCI G180649 WCI G180649 Contact Us For Availability
1
WCI G187034 WCI G187034 Contact Us For Availability
1
WCI R900920 WCI R900920 Contact Us For Availability
2
END CAP, BOTTOM WCI G177143 Contact Us For Availability
2
WCI G165746-03 WCI G165746-03 Contact Us For Availability
2
HINGE RH WCI G183715 Contact Us For Availability
2
WCI G182527-02 WCI G182527-02 Contact Us For Availability
2
WCI G182526 WCI G182526 Contact Us For Availability
2
PANEL WCI G182643-01 Contact Us For Availability
2
WCI G182507 WCI G182507 Contact Us For Availability
2
WIRING HARNESS COMPRESSOR & DOOR SWITCHES WCI R900979 Contact Us For Availability
2A
HINGE, LH WCI G183716 Contact Us For Availability
3
THIMBLE WCI G175070 Contact Us For Availability
3
WCI 4678377A01 WCI 4678377A01 Contact Us For Availability
3
SHELF, BOTTOM WCI G180425-04 Contact Us For Availability
3
SHIM WCI G183861 Contact Us For Availability
3
SHELF WCI G185494-01 Contact Us For Availability
3
BRACKET, CONT. CAP MOUNTING WCI G165543 Contact Us For Availability
3
WCI G181926 WCI G181926 Contact Us For Availability
3
WCI G186063-01 WCI G186063-01 Contact Us For Availability
3
WCI G182833 WCI G182833 Contact Us For Availability
3
WIRING HARNESS ICE & WATER LOWER WIRING FROM WCI G182094 Contact Us For Availability
4
BEARING, HINGE WCI G183138 Contact Us For Availability
4
HANDGER, RH WCI G168986 Contact Us For Availability
4
DRAIN PAN WCI G171125 Contact Us For Availability
4
SHELF WCI G181185-01 Contact Us For Availability
4
WCI G187107 WCI G187107 Contact Us For Availability
4
WCI G174479 WCI G174479 Contact Us For Availability
4A
HANGER, LH WCI G168987 Contact Us For Availability
5
BUMPER SWITCH WCI G165376 Contact Us For Availability
5
PAN WCI G179710-01 Contact Us For Availability
5
LABEL WCI G177706-06 Contact Us For Availability
5
CONTROL, TEMP. WCI G162667-07 Contact Us For Availability
5
SPRING & PIN WCI G182869 Contact Us For Availability
5
SWITCH WCI G185542 Contact Us For Availability
5
WCI G182783-02 WCI G182783-02 Contact Us For Availability
5
DEFROST PLATE WCI G171128 Contact Us For Availability
6
INSULATION LOWER WCI G175336 Contact Us For Availability
6
WCI G173948-19 WCI G173948-19 Contact Us For Availability
6
WASHER WCI G164355 Contact Us For Availability
6
LABEL WCI G177706-07 Contact Us For Availability
6
WCI G164788 WCI G164788 Contact Us For Availability
6
WCI G182151-02 WCI G182151-02 Contact Us For Availability
6
WCI R900674 WCI R900674 Contact Us For Availability
6
WCI G186383 WCI G186383 Contact Us For Availability
6
SLEEVE WCI G154588 Contact Us For Availability
7
COVER WCI G169724-01 Contact Us For Availability
7
COVER, UPPER COIL WCI G182456 Contact Us For Availability
7
SHELF WIRE (15 1/16`` L X 11 7/8`` W) WCI G180425-03 Contact Us For Availability
7
KNOB, CONTROL WCI G164906-01 Contact Us For Availability
7
WCI G182524-02 WCI G182524-02 Contact Us For Availability
7
WCI R900859 WCI R900859 Contact Us For Availability
7
SPRING WCI G186271 Contact Us For Availability
8
END CAP, LH WCI G163780-01 Contact Us For Availability
8
TRIM (CUT TO SIZE) WCI G187267-10 Contact Us For Availability
8
PAN (MOIST SEALED CRISPER) WCI G179709-01 Contact Us For Availability
8
GASKET, COIL COVER WCI G165233 Contact Us For Availability
8
WCI G107080 WCI G107080 Contact Us For Availability
8
WCI G180632 WCI G180632 Contact Us For Availability
8
CLIP WCI G174411 Contact Us For Availability
8
ARM WCI G185471 Contact Us For Availability
8
SCREW WCI G183344 Contact Us For Availability
9
WCI R188326 WCI R188326 Contact Us For Availability
9
WCI G171408 WCI G171408 Contact Us For Availability
9
NUT WCI G167542 Contact Us For Availability
9
SUPPORT (3) WCI G163938 Contact Us For Availability
9
WCI G182031-02 WCI G182031-02 Contact Us For Availability
9
WCI G185754 WCI G185754 Contact Us For Availability
9
WCI R182506 WCI R182506 Contact Us For Availability
9A
SCREW (2) WCI G167115 Contact Us For Availability
10
FRONT SHELF WCI G164109-18 Contact Us For Availability
10
COVER WCI G169711-01 Contact Us For Availability
10
WCI G169477-01 WCI G169477-01 Contact Us For Availability
10
WCI G166068 WCI G166068 Contact Us For Availability
10
WCI G182525 WCI G182525 Contact Us For Availability
10
SOCKET WCI G177729 Contact Us For Availability
10
WCI G185464 WCI G185464 Contact Us For Availability
11
END CAP, RH WCI G163781-01 Contact Us For Availability
11
PAN, DELI TRAY WCI G179915-01 Contact Us For Availability
11
CLIP, GROUNDING WCI G162703 Contact Us For Availability
11
WCI G163925-02 WCI G163925-02 Contact Us For Availability
11
STUD MOUNTING (PLASTIC) WCI G165545 Contact Us For Availability
11
RAM, RH WCI G188104-01 Contact Us For Availability
11
SPRING WCI G174700 Contact Us For Availability
11
WCI R186382 WCI R186382 Contact Us For Availability
12
TRIM (CUT TO SIZE) WCI G177343-06 Contact Us For Availability
12
CLIP (3) WCI G169297 Contact Us For Availability
12
WCI R900930 WCI R900930 Contact Us For Availability
12
WCI G182206-01 WCI G182206-01 Contact Us For Availability
12
CAM WCI G182437 Contact Us For Availability
12A
CLIP (3) WCI G169100 Contact Us For Availability
12A
WCI R900928 WCI R900928 Contact Us For Availability
12B
WCI R900929 WCI R900929 Contact Us For Availability
12C
WCI 194C546H02 WCI 194C546H02 Contact Us For Availability
13
WCI R900671 WCI R900671 Contact Us For Availability
13
WCI G179976-01 WCI G179976-01 Contact Us For Availability
13
WCI G164643 WCI G164643 Contact Us For Availability
13
COVER CONT. BRACKET WCI G164778 Contact Us For Availability
13
WCI G182867 WCI G182867 Contact Us For Availability
13
WCI G182654-01 WCI G182654-01 Contact Us For Availability
13
SHAFT WCI G174444 Contact Us For Availability
14
WCI Q161119 WCI Q161119 Contact Us For Availability
14
INNER PANEL WCI G179992-01 Contact Us For Availability
14
HANGER, RH WCI G187216-02 Contact Us For Availability
14
TRIM, MULLION BOTTOM, WHITE WCI G169745-01 Contact Us For Availability
14
TRIM, MULLION BOTTOM, WHEAT WCI G169745-09 Contact Us For Availability
14
WCI G182955-01 WCI G182955-01 Contact Us For Availability
14
WCI G174430 WCI G174430 Contact Us For Availability
14
WCI C620104 WCI C620104 Contact Us For Availability
15
WCI G180651-02 WCI G180651-02 Contact Us For Availability
15
WCI G187267-03 WCI G187267-03 Contact Us For Availability
15
CLIP, GRILLE WCI G170328 Contact Us For Availability
15
WCI G181950 WCI G181950 Contact Us For Availability
15
SKIRT WCI G180004-02 Contact Us For Availability
15
PLATE WCI G182015 Contact Us For Availability
15
BRACKET WCI G171123 Contact Us For Availability
16
WCI G171654-31 WCI G171654-31 Contact Us For Availability
16
WCI G174597-04 WCI G174597-04 Contact Us For Availability
16
SOCKET WCI G168302 Contact Us For Availability
16
WCI G182868 WCI G182868 Contact Us For Availability
16
WCI G188308-02 WCI G188308-02 Contact Us For Availability
16
FOLLOWER, CAM WCI G182234 Contact Us For Availability
16
WCI G152989 WCI G152989 Contact Us For Availability
17
INSULATION, UPPER WCI G175208 Contact Us For Availability
17
WCI G161119 WCI G161119 Contact Us For Availability
17
WCI G1711255 WCI G1711255 Contact Us For Availability
17
DEFLECTOR , AIR (FOAM) WCI G164575 Contact Us For Availability
17
WCI G181929 WCI G181929 Contact Us For Availability
17
WCI G189635 WCI G189635 Contact Us For Availability
17
CLIP WCI G174422 Contact Us For Availability
18
GASKET, DOOR WCI G180551-03 Contact Us For Availability
18
INSULATION, FIBERGLASS 34`` X 48`` X 1/2`` -C WCI C69109 Contact Us For Availability
18
SUPPORT WCI G165177 Contact Us For Availability
18
HINGE RH WCI G162383 Contact Us For Availability
18
BOX, DAMPER CONT. WCI G164523 Contact Us For Availability
18
WCI G182885 WCI G182885 Contact Us For Availability
18
WCI G186533 WCI G186533 Contact Us For Availability
18
WCI G181942 WCI G181942 Contact Us For Availability
18
COVER WCI G147942 Contact Us For Availability
18A
INSULATION, FIBERGLASS, 34`` X 48`` X 1``-CUT WCI C69110 Contact Us For Availability
18A
WCI G182859 WCI G182859 Contact Us For Availability
18B
INSULATION FIBERGLASS, 34`` X 48`` X 2``-CUT WCI C69111 Contact Us For Availability
19
SHIELD WIRE WCI G177720 Contact Us For Availability
19
WCI R900869 WCI R900869 Contact Us For Availability
19
LIGHT SHIELD, REF. WCI G169601-13 Contact Us For Availability
19
SCREW WCI G99167 Contact Us For Availability
19
RIVET, KNOB MOUNTING WCI G185373 Contact Us For Availability
19
WCI G182513 WCI G182513 Contact Us For Availability
19
HEATER WCI G182738 Contact Us For Availability
19
WCI G182408 WCI G182408 Contact Us For Availability
19
CLIP WCI G147941 Contact Us For Availability
19A
WCI G187125 WCI G187125 Contact Us For Availability
20
PIN, ICE DR. HSG. WCI G179017 Contact Us For Availability
20
WCI R304001 WCI R304001 Contact Us For Availability
20
WCI G178323-07 WCI G178323-07 Contact Us For Availability
20
SHIM WCI G162903 Contact Us For Availability
20
KNOB WCI G165217-01 Contact Us For Availability
20
WCI G175246 WCI G175246 Contact Us For Availability
20
COVER WCI G182436 Contact Us For Availability
20
WCI G182225-05 WCI G182225-05 Contact Us For Availability
21
BEARING, HINGE WCI G183139 Contact Us For Availability
21
SPRING WCI G184726 Contact Us For Availability
21
SHELF, GLASS WCI G171654-32 Contact Us For Availability
21
GASKET WCI G167582 Contact Us For Availability
21
WCI G184854 WCI G184854 Contact Us For Availability
21
SCREW (3) WCI G185567 Contact Us For Availability
21
WCI G189634 WCI G189634 Contact Us For Availability
21
DRIER-REGULAR WCI C101601 Contact Us For Availability
21A
WCI R900125 WCI R900125 Contact Us For Availability
22
END CAP, TOP WCI G177142 Contact Us For Availability
22
PLUG HOUSING WCI G177742 Contact Us For Availability
22
NUT (8) WCI G188218 Contact Us For Availability
22
TRIM WCI G172409-11 Contact Us For Availability
22
FERRULE-FC WCI G166802 Contact Us For Availability
22
WCI G185562 WCI G185562 Contact Us For Availability
22
HOT TUBE REPAIR KIT WCI G189379 Contact Us For Availability
22A
SPRING CLIP (4) WCI G187465 Contact Us For Availability
23
TRIM WCI G179270 Contact Us For Availability
23
WCI G175040-03 WCI G175040-03 Contact Us For Availability
23
FRAME WCI G187217-03 Contact Us For Availability
23
WCI G174658-01 WCI G174658-01 Contact Us For Availability
23
FERRULE-PC WCI G166803 Contact Us For Availability
23
WCI G179964 WCI G179964 Contact Us For Availability
23
WCI G174506 WCI G174506 Contact Us For Availability
23
WCI G169746 WCI G169746 Contact Us For Availability
24
CLIP, TOP & BOTTOM WCI G177144 Contact Us For Availability
24
HANGER, LH WCI G187215-02 Contact Us For Availability
24
WCI G181917-01 WCI G181917-01 Contact Us For Availability
24
SCREW, STAINLESS STEEL WCI G179974 Contact Us For Availability
24
WCI G174434 WCI G174434 Contact Us For Availability
24A
SLEEVE INSERT WCI G154156 Contact Us For Availability
25
HANDLE (61``) WCI G177141-09 Contact Us For Availability
25
WCI G180637 WCI G180637 Contact Us For Availability
25
GASKET WCI G180108-03 Contact Us For Availability
25
WCI G171173 WCI G171173 Contact Us For Availability
25
GRID WCI G182551-01 Contact Us For Availability
25
GEAR WCI G174484 Contact Us For Availability
25
BRACKET WCI G169666-01 Contact Us For Availability
25A
VINYL TAPE, HANDLE (ELM BURL FINISH) WCI R900621 Contact Us For Availability
26
WCI G185566 WCI G185566 Contact Us For Availability
26
WCI G181241-01 WCI G181241-01 Contact Us For Availability
26
HINGE, LH WCI G175068 Contact Us For Availability
26
WCI G177743 WCI G177743 Contact Us For Availability
26
RING, FAN ORIFICE WCI G167217 Contact Us For Availability
26
WCI G182518-06 WCI G182518-06 Contact Us For Availability
26
WIRING HARNESS FILL VALVE TO ICEMAKER WCI G185732 Contact Us For Availability
26A
WCI G182487 WCI G182487 Contact Us For Availability
26B
GEAR RACK WCI G182416 Contact Us For Availability
27
INSULATION WCI G181913 Contact Us For Availability
27
WCI G162809 WCI G162809 Contact Us For Availability
27
PAD WCI G182929 Contact Us For Availability
27
WCI G187057-01 WCI G187057-01 Contact Us For Availability
27
COVER WCI G183584 Contact Us For Availability
28
WCI G162808 WCI G162808 Contact Us For Availability
28
BRKT, MOTOR MTG, FRONT WCI G185302 Contact Us For Availability
28
WCI G174427 WCI G174427 Contact Us For Availability
28
WCI G162549-01 WCI G162549-01 Contact Us For Availability
29
INTERIOR PANEL WCI G183176-01 Contact Us For Availability
29
FERRULE, DAMPER, MEATKEEPER, INNER WCI G165161 Contact Us For Availability
29
NUT - PUSH (2) WCI G162662 Contact Us For Availability
29
ADAPTER WATER SUPPLY WCI G159415 Contact Us For Availability
29A
FERRULE, DAMPER, MEAT KEEPER, OUTER WCI G165162 Contact Us For Availability
30
END CAP, RH (5) WCI G179946-01 Contact Us For Availability
30
WCI G141673 WCI G141673 Contact Us For Availability
30
FERRULE INNER WALL REAR, INNER WCI G166800 Contact Us For Availability
30
BRKT, CONNECTOR WCI G164571 Contact Us For Availability
30
WCI C83120 WCI C83120 Contact Us For Availability
30A
FERRULE INNER WALL REAR, OUTER WCI G166801 Contact Us For Availability
31
FRONT SHELF (5) (CUT TO SIZE) WCI G490079-15 Contact Us For Availability
31
NUT, FILL TUBE TO VALVE WCI G143689 Contact Us For Availability
31
BRKT, MOTOR MTG, REAR WCI G185303 Contact Us For Availability
32
END CAP, LH (5) WCI G179947-01 Contact Us For Availability
32
BRACKET, COVER MOUNTING WCI G158022 Contact Us For Availability
32
BUSHING (2) WCI G187599 Contact Us For Availability
32
VALVE, WATER WCI G189174 Contact Us For Availability
32B
WCI G142361 WCI G142361 Contact Us For Availability
32C
HINGE, RH, NUT, PIN WCI G77210 Contact Us For Availability
33
GROMMET WCI G163952 Contact Us For Availability
33
GASKET KIT, LOWER COIL COVER WCI G188853 Contact Us For Availability
34
SUPPORT, LOWER (4) WCI G169471 Contact Us For Availability
34A
WASHER, NYLON WCI G170839 Contact Us For Availability
35
SCREW WCI G184851 Contact Us For Availability
35
WCI G174733 WCI G174733 Contact Us For Availability
36
DAMPER WCI G164912-03 Contact Us For Availability
36
WCI G174734 WCI G174734 Contact Us For Availability
37B
WCI G175439 WCI G175439 Contact Us For Availability
38
TUBE, RUBBER WCI G85642 Contact Us For Availability
40
DIVIDER I.M. WCI G181983 Contact Us For Availability
41
BOX, LIGHT WCI G182493-01 Contact Us For Availability
41
SUPPORT WCI G163669 Contact Us For Availability
42
BULB WCI R900925 Contact Us For Availability
47
GASKET WCI G185255 Contact Us For Availability
48
CAP & SUCTION LINE ASSEMBLY WCI G147918 Contact Us For Availability
49
HEATER WCI G175351 Contact Us For Availability
50
EVAPORATOR WCI G175350 Contact Us For Availability
53
BLOCK (4) WCI G169493 Contact Us For Availability
54
FOAM PAD WCI G169641 Contact Us For Availability
55
WCI G167363 WCI G167363 Contact Us For Availability
60
ROLLER WCI G186731 Contact Us For Availability
61
BOLT WCI G145103 Contact Us For Availability
× ![]()
