Model Electrolux RS229GCV5 REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER DOOR PARTS
03 - REFRIGERATOR DOOR PARTS

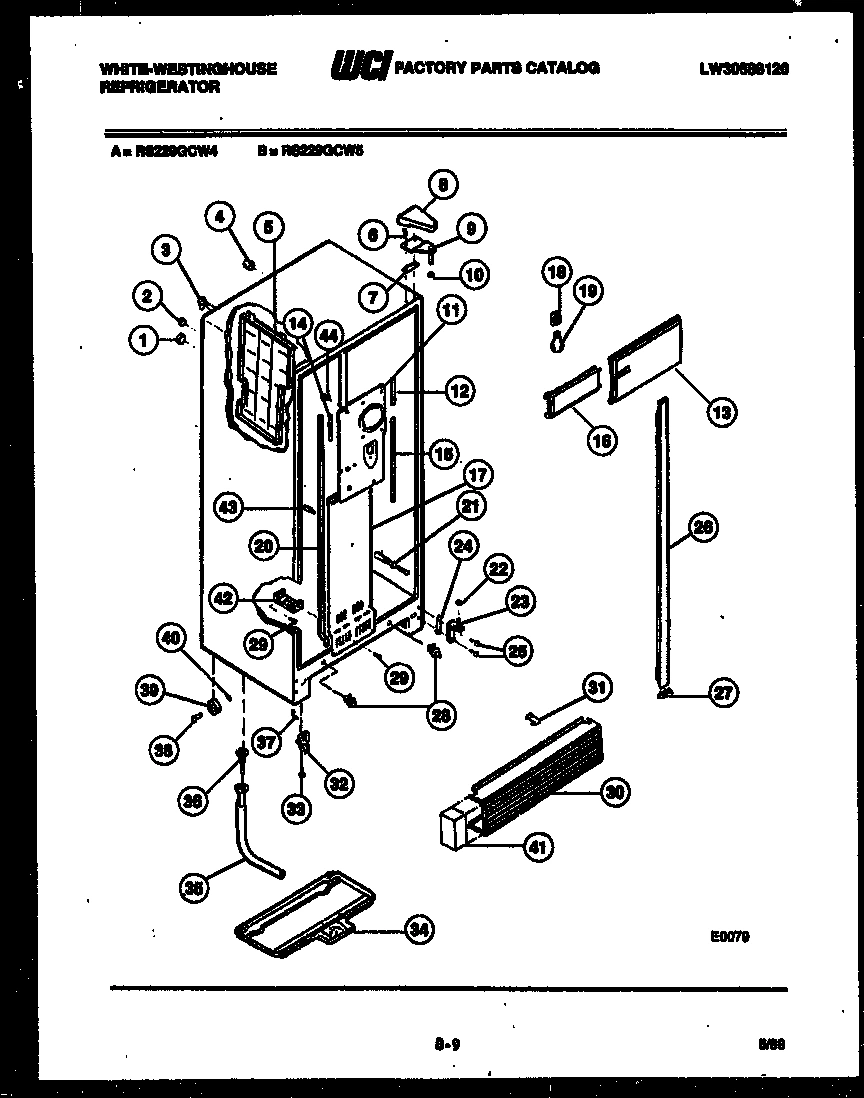

04 - CABINET PARTS

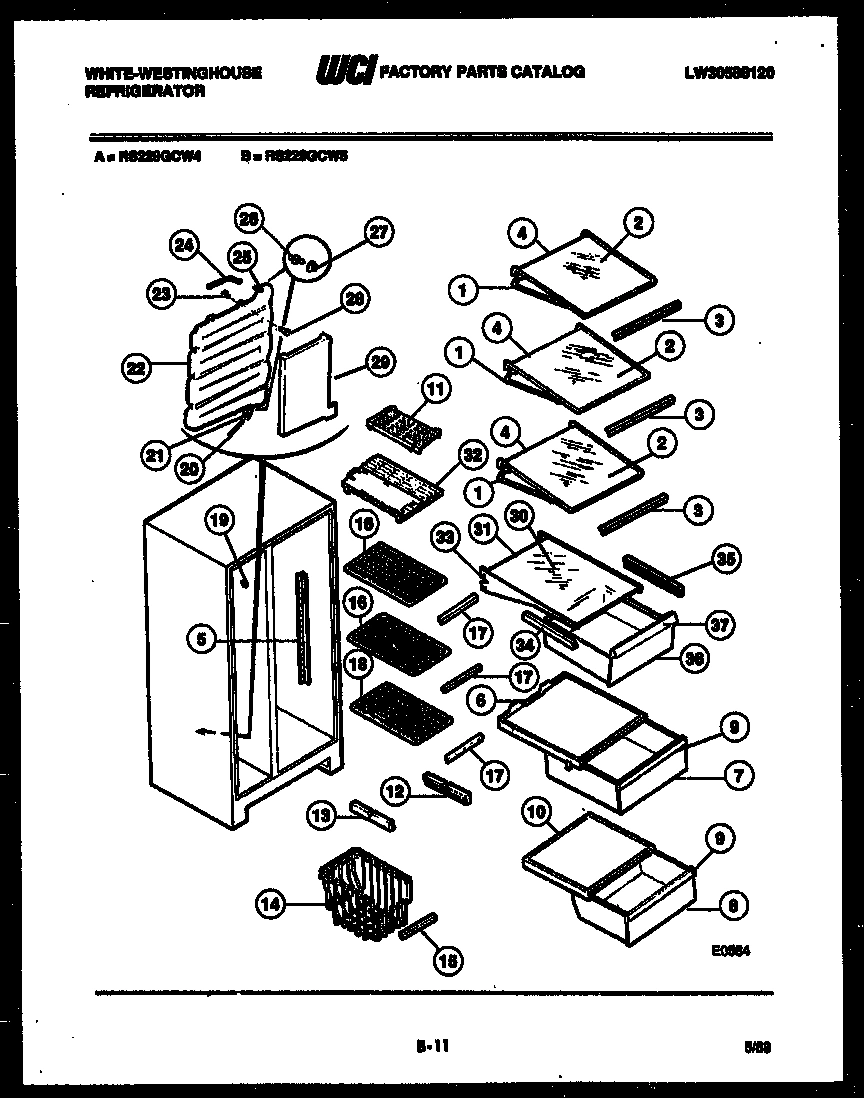

05 - SHELVES AND SUPPORTS

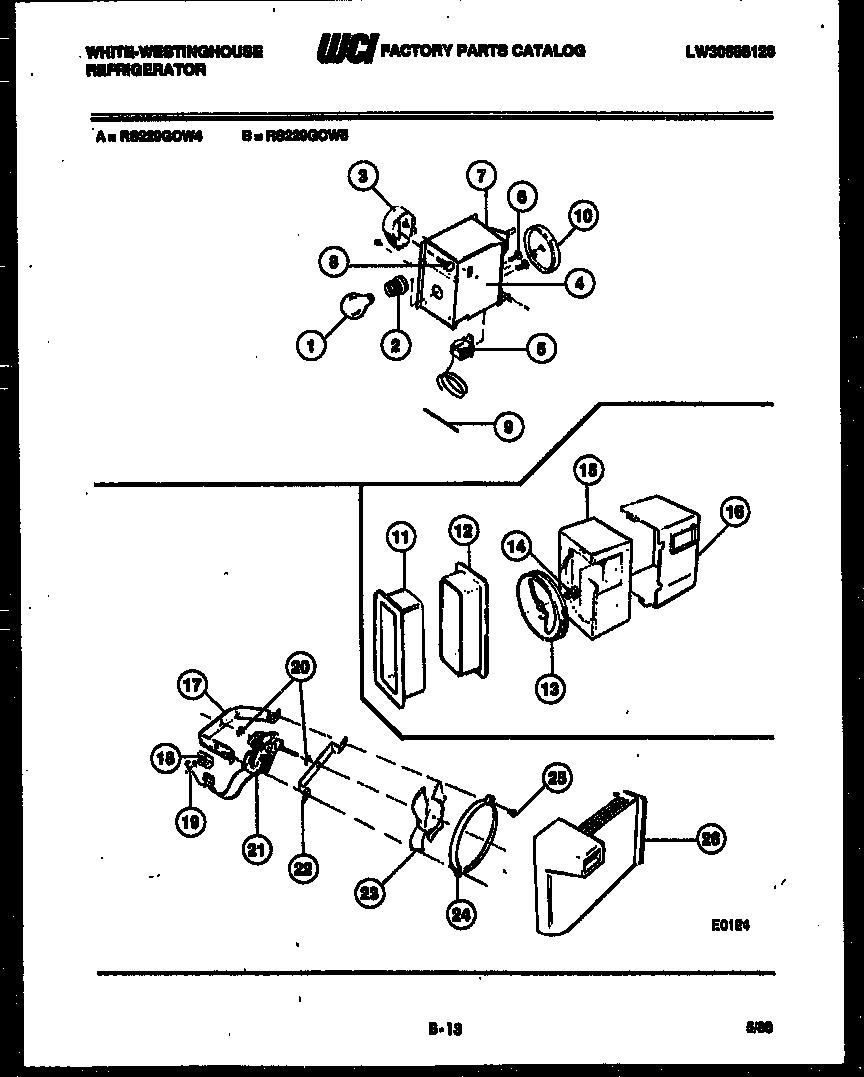

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

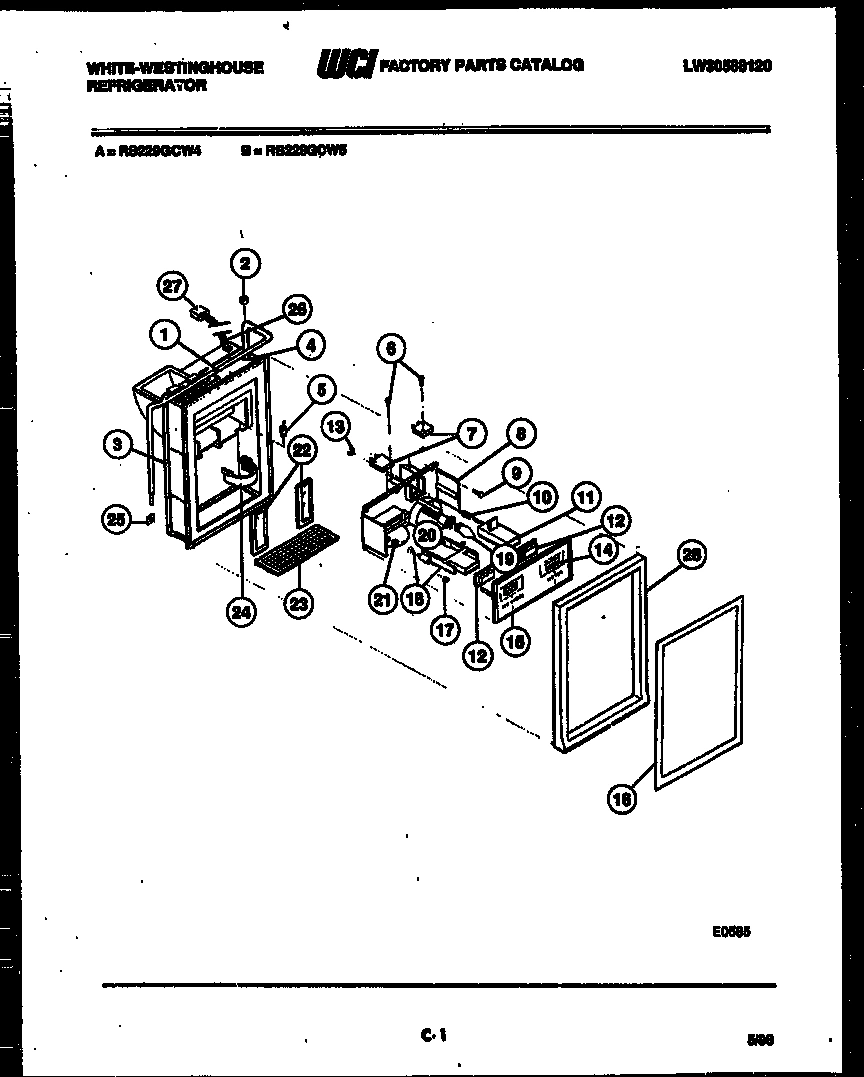

07 - ICE DOOR, DISPENSER AND WATER TANKS

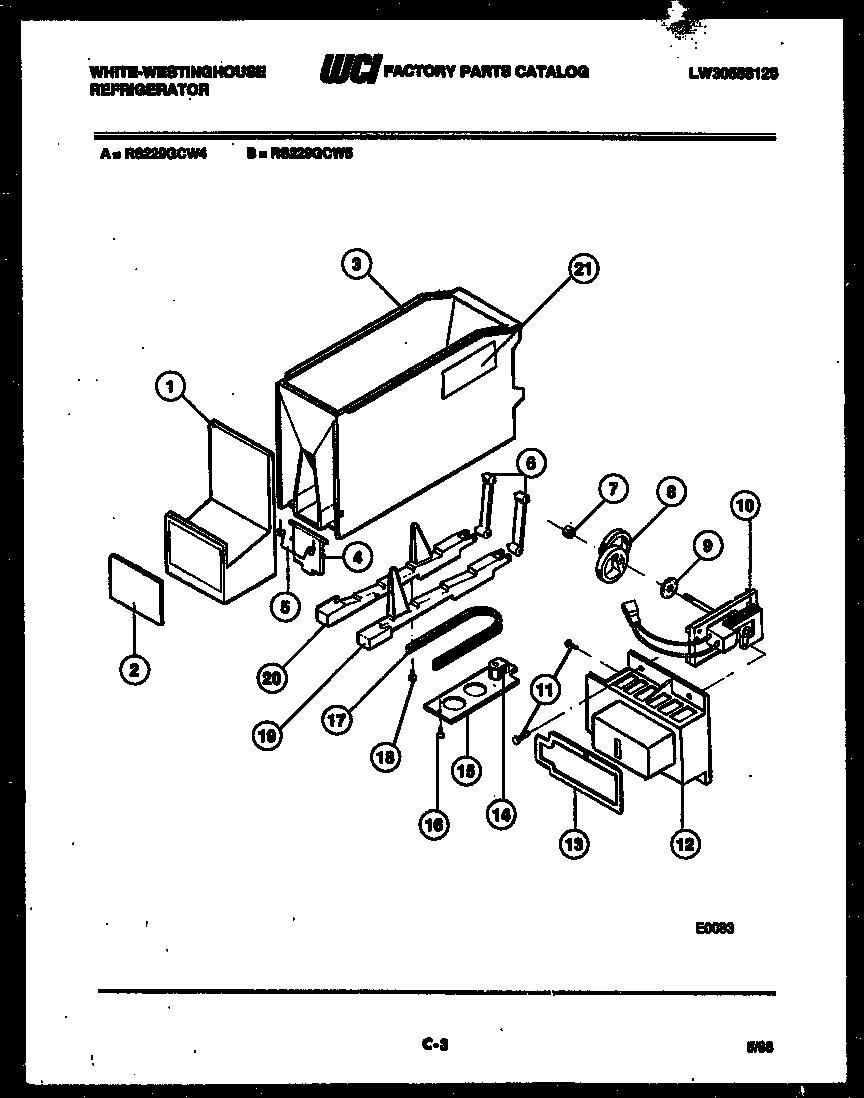

08 - ICE DISPENSER

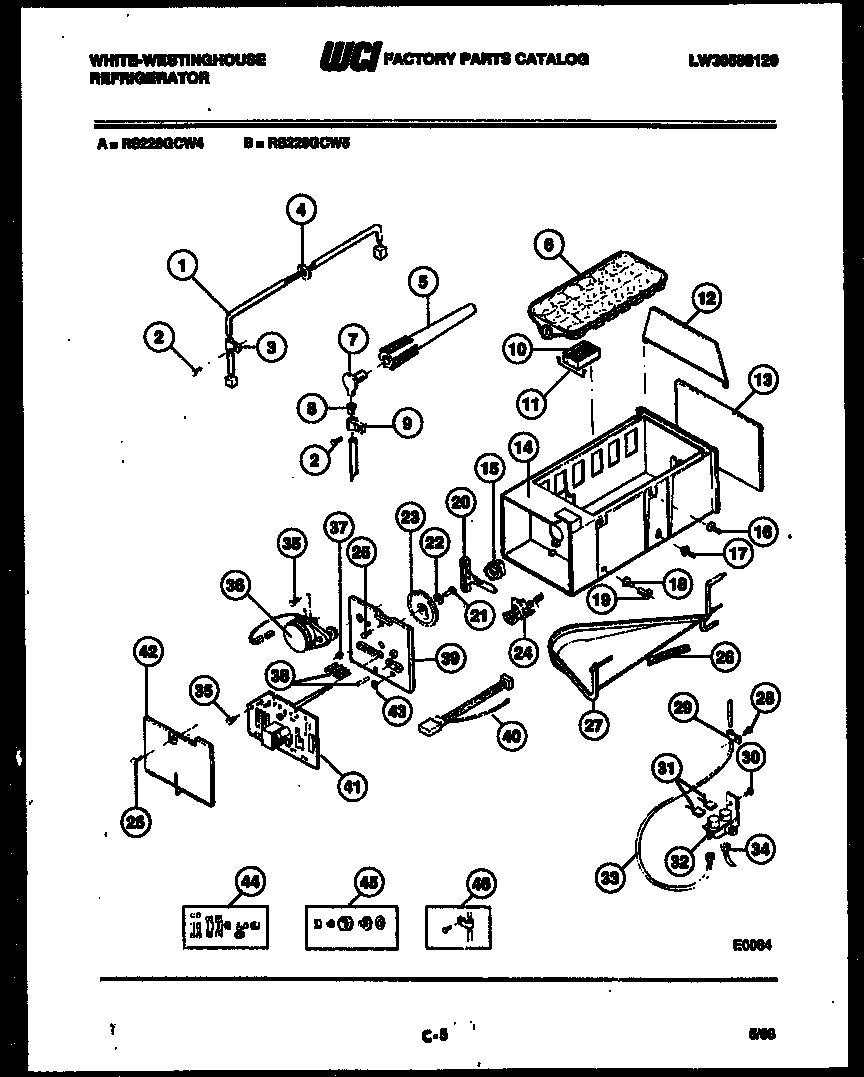

09 - ICE MAKER AND INSTALLATION PARTS

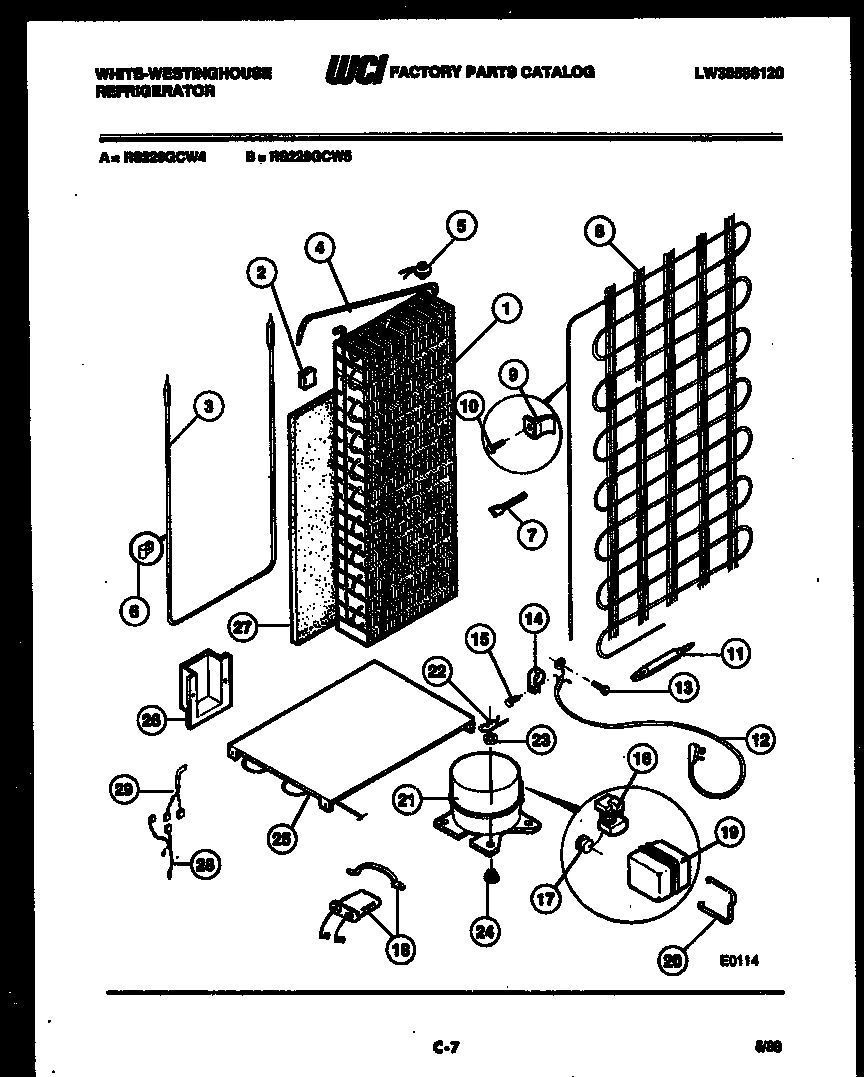

10 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RS229GCV5 REFRIGERATOR
*89459
PLUG-REFR LINER (4) WCI G162892-01 Contact Us For Availability
*89519
FOAM TAPE-COVER WCI G167795-04 Contact Us For Availability
*89520
WCI 3015135 WCI 3015135 Contact Us For Availability
*89520
CLIP, GROUNDING WCI G162703 Contact Us For Availability
*89632
HOT TUBE REPAIR KIT WCI G189379 Contact Us For Availability
1
WCI G180386-08 WCI G180386-08 Contact Us For Availability
1
FERRULE - INNER (2) WCI G174733 Contact Us For Availability
1
SHELF FRAME (3) WCI G178323-07 Contact Us For Availability
1
WCI G188233 WCI G188233 Contact Us For Availability
1
FRONT-ICE CONTAINER WCI G182031-02 Contact Us For Availability
1
WIRING HARNESS-ICE MAKER-UPPER WCI 3017210 Contact Us For Availability
1
WCI G190222 WCI G190222 Contact Us For Availability
1A
DOOR PLUG-BOTTOM (NON-ILLUSTRATED) WCI G152308-01 Contact Us For Availability
2
TRIM-FREEZER DOOR WCI G178328-06 Contact Us For Availability
2
TRIM-REFRIGERATOR DOOR WCI G178328-04 Contact Us For Availability
2
FERRULE-OUTER (2) WCI G174734 Contact Us For Availability
2
GLASS-SHELF (3) WCI G171654-31 Contact Us For Availability
2
LIGHT SOCKET-REFR WCI G168302 Contact Us For Availability
2
WCI G175246 WCI G175246 Contact Us For Availability
2
LABEL-ICE CONTAINER WCI G180632 Contact Us For Availability
2
COIL BLOCK WCI G169493 Contact Us For Availability
3
BEARING-UPPER HINGE WCI G183139 Contact Us For Availability
3
TRIM-FRONT (4) WCI G187267-13 Contact Us For Availability
3
WCI G182738 WCI G182738 Contact Us For Availability
3
ICE CONTAINER WCI G182151-02 Contact Us For Availability
3
WCI G161655 WCI G161655 Contact Us For Availability
3
WCI G190223 WCI G190223 Contact Us For Availability
4
WCI G177218-01 WCI G177218-01 Contact Us For Availability
4
TUBE-RUBBER (4) WCI G85642 Contact Us For Availability
4
TRIM-REAR (3) WCI G172409-12 Contact Us For Availability
4
DOOR HOUSING WCI G188308-02 Contact Us For Availability
4
DOOR-ICE CONTAINER WCI G182524-02 Contact Us For Availability
4
WCI G189609 WCI G189609 Contact Us For Availability
5
FRAME-NAMEPLATE WCI G176986 Contact Us For Availability
5
WCI 3017208 WCI 3017208 Contact Us For Availability
5
WCI G170694 WCI G170694 Contact Us For Availability
5
WCI G162205-05 WCI G162205-05 Contact Us For Availability
5
WCI G179999 WCI G179999 Contact Us For Availability
5
SPRING-CONTAINER DOOR WCI G182525 Contact Us For Availability
5
TUBE-FILLER EXTENSION WCI G187034 Contact Us For Availability
6
DOOR CLOSER WCI G161119 Contact Us For Availability
6
GASKET-FREEZER DOOR WCI G180551-03 Contact Us For Availability
6
WCI G169711-01 WCI G169711-01 Contact Us For Availability
6
WCI G107080 WCI G107080 Contact Us For Availability
6
WCI G177686 WCI G177686 Contact Us For Availability
6
SPRING AND PIN ASSEMBLY (2) WCI G182869 Contact Us For Availability
6
WCI G182507 WCI G182507 Contact Us For Availability
6
WCI G167363 WCI G167363 Contact Us For Availability
6A
GASKET-UPPER PAN (2) WCI G180108-03 Contact Us For Availability
7
SCREW-CLOSER MTG WCI G169729 Contact Us For Availability
7
WCI G177720 WCI G177720 Contact Us For Availability
7
SHIM-TOP HINGE (2) WCI G183861 Contact Us For Availability
7
WCI G179709-01 WCI G179709-01 Contact Us For Availability
7
CONTROL BOX WCI G189359 Contact Us For Availability
7
WCI G185542 WCI G185542 Contact Us For Availability
7
LOCK NUT 1/4-28 WCI G187107 Contact Us For Availability
7A
INSULATOR-BOX REAR (NON-ILLUSTRATED) WCI G165434 Contact Us For Availability
8
INSULATION-HOUSING WCI G181913 Contact Us For Availability
8
WCI G180551-02 WCI G180551-02 Contact Us For Availability
8
HINGE COVER-AVOCADO WCI G183558-08 Contact Us For Availability
8
WCI G179710-01 WCI G179710-01 Contact Us For Availability
8
PLATE-SWITCH MTG WCI G185754 Contact Us For Availability
8
CAM-DRIVE LINK WCI G181926 Contact Us For Availability
8
WCI G154156 WCI G154156 Contact Us For Availability
8
WCI G188597 WCI G188597 Contact Us For Availability
9
WCI G179017 WCI G179017 Contact Us For Availability
9
PANEL-INNER DOOR WCI G179992-01 Contact Us For Availability
9
HINGE-TOP RS WCI G183715 Contact Us For Availability
9
SEAL-MOTOR SHAFT WCI G182526 Contact Us For Availability
9
BRACKET, CONDENSER MOUNTING (4) WCI G169666-01 Contact Us For Availability
9A
WCI G183716 WCI G183716 Contact Us For Availability
10
WCI G175040-03 WCI G175040-03 Contact Us For Availability
10
WCI G179976-01 WCI G179976-01 Contact Us For Availability
10
WASHER-HINGE (2) WCI G170156 Contact Us For Availability
10
WCI G169724-01 WCI G169724-01 Contact Us For Availability
10
WCI G164906-01 WCI G164906-01 Contact Us For Availability
10
WCI G174700 WCI G174700 Contact Us For Availability
10
MOTOR-ICE DISPENSER WCI G182881 Contact Us For Availability
10
WCI G174479 WCI G174479 Contact Us For Availability
11
SPRING-FLIPPER WCI G184726 Contact Us For Availability
11
BEARING-LOWER HINGE WCI G183138 Contact Us For Availability
11
WCI 3017209 WCI 3017209 Contact Us For Availability
11
SHELF-FREEZER UPPER WCI 3017212 Contact Us For Availability
11
WCI G166802 WCI G166802 Contact Us For Availability
11
WCI G185063-01 WCI G185063-01 Contact Us For Availability
11
SCREW-HOUSING (3) WCI G182885 Contact Us For Availability
11
RETAINER, INSULATOR WCI G174427 Contact Us For Availability
11A
LABEL-FREEZER SHELF (NON-ILLUSTRATED) WCI G177706-06 Contact Us For Availability
12
DOOR SHELF (4) WCI G164109-18 Contact Us For Availability
12
GASKET, COIL COVER WCI G165233 Contact Us For Availability
12
HANGER-BASKET RS WCI G168986 Contact Us For Availability
12
WCI G166803 WCI G166803 Contact Us For Availability
12
WCI G187106-01 WCI G187106-01 Contact Us For Availability
12
HOUSING-DISP MOTOR WCI G182513 Contact Us For Availability
12
WCI G162549-01 WCI G162549-01 Contact Us For Availability
12A
WCI G101890 WCI G101890 Contact Us For Availability
12A
GASKET-FERRULE (NON-ILLUSTRATED) WCI G167582 Contact Us For Availability
12B
SCREW-SHELF (8) (NON-ILLUSTRATED) WCI G167115 Contact Us For Availability
13
WCI G180637 WCI G180637 Contact Us For Availability
13
SUPPORT RS (4) WCI G163781-01 Contact Us For Availability
13
WCI 3016897 WCI 3016897 Contact Us For Availability
13
HANGER-BASKET LS WCI G168987 Contact Us For Availability
13
WCI G165217-01 WCI G165217-01 Contact Us For Availability
13
WCI G174411 WCI G174411 Contact Us For Availability
13
WCI G185255 WCI G185255 Contact Us For Availability
13
COVER-ICE MAKER FRONT WCI 3017384 Contact Us For Availability
13A
VELCRO PAD-COVER (NON-ILLUSTRATED) WCI 3017383 Contact Us For Availability
13B
LABEL-FRONT COVER (NON-ILLUSTRATED) WCI 3017717 Contact Us For Availability
14
TRIM COVER-DOOR PANEL WCI G181241-01 Contact Us For Availability
14
SUPPORT LS (4) WCI G163780-01 Contact Us For Availability
14
GASKET-COVER LS WCI G174234-08 Contact Us For Availability
14
WCI G184748 WCI G184748 Contact Us For Availability
14
WCI G185373 WCI G185373 Contact Us For Availability
14
LABEL-FRONT PANEL WCI G182654-01 Contact Us For Availability
14
SPOOL-ICE RAM WCI G181929 Contact Us For Availability
14
HOUSING-ICE MAKER WCI G187057-01 Contact Us For Availability
14A
VELCRO PAD-HOUSING (NON-ILLUSTRATED) WCI 3017382 Contact Us For Availability
15
WCI G175070 WCI G175070 Contact Us For Availability
15
GASKET-COVER RS WCI G174234-10 Contact Us For Availability
15
WCI G165746-11 WCI G165746-11 Contact Us For Availability
15
WCI G164575 WCI G164575 Contact Us For Availability
15
WCI G182643-01 WCI G182643-01 Contact Us For Availability
15
SUPPORT-SPOOL WCI G181950 Contact Us For Availability
15
WCI G182487 WCI G182487 Contact Us For Availability
16
WCI G183176-01 WCI G183176-01 Contact Us For Availability
16
WCI G173948-19 WCI G173948-19 Contact Us For Availability
16
LIGHT SHIELD FREEZER WCI G182527-02 Contact Us For Availability
16
SHELF-FREEZER (2) WCI G180425-03 Contact Us For Availability
16
CONTROL BOX-DAMPER WCI G164523 Contact Us For Availability
16
LABEL-DOOR HOUSING WCI G182955-01 Contact Us For Availability
16
SCREW-SUPPORT MTG WCI G182868 Contact Us For Availability
16
WCI 3017391 WCI 3017391 Contact Us For Availability
16
WCI G182225-18 WCI G182225-18 Contact Us For Availability
17
DOOR RACK (5) WCI G490079-15 Contact Us For Availability
17
WCI G165376 WCI G165376 Contact Us For Availability
17
COIL COVER-LOWER WCI G169477-01 Contact Us For Availability
17
TRIM (3) WCI 3015092 Contact Us For Availability
17
WCI G185303 WCI G185303 Contact Us For Availability
17
WCI G174414 WCI G174414 Contact Us For Availability
17
BELT-RAM RETURN WCI G182867 Contact Us For Availability
17
WCI G182506 WCI G182506 Contact Us For Availability
17
WCI G189028 WCI G189028 Contact Us For Availability
18
SUPPORT-RS (5) WCI G179946-01 Contact Us For Availability
18
HANDLE-REFR DOOR WCI G177141-09 Contact Us For Availability
18
SHELF-FREEZER WCI G180425-04 Contact Us For Availability
18
CONNECTOR BRACKET WCI G164571 Contact Us For Availability
18
WCI G177725 WCI G177725 Contact Us For Availability
18
CAPACITOR WCI G188885-01 Contact Us For Availability
18A
BOX-LIGHT SOCKET (NON-ILLUSTRATED) WCI G182493-01 Contact Us For Availability
18A
STRAP-CAPACITOR (NON-ILLUSTRATED) WCI G188897 Contact Us For Availability
19
SUPPORT-LS (5) WCI G179947-01 Contact Us For Availability
19
WCI G185566 WCI G185566 Contact Us For Availability
19
WCI G188104-01 WCI G188104-01 Contact Us For Availability
19
CAP-LEVELING SCREW WCI G185464 Contact Us For Availability
20
BUSHING (2) WCI G187559 Contact Us For Availability
20
END CAP, TOP WCI G177142 Contact Us For Availability
20
GASKET-COIL COVER WCI G188000-03 Contact Us For Availability
20
WCI G177729 WCI G177729 Contact Us For Availability
20
RAM-ICE LS WCI G182206-01 Contact Us For Availability
20
WCI G182416 WCI G182416 Contact Us For Availability
21
TRIM, TOP WCI G179270 Contact Us For Availability
21
WCI G164912-03 WCI G164912-03 Contact Us For Availability
21
WCI G177724 WCI G177724 Contact Us For Availability
21
WCI 3016895 WCI 3016895 Contact Us For Availability
21
WCI G174444 WCI G174444 Contact Us For Availability
21
COMPRESSOR WITH ELECTRICALS WCI G190156 Contact Us For Availability
22
CLIP-HANDLE (4) WCI G177144 Contact Us For Availability
22
WASHER-HINGE (2) WCI G164355 Contact Us For Availability
22
TANK-WATER WCI G186055 Contact Us For Availability
22
WCI G185302 WCI G185302 Contact Us For Availability
22
WCI G182929 WCI G182929 Contact Us For Availability
22
WASHER-CRANK SHAFT WCI G174430 Contact Us For Availability
22
CLIP-COMPRESSOR (4) WCI G163204 Contact Us For Availability
23
TRIM, BOTTOM WCI G179271 Contact Us For Availability
23
HINGE-BOTTOM RS WCI G162383 Contact Us For Availability
23
WCI G163938 WCI G163938 Contact Us For Availability
23
WCI G182551-01 WCI G182551-01 Contact Us For Availability
23
WCI G174484 WCI G174484 Contact Us For Availability
23
WASHER-COMPR (4) WCI G164634 Contact Us For Availability
23A
HINGE-BOTTOM LS (NON-ILLUSTRATED) WCI G175068 Contact Us For Availability
23B
WCI G141673 WCI G141673 Contact Us For Availability
24
END CAP, BOTTOM WCI G177143 Contact Us For Availability
24
SHIM-BOTTOM HINGE (3) WCI G162903 Contact Us For Availability
24
WCI G167217 WCI G167217 Contact Us For Availability
24
WCI G180004-02 WCI G180004-02 Contact Us For Availability
24
WCI 3017390 WCI 3017390 Contact Us For Availability
24A
WCI G142361 WCI G142361 Contact Us For Availability
24B
WCI G77210 WCI G77210 Contact Us For Availability
25
NUT-SELF THREADING (12) WCI G188218 Contact Us For Availability
25
MOLDING-DOOR TRIM WCI G180613-01 Contact Us For Availability
25
SCREW-HINGE MTG (2) WCI G99167 Contact Us For Availability
25
CLAMP-TUBE WCI G166705 Contact Us For Availability
25
WCI G185567 WCI G185567 Contact Us For Availability
25
WCI G188596 WCI G188596 Contact Us For Availability
25A
BRACKET-PLATE (4) (NON-ILLUSTRATED) WCI G171111 Contact Us For Availability
25B
WCI G171123 WCI G171123 Contact Us For Availability
26
WCI G164643-08 WCI G164643-08 Contact Us For Availability
26
WCI G186058 WCI G186058 Contact Us For Availability
26
WCI G181917-01 WCI G181917-01 Contact Us For Availability
26
WCI G185226 WCI G185226 Contact Us For Availability
26
WCI 3017392 WCI 3017392 Contact Us For Availability
26
WCI G183584 WCI G183584 Contact Us For Availability
26A
WCI G169100 WCI G169100 Contact Us For Availability
26A
WCI G169297 WCI G169297 Contact Us For Availability
27
MULLION TRIM-AVOCADO WCI G169745-08 Contact Us For Availability
27
WCI G186057 WCI G186057 Contact Us For Availability
27
WCI G177742 WCI G177742 Contact Us For Availability
27
WCI 3015044 WCI 3015044 Contact Us For Availability
27
WCI G169641 WCI G169641 Contact Us For Availability
27A
DIODE KIT (NON-ILLUSTRATED) WCI G186533-01 Contact Us For Availability
28
WCI G182518-05 WCI G182518-05 Contact Us For Availability
28
WIRING HARNESS-COMPRESSOR & LIGHTS WCI G164579 Contact Us For Availability
29
COVER, WATER TANK WCI G163925-02 Contact Us For Availability
30
GRILLE WCI G174597-04 Contact Us For Availability
30
GLASS-SHELF WCI G171654-32 Contact Us For Availability
31
CLIP, GRILLE WCI G170328 Contact Us For Availability
31
TRIM-REAR WCI G172409-13 Contact Us For Availability
32
ROLLER-FRONT (2) WCI G186731 Contact Us For Availability
32
SHELF-FREEZER WCI G185494-01 Contact Us For Availability
32
WATER VALVE-SOL WCI G189174 Contact Us For Availability
32A
LABEL-FREEZER (NON-ILLUSTRATED) WCI G177706-07 Contact Us For Availability
33
SCREW-ROLLER MTG (2) WCI G187491 Contact Us For Availability
33
SHELF-MEAT KEEPER WCI G187217-03 Contact Us For Availability
34
WCI G171125 WCI G171125 Contact Us For Availability
34
RAIL-HANGER LH WCI G187215-02 Contact Us For Availability
35
RAIL-HANGER RH WCI G187216-02 Contact Us For Availability
35
SCREW (5) WCI G185562 Contact Us For Availability
36
WCI G171193 WCI G171193 Contact Us For Availability
36
PAN-STORAGE WCI G179915-01 Contact Us For Availability
36
MOTOR-ICE MAKER WCI G174505 Contact Us For Availability
37
WCI G177743 WCI G177743 Contact Us For Availability
37
TRIM, PAN WCI G177343-06 Contact Us For Availability
37
NUT-HEX 10-32 LH WCI G174434 Contact Us For Availability
37A
NUT-ELBOW (NON-ILLUSTRATED) WCI G143689 Contact Us For Availability
38
WCI G162809 WCI G162809 Contact Us For Availability
38
CAM FOLLOWER-PIN WCI G182234 Contact Us For Availability
39
WCI G162808 WCI G162808 Contact Us For Availability
39
WCI G182015 WCI G182015 Contact Us For Availability
40
PUSH NUT (2) WCI G162662 Contact Us For Availability
40
WIRING HARNESS-PCB WCI G182859 Contact Us For Availability
41
COVER-BOTTOM HINGE WCI G174658-01 Contact Us For Availability
41
PC BOARD WCI G181942 Contact Us For Availability
42
WCI G158022 WCI G158022 Contact Us For Availability
42
COVER AND LEVER ASSEMBLY WCI G191470 Contact Us For Availability
42A
LOCK WASHER (2) (NON-ILLUSTRATED) WCI G164820 Contact Us For Availability
42B
WCI G184851 WCI G184851 Contact Us For Availability
43
SUPPORT-COIL COVER (4) WCI G169471 Contact Us For Availability
43
RETAINER RING WCI G174422 Contact Us For Availability
44
SUPPORT-COIL COVER WCI G163669 Contact Us For Availability
44
SADDLE VALVE KIT WCI G99428 Contact Us For Availability
45
WATER SUPPLY ADAPTER KIT WCI G159415 Contact Us For Availability
× ![]()
