Model Electrolux RS228GCV2 REFRIGERATOR – Common Parts & Diagrams

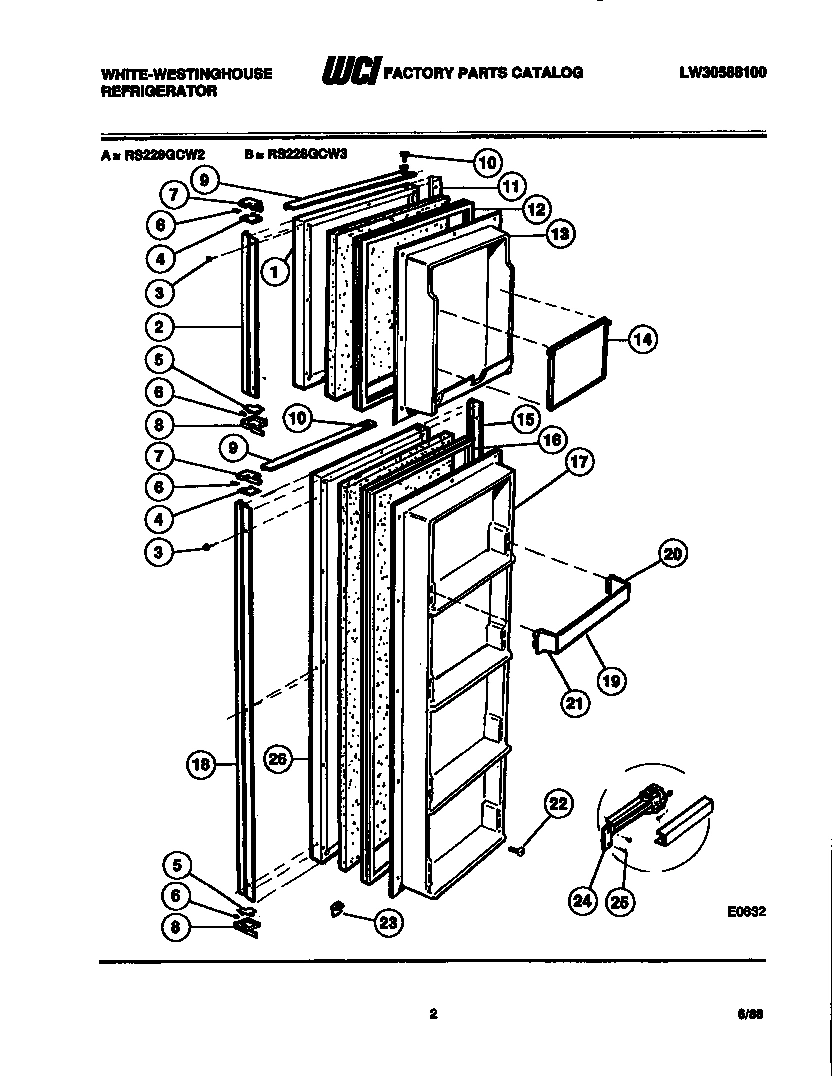

02 - FREEZER DOOR PARTS

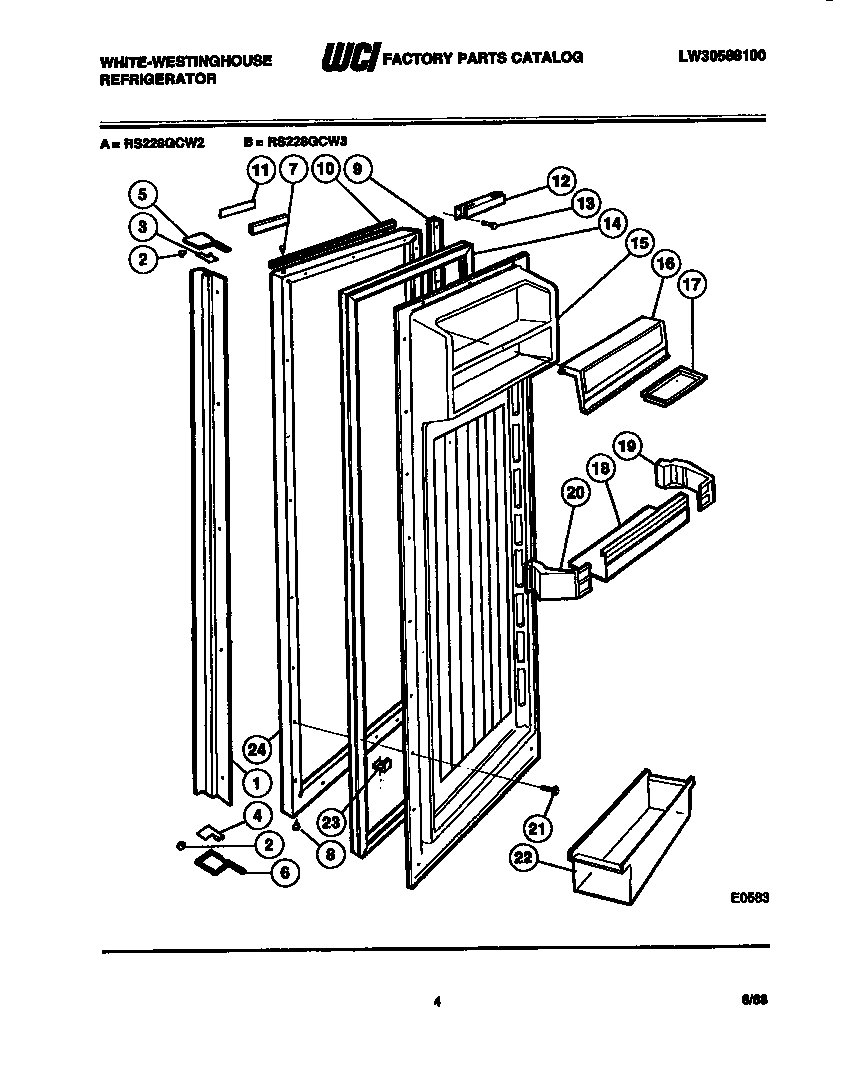

03 - REFRIGERATOR DOOR PARTS

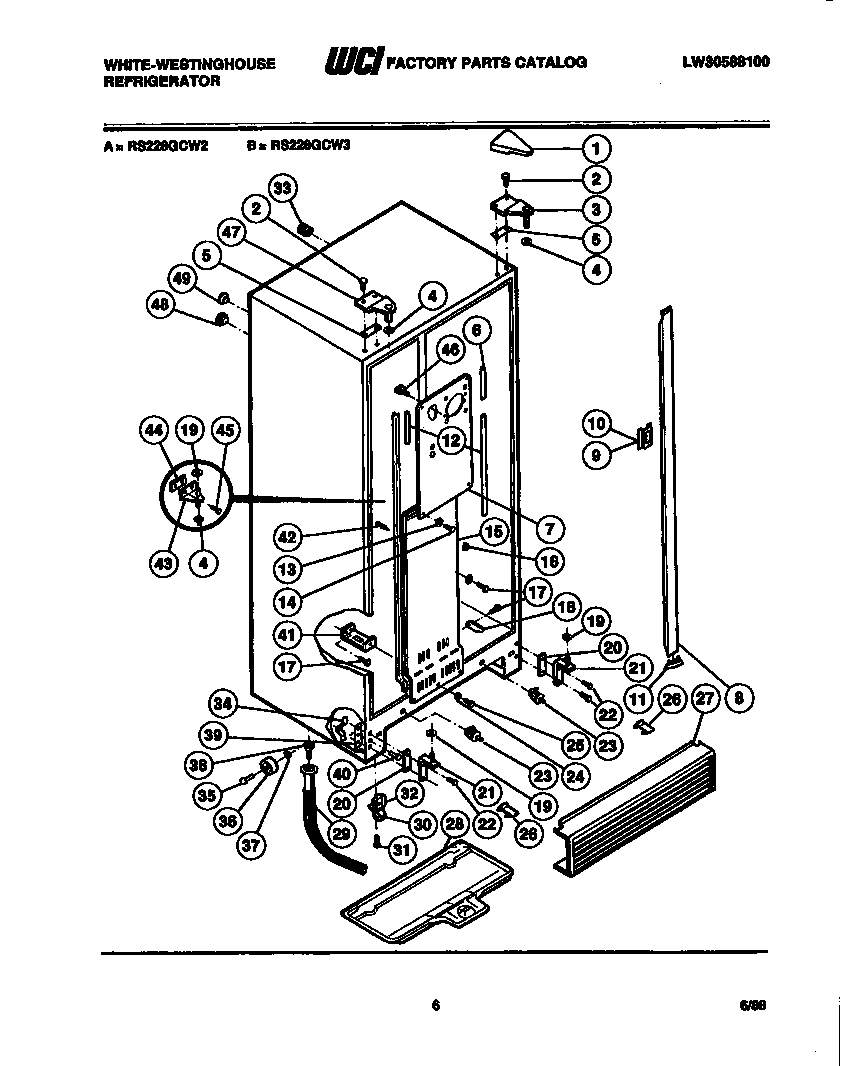

04 - CABINET PARTS

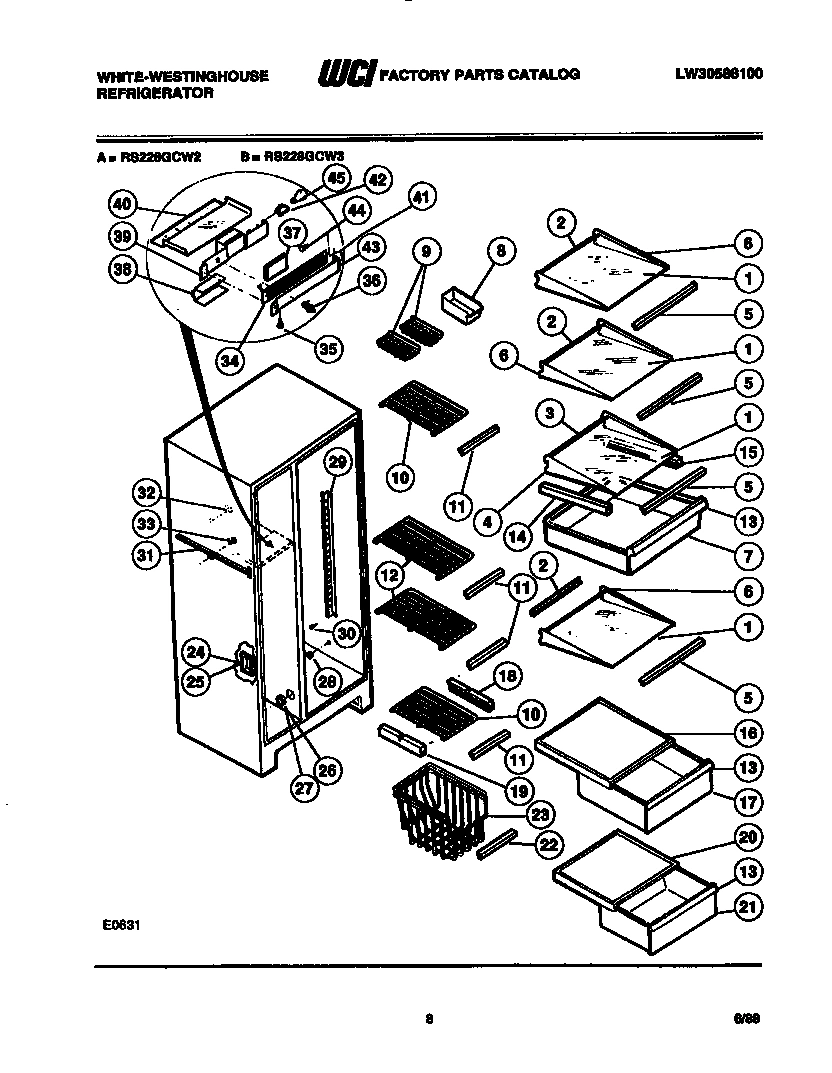

05 - SHELVES AND SUPPORTS

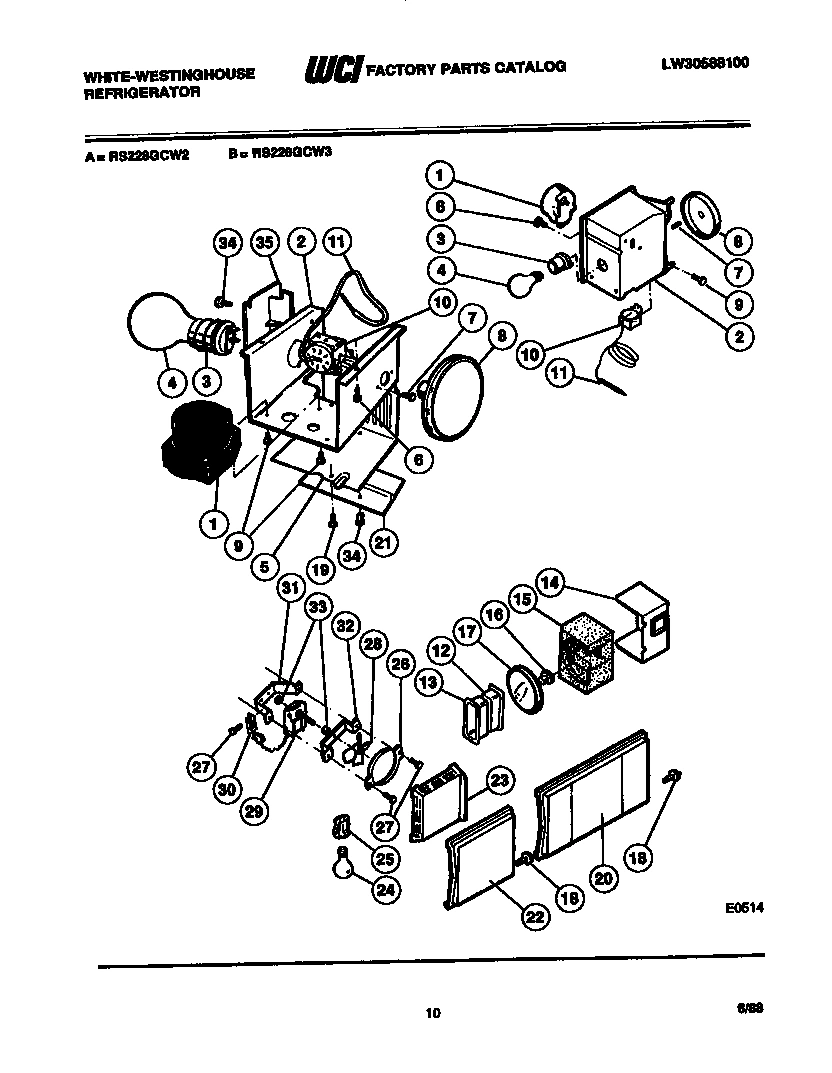

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

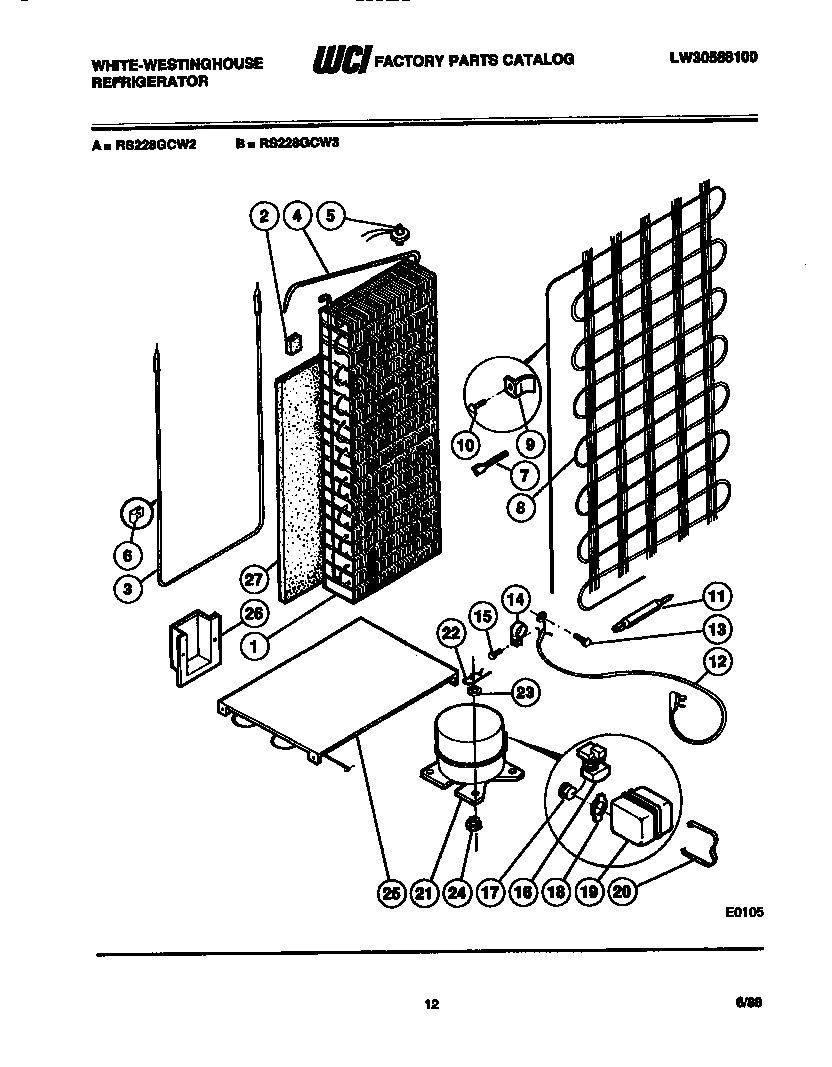

07 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RS228GCV2 REFRIGERATOR
*97472
INSULATION WCI G89643 Contact Us For Availability
*97515
WCI G169486 WCI G169486 Contact Us For Availability
*97548
WCI G000169712 WCI G000169712 Contact Us For Availability
*97591
WIRING HARNESS-COMPRESSOR & LIGHTS WCI G164579 Contact Us For Availability
*97591
HOT TUBE REPAIR KIT WCI G189379 Contact Us For Availability
1
WCI G180575-08 WCI G180575-08 Contact Us For Availability
1
HANDLE-DOOR WCI G177141-09 Contact Us For Availability
1
COVER-TOP HINGE-AVOCADO (2) WCI G183558-08 Contact Us For Availability
1
SHELF-GLASS (4) WCI G171654-32 Contact Us For Availability
1
WCI G189612 WCI G189612 Contact Us For Availability
2
WCI G177141-10 WCI G177141-10 Contact Us For Availability
2
CLIP-DOOR HANDLE (4) WCI G177144 Contact Us For Availability
2
TRIM-SHELF REAR (3) WCI G172409-12 Contact Us For Availability
2
BRACKET, CONTROL MOUNTING WCI G164788 Contact Us For Availability
2
COIL BLOCK WCI G169493 Contact Us For Availability
3
WCI G188566 WCI G188566 Contact Us For Availability
3
TRIM-HANDLE TOP WCI G179270 Contact Us For Availability
3
HINGE, UPPER, RH WCI G183715 Contact Us For Availability
3
WCI G172409-13 WCI G172409-13 Contact Us For Availability
3
SOCKET LIGHT WCI G168302 Contact Us For Availability
3
WCI G157191 WCI G157191 Contact Us For Availability
4
TRIM-HANDLE BOTTOM WCI G179271 Contact Us For Availability
4
WASHER-NYLON (3) WCI G164355 Contact Us For Availability
4
WCI G187217-03 WCI G187217-03 Contact Us For Availability
4
WCI G189613 WCI G189613 Contact Us For Availability
5
END HANDLE TOP WCI G177142 Contact Us For Availability
5
SHIM-UPPER HINGE (2) WCI G183861 Contact Us For Availability
5
WCI G187267-13 WCI G187267-13 Contact Us For Availability
5
COVER, CONTROL BRACKET WCI G164778 Contact Us For Availability
6
END-HANDLE BOTTOM WCI G177143 Contact Us For Availability
6
GASKET-COIL COVER (2) WCI G165233 Contact Us For Availability
6
FRAME-SHELF (3) WCI G178323-08 Contact Us For Availability
6
WCI G167363 WCI G167363 Contact Us For Availability
7
BEARING, HINGE WCI G183139 Contact Us For Availability
7
COVER, UPPER COIL WCI G169481-01 Contact Us For Availability
7
WCI G179915-01 WCI G179915-01 Contact Us For Availability
7
WCI G107080 WCI G107080 Contact Us For Availability
8
BEARING, HINGE WCI G183138 Contact Us For Availability
8
CONTAINER ICE WCI G161015-13 Contact Us For Availability
8
KNOB-COLD CONTROL WCI G164906-01 Contact Us For Availability
8
WCI 3007521 WCI 3007521 Contact Us For Availability
9
WCI G178328-06 WCI G178328-06 Contact Us For Availability
9
WCI G180613-01 WCI G180613-01 Contact Us For Availability
9
CLIP-MULLION (3) WCI G169100 Contact Us For Availability
9
BRACKET-MOUNTING (4) WCI G169666-01 Contact Us For Availability
10
WCI G178328-04 WCI G178328-04 Contact Us For Availability
10
CLIP-MULLION (3) WCI G169297 Contact Us For Availability
10
SHELF-FREEZER (2) WCI G180425-03 Contact Us For Availability
10
CONTROL-COLD WCI G162205-05 Contact Us For Availability
11
WCI G180613-02 WCI G180613-02 Contact Us For Availability
11
WCI R304001 WCI R304001 Contact Us For Availability
11
TRIM-SHELF (4) WCI 3015092 Contact Us For Availability
12
WCI G180551-04 WCI G180551-04 Contact Us For Availability
12
WCI G161119 WCI G161119 Contact Us For Availability
12
GASKET (3) WCI G174234-01 Contact Us For Availability
12
SHELF-FREEZER (2) WCI G180425-04 Contact Us For Availability
12
WCI G166802 WCI G166802 Contact Us For Availability
12
WCI G162549-01 WCI G162549-01 Contact Us For Availability
13
WCI G180117-01 WCI G180117-01 Contact Us For Availability
13
WASHER-NYLON (9) WCI G170839 Contact Us For Availability
13
TRIM-PAN (3) WCI G177343-06 Contact Us For Availability
13
WCI G166803 WCI G166803 Contact Us For Availability
14
RACK-JUICE WCI G179808-01 Contact Us For Availability
14
GASKET-REFRIGERATOR WCI G180551-02 Contact Us For Availability
14
WCI G187215-02 WCI G187215-02 Contact Us For Availability
14
WCI G164523 WCI G164523 Contact Us For Availability
15
WCI G180613-03 WCI G180613-03 Contact Us For Availability
15
WCI G179992-01 WCI G179992-01 Contact Us For Availability
15
WCI G169477-02 WCI G169477-02 Contact Us For Availability
15
WCI G187216-02 WCI G187216-02 Contact Us For Availability
15
DEFLECTOR-AIR WCI G164575 Contact Us For Availability
16
WCI G180551-05 WCI G180551-05 Contact Us For Availability
16
DOOR-DAIRY (2) WCI G179976-01 Contact Us For Availability
16
CLIP, GROUNDING WCI G162703 Contact Us For Availability
16
COVER-CRISPER UPPER WCI G169711-01 Contact Us For Availability
16
WCI G185373 WCI G185373 Contact Us For Availability
16
WCI G182225-04 WCI G182225-04 Contact Us For Availability
17
WCI G180861-01 WCI G180861-01 Contact Us For Availability
17
PAN-STORAGE UPPER WCI G179709-01 Contact Us For Availability
17
WCI G165217-01 WCI G165217-01 Contact Us For Availability
17
WCI G188727 WCI G188727 Contact Us For Availability
18
WCI G177141-11 WCI G177141-11 Contact Us For Availability
18
WCI G164109-18 WCI G164109-18 Contact Us For Availability
18
WCI G164912-03 WCI G164912-03 Contact Us For Availability
18
SUPPORT-LIGHT SHIELD (2) WCI G169471 Contact Us For Availability
18
WCI G168986 WCI G168986 Contact Us For Availability
18
CLIP-OVERLOAD WCI G188957 Contact Us For Availability
19
WCI G490079-15 WCI G490079-15 Contact Us For Availability
19
SUPPORT-RACK RH (4) WCI G163781-01 Contact Us For Availability
19
WASHER-NYLON (3) WCI G170156 Contact Us For Availability
19
WCI G168987 WCI G168987 Contact Us For Availability
20
SUPPORT-RACK RH (4) WCI G179946-01 Contact Us For Availability
20
SUPPORT-RACK LH (4) WCI G163780-01 Contact Us For Availability
20
SHIM-LOWER HINGE (6) WCI G162903 Contact Us For Availability
20
COVER-CRISPER LOWER WCI G169724-01 Contact Us For Availability
20
SHIELD-LIGHT REFRIGERATOR WCI G169601-13 Contact Us For Availability
21
SUPPORT-RACK LH (4) WCI G179947-01 Contact Us For Availability
21
HINGE-LOWER (2) WCI G162383 Contact Us For Availability
21
PAN STORAGE-LOWER WCI G179710-01 Contact Us For Availability
21
WCI G166068 WCI G166068 Contact Us For Availability
21
WCI G189470 WCI G189470 Contact Us For Availability
22
CONTAINER-EGG WCI G173948-19 Contact Us For Availability
22
WCI G165746-11 WCI G165746-11 Contact Us For Availability
22
SHIELD-LIGHT FREEZER WCI G164452-27 Contact Us For Availability
22
CLIP-MOUNTING (4) WCI G163204 Contact Us For Availability
23
WCI G165376 WCI G165376 Contact Us For Availability
23
BASKET-SLIDING WCI G184748 Contact Us For Availability
23
WCI G164654-01 WCI G164654-01 Contact Us For Availability
23
WASHER-MOUNTING (4) WCI G164634 Contact Us For Availability
24
PANEL-REFRIGERATOR-AVOCADO WCI G180386-08 Contact Us For Availability
24
WASHER-EXT LOCK (2) WCI G164820 Contact Us For Availability
24
WCI G166800 WCI G166800 Contact Us For Availability
25
SCREW WCI G184851 Contact Us For Availability
25
WCI G166801 WCI G166801 Contact Us For Availability
25
WCI G188596 WCI G188596 Contact Us For Availability
25A
BRACKET-MOUNTING (4) (NON-ILLUSTRATED) WCI G171111 Contact Us For Availability
25B
WCI G171123 WCI G171123 Contact Us For Availability
26
WCI G180574-08 WCI G180574-08 Contact Us For Availability
26
WCI G170328 WCI G170328 Contact Us For Availability
26
RING, FAN ORIFICE WCI G167217 Contact Us For Availability
26
WCI G183584 WCI G183584 Contact Us For Availability
27
GRILLE-LOWER FRONT WCI G171540-02 Contact Us For Availability
27
WCI G169641 WCI G169641 Contact Us For Availability
28
PAN, DEFROST WCI G171125 Contact Us For Availability
28
BUTTON-PLUG (4) WCI G162892-01 Contact Us For Availability
29
CHANNEL-SHELF (2) WCI G170694 Contact Us For Availability
30
SCREW 1/4 X 1 (4) WCI G99167 Contact Us For Availability
30
ASSEMBLY ROOLER ADJUSTMENT (2) WCI G186731 Contact Us For Availability
30
WCI G164571 WCI G164571 Contact Us For Availability
31
SCREW 5/16 (2) WCI G187491 Contact Us For Availability
31
WCI G169709 WCI G169709 Contact Us For Availability
31
BRACKET-MOTOR MOUNTING REAR WCI G185303 Contact Us For Availability
32
SCREW (2) WCI G166171 Contact Us For Availability
32
BUTTON, PLUG (3) WCI G187599 Contact Us For Availability
32
BRACKET-MOTOR MOUNTING FRONT WCI G185302 Contact Us For Availability
33
TUBE-RUBBER (4) WCI G85642 Contact Us For Availability
34
NUT-STUD SPEED (2) WCI G77210 Contact Us For Availability
34
WCI G169756 WCI G169756 Contact Us For Availability
34
WCI G165545 WCI G165545 Contact Us For Availability
35
PIN (2) WCI G162809 Contact Us For Availability
35
SCREW 8-18 X 3/8 WCI G99660 Contact Us For Availability
35
BRACKET-CAP TUBE MOUNTING WCI G165543 Contact Us For Availability
36
ROLLER (2) WCI G162808 Contact Us For Availability
37
NUT - PUSH (2) WCI G162662 Contact Us For Availability
37
WCI G175156 WCI G175156 Contact Us For Availability
38
CONDUCTOR, HEAT WCI G171193 Contact Us For Availability
38
WCI G169516 WCI G169516 Contact Us For Availability
39
WCI G141673 WCI G141673 Contact Us For Availability
39
WCI G169529 WCI G169529 Contact Us For Availability
40
WCI G142361 WCI G142361 Contact Us For Availability
40
WCI G169635 WCI G169635 Contact Us For Availability
41
TRIM, MULLION, AVOCADO WCI G169745-08 Contact Us For Availability
41
BRACKET, COVER MOUNTING WCI G158022 Contact Us For Availability
43
WCI G164643-08 WCI G164643-08 Contact Us For Availability
43
WCI G169531 WCI G169531 Contact Us For Availability
44
WCI G169610 WCI G169610 Contact Us For Availability
44
SCREW (2) WCI G183103 Contact Us For Availability
46
WCI G163669 WCI G163669 Contact Us For Availability
47
HINGE, UPPER, LH WCI G183716 Contact Us For Availability
48
FERRULE - INNER (2) WCI G174733 Contact Us For Availability
49
FERRULE-OUTER (2) WCI G174734 Contact Us For Availability
× ![]()
