Model Electrolux RS227MCW2 REFRIGERATOR – Common Parts & Diagrams

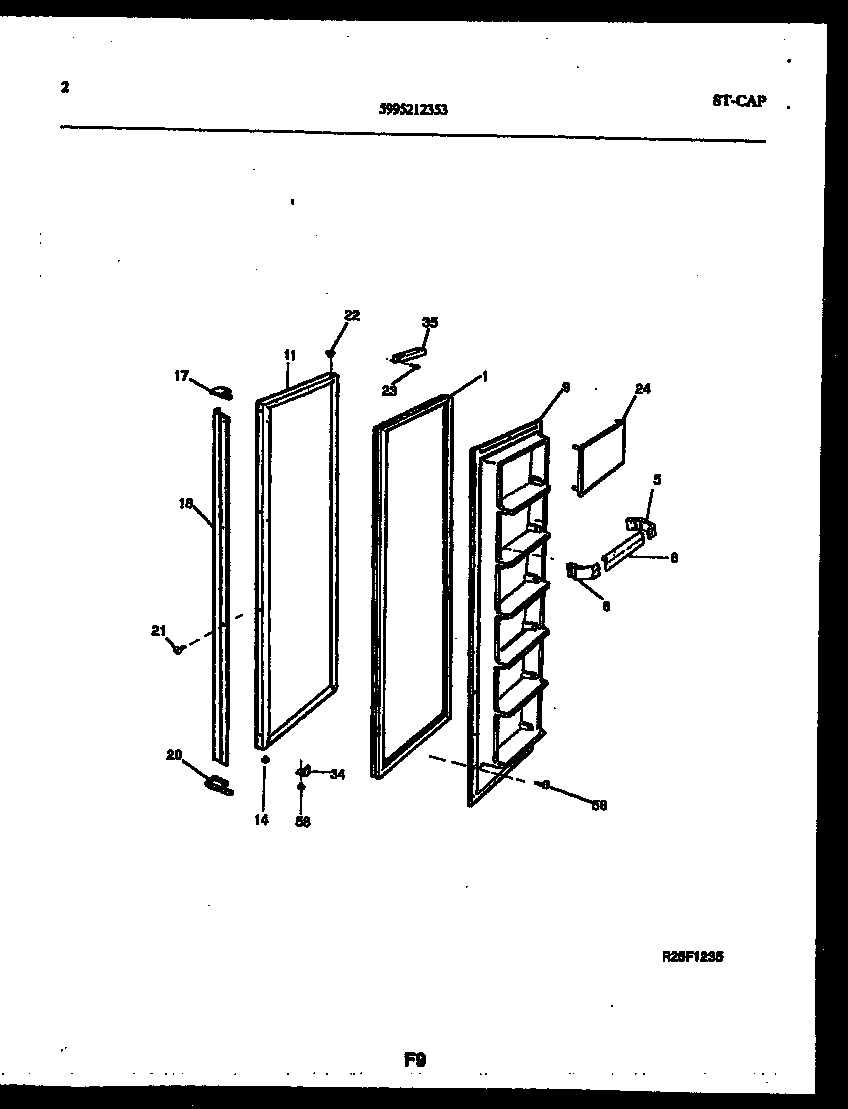

02 - FREEZER DOOR PARTS

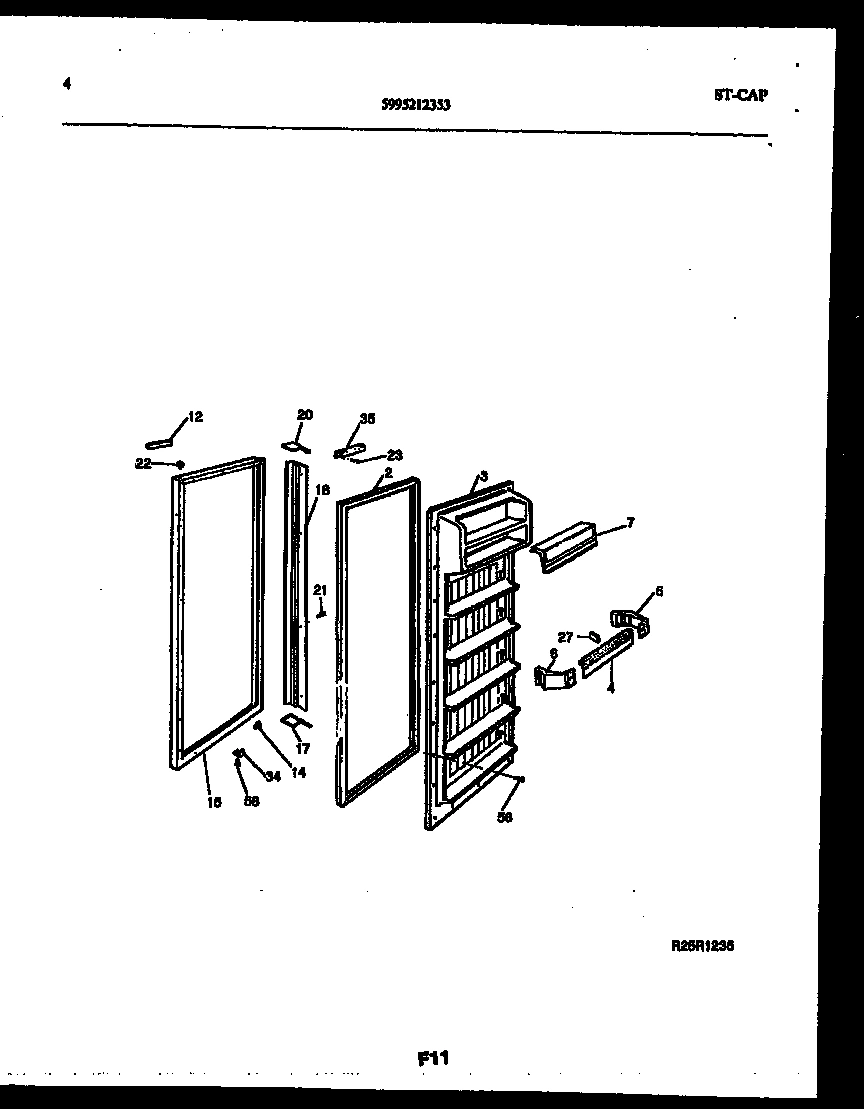

03 - REFRIGERATOR DOOR PARTS

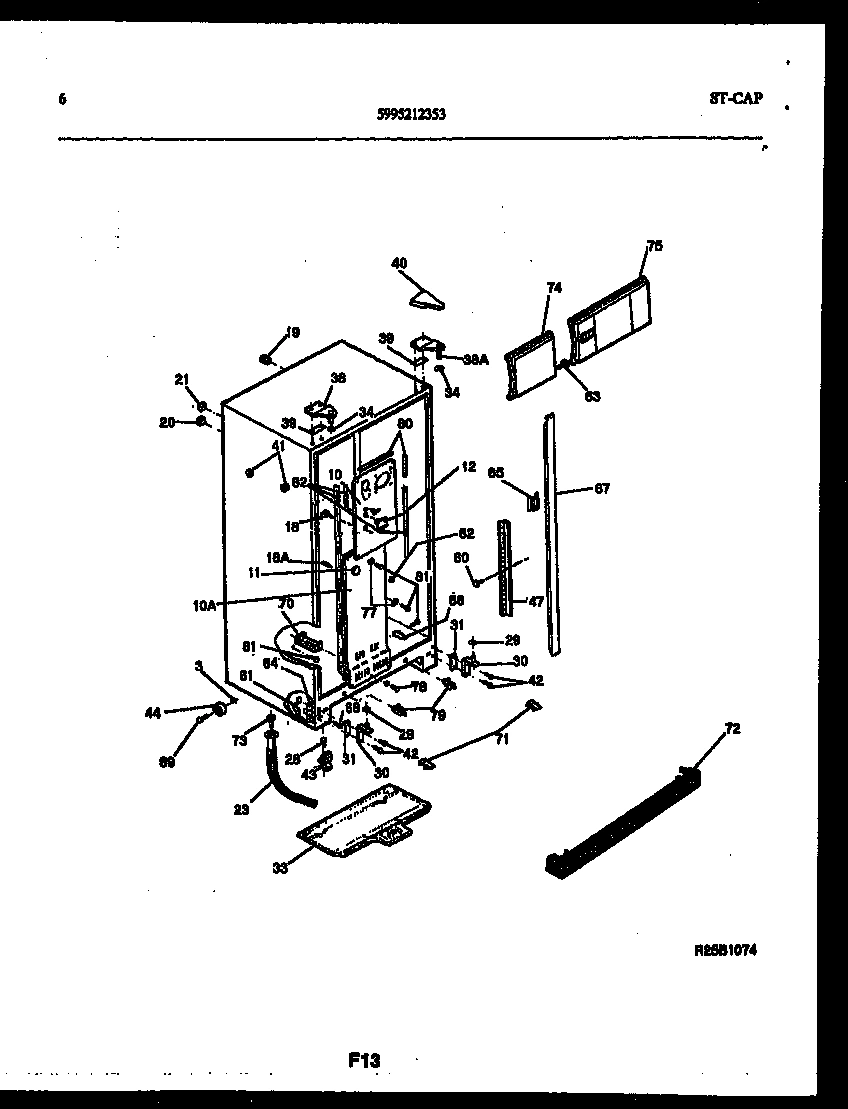

04 - CABINET PARTS

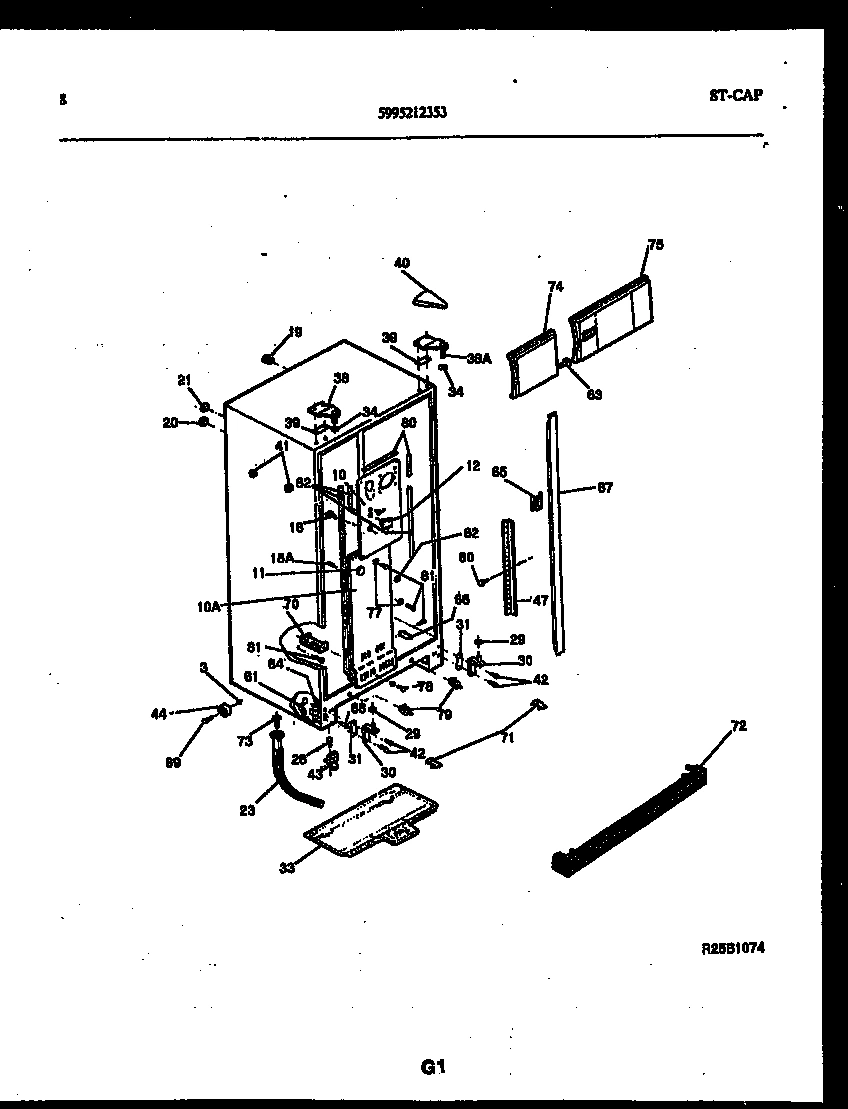

05 - CABINET PARTS

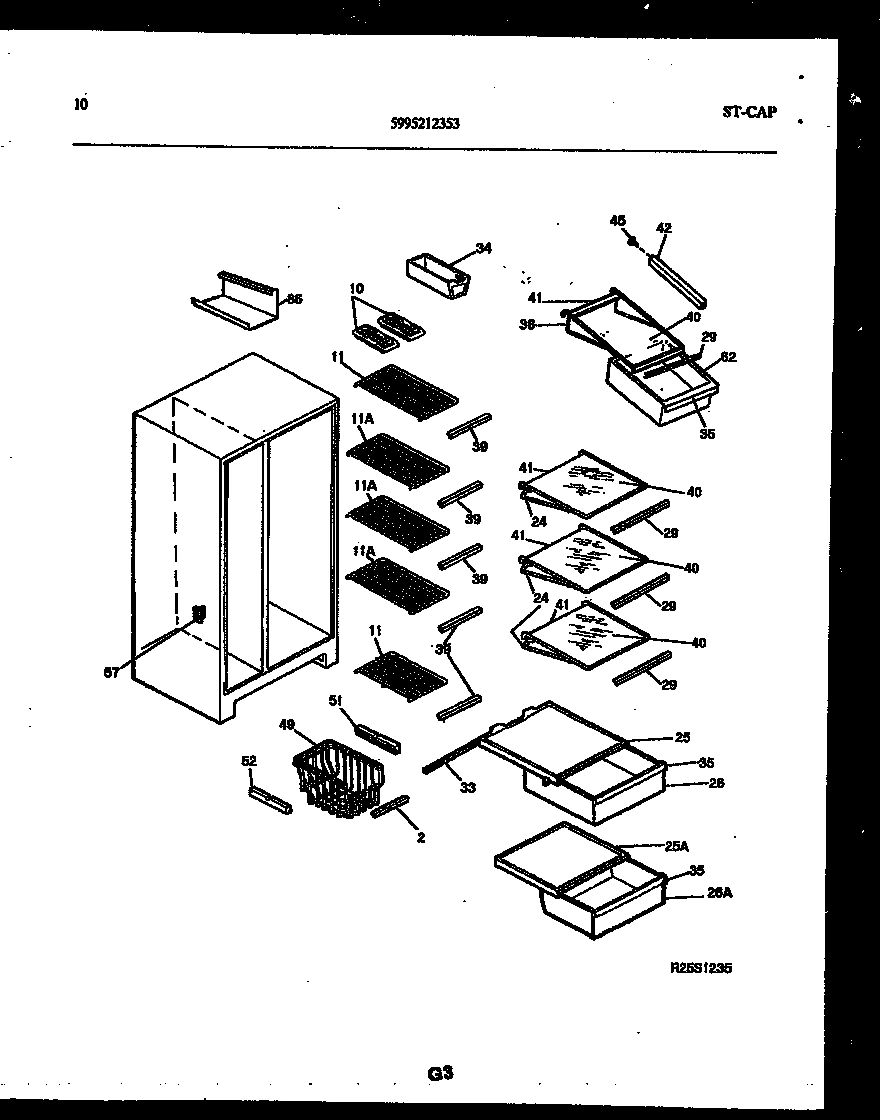

06 - SHELVES AND SUPPORTS

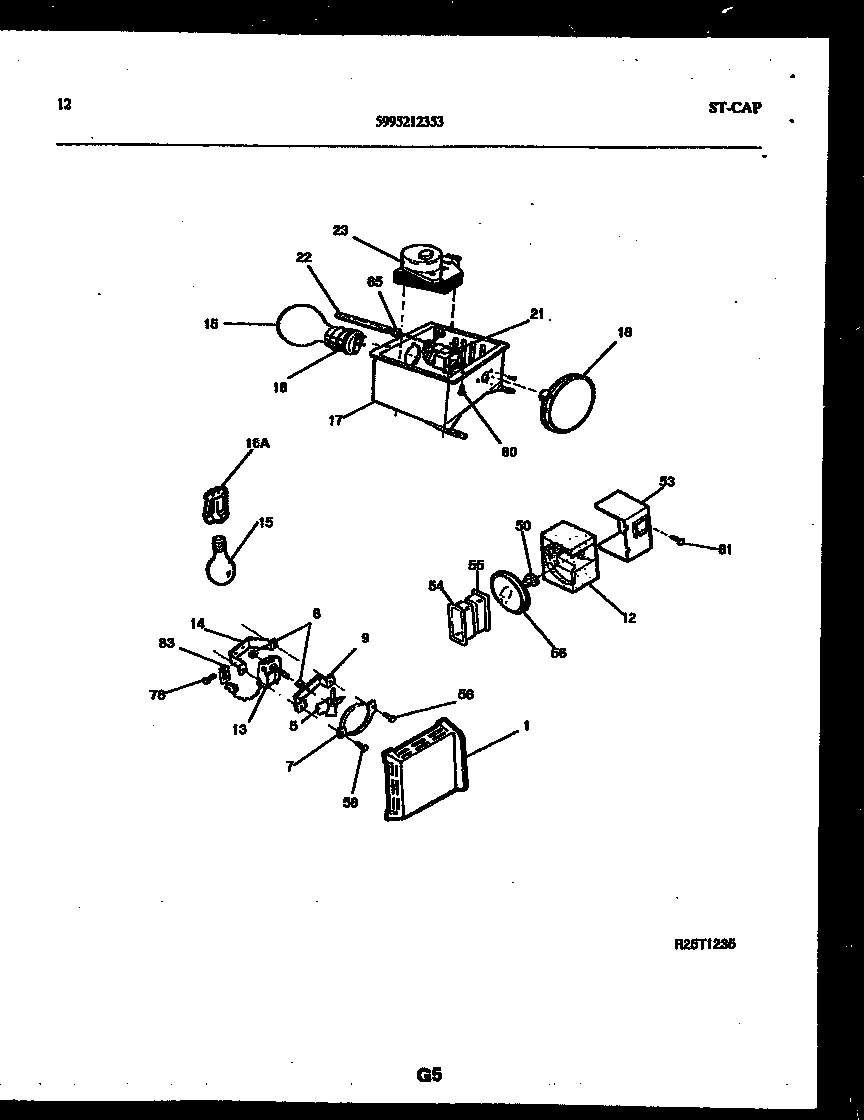

07 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

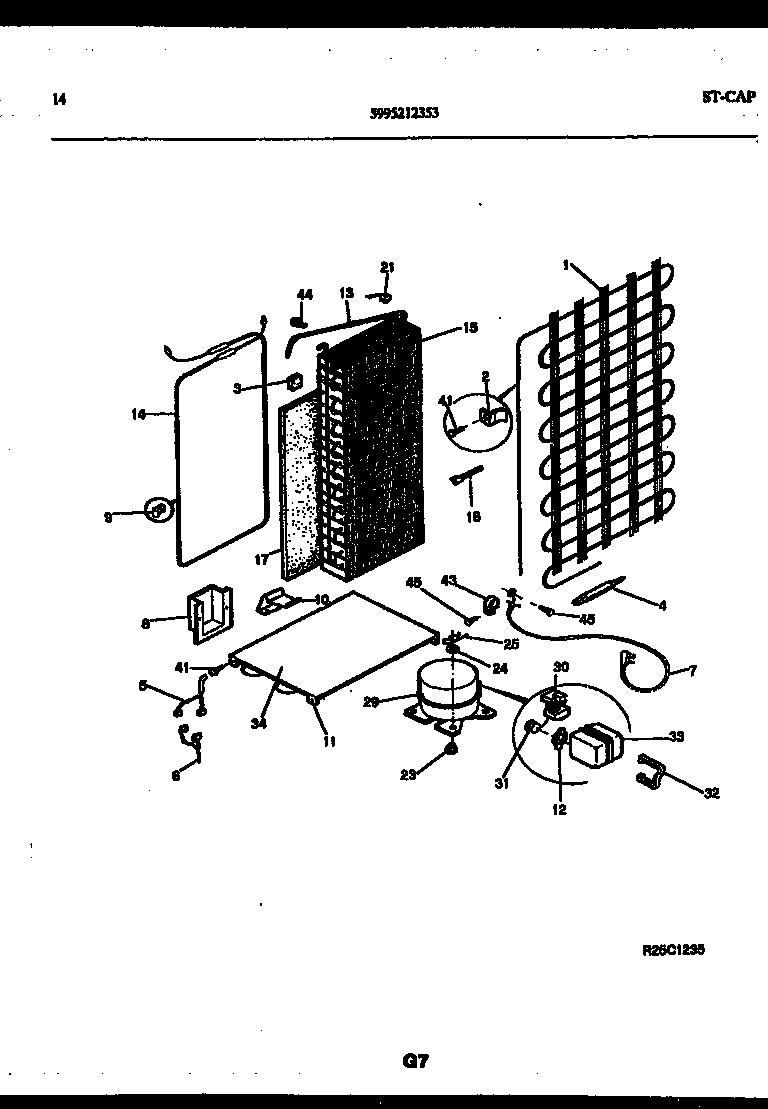

08 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RS227MCW2 REFRIGERATOR
*55255
INSULATION, DOOR, FIBERGLASS, (BULK) WCI 5303007739 Contact Us For Availability
*55259
PLUG-BUTTON, LINER WCI 5308016571 Contact Us For Availability
*55259
CLIP-WIRING HARNESS WCI 5308017046 Contact Us For Availability
*55262
CLIP-CANTILEVER SHLF WCI 5300170910 Contact Us For Availability
*55268
HOT TUBE REPAIR KIT, SERVICE WCI 5300189379 Contact Us For Availability
*55268
INSULATOR-FRZR COIL-TOP WCI 5308009619 Contact Us For Availability
1
WCI 5316465401 WCI 5316465401 Contact Us For Availability
1
WCI 5303007521 WCI 5303007521 Contact Us For Availability
2
GASKET-REFR DOOR, MAGNETIC WCI 5303205400 Contact Us For Availability
2
WCI 5303279489 WCI 5303279489 Contact Us For Availability
2
WCI 5308000296 WCI 5308000296 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
WCI 5303279523 WCI 5303279523 Contact Us For Availability
3
NUT, PUSH WCI 5303001028 Contact Us For Availability
3
BLOCK-COIL (4) WCI 5308000828 Contact Us For Availability
4
RACK-DOOR, (5) WCI 5303207068 Contact Us For Availability
5
SUPPORT-DOOR RACK, RH, (5) WCI 5303204848 Contact Us For Availability
5
WIRING HARNESS, CONTROLS WCI 5303015098 Contact Us For Availability
6
SUPPORT-DOOR RACK, LH, (5) WCI 5303204849 Contact Us For Availability
6
WIRING HARNESS, COMPR/LIGHT SW WCI 5308009616 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
DOOR-DAIRY, (2) WCI 5303207066 Contact Us For Availability
7
CORD, ELEC SERVICE WCI 5316254901 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
SUPPORT-DEFROST HTR WCI 5308002777 Contact Us For Availability
10
COVER-EVAP COIL, UPPER WCI 5303006543 Contact Us For Availability
10
WCI 5308002780 WCI 5308002780 Contact Us For Availability
10A
NUT, ``U`` TYPE, NO. 8(A), EVAP COVER, (2) WCI 5303209814 Contact Us For Availability
10A
WCI 5308000823 WCI 5308000823 Contact Us For Availability
11
WCI 08000908 WCI 08000908 Contact Us For Availability
11
WCI 5308002782 WCI 5308002782 Contact Us For Availability
11A
WCI 08000907 WCI 08000907 Contact Us For Availability
12
WCI 3206159 WCI 3206159 Contact Us For Availability
12
PLUG-DECORATIVE, ICE MAKER HOLE WCI 08012270 Contact Us For Availability
12
DEFLECTOR-AIR WCI 5308000771 Contact Us For Availability
12
CLIP-OVERLOAD WCI 5303017762 Contact Us For Availability
13
HEAT EXCHANGER, SUCTION LINE WCI 5308017565 Contact Us For Availability
14
WCI 5303007568 WCI 5303007568 Contact Us For Availability
14
PLUG-BUTTON, REFR/FZR DOOR WCI 5315230801 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
15
WCI 5303916536 WCI 5303916536 Contact Us For Availability
15
WCI 5303916605 WCI 5303916605 Contact Us For Availability
15A
WCI 3206414 WCI 3206414 Contact Us For Availability
16
SOCKET-LIGHT/LAMP WCI 5308000129 Contact Us For Availability
17
HANDLE END WCI 5300177143 Contact Us For Availability
17
WCI 5303275517 WCI 5303275517 Contact Us For Availability
17
INSULATOR-EVAP WCI 5303001235 Contact Us For Availability
17A
TRIM-HANDLE END (NON-ILLUSTRATED) WCI 5300179271 Contact Us For Availability
17A
INSULATOR-CONTRL BOX, REAR (NON-ILLUSTRATED) WCI 3001269 Contact Us For Availability
18
WCI 5303279715 WCI 5303279715 Contact Us For Availability
18
SUPPORT, EVAP COVER, (2) WCI 5308000097 Contact Us For Availability
18
WCI 5308010380 WCI 5308010380 Contact Us For Availability
18A
CLIP-DOOR HANDLE (NON-ILLUSTRATED) WCI 5300177144 Contact Us For Availability
18A
SUPPORT-EVAP COVER WCI 5303001250 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
20
HANDLE END WCI 5300177142 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
20A
TRIM-HANDLE END (NON-ILLUSTRATED) WCI 5300179270 Contact Us For Availability
21
WCI 5308011745 WCI 5308011745 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
21
WCI 5303274947 WCI 5303274947 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
BEARING-HINGE UPPER WCI 5303001022 Contact Us For Availability
22
BEARING-HINGE WCI 5308012007 Contact Us For Availability
22
WCI 5303274945 WCI 5303274945 Contact Us For Availability
23
WCI 5303001020 WCI 5303001020 Contact Us For Availability
23
WCI 5303209723 WCI 5303209723 Contact Us For Availability
23A
WCI 5303001558 WCI 5303001558 Contact Us For Availability
24
FRAME-REFR SHELF, CANTILEVER, (3) WCI 3200686 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 5308009642 WCI 5308009642 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25A
WCI 5316972401 WCI 5316972401 Contact Us For Availability
26
PAN-STORAGE, UPPER WCI 5303207077 Contact Us For Availability
26A
PAN-STORAGE, LOWER WCI 5303207078 Contact Us For Availability
27
SNUGGER-DOOR RACK (2) WCI 5303207067 Contact Us For Availability
28
WCI 5308009568 WCI 5308009568 Contact Us For Availability
29
WASHER, .28 X .62 X .19, NYLON WCI 5303001038 Contact Us For Availability
29
TRIM-REFR SHELF, (4) WCI 5303207081 Contact Us For Availability
29
WCI 5303916803 WCI 5303916803 Contact Us For Availability
29A
RETAINER-GLASS, FRONT, (3) (NON-ILLUSTRATED) WCI 3200683 Contact Us For Availability
29B
GASKET/RETAINER, MEAT KPR SHELF, FRONT (NON-I WCI 5303207091 Contact Us For Availability
30
BRACKET-LOWER HINGE, W/HINGE PIN WCI 5303001271 Contact Us For Availability
31
SHIM-LOWER HINGE WCI 5303001272 Contact Us For Availability
31
WCI 5303210976 WCI 5303210976 Contact Us For Availability
33
WCI 5303001026 WCI 5303001026 Contact Us For Availability
33
GASKET-CRISPER COVER WCI 5303205880 Contact Us For Availability
34
WCI 5308000186 WCI 5308000186 Contact Us For Availability
34
WCI 5308000790 WCI 5308000790 Contact Us For Availability
34
WCI 5303207065 WCI 5303207065 Contact Us For Availability
34
WCI 5308017112 WCI 5308017112 Contact Us For Availability
35
CLOSER-DOOR WCI 5303200272 Contact Us For Availability
35
TRIM-CRISPER PAN, (3) WCI 5303207076 Contact Us For Availability
36
FRAME-MEAT KPR SHELF, CANTILEVER WCI 5303207089 Contact Us For Availability
38
BRACKET-UPPER HINGE, LH WCI 5303001062 Contact Us For Availability
38A
WCI 5308012934 WCI 5308012934 Contact Us For Availability
38C
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
39
TRIM-FRZR SHELF, (5) WCI 5303207093 Contact Us For Availability
40
COVER-UPPER HINGE, WHITE WCI 5308012820 Contact Us For Availability
40
SHELF-GLASS, REFR SHELF, (4) WCI 5303207082 Contact Us For Availability
40A
SUPPORT-GLASS SHELF, RAIL, (2 PER SHELF) (NON WCI 3204595 Contact Us For Availability
41
TRIM-REFR SHELF, REAR, (4) WCI 3205561 Contact Us For Availability
41A
GASKET-MEAT KPR SHLF, REAR (NON-ILLUSTRATED) WCI 5303207090 Contact Us For Availability
42
SCREW-LWR HINGE MTG, REC HEX HEAD, 1/4(AB) X WCI 5303001041 Contact Us For Availability
42
HANGER-MEAT PAN RH WCI 5303209749 Contact Us For Availability
42A
HANGER-MEAT PAN LH (NON-ILLUSTRATED) WCI 5303209748 Contact Us For Availability
43
ROLLER ASSY WCI 5308000118 Contact Us For Availability
43
SCREW-ROLLER MTG, SPCL IND HEX HD, 5/16 (23) WCI 5308017044 Contact Us For Availability
44
WCI 5303001030 WCI 5303001030 Contact Us For Availability
45
WCI 08014528 WCI 08014528 Contact Us For Availability
47
CHANNEL-SHELF MTG, SIDE, (2) WCI 5308002744 Contact Us For Availability
49
WCI 5308017594 WCI 5308017594 Contact Us For Availability
50
WCI 5300185373 WCI 5300185373 Contact Us For Availability
51
WCI 5303001098 WCI 5303001098 Contact Us For Availability
52
WCI 5303001099 WCI 5303001099 Contact Us For Availability
53
WCI 5303211383 WCI 5303211383 Contact Us For Availability
54
WCI 5303001276 WCI 5303001276 Contact Us For Availability
55
WCI 5303001277 WCI 5303001277 Contact Us For Availability
55A
WCI 5303001280 WCI 5303001280 Contact Us For Availability
56
WCI 5316521701 WCI 5316521701 Contact Us For Availability
57
WCI 5303271652 WCI 5303271652 Contact Us For Availability
57
WCI 5303271653 WCI 5303271653 Contact Us For Availability
61
NUT, STUD SPEED, .094, (2) WCI 5300077210 Contact Us For Availability
62
CLIP-GROUNDING WCI 5303001231 Contact Us For Availability
62
TRAY-DELI WCI 5303207092 Contact Us For Availability
63
SUPPORT-LIGHT SHIELD, (4) WCI 5303001213 Contact Us For Availability
64
NUT-SPECIAL TWIN (4) WCI 5303001273 Contact Us For Availability
65
CLIP-MULLION MTG, (3) WCI 5303001281 Contact Us For Availability
65
WCI 5303274946 WCI 5303274946 Contact Us For Availability
65A
CLIP-MULLION MTG, (3) WCI 5300169100 Contact Us For Availability
66
WCI 08017447 WCI 08017447 Contact Us For Availability
67
WCI 5303916444 WCI 5303916444 Contact Us For Availability
68
PIN, SHOULDER, 3/32 X 5/8, (2) WCI 5308000013 Contact Us For Availability
69
WCI 5308000266 WCI 5308000266 Contact Us For Availability
70
BRACKET-COVER MTG WCI 5308000738 Contact Us For Availability
71
WCI 5308000847 WCI 5308000847 Contact Us For Availability
72
GRILLE/KICKPLATE WCI 5317154002 Contact Us For Availability
73
CONDUCTOR-HEAT WCI 5308000853 Contact Us For Availability
74
WCI 5303207094 WCI 5303207094 Contact Us For Availability
75
SHIELD-LIGHT, REFRIGERATOR WCI 5303271923 Contact Us For Availability
77
WASHER-NYLON,3/16 X 5/8 OD WCI 5303001216 Contact Us For Availability
79A
CLIP-CABLE, LIGHT SWITCH (NON-ILLUSTRATED) WCI 08009775 Contact Us For Availability
80
GASKET-COIL COVER (2) WCI 5303001219 Contact Us For Availability
82
GASKET KIT, COIL COVER WCI 5303001233 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
86
RACK-EGG, HANGING WCI 5303206533 Contact Us For Availability
× ![]()
