Model Electrolux RS227MCV1 REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER DOOR PARTS
03 - REFRIGERATOR DOOR PARTS

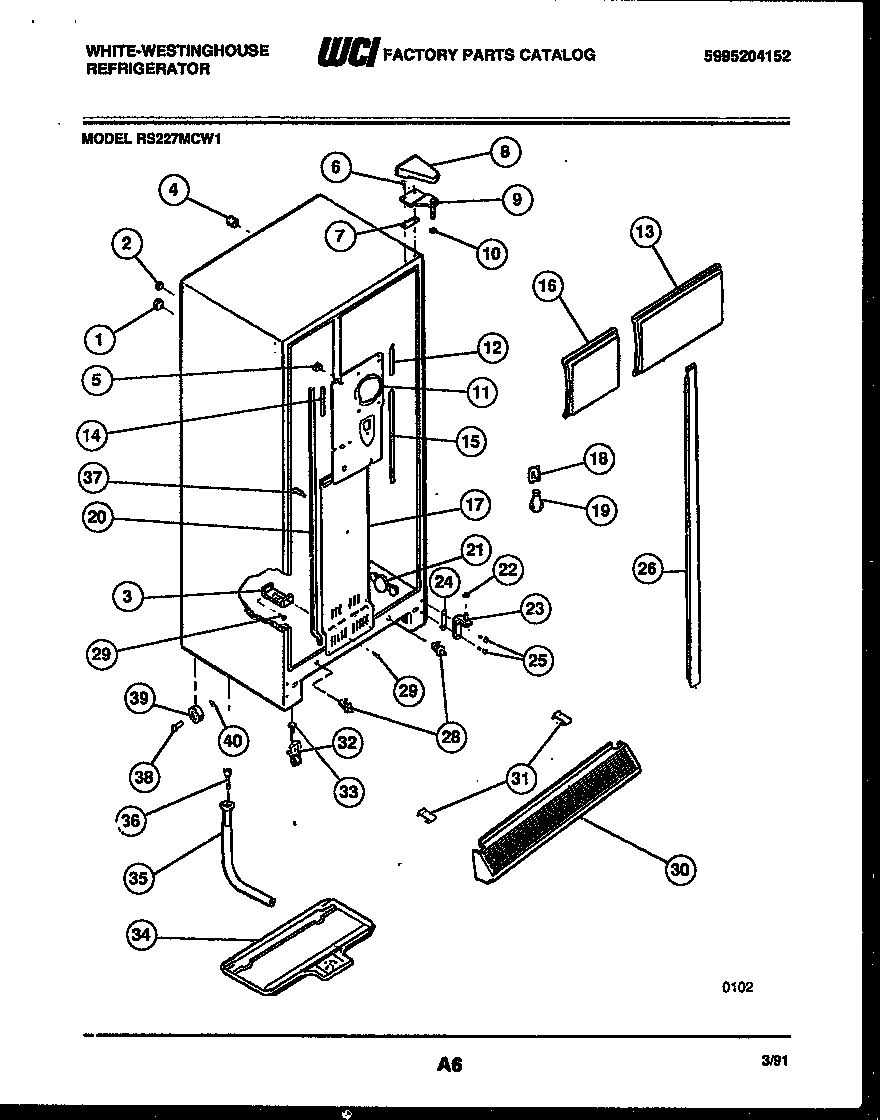

04 - CABINET PARTS

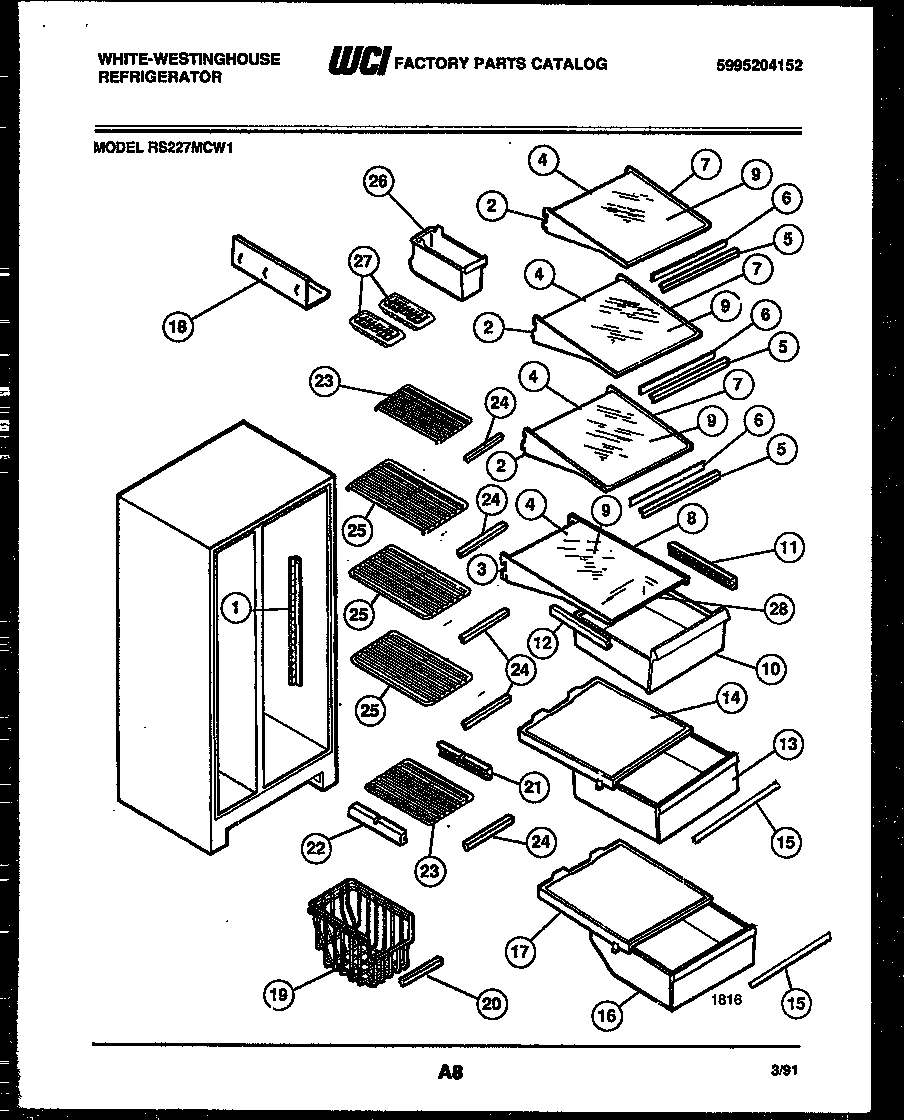

05 - SHELVES AND SUPPORTS

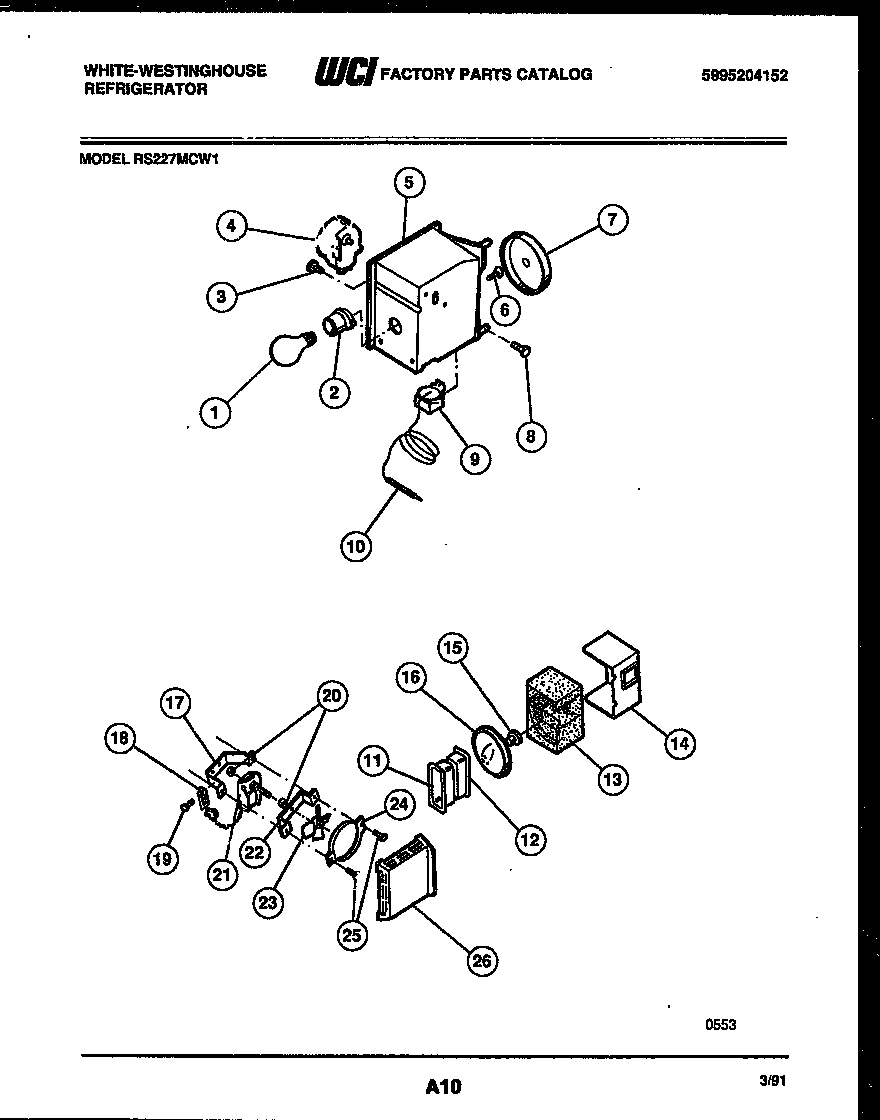

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

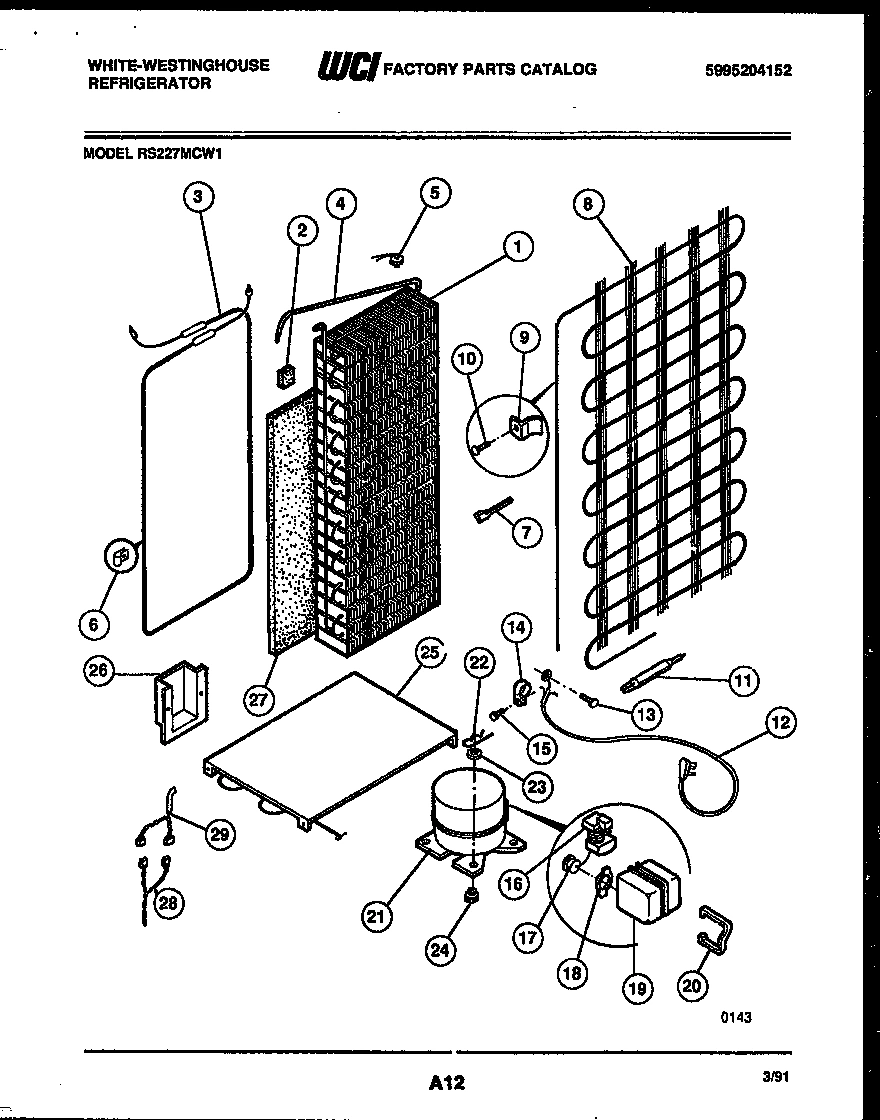

07 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RS227MCV1 REFRIGERATOR
*42471
SNUGGER-DOOR RACK (2) WCI 5303207067 Contact Us For Availability
*42482
SCREW-BRACKET WCI 5303001230 Contact Us For Availability
*42482
PLUG-REFRIGERATOR LINER (2) WCI 5303001288 Contact Us For Availability
*42482
LOCK WASHER (2) WCI 5308009617 Contact Us For Availability
*42482
PLATE-TAPPING (2) WCI 5308012296 Contact Us For Availability
*42491
CLIP-GROUNDING WCI 5303001231 Contact Us For Availability
*42497
HOT TUBE REPAIR KIT WCI 5300189379 Contact Us For Availability
1
REFRIGERATOR DOOR - AVOCADO WCI 5303916537 Contact Us For Availability
1
FERRULE-INNER (2) WCI 5303001286 Contact Us For Availability
1
CHANNEL - RH & LH WCI 5308002744 Contact Us For Availability
1
EVAPORATOR WCI 5303916605 Contact Us For Availability
1A
DOOR PLUG-BOTTOM (NON-ILLUSTRATED) WCI 5315230801 Contact Us For Availability
2
SOCKET-LIGHT WCI 5308000129 Contact Us For Availability
2
WCI 5303001022 WCI 5303001022 Contact Us For Availability
2
FERRULE-OUTER (2) WCI 5303001287 Contact Us For Availability
2
WCI 3200686 WCI 3200686 Contact Us For Availability
2
WCI 5308000828 WCI 5308000828 Contact Us For Availability
2A
HINGE BEARING - LOWER (NON-ILLUSTRATED) WCI 5308012007 Contact Us For Availability
3
WCI 5303007568 WCI 5303007568 Contact Us For Availability
3
INSULATION, BULK WCI 5303007739 Contact Us For Availability
3
WCI 5308000738 WCI 5308000738 Contact Us For Availability
3
FRAME-SHELF WCI 5303207089 Contact Us For Availability
4
WCI 5303200272 WCI 5303200272 Contact Us For Availability
4
TUBE-RUBBER (4) WCI 5303001198 Contact Us For Availability
4
WCI 3205561 WCI 3205561 Contact Us For Availability
4
WCI 5308017565 WCI 5308017565 Contact Us For Availability
4A
SCREW-MOUNTING (NON-ILLUSTRATED) WCI 5303001020 Contact Us For Availability
4A
WCI 5303207090 WCI 5303207090 Contact Us For Availability
4A
CLAMP-TUBE MTG (NON-ILLUSTRATED) WCI 5303001558 Contact Us For Availability
4B
INSULATION-COIL TOP (NON-ILLUSTRATED) WCI 5308009619 Contact Us For Availability
5
WCI 5303205400 WCI 5303205400 Contact Us For Availability
5
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
5
WCI 5303207081 WCI 5303207081 Contact Us For Availability
5
WCI 5308017561 WCI 5308017561 Contact Us For Availability
5A
INSULATOR-REAR (NON-ILLUSTRATED) WCI 3001269 Contact Us For Availability
6
DOOR PANEL-INNER WCI G179991-01 Contact Us For Availability
6
RETAINER-GLASS (3) WCI 3200683 Contact Us For Availability
6
WCI 5303001260 WCI 5303001260 Contact Us For Availability
6
WCI 5308002777 WCI 5308002777 Contact Us For Availability
7
WCI 5303207066 WCI 5303207066 Contact Us For Availability
7
SHIM-TOP HINGE (2) WCI 5303001037 Contact Us For Availability
7
KNOB, TEMPERATURE CONTROL WCI 5308010380 Contact Us For Availability
8
DOOR RACK (5) WCI 5303207068 Contact Us For Availability
8
HINGE COVER, AVOCADO WCI 5303001664 Contact Us For Availability
8
SUPPORT-RAIL GLASS (2) WCI 3204595 Contact Us For Availability
8
WCI 5303007521 WCI 5303007521 Contact Us For Availability
9
WCI 5308000068 WCI 5308000068 Contact Us For Availability
9
SUPPORT-RH (5) WCI 5303204848 Contact Us For Availability
9
HINGE TOP, RH WCI 5308012934 Contact Us For Availability
9
SHELF-GLASS (4) WCI 5303207082 Contact Us For Availability
9
BRACKET-CONDENSER MOUNTING (4) WCI 5308000296 Contact Us For Availability
9A
WCI 5303001062 WCI 5303001062 Contact Us For Availability
10
WASHER-HINGE (2) WCI 5308000186 Contact Us For Availability
10
SUPPORT-LH (5) WCI 5303204849 Contact Us For Availability
10
PAN MEAT WCI 5303207092 Contact Us For Availability
11
WCI 5308000790 WCI 5308000790 Contact Us For Availability
11
WCI 5303006543 WCI 5303006543 Contact Us For Availability
11
WCI 5303209748 WCI 5303209748 Contact Us For Availability
11
WCI 5303001276 WCI 5303001276 Contact Us For Availability
11A
BUTTON-DECORATIVE PLUG (NON-ILLUSTRATED) WCI 08012270 Contact Us For Availability
12
WCI 3206159 WCI 3206159 Contact Us For Availability
12
GASKET-COIL COVER (2) WCI 5303001219 Contact Us For Availability
12
WCI 5303209749 WCI 5303209749 Contact Us For Availability
12
WCI 5303001277 WCI 5303001277 Contact Us For Availability
12
WCI 5316254901 WCI 5316254901 Contact Us For Availability
12A
TAPE-MOUNTING (NON-ILLUSTRATED) WCI 5315340760 Contact Us For Availability
12A
WCI 5303001280 WCI 5303001280 Contact Us For Availability
13
WCI 5303271923 WCI 5303271923 Contact Us For Availability
13
WCI 5303207077 WCI 5303207077 Contact Us For Availability
13
WCI 5308000771 WCI 5308000771 Contact Us For Availability
13A
SUPPORT-SPECIAL BARREL (NON-ILLUSTRATED) WCI 5303001213 Contact Us For Availability
14
HANDLE-REFRIGERATOR WCI 5303207069 Contact Us For Availability
14
COVER-PAN UPPER WCI 5308009642 Contact Us For Availability
14
CONTROL BOX, DAMPER WCI 5303211383 Contact Us For Availability
14A
WCI 5308011745 WCI 5308011745 Contact Us For Availability
14A
GASKET-COVER (NON-ILLUSTRATED) WCI 5303205880 Contact Us For Availability
15
HANDLE END-TOP WCI 5300177142 Contact Us For Availability
15
GASKET-COVER RH WCI 5303001233 Contact Us For Availability
15
TRIM-PAN WCI 5303207076 Contact Us For Availability
15
WCI 5300185373 WCI 5300185373 Contact Us For Availability
16
TRIM-HANDLE END-TOP WCI 5300179270 Contact Us For Availability
16
LIGHT SHIELD-FREEZER WCI 5303207094 Contact Us For Availability
16
WCI 5303207078 WCI 5303207078 Contact Us For Availability
16
WCI 5316521701 WCI 5316521701 Contact Us For Availability
17
CLIP-HANDLE END (4) WCI 5300177144 Contact Us For Availability
17
COIL COVER - LOWER WCI 5308000823 Contact Us For Availability
17
COVER-PAN (LOWER) WCI 5316972401 Contact Us For Availability
17
BRACKET-MOTOR REAR WCI 5303205119 Contact Us For Availability
17
WCI 5303210976 WCI 5303210976 Contact Us For Availability
18
WCI 5308000107 WCI 5308000107 Contact Us For Availability
18
HANDLE END-BOTTOM WCI 5300177143 Contact Us For Availability
18
RACK HANGING-EGGS WCI 5303206533 Contact Us For Availability
18
RETAINER-OVERLOAD WCI 5303017762 Contact Us For Availability
19
TRIM-HANDLE END-BOTTOM WCI 5300179271 Contact Us For Availability
19
BASKET WCI 5308017594 Contact Us For Availability
20
WCI 5303007420 WCI 5303007420 Contact Us For Availability
20
WCI G165746-03 WCI G165746-03 Contact Us For Availability
21
WCI 08017447 WCI 08017447 Contact Us For Availability
21
HANGER-RH WCI 5303001098 Contact Us For Availability
21
COMPRESSOR WITH ELECTRICALS WCI 5303916803 Contact Us For Availability
22
WASHER HINGE (2) WCI 5303001038 Contact Us For Availability
22
HANGER-LH WCI 5303001099 Contact Us For Availability
22
BRACKET-MOTOR FRONT WCI 5303205118 Contact Us For Availability
22
CLIP-COMPRESSOR (4) WCI 5308003596 Contact Us For Availability
23
WCI 5303001271 WCI 5303001271 Contact Us For Availability
23
WCI 08000908 WCI 08000908 Contact Us For Availability
23
WASHER-COMPRESSOR (4) WCI 5308003633 Contact Us For Availability
23A
WCI 5303001273 WCI 5303001273 Contact Us For Availability
24
RING, ORIFICE WCI 5308000124 Contact Us For Availability
24
SHIM-BOTTOM HINGE (6) WCI 5303001272 Contact Us For Availability
24
TRIM (5) WCI 5303207093 Contact Us For Availability
24A
WCI 5308000013 WCI 5308000013 Contact Us For Availability
24B
WCI 5300077210 WCI 5300077210 Contact Us For Availability
25
SCREW-HINGE MOUNTING (4) WCI 5303001041 Contact Us For Availability
25
WCI 08000907 WCI 08000907 Contact Us For Availability
25
DEFROST PLATE WCI 5308017112 Contact Us For Availability
25A
BRACKET-PLATE (4) (NON-ILLUSTRATED) WCI 5308002782 Contact Us For Availability
25B
BRACKET-DEFROST PAN MOUNTING (NON-ILLUSTRATED WCI 5308002780 Contact Us For Availability
26
WCI 3916445 WCI 3916445 Contact Us For Availability
26
ICE CONTAINER WCI 5303207065 Contact Us For Availability
26
WCI 5316465401 WCI 5316465401 Contact Us For Availability
26
WCI 5303001197 WCI 5303001197 Contact Us For Availability
26A
WCI 5300169100 WCI 5300169100 Contact Us For Availability
26A
WCI 5303001281 WCI 5303001281 Contact Us For Availability
27
WCI 5303001235 WCI 5303001235 Contact Us For Availability
28
GASKET-FRONT WCI 5303207091 Contact Us For Availability
28
WIRING HARNESS-COMPRESSOR & LIGHTS WCI 5308009616 Contact Us For Availability
29
WIRING HARNESS-CONTROL WCI 5303015098 Contact Us For Availability
30
WCI 5317154002 WCI 5317154002 Contact Us For Availability
31
CLIP, GRILLE (2) WCI 5308000847 Contact Us For Availability
32
ROLLER-FRONT (2) WCI 5308000118 Contact Us For Availability
33
SCREW-ROLLER MOUNTING (2) WCI 5308017044 Contact Us For Availability
34
DEFROST PAN WCI 5303001026 Contact Us For Availability
35
DRAIN OUTLET & TUBE WCI 5303209723 Contact Us For Availability
36
WCI 5308000853 WCI 5308000853 Contact Us For Availability
37
SUPPORT-COIL COVER (5) WCI 5303001250 Contact Us For Availability
38
WCI 5308000266 WCI 5308000266 Contact Us For Availability
39
WCI 5303001030 WCI 5303001030 Contact Us For Availability
40
PUSH NUT (2) WCI 5303001028 Contact Us For Availability
× ![]()
