Model Electrolux RS227LCW0 REFRIGERATOR – Common Parts & Diagrams

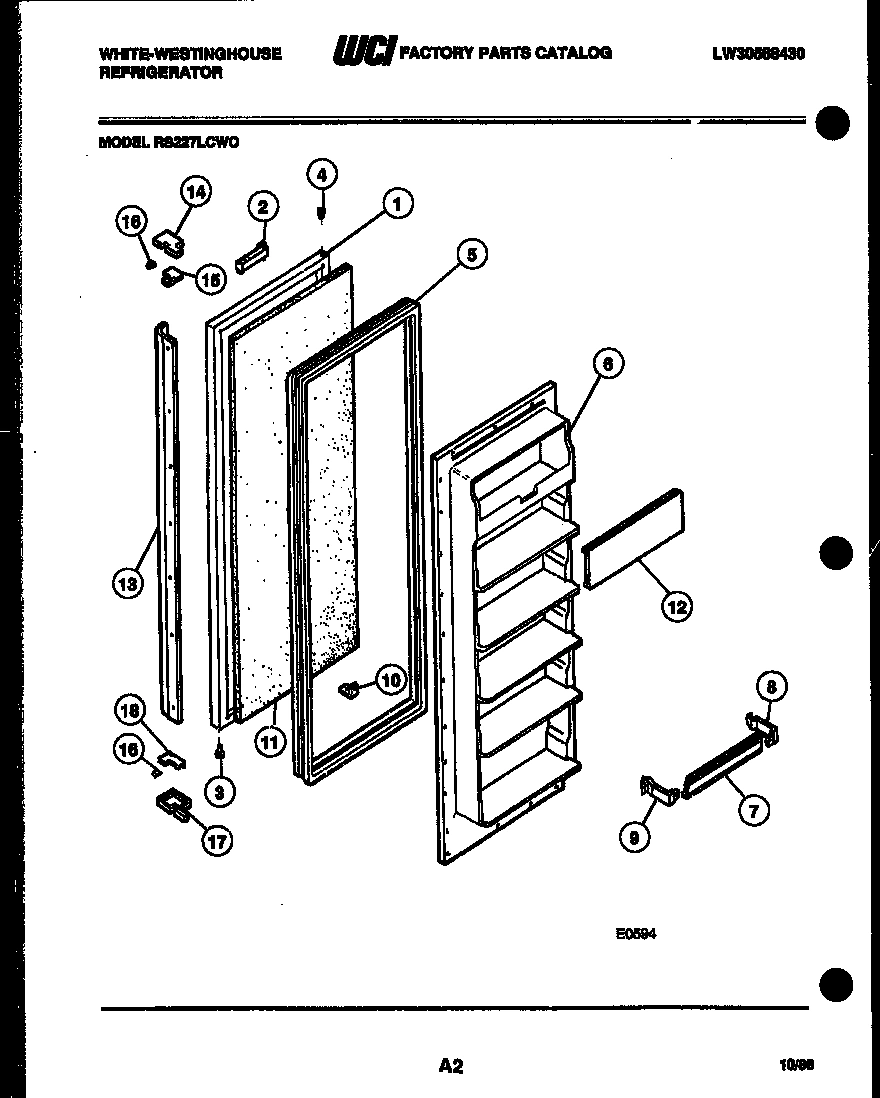

02 - FREEZER DOOR PARTS

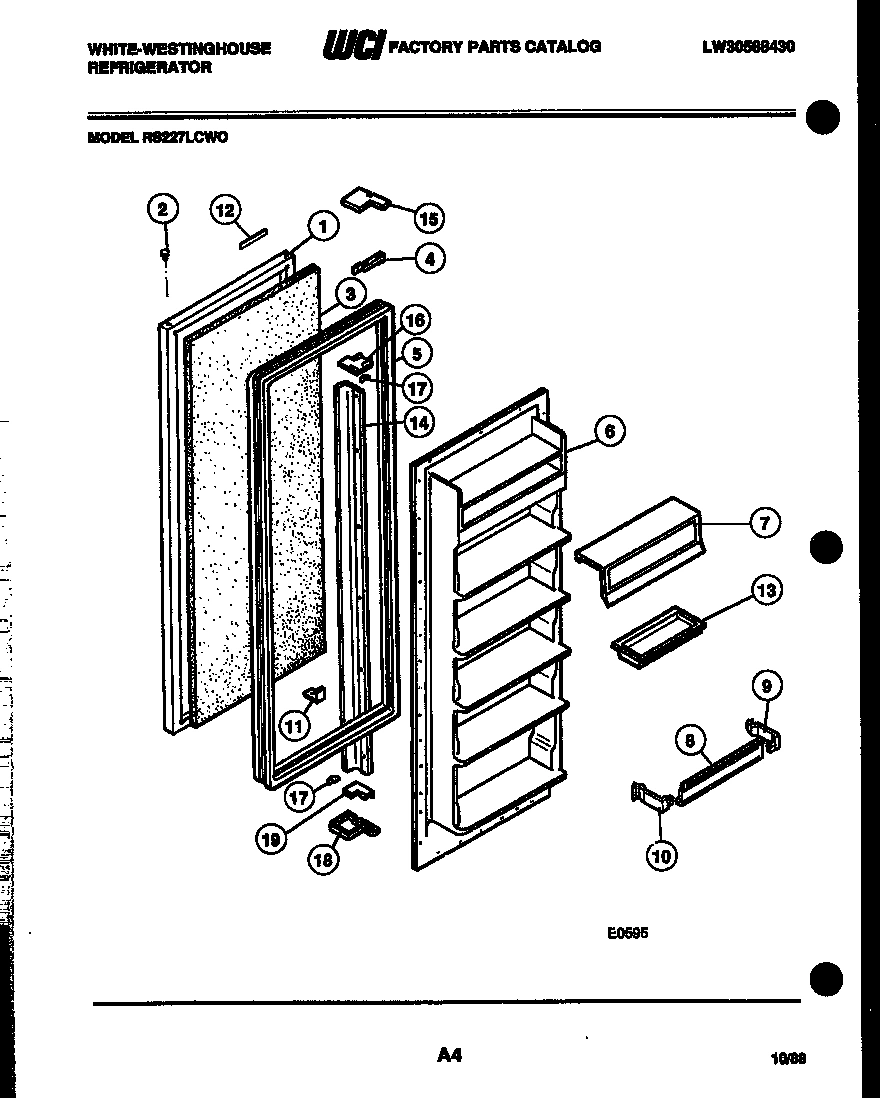

03 - REFRIGERATOR DOOR PARTS
04 - CABINET PARTS
05 - SHELVES AND SUPPORTS
06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP
07 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RS227LCW0 REFRIGERATOR
*37152
LOCK WASHER (2) WCI G164820 Contact Us For Availability
*37153
SCREW-BRACKET WCI G184851 Contact Us For Availability
*37155
PLUG-REFRIGERATOR LINER (2) WCI G162892-01 Contact Us For Availability
*37220
HOT TUBE REPAIR KIT WCI G189379 Contact Us For Availability
1
WCI G180455-01 WCI G180455-01 Contact Us For Availability
1
REFRIGERATOR DOOR-WHITE WCI G180386-01 Contact Us For Availability
1
FERRULE - INNER (2) WCI G174733 Contact Us For Availability
1
CHANNEL-RS & LS WCI G170694 Contact Us For Availability
1
WCI 3017362 WCI 3017362 Contact Us For Availability
1A
DOOR PLUG-BOTTOM (NON-ILLUSTRATED) WCI G152308-01 Contact Us For Availability
2
WCI G183139 WCI G183139 Contact Us For Availability
2
FERRULE-OUTER (2) WCI G174734 Contact Us For Availability
2
WCI G178323-08 WCI G178323-08 Contact Us For Availability
2
SOCKET LIGHT WCI G168302 Contact Us For Availability
2
WCI G169493 WCI G169493 Contact Us For Availability
2A
WCI G183138 WCI G183138 Contact Us For Availability
3
WCI G89643 WCI G89643 Contact Us For Availability
3
BRACKET, COVER MOUNTING WCI G158022 Contact Us For Availability
3
WCI G172409-12 WCI G172409-12 Contact Us For Availability
3
WCI G190223 WCI G190223 Contact Us For Availability
4
WCI 3200272 WCI 3200272 Contact Us For Availability
4
TUBE-RUBBER (4) WCI G85642 Contact Us For Availability
4
WCI G189609 WCI G189609 Contact Us For Availability
4A
SCREW-MOUNTING (NON-ILLUSTRATED) WCI G169729 Contact Us For Availability
5
GASKET-FREEZER DOOR WCI 3200474 Contact Us For Availability
5
GASKET-REFRIGERATOR DOOR WCI 3200473 Contact Us For Availability
5
WCI G163669 WCI G163669 Contact Us For Availability
5
WCI G171654-32 WCI G171654-32 Contact Us For Availability
5
WCI G189359 WCI G189359 Contact Us For Availability
6
WCI G180119-01 WCI G180119-01 Contact Us For Availability
6
DOOR PANEL-INNER WCI G179991-01 Contact Us For Availability
6
PAN-STORAGE UPPER WCI G179709-01 Contact Us For Availability
6
WCI G107080 WCI G107080 Contact Us For Availability
6
WCI G167363 WCI G167363 Contact Us For Availability
7
WCI G490079-11 WCI G490079-11 Contact Us For Availability
7
WCI G179976-01 WCI G179976-01 Contact Us For Availability
7
SHIM-TOP HINGE (2) WCI G183861 Contact Us For Availability
7
COVER-PAN UPPER WCI G169711-01 Contact Us For Availability
7
KNOB, TEMPERATURE CONTROL WCI G164906-01 Contact Us For Availability
7A
GASKET-COVER UPPER (2) (NON-ILLUSTRATED) WCI G180108-03 Contact Us For Availability
8
WCI G490079-12 WCI G490079-12 Contact Us For Availability
8
WCI G183558-01 WCI G183558-01 Contact Us For Availability
8
WCI G000188597 WCI G000188597 Contact Us For Availability
9
SUPPORT-RS (5) WCI 3200439 Contact Us For Availability
9
HINGE-TOP RS WCI G183715 Contact Us For Availability
9
TRIM-PAN LOWER WCI G177343-06 Contact Us For Availability
9
WCI G162205-05 WCI G162205-05 Contact Us For Availability
9
BRACKET, CONDENSER MOUNTING (4) WCI G169666-01 Contact Us For Availability
9A
WCI G183716 WCI G183716 Contact Us For Availability
10
SUPPORT-LS (5) WCI 3018924 Contact Us For Availability
10
WASHER-HINGE (2) WCI G170156 Contact Us For Availability
10
PAN STORAGE-LOWER WCI G179710-01 Contact Us For Availability
11
WCI G165376 WCI G165376 Contact Us For Availability
11
WCI G169481-01 WCI G169481-01 Contact Us For Availability
11
COVER-PAN-LOWER WCI G169724-01 Contact Us For Availability
11
WCI G166802 WCI G166802 Contact Us For Availability
12
WCI G179808-01 WCI G179808-01 Contact Us For Availability
12
FRAME-NAMEPLATE WCI G176986 Contact Us For Availability
12
GASKET-COIL COVER (2) WCI G165233 Contact Us For Availability
12
WCI G184748 WCI G184748 Contact Us For Availability
12
WCI G166803 WCI G166803 Contact Us For Availability
12
WCI G162549-01 WCI G162549-01 Contact Us For Availability
12A
TAPE-MOUNTING (NON-ILLUSTRATED) WCI G153407-60 Contact Us For Availability
12B
LABEL-NAMEPLATE (NON-ILLUSTRATED) WCI G177218-01 Contact Us For Availability
13
LIGHT SHIELD-REFRIGERATOR WCI 3016897 Contact Us For Availability
13
WCI G165746-11 WCI G165746-11 Contact Us For Availability
13
WCI G164575 WCI G164575 Contact Us For Availability
14
HANDLE-REFRIGERATOR WCI G177141-09 Contact Us For Availability
14
WCI G174234-01 WCI G174234-01 Contact Us For Availability
14
HANGER-BASKET RS WCI G168986 Contact Us For Availability
14
CONTROL BOX-DAMPER WCI G164523 Contact Us For Availability
14A
WCI R900621 WCI R900621 Contact Us For Availability
14B
WCI G185566 WCI G185566 Contact Us For Availability
15
HANDLE END-TOP WCI G177142 Contact Us For Availability
15
WCI G174234-02 WCI G174234-02 Contact Us For Availability
15
HANGER-BASKET LS WCI G168987 Contact Us For Availability
15
WCI G185373 WCI G185373 Contact Us For Availability
16
TRIM-HANDLE END-TOP WCI G179270 Contact Us For Availability
16
LIGHT SHIELD-FREEZER WCI G164452-27 Contact Us For Availability
16
WCI G165217-01 WCI G165217-01 Contact Us For Availability
16
WCI 3007176 WCI 3007176 Contact Us For Availability
17
CLIP-HANDLE END (4) WCI G177144 Contact Us For Availability
17
WCI G169477-03 WCI G169477-03 Contact Us For Availability
17
TRIM (5) WCI G187267-13 Contact Us For Availability
17
BRACKET-MOTOR REAR WCI G185303 Contact Us For Availability
17
WCI 3007527 WCI 3007527 Contact Us For Availability
18
HANDLE END-BOTTOM WCI G177143 Contact Us For Availability
18
WCI G164571 WCI G164571 Contact Us For Availability
18
RETAINER, OVERLOAD WCI G188957 Contact Us For Availability
19
TRIM-HANDLE END-BOTTOM WCI G179271 Contact Us For Availability
19
WCI G173948-19 WCI G173948-19 Contact Us For Availability
20
GASKET-COIL COVER WCI G188000-03 Contact Us For Availability
20
SHELF-FREEZER WCI G180425-03 Contact Us For Availability
21
WCI G164912-03 WCI G164912-03 Contact Us For Availability
21
SHELF-FREEZER WCI G180425-04 Contact Us For Availability
21
COMPRESSOR WITH ELECTRICALS WCI 3916016 Contact Us For Availability
22
WASHER-HINGE (2) WCI G164355 Contact Us For Availability
22
WCI G161015-13 WCI G161015-13 Contact Us For Availability
22
BRACKET-MOTOR FRONT WCI G185302 Contact Us For Availability
22
CLIP-COMPRESSOR (4) WCI G163204 Contact Us For Availability
23
WCI G162383 WCI G162383 Contact Us For Availability
23
WASHER-COMPRESSOR (4) WCI G164634 Contact Us For Availability
23A
WCI G141673 WCI G141673 Contact Us For Availability
24
SHIM-BOTTOM HINGE (6) WCI G162903 Contact Us For Availability
24
RING-ORIFICE WCI G167217 Contact Us For Availability
24A
WCI G142361 WCI G142361 Contact Us For Availability
24B
WCI G77210 WCI G77210 Contact Us For Availability
25
SCREW-HINGE MOUNTING (4) WCI G99167 Contact Us For Availability
25
WCI G188596 WCI G188596 Contact Us For Availability
25A
BRACKET-PLATE (4) (NON-ILLUSTRATED) WCI G171111 Contact Us For Availability
25B
WCI G171123 WCI G171123 Contact Us For Availability
26
WCI G164643 WCI G164643 Contact Us For Availability
26
WCI G164654-01 WCI G164654-01 Contact Us For Availability
26
WCI G183584 WCI G183584 Contact Us For Availability
26A
WCI G169100 WCI G169100 Contact Us For Availability
26B
WCI G169297 WCI G169297 Contact Us For Availability
27
MULLION TRIM-WHITE WCI G169745-01 Contact Us For Availability
27
WCI G169641 WCI G169641 Contact Us For Availability
28
WIRING HARNESS-COMPRESSOR & LIGHTS WCI G164579 Contact Us For Availability
29
WIRING HARNESS-CONTROL WCI 3015098 Contact Us For Availability
30
GRILLE WCI G171540-02 Contact Us For Availability
31
WCI G170328 WCI G170328 Contact Us For Availability
32
ROLLER-FRONT (2) WCI G186731 Contact Us For Availability
33
SCREW-ROLLER MOUNTING (2) WCI G187491 Contact Us For Availability
34
WCI G171125 WCI G171125 Contact Us For Availability
36
WCI G171193 WCI G171193 Contact Us For Availability
37
SUPPORT-COIL COVER (5) WCI G169471 Contact Us For Availability
38
WCI G162809 WCI G162809 Contact Us For Availability
39
WCI G162808 WCI G162808 Contact Us For Availability
40
PUSH NUT (2) WCI G162662 Contact Us For Availability
× ![]()
