Model Whirlpool RS20CKXZW00 – Common Parts & Diagrams
06 - REFRIGERATOR DOOR
09 - CONTROL, LIT/OPTIONAL

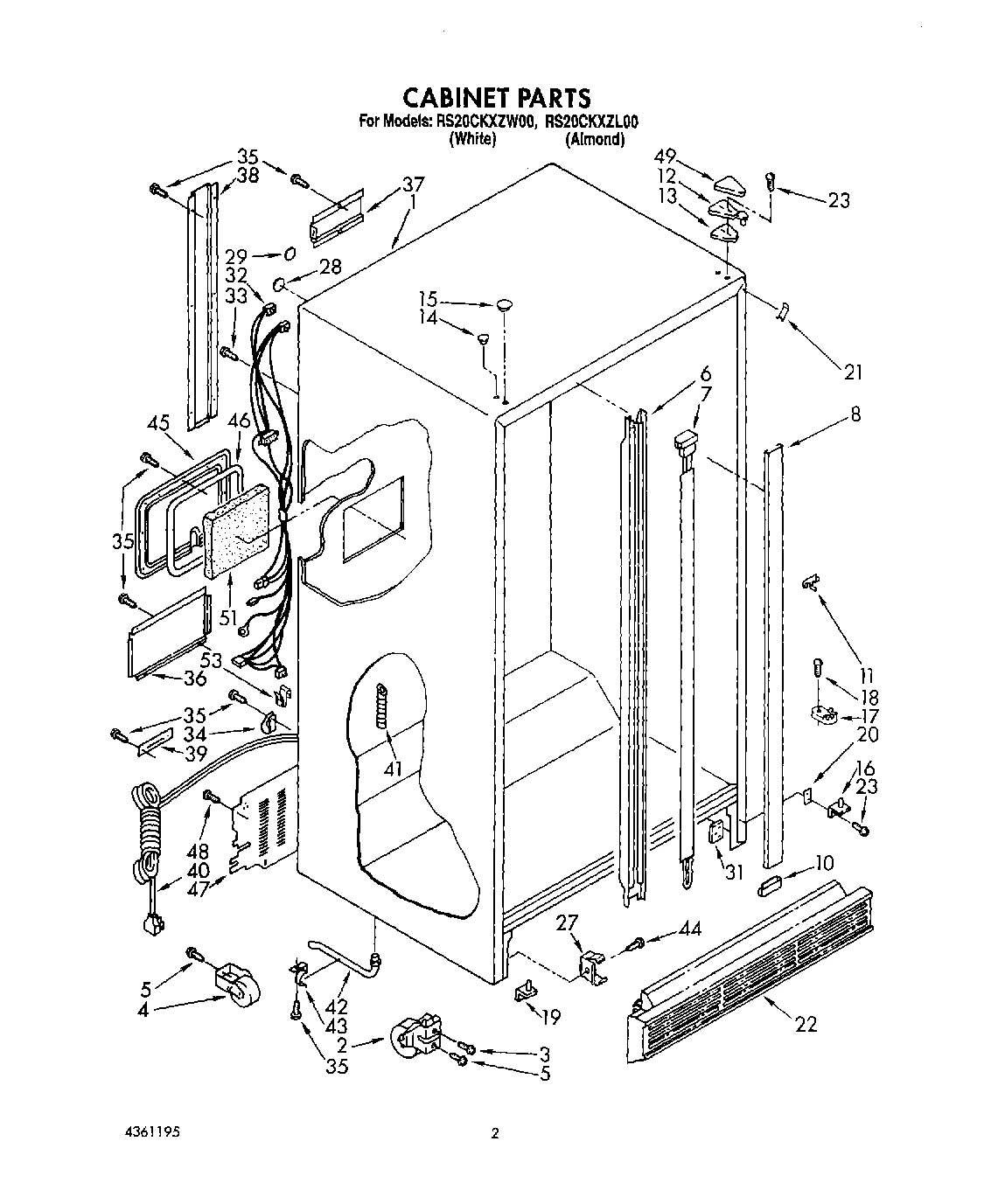

02 - CABINET

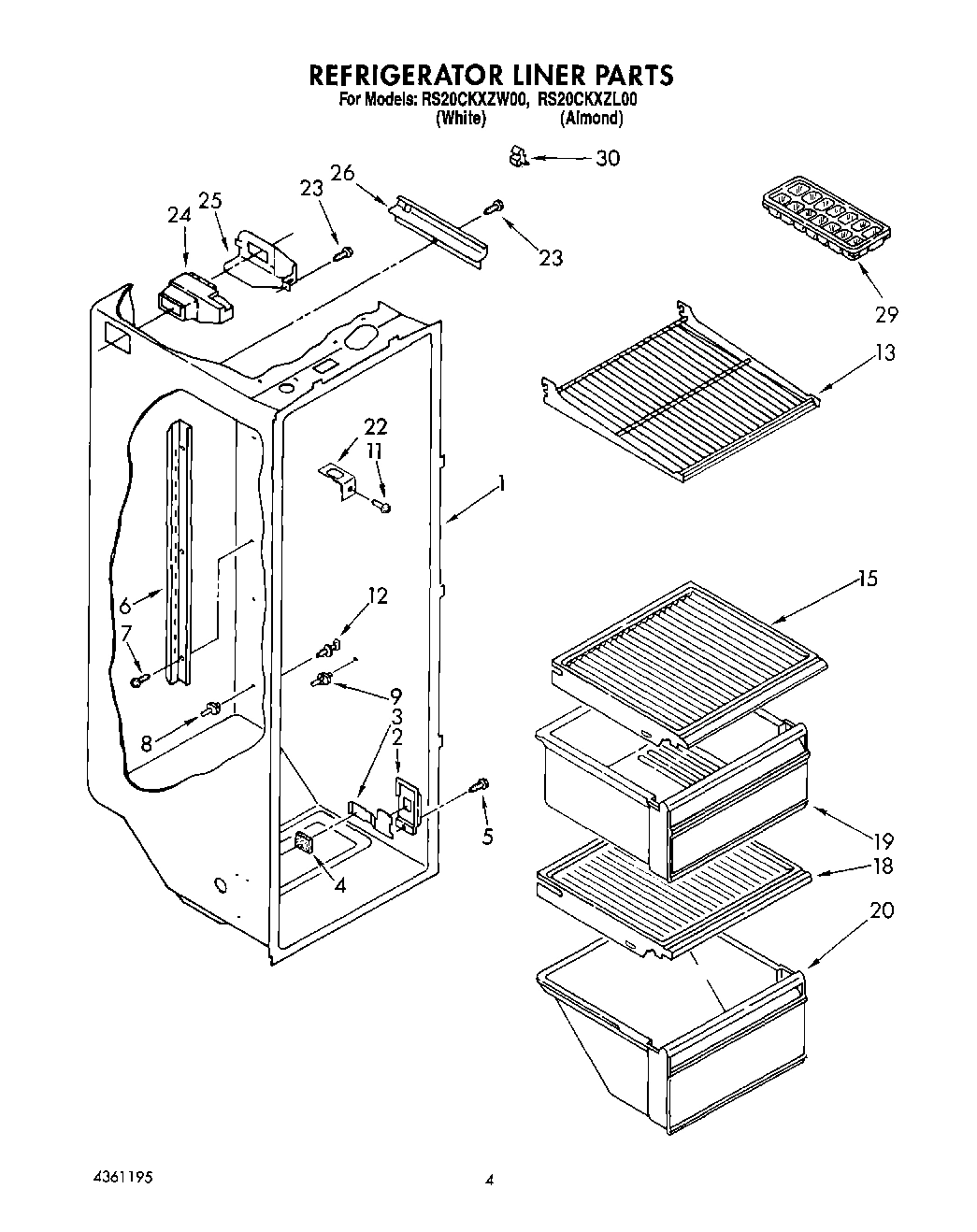

03 - REFRIGERATOR LINER

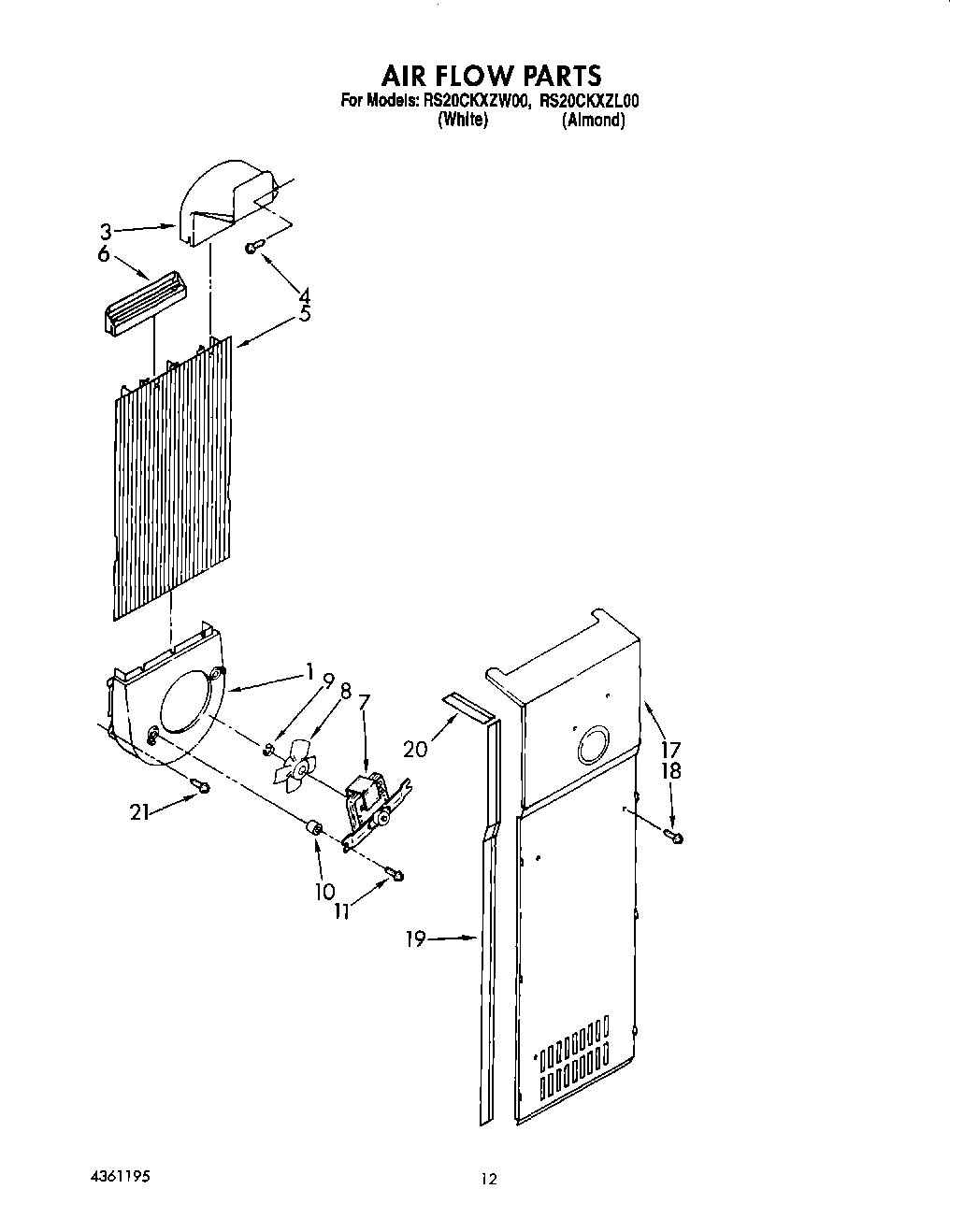

08 - AIR FLOW

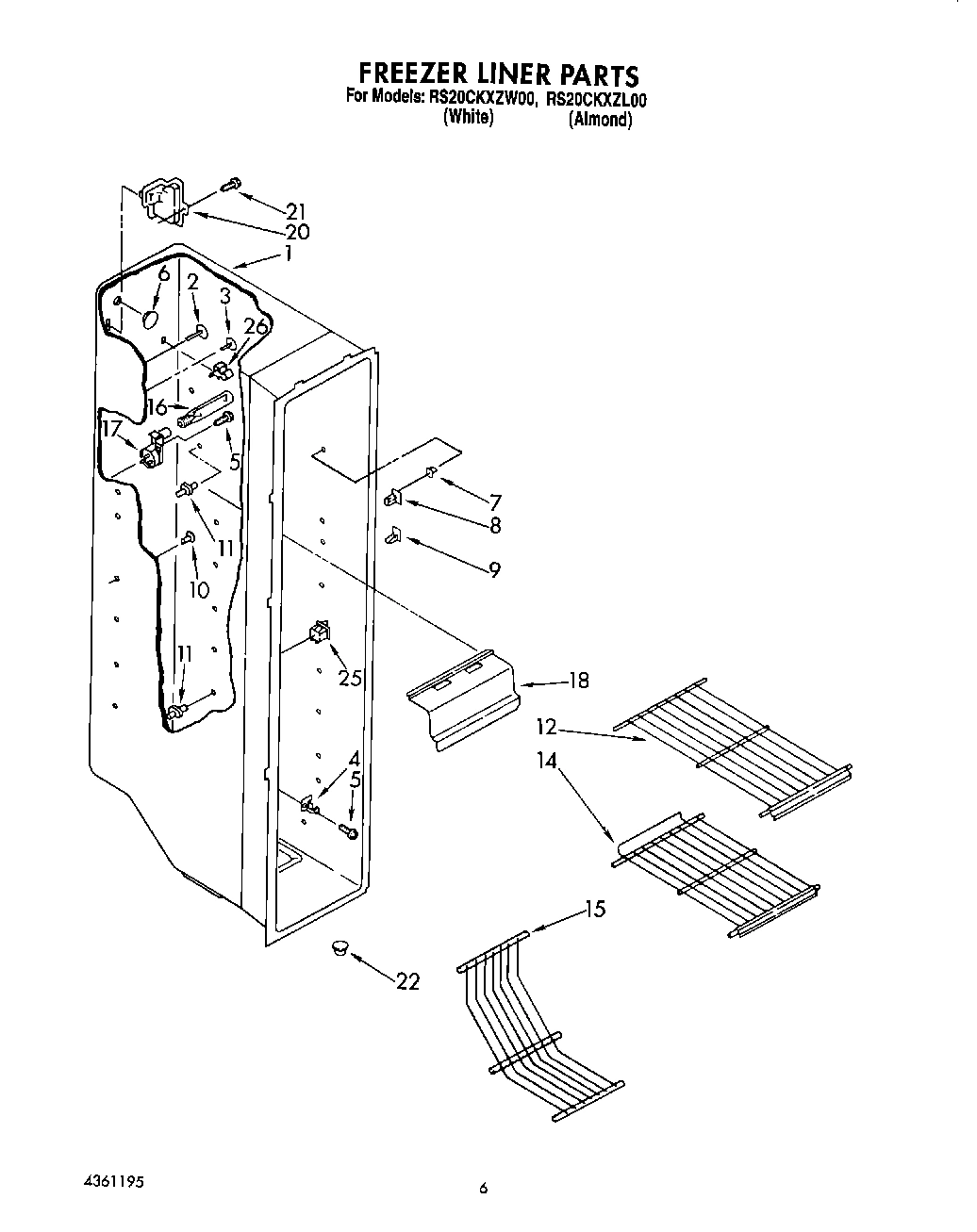

04 - FREEZER LINER

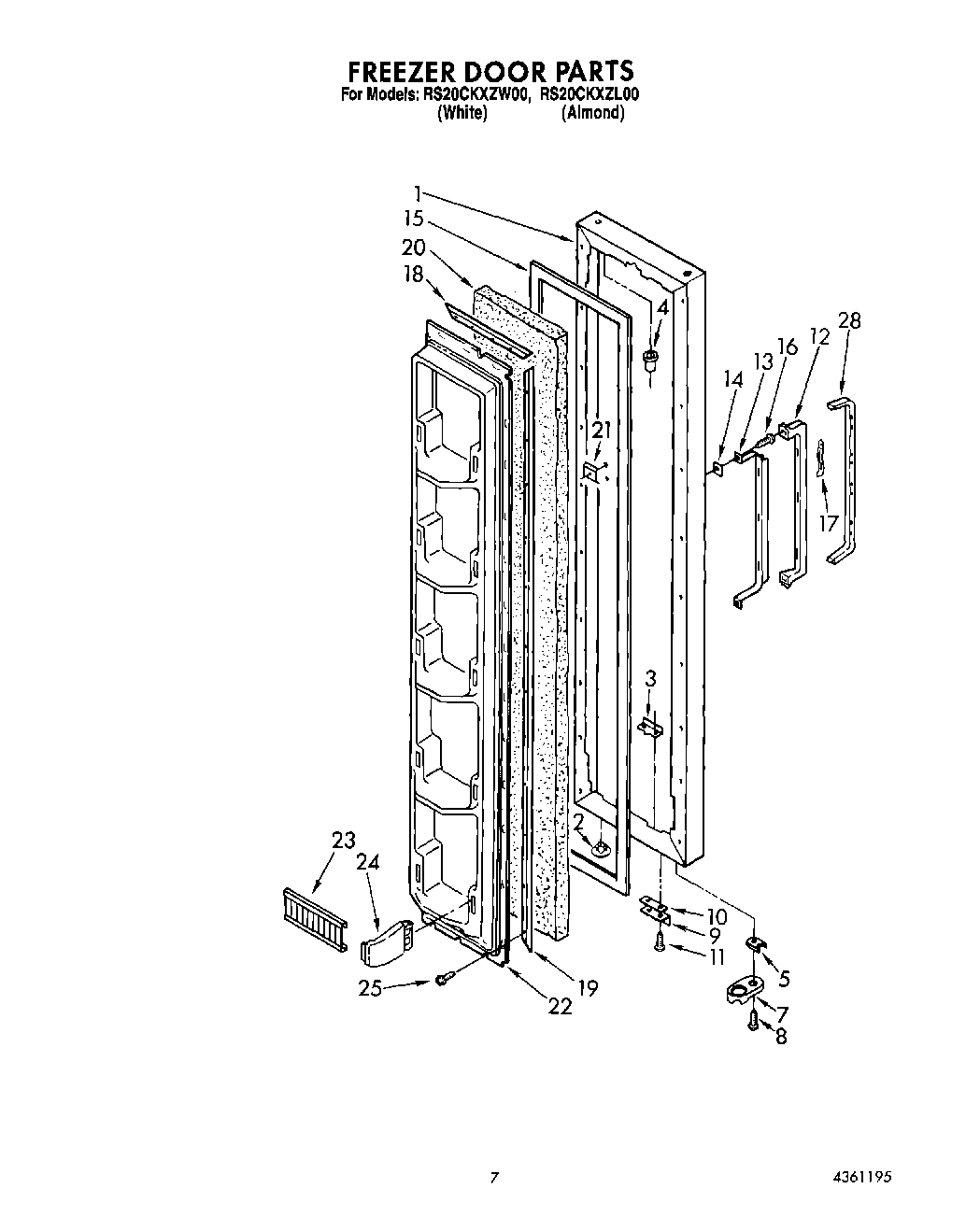

05 - FREEZER DOOR

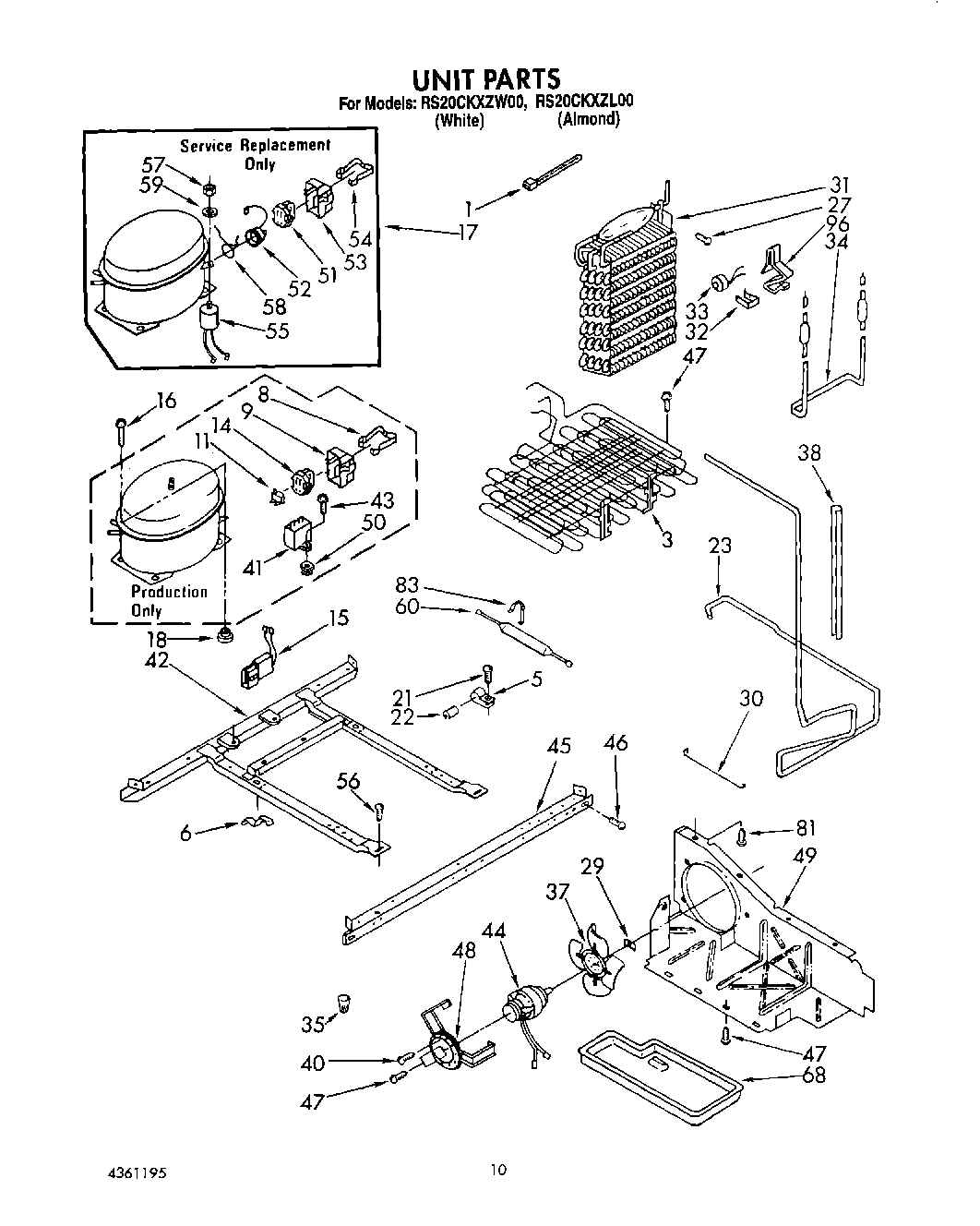

07 - UNIT
Common parts from model Whirlpool RS20CKXZW00
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI123805A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI123806A Contact Us For Availability
1
Fan Scroll WPL 1127163 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI123807A Contact Us For Availability
1
Freezer, Door Panel (White) WPL 4362012 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 4362013 Contact Us For Availability
1
Strap WPL 851095 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Hole Plug WPL 944795 Contact Us For Availability
2
Hole Plug (White) WPL 534927 Contact Us For Availability
2
Hole Plug (Almond) WPL 989197 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Air Scoop WPL 1110798 Contact Us For Availability
3
Tap Plate WPL 988402 Contact Us For Availability
3
Condenser WPL 1127573 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Evaporator, Support WPL 1108436 Contact Us For Availability
4
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
5
Air Duct Freezer WPL 1108434 Contact Us For Availability
5
Clamp (2) WPL 510716 Contact Us For Availability
6
Mullion Rail WPL 2155015 Contact Us For Availability
6
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Hole Plug WPL 655411 Contact Us For Availability
6
Clip (2) WPL 548744 Contact Us For Availability
7
Heater, Mullion WPL 1106997 Contact Us For Availability
7
Fan Motor WPL 2149964 Contact Us For Availability
7
support stud (8) WPL 946355 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Front Mullion Rail (White) WPL 1123966 Contact Us For Availability
8
Front Mullion Rail (Almond) WPL 1123969 Contact Us For Availability
8
Stud (3) WPL 946356 Contact Us For Availability
9
Ring, Compression WPL 992953 Contact Us For Availability
9
Stud (3) WPL 1106982 Contact Us For Availability
9
Bracket, Door Stop WPL 1115906 Contact Us For Availability
10
Filler Bottom Mullion (White) WPL 1118361 Contact Us For Availability
10
Filler Bottom Mullion (Almond) WPL 1118362 Contact Us For Availability
10
Fan Grommet (2) WPL 1114354 Contact Us For Availability
10
Grommet, (6) WPL 1110779 Contact Us For Availability
10
Shim WPL 988421 Contact Us For Availability
11
Clip, Ground WPL 1110607 Contact Us For Availability
11
Screw (2) WPL 489168 Contact Us For Availability
11
Overload WPL 2154781 Contact Us For Availability
12
Hinge, Top (2) WPL 1123514 Contact Us For Availability
12
Shelf WPL 1106979 Contact Us For Availability
12
Handle Center WPL 2147526 Contact Us For Availability
13
Shim, Hinge (2) WPL 1123515 Contact Us For Availability
13
Shelf, Cantilever WPL 1114301 Contact Us For Availability
13
Reinforcement, Handle WPL 1127465 Contact Us For Availability
14
Hole, Plug (White) WPL 849391 Contact Us For Availability
14
Hole Plug (Almond) WPL 989958 Contact Us For Availability
14
Shelf (3) WPL 1106980 Contact Us For Availability
14
Shim, Handle WPL 2147097 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Hole Plug (White) WPL 1115352 Contact Us For Availability
15
Hole Plug (Almond) WPL 1115354 Contact Us For Availability
15
Crisper Cover WPL 1128981 Contact Us For Availability
15
Trivet WPL 2148400 Contact Us For Availability
15
Housing Plug WPL 1118850 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2151619 Contact Us For Availability
17
Cover, Evaporator WPL 1127168 Contact Us For Availability
17
Socket Assembly WPL 1108630 Contact Us For Availability
17
Reinforcement (3) WPL 849445 Contact Us For Availability
18
Lens, Light WPL 1108445 Contact Us For Availability
18
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
19
hinge Bottom (L.H.) WPL 2151620 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 1110675 Contact Us For Availability
19
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Shim .030 WPL 836196 Contact Us For Availability
20
Meat Pan WPL 1124415 Contact Us For Availability
20
Gasket, Evaporator Cover Top (2) WPL 1110676 Contact Us For Availability
20
Cover, Wiring WPL 1129915 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Grille WPL 1129001 Contact Us For Availability
22
Fitting, Drain WPL 942768 Contact Us For Availability
22
Panel, Interior Door WPL 1129241 Contact Us For Availability
22
Dampener WPL 510769 Contact Us For Availability
23
Screw WPL 489327 Contact Us For Availability
23
Trim, Door Shelf (5) WPL 1120856 Contact Us For Availability
23
Exchanger, Heat WPL 1127577 Contact Us For Availability
24
end cap, trim (10) WPL 1110713 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Hole Seal WPL 1120224 Contact Us For Availability
28
Trim, Handle WPL 2147581 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
29
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
29
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
29
WPL 799833 WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
29
Hole Seal 8 x 1/2 WPL 1129056 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
31
Evaporator WPL 1106987 Contact Us For Availability
32
Cabinet Harness WPL 2149746 Contact Us For Availability
32
Clamp WPL 513584 Contact Us For Availability
34
Clamp WPL 937357 Contact Us For Availability
34
Heater, Defrost WPL 2154542 Contact Us For Availability
35
Wire Connector WPL 227991 Contact Us For Availability
36
Cover, Wiring WPL 1129193 Contact Us For Availability
37
Blade, Fan WPL 1108179 Contact Us For Availability
37
Wiring Shield, Short WPL 1108440 Contact Us For Availability
38
Wiring Shield, Long WPL 1108441 Contact Us For Availability
39
Tube Clamp (2) WPL 1105607 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
41
Drain Ferrule WPL 2155556 Contact Us For Availability
41
Capacitor, Run WPL 2154565 Contact Us For Availability
42
Frame WPL 1127942 Contact Us For Availability
45
Cover, Plug WPL 1108443 Contact Us For Availability
45
Rail, Front WPL 2149717 Contact Us For Availability
46
Sealing Gasket WPL 1115321 Contact Us For Availability
47
Cover, Unit WPL 1105531 Contact Us For Availability
48
Bracket, Fan Motor WPL 548695 Contact Us For Availability
49
Air, Baffle WPL 1127938 Contact Us For Availability
50
Grommet WPL 509812 Contact Us For Availability
51
Insulation WPL 1118236 Contact Us For Availability
52
Overload WPL 1108114 Contact Us For Availability
53
Clip, Wire (2) WPL 548745 Contact Us For Availability
53
Terminal Cover WPL 1108115 Contact Us For Availability
54
Terminal Strap WPL 938384 Contact Us For Availability
56
Screw, 1/4-28 x 1/2 (2) WPL 488624 Contact Us For Availability
57
Nut WPL 489142 Contact Us For Availability
58
Overload Spring WPL 1114190 Contact Us For Availability
59
Washer WPL 489143 Contact Us For Availability
81
Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability
83
Clamp, Dryer WPL 1127590 Contact Us For Availability
96
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
96
Clamp (4) WPL 1108431 Contact Us For Availability
96
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
