Model Whirlpool RS20CKXAW00 – Common Parts & Diagrams
03 - REFRIGERATOR LINER
06 - FREEZER DOOR

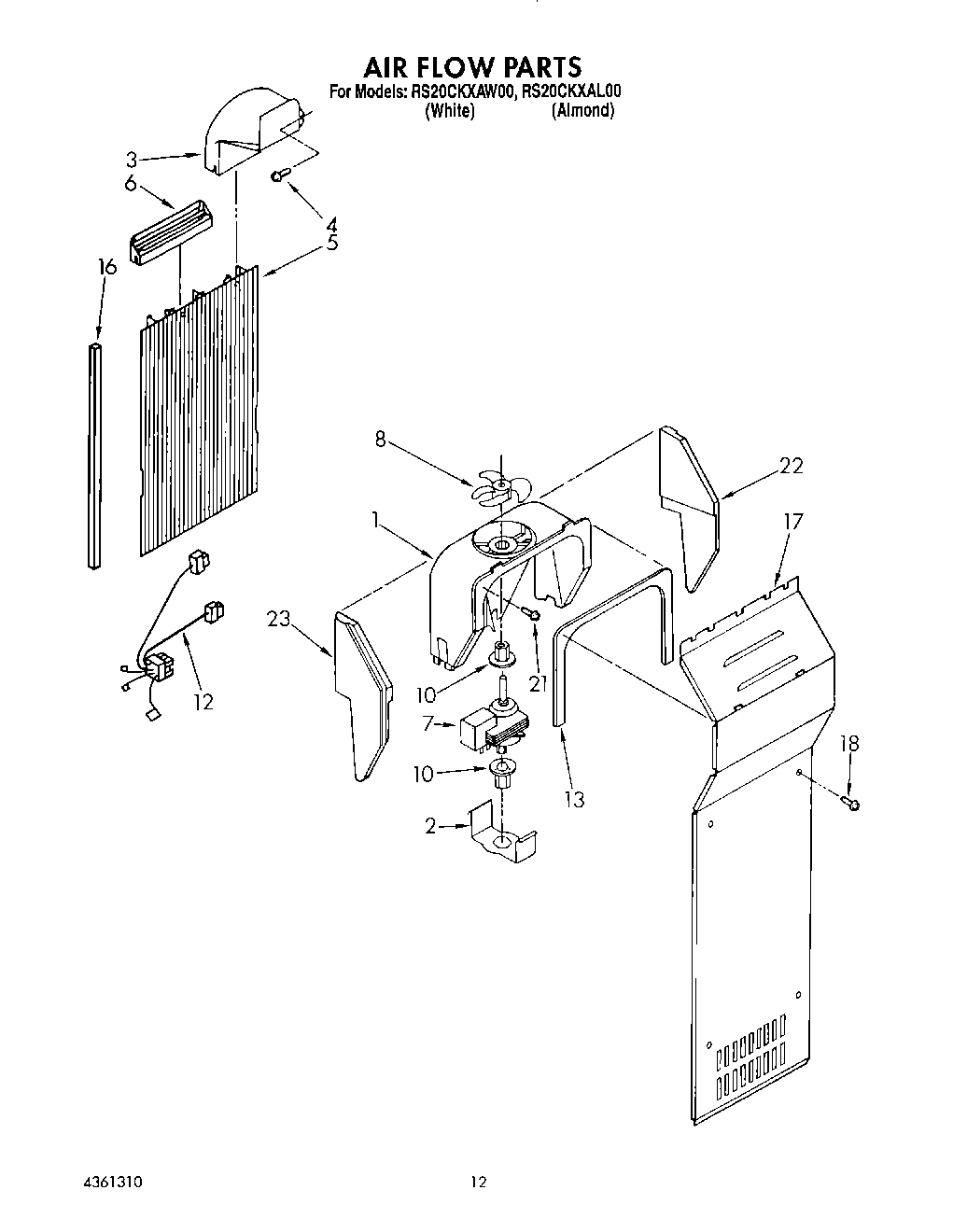

07 - AIR FLOW

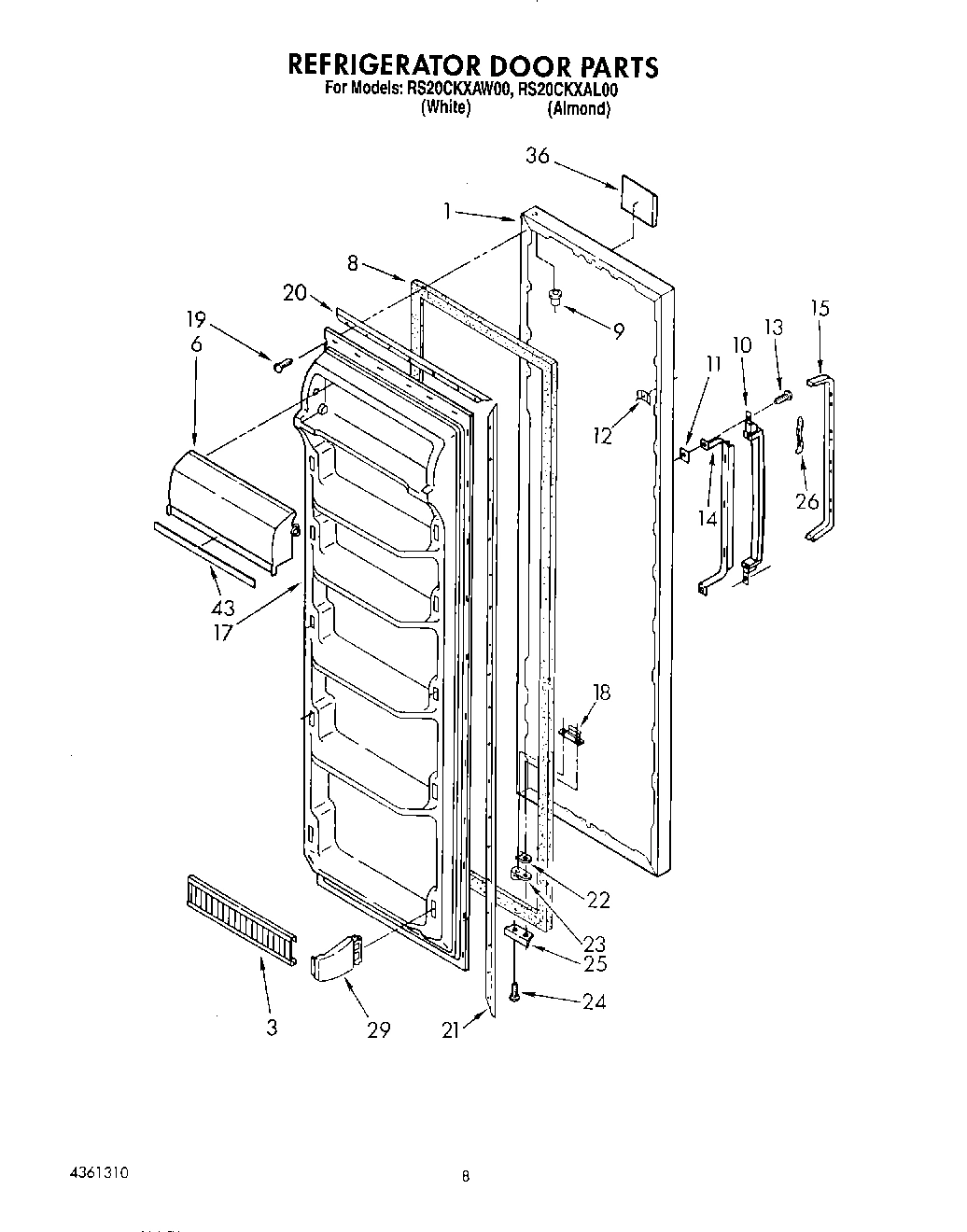

05 - REFRIGERATOR DOOR

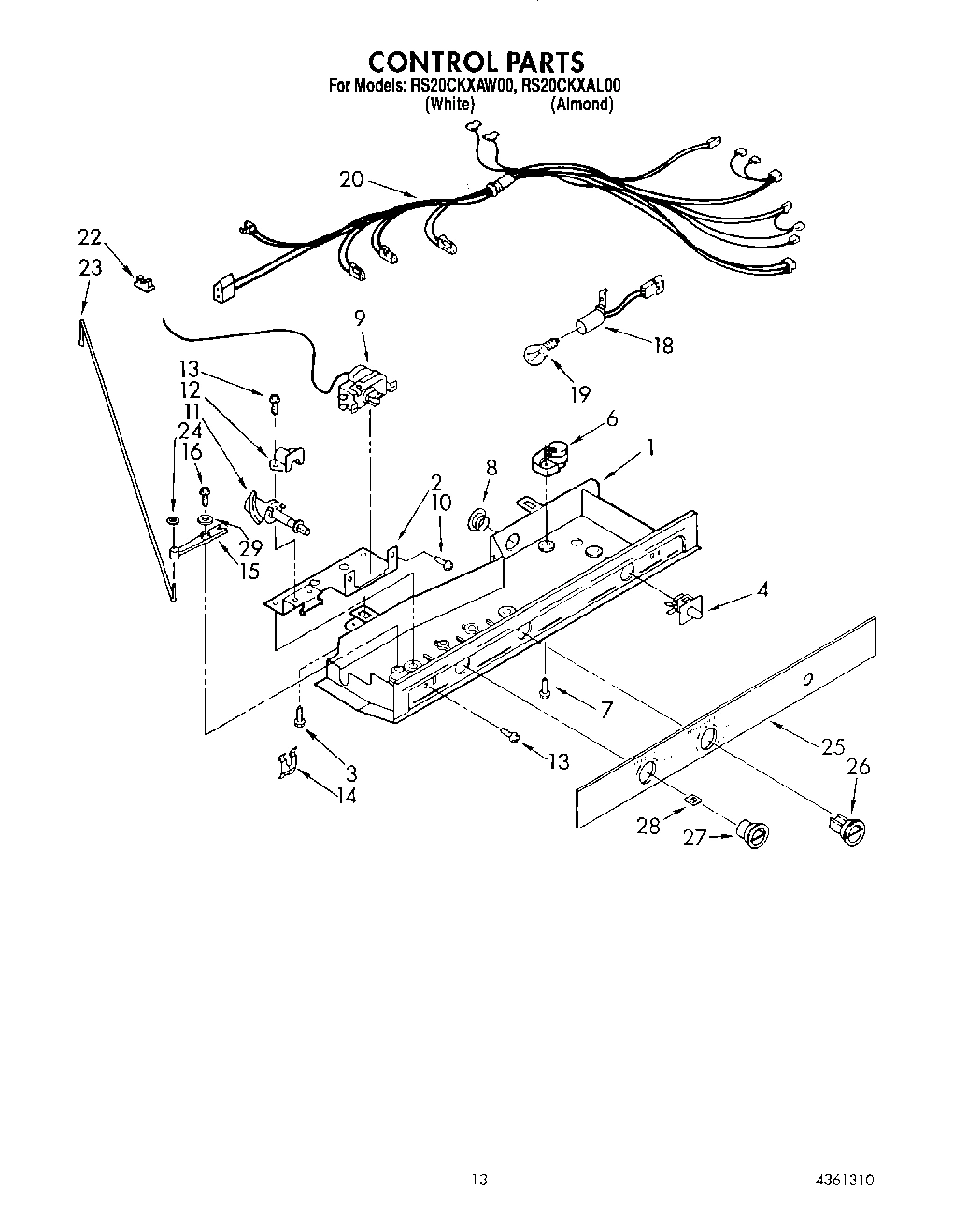

08 - CONTROL

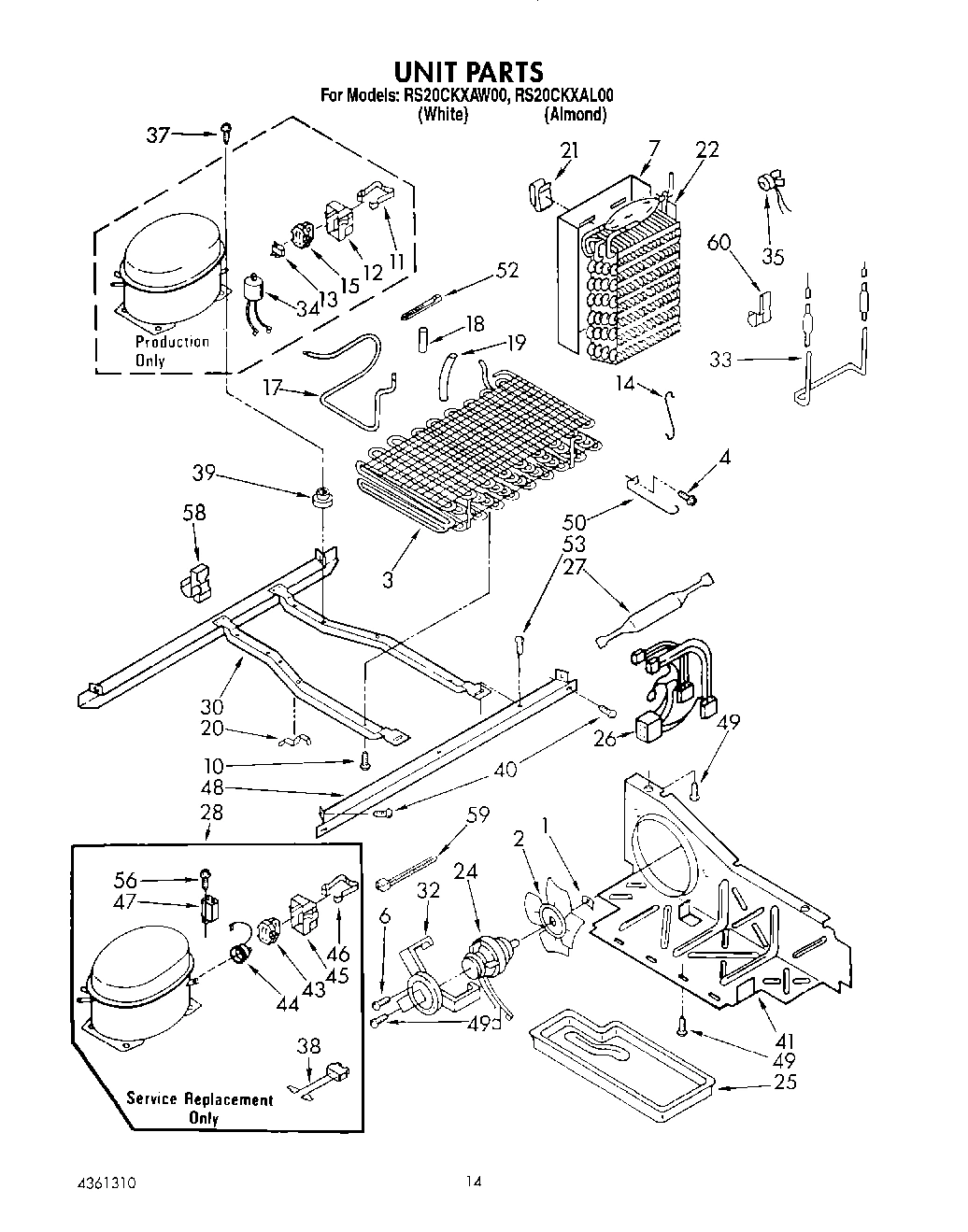

09 - UNIT, LIT/OPTIONAL

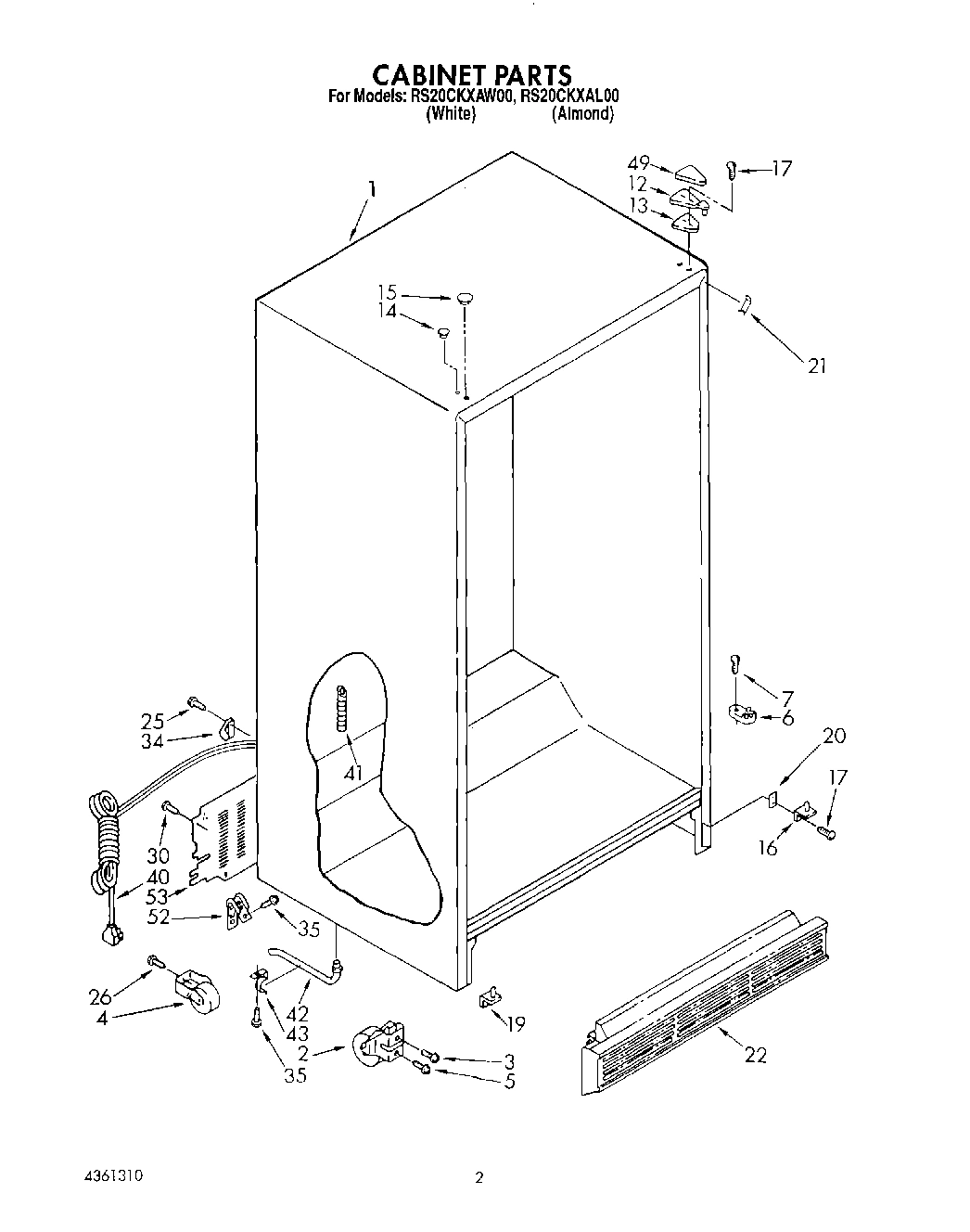

02 - CABINET

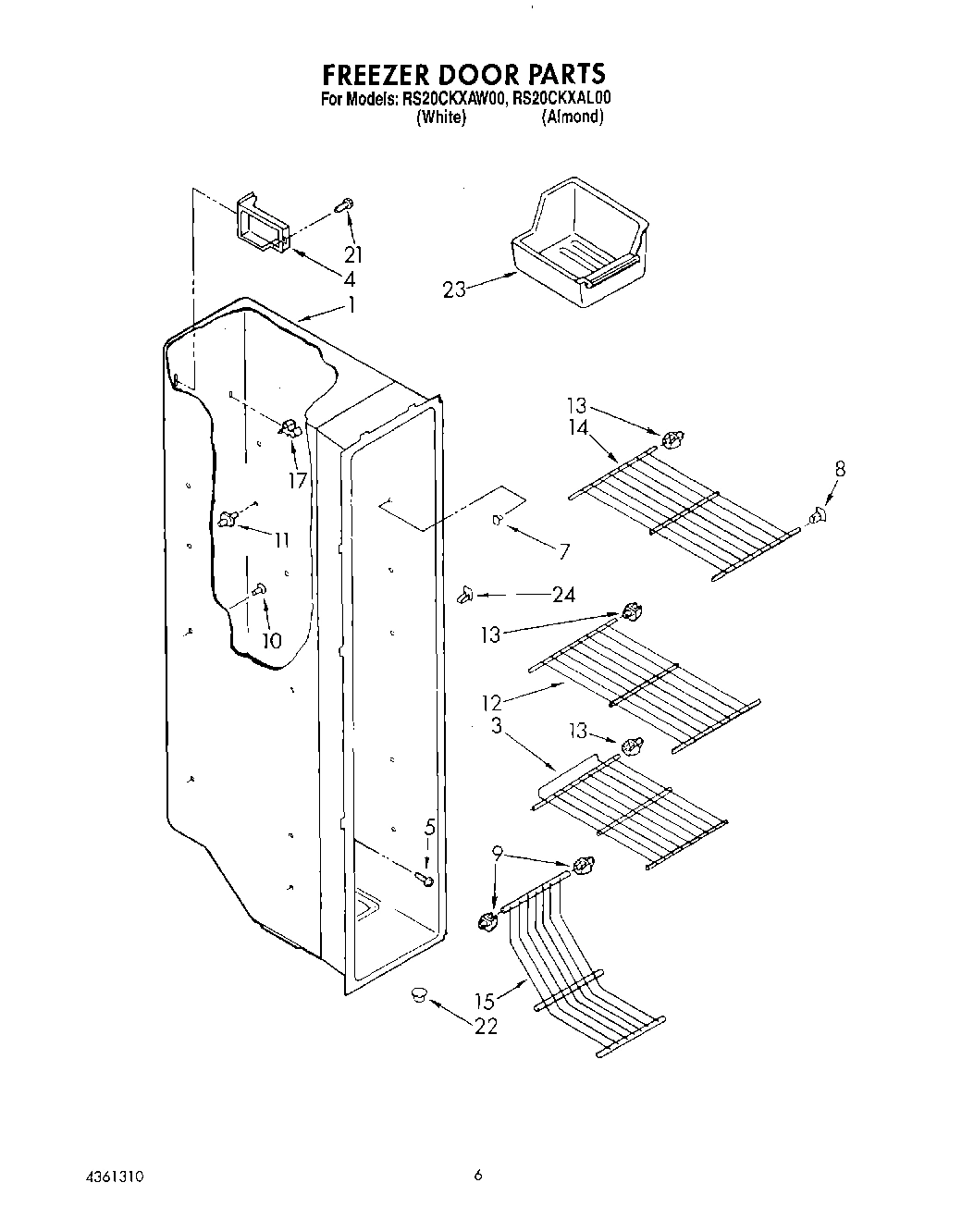

04 - FREEZER LINER
Common parts from model Whirlpool RS20CKXAW00
WPL LIT2152632 WPL LIT2152632 Contact Us For Availability
WPL LIT2152634 WPL LIT2152634 Contact Us For Availability
WPL LIT2155143 WPL LIT2155143 Contact Us For Availability
WPL LIT4361310 WPL LIT4361310 Contact Us For Availability
1
Refrigerator Door (White) WPL 2147643 Contact Us For Availability
1
Refrigerator Door (Almond) WPL 2147645 Contact Us For Availability
1
Control Box WPL 2155518 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI123775A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI123777A Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
3
Trim, Shelf (5) WPL 1120852 Contact Us For Availability
3
Screw (2) WPL 489190 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Shelf WPL 2155603 Contact Us For Availability
4
Cover, Wiring WPL 2155571 Contact Us For Availability
5
Screw WPL 489327 Contact Us For Availability
6
Door, Compartment WPL 2148289 Contact Us For Availability
6
Defrost Timer WPL 2154912 Contact Us For Availability
7
Heat Sheild, Drain Pan WPL 2149293 Contact Us For Availability
7
Support, Stud (12) WPL 946355 Contact Us For Availability
8
Stud, Front (5) WPL 946356 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
10
Handle WPL 2147526 Contact Us For Availability
10
Grommet (10) WPL 1110779 Contact Us For Availability
11
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
11
Shim, Handle (2) WPL 2147097 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
12
Harness, Fan, Evaporator, And Heater WPL 2161327 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
Hinge, Top (2) WPL 1123514 Contact Us For Availability
12
Shelf (2) WPL 1106979 Contact Us For Availability
13
Shim, Hinge (2) WPL 1123515 Contact Us For Availability
14
Reinforcement, Handle WPL 1127465 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161329 Contact Us For Availability
14
Hole, Plug (White) WPL 849391 Contact Us For Availability
14
Hole Plug (Almond) WPL 989958 Contact Us For Availability
14
Shelf (2) WPL 1106980 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Insert, Handle WPL 2147581 Contact Us For Availability
15
Hole Plug (White) WPL 1115352 Contact Us For Availability
15
Hole Plug (Almond) WPL 1115354 Contact Us For Availability
15
Trivet WPL 2148400 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2151619 Contact Us For Availability
17
Panel, Interior Door WPL 1129249 Contact Us For Availability
18
Tap Plate WPL 988402 Contact Us For Availability
19
hinge Bottom (L.H.) WPL 2151620 Contact Us For Availability
20
Retainer, Gasket WPL 1118301 Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Spacer, Hinge WPL 836196 Contact Us For Availability
21
Retainer, Gasket WPL 1117766 Contact Us For Availability
21
Clip, Heat Shield WPL 2155547 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille WPL 1129001 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Stud, Rear (5) WPL 1106982 Contact Us For Availability
25
Bracket, Door Stop WPL 1115906 Contact Us For Availability
25
Escutcheon, Control Box WPL 2152647 Contact Us For Availability
26
Handle, Reinforcement WPL 849445 Contact Us For Availability
26
Harness, Intermediate WPL 2153994 Contact Us For Availability
26
Screw, WPL 488454 Contact Us For Availability
27
Knob, Air Control WPL 1110562 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Trim, End Cap WPL 1110713 Contact Us For Availability
30
Unit Mounting Frame WPL 1127942 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Heater, Defrost WPL 2162079 Contact Us For Availability
36
Nameplate WPL 2160005 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
41
Air, Baffle WPL 1127938 Contact Us For Availability
41
Drain Ferrule WPL 2155556 Contact Us For Availability
43
Trim, Compartment Door WPL 1124432 Contact Us For Availability
43
Relay (Order Overload, No.44, To Obtain Relay WPL ARI123778A Contact Us For Availability
44
Overload WPL 1108114 Contact Us For Availability
45
Cover WPL 1108115 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
53
Cover, Unit WPL 2161316 Contact Us For Availability
58
Clip, Wire And Water Tube WPL 2155658 Contact Us For Availability
60
WPL 978029 WPL 978029 Contact Us For Availability
60
WPL 479502 WPL 479502 Contact Us For Availability
60
WPL 799344 WPL 799344 Contact Us For Availability
60
Torx Key WPL 1117510 Contact Us For Availability
60
Clip (2) WPL 2161330 Contact Us For Availability
60
xEnamel, Golden Wheat (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
60
Enamel, Golden Wheat (1 Qt. Uncut) WPL 261891 Contact Us For Availability
60
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
60
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
60
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
60
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
60
Leveler, WPL 350941 Contact Us For Availability
60
WPL 515393 WPL 515393 Contact Us For Availability
60
WPL 542639 WPL 542639 Contact Us For Availability
60
WPL 72112 WPL 72112 Contact Us For Availability
60
WPL 799340 WPL 799340 Contact Us For Availability
60
WPL 799833 WPL 799833 Contact Us For Availability
60
WPL 978028 WPL 978028 Contact Us For Availability
60
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
