Model Electrolux RS197MCF0 REFRIGERATOR – Common Parts & Diagrams

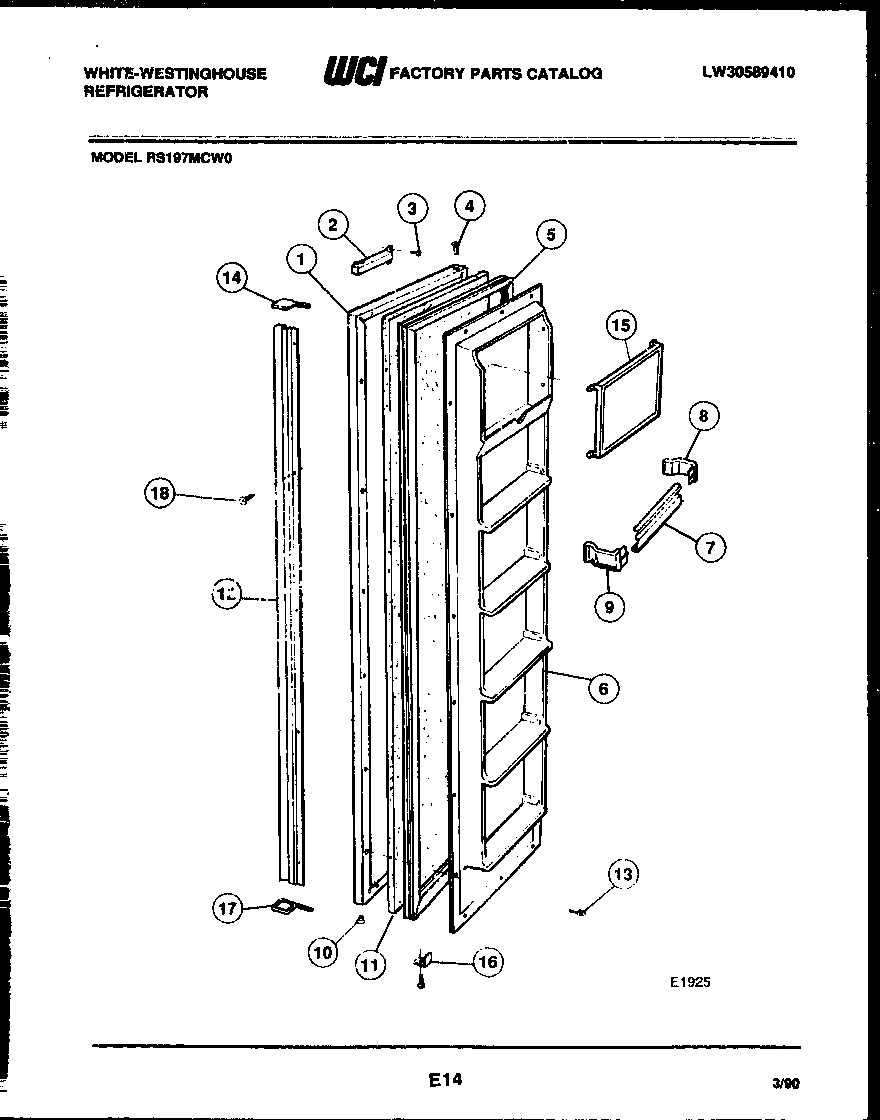

02 - FREEZER DOOR PARTS

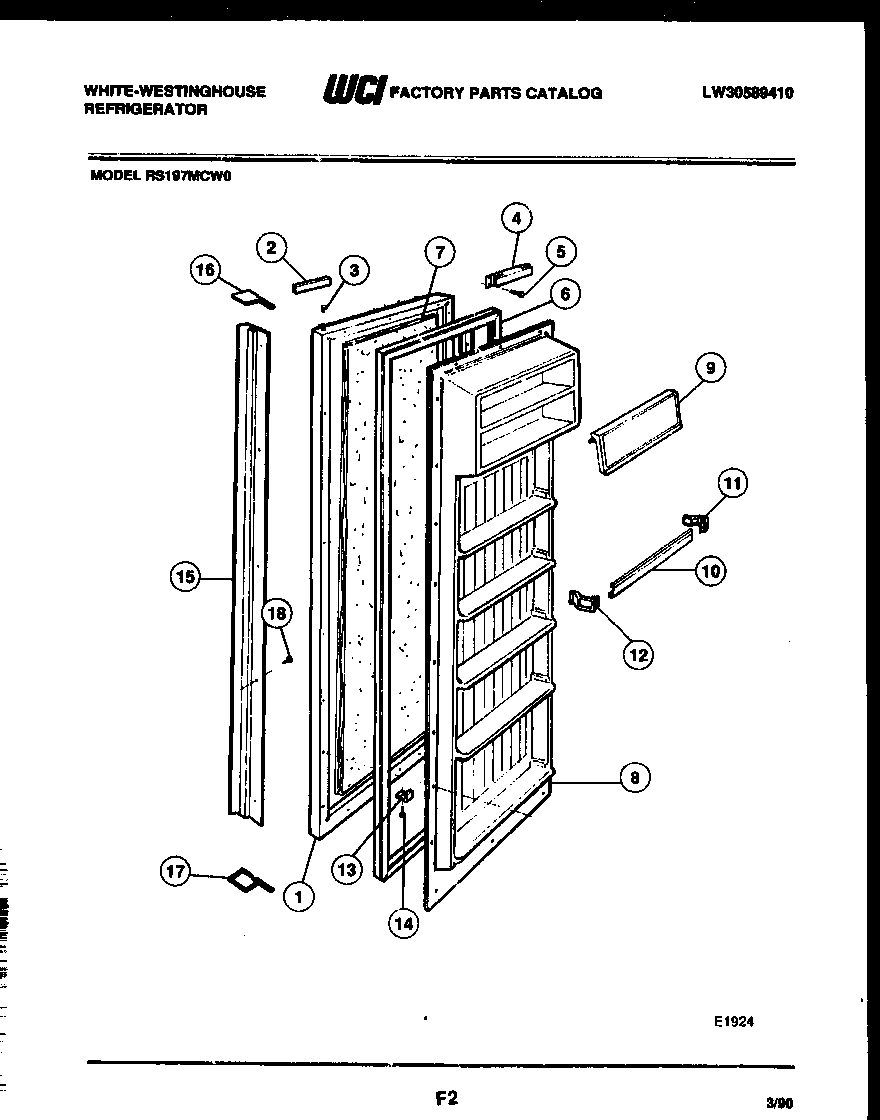

03 - REFRIGERATOR DOOR PARTS

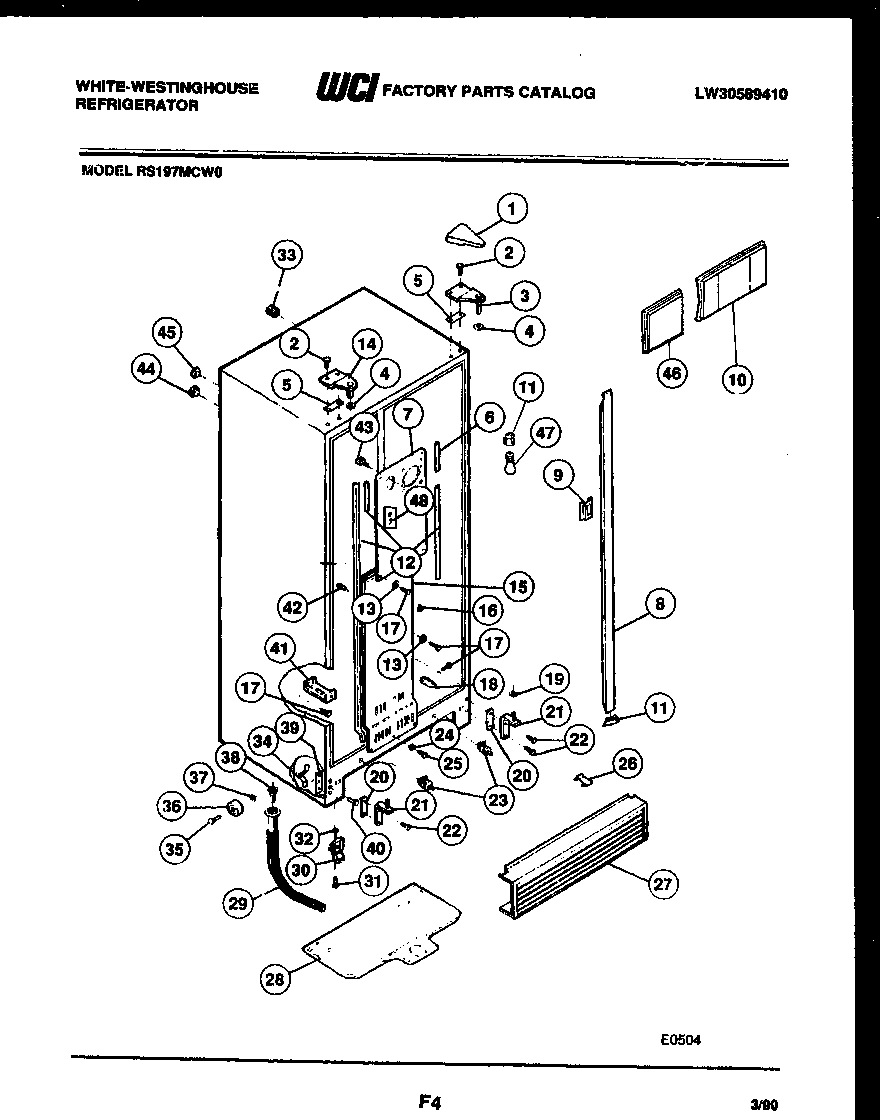

04 - CABINET PARTS

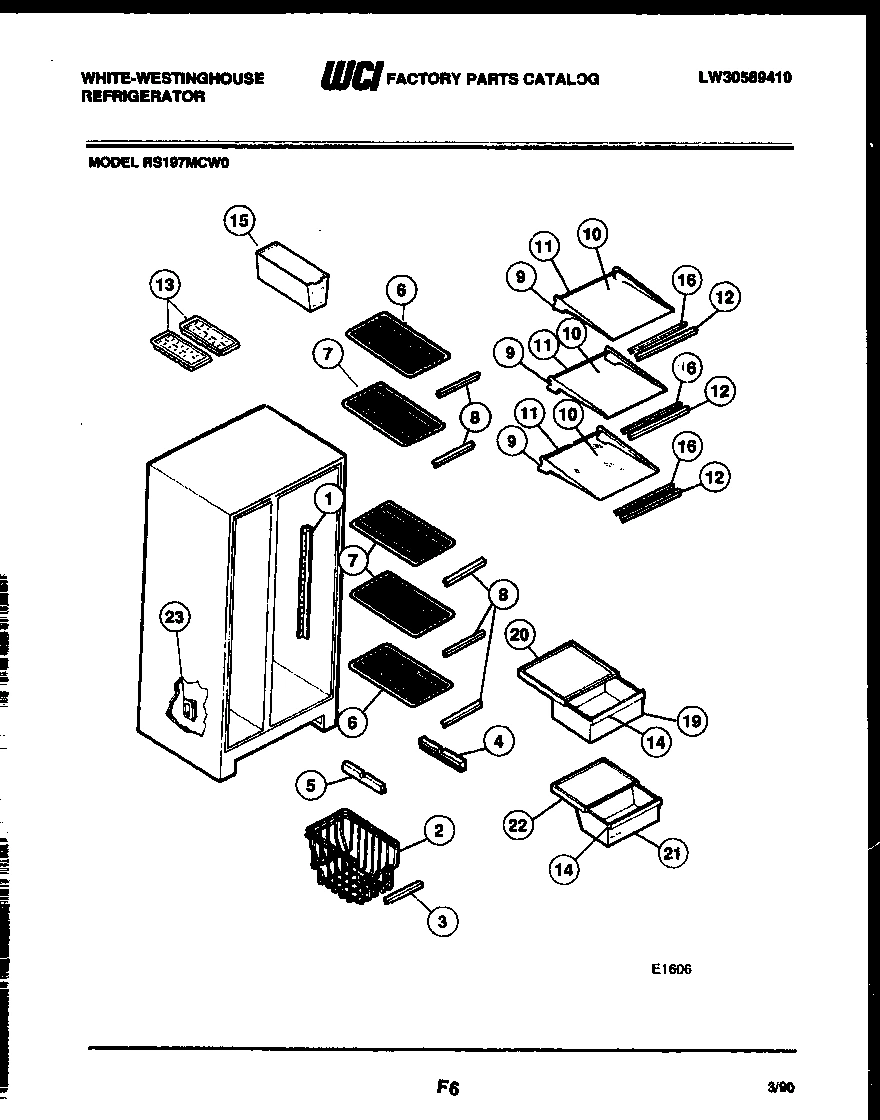

05 - SHELVES AND SUPPORTS

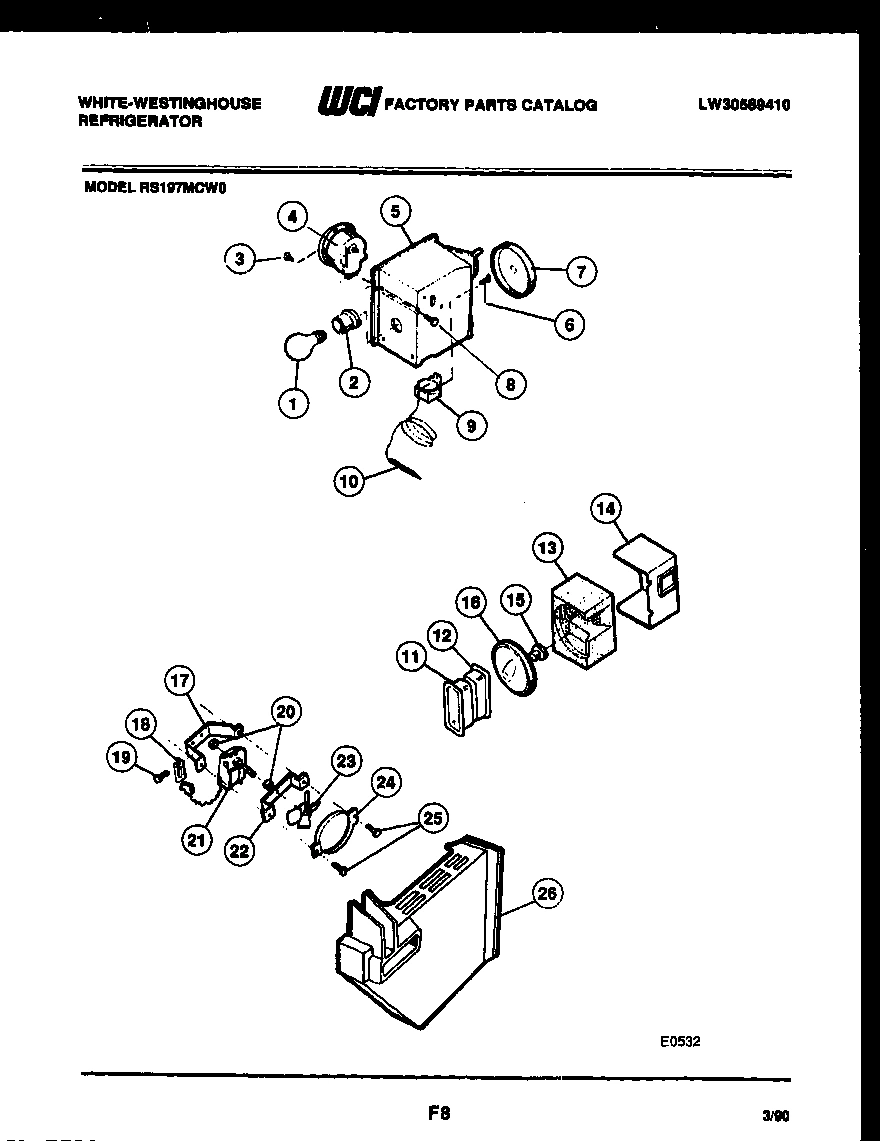

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

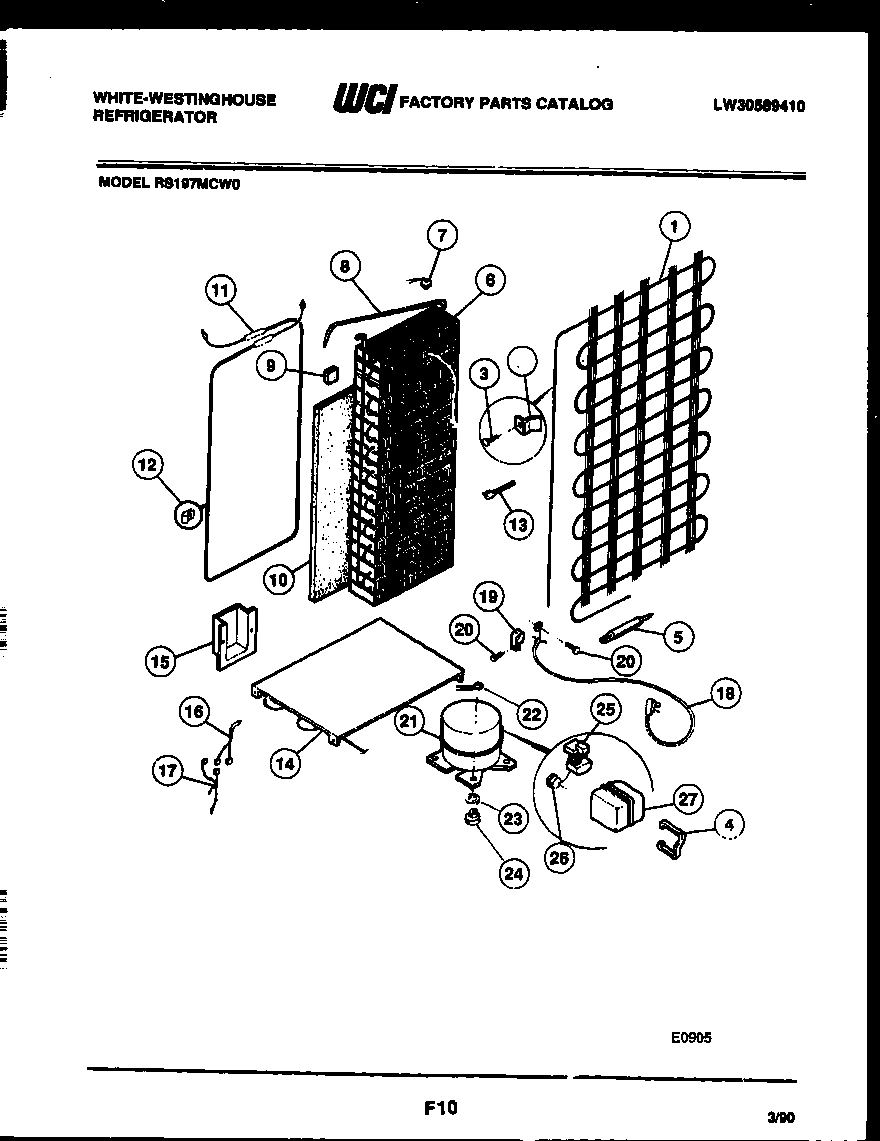

07 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RS197MCF0 REFRIGERATOR
*27961
SUPPORT-SPEC BARREL-LIGHT SHIELD (6) WCI 5303001213 Contact Us For Availability
*27961
CLIP-WIRING HARNESS WCI 5308017046 Contact Us For Availability
*27964
PLUG-FRZR LINER (3) WCI 5308016571 Contact Us For Availability
*27964
WCI 5303206533 WCI 5303206533 Contact Us For Availability
*27964
WCI G170910 WCI G170910 Contact Us For Availability
*27968
INSULATOR-CONT BOX-REAR WCI 3001269 Contact Us For Availability
*27975
HOT TUBE REPAIR KIT WCI 5300189379 Contact Us For Availability
*27975
INSULATOR-FREEZER COIL TOP WCI 5308009619 Contact Us For Availability
1
WCI R000900943 WCI R000900943 Contact Us For Availability
1
HINGE COVER-COFFEE (2) WCI 5303001666 Contact Us For Availability
1
CHANNEL-SHELF MTG (2) WCI 5308002744 Contact Us For Availability
1
WCI 5308017228 WCI 5308017228 Contact Us For Availability
1A
PLUG - DOOR BOTTOM (NON-ILLUSTRATED) WCI 5315230801 Contact Us For Availability
2
SOCKET-LIGHT WCI 5308000129 Contact Us For Availability
2
WCI 3206159 WCI 3206159 Contact Us For Availability
2
BASKET-FREEZER WCI 5308017594 Contact Us For Availability
2
BRACKET, COND MTG (4) WCI 5303001342 Contact Us For Availability
3
WCI 5303001022 WCI 5303001022 Contact Us For Availability
3
HINGE TOP, RH WCI 5308012934 Contact Us For Availability
3
WCI 5303207079 WCI 5303207079 Contact Us For Availability
3A
HINGE BEARING - LOWER (NON-ILLUSTRATED) WCI 5308012007 Contact Us For Availability
3A
WASHER, NO. 10 EXT TOOTH LOCK (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
4
WASHER-NYLON (2) WCI 5308000186 No Longer Available
4
WCI 5303200272 WCI 5303200272 Contact Us For Availability
4
WCI 5303001098 WCI 5303001098 Contact Us For Availability
5
SCREW-CLOSER MTG WCI 5306588927 Contact Us For Availability
5
SHIM-UPPER HINGE (2) WCI 5303001037 Contact Us For Availability
5
WCI 5303001099 WCI 5303001099 Contact Us For Availability
5
WCI 5308017561 WCI 5308017561 Contact Us For Availability
6
WCI 3200831 WCI 3200831 Contact Us For Availability
6
GASKET-COIL COVER (2) WCI 5303001219 Contact Us For Availability
6
SHELF (2) WCI 08000905 Contact Us For Availability
6
WCI 5303001260 WCI 5303001260 Contact Us For Availability
6
WCI 5303916605 WCI 5303916605 Contact Us For Availability
7
INSULATION, BULK WCI 5303007739 Contact Us For Availability
7
COVER-UPPER COIL WCI 5303006543 Contact Us For Availability
7
SHELF (3) WCI 08000906 Contact Us For Availability
7
KNOB-TEMP CONTROL WCI 5308000778 Contact Us For Availability
7A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI 5308000126 Contact Us For Availability
8
SUPPORT-RH (5) WCI 5303204848 No Longer Available
8
WCI G179989-01 WCI G179989-01 Contact Us For Availability
8
WCI 5303916447 WCI 5303916447 Contact Us For Availability
8
TRIM-SHELF (5) WCI 5303207093 Contact Us For Availability
8
WCI 5308017565 WCI 5308017565 Contact Us For Availability
9
SUPPORT-LH (5) WCI 5303204849 No Longer Available
9
WCI 5308000068 WCI 5308000068 Contact Us For Availability
9
WCI 5303208968 WCI 5303208968 Contact Us For Availability
9
CLIP-MULLION (3) WCI 5300169100 Contact Us For Availability
9
WCI 3018644 WCI 3018644 Contact Us For Availability
9
INSUL-BLOCK-EVAP (4) WCI 5308000828 Contact Us For Availability
9A
WCI 5303001281 WCI 5303001281 Contact Us For Availability
10
WCI 5303208969 WCI 5303208969 Contact Us For Availability
10
LIGHT SHIELD-REFR WCI 5303208355 Contact Us For Availability
10
WCI 5303208973 WCI 5303208973 Contact Us For Availability
10
WCI 5303001235 WCI 5303001235 Contact Us For Availability
10A
WCI 5303208972 WCI 5303208972 Contact Us For Availability
11
WCI 5303007568 WCI 5303007568 Contact Us For Availability
11
WCI 5303208971 WCI 5303208971 Contact Us For Availability
11
WCI 5303001276 WCI 5303001276 Contact Us For Availability
12
WCI 5303001233 WCI 5303001233 Contact Us For Availability
12
WCI 5303208974 WCI 5303208974 Contact Us For Availability
12
WCI 5303001277 WCI 5303001277 Contact Us For Availability
12
WCI 5308002777 WCI 5308002777 Contact Us For Availability
12A
WCI 5303001280 WCI 5303001280 Contact Us For Availability
13
WCI 5308000790 WCI 5308000790 Contact Us For Availability
13
WASHER-NYLON (8) WCI 5303001216 Contact Us For Availability
13
WCI 5308000771 WCI 5308000771 Contact Us For Availability
14
HINGE-TOP LH WCI 5303001062 Contact Us For Availability
14
WCI 5303208892 WCI 5303208892 Contact Us For Availability
14
WCI 5303001252 WCI 5303001252 Contact Us For Availability
14
DEFROST PLATE & TUBE ASSY WCI 5300188724 Contact Us For Availability
14A
PLATE-TAPPING (NON-ILLUSTRATED) WCI 5308012296 Contact Us For Availability
15
HANDLE-REFR DOOR WCI 5303207069 Contact Us For Availability
15
COVER-LOWER COIL WCI 5308017223 Contact Us For Availability
15
ICE CONTAINER WCI 5303207065 Contact Us For Availability
15
WCI 5308013429 WCI 5308013429 Contact Us For Availability
15
WCI 5303001197 WCI 5303001197 Contact Us For Availability
15A
PLUG-SHORT TEST HOLE (NON-ILLUSTRATED) WCI 5303203044 Contact Us For Availability
16
HANDLE END-TOP WCI 5300177142 Contact Us For Availability
16
CLIP-GROUNDING WCI 5303001231 Contact Us For Availability
16
RETAINER-GLASS (4) WCI 3018643 Contact Us For Availability
16
WIRING HARNESS, CONTROLS WCI 5303015098 Contact Us For Availability
16
WCI 5316521701 WCI 5316521701 Contact Us For Availability
16B
TRIM-HANDLE END-TOP (NON-ILLUSTRATED) WCI 5300179270 Contact Us For Availability
17
HANDLE END-BOTTOM WCI 5300177143 Contact Us For Availability
17
BRACKET-MOTOR REAR WCI 5303001227 Contact Us For Availability
17
WIRING HARNESS-COMPR & LIGHT SWITCHES WCI 5308009616 Contact Us For Availability
17A
CLIP-DOOR HANDLE (NON-ILLUSTRATED) WCI 5300177144 Contact Us For Availability
17B
TRIM-HANDLE END-BOTTOM (NON-ILLUSTRATED) WCI 5300179271 Contact Us For Availability
18
WCI 5308000107 WCI 5308000107 Contact Us For Availability
18
WCI 5308011745 WCI 5308011745 Contact Us For Availability
18
WCI 08017447 WCI 08017447 Contact Us For Availability
18
WCI 5316254901 WCI 5316254901 Contact Us For Availability
19
WASHER-NYLON-5/16 X 5/8 OD (2) WCI 5303001038 Contact Us For Availability
19
WCI 5303208894 WCI 5303208894 Contact Us For Availability
20
SHIM-LOWER HINGE (6) WCI 5303001272 Contact Us For Availability
20
WCI 5308008727 WCI 5308008727 Contact Us For Availability
20
WCI 5300157666 WCI 5300157666 Contact Us For Availability
20A
GASKET-COVER (NON-ILLUSTRATED) WCI 3018752 Contact Us For Availability
21
WCI 5303001271 WCI 5303001271 Contact Us For Availability
21
WCI 5303208970 WCI 5303208970 Contact Us For Availability
21
COMPRESSOR W/ ELECTRICALS WCI 5308950223 Contact Us For Availability
21A
CAPACITOR-RUN (NON-ILLUSTRATED) WCI 5303916391 Contact Us For Availability
22
SCREW-HINGE MTG (4) WCI 5303001041 Contact Us For Availability
22
WCI 5316391601 WCI 5316391601 Contact Us For Availability
22
BRACKET-MOTOR FRONT WCI 5303001226 Contact Us For Availability
22
CLIP-COMP (4) WCI 5308003596 Contact Us For Availability
23
WCI 5308000808 WCI 5308000808 Contact Us For Availability
23
WASHER-COMP (4) WCI 5308003633 Contact Us For Availability
23A
CLIP-CABLE (2) WCI 08009775 Contact Us For Availability
23A
WCI 5308000809 WCI 5308000809 Contact Us For Availability
24
RING, ORIFICE WCI 5308000124 Contact Us For Availability
25
WCI 5303007173 WCI 5303007173 Contact Us For Availability
25
SCREW-8-32 X 9/16 WCI 5303001230 Contact Us For Availability
26
WCI 5308000091 WCI 5308000091 Contact Us For Availability
26
WCI 5316465401 WCI 5316465401 Contact Us For Availability
27
GRILLE WCI 5303016726 Contact Us For Availability
28
WCI 5308000086 WCI 5308000086 Contact Us For Availability
28A
WCI 08000099 WCI 08000099 Contact Us For Availability
30
ROLLER ASSY-FRONT (2) WCI 5308000118 Contact Us For Availability
31
SCREW-ROLLER MTG (2) WCI 5308017044 Contact Us For Availability
32
BOLT-ROLLER ADJ (2) WCI 5308009568 Contact Us For Availability
33
TUBE-RUBBER (4) WCI 5303001198 Contact Us For Availability
34
SPEED NUT (2) WCI 5300077210 Contact Us For Availability
35
PIN-REAR ROLLER (2) WCI 5308000266 Contact Us For Availability
36
WCI 5303001030 WCI 5303001030 Contact Us For Availability
37
PUSH NUT (2) WCI 5303001028 Contact Us For Availability
38
WCI 5308000853 WCI 5308000853 Contact Us For Availability
39
NUT-SPECIAL TWIN (4) WCI 5303001273 Contact Us For Availability
40
SHOULDER PIN (2) WCI 5308000013 Contact Us For Availability
41
BRACKET-COIL COVER WCI 5308000738 Contact Us For Availability
42
SUPPORT-COIL COVER (5) WCI 5303001250 Contact Us For Availability
43
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
44
FERRULE-INNER (2) WCI 5303001286 Contact Us For Availability
45
FERRULE-OUTER (2) WCI 5303001287 Contact Us For Availability
46
LIGHT SHIELD-FREEZER WCI 5303207094 Contact Us For Availability
48
WCI 5316541602 WCI 5316541602 Contact Us For Availability
× ![]()
