Model Electrolux RS196GCH3 REFRIGERATOR – Common Parts & Diagrams

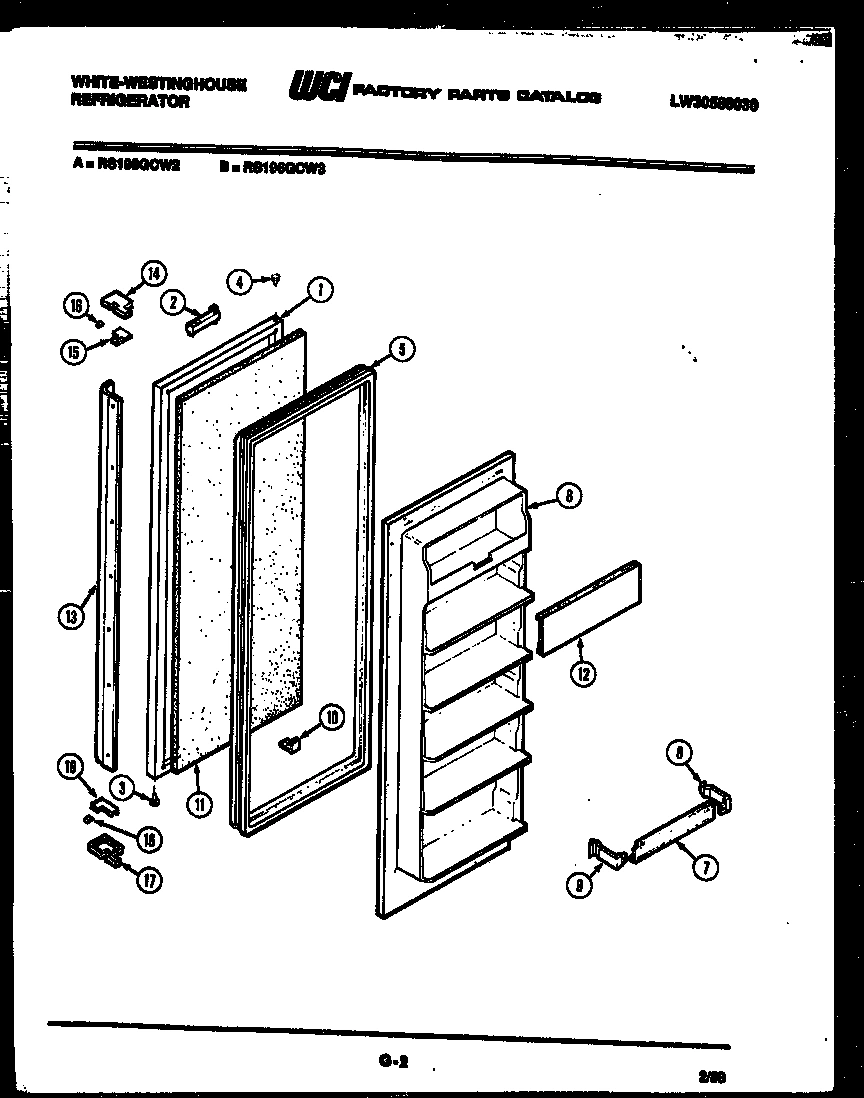

02 - FREEZER DOOR PARTS

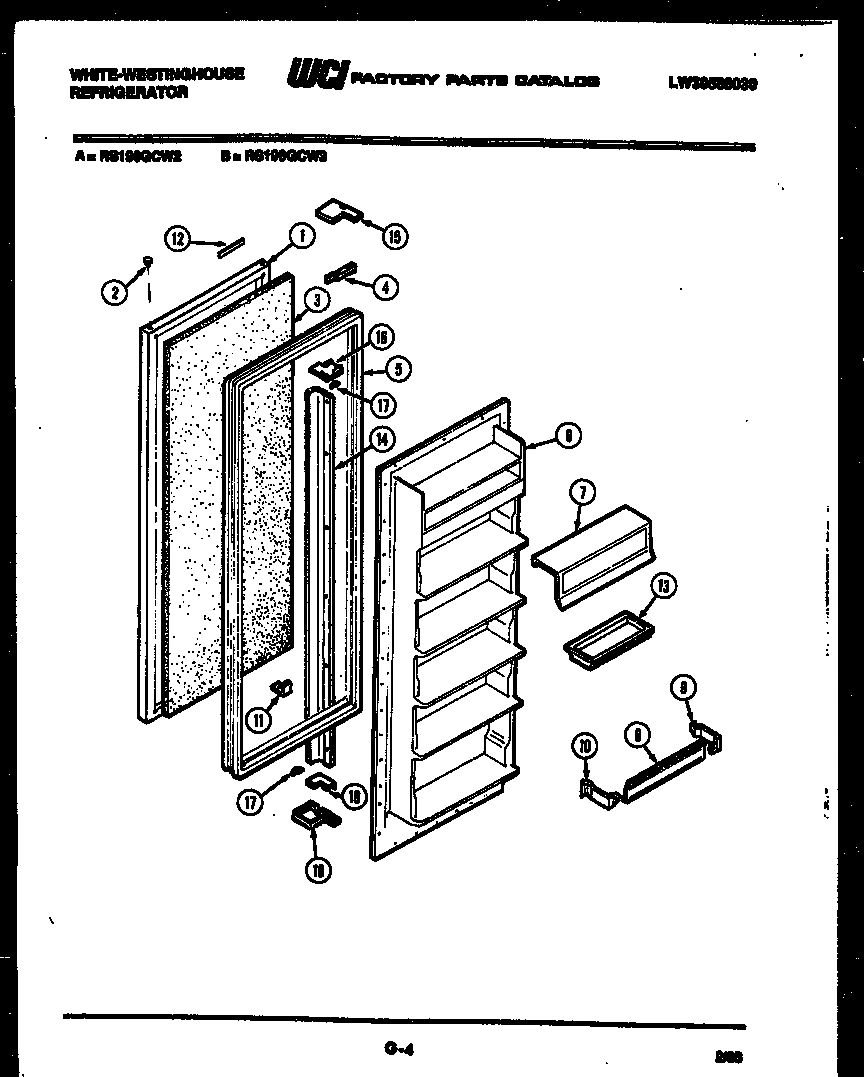

03 - REFRIGERATOR DOOR PARTS
04 - CABINET PARTS
05 - SHELVES AND SUPPORTS
06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP
07 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RS196GCH3 REFRIGERATOR
*68680
PLUG-REFR LINER (4) WCI G162892-01 Contact Us For Availability
*68680
PLUG-FRZR LINER (3) WCI G187599 Contact Us For Availability
*68712
FOAM TAPE-COVER WCI G167795-04 Contact Us For Availability
*68713
WIRING HARNESS WCI 3015098 Contact Us For Availability
*68713
CLIP, GROUNDING WCI G162703 Contact Us For Availability
*68732
HOT TUBE REPAIR KIT WCI G189379 Contact Us For Availability
*68732
WCI R900979 WCI R900979 Contact Us For Availability
1
WCI G180543-09 WCI G180543-09 Contact Us For Availability
1
WCI G174734 WCI G174734 Contact Us For Availability
1
CHANNEL-RS & LS WCI G170694 Contact Us For Availability
1
WCI G190222 WCI G190222 Contact Us For Availability
1A
DOOR PLUG-BOTTOM (NON-ILLUSTRATED) WCI G152308-01 Contact Us For Availability
2
HINGE BEARING-UPR WCI G183139 Contact Us For Availability
2
TUBE, RUBBER WCI G85642 Contact Us For Availability
2
LIGHT SOCKET-REFR WCI G168302 Contact Us For Availability
2A
HINGE BEARING-LWR (NON-ILLUSTRATED) WCI G183138 Contact Us For Availability
3
WCI G89643 WCI G89643 Contact Us For Availability
3
WCI G174733 WCI G174733 Contact Us For Availability
3
WCI G180195-06 WCI G180195-06 Contact Us For Availability
3
WCI G190223 WCI G190223 Contact Us For Availability
4
DOOR CLOSER WCI G161119 Contact Us For Availability
4
HINGE-TOP RS WCI G183715 Contact Us For Availability
4
WCI 3015091 WCI 3015091 Contact Us For Availability
4
WCI G189609 WCI G189609 Contact Us For Availability
4A
SCREW-MTG (NON-ILLUSTRATED) WCI G169729 Contact Us For Availability
4A
WCI G183716 WCI G183716 Contact Us For Availability
4C
TAPPING PLATE (2) (NON-ILLUSTRATED) WCI G157591 Contact Us For Availability
5
GASKET-FRZR DOOR WCI G180551-03 Contact Us For Availability
5
GASKET-REFR DOOR WCI G180551-01 Contact Us For Availability
5
WCI G170156 WCI G170156 Contact Us For Availability
5
WCI G179707-02 WCI G179707-02 Contact Us For Availability
5
CONTROL-TEMP WCI G162205-05 Contact Us For Availability
6
WCI G180119-01 WCI G180119-01 Contact Us For Availability
6
WCI G179989-01 WCI G179989-01 Contact Us For Availability
6
SHIM-HINGE (2) WCI G183861 Contact Us For Availability
6
WCI G163915-01 WCI G163915-01 Contact Us For Availability
6
CONTROL BOX WCI G189359 Contact Us For Availability
6
WCI G167363 WCI G167363 Contact Us For Availability
6A
WCI G165434 WCI G165434 Contact Us For Availability
7
WCI G490079-11 WCI G490079-11 Contact Us For Availability
7
WCI G179975-01 WCI G179975-01 Contact Us For Availability
7
WCI G183558-09 WCI G183558-09 Contact Us For Availability
7
WCI G177343-05 WCI G177343-05 Contact Us For Availability
8
WCI G490079-10 WCI G490079-10 Contact Us For Availability
8
WCI G162383 WCI G162383 Contact Us For Availability
8
WCI G179708-02 WCI G179708-02 Contact Us For Availability
8
KNOB-TEMP CONT WCI G164906-01 Contact Us For Availability
8
WCI 3007526 WCI 3007526 Contact Us For Availability
8A
SCREW-HINGE MTG (2) (NON-ILLUSTRATED) WCI G99167 Contact Us For Availability
8B
WCI G141673 WCI G141673 Contact Us For Availability
9
SUPPORT-RS (5) WCI G179946-01 Contact Us For Availability
9
WASHER-HINGE PIN (2) WCI G164355 Contact Us For Availability
9
COVER-LOWER PAN WCI G163916-01 Contact Us For Availability
9
BRACKET-MTG (4) WCI G164637 Contact Us For Availability
10
SUPPORT-LS (5) WCI G179947-01 Contact Us For Availability
10
WCI G162903 WCI G162903 Contact Us For Availability
10
WCI G161015-13 WCI G161015-13 Contact Us For Availability
10A
WCI G142361 WCI G142361 Contact Us For Availability
10B
WCI G77210 WCI G77210 Contact Us For Availability
11
BUMPER-LIGHT SW. WCI G165376 Contact Us For Availability
11
WCI G165416-15 WCI G165416-15 Contact Us For Availability
11
WCI G107080 WCI G107080 Contact Us For Availability
12
WCI G179808-01 WCI G179808-01 Contact Us For Availability
12
FRAME-NAMEPLATE WCI G176986 Contact Us For Availability
12
WCI G163080-03 WCI G163080-03 Contact Us For Availability
12
HANGER-BASKET RS WCI G168986 Contact Us For Availability
12
WCI G162549-01 WCI G162549-01 Contact Us For Availability
12A
TAPE-MTG (NON-ILLUSTRATED) WCI G153407-60 Contact Us For Availability
12B
LABEL-NAMEPLATE (NON-ILLUSTRATED) WCI G177218-01 Contact Us For Availability
13
WCI G162994 WCI G162994 Contact Us For Availability
13
HANGER-BASKET LS WCI G168987 Contact Us For Availability
14
WCI G177141-09 WCI G177141-09 Contact Us For Availability
14
WCI R900621 WCI R900621 Contact Us For Availability
14
WCI G186731 WCI G186731 Contact Us For Availability
14
WCI G184748 WCI G184748 Contact Us For Availability
14A
WCI G185566 WCI G185566 Contact Us For Availability
14A
SCREW-ROLLER MTG (2) (NON-ILLUSTRATED) WCI G145103 Contact Us For Availability
15
HANDLE END-TOP WCI G177142 Contact Us For Availability
15
WCI G165746-11 WCI G165746-11 Contact Us For Availability
16
TRIM-HDL END TOP WCI G179270 Contact Us For Availability
16
WCI G162890 WCI G162890 Contact Us For Availability
16
WCI G180425-01 WCI G180425-01 Contact Us For Availability
16
WCI G166802 WCI G166802 Contact Us For Availability
16
WCI G182225-04 WCI G182225-04 Contact Us For Availability
17
CLIP-HDL END (4) WCI G177144 Contact Us For Availability
17
WCI 3015092 WCI 3015092 Contact Us For Availability
17
WCI G166803 WCI G166803 Contact Us For Availability
17
WCI G188727 WCI G188727 Contact Us For Availability
17A
GASKET-FERRULE (NON-ILLUSTRATED) WCI G167582 Contact Us For Availability
18
HANDLE END-BOTTOM WCI G177143 Contact Us For Availability
18
WCI G171193 WCI G171193 Contact Us For Availability
18
SHELF-FREEZER CTR (3) WCI G180425-02 Contact Us For Availability
18
KNOB, DAMPER CONT. WCI G165217-01 Contact Us For Availability
18
WCI 3007535 WCI 3007535 Contact Us For Availability
19
TRIM-HANDLE END BOT WCI G179271 Contact Us For Availability
19
WCI G169481-01 WCI G169481-01 Contact Us For Availability
19
WCI G185373 WCI G185373 Contact Us For Availability
19A
NUT-U TYPE (2) WCI G167542 Contact Us For Availability
20
SUPPORT, COVER (2) WCI G163669 Contact Us For Availability
20
WCI G173948-19 WCI G173948-19 Contact Us For Availability
20
WCI G164575 WCI G164575 Contact Us For Availability
21
WCI G165233 WCI G165233 Contact Us For Availability
21
CONTROL BOX-DAMPER WCI G164523 Contact Us For Availability
21
COMPRESSOR WITH ELECTRICALS WCI G189470 Contact Us For Availability
22
WCI G174234-02 WCI G174234-02 Contact Us For Availability
22
CONNECTOR BRACKET WCI G164571 Contact Us For Availability
22
WCI G183344 WCI G183344 Contact Us For Availability
23
WCI G174234-01 WCI G174234-01 Contact Us For Availability
23
WCI G185303 WCI G185303 Contact Us For Availability
23
WCI G154588 WCI G154588 Contact Us For Availability
24
WCI G169477-03 WCI G169477-03 Contact Us For Availability
25
WCI G169471 WCI G169471 Contact Us For Availability
25
WCI 3007525 WCI 3007525 Contact Us For Availability
26
WCI G188000-03 WCI G188000-03 Contact Us For Availability
26
WCI G183584 WCI G183584 Contact Us For Availability
27
WCI G158022 WCI G158022 Contact Us For Availability
27
WCI G185302 WCI G185302 Contact Us For Availability
27
WCI G169641 WCI G169641 Contact Us For Availability
27A
LOCK WASHER (2) WCI G164820 Contact Us For Availability
27B
WCI G184851 WCI G184851 Contact Us For Availability
29
WCI G167217 WCI G167217 Contact Us For Availability
30
WCI R900925 WCI R900925 Contact Us For Availability
31
WCI G164643-09 WCI G164643-09 Contact Us For Availability
31
WCI G164654-01 WCI G164654-01 Contact Us For Availability
31A
WCI G169100 WCI G169100 Contact Us For Availability
31B
WCI G169297 WCI G169297 Contact Us For Availability
32
MULLION TRIM-WHEAT WCI G169745-09 Contact Us For Availability
34
LIGHT SHIELD-FREEZER WCI G164452-27 Contact Us For Availability
35
SUPPORT-SHIELD (8) WCI G165177 Contact Us For Availability
36
WCI G162808 WCI G162808 Contact Us For Availability
37
WCI G162809 WCI G162809 Contact Us For Availability
38
PUSH NUT (2) WCI G162662 Contact Us For Availability
39
WCI G164912-03 WCI G164912-03 Contact Us For Availability
× ![]()
