Model Electrolux RS192GCV5 REFRIGERATOR – Common Parts & Diagrams

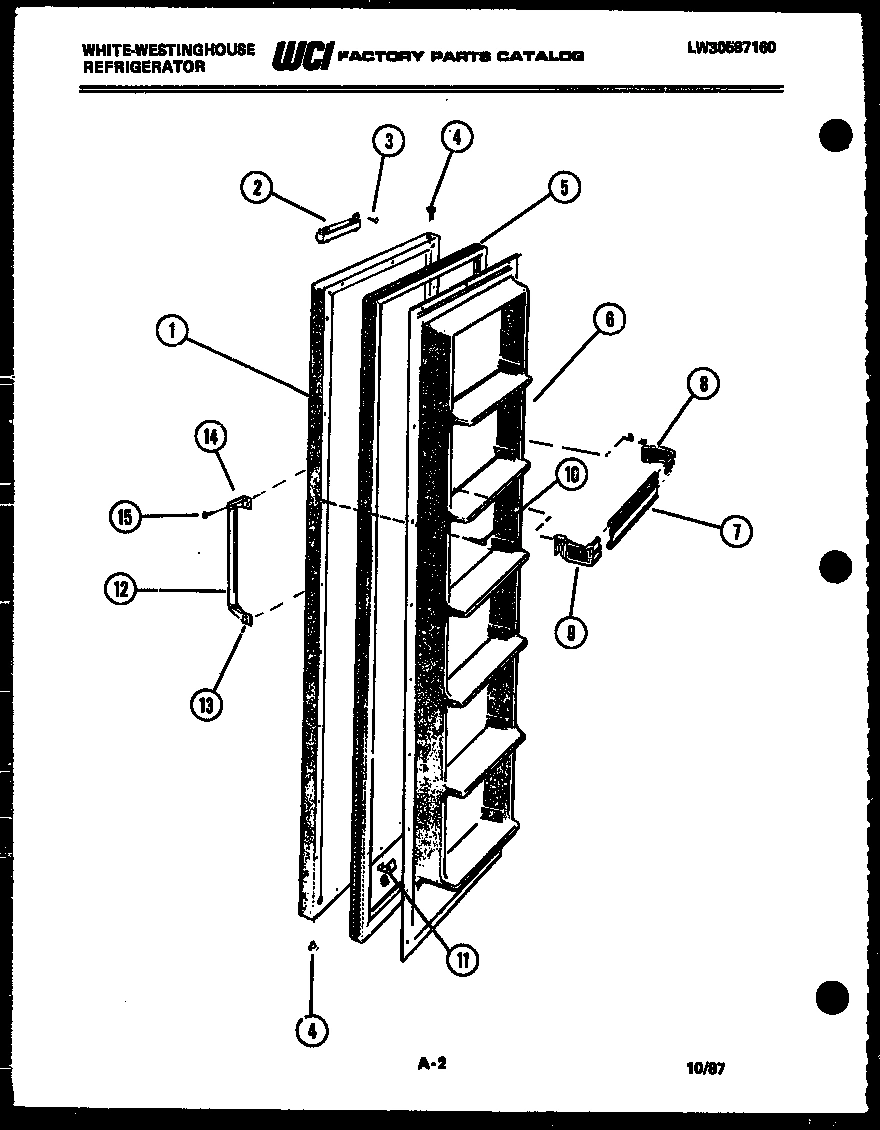

02 - FREEZER DOOR PARTS

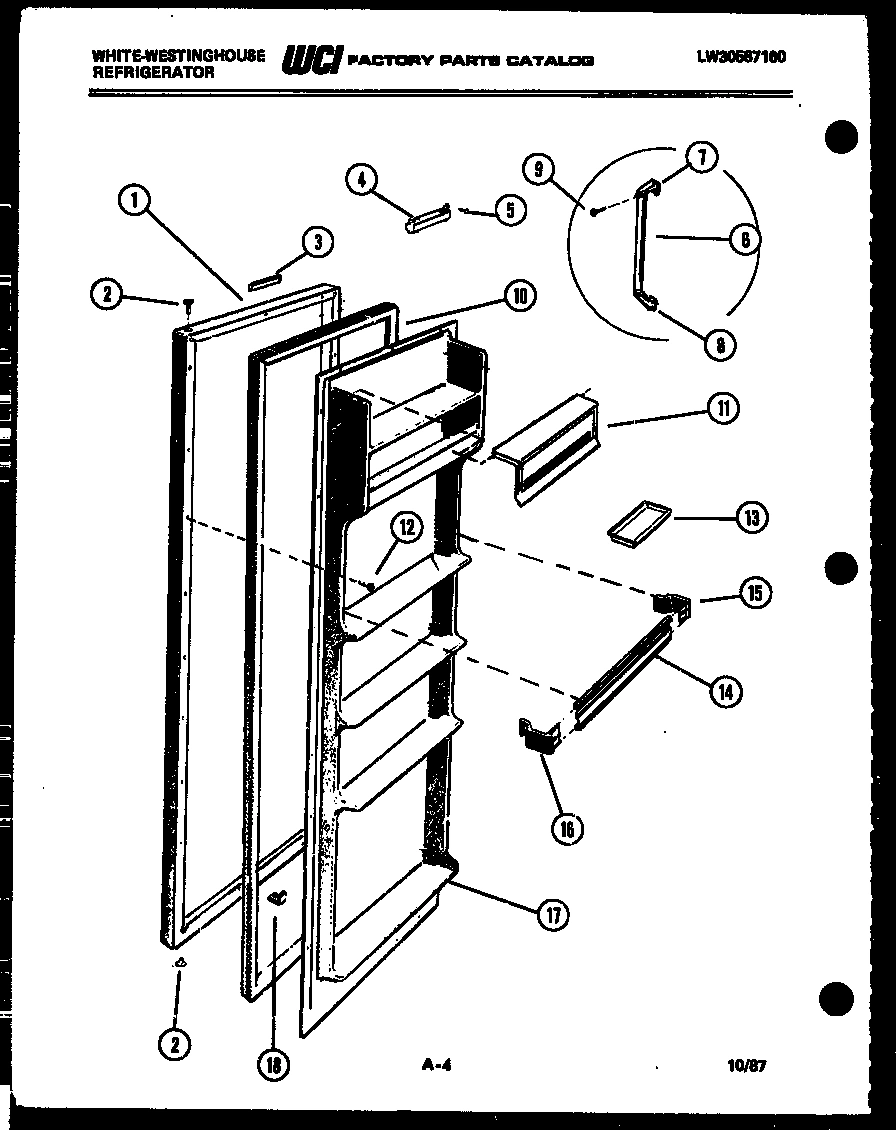

03 - REFRIGERATOR DOOR PARTS

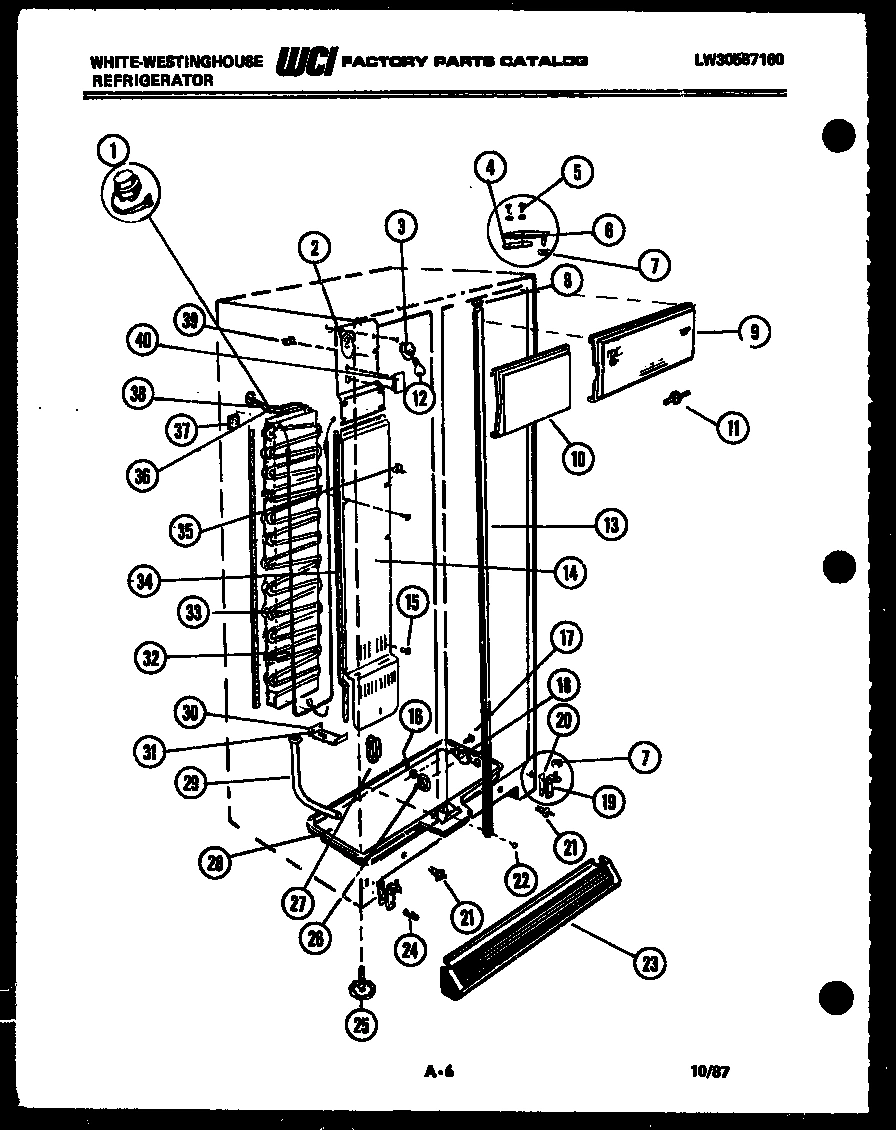

04 - CABINET PARTS

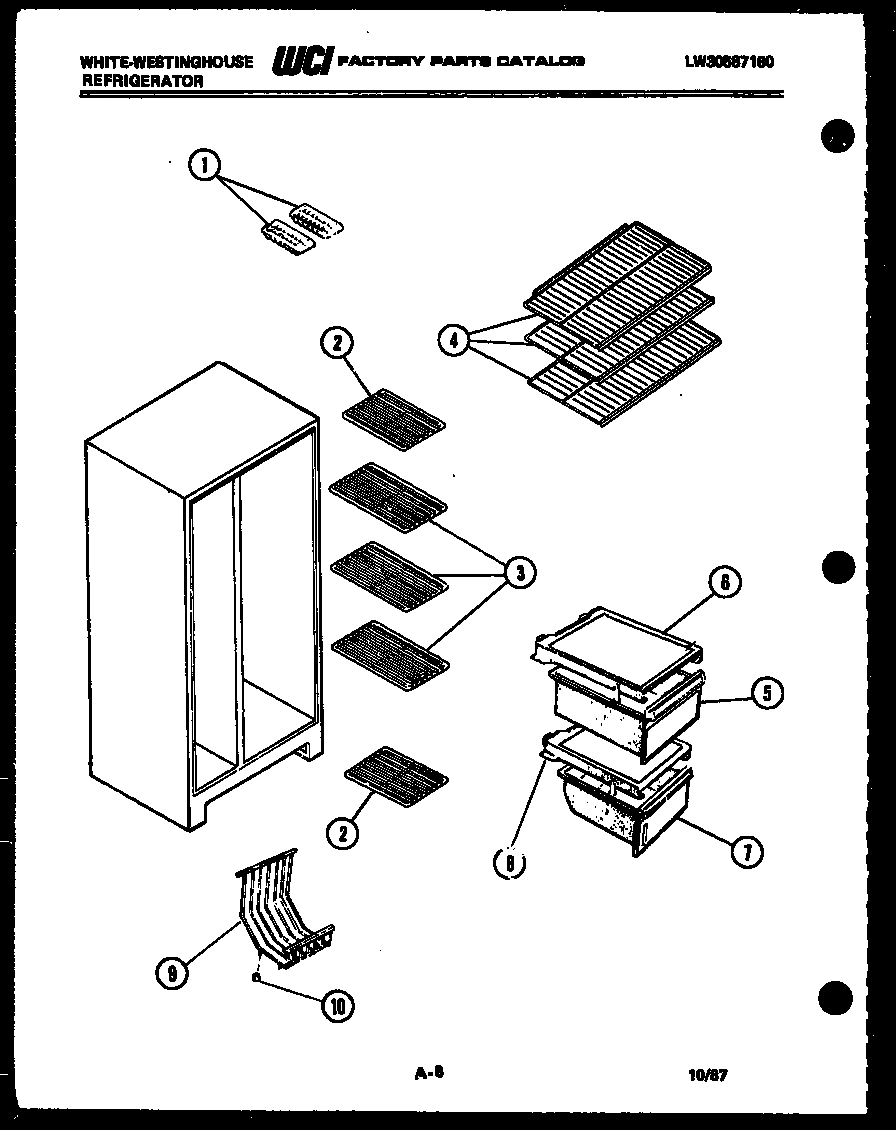

05 - SHELVES AND SUPPORTS

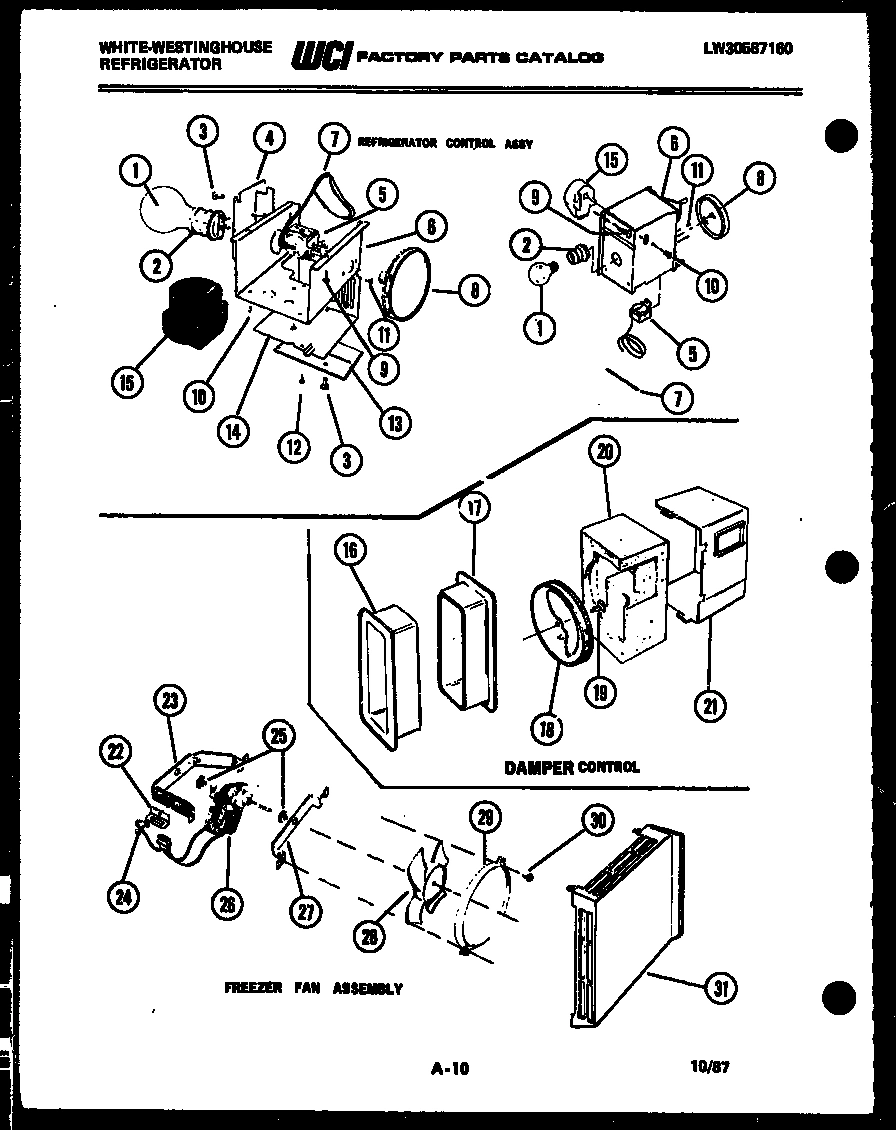

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

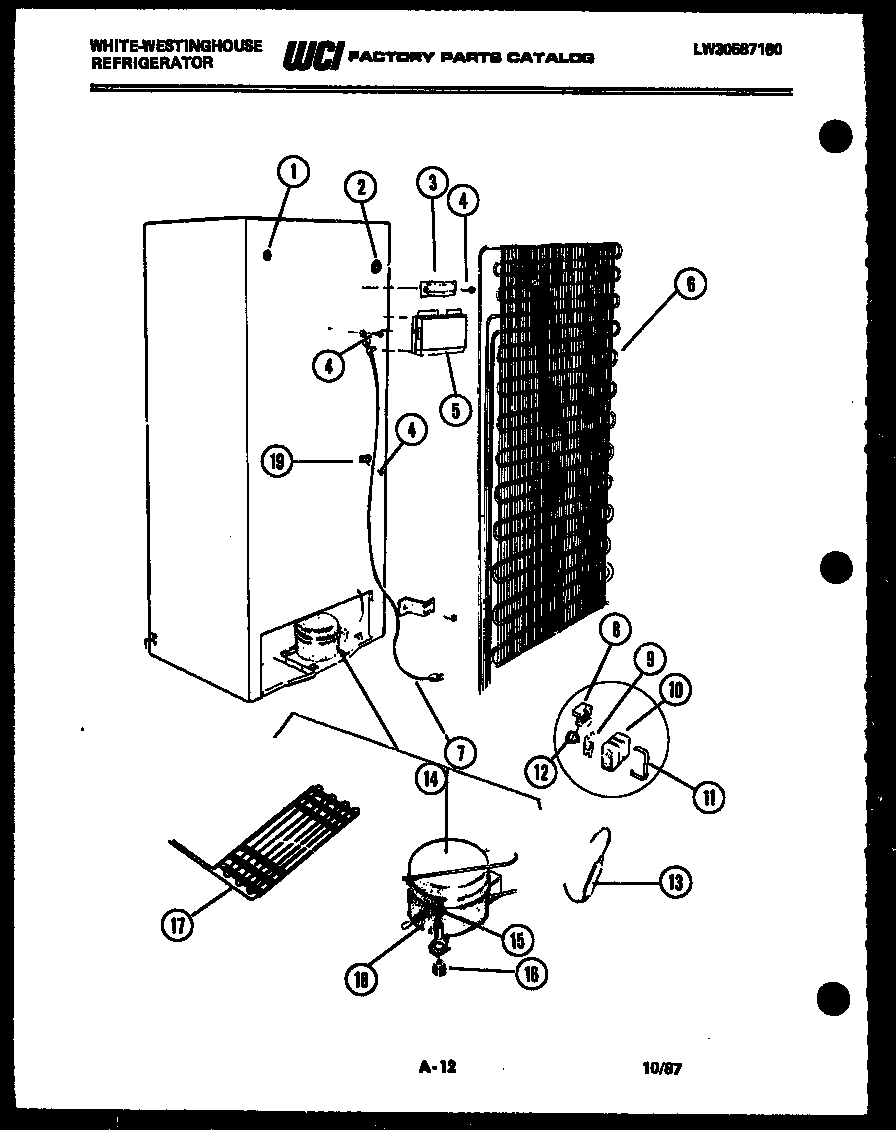

07 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RS192GCV5 REFRIGERATOR
*29056
SCREW WCI G169729 Contact Us For Availability
1
PANEL-FRZR AVOC. WCI G181985-08 Contact Us For Availability
1
PANEL-REF. AVOC WCI G182063-08 Contact Us For Availability
1
WCI G174734 WCI G174734 Contact Us For Availability
2
BEARING (2) WCI G183138 Contact Us For Availability
2
COVER-UPR COIL WCI G169481-01 Contact Us For Availability
2
WCI G174733 WCI G174733 Contact Us For Availability
2
SHELF-FRZR (2) WCI G168748-01 Contact Us For Availability
2
SOCKET LIGHT WCI G168302 Contact Us For Availability
3
WCI R304001 WCI R304001 Contact Us For Availability
3
SHELF-FRZR (3) WCI G168748-02 Contact Us For Availability
3
BRKT-COND. MTG (4) WCI G164637 Contact Us For Availability
4
WCI G161119 WCI G161119 Contact Us For Availability
4
SHIM-UPR HNG (2) WCI G183861 Contact Us For Availability
4
WCI G169226-03 WCI G169226-03 Contact Us For Availability
5
GASKET-FRZR WCI G180551-03 Contact Us For Availability
5
WCI G185566 WCI G185566 Contact Us For Availability
5
WCI G179707-08 WCI G179707-08 Contact Us For Availability
5
CONTROL, TEMP. WCI G162667-07 Contact Us For Availability
5
WCI G183584 WCI G183584 Contact Us For Availability
6
PANEL-INNER WCI G164835-01 Contact Us For Availability
6
HANDLE-DOOR WCI G175666-18 Contact Us For Availability
6
BRKT-UPR RH WCI G183715 Contact Us For Availability
6
COVER-PAN UPR WCI G163915-01 Contact Us For Availability
6
WCI G189359 WCI G189359 Contact Us For Availability
6
WCI G188725 WCI G188725 Contact Us For Availability
6A
BRKT-UPR LH (NON-ILLUSTRATED) WCI G183716 Contact Us For Availability
7
WCI G175809 WCI G175809 Contact Us For Availability
7
WASHER-NYLON (2) WCI G164355 Contact Us For Availability
7
WCI G179708-08 WCI G179708-08 Contact Us For Availability
7
CORD, SERVICE WCI G162549-01 Contact Us For Availability
8
HANDLE END-BTM WCI G175810 Contact Us For Availability
8
TRIM-MULLN-AVOC WCI G169745-08 Contact Us For Availability
8
COVER-PAN LWR WCI G163916-01 Contact Us For Availability
8
KNOB, CONTROL WCI G164906-01 Contact Us For Availability
8
WCI G182225-04 WCI G182225-04 Contact Us For Availability
9
WCI G164419-28 WCI G164419-28 Contact Us For Availability
9
SHELF-TRIVET WCI G167018 Contact Us For Availability
9
CLIP-OVERLOAD WCI G188957 Contact Us For Availability
10
GASKET-REF. WCI G180551-01 Contact Us For Availability
10
WCI G164452-22 WCI G164452-22 Contact Us For Availability
10
WCI G166495-01 WCI G166495-01 Contact Us For Availability
11
DOOR-DAIRY WCI G164731-16 Contact Us For Availability
11
SUPT-LIGHT SHLD (8) WCI G165177 Contact Us For Availability
11
WCI G107080 WCI G107080 Contact Us For Availability
12
WCI G188727 WCI G188727 Contact Us For Availability
13
MULLION AVOC. WCI G164643-08 Contact Us For Availability
14
RACK-DOOR (4) WCI G161019-16 Contact Us For Availability
14
COVER-LWR COIL WCI G169477-01 Contact Us For Availability
14
COMPRESSOR W/ ELEC WCI G189470 Contact Us For Availability
15
SUPPT-RACK RH (4) WCI G161018-01 Contact Us For Availability
15
BUTTON-PLUG (4) WCI G162892-01 Contact Us For Availability
15
SCREW (3) WCI G183344 Contact Us For Availability
16
SUPPT-RACK LH (4) WCI G161080-01 Contact Us For Availability
16
WCI G163952 WCI G163952 Contact Us For Availability
16
WCI G166802 WCI G166802 Contact Us For Availability
17
PANEL-INNER WCI G164878-01 Contact Us For Availability
17
WCI G166803 WCI G166803 Contact Us For Availability
17
PLATE-DEFROST WCI G188724 Contact Us For Availability
17A
GASKT-FERRULE (2) (NON-ILLUSTRATED) WCI G167582 Contact Us For Availability
18
BUMPER-LIGHT SW. WCI G165376 Contact Us For Availability
18
DAMPER MEAT KPR WCI G164912-03 Contact Us For Availability
18
KNOB-DAMPR CONT. WCI G165217-01 Contact Us For Availability
18
SLEEVE-COMP (3) WCI G154588 Contact Us For Availability
19
BRKT-LWR HNG (2) WCI G162383 Contact Us For Availability
19
WCI G185373 WCI G185373 Contact Us For Availability
19A
SCREW (4) (NON-ILLUSTRATED) WCI G99167 Contact Us For Availability
20
SHIM-LWR HNG (2) WCI G162903 Contact Us For Availability
20
DEFLECTOR-AIR WCI G164575 Contact Us For Availability
20A
WCI G141673 WCI G141673 Contact Us For Availability
20B
WCI G142361 WCI G142361 Contact Us For Availability
21
BOX, DAMPER CONT. WCI G164523 Contact Us For Availability
22
SCREW-MULLION WCI G167125 Contact Us For Availability
22
BRKT, CONNECTOR WCI G164571 Contact Us For Availability
23
GRILL-FRONT WCI G163080-03 Contact Us For Availability
23
BRKT-MTR REAR WCI G185303 Contact Us For Availability
24
CLIP-GRILL (2) WCI G162994 Contact Us For Availability
25
LEG-LEVELING (2) WCI G185726 Contact Us For Availability
25A
WCI G162703 WCI G162703 Contact Us For Availability
27
WCI G166800 WCI G166800 Contact Us For Availability
27
BRKT-MTR FRONT WCI G185302 Contact Us For Availability
27A
FERRULE-OUTER (NON-ILLUSTRATED) WCI G166801 Contact Us For Availability
28
PAN, DEFROST WCI G162890 Contact Us For Availability
29
RING-ORIFICE WCI G167217 Contact Us For Availability
30
BRKT-COVER MTG WCI G158022 Contact Us For Availability
31
WCI G164654-01 WCI G164654-01 Contact Us For Availability
32
WCI G190223 WCI G190223 Contact Us For Availability
33
WCI G190222 WCI G190222 Contact Us For Availability
34
GASKET-COIL CVR WCI G165233 Contact Us For Availability
36
TUBE, RUBBER WCI G85642 Contact Us For Availability
37
BLOCK COIL (4) WCI G169493 Contact Us For Availability
38
EXCHANGER-HEAT WCI G189609 Contact Us For Availability
39
SUPPT-COIL CVR (2) WCI G163669 Contact Us For Availability
40
BUTTON-DECOR. WCI G165416-02 Contact Us For Availability
× ![]()
