Model Fisher & Paykel RS1884FLJE1-26900-A Vertical Freezer – Common Parts & Diagrams
DOOR COMPONENTS
DOOR PANEL COMPONENTS

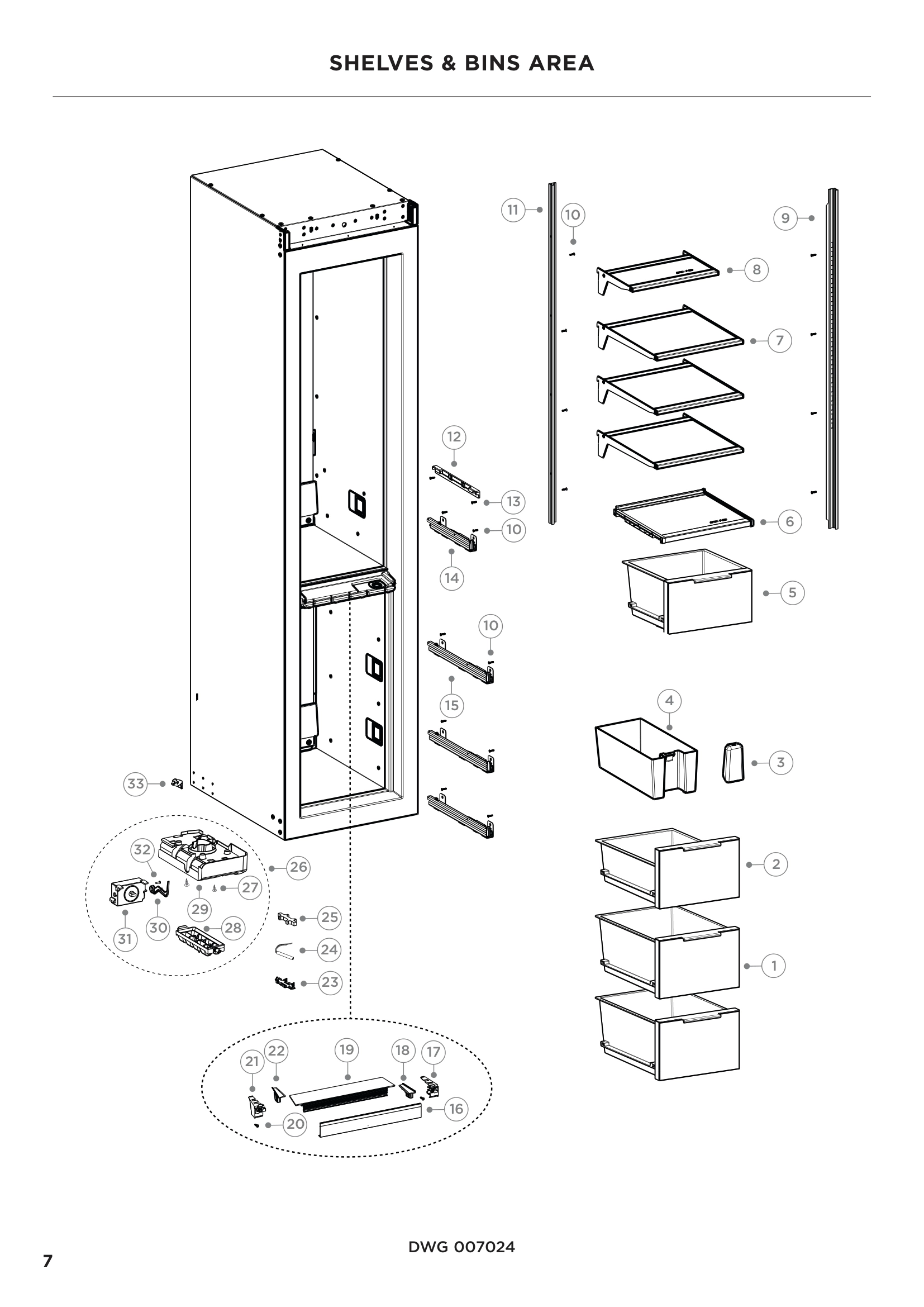

SHELVES & BINS AREA

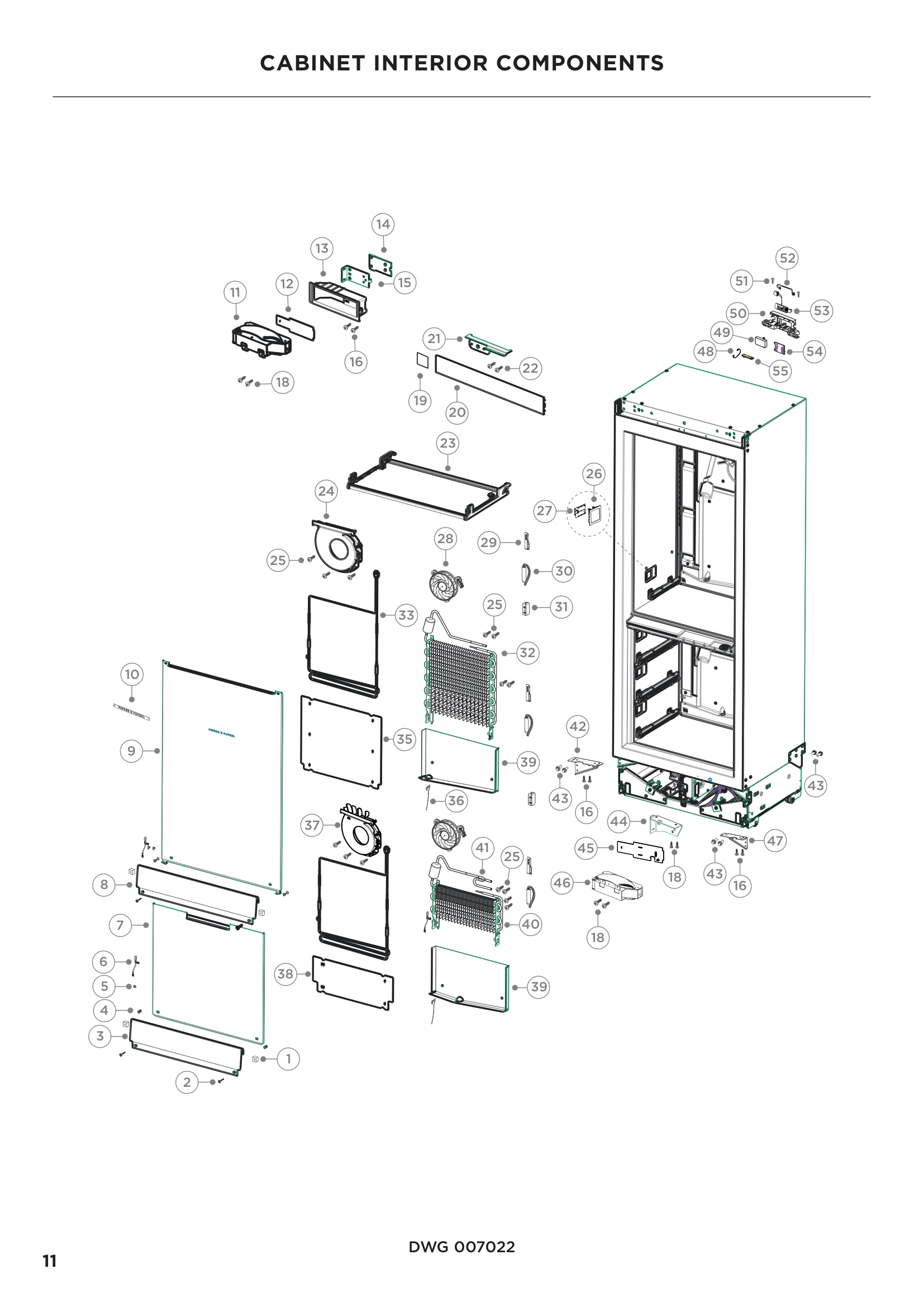

CABINET INTERIOR COMPONENTS
CABINET INTERIOR COMPONENTS

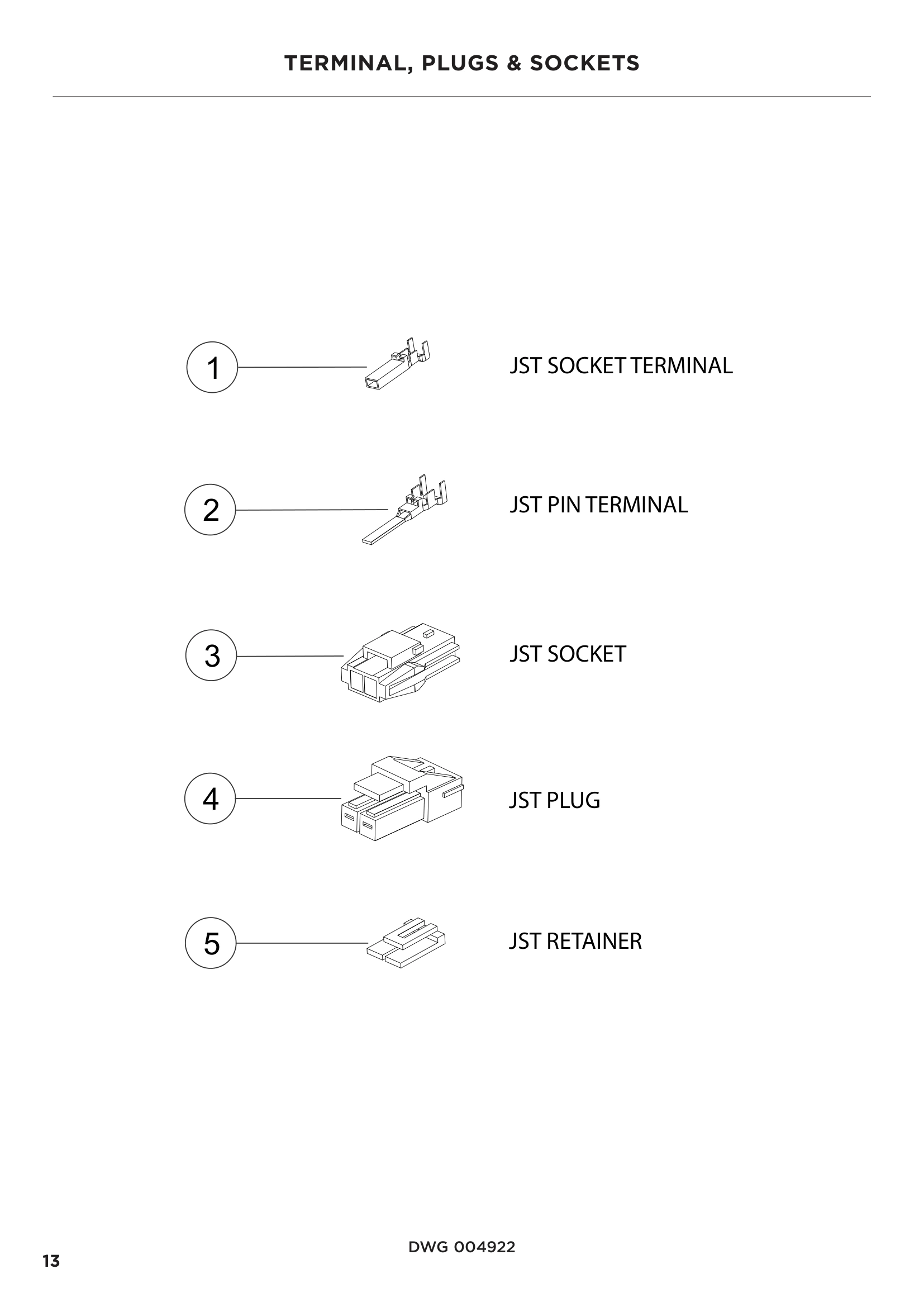

TERMINAL, PLUGS & SOCKETS

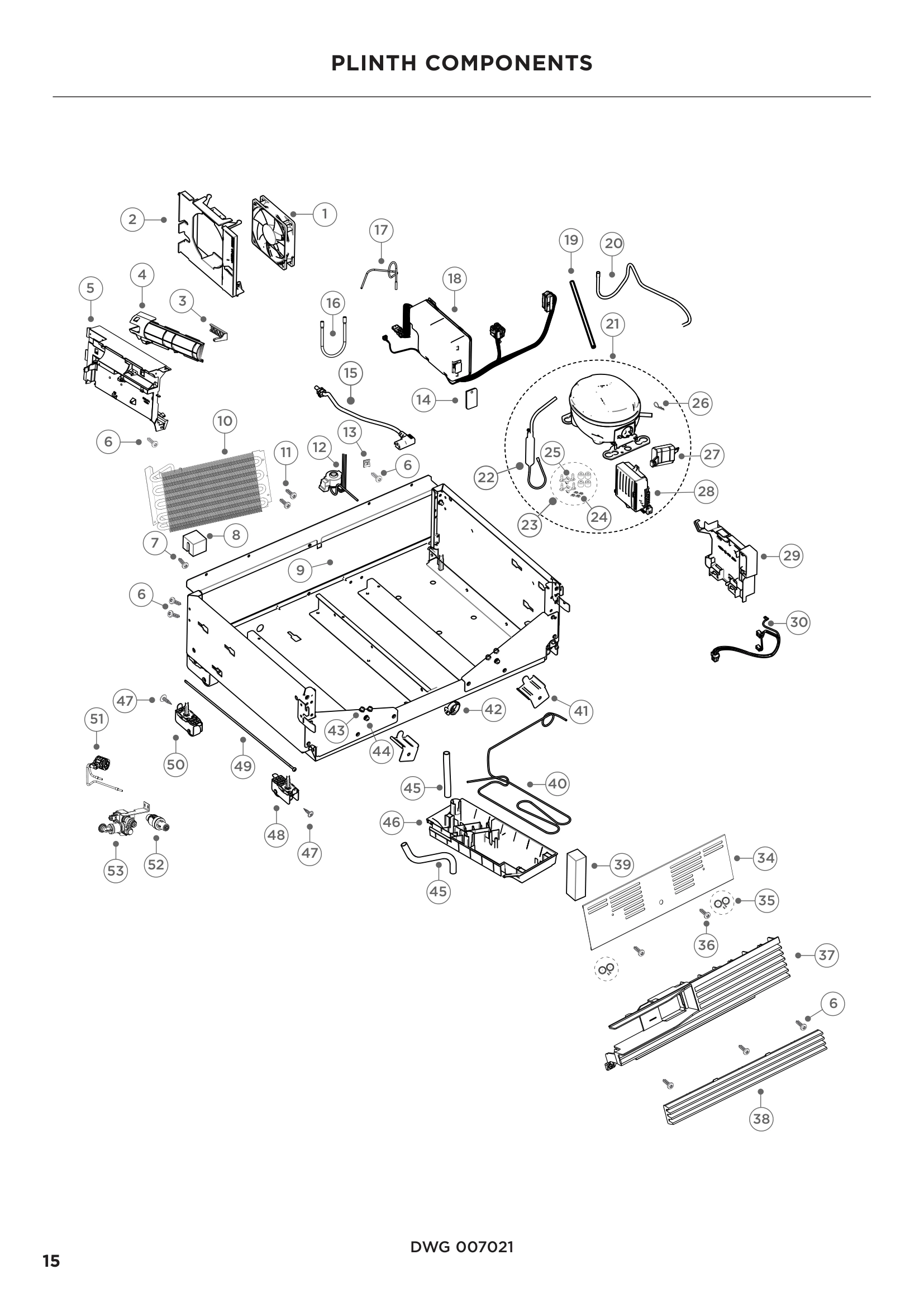

PLINTH COMPONENTS
PLINTH COMPONENTS

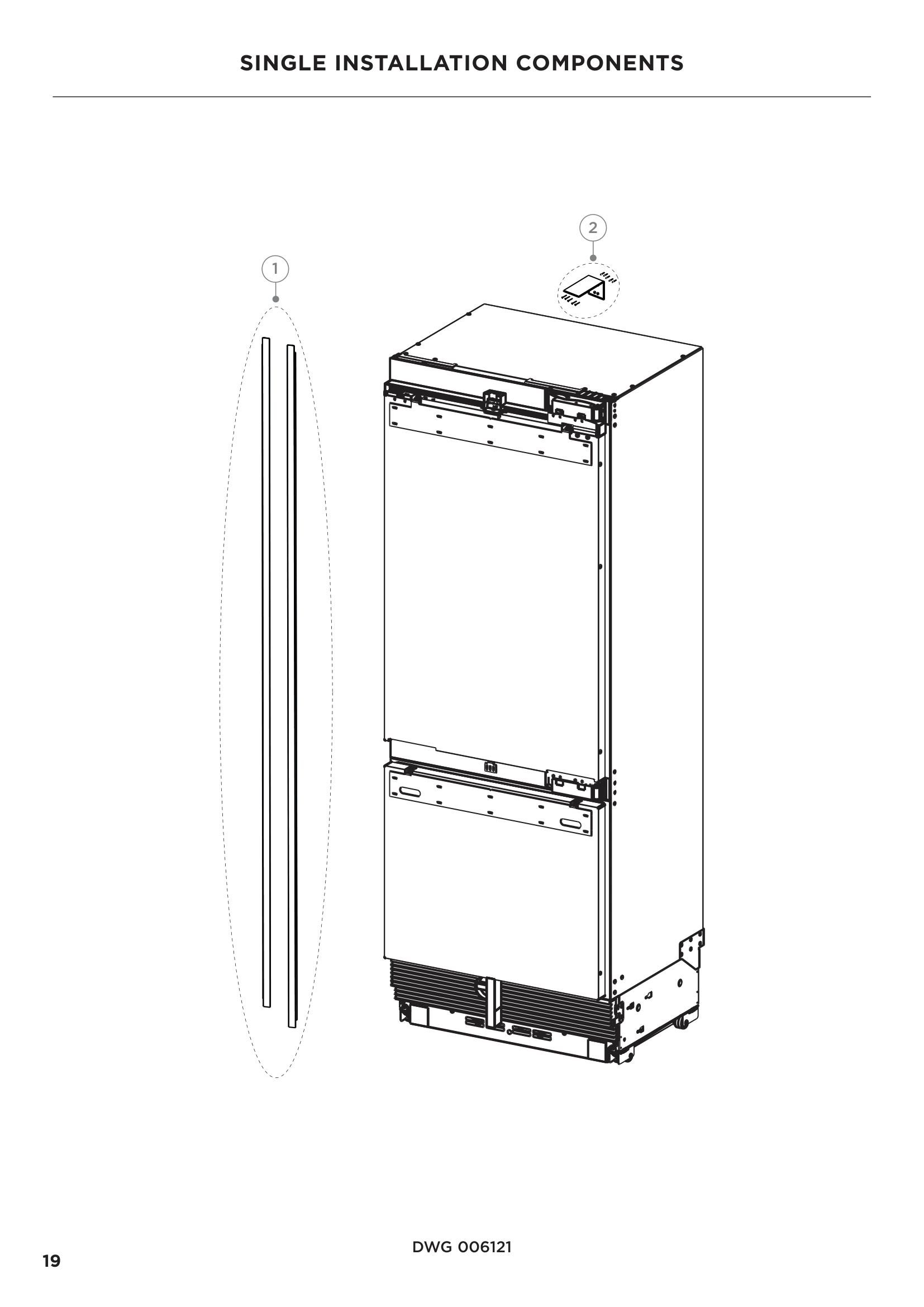

SINGLE INSTALLATION COMPONENTS

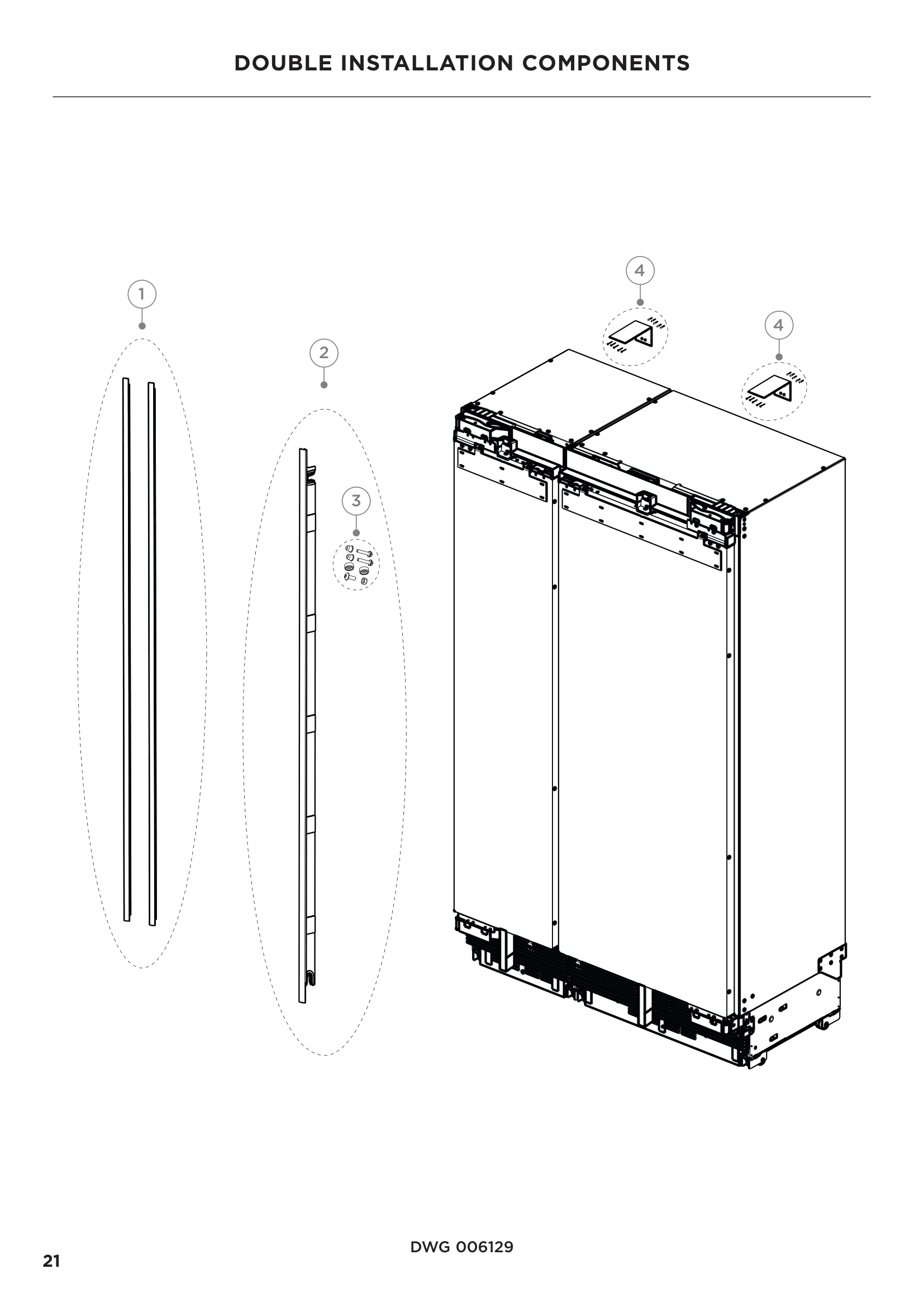

DOUBLE INSTALLATION COMPONENTS

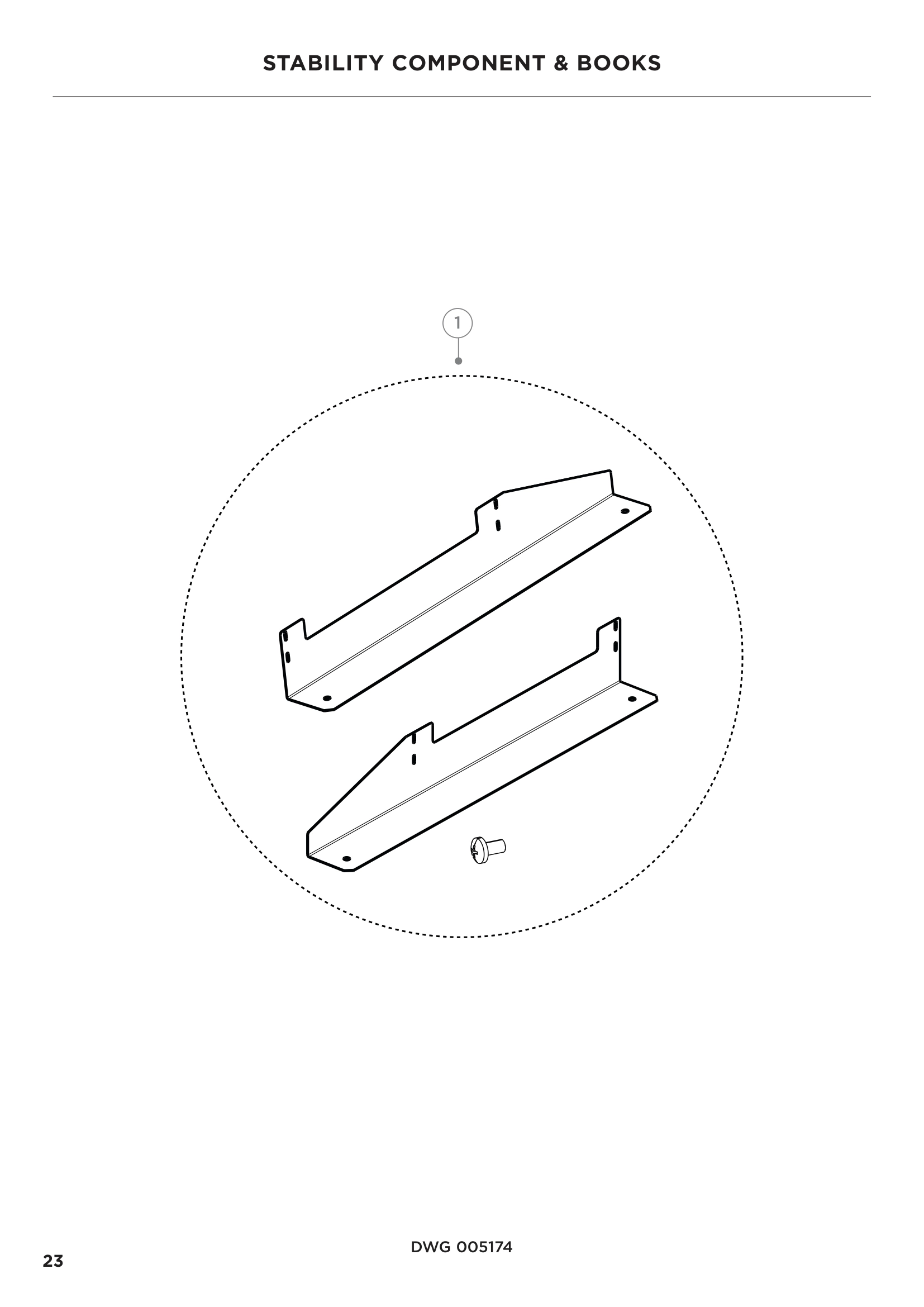

STABILITY COMPONENT & BOOKS
Common parts from model Fisher & Paykel RS1884FLJE1-26900-A Vertical Freezer
1
SPACER COVER DRAIN ASSY FPA 848128 Contact Us For Availability
1
TERMINAL SYF-01T PKT 10 FPA 819607P Contact Us For Availability
1
KIT ALCOVE TRIM FPA 868352 Contact Us For Availability
2
PIN/TERM SYM-01T PKT 10 FPA 819609P Contact Us For Availability
2
DIVIDER PLINTH REAR FPA 843139 Contact Us For Availability
2
KIT DUAL INSTALL FPA 867910 Contact Us For Availability
3
JST SOCKET 2PIN YLR-02V FPA 819615 Contact Us For Availability
4
SCREW ST #8X15-M6X12 WASHER KIT FPA 840421P Contact Us For Availability
4
COVER DIVIDER FRONT FPA 869486 Contact Us For Availability
5
CLIP EDGE EARTH TAB AR EPF255 FPA 846732P Contact Us For Availability
5
RETAINER 2 WAY YLS-02V FPA 819620 Contact Us For Availability
5
DIVIDER PLINTH VALVE MODULE FPA 869474 Contact Us For Availability
7
SCREW ST 8X1/2 SD TRS NIB PH P FPA 611977P Contact Us For Availability
8
GROMMET CONDNSR AIR B/PASS FPA 848130 Contact Us For Availability
9
KIT DUCT CVR SEAL UPR SS RS18 ASSY FPA 849238P Contact Us For Availability
9
LOCKING PLATE REAR PLINTH 18 FPA 841929 Contact Us For Availability
10
NAMEPLATE FP CHROME LETTERS FPA 847363 Contact Us For Availability
10
CONDENSER FOT 200 X 177 2 PASS FPA 843132P Contact Us For Availability
13
POCKET HINGE TOP LH FPA 843719 Contact Us For Availability
13
CLIP SPIRE SIZE 8 FPA 841023P Contact Us For Availability
14
SPACER BRACKET HINGE TOP FPA 847537 Contact Us For Availability
14
COVER COMMS PORT FPA 884505 Contact Us For Availability
15
BRACKET HINGE TOP RS FPA 842944 Contact Us For Availability
15
CORDSET PWR US FPA 885376P Contact Us For Availability
16
TUBE COPPER U-BEND FPA 845861 Contact Us For Availability
17
TUBE ADAPTOR VALVE RS18 BENT FPA 847884 Contact Us For Availability
19
TUBE ADAPTOR PROCESS RS FPA 842972 Contact Us For Availability
20
TUBE ADAPTOR SUCTION RS FPA 842989 Contact Us For Availability
21
BRACKET ALCOVE TOP LH FPA 847006 Contact Us For Availability
23
LIGHT CEILING PANEL RS18 ASSY FPA 885790P Contact Us For Availability
23
GROMMET 26MMM KIT FPA 843824P Contact Us For Availability
25
SCREW M4X16 PLASTITE PH T15 PK FPA 847532P Contact Us For Availability
25
POST COMP MTG 26MM PKT X4 FPA 841291P Contact Us For Availability
26
COVER INTEGRATED SIDE LIGHT GR FPA 848428 Contact Us For Availability
26
CLIP R COVER COMP M1.6 S4HPP16 FPA 207419 Contact Us For Availability
27
COVER PROTECTOR VEM FPA 207310 Contact Us For Availability
29
CLIP SENSOR FPA 845878 Contact Us For Availability
29
BRACKET INVERTER MOLEX CONN FPA 849714 Contact Us For Availability
31
GEARBOX ICE MAKER FPA 836934 Contact Us For Availability
31
COVER PLUG TYCO FPA 821745 Contact Us For Availability
33
HEATER DEF 3PV 18 120V FPA 846236P Contact Us For Availability
34
MOUNTING PLATE KICK STRIP 18 FPA 885710 Contact Us For Availability
35
SHIELD HEAT 18 UPR FC FPA 844103 Contact Us For Availability
36
WIRE DRAIN HEATER RS FPA 847315 Contact Us For Availability
37
HOUSING FAN ASSY WHITE FPA 862891 Contact Us For Availability
38
SHIELD HEAT 18 LWR FC FPA 844104 Contact Us For Availability
38
GRILLE MOVING ASSY RS18 FPA 847543 Contact Us For Availability
39
SHIELD DRAIN UPR 18 FC FPA 844880 Contact Us For Availability
39
BLOCKER AIR BYPASS KICKSTRIP FPA 846405 Contact Us For Availability
40
TUBE DISCHARGE RS18 FPA 842971 Contact Us For Availability
41
TUBE ADAPTOR EVAP IN FPA 847463 Contact Us For Availability
41
BRACKET KICK STRIP ADJUSTING FPA 842018 Contact Us For Availability
42
CLIP HARNESS HT 151-000367 FPA 845740P Contact Us For Availability
43
SCREW MC M5X12 HXW NIB ZP PKT10 FPA 845515P Contact Us For Availability
43
WASHER FLAT M6X12X1.2 PKT10 FPA 843453P Contact Us For Availability
44
BRACKET HINGE LOWER LEFT FPA 843027 Contact Us For Availability
45
DRAIN PLINTH FPA 845859 Contact Us For Availability
46
TRAY WATER EVAP COLUMNS FPA 841476 Contact Us For Availability
47
BRACKET PLINTH FRONT RIGHT FPA 842882 Contact Us For Availability
48
KIT LEVELLING SYSTEM FNT LONG - POST 20 APR 2 FPA 869085P Contact Us For Availability
49
KIT MOD COMBI WIFIBT GEA US SP FPA 566390P Contact Us For Availability
50
KIT LEVELLING SYSTEM REAR LONG - POST 20 APR FPA 869086P Contact Us For Availability
51
MANIFOLD FILTER FPWF1 COL ISO FPA 869601 Contact Us For Availability
52
HARNESS WIFI GEA WIRE FPA 862641 Contact Us For Availability
52
VALVE INLET WTR GND 120V FPA 885118 Contact Us For Availability
53
VALVE DUAL I&W REF GND 120V FPA 885120 Contact Us For Availability
54
MOD GEA COMMS V3 COMB SVC FPA 885659P Contact Us For Availability
NI
SCREW CAP M5X20 NZ PKT10 FPA 847984P Contact Us For Availability
NI
KIT INSTALL FASTENERS FPA 848192 Contact Us For Availability
NI
KIT HINGE CHANGE RS18 LH TO RH FPA 848186P Contact Us For Availability
NI
BK IG INT RS2435 (DIGITAL ONLY) FPA 431813 Contact Us For Availability
NI
431814 FPA 431814 Contact Us For Availability
NI
431815 FPA 431815 Contact Us For Availability
NI
432117 FPA 432117 Contact Us For Availability
NI
432418 FPA 432418 Contact Us For Availability
NI
432697 FPA 432697 Contact Us For Availability
NI
432698 FPA 432698 Contact Us For Availability
× ![]()
