Model Maytag RND24AY-3A REFRIGERATOR – Common Parts & Diagrams

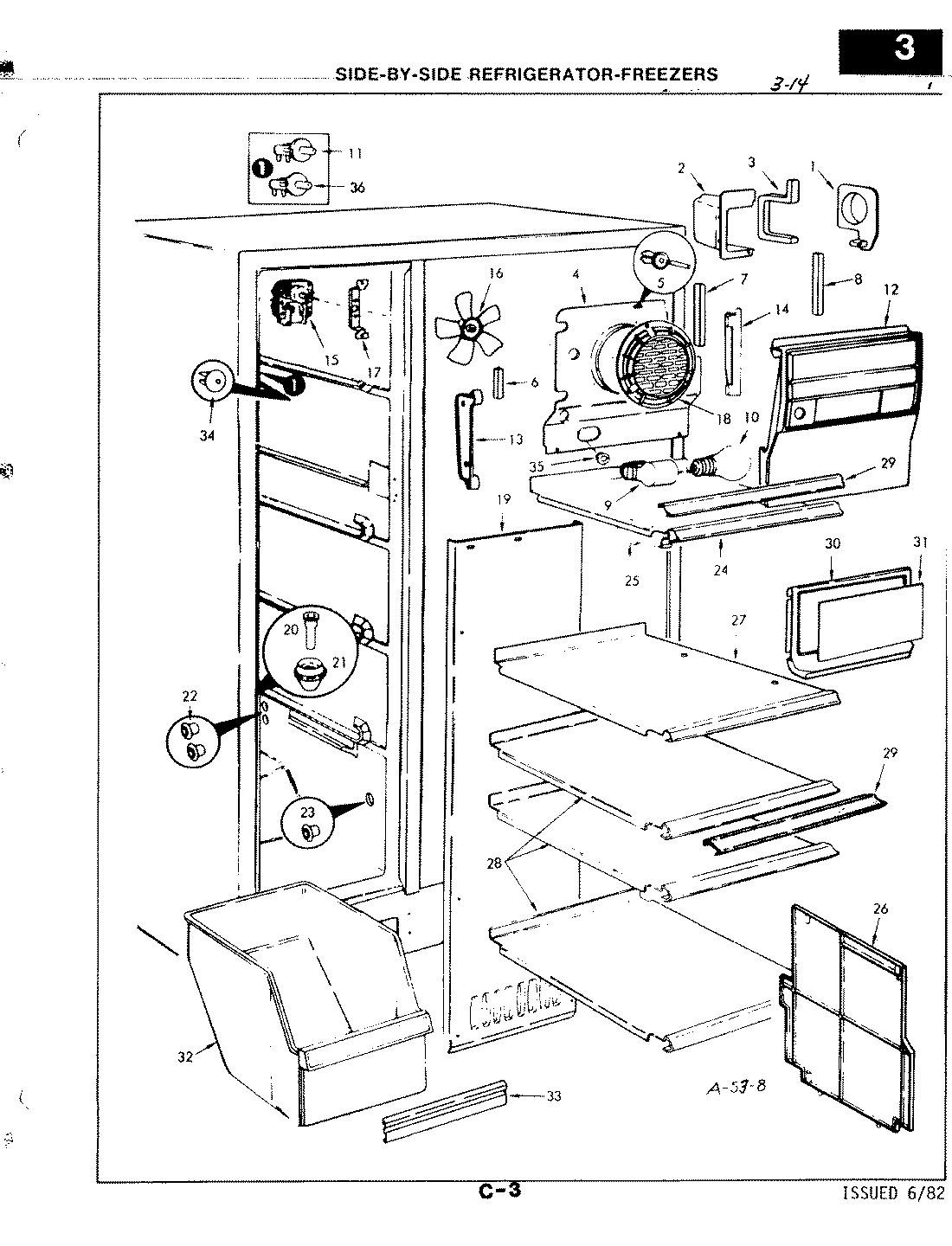

01 - FREEZER COMPARTMENT

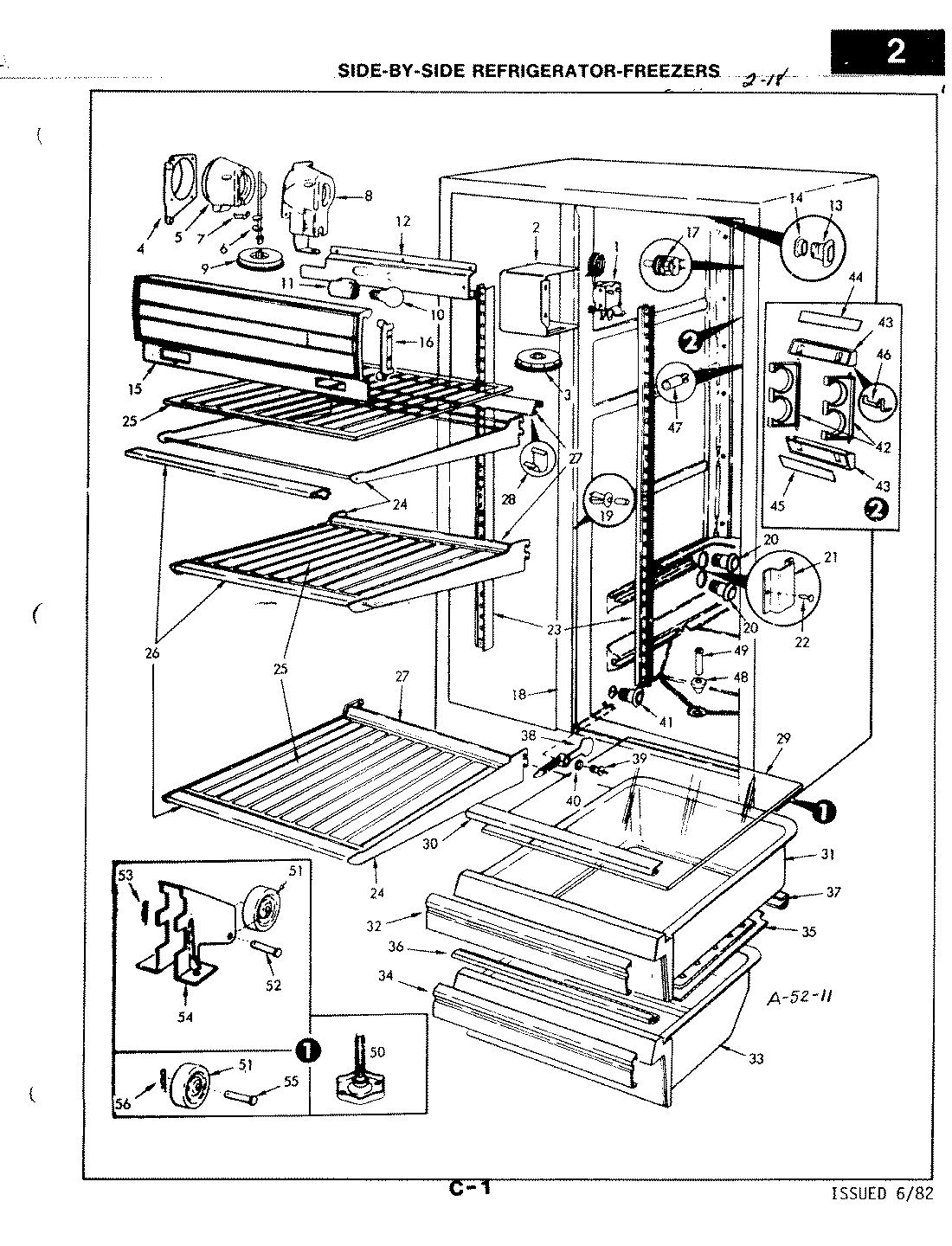

02 - FRESH FOOD COMPARTMENT

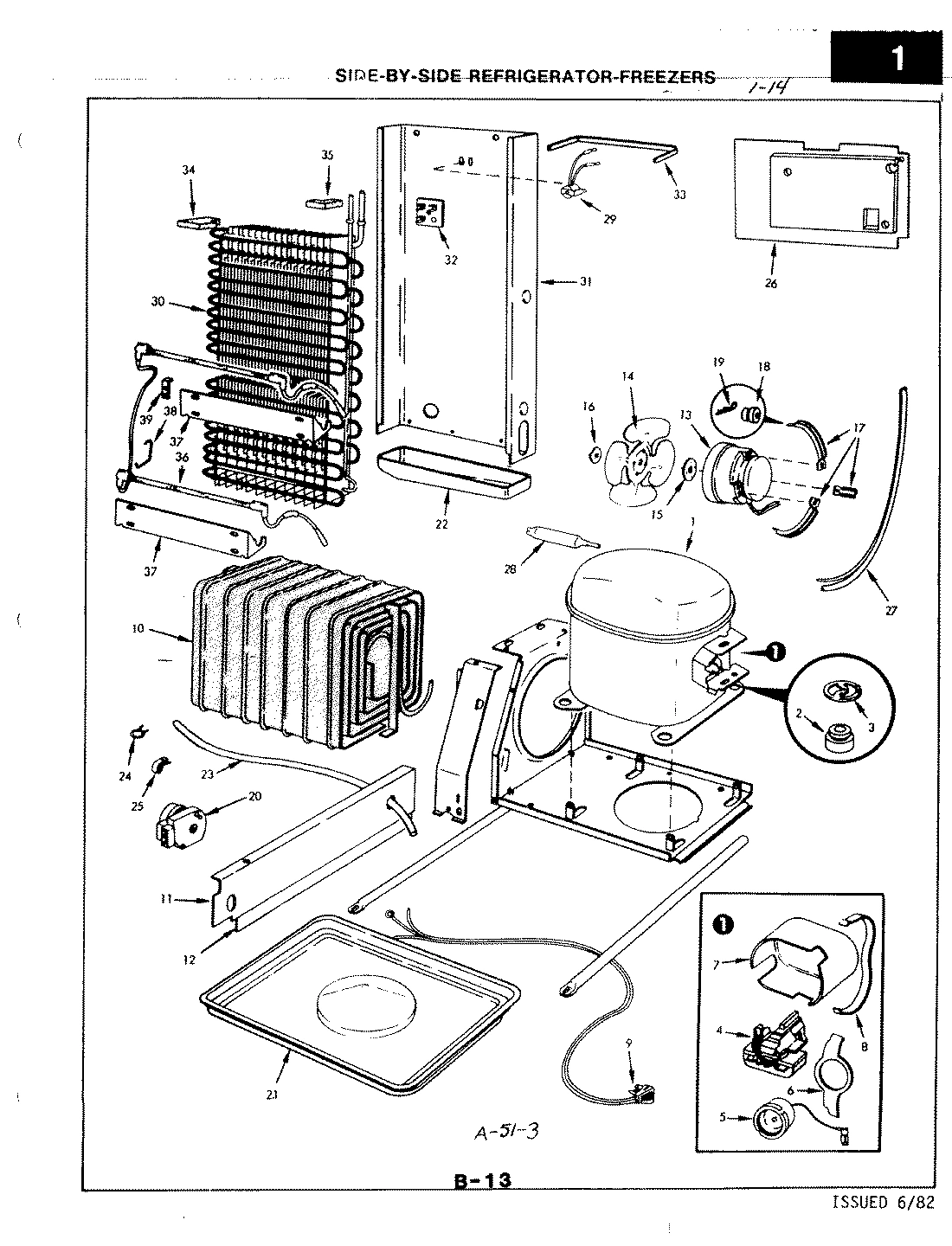

03 - UNIT COMPARTMENT & SYSTEM

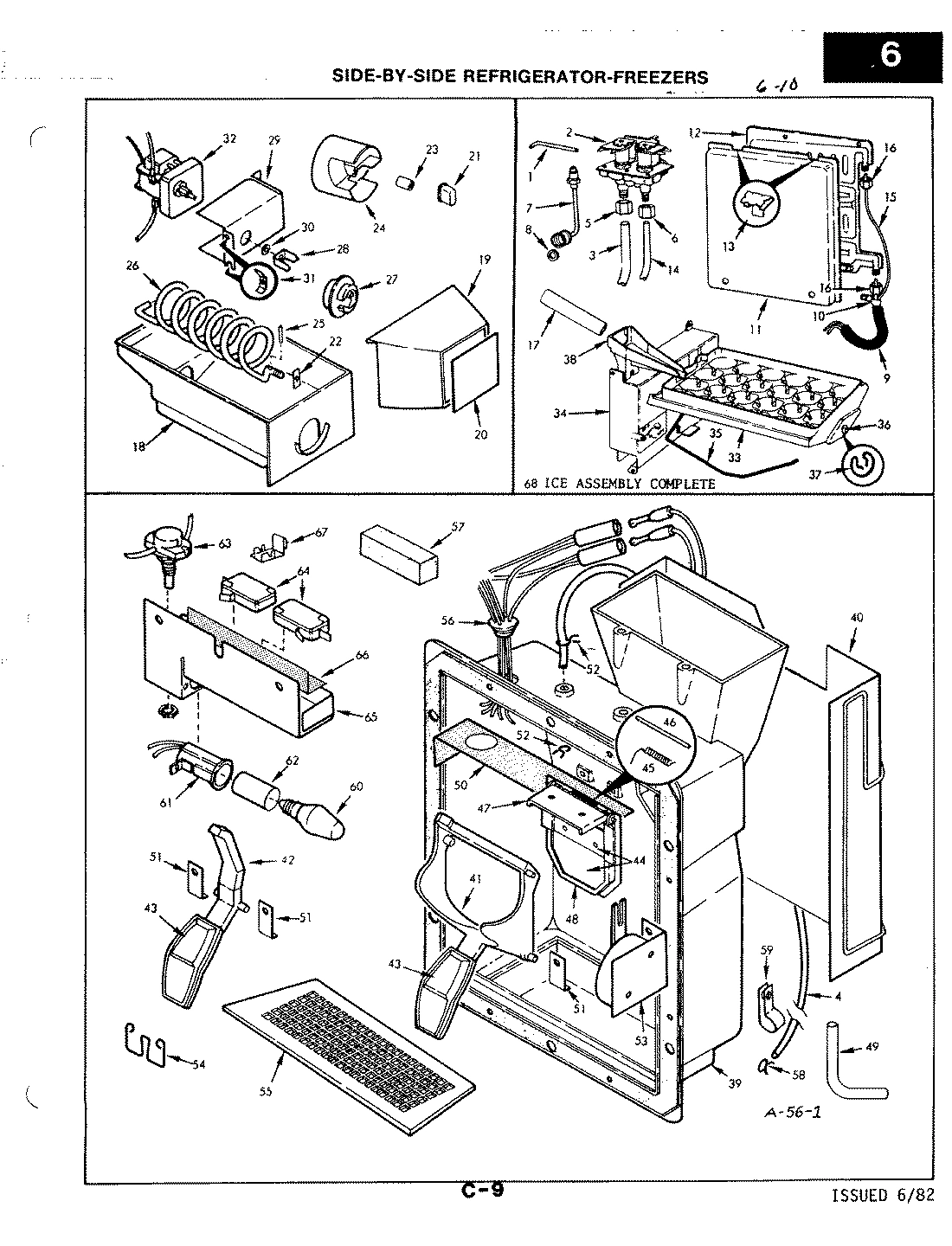

04 - WATER & ICE DISPENSER
Common parts from model Maytag RND24AY-3A REFRIGERATOR
1
MAY 52881-23 MAY 52881-23 Contact Us For Availability
1
MAY RA979T MAY RA979T Contact Us For Availability
1
MAY 56125-1 MAY 56125-1 Contact Us For Availability
2
MAY 53837-1 MAY 53837-1 Contact Us For Availability
2
MAY 53682-9 MAY 53682-9 Contact Us For Availability
2
MAY 17245-3 MAY 17245-3 Contact Us For Availability
2
MAY 56595-3 MAY 56595-3 Contact Us For Availability
3
MAY 52077-10 MAY 52077-10 Contact Us For Availability
3
MAY 29893-5 MAY 29893-5 Contact Us For Availability
3
MAY 62165-1 MAY 62165-1 Contact Us For Availability
3
MAY 55603-6 MAY 55603-6 Contact Us For Availability
4
MAY 400015-1 MAY 400015-1 Contact Us For Availability
4
MAY 62690-36 MAY 62690-36 Contact Us For Availability
4
MAY 53835-2 MAY 53835-2 Contact Us For Availability
4
MAY 9286-93 MAY 9286-93 Contact Us For Availability
4
MAY 55602-7 MAY 55602-7 Contact Us For Availability
5
MAY 59920-1 MAY 59920-1 Contact Us For Availability
5
MAY 58767-1 MAY 58767-1 Contact Us For Availability
5
MAY 53067-61 MAY 53067-61 Contact Us For Availability
5
MAY 55604-1 MAY 55604-1 Contact Us For Availability
6
MAY 52077-17 MAY 52077-17 Contact Us For Availability
6
MAY 52587-2 MAY 52587-2 Contact Us For Availability
6
MAY 28848-1 MAY 28848-1 Contact Us For Availability
7
MAY 52077-19 MAY 52077-19 Contact Us For Availability
7
MAY 52648-1 MAY 52648-1 Contact Us For Availability
7
MAY 28849-1 MAY 28849-1 Contact Us For Availability
7
MAY 53760-3 MAY 53760-3 Contact Us For Availability
8
MAY 52824-6 MAY 52824-6 Contact Us For Availability
8
MAY 400027-1 MAY 400027-1 Contact Us For Availability
8
MAY 58760-2 MAY 58760-2 Contact Us For Availability
8
MAY 28850-3 MAY 28850-3 Contact Us For Availability
8
MAY 24685-5 MAY 24685-5 Contact Us For Availability
9
MAY 29893-6 MAY 29893-6 Contact Us For Availability
9
MAY 402005-103 MAY 402005-103 Contact Us For Availability
9
MAY 52890-2 MAY 52890-2 Contact Us For Availability
9
MAY 26275-24 MAY 26275-24 Contact Us For Availability
10
MAY 55771 MAY 55771 Contact Us For Availability
10
MAY RA43644-4 MAY RA43644-4 Contact Us For Availability
10
MAY RA43684-1 MAY RA43684-1 Contact Us For Availability
11
MAY 29814-2 MAY 29814-2 Contact Us For Availability
11
MAY 29838-4 MAY 29838-4 Contact Us For Availability
11
MAY 59843-1 MAY 59843-1 Contact Us For Availability
12
MAY 55664-34 MAY 55664-34 Contact Us For Availability
12
MAY 59740-2 MAY 59740-2 Contact Us For Availability
12
MAY 64077-1 MAY 64077-1 Contact Us For Availability
12
MAY 62920-1 MAY 62920-1 Contact Us For Availability
13
MAY 53687-2 MAY 53687-2 Contact Us For Availability
13
MAY 57410-1 MAY 57410-1 Contact Us For Availability
13
MAY 28056-9 MAY 28056-9 Contact Us For Availability
13
MAY 64139-1 MAY 64139-1 Contact Us For Availability
13
MAY 62082-1 MAY 62082-1 Contact Us For Availability
14
MAY 54424-2 MAY 54424-2 Contact Us For Availability
14
MAY 57411-1 MAY 57411-1 Contact Us For Availability
14
MAY 62934-2 MAY 62934-2 Contact Us For Availability
14
MAY 55602-9 MAY 55602-9 Contact Us For Availability
15
MAY 56488-3 MAY 56488-3 Contact Us For Availability
15
MAY 59333-20 MAY 59333-20 Contact Us For Availability
15
MAY 19913-2 MAY 19913-2 Contact Us For Availability
15
MAY 55602-5 MAY 55602-5 Contact Us For Availability
16
MAY 52120-1 MAY 52120-1 Contact Us For Availability
16
MAY 53686-2 MAY 53686-2 Contact Us For Availability
16
MAY 19914-1 MAY 19914-1 Contact Us For Availability
16
MAY 55419-1 MAY 55419-1 Contact Us For Availability
17
MAY 56432-2 MAY 56432-2 Contact Us For Availability
17
MAY 64856-2 MAY 64856-2 Contact Us For Availability
17
MAY 69181-1 MAY 69181-1 Contact Us For Availability
17
MAY 58461-4 MAY 58461-4 Contact Us For Availability
18
MAY 62689-1 MAY 62689-1 Contact Us For Availability
18
MAY 59026-1-HW MAY 59026-1-HW Contact Us For Availability
18
MAY 56933-1 MAY 56933-1 Contact Us For Availability
18
MAY 63001-1 MAY 63001-1 Contact Us For Availability
19
MAY 59920-9 MAY 59920-9 Contact Us For Availability
19
MAY 57051-1 MAY 57051-1 Contact Us For Availability
19
MAY 405022-103 MAY 405022-103 Contact Us For Availability
19
MAY 63003-8 MAY 63003-8 Contact Us For Availability
20
MAY 26527-5 MAY 26527-5 Contact Us For Availability
20
MAY 53726-1 MAY 53726-1 Contact Us For Availability
20
MAY 29282-2 MAY 29282-2 Contact Us For Availability
20
MAY 405007-1 MAY 405007-1 Contact Us For Availability
20
MAY 54113-4 MAY 54113-4 Contact Us For Availability
20
MAY 64114-9 MAY 64114-9 Contact Us For Availability
21
MAY 52526-1 MAY 52526-1 Contact Us For Availability
21
MAY 62128-1 MAY 62128-1 Contact Us For Availability
21
MAY 29839-4 MAY 29839-4 Contact Us For Availability
21
MAY 45004-20 MAY 45004-20 Contact Us For Availability
21
MAY 63023-1 MAY 63023-1 Contact Us For Availability
22
MAY 28013-2 MAY 28013-2 Contact Us For Availability
22
MAY 53523-2 MAY 53523-2 Contact Us For Availability
22
MAY 63084-1 MAY 63084-1 Contact Us For Availability
23
MAY 53727-1 MAY 53727-1 Contact Us For Availability
23
MAY 400037-1 MAY 400037-1 Contact Us For Availability
23
MAY 58381-1 MAY 58381-1 Contact Us For Availability
23
MAY 26911-18 MAY 26911-18 Contact Us For Availability
23
MAY 63031-2 MAY 63031-2 Contact Us For Availability
24
MAY 53743-35 MAY 53743-35 Contact Us For Availability
24
MAY 64343-2 MAY 64343-2 Contact Us For Availability
24
MAY 53516-5 MAY 53516-5 Contact Us For Availability
24
MAY 63083-1 MAY 63083-1 Contact Us For Availability
25
MAY 21697-14 MAY 21697-14 Contact Us For Availability
25
MAY 26397-9 MAY 26397-9 Contact Us For Availability
25
MAY 63079-3 MAY 63079-3 Contact Us For Availability
25
MAY 62438-27 MAY 62438-27 Contact Us For Availability
25
MAY 63071-1 MAY 63071-1 Contact Us For Availability
26
MAY 63010-1 MAY 63010-1 Contact Us For Availability
26
MAY 65005-11 MAY 65005-11 Contact Us For Availability
26
MAY 63213-2 MAY 63213-2 Contact Us For Availability
26
MAY 63099-1 MAY 63099-1 Contact Us For Availability
27
MAY 53743-37 MAY 53743-37 Contact Us For Availability
27
MAY 52014-116 MAY 52014-116 Contact Us For Availability
27
MAY 26088-12 MAY 26088-12 Contact Us For Availability
27
MAY RA43645-40 MAY RA43645-40 Contact Us For Availability
27
MAY 63017-1 MAY 63017-1 Contact Us For Availability
28
MAY 53743-9 MAY 53743-9 Contact Us For Availability
28
MAY 64151-1 MAY 64151-1 Contact Us For Availability
28
MAY 13900 MAY 13900 Contact Us For Availability
28
MAY 56142-1 MAY 56142-1 Contact Us For Availability
28
MAY 63052-1 MAY 63052-1 Contact Us For Availability
29
MAY 53752-17 MAY 53752-17 Contact Us For Availability
29
MAY 28530-38 MAY 28530-38 Contact Us For Availability
29
MAY 52085-13 MAY 52085-13 Contact Us For Availability
29
MAY 400039-1 MAY 400039-1 Contact Us For Availability
29
MAY 63024-1 MAY 63024-1 Contact Us For Availability
30
MAY 63004-4 MAY 63004-4 Contact Us For Availability
30
MAY 59746-4 MAY 59746-4 Contact Us For Availability
30
MAY RA43643-40 MAY RA43643-40 Contact Us For Availability
30
MAY 420071-1 MAY 420071-1 Contact Us For Availability
31
MAY 64115-9 MAY 64115-9 Contact Us For Availability
31
MAY 59395-22 MAY 59395-22 Contact Us For Availability
31
MAY 65033-2 MAY 65033-2 Contact Us For Availability
31
MAY 60470-1 MAY 60470-1 Contact Us For Availability
32
MAY 59330-21 MAY 59330-21 Contact Us For Availability
32
MAY 59317-62 MAY 59317-62 Contact Us For Availability
32
MAY 55878-1 MAY 55878-1 Contact Us For Availability
32
MAY 64143-3 MAY 64143-3 Contact Us For Availability
33
MAY 59317-64 MAY 59317-64 Contact Us For Availability
33
MAY 59592-35 MAY 59592-35 Contact Us For Availability
33
MAY 52077-14 MAY 52077-14 Contact Us For Availability
34
MAY 53821-1 MAY 53821-1 Contact Us For Availability
34
MAY 59317-63 MAY 59317-63 Contact Us For Availability
34
MAY 52753-4 MAY 52753-4 Contact Us For Availability
34
MAY 400084-1 MAY 400084-1 Contact Us For Availability
34
MAY 62577-1 MAY 62577-1 Contact Us For Availability
35
MAY 59090-1 MAY 59090-1 Contact Us For Availability
35
MAY 53934-8 MAY 53934-8 Contact Us For Availability
35
MAY 52862-1 MAY 52862-1 Contact Us For Availability
35
MAY 52307-2 MAY 52307-2 Contact Us For Availability
36
MAY 54102-2 MAY 54102-2 Contact Us For Availability
36
MAY 52764-15 MAY 52764-15 Contact Us For Availability
36
MAY 58709-1 MAY 58709-1 Contact Us For Availability
37
MAY 54103-2 MAY 54103-2 Contact Us For Availability
37
MAY 29915-10 MAY 29915-10 Contact Us For Availability
37
MAY 58706-1 MAY 58706-1 Contact Us For Availability
38
MAY 54731-2 MAY 54731-2 Contact Us For Availability
38
MAY 52067-1 MAY 52067-1 Contact Us For Availability
38
MAY 405009-103 MAY 405009-103 Contact Us For Availability
38
MAY 53748-1 MAY 53748-1 Contact Us For Availability
39
MAY 53914-2 MAY 53914-2 Contact Us For Availability
39
MAY 52561-1 MAY 52561-1 Contact Us For Availability
39
MAY 60408-1 MAY 60408-1 Contact Us For Availability
39
MAY 405012-1 MAY 405012-1 Contact Us For Availability
39
MAY 63000-1 MAY 63000-1 Contact Us For Availability
40
MAY 420096-900 MAY 420096-900 Contact Us For Availability
40
MAY 64937-1 MAY 64937-1 Contact Us For Availability
41
MAY 53726-2 MAY 53726-2 Contact Us For Availability
41
MAY 63007-3 MAY 63007-3 Contact Us For Availability
42
MAY 56519-4 MAY 56519-4 Contact Us For Availability
42
MAY 63008-3 MAY 63008-3 Contact Us For Availability
43
MAY 57205-4 MAY 57205-4 Contact Us For Availability
43
MAY 63066-1 MAY 63066-1 Contact Us For Availability
44
MAY 57206-1 MAY 57206-1 Contact Us For Availability
44
MAY RA43825-1 MAY RA43825-1 Contact Us For Availability
45
MAY 59299-6 MAY 59299-6 Contact Us For Availability
45
MAY 63428-1 MAY 63428-1 Contact Us For Availability
46
MAY 58057-1 MAY 58057-1 Contact Us For Availability
46
MAY 63053-1 MAY 63053-1 Contact Us For Availability
47
MAY 19530-2 MAY 19530-2 Contact Us For Availability
47
MAY 63014-1 MAY 63014-1 Contact Us For Availability
48
MAY 55512-1 MAY 55512-1 Contact Us For Availability
48
MAY 63019-1 MAY 63019-1 Contact Us For Availability
48
MAY 63089-2 MAY 63089-2 Contact Us For Availability
49
MAY 55513-1 MAY 55513-1 Contact Us For Availability
49
MAY 9671-66 MAY 9671-66 Contact Us For Availability
50
MAY 6012-8 MAY 6012-8 Contact Us For Availability
50
MAY 63036-1 MAY 63036-1 Contact Us For Availability
51
MAY 29834-2 MAY 29834-2 Contact Us For Availability
51
MAY 63035-1 MAY 63035-1 Contact Us For Availability
52
MAY 60333-2 MAY 60333-2 Contact Us For Availability
53
MAY 63046-3 MAY 63046-3 Contact Us For Availability
54
MAY 400062-1 MAY 400062-1 Contact Us For Availability
54
MAY 52846-1 MAY 52846-1 Contact Us For Availability
54
MAY 63306-1 MAY 63306-1 Contact Us For Availability
55
MAY 62580-1 MAY 62580-1 Contact Us For Availability
55
MAY 63025-2 MAY 63025-2 Contact Us For Availability
56
MAY 57418-1 MAY 57418-1 Contact Us For Availability
56
MAY 62581-1 MAY 62581-1 Contact Us For Availability
56
MAY 56438-1 MAY 56438-1 Contact Us For Availability
56
MAY 63059-1 MAY 63059-1 Contact Us For Availability
57
MAY 45004-3 MAY 45004-3 Contact Us For Availability
57
MAY 60333-1 MAY 60333-1 Contact Us For Availability
58
MAY 9602-9 MAY 9602-9 Contact Us For Availability
60
MAY 63179-1 MAY 63179-1 Contact Us For Availability
61
MAY 63039-1 MAY 63039-1 Contact Us For Availability
62
MAY 63056-1 MAY 63056-1 Contact Us For Availability
63
MAY 63040-1 MAY 63040-1 Contact Us For Availability
64
MAY 55440-2 MAY 55440-2 Contact Us For Availability
65
MAY 405021-1 MAY 405021-1 Contact Us For Availability
65
MAY 63013-2 MAY 63013-2 Contact Us For Availability
66
MAY 63037-1 MAY 63037-1 Contact Us For Availability
67
MAY 60114-1 MAY 60114-1 Contact Us For Availability
68
MAY 23197-7 MAY 23197-7 Contact Us For Availability
68
MAY 27116-4 MAY 27116-4 Contact Us For Availability
68
MAY 53105-37 MAY 53105-37 Contact Us For Availability
68
MAY 57576-2 MAY 57576-2 Contact Us For Availability
68
MAY 59808-1 MAY 59808-1 Contact Us For Availability
68
MAY 63038-2 MAY 63038-2 Contact Us For Availability
68
MAY 63372-1 MAY 63372-1 Contact Us For Availability
× ![]()
