Model Whirlpool RNC22AA-3A REFRIGERATOR – Common Parts & Diagrams

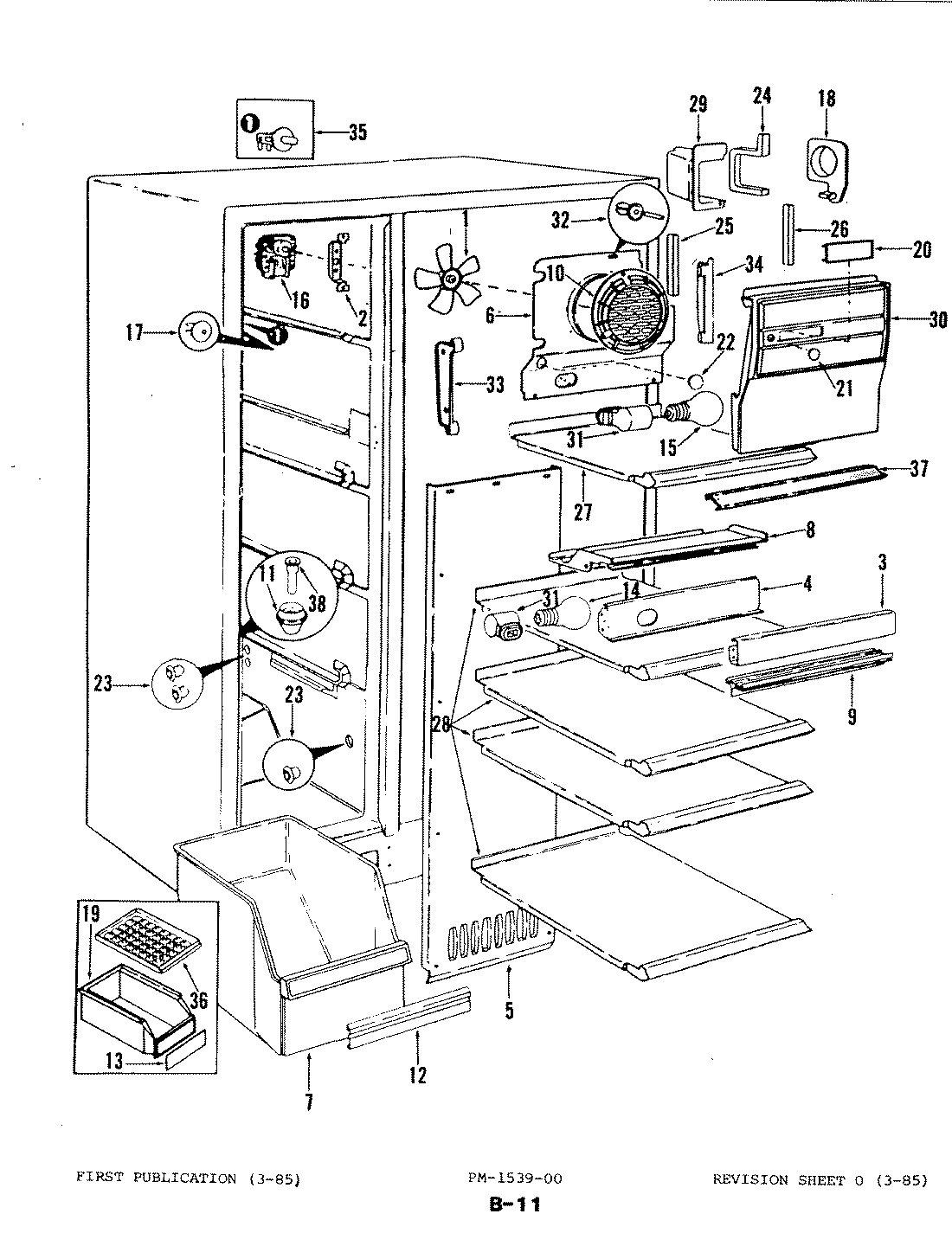

01 - FREEZER COMPARTMENT

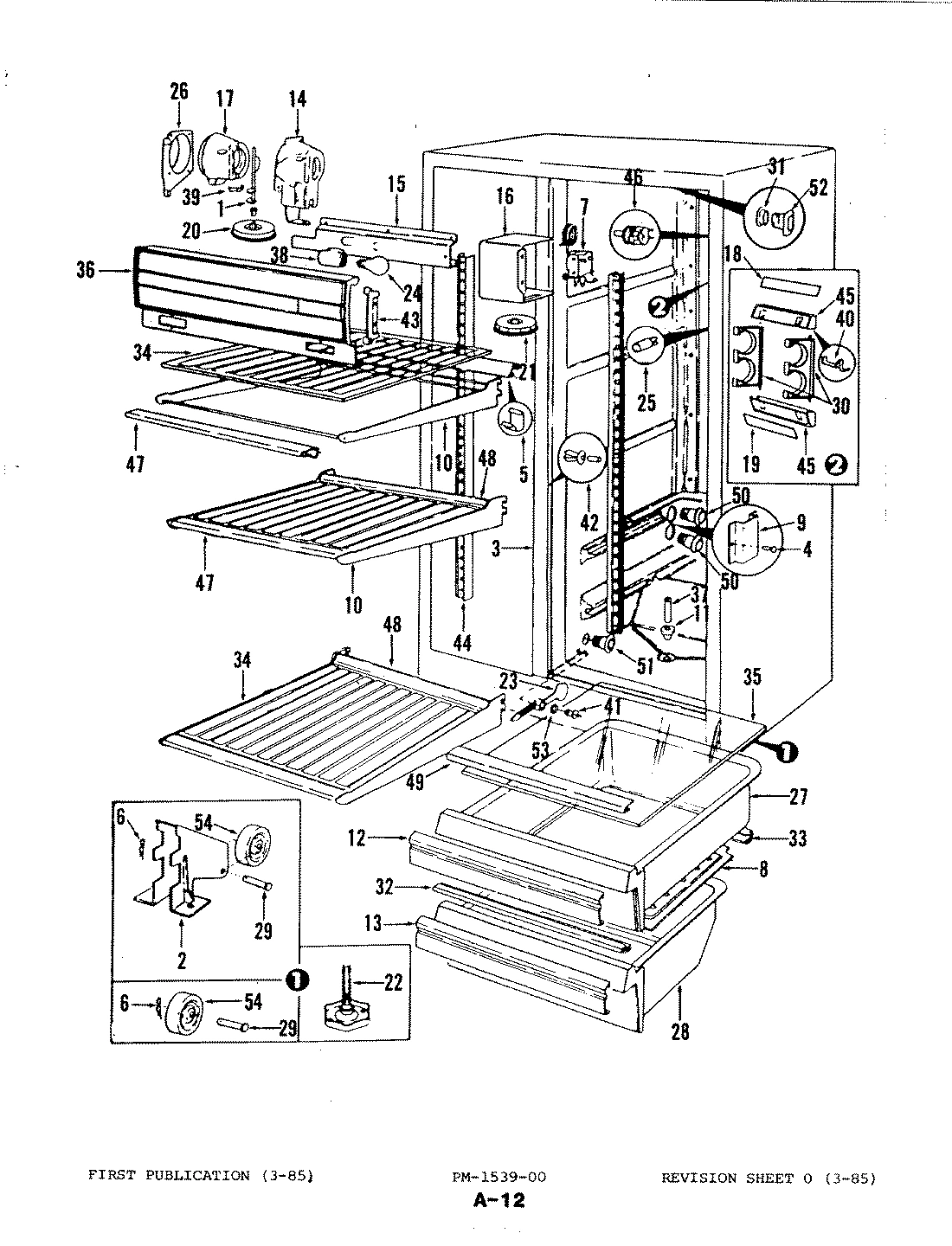

03 - FRESH FOOD COMPARTMENT

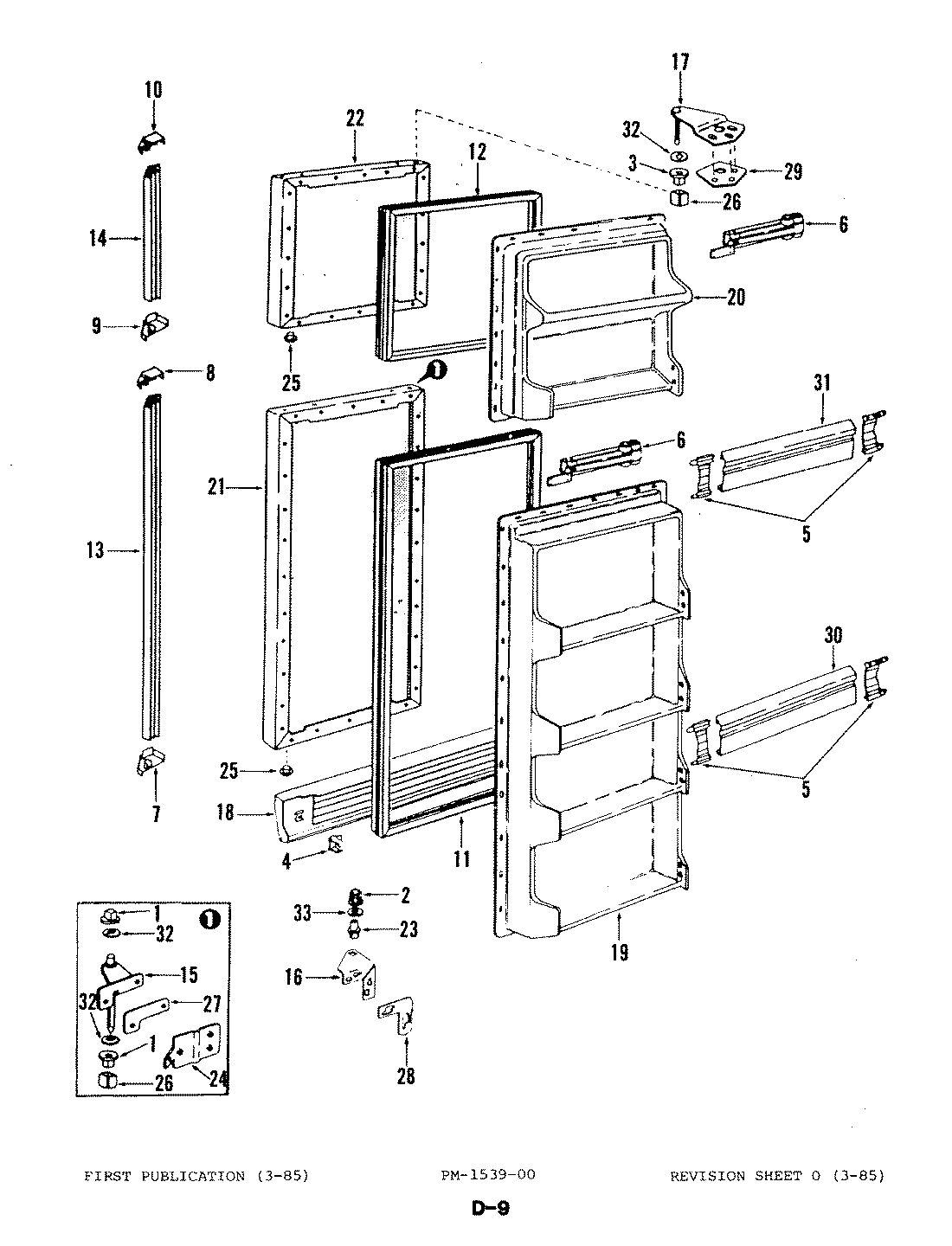

02 - FREEZER DOOR

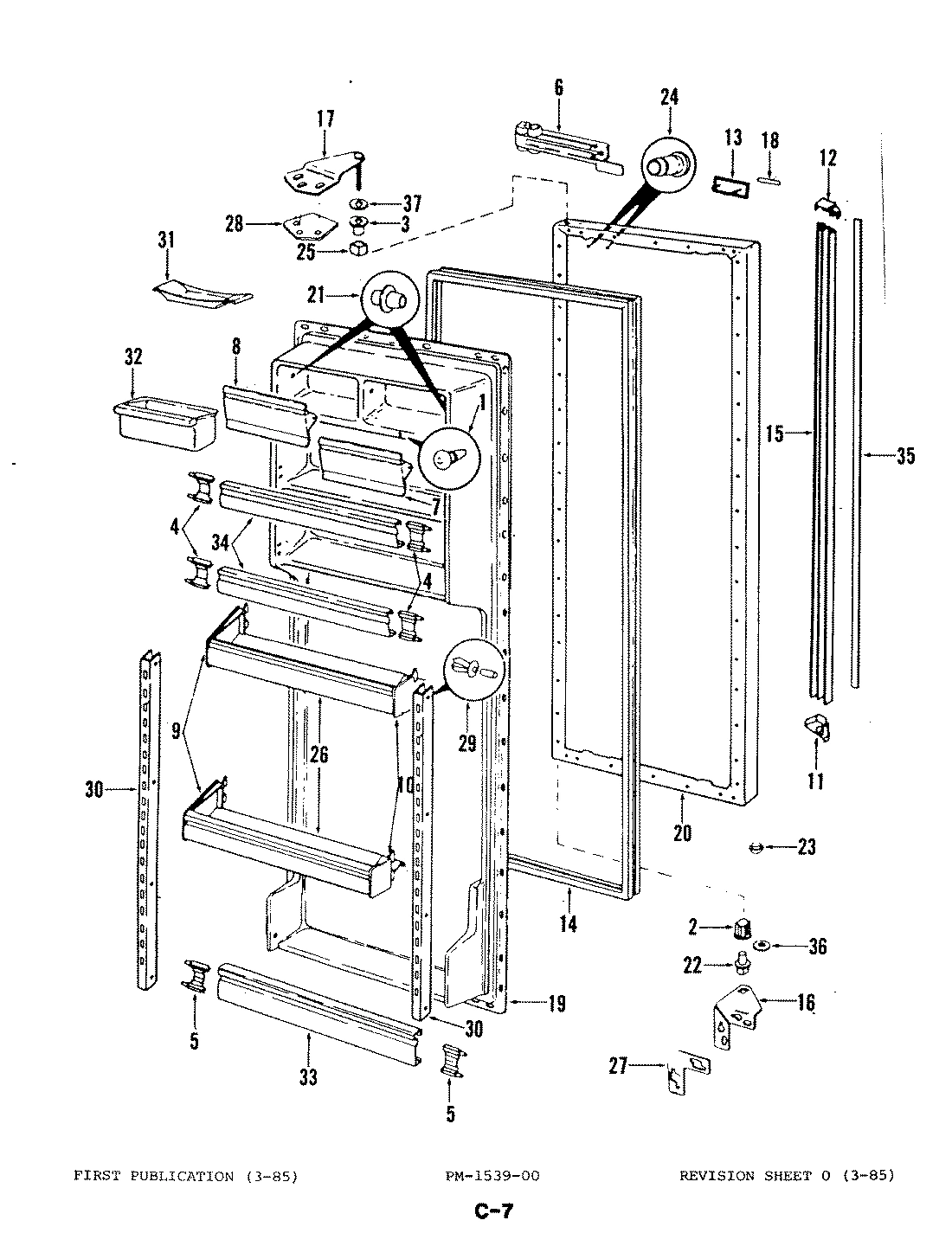

04 - FRESH FOOD DOOR

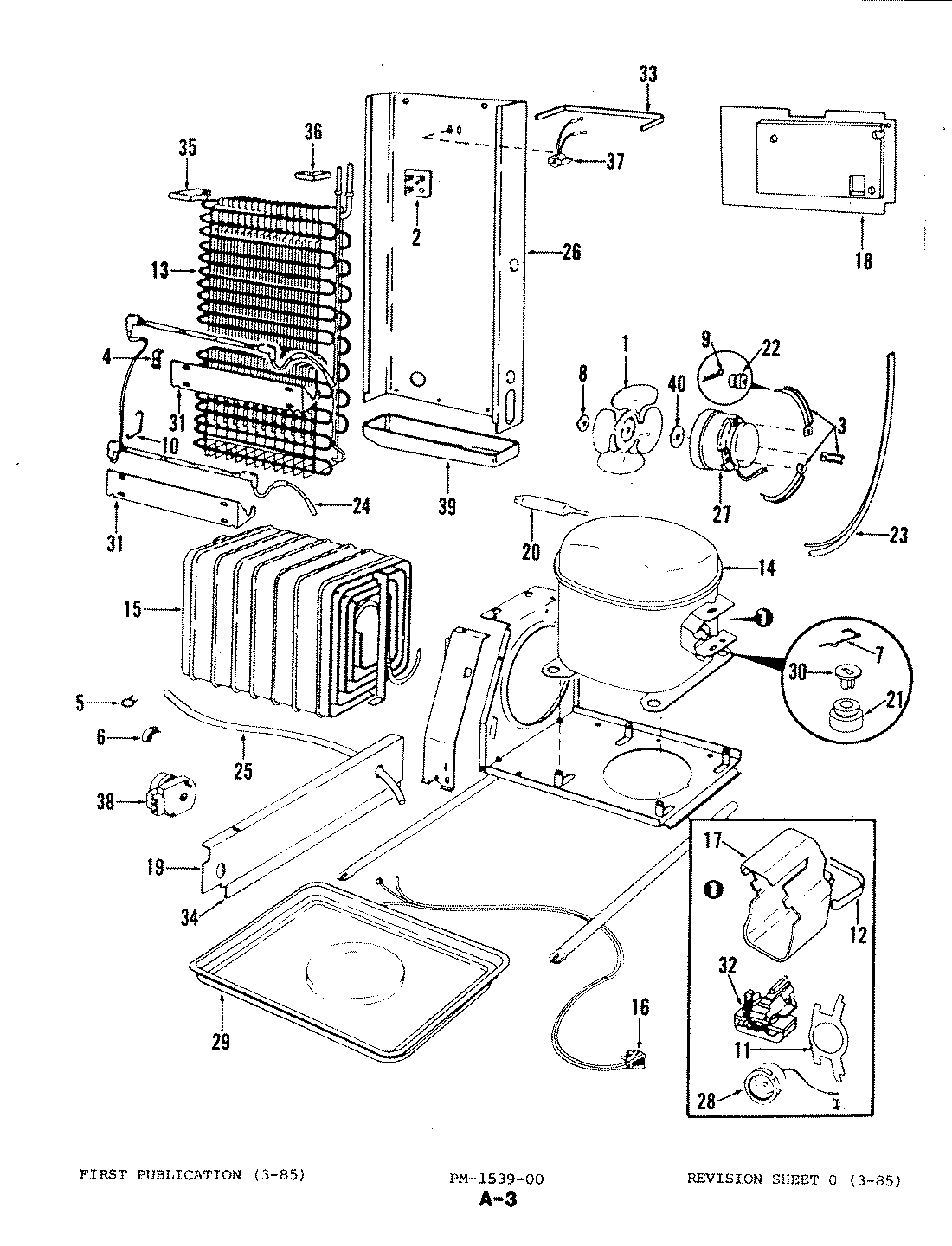

05 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool RNC22AA-3A REFRIGERATOR
1
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
1
DAMPER WPL 525871 Contact Us For Availability
1
BRACKET, CLOSER WPL 526141 Contact Us For Availability
1
BUMPER WPL 596152 Contact Us For Availability
1
BLADE, CONDENSER FAN WPL 629342 Contact Us For Availability
2
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
2
BRACKET WPL 528461 Contact Us For Availability
2
CUP WPL 554241 Contact Us For Availability
2
BOARD, TERMINAL WPL 558781 Contact Us For Availability
3
CLIP,FOOD LINER MOUNT.(SLIDES) WPL 574181 Contact Us For Availability
3
DIVIDER WPL 574924AM Contact Us For Availability
3
MULLION WPL 590262AM Contact Us For Availability
3
BUSHING WPL 557812 Contact Us For Availability
3
BUSHING WPL 557811 Contact Us For Availability
3
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
4
COVER WPL 574025 Contact Us For Availability
4
CLIP, FOOD LINER MOUNT.TOP&BOT WPL 564381 Contact Us For Availability
4
CLIP, KICKPLATE WPL 528543 Contact Us For Availability
4
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
4
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
4
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
5
COVER, COIL WPL 652243 Contact Us For Availability
5
CLIP WPL 641511 Contact Us For Availability
5
RETAINER WPL 652461 Contact Us For Availability
5
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
6
COVER, COIL WPL 6269033 Contact Us For Availability
6
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
6
CLOSER, DOOR WPL 544851 Contact Us For Availability
6
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
7
DRAWER WPL 5933022 Contact Us For Availability
7
CONTROL, TEMPERATURE WPL 652682 Contact Us For Availability
7
BUTTER DOOR WPL 5923431 Contact Us For Availability
7
CLIP WPL 621651 Contact Us For Availability
8
BREAKER FRAME WPL 540365 Contact Us For Availability
8
COVER WPL 539348 Contact Us For Availability
8
CHEESE DOOR WPL 5923430 Contact Us For Availability
9
GASKET WPL 573691 Contact Us For Availability
9
AIR DEFLECTOR WPL 621281 Contact Us For Availability
9
END CAP WPL 621382 Contact Us For Availability
9
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
10
FAN GRID WPL 626891 Contact Us For Availability
10
SHELF FRAME WPL 652782 Contact Us For Availability
10
END CAP WPL 621381 Contact Us For Availability
10
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
11
GROMMET WPL 525261 Contact Us For Availability
11
END CAP WPL 579472 Contact Us For Availability
11
GASKET WPL 5371215 Contact Us For Availability
11
CLIP, OVERLOAD WPL 651901 Contact Us For Availability
12
HEATER WPL 571177 Contact Us For Availability
12
HANDLE WPL 5931765 Contact Us For Availability
12
HANDLE WPL 5931762 Contact Us For Availability
12
END CAP WPL 579471 Contact Us For Availability
12
GASKET WPL 537128 Contact Us For Availability
12
CLIP, TERMINAL COVER WPL 651911 Contact Us For Availability
13
HANDLE WPL 6527964 Contact Us For Availability
13
HANDLE WPL 5931763 Contact Us For Availability
13
HANDLE WPL 5683532 Contact Us For Availability
13
BEZEL WPL 635651 Contact Us For Availability
13
EVAPORATOR WPL RA436434 Contact Us For Availability
14
LIGHT BULB (25W,125V) WPL 23861 Contact Us For Availability
14
HOUSING, FREEZER CONTROL WPL 587602 Contact Us For Availability
14
HANDLE WPL 5683533 Contact Us For Availability
14
GASKET WPL 537122 Contact Us For Availability
14
COMPRESSOR WPL RA990 Contact Us For Availability
15
HOUSING, LIGHT SOCKET & WIRES WPL 597402 Contact Us For Availability
15
HINGE WPL 543906 Contact Us For Availability
15
HANDLE WPL 5683531 Contact Us For Availability
15
CONDENSER WPL RA436444 Contact Us For Availability
16
NUT, MOTOR BOX WPL 561421 Contact Us For Availability
16
MOTOR, FAN FREEZER WPL 564883 Contact Us For Availability
16
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
16
INSULATION, HOUSING WPL 587671 Contact Us For Availability
16
HINGE WPL 5367111 Contact Us For Availability
16
HINGE WPL 5367110 Contact Us For Availability
16
CORD, POWER WPL 528902 Contact Us For Availability
17
NUT WPL 538211 Contact Us For Availability
17
UPPER HINGE,(CHROME) WPL 5370916 Contact Us For Availability
17
SLEEVE WPL 2608811 Contact Us For Availability
17
COVER, TERMINAL WPL 651891 Contact Us For Availability
18
ORIFICE WPL 544231 Contact Us For Availability
18
INSERT WPL 572061 Contact Us For Availability
18
INSULATION, CLOSER WPL 526131 Contact Us For Availability
18
KICKPLATE WPL 564778 Contact Us For Availability
18
INSERT WPL 635663 Contact Us For Availability
18
COVER WPL 654921 Contact Us For Availability
19
PAN WPL 650684 Contact Us For Availability
19
INSERT WPL 592996 Contact Us For Availability
19
INNER PANEL WPL 59433110 Contact Us For Availability
19
INNER PANEL WPL 59433107 Contact Us For Availability
19
BAFFLE WPL 298384 Contact Us For Availability
20
SHIELD WPL 542475 Contact Us For Availability
20
KNOB WPL 298936 Contact Us For Availability
20
INNER PANEL WPL 59433113 Contact Us For Availability
20
OUTER PANEL WPL 5558726AM Contact Us For Availability
21
PLUG WPL 495032900 Contact Us For Availability
21
KNOB WPL 298935 Contact Us For Availability
21
OUTER PANEL WPL 5558345AM Contact Us For Availability
21
PIVOT WPL 593251 Contact Us For Availability
21
GROMMET WPL 172453 Contact Us For Availability
21
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
22
PLUG WPL 539331 Contact Us For Availability
22
LEG, LEVELING WPL 60128 Contact Us For Availability
22
PANEL, DOOR WPL 5558328AM Contact Us For Availability
22
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
22
GROMMET, BRACKET WPL 569331 Contact Us For Availability
23
SCREW WPL 40001512 Contact Us For Availability
23
SCREW WPL 400017103 Contact Us For Availability
23
SCREW WPL 4000221 Contact Us For Availability
23
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
23
SCREW WPL 9986111 Contact Us For Availability
23
LEVELER WPL 547312 Contact Us For Availability
23
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
23
HEAT EXCHANGER WPL RA436454 Contact Us For Availability
24
SEAL WPL 5207710 Contact Us For Availability
24
TAPPING PLATE WPL 540312 Contact Us For Availability
24
SCREW WPL 4021001 Contact Us For Availability
24
SCREW WPL 4030625 Contact Us For Availability
24
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
24
SCREW WPL 998687 Contact Us For Availability
24
MTG CLIP WPL 235114 Contact Us For Availability
24
SCREW, END CAP WPL 4020771 Contact Us For Availability
24
HEATER, DEFROST WPL 5276414 Contact Us For Availability
25
SEAL,UPPER COIL COVER TO LINER WPL 5207719 Contact Us For Availability
25
SCREW WPL 4020777 Contact Us For Availability
25
SCREW WPL 9986110 Contact Us For Availability
25
SEAL SLEEVE WPL 559901 Contact Us For Availability
25
HOSE, DRAIN WPL 2691118 Contact Us For Availability
26
COIL SEAL WPL 528246 Contact Us For Availability
26
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
26
TRIM WPL 626348 Contact Us For Availability
26
HOUSING, FREEZER COIL WPL 650331 Contact Us For Availability
27
SHELF WPL 593141 Contact Us For Availability
27
PAN, CRISPER WPL 5939522 Contact Us For Availability
27
SPACER WPL 543864 Contact Us For Availability
27
SPACER WPL 536883 Contact Us For Availability
27
FAN MOTOR WPL 280569 Contact Us For Availability
27
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
28
SHELF WPL 577062 Contact Us For Availability
28
PAN, MEAT WPL 5959235 Contact Us For Availability
28
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
28
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
28
OVERLOAD WPL 5306772 Contact Us For Availability
29
SHIELD WPL 538371 Contact Us For Availability
29
PIVOT PIN, WHEEL (REAR) WPL 625801 Contact Us For Availability
29
RIVET WPL 599202 Contact Us For Availability
29
PAN, DRAIN WPL 298394 Contact Us For Availability
30
SHIELD WPL 5432122 Contact Us For Availability
30
RACK, WINE WPL 565194 Contact Us For Availability
30
TRIM WPL 5925845 Contact Us For Availability
30
RACK WPL 5999411 Contact Us For Availability
30
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
31
SCREW WPL 4000271 Contact Us For Availability
31
SCREW WPL 4000371 Contact Us For Availability
31
SCREW WPL 4000621 Contact Us For Availability
31
RETAINER WPL 574111 Contact Us For Availability
31
TRIM WPL 5925847 Contact Us For Availability
31
TRAY, BUTTER WPL 299362 Contact Us For Availability
31
REFLECTOR WPL 2991512 Contact Us For Availability
32
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
32
SCREW WPL 4000171 Contact Us For Availability
32
GASKET WPL 541022 Contact Us For Availability
32
WASHER WPL 521852 Contact Us For Availability
32
EGG BUCKET WPL 5836812 Contact Us For Availability
32
SCREW WPL 4050071 Contact Us For Availability
32
SCREW WPL 641391 Contact Us For Availability
32
RELAY WPL 9286106 Contact Us For Availability
33
SUPPORT WPL 536872 Contact Us For Availability
33
GASKET WPL 541032 Contact Us For Availability
33
WASHER WPL 542332 Contact Us For Availability
33
TRIM WPL 5925842 Contact Us For Availability
33
SEAL,HOUSING TO LINER WPL 520779 Contact Us For Availability
34
SUPPORT WPL 544242 Contact Us For Availability
34
SHELF, GLASS WPL 6243827 Contact Us For Availability
34
TRIM, DOOR SHELF WPL 6515184 Contact Us For Availability
34
BAFFLE, AIR DIVIDER WPL 654931 Contact Us For Availability
35
WASHER WPL 4200631 Contact Us For Availability
35
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
36
ICE CUBE TRAY WPL 601121 Contact Us For Availability
36
SHIELD WPL 5933320 Contact Us For Availability
36
WASHER WPL 542331 Contact Us For Availability
36
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
37
TRIM WPL 5375216 Contact Us For Availability
37
TUBE WPL 555131 Contact Us For Availability
37
WASHER WPL 521851 Contact Us For Availability
37
THERMOSTAT, DEFROST WPL 5208513 Contact Us For Availability
38
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
38
DRAIN TUBE WPL 265275 Contact Us For Availability
38
TIMER WPL 541134 Contact Us For Availability
39
SPRING, BAFFLE WPL 526481 Contact Us For Availability
39
TROUGH, DRAIN WPL 535231 Contact Us For Availability
40
SPRING, WINE RACK WPL 580571 Contact Us For Availability
40
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
40
WIRE HARNESS WPL 599401 Contact Us For Availability
40
FLANGE HEATER WPL RA436841 Contact Us For Availability
41
STUD WPL 539142 Contact Us For Availability
42
STUD, DIVIDER CHANNEL MOUNTING WPL 599203 Contact Us For Availability
42
STUD (ALM) WPL 599206 Contact Us For Availability
42
STUD, (ALM) WPL 599209 Contact Us For Availability
43
SUPPORT WPL 536862 Contact Us For Availability
44
SUPPORT WPL 583811 Contact Us For Availability
45
SUPPORT WPL 572054 Contact Us For Availability
46
SWITCH WPL 564322 Contact Us For Availability
47
TRIM WPL 6500511 Contact Us For Availability
48
TRIM WPL 6527613 Contact Us For Availability
49
TRIM WPL 652553 Contact Us For Availability
50
AIR TUNNEL WPL 537261 Contact Us For Availability
51
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
52
TUNNEL WPL 574101 Contact Us For Availability
53
WASHER WPL 420096900 Contact Us For Availability
54
WHEEL WPL 298342 Contact Us For Availability
× ![]()
Login and Registration Form
