Model Whirlpool RNC20EA-3A REFRIGERATOR – Common Parts & Diagrams

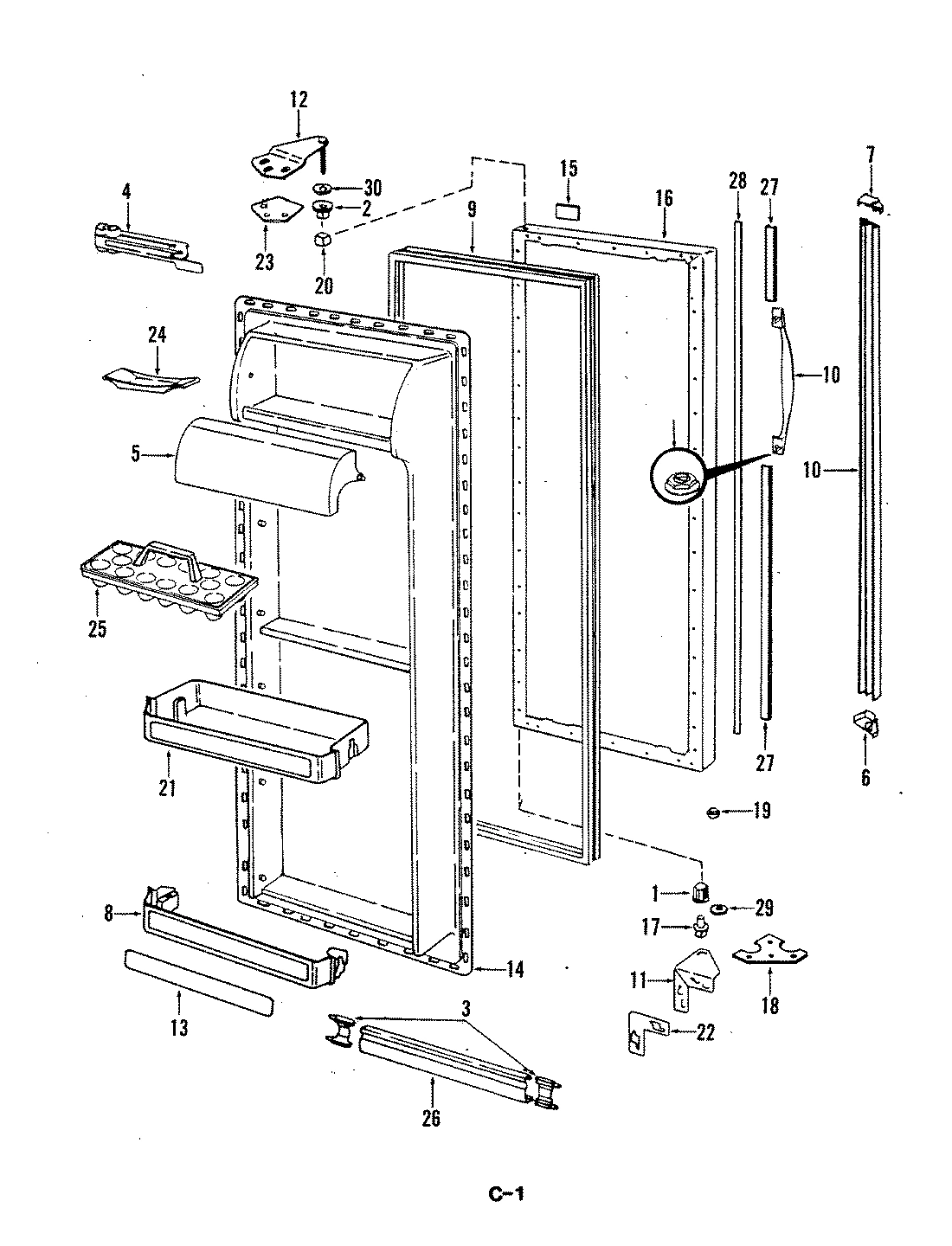

04 - FRESH FOOD DOOR
01 - FREEZER COMPARTMENT

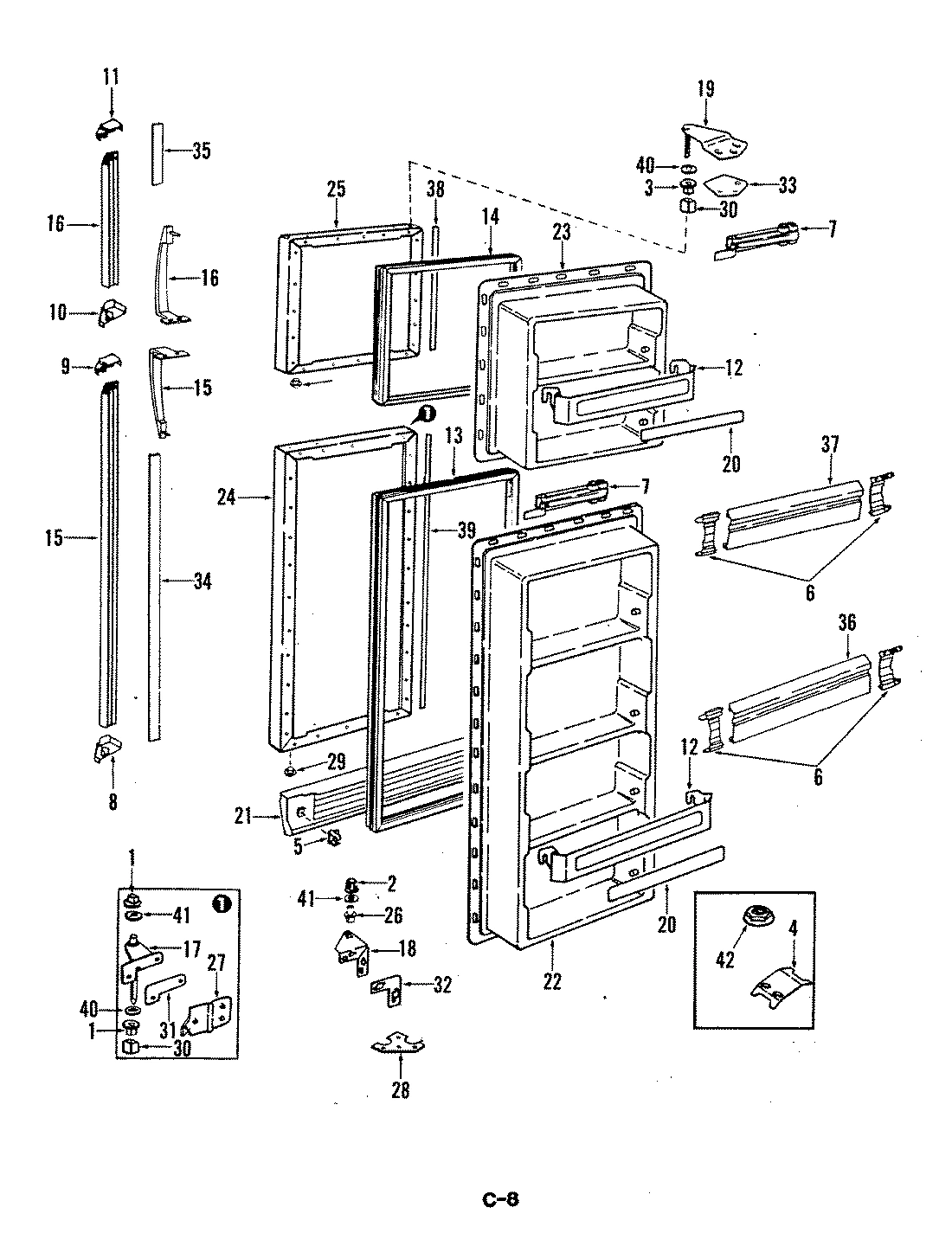

02 - FREEZER DOOR

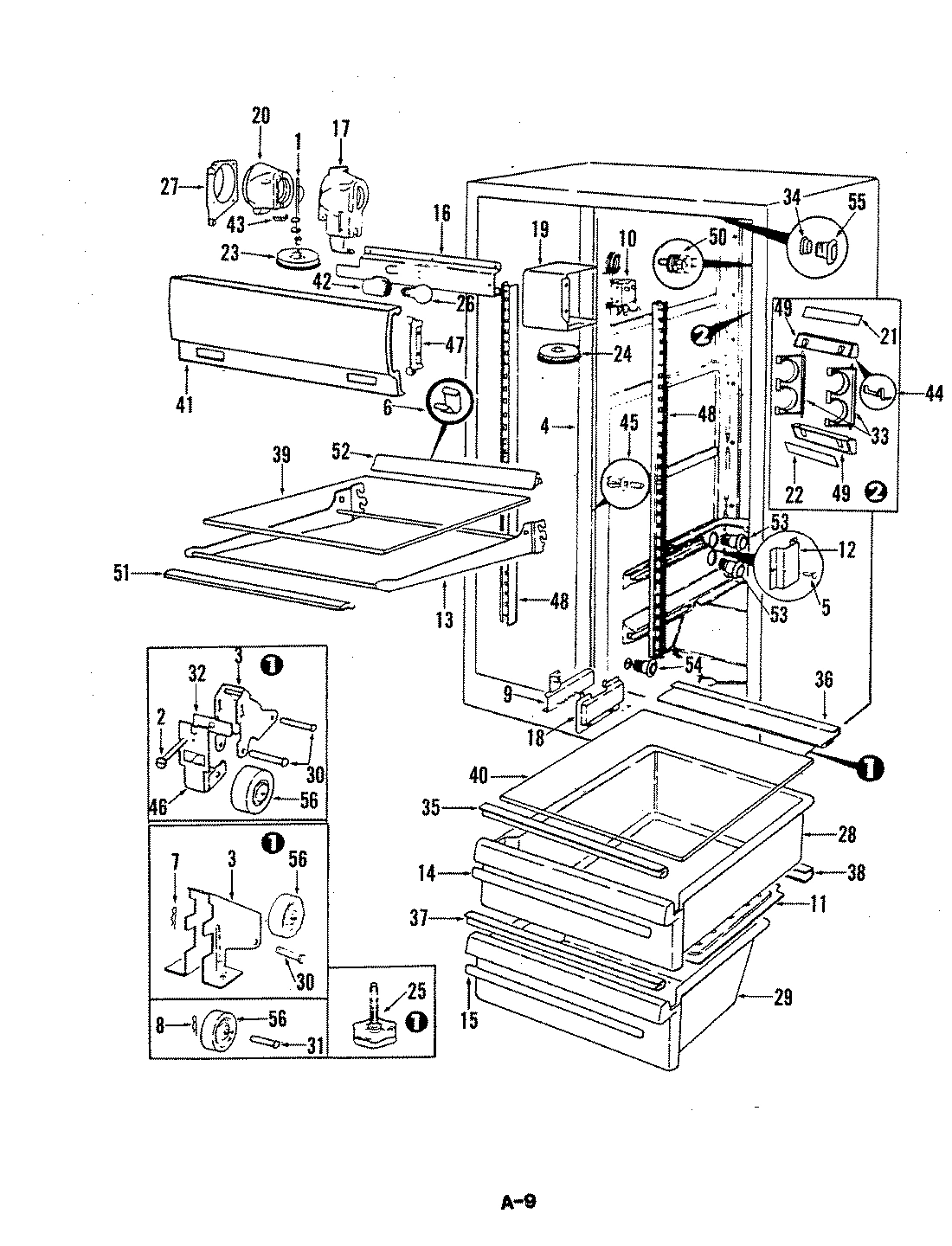

03 - FRESH FOOD COMPARTMENT

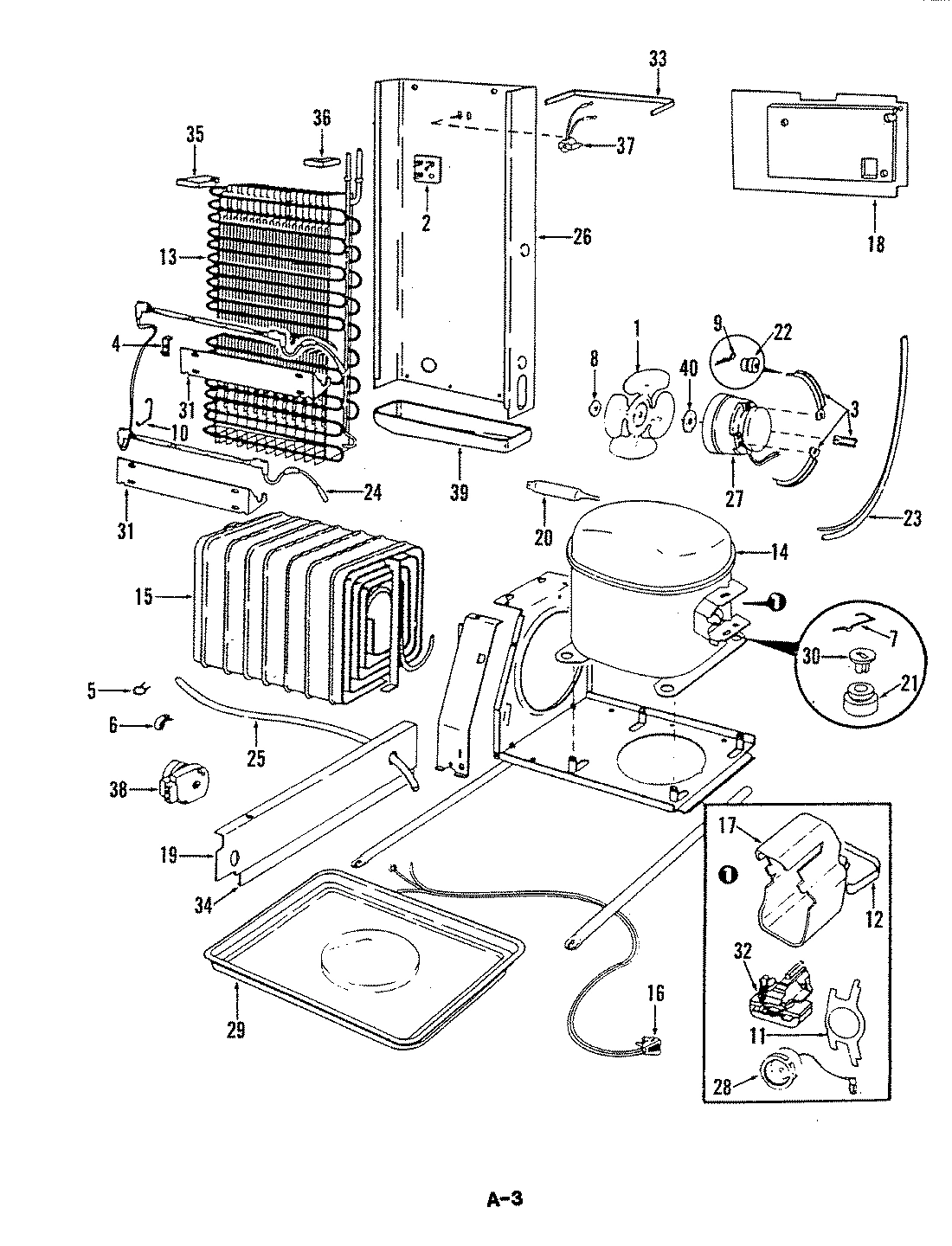

05 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool RNC20EA-3A REFRIGERATOR
1
BRACKET, CLOSER WPL 526141 Contact Us For Availability
1
BUSHING, UPPER HINGE WPL 660362 Contact Us For Availability
1
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
1
DAMPER WPL 525871 Contact Us For Availability
1
BLADE, CONDENSER FAN WPL 629342 Contact Us For Availability
2
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
2
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
2
BOARD, TERMINAL WPL 558781 Contact Us For Availability
3
RETAINER WPL 652461 Contact Us For Availability
3
DIVIDER WPL 574924AM Contact Us For Availability
3
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
3
BRACKET WPL 528461 Contact Us For Availability
3
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
4
COVER WPL 574025 Contact Us For Availability
4
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
4
MULLION WPL 590262AM Contact Us For Availability
4
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
4
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
5
DOOR, DAIRY WPL 65589212 Contact Us For Availability
5
CLIP,FOOD LINER MOUNT.(SLIDES) WPL 574181 Contact Us For Availability
5
COVER, COIL WPL 652249 Contact Us For Availability
5
CLIP, KICKPLATE WPL 528543 Contact Us For Availability
5
CLIP, FOOD LINER MOUNT.TOP&BOT WPL 564381 Contact Us For Availability
5
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
6
END CAP WPL 579472 Contact Us For Availability
6
COVER, COIL WPL 6269033 Contact Us For Availability
6
CLIP WPL 653581 Contact Us For Availability
6
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
7
CLOSER, DOOR WPL 544851 Contact Us For Availability
7
END CAP WPL 579471 Contact Us For Availability
7
DRAWER, FRZ. WPL 655773 Contact Us For Availability
7
SUB 62165-1 WPL 527781 Contact Us For Availability
8
BREAKER FRAME WPL 540365 Contact Us For Availability
8
CLIP WPL 566864 Contact Us For Availability
8
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
9
GASKET WPL 537126 Contact Us For Availability
9
GASKET WPL 573691 Contact Us For Availability
9
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
9
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
10
HANDLE WPL 5683536 Contact Us For Availability
10
FAN GRID WPL 626891 Contact Us For Availability
10
CONTROL, TEMPERATURE WPL 652682 Contact Us For Availability
10
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
11
HINGE, LOWER WPL 6063012 Contact Us For Availability
11
GROMMET WPL 525261 Contact Us For Availability
11
COVER, MEAT PAN WPL 656083 Contact Us For Availability
11
CLIP, OVERLOAD WPL 651901 Contact Us For Availability
12
HEATER WPL 571177 Contact Us For Availability
12
INSERT WPL 6558320 Contact Us For Availability
12
SHELF FRONT WPL 657015 Contact Us For Availability
12
AIR DEFLECTOR WPL 621281 Contact Us For Availability
12
CLIP, TERMINAL COVER WPL 651911 Contact Us For Availability
13
INSERT WPL 606144 Contact Us For Availability
13
GASKET WPL 5371215 Contact Us For Availability
13
FRAME, SHELF WPL 656181 Contact Us For Availability
13
EVAPORATOR WPL RA436434 Contact Us For Availability
14
LINER, DOOR WPL 656435 Contact Us For Availability
14
INSERT WPL 657061 Contact Us For Availability
14
GASKET WPL 537128 Contact Us For Availability
14
INSERT WPL 6558317 Contact Us For Availability
14
COMPRESSOR WPL RA990 Contact Us For Availability
15
NAMEPLATE WPL 657911 Contact Us For Availability
15
LIGHT BULB (25W,125V) WPL 23861 Contact Us For Availability
15
INSERT WPL 6558318 Contact Us For Availability
15
CONDENSER WPL RA436444 Contact Us For Availability
16
OUTER PANEL WPL 5558749AM Contact Us For Availability
16
HANDLE WPL 636873 Contact Us For Availability
16
HOUSING, LIGHT SOCKET & WIRES WPL 597402 Contact Us For Availability
16
CORD, POWER WPL 528902 Contact Us For Availability
17
MOTOR, FAN FREEZER WPL 564883 Contact Us For Availability
17
SPRING WPL 651421 Contact Us For Availability
17
HINGE WPL 543906 Contact Us For Availability
17
HOUSING, FREEZER CONTROL WPL 587602 Contact Us For Availability
17
COVER, HEAT EXCHANGER WPL 2608822 Contact Us For Availability
17
COVER, TERMINAL WPL 651891 Contact Us For Availability
18
NUT WPL 538211 Contact Us For Availability
18
HINER, LOWER (CHROME) WPL 6063010 Contact Us For Availability
18
CONTROL HOUSING WPL 657371 Contact Us For Availability
18
COVER WPL 660331 Contact Us For Availability
19
UPPER HINGE,(CHROME) WPL 5370916 Contact Us For Availability
19
SCREW WPL 4021001 Contact Us For Availability
19
ORIFICE WPL 544231 Contact Us For Availability
19
HOUSING, TEMPERATURE CONTROL WPL 5368210 Contact Us For Availability
19
BAFFLE WPL 298384 Contact Us For Availability
20
PAN, ICE WPL 657181 Contact Us For Availability
20
INSERT WPL 6557110 Contact Us For Availability
20
INSULATION, HOUSING WPL 587671 Contact Us For Availability
21
PLUG BUTTON WPL 495015900 Contact Us For Availability
21
PLUG WPL 495032900 Contact Us For Availability
21
KICKPLATE WPL 5843749 Contact Us For Availability
21
INSERT WPL 6575311 Contact Us For Availability
21
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
22
PLUG WPL 539331 Contact Us For Availability
22
LINER, DOOR WPL 656963 Contact Us For Availability
22
INSERT WPL 6575312 Contact Us For Availability
22
GROMMET, BRACKET WPL 569331 Contact Us For Availability
23
SCREW WPL 4000151 Contact Us For Availability
23
SCREW WPL 400017103 Contact Us For Availability
23
SCREW WPL 4000221 Contact Us For Availability
23
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
23
SCREW WPL 9986111 Contact Us For Availability
23
LINER, DOOR WPL 656953 Contact Us For Availability
23
KNOB WPL 298936 Contact Us For Availability
23
HEAT EXCHANGER WPL RA436454 Contact Us For Availability
24
TRAY, BUTTER WPL 299362 Contact Us For Availability
24
SEAL WPL 5207710 Contact Us For Availability
24
PANEL, OUTER DOOR WPL 659802AM Contact Us For Availability
24
KNOB WPL 298935 Contact Us For Availability
24
HEATER, DEFROST WPL 5276414 Contact Us For Availability
25
TRAY, EGG WPL 600662 Contact Us For Availability
25
SEAL,UPPER COIL COVER TO LINER WPL 5207719 Contact Us For Availability
25
PANEL, OUTER DOOR WPL 659801AM Contact Us For Availability
25
PANEL, OUTER DOOR WPL 659801WW Contact Us For Availability
25
LEG, LEVELING WPL 60128 Contact Us For Availability
25
HOSE, DRAIN WPL 2691118 Contact Us For Availability
26
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
26
TRIM WPL 5925876 Contact Us For Availability
26
COIL SEAL WPL 528246 Contact Us For Availability
26
HOUSING, FREEZER COIL WPL 650331 Contact Us For Availability
27
SHELF, FRZ. WPL 656513 Contact Us For Availability
27
TAPPING PLATE WPL 540312 Contact Us For Availability
27
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
27
FAN MOTOR WPL 2805612 Contact Us For Availability
27
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
28
TAPPING PLATE, LOWER HINGE WPL 659641 Contact Us For Availability
28
SHELF, FRZ. WPL 656512 Contact Us For Availability
28
PAN, CRISPER WPL 655744 Contact Us For Availability
28
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
28
OVERLOAD WPL 5306772 Contact Us For Availability
29
SCREW WPL 4020777 Contact Us For Availability
29
SCREW WPL 4030625 Contact Us For Availability
29
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
29
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
29
SCREW WPL 998687 Contact Us For Availability
29
WASHER WPL 542331 Contact Us For Availability
29
GLASS SHELF WPL 6559817 Contact Us For Availability
29
SCREW WPL 9986110 Contact Us For Availability
29
SCREW WPL 9986122 Contact Us For Availability
29
PAN, STORAGE WPL 665105 Contact Us For Availability
29
PAN, DRAIN WPL 298394 Contact Us For Availability
30
SEAL SLEEVE WPL 559901 Contact Us For Availability
30
WASHER WPL 4200631 Contact Us For Availability
30
WASHER WPL 521851 Contact Us For Availability
30
SHIELD WPL 538371 Contact Us For Availability
30
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
31
SHIELD, LIGHT WPL 656541 Contact Us For Availability
31
SPACER WPL 543864 Contact Us For Availability
31
PIVOT PIN, WHEEL (REAR) WPL 625801 Contact Us For Availability
31
REFLECTOR WPL 2991512 Contact Us For Availability
32
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
32
SCREW WPL 4000171 Contact Us For Availability
32
SCREW WPL 4050071 Contact Us For Availability
32
SCREW WPL 641391 Contact Us For Availability
32
RELAY WPL 9286106 Contact Us For Availability
33
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
33
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
33
RACK, WINE WPL 565194 Contact Us For Availability
33
SEAL,HOUSING TO LINER WPL 520779 Contact Us For Availability
34
SUPPORT WPL 536872 Contact Us For Availability
34
HANDLE EXT WPL 657746 Contact Us For Availability
34
SCREW WPL 4000271 Contact Us For Availability
34
SCREW WPL 40003728 Contact Us For Availability
34
SCREW WPL 4000621 Contact Us For Availability
34
SCREW WPL 402005103 Contact Us For Availability
34
CLIP WPL 530604 Contact Us For Availability
34
RETAINER WPL 574111 Contact Us For Availability
34
BAFFLE, AIR DIVIDER WPL 654931 Contact Us For Availability
35
SUPPORT WPL 544242 Contact Us For Availability
35
HANDLE EXT WPL 657745 Contact Us For Availability
35
SEAL WPL 655932 Contact Us For Availability
35
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
36
SEAL, CRISPER PAN (FRONT) WPL 656502 Contact Us For Availability
36
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
37
ICE CUBE TRAY WPL 601121 Contact Us For Availability
37
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
37
THERMOSTAT, DEFROST WPL 5208513 Contact Us For Availability
38
TRIM, SHELF WPL 65561408 Contact Us For Availability
38
TRIM WPL 6577312 Contact Us For Availability
38
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
38
TIMER, DEFROST WPL 657021 Contact Us For Availability
39
TRIM WPL 655681 Contact Us For Availability
39
TRIM WPL 6577311 Contact Us For Availability
39
GLASS SHELF WPL 6559813 Contact Us For Availability
39
TROUGH, DRAIN WPL 535231 Contact Us For Availability
40
DRAIN TUBE WPL 265275 Contact Us For Availability
40
WASHER WPL 521852 Contact Us For Availability
40
SHELF, CRISPER (GLASS) WPL 656871 Contact Us For Availability
40
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
40
WIRE HARNESS WPL 599401 Contact Us For Availability
40
WIRE HARNESS WPL 650443 Contact Us For Availability
40
FLANGE HEATER WPL RA436841 Contact Us For Availability
41
WASHER WPL 542332 Contact Us For Availability
41
SHIELD, LIGHT WPL 655784 Contact Us For Availability
42
SPACER WPL 655121 Contact Us For Availability
42
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
42
FASTENER WPL 434003506 Contact Us For Availability
43
SPRING, BAFFLE WPL 526481 Contact Us For Availability
44
SPRING, WINE RACK WPL 580571 Contact Us For Availability
45
STUD, DIVIDER CHANNEL MOUNTING WPL 599203 Contact Us For Availability
45
STUD (ALM) WPL 599206 Contact Us For Availability
45
SUB 19529-19 WPL 599207 Contact Us For Availability
45
RIVET, P.O. HOOK WPL 599208 Contact Us For Availability
45
STUD, (ALM) WPL 599209 Contact Us For Availability
47
SUPPORT WPL 536862 Contact Us For Availability
48
RAIL, SHELF SUPPORT WPL 583814 Contact Us For Availability
49
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
50
SWITCH WPL 564322 Contact Us For Availability
51
SHELF TRIM WPL 658031 Contact Us For Availability
52
TRIM WPL 652769 Contact Us For Availability
53
AIR TUNNEL WPL 537261 Contact Us For Availability
54
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
55
TUNNEL WPL 574101 Contact Us For Availability
56
WHEEL WPL 298342 Contact Us For Availability
56
WIRE HARNESS WPL 558814 Contact Us For Availability
× ![]()
Login and Registration Form
