Model Whirlpool RNB23AA-3A REFRIGERATOR – Common Parts & Diagrams

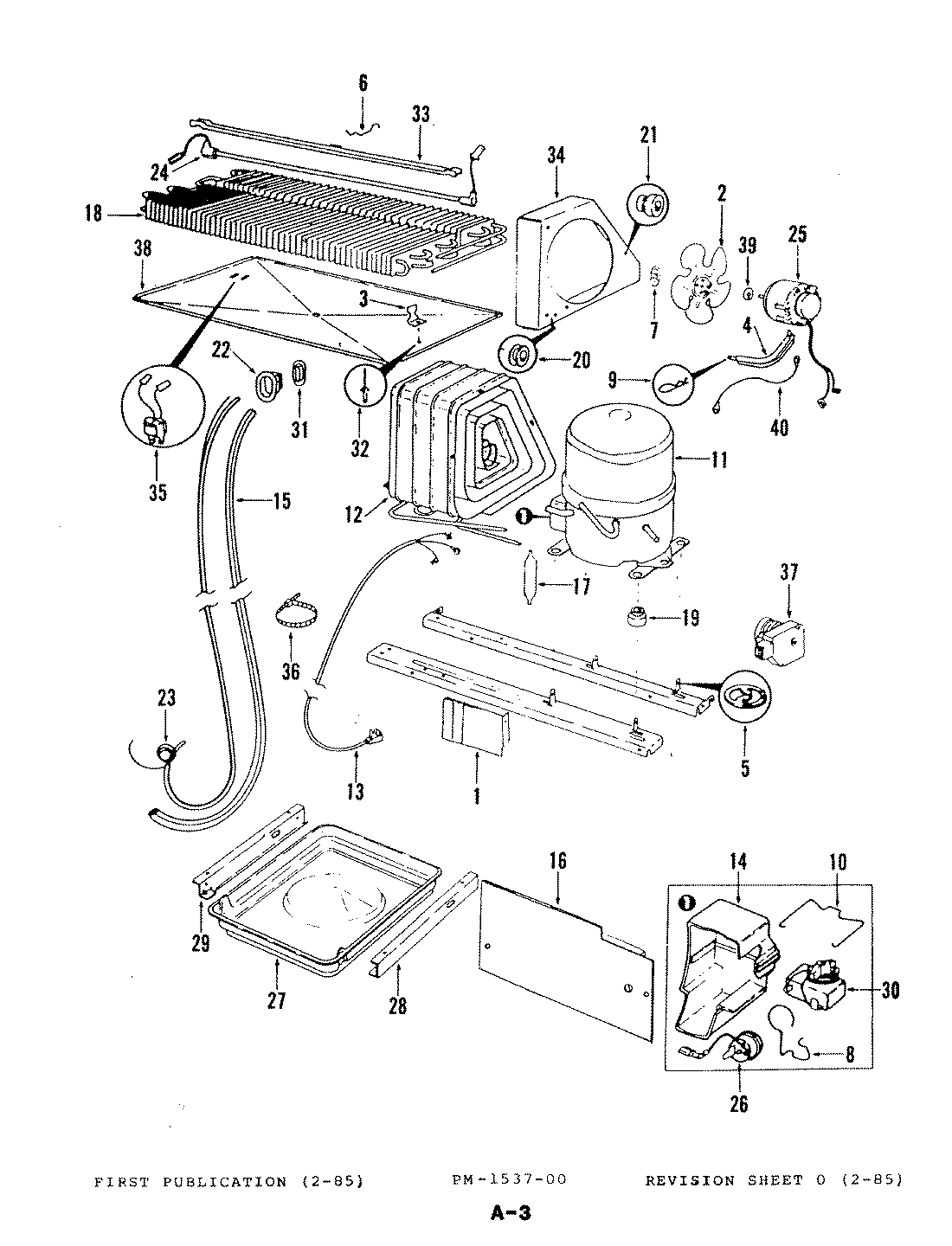

04 - UNIT COMPARTMENT & SYSTEM

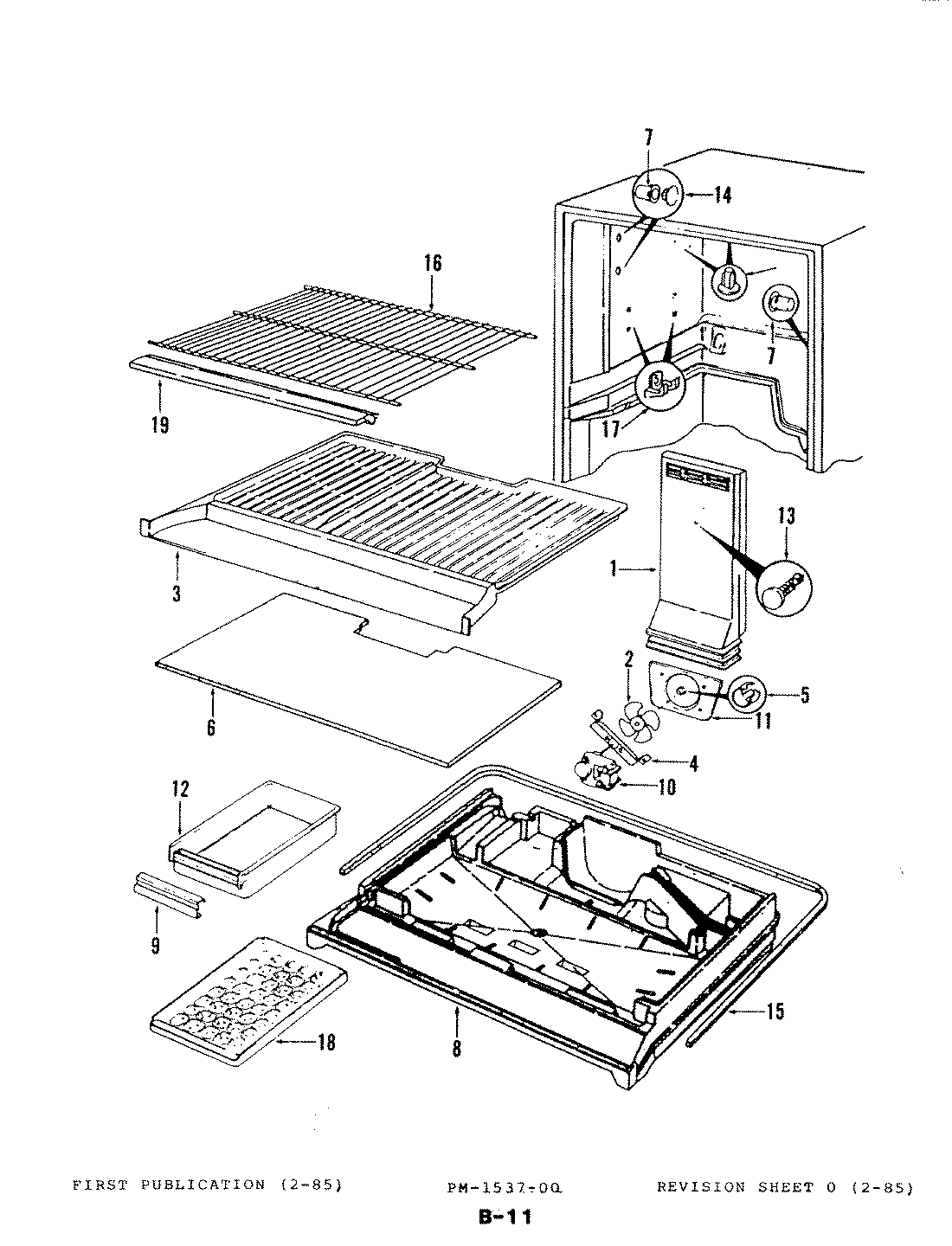

01 - FREEZER COMPARTMENT

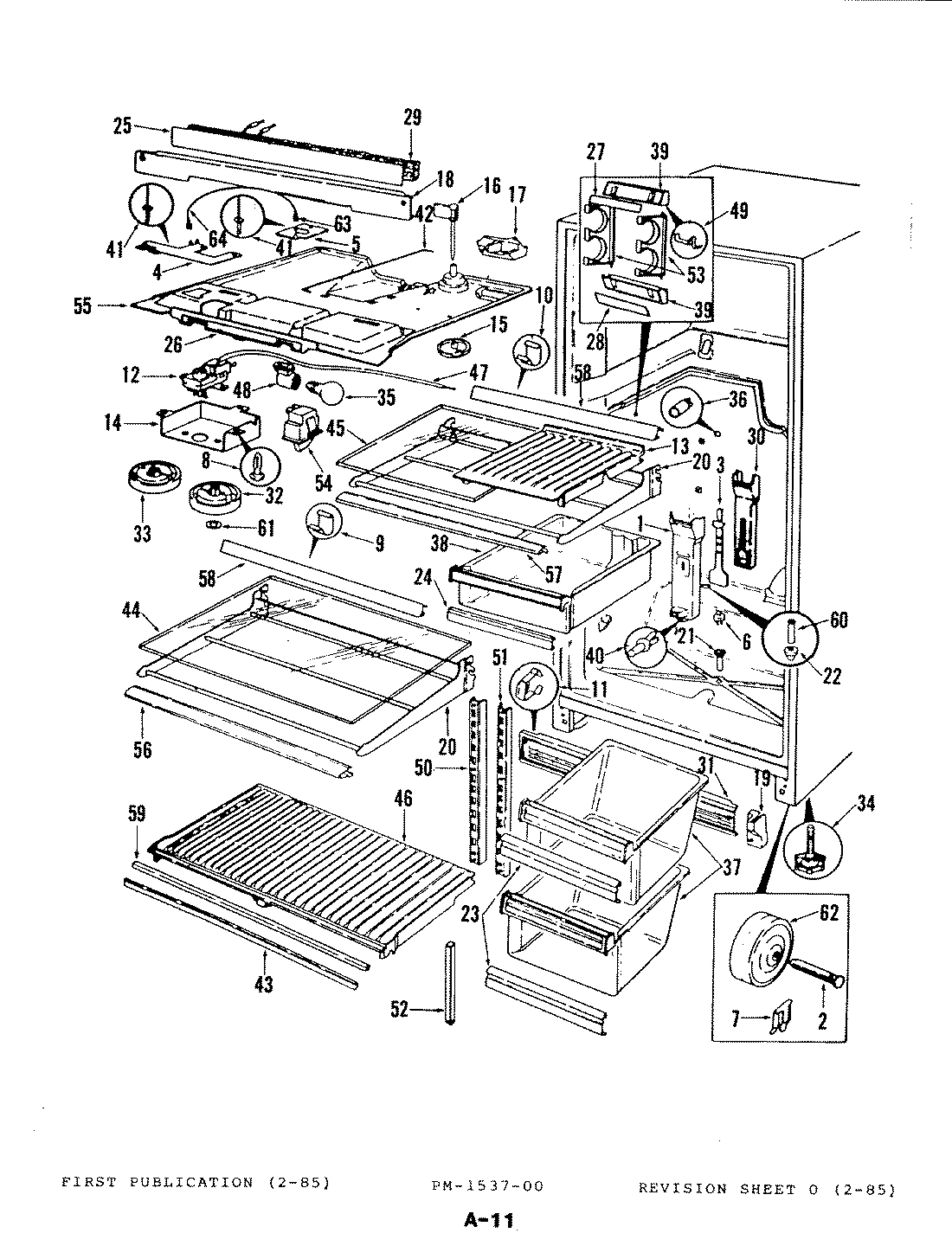

03 - FRESH FOOD COMPARTMENT

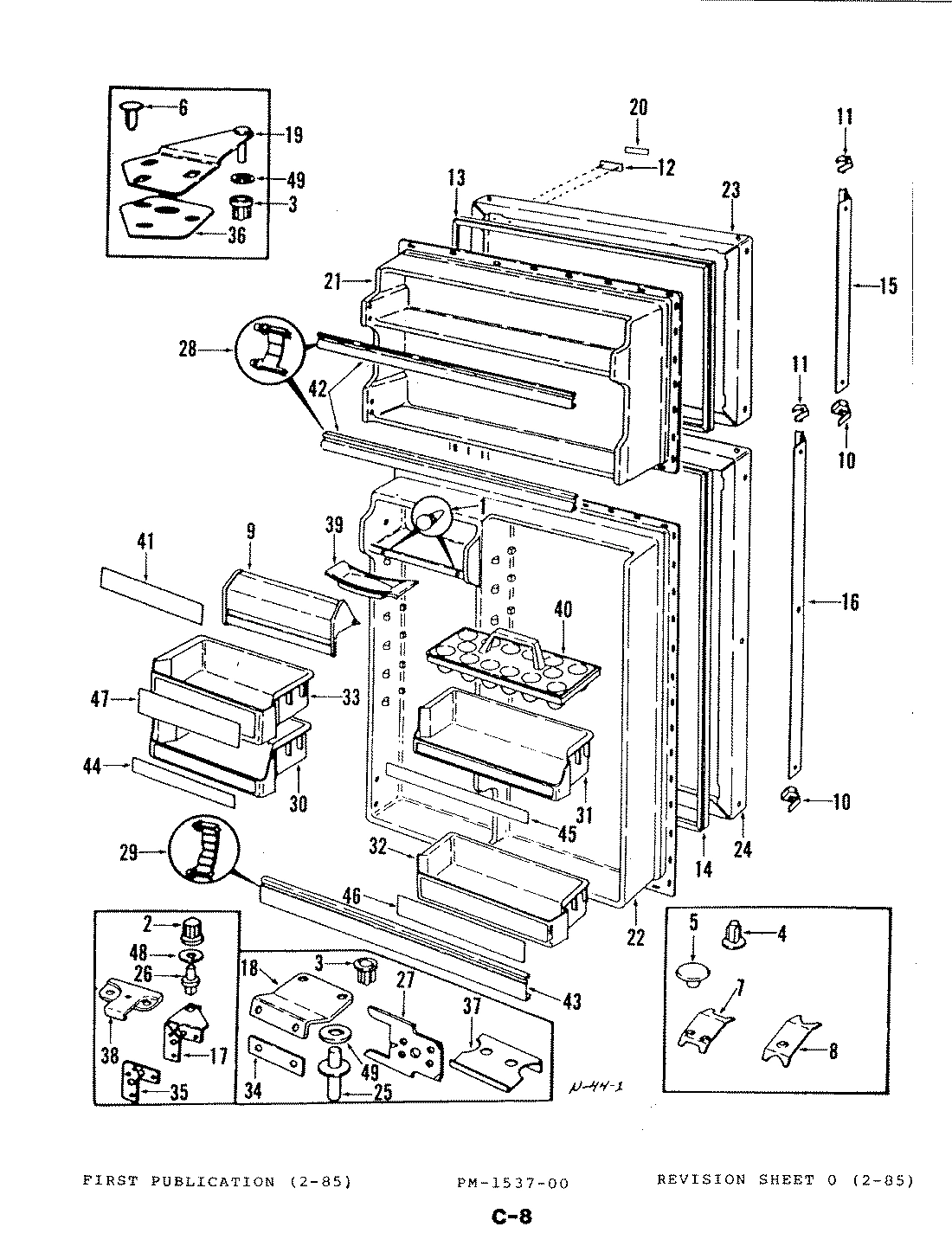

02 - FRESH FOOD & FREEZER DOOR
Common parts from model Whirlpool RNB23AA-3A REFRIGERATOR
1
AIR DIVIDER WPL 606393 Contact Us For Availability
1
TUNNEL, AIR WPL 600846 Contact Us For Availability
1
TUNNEL WPL 600948 Contact Us For Availability
1
BUMPER, DOOR WPL 282726 Contact Us For Availability
2
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
2
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
2
PIN, WHEEL WPL 298352 Contact Us For Availability
2
CUP WPL 554241 Contact Us For Availability
3
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
3
BOTTOM, FRZ. WPL 604741 Contact Us For Availability
3
DAMPER, AIR TUNNEL WPL 600932 Contact Us For Availability
3
BUSHING WPL 557811 Contact Us For Availability
4
BRACKET WPL 600361 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
BRACKET, CONTROL WPL 601471 Contact Us For Availability
4
PLUG BUTTON (ALMOND) WPL 557826 Contact Us For Availability
5
CLIP WPL 621651 Contact Us For Availability
5
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
5
PLUG BUTTON, (ALMOND) WPL 561866 Contact Us For Availability
6
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
6
COVER, EVAPORATOR WPL 605571 Contact Us For Availability
6
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
6
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
7
CLIP WPL 199140 Contact Us For Availability
7
CUP, SHELF WPL 603131 Contact Us For Availability
7
CLIP WPL 602161 Contact Us For Availability
7
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
8
CLIP WPL 632951 Contact Us For Availability
8
TRAY, DIVIDER WPL 605761 Contact Us For Availability
8
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
9
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
9
HANDLE WPL 6013219 Contact Us For Availability
9
CLIP WPL 653581 Contact Us For Availability
9
DOOR, DAIRY WPL 6040613 Contact Us For Availability
10
CLIP WPL 632971 Contact Us For Availability
10
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
10
CLIP WPL 653582 Contact Us For Availability
10
END CAP WPL 579482 Contact Us For Availability
11
FAN SHROUD WPL 606081 Contact Us For Availability
11
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
11
END CAP WPL 579481 Contact Us For Availability
12
CONDENSER WPL RA438714 Contact Us For Availability
12
PAN, STORAGE WPL 605791 Contact Us For Availability
12
CONTROL, TEMPERATURE WPL 5288145 Contact Us For Availability
12
BEZEL WPL 635651 Contact Us For Availability
13
CORD, POWER WPL 528902 Contact Us For Availability
13
COVER WPL 600673 Contact Us For Availability
13
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
13
CLIP WPL 629271 Contact Us For Availability
13
COVER, MEAT PAN WPL 600756 Contact Us For Availability
13
GASKET, DOOR WPL 604627 Contact Us For Availability
14
COVER WPL 632962 Contact Us For Availability
14
SCREW WPL 40001512 Contact Us For Availability
14
SCREW WPL 4060621 Contact Us For Availability
14
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
14
GASKET, DOOR WPL 604628 Contact Us For Availability
15
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
15
SEAL WPL 655181 Contact Us For Availability
15
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
15
HANDLE WPL 5776920 Contact Us For Availability
16
COVER WPL 606402 Contact Us For Availability
16
SHELF WPL 604384 Contact Us For Availability
16
DAMPER WPL 600711 Contact Us For Availability
16
HANDLE WPL 5776922 Contact Us For Availability
17
STUD WPL 545701 Contact Us For Availability
17
DEFLECTOR WPL 601202 Contact Us For Availability
17
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
18
EVAPORATOR WPL RA4362042 Contact Us For Availability
18
ICE CUBE TRAY WPL 601121 Contact Us For Availability
18
MULLION WPL 600209AM Contact Us For Availability
18
DOOR HINGE, LOWER WPL 606308 Contact Us For Availability
19
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
19
WIRE HARNESS WPL 605651 Contact Us For Availability
19
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
19
DOOR HINGE, UPPER WPL 5370918 Contact Us For Availability
20
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
20
FRAME, SHELF WPL 605704 Contact Us For Availability
20
INSERT WPL 635663 Contact Us For Availability
21
GROMMET, BRACKET WPL 569331 Contact Us For Availability
21
GROMMET WPL 545318 Contact Us For Availability
21
LINER, DOOR WPL 604053 Contact Us For Availability
22
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
22
GROMMET WPL 555121 Contact Us For Availability
22
INNER PANEL WPL 600475 Contact Us For Availability
23
HEAT EXCHANGER WPL RA4364544 Contact Us For Availability
23
HANDLE WPL 6013224 Contact Us For Availability
23
HANDLE WPL 6013225 Contact Us For Availability
24
HEATER, DEFROST WPL 6010636 Contact Us For Availability
24
HANDLE WPL 6013218 Contact Us For Availability
24
OUTER PANEL WPL 6003268AM Contact Us For Availability
25
FAN MOTOR WPL 2805613 Contact Us For Availability
25
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
25
HEATER WIRE WPL 601059 Contact Us For Availability
25
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
26
OVERLOAD WPL 632942 Contact Us For Availability
26
INSERT WPL 605713 Contact Us For Availability
26
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
27
PAN, DRAIN WPL 298394 Contact Us For Availability
27
INSERT WPL 572061 Contact Us For Availability
27
MTG CLIP WPL 235114 Contact Us For Availability
27
TAPPING PLATE WPL 606221 Contact Us For Availability
28
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
INSERT WPL 592999 Contact Us For Availability
28
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
29
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
29
INSULATION WPL 601403 Contact Us For Availability
29
SCREW WPL 4030625 Contact Us For Availability
29
RETAINER WPL 652461 Contact Us For Availability
29
SCREW WPL 9986107 Contact Us For Availability
29
SCREW WPL 9986108 Contact Us For Availability
29
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
29
SCREW WPL 9986122 Contact Us For Availability
29
SCREW WPL 998687 Contact Us For Availability
30
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
30
RELAY, START WPL 632932 Contact Us For Availability
30
FOAM INSULATOR, AIR TUNNEL WPL 600921 Contact Us For Availability
30
DOOR SHELF WPL 6003720 Contact Us For Availability
31
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
31
KICKPLATE WPL 601388 Contact Us For Availability
31
DOOR SHELF WPL 6003722 Contact Us For Availability
32
RIVET WPL 263979 Contact Us For Availability
32
SCREW WPL 4000171 Contact Us For Availability
32
SCREW WPL 4030141 Contact Us For Availability
32
SCREW WPL 4050071 Contact Us For Availability
32
KNOB WPL 600613 Contact Us For Availability
32
DOOR SHELF WPL 6003721 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601096 Contact Us For Availability
33
KNOB WPL 600611 Contact Us For Availability
33
DOOR SHELF WPL 6003718 Contact Us For Availability
34
CONDENSER SHROUD WPL 600212 Contact Us For Availability
34
LEG, LEVELING WPL 60128 Contact Us For Availability
34
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
35
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
36
WIRE TIE WPL 575763 Contact Us For Availability
36
NYLON NUT WPL 1953033 Contact Us For Availability
36
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
37
TIMER WPL 541134 Contact Us For Availability
37
PAN, CRISPER WPL 60457211 Contact Us For Availability
37
DOOR STOP WPL 600301 Contact Us For Availability
38
TRAY, DRIP WPL 601019 Contact Us For Availability
38
PAN, MEAT WPL 60466211 Contact Us For Availability
38
DOOR STOP WPL 604191 Contact Us For Availability
39
WASHER WPL 199134 Contact Us For Availability
39
WIRE HARNESS WPL 652727 Contact Us For Availability
39
RACK, WINE WPL 565194 Contact Us For Availability
39
TRAY, BUTTER WPL 299362 Contact Us For Availability
40
GROUND WIRE WPL 296753 Contact Us For Availability
40
TRAY, EGG WPL 600662 Contact Us For Availability
41
RIVET WPL 263972 Contact Us For Availability
41
INSERT WPL 605734 Contact Us For Availability
42
ROD, FRZR CONTROL WPL 600784 Contact Us For Availability
42
SCREW WPL 9986117 Contact Us For Availability
42
TRIM, DOOR SHELF WPL 65151160 Contact Us For Availability
43
SEAL, CRISPER SHELF WPL 601485 Contact Us For Availability
43
TRIM WPL 6008019 Contact Us For Availability
44
GLASS SHELF WPL 6016217 Contact Us For Availability
44
INSERT WPL 605728 Contact Us For Availability
45
GLASS SHELF WPL 6016223 Contact Us For Availability
45
INSERT WPL 6057219 Contact Us For Availability
46
SHELF, CRISPER WPL 600198 Contact Us For Availability
46
INSERT WPL 6057218 Contact Us For Availability
47
PLASTIC TUBE WPL 400812 Contact Us For Availability
47
INSERT WPL 605729 Contact Us For Availability
48
SOCKET, LIGHT WPL 605771 Contact Us For Availability
48
WASHER WPL 542332 Contact Us For Availability
49
SUPPORT WPL 600966 Contact Us For Availability
49
WASHER WPL 521851 Contact Us For Availability
50
SUPPORT WPL 600964 Contact Us For Availability
51
SUPPORT WPL 600965 Contact Us For Availability
52
SUPPORT WPL 601501 Contact Us For Availability
53
SUPPORT WPL 572054 Contact Us For Availability
54
SWITCH, LIGHT WPL 557321 Contact Us For Availability
55
TOP, F.F. COMPARTMENT WPL 6008537 Contact Us For Availability
56
TRIM WPL 6052433 Contact Us For Availability
57
TRIM WPL 6041442 Contact Us For Availability
58
TRIM WPL 652768 Contact Us For Availability
59
TRIM WPL 6045412 Contact Us For Availability
60
TUBE WPL 555131 Contact Us For Availability
61
WASHER, SPRING WPL 420092900 Contact Us For Availability
62
WHEEL WPL 298342 Contact Us For Availability
63
GROUND WIRE WPL 2967528 Contact Us For Availability
64
GROUND WIRE WPL 2967522 Contact Us For Availability
64
WIRE HARNESS WPL 605602 Contact Us For Availability
× ![]()
