Model Whirlpool RNB19EN-3A REFRIGERATOR – Common Parts & Diagrams

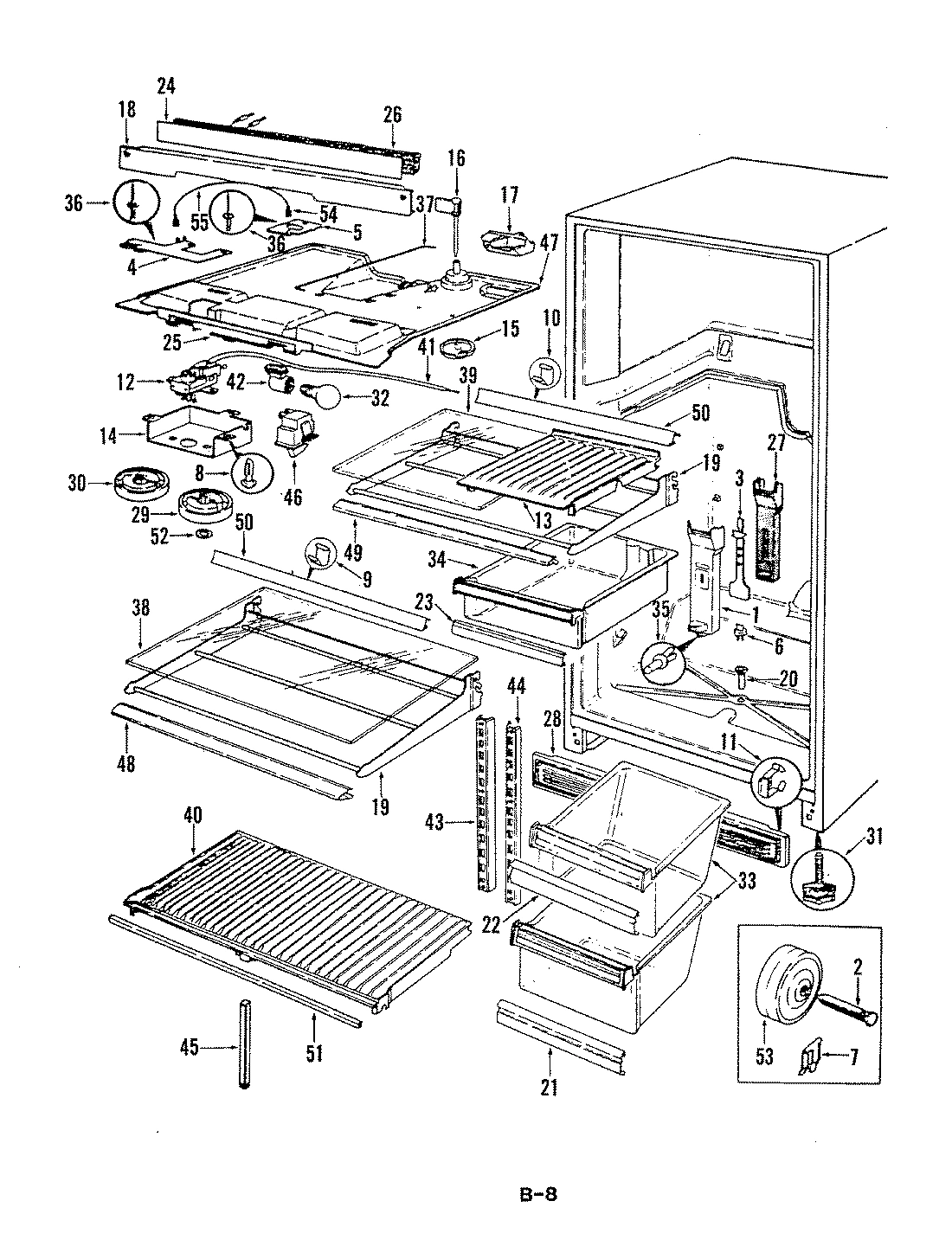

03 - FRESH FOOD COMPARTMENT
01 - FREEZER COMPARTMENT
02 - FRESH FOOD & FREEZER DOOR

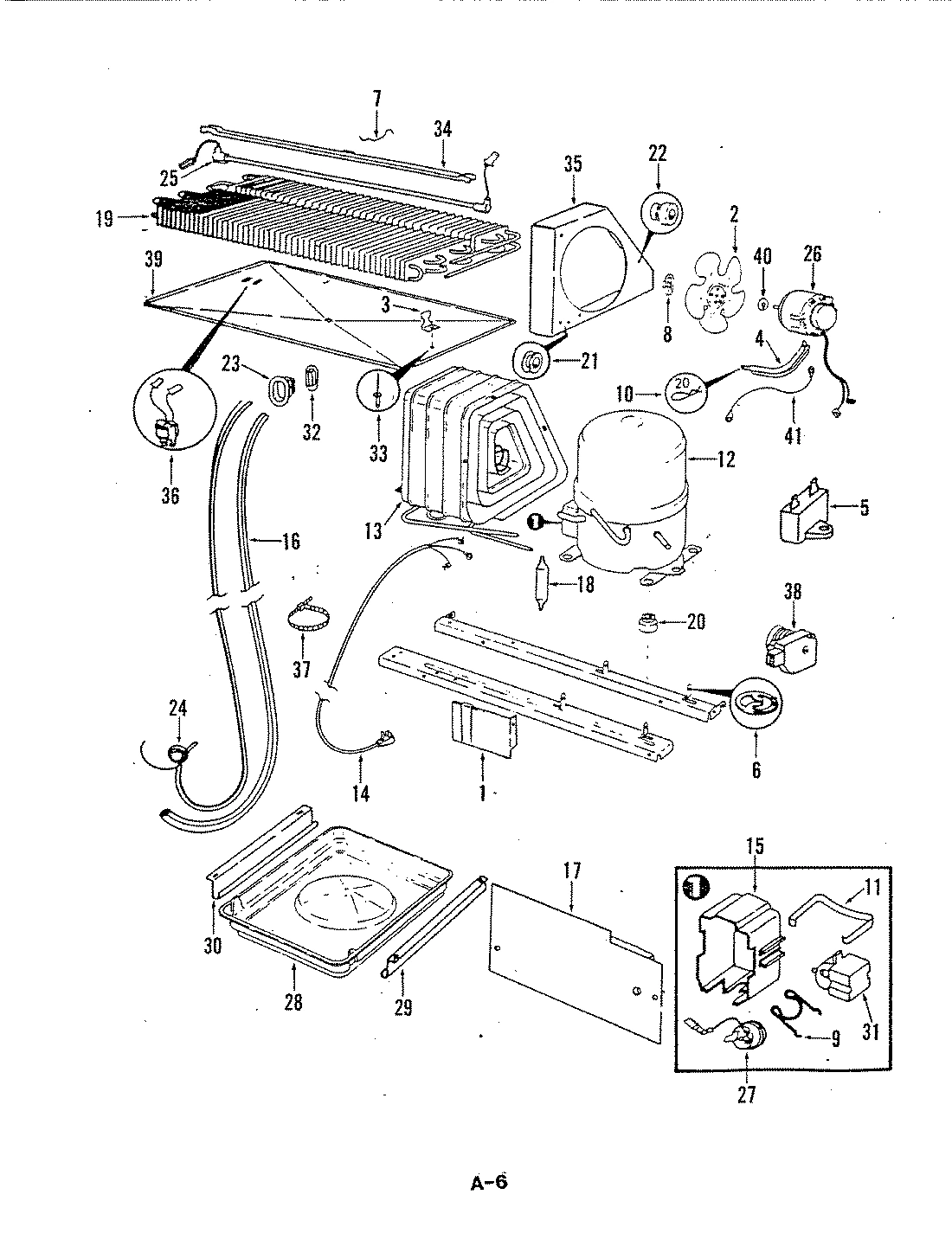

04 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool RNB19EN-3A REFRIGERATOR
1
TUNNEL WPL 600948 Contact Us For Availability
1
TUNNEL, AIR WPL 660443 Contact Us For Availability
1
BUMPER, DOOR WPL 282726 Contact Us For Availability
1
AIR DIVIDER WPL 606392 Contact Us For Availability
2
PIN, WHEEL WPL 298352 Contact Us For Availability
2
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
2
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
2
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
3
DAMPER, AIR TUNNEL WPL 600932 Contact Us For Availability
3
BOTTOM, FRZ. WPL 604742 Contact Us For Availability
3
BUSHING,TOP/CENTER HINGE WPL 660361 Contact Us For Availability
3
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
4
BRACKET, CONTROL WPL 601471 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
PLUG BUTTON, HDLE & DOOR STOP WPL 5578210 Contact Us For Availability
4
BRACKET WPL 600361 Contact Us For Availability
5
BRACKET, LIGHT SOCKET WPL 601472 Contact Us For Availability
5
WASHER, SPRING WPL 420092900 Contact Us For Availability
5
PLUG BUTTON, (WHITE) WPL 5618610 Contact Us For Availability
6
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
6
COVER, EVAPORATOR----NA WPL 605572 Contact Us For Availability
6
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
6
CLIP WPL 621651 Contact Us For Availability
7
CLIP WPL 602161 Contact Us For Availability
7
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
7
CLIP, STOP SCREW WPL 601232 Contact Us For Availability
7
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
8
TRAY, DIVIDER WPL 605762 Contact Us For Availability
8
CLIP, STOP SCREW WPL 562093 Contact Us For Availability
8
SPEEDNUT WPL 199141 Contact Us For Availability
9
CLIP WPL 653582 Contact Us For Availability
9
HANDLE WPL 6013219 Contact Us For Availability
9
DOOR, DAIRY WPL 6040613 Contact Us For Availability
9
CLIP WPL 632951 Contact Us For Availability
10
CLIP WPL 653581 Contact Us For Availability
10
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
10
END CAP WPL 579482 Contact Us For Availability
10
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
11
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
11
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
11
END CAP WPL 579481 Contact Us For Availability
11
CLIP WPL 632971 Contact Us For Availability
12
CONTROL, TEMPERATURE WPL 5288145 Contact Us For Availability
12
PAN, ICE WPL 606531 Contact Us For Availability
12
NAMEPLATE WPL 657911 Contact Us For Availability
13
COVER, MEAT PAN WPL 600754 Contact Us For Availability
13
GASKET, DOOR WPL 604625 Contact Us For Availability
13
CONDENSER WPL RA438714 Contact Us For Availability
14
COVER, TEMPERATURE CONTROL WPL 600831 Contact Us For Availability
14
SCREW WPL 40001512 Contact Us For Availability
14
SCREW WPL 4060621 Contact Us For Availability
14
PLUG WPL 603211 Contact Us For Availability
14
GASKET, DOOR WPL 604626 Contact Us For Availability
14
CORD, POWER WPL 528902 Contact Us For Availability
15
CRANK, FRZR CONTROL WPL 600823 Contact Us For Availability
15
SEAL WPL 655182 Contact Us For Availability
15
HANDLE WPL 5776920 Contact Us For Availability
15
COVER WPL 632962 Contact Us For Availability
16
DAMPER WPL 600711 Contact Us For Availability
16
SHELF WPL 6043810 Contact Us For Availability
16
HANDLE WPL 5776925 Contact Us For Availability
16
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
17
DEFLECTOR WPL 601202 Contact Us For Availability
17
STUD WPL 545701 Contact Us For Availability
17
DOOR HINGE, CENTER WPL 600312 Contact Us For Availability
17
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
17
COVER WPL 660322 Contact Us For Availability
18
DIVIDER, MULLION (WHT) WPL 657972WW Contact Us For Availability
18
ICE CUBE TRAY WPL 601121 Contact Us For Availability
18
DOOR HINGE, LOWER WPL 606308 Contact Us For Availability
19
FRAME, SHELF WPL 605707 Contact Us For Availability
19
TRIM WPL 6041434 Contact Us For Availability
19
WIRE HARNESS WPL 605651 Contact Us For Availability
19
EVAPORATOR WPL RA4362041 Contact Us For Availability
20
GROMMET WPL 545318 Contact Us For Availability
20
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
21
HANDLE WPL 6013220 Contact Us For Availability
21
INNER PANEL WPL 6004222 Contact Us For Availability
21
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
22
HANDLE WPL 6013222 Contact Us For Availability
22
INNER PANEL WPL 6004923 Contact Us For Availability
22
GROMMET, BRACKET WPL 569331 Contact Us For Availability
23
HANDLE WPL 6013218 Contact Us For Availability
23
OUTER PANEL WPL 6003331WW Contact Us For Availability
23
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
24
HEATER WIRE WPL 601058 Contact Us For Availability
24
OUTER PANEL WPL 6003257WW Contact Us For Availability
25
INSERT WPL 605713 Contact Us For Availability
25
PIN, CENTER HINGE WPL 600354 Contact Us For Availability
25
HEATER, DEFROST WPL 6010635 Contact Us For Availability
26
INSULATION WPL 601402 Contact Us For Availability
26
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
26
FAN MOTOR WPL 2805613 Contact Us For Availability
27
FOAM INSULATOR, AIR TUNNEL WPL 600921 Contact Us For Availability
27
TAPPING PLATE WPL 606221 Contact Us For Availability
27
OVERLOAD WPL 632942 Contact Us For Availability
28
KICKPLATE WPL 601387 Contact Us For Availability
28
SCREW WPL 4020777 Contact Us For Availability
28
SCREW WPL 4030625 Contact Us For Availability
28
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
28
SCREW WPL 9986107 Contact Us For Availability
28
SCREW WPL 9986108 Contact Us For Availability
28
SCREW,DOOR LINER WPL 998612 Contact Us For Availability
28
SCREW WPL 9986122 Contact Us For Availability
28
SCREW WPL 998687 Contact Us For Availability
28
PAN, DRAIN WPL 298394 Contact Us For Availability
29
KNOB WPL 600613 Contact Us For Availability
29
SPACER, CENTER HINGE WPL 600341 Contact Us For Availability
29
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
30
KNOB WPL 600611 Contact Us For Availability
30
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
30
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
31
LEG, LEVELING WPL 60128 Contact Us For Availability
31
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
31
RETAINER, MAIN WIRE HARNESS WPL 601772 Contact Us For Availability
31
RELAY, START WPL 632932 Contact Us For Availability
32
NUT WPL 658181 Contact Us For Availability
32
DOOR STOP WPL 600301 Contact Us For Availability
32
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
33
PAN, STORAGE WPL 60457218 Contact Us For Availability
33
DOOR STOP WPL 604191 Contact Us For Availability
33
RIVET WPL 263979 Contact Us For Availability
33
SCREW WPL 4000171 Contact Us For Availability
33
SCREW WPL 4050071 Contact Us For Availability
33
SCREW WPL 4080151 Contact Us For Availability
34
PAN, MEAT WPL 60466210 Contact Us For Availability
34
TRAY, BUTTER WPL 299362 Contact Us For Availability
34
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
35
TRAY, EGG WPL 600662 Contact Us For Availability
35
CONDENSER SHROUD WPL 600212 Contact Us For Availability
36
RIVET WPL 263972 Contact Us For Availability
36
INSERT WPL 605734 Contact Us For Availability
36
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
37
ROD WPL 600783 Contact Us For Availability
37
SCREW WPL 9986117 Contact Us For Availability
37
WIRE TIE WPL 575763 Contact Us For Availability
38
GLASS SHELF WPL 655986 Contact Us For Availability
38
TRIM, DOOR SHELF WPL 65151130 Contact Us For Availability
38
TIMER, DEFROST WPL 653221 Contact Us For Availability
39
GLASS SHELF WPL 655987 Contact Us For Availability
39
TRIM, DOOR SHELF WPL 65151142 Contact Us For Availability
39
TRAY, DRIP WPL 601018 Contact Us For Availability
40
SHELF, CRISPER WPL 600196 Contact Us For Availability
40
TRIM, DOOR SHELF WPL 65151154 Contact Us For Availability
40
WASHER WPL 199134 Contact Us For Availability
40
WIRE HARNESS WPL 605668 Contact Us For Availability
41
PLASTIC TUBE WPL 400812 Contact Us For Availability
41
TRIM, DOOR SHELF WPL 6515166 Contact Us For Availability
42
SOCKET, LIGHT WPL 605771 Contact Us For Availability
42
WASHER WPL 542332 Contact Us For Availability
43
SUPPORT WPL 600964 Contact Us For Availability
43
WASHER WPL 521851 Contact Us For Availability
44
SUPPORT WPL 600965 Contact Us For Availability
45
SHELF SUPPORT WPL 658161 Contact Us For Availability
46
SWITCH, LIGHT WPL 557321 Contact Us For Availability
47
TOP, F.F. COMPARTMENT WPL 6008536 Contact Us For Availability
48
TRIM WPL 6052412 Contact Us For Availability
49
TRIM WPL 6041419 Contact Us For Availability
50
TRIM WPL 6527622 Contact Us For Availability
51
TRIM WPL 604545 Contact Us For Availability
53
WHEEL WPL 298342 Contact Us For Availability
54
GROUND WIRE WPL 2967528 Contact Us For Availability
55
GROUND WIRE WPL 2967522 Contact Us For Availability
55
WIRE HARNESS WPL 605601 Contact Us For Availability
× ![]()
