Model Whirlpool RMC275PDQ2 27`` BUILT-IN ELECTRIC COMBO SENSOR/SC – Common Parts & Diagrams
04 - LATCH
09 - TOP VENTING, OPTIONAL

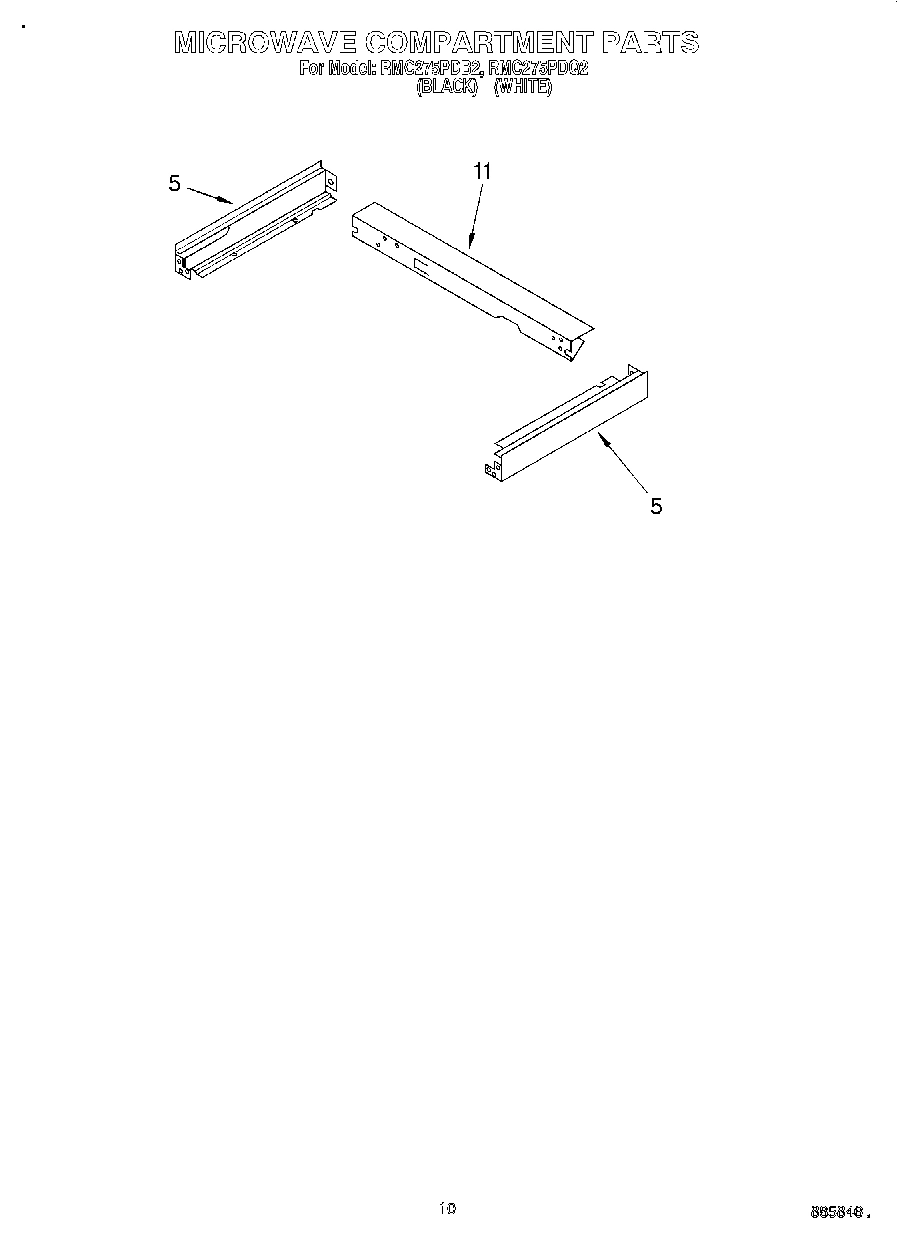

08 - MICROWAVE COMPARTMENT

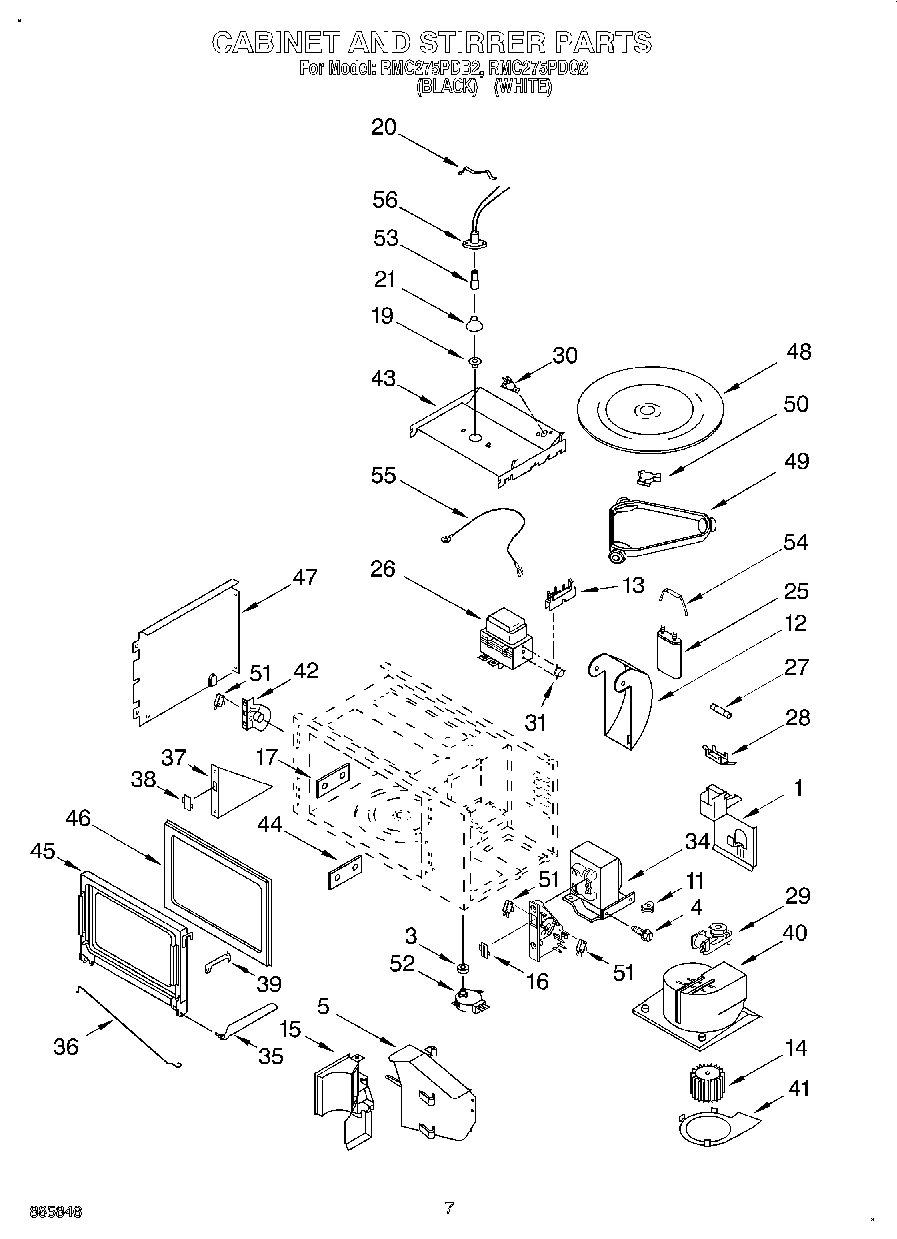

06 - CABINET AND STIRRER

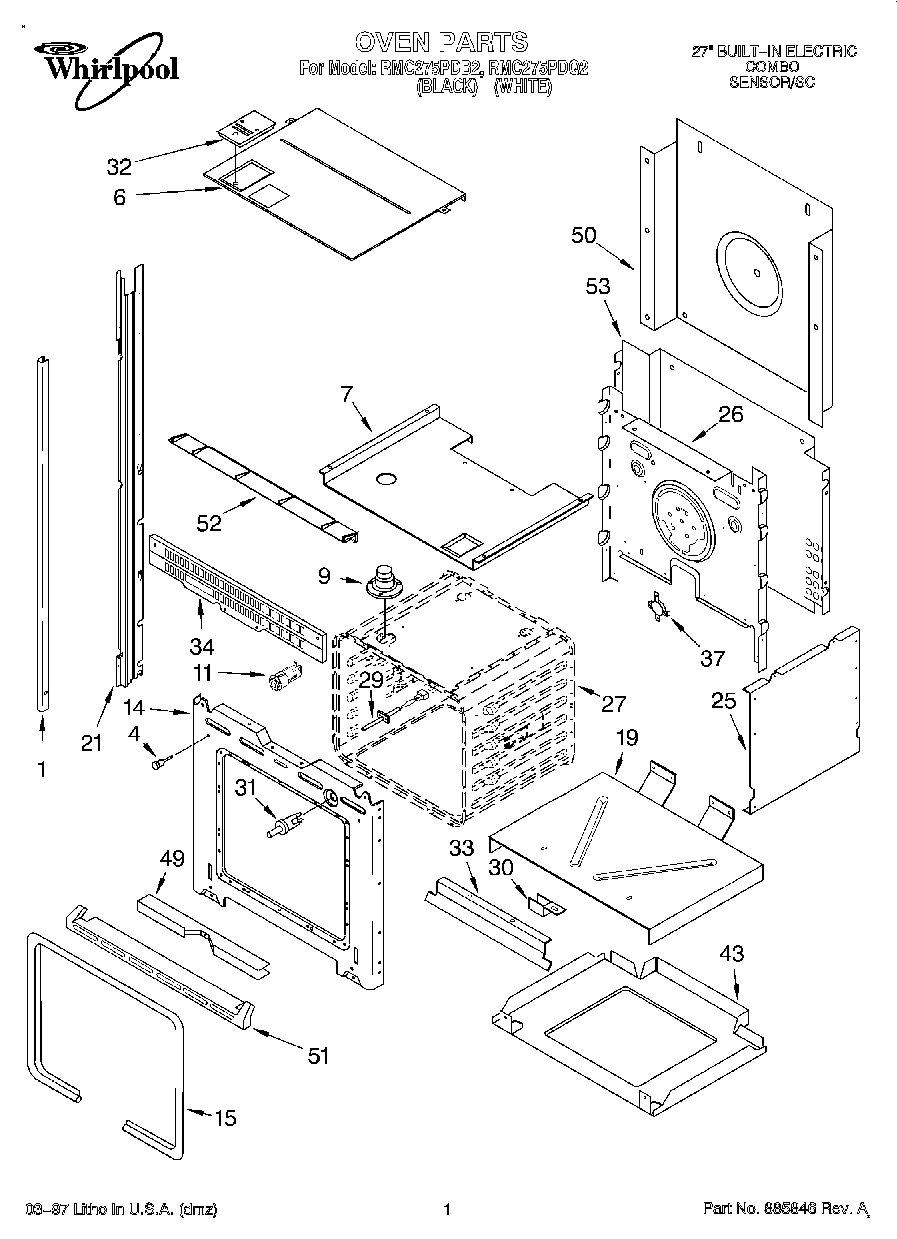

01 - OVEN

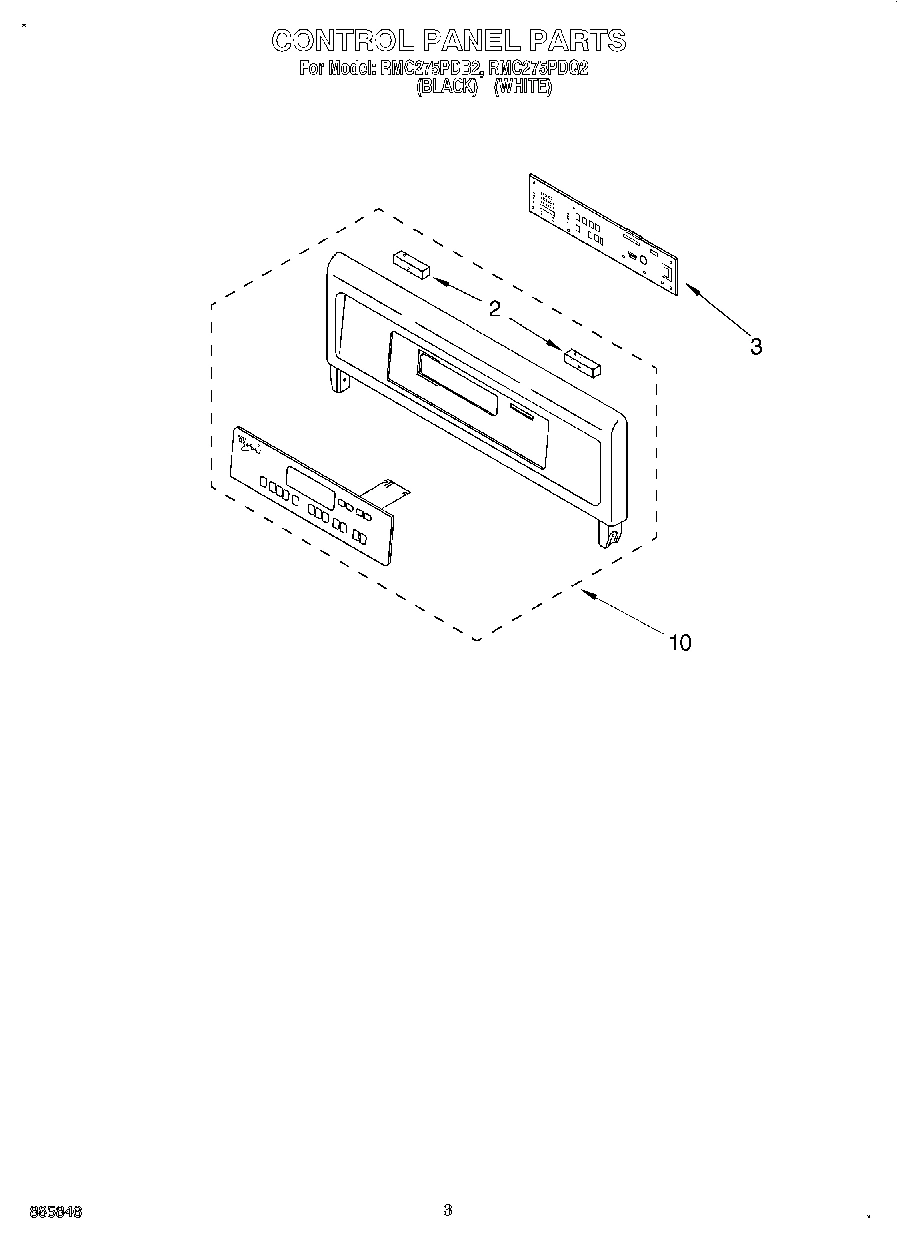

02 - CONTROL PANEL, LITERATURE

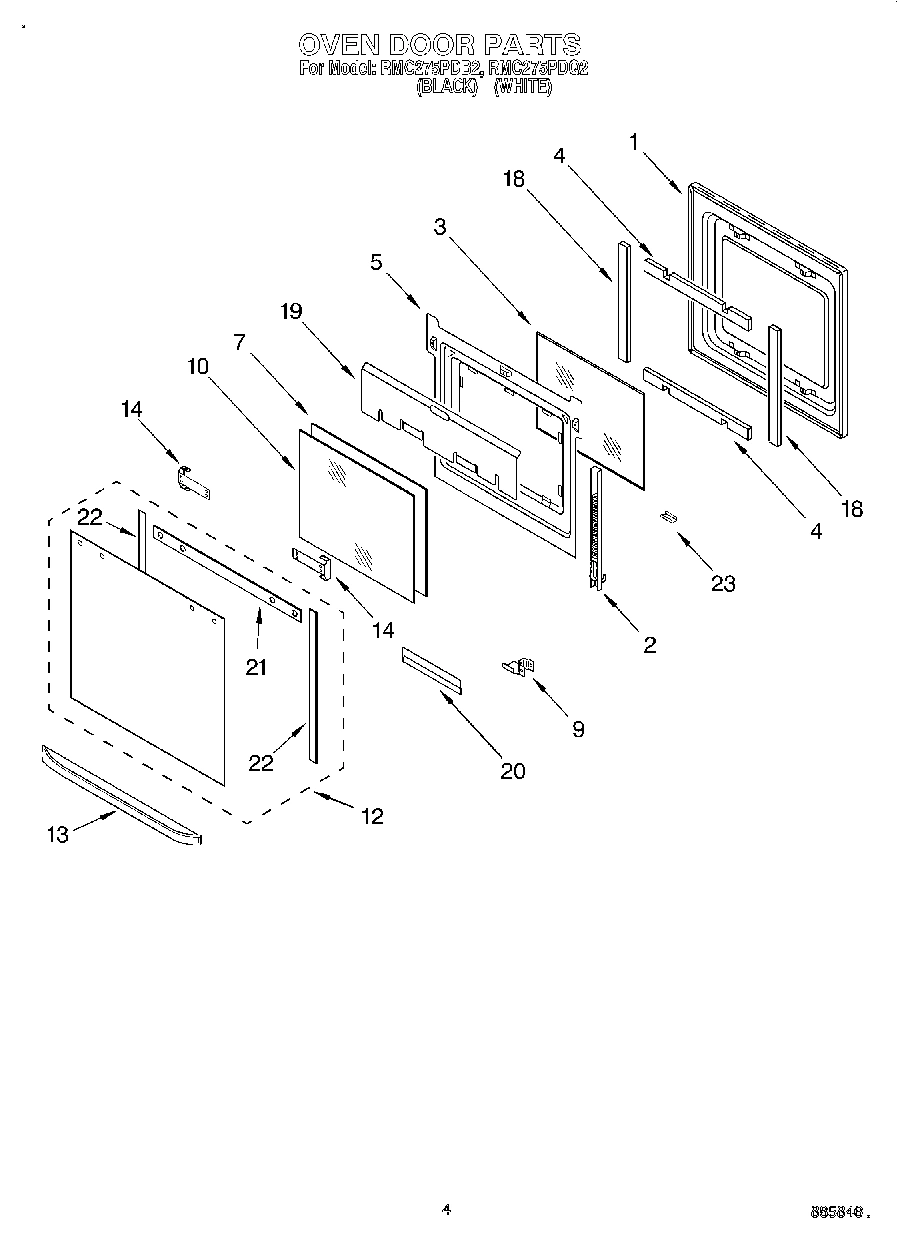

03 - OVEN DOOR

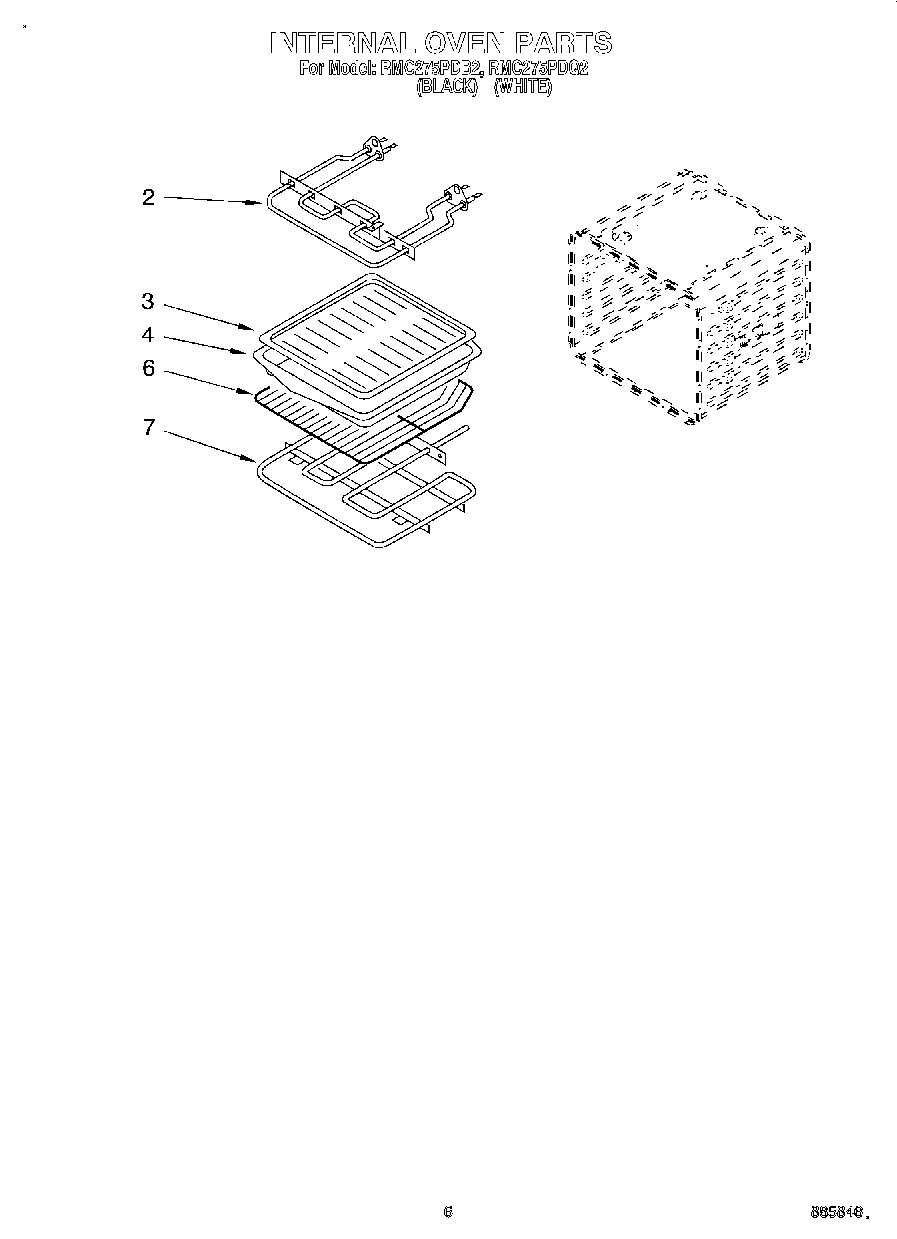

05 - INTERNAL OVEN

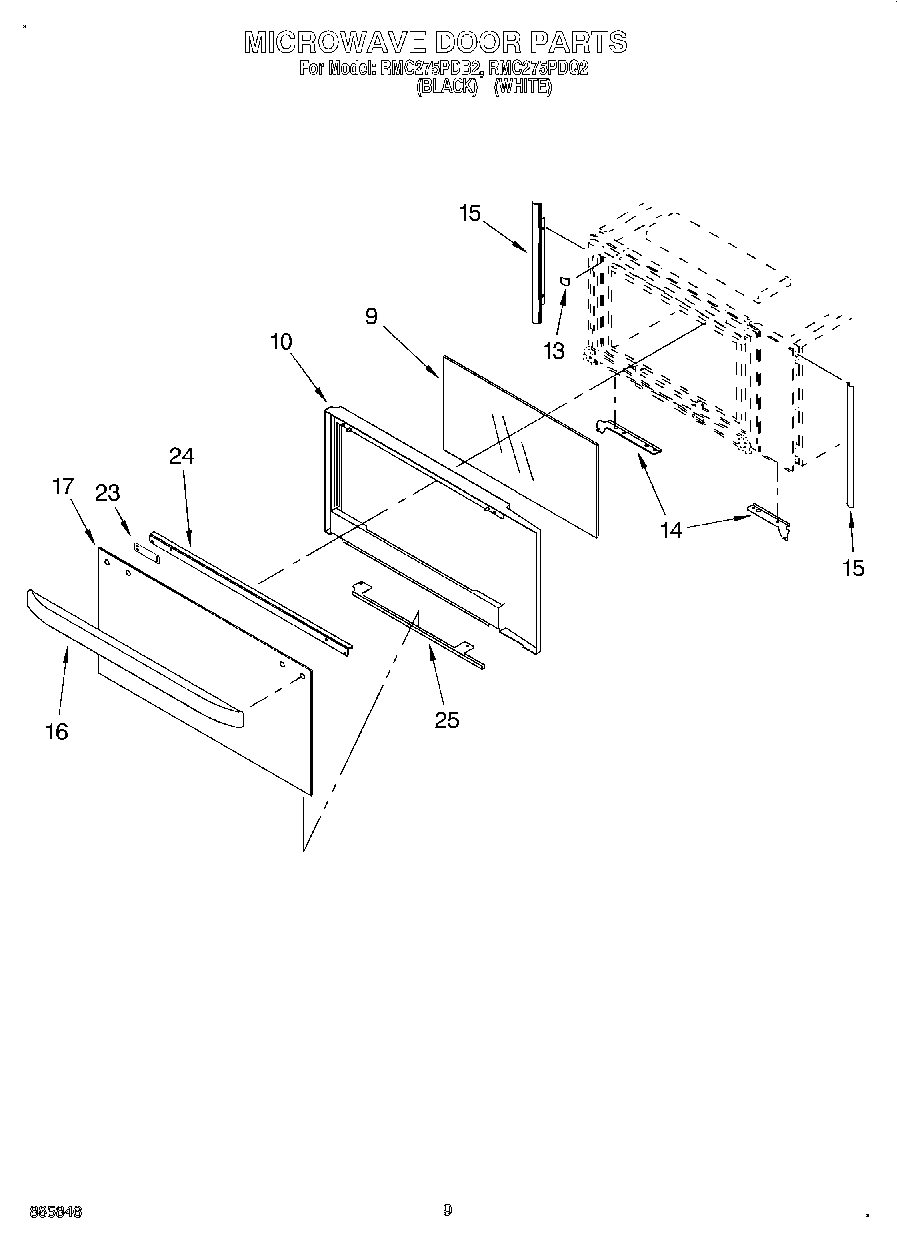

07 - MICROWAVE DOOR
Common parts from model Whirlpool RMC275PDQ2 27`` BUILT-IN ELECTRIC COMBO SENSOR/SC
Use & Care Guide (Microwave) WPL LIT4448978 Contact Us For Availability
Use & Care Guide (Oven) WPL LIT4449869 Contact Us For Availability
Installation Instructions WPL LIT4450412 Contact Us For Availability
Cooking Guide (Label) WPL LIT4450785 Contact Us For Availability
Tech Sheet WPL LIT4454772 Contact Us For Availability
1
Bracket, Capacitor WPL 4375299 Contact Us For Availability
1
Trim, Side (Screw) (White & Almond) WPL 4449041 Contact Us For Availability
1
Trim, Side (RH Black) WPL 4450856 Contact Us For Availability
1
Trim, Side (RH White) WPL 4450857 Contact Us For Availability
1
Trim, Side (LH Black) WPL 4450859 Contact Us For Availability
1
Trim, Side (LH White) WPL 4450860 Contact Us For Availability
1
Door Liner WPL 4450428 Contact Us For Availability
2
Gasket WPL 4450356 Contact Us For Availability
3
Rubber Ring WPL 4375037 Contact Us For Availability
3
Microcomputer WPL 4448877 Contact Us For Availability
4
Screw WPL 4375038 Contact Us For Availability
4
Insulation, Top and Bottom Door WPL 4448679 Contact Us For Availability
5
Air Duct, Magnetron WPL 4375314 Contact Us For Availability
5
Retainer, Glass WPL 4450422 Contact Us For Availability
6
Rack, Oven WPL 4448715 Contact Us For Availability
6
Divider, Vent WPL 4451053 Contact Us For Availability
7
Partition WPL 4451165 Contact Us For Availability
9
Tube, Vent WPL 4449009 Contact Us For Availability
9
Retainer, Glass WPL 4450470 Contact Us For Availability
9
Glass, Middle WPL 4450834 Contact Us For Availability
10
Control Panel Assy W/Membrane Switch (Black M WPL 4451066 Contact Us For Availability
10
Control Panel Assy W/Membrane Switch (White M WPL 4451067 Contact Us For Availability
10
Frame, Door WPL 4450945 Contact Us For Availability
11
Rear Channel WPL 4449702 Contact Us For Availability
11
Damper WPL 4375315 Contact Us For Availability
12
Duct, Inlet WPL 4375260 Contact Us For Availability
12
Door Glass (Black Model) WPL 4450689 Contact Us For Availability
12
Door Glass (White Model) WPL 4451212 Contact Us For Availability
13
Insulation, Switch WPL 4375316 Contact Us For Availability
13
Tape, Foam WPL 4450265 Contact Us For Availability
14
Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability
14
Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability
14
Bracket, Handle WPL 4450813 Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Fan Wheel WPL 4375322 Contact Us For Availability
14
Frame, Front WPL 4450416 Contact Us For Availability
15
Filler, Side WPL 4449083 Contact Us For Availability
15
Duct, Air WPL 4375317 Contact Us For Availability
16
Block, Slide WPL 4375264 Contact Us For Availability
16
Handle, Door (Black Model) WPL 4448405 Contact Us For Availability
16
Handle, Door (White Model) WPL 4448406 Contact Us For Availability
17
Cover Plate, Upper WPL 4375248 Contact Us For Availability
17
Glass, Outer (Black Model) WPL 4450379 Contact Us For Availability
17
Glass, Outer (White Model) WPL 4450380 Contact Us For Availability
19
Support, Insulation WPL 4450541 Contact Us For Availability
19
Shield, Heat WPL 4450361 Contact Us For Availability
20
Retainer, Glass WPL 4449031 Contact Us For Availability
21
Seal, Door Top WPL 4450836 Contact Us For Availability
22
Seal, Side WPL 4450838 Contact Us For Availability
23
Retainer, Clip (Black Model) WPL 4450863 Contact Us For Availability
23
Retainer, Clip (White Model) WPL 4450864 Contact Us For Availability
23
Spacer WPL 4451055 Contact Us For Availability
24
Screw WPL 4451040 Contact Us For Availability
24
Bracket, Handle WPL 4450960 Contact Us For Availability
25
Side, Module (R.H. & L.H.) WPL 4450528 Contact Us For Availability
25
Clip, Glass (Black Model) WPL 4450021 Contact Us For Availability
25
Clip, Glass (White Model) WPL 4450022 Contact Us For Availability
26
Back, Module WPL 4454728 Contact Us For Availability
27
Liner, Oven (Not a Serviceable Part) WPL ARI123647A Contact Us For Availability
29
Sensor WPL 4450026 Contact Us For Availability
30
Thermostat WPL 4375279 Contact Us For Availability
30
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
31
Switch, Door WPL 4450819 Contact Us For Availability
32
Vent Box Assy WPL 4449369 Contact Us For Availability
33
Deflector, Vent WPL 4450280 Contact Us For Availability
37
Bracket, Hinge (Left) WPL 4375327 Contact Us For Availability
37
Bracket, Hinge (Right) WPL 4375328 Contact Us For Availability
37
Thermostat (TOD) (Temp.) SPST WPL 4450334 Contact Us For Availability
38
Inlet WPL 4375329 Contact Us For Availability
39
Door Strap WPL 4375331 Contact Us For Availability
40
Fan Cap WPL 4375333 Contact Us For Availability
41
Fan Cap Bottom WPL 4375334 Contact Us For Availability
43
Isolation Plate WPL 4375337 Contact Us For Availability
43
Base, Chassis WPL 4450526 Contact Us For Availability
44
Cover Plate WPL 4375338 Contact Us For Availability
45
Plate, Door WPL 4375339 Contact Us For Availability
46
Inner Frame WPL 4375340 Contact Us For Availability
47
Side Plate (Right) WPL 4375341 Contact Us For Availability
47
Side Plate (Left) WPL 4375342 Contact Us For Availability
49
Ring Assembly WPL 4375344 Contact Us For Availability
50
Cover, Back WPL 4450543 Contact Us For Availability
51
Trim, Bottom (Screw) WPL 4159465 Contact Us For Availability
51
Trim, Bottom (Black Model) WPL 4448475 Contact Us For Availability
51
Trim, Bottom (White Model) WPL 4448476 Contact Us For Availability
52
Vent, Control WPL 4450787 Contact Us For Availability
53
Insulation, Wrap WPL 4449315 Contact Us For Availability
53
Insulation, Bottom WPL 4450282 Contact Us For Availability
53
Insulation, Back WPL 4450364 Contact Us For Availability
53
Chassis, Back WPL 4450402 Contact Us For Availability
55
Cable WPL 4375350 Contact Us For Availability
56
Holder, Lamp WPL 4375351 Contact Us For Availability
× ![]()
