Model Whirlpool RM770PXBQ1 – Common Parts & Diagrams

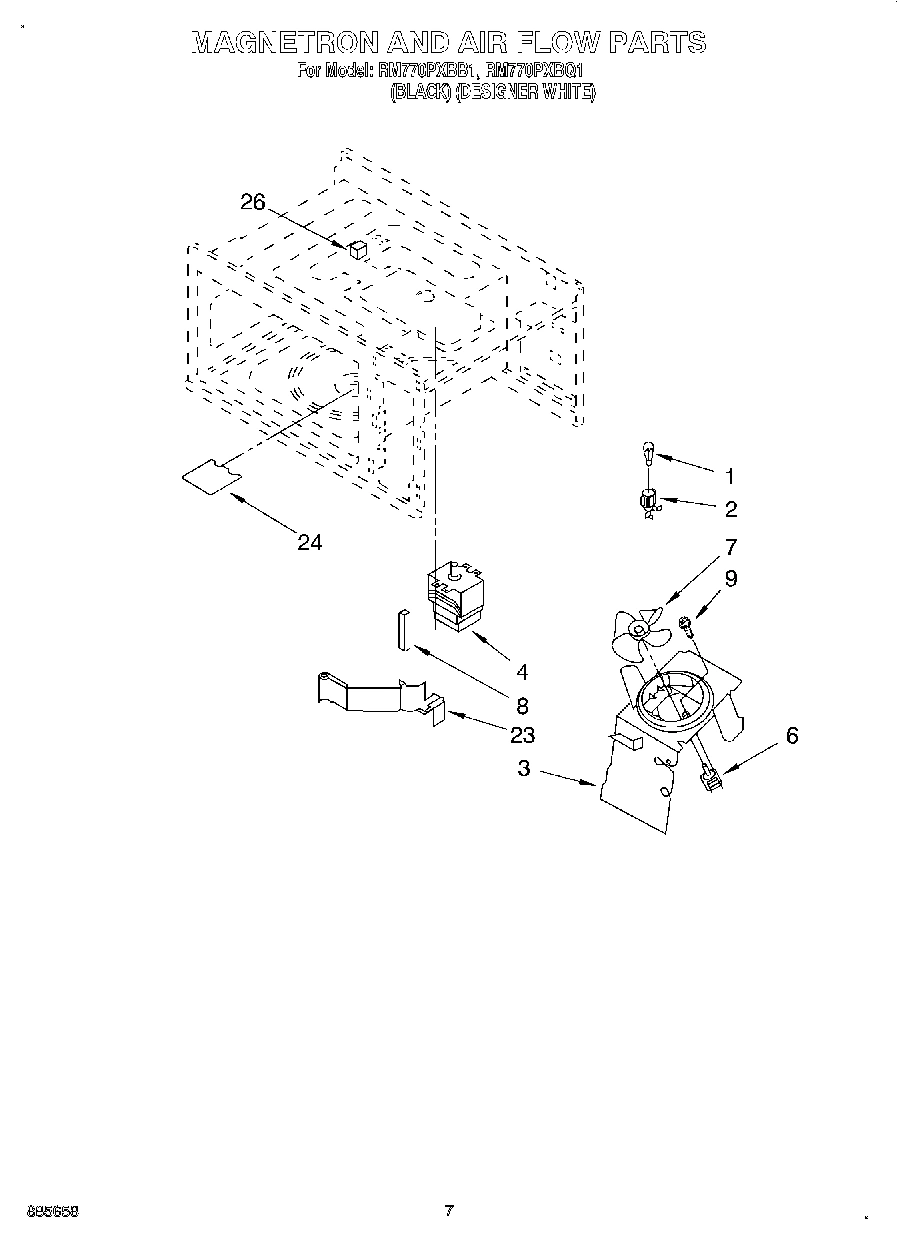

05 - MAGNETRON AND AIR FLOW, OPTIONAL

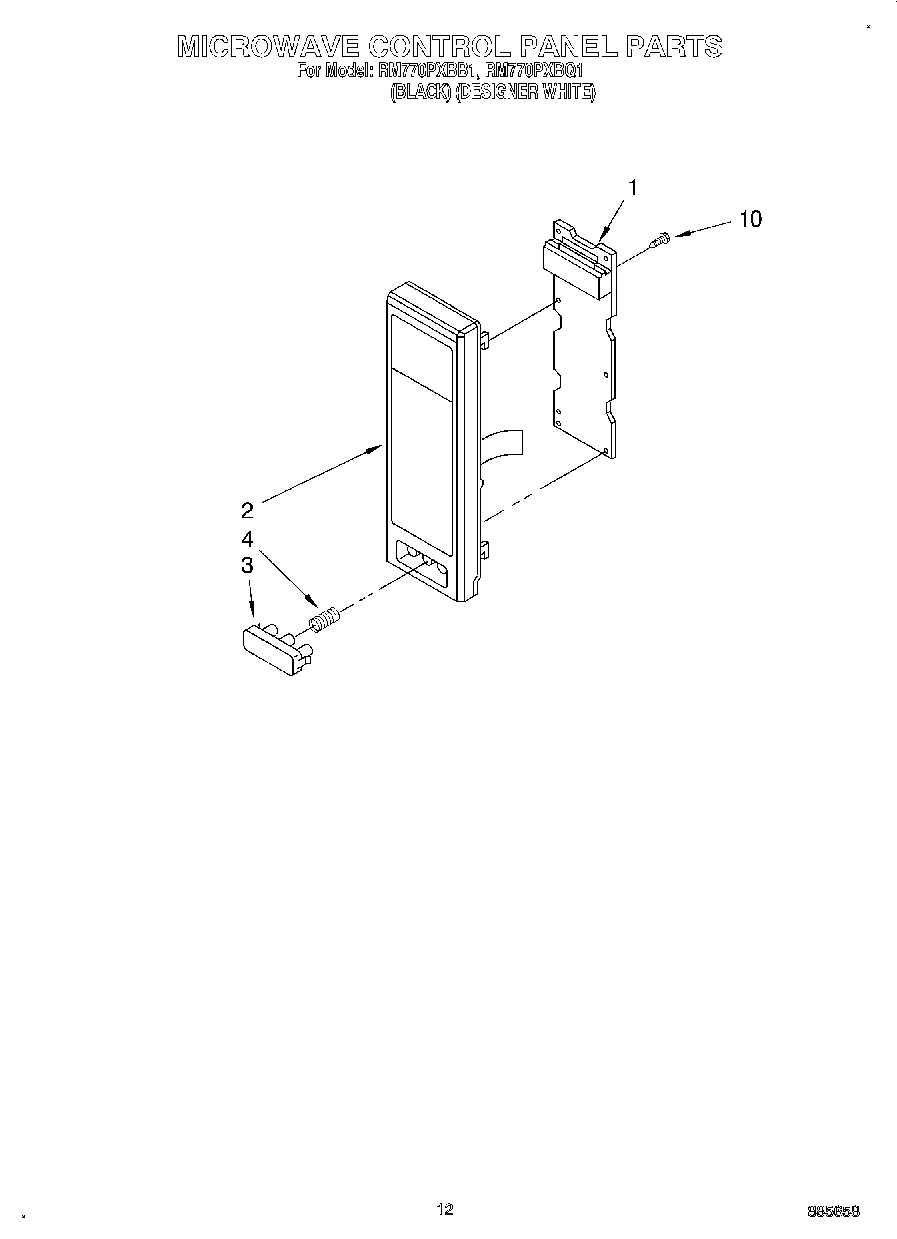

09 - MICROWAVE CONTROL PANEL
02 - OVEN
04 - SUPPORT MODULE AND LATCH
01 - OVEN CONTROL PANEL, LITERATURE
03 - OVEN DOOR
07 - CABINET
06 - CAVITY AND TURNTABLE
08 - MICROWAVE COMPARTMENT
12 - UNIT
10 - DOOR AND LATCH
11 - WIRING HARNESS
Common parts from model Whirlpool RM770PXBQ1
Installation Instructions WPL LIT3184427 Contact Us For Availability
Tech Sheet WPL LIT3184428 Contact Us For Availability
Use & Care Guide (Lower Oven) WPL LIT3188189 Contact Us For Availability
Use & Care Guide (Microwave) WPL LIT3188190 Contact Us For Availability
1
Switch and Fuse Assy. WPL 4365543 Contact Us For Availability
1
Microcomputer WPL 4365559 Contact Us For Availability
1
Trim, Door (2) (Black Model) WPL 3187873 Contact Us For Availability
1
Trim, Door (2) (White Model) WPL 3187876 Contact Us For Availability
1
Liner, Oven WPL 3185562 Contact Us For Availability
1
End Cap L.H. (White Model) WPL 3188745 Contact Us For Availability
1
(End Cap R.H.) (White Model) WPL 3188746 Contact Us For Availability
1
End Cap L.H. (Black Model) WPL 3188747 Contact Us For Availability
1
(End Cap R.H.) (Black Model) WPL 3188748 Contact Us For Availability
1
Screw WPL 3178001 Contact Us For Availability
1
Liner, Door WPL 3185497 Contact Us For Availability
1
Sensor, Absolute Humidity WPL 4365549 Contact Us For Availability
1
Frame, Outer (Black Model) WPL 3188360 Contact Us For Availability
1
Frame, Outer (White Model) WPL 3188361 Contact Us For Availability
1
Harness, Wire Main Power WPL 3184975 Contact Us For Availability
2
Control Panel (Black Model) WPL 4365561 Contact Us For Availability
2
Control Panel (White Model) WPL 4365562 Contact Us For Availability
2
Brace, Back WPL 3187369 Contact Us For Availability
2
Trim, Top (Black Model) WPL 3181391 Contact Us For Availability
2
Trim, Top (White Model) WPL 3188349 Contact Us For Availability
2
Gasket, Window WPL 3185462 Contact Us For Availability
2
Screw WPL 4174757 Contact Us For Availability
2
Harness, Wire Main, Microwave WPL 3187144 Contact Us For Availability
3
Push Button (White Model) WPL 4365565 Contact Us For Availability
3
Push Button (Black Model) WPL 4365564 Contact Us For Availability
3
Glass, Clear WPL 3185457 Contact Us For Availability
3
Cabinet, Back WPL 3177623 Contact Us For Availability
3
Trim, Oven Vent WPL 3187367 Contact Us For Availability
3
Thermostat, Magnetron WPL 4313613 Contact Us For Availability
3
Seal, Foam (Top) WPL 3187143 Contact Us For Availability
4
Screw WPL 3148443 Contact Us For Availability
4
Switch, Latch WPL 3178671 Contact Us For Availability
4
Screw (2) WPL 98106 Contact Us For Availability
4
Door, Vent (Black Model) WPL 3181393 Contact Us For Availability
4
Door, Vent (White Model) WPL 3187992 Contact Us For Availability
4
Insulation, Door WPL 3185460 Contact Us For Availability
4
Transformer WPL 4365545 Contact Us For Availability
4
Duct, Sensor WPL 4365557 Contact Us For Availability
4
Screw WPL 3179116 Contact Us For Availability
4
Harness, Wire (Upper Latch) WPL 3183977 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
5
End Trim, Vent Door (White Model, L.H.) WPL 3148471 Contact Us For Availability
5
End Trim, Vent Door Left Hand (Right Hand) (W WPL 3148472 Contact Us For Availability
5
End Trim (Vent Door) Left Hand (Black Model) WPL 3148697 Contact Us For Availability
5
End Trim, Vent Door Left Hand (Right Hand) (B WPL 3148698 Contact Us For Availability
5
Retainer, Insulation WPL 3188815 Contact Us For Availability
5
Screw WPL 4173601 Contact Us For Availability
5
Capacitor WPL 4313605 Contact Us For Availability
5
Rack, Offset WPL 3185367 Contact Us For Availability
5
Latch Lever WPL 4313624 Contact Us For Availability
5
Harness, Wire Microwave Power WPL 4365577 Contact Us For Availability
6
Cabinet, Top WPL 3178143 Contact Us For Availability
6
screw (2) WPL 254225 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Trim, Bottom WPL 3181397 Contact Us For Availability
6
screw (2) WPL 342043 Contact Us For Availability
6
Rectifier WPL 4313671 Contact Us For Availability
6
Cavity, Oven (Not a Serviceable Part) WPL ARI123577A Contact Us For Availability
6
Rack, Oven WPL 3185368 Contact Us For Availability
6
Latch Hook WPL 4313620 Contact Us For Availability
6
Harness, Wire Door Switch (Lower Oven) WPL 3185130 Contact Us For Availability
7
Module, Top WPL 3183748 Contact Us For Availability
7
Handle, Latch WPL 3180409 Contact Us For Availability
7
Screw WPL 3185414 Contact Us For Availability
7
Glass, Control (Black) WPL 3184743 Contact Us For Availability
7
Glass, Control (White Panel) WPL 3184744 Contact Us For Availability
7
Glass, Reflective WPL 3185458 Contact Us For Availability
7
Outer Cabinet (Stainless Model) WPL 4357348 Contact Us For Availability
7
Outer Cabinet (Black Model) WPL 4365554 Contact Us For Availability
7
Outer Cabinet (White Model) WPL 4365555 Contact Us For Availability
8
Side, Cabinet Left & Right Side WPL 3181695 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Knob, Latch Handle WPL 3184039 Contact Us For Availability
8
Latch, Strike WPL 3185438 Contact Us For Availability
8
Base Plate, Left Side WPL 4365552 Contact Us For Availability
8
Standoff, Harness WPL 3179668 Contact Us For Availability
8
Screw WPL 3185383 Contact Us For Availability
9
Tube, Vent WPL 3181699 Contact Us For Availability
9
Retainer, Glass WPL 3185439 Contact Us For Availability
9
Rail, Microwave WPL 3179973 Contact Us For Availability
9
SPST Thermostat WPL 3149652 Contact Us For Availability
9
Seal, Door (Not a Serviceable Part) WPL ARI123578A Contact Us For Availability
10
Screw WPL 4313632 Contact Us For Availability
10
Screw WPL 3185648 Contact Us For Availability
10
Screw WPL 3185647 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
10
Glass, Clear WPL 3185459 Contact Us For Availability
10
Screw, 4 x 16 mm WPL 4357320 Contact Us For Availability
10
Seal, Foam WPL 3184897 Contact Us For Availability
10
Bracket, Element WPL 3182950 Contact Us For Availability
10
Screen, Door (Black) WPL 4313062 Contact Us For Availability
10
Screen, Door (White) WPL 4313076 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
11
Frame, Door (Black Model) WPL 3187850 Contact Us For Availability
11
Frame, Door (White Model) WPL 3187852 Contact Us For Availability
11
Screw WPL 4313663 Contact Us For Availability
11
Bracket, Capacitor WPL 4313681 Contact Us For Availability
11
Choke Cover (White Model) WPL 4313699 Contact Us For Availability
11
Choke Cover (Black Model) WPL 4313700 Contact Us For Availability
12
Support, Module WPL 3180330 Contact Us For Availability
12
Foam-Seal WPL 3187140 Contact Us For Availability
12
Glass, Door (Black Model) WPL 3187868 Contact Us For Availability
12
Glass, Door (White Model) WPL 3187870 Contact Us For Availability
12
Hinge, Lower WPL 4313619 Contact Us For Availability
12
Frame, Door (Not Serviceable) WPL ARI123579A Contact Us For Availability
12
Screw WPL 4174811 Contact Us For Availability
12
H.V. Wire WPL 4313679 Contact Us For Availability
13
Clip, Fastener WPL 3187456 Contact Us For Availability
13
Baffle WPL 3184950 Contact Us For Availability
13
Handle, Door (White Model) WPL 3187944 Contact Us For Availability
13
Handle, Door (Black Model) WPL 3187946 Contact Us For Availability
13
Base Plate, Right Side WPL 4365551 Contact Us For Availability
13
Back, Microwave Compartment WPL 3181694 Contact Us For Availability
13
Sensor, Ground WPL 4365546 Contact Us For Availability
14
Frame, Front WPL 3186950 Contact Us For Availability
14
Controls, Electronic (Black Model) WPL 3169256 Contact Us For Availability
14
Controls, Electronic (White Model) WPL 3169257 Contact Us For Availability
14
Spacer (White Model) WPL 814281 Contact Us For Availability
14
Spacer (Black Model) WPL 814282 Contact Us For Availability
14
Latch, Door (Black Model) WPL 4313652 Contact Us For Availability
14
Latch, Door (White Model) WPL 4313653 Contact Us For Availability
15
Screw (4) WPL 3179776 Contact Us For Availability
15
Seal, Door WPL 3179813 Contact Us For Availability
15
Rail, Chassis (2) WPL 3179972 Contact Us For Availability
15
Spring, Latch WPL 4174992 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
16
Foil-Adhesive Backed WPL 3188633 Contact Us For Availability
16
Seal, Foam WPL 3182051 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
17
Screw WPL 3184042 Contact Us For Availability
17
Bushing WPL 3188599 Contact Us For Availability
17
Screw WPL 4313665 Contact Us For Availability
17
Seal, Foam WPL 3187142 Contact Us For Availability
18
Insulator, Switch WPL 3177923 Contact Us For Availability
18
Screw WPL 4313664 Contact Us For Availability
18
Screw (Black) WPL 4365570 Contact Us For Availability
18
Screw (White) WPL 4365571 Contact Us For Availability
18
Baffle WPL 3181919 Contact Us For Availability
18
Holder, Fuse WPL 4365542 Contact Us For Availability
19
Bottom, Modual WPL 3177621 Contact Us For Availability
19
Rail, Mounting WPL 3184911 Contact Us For Availability
19
Foil-Adhesive WPL 3188635 Contact Us For Availability
19
Hinge, Upper WPL 4365556 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
20
Door, Complete (Black) WPL 4313061 Contact Us For Availability
20
Door, Complete (White) WPL 4313075 Contact Us For Availability
21
Sensor, Heat WPL 3148440 Contact Us For Availability
21
Trim, Control (2) (Black Model) WPL 3184881 Contact Us For Availability
21
Trim, Control (2) (White Model) WPL 3184882 Contact Us For Availability
21
Screw WPL 4164610 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
23
Duct, Exhaust WPL 4365558 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
24
Screw (6) WPL 3179795 Contact Us For Availability
24
Switch, Rocker (Screw) WPL 3149253 Contact Us For Availability
24
Switch, Rocker (Black Model) WPL 3182717 Contact Us For Availability
24
Switch, Rocker (White Model) WPL 3182718 Contact Us For Availability
24
Probe WPL 4365550 Contact Us For Availability
24
Thermostat, Oven WPL 4313674 Contact Us For Availability
25
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
26
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
26
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
26
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
26
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
26
Harvest Gold WPL 261890 Contact Us For Availability
26
Harvest Gold WPL 261891 Contact Us For Availability
26
Toast WPL 285365 Contact Us For Availability
26
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
26
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
26
Platinum WPL 285368 Contact Us For Availability
26
Hardware, Mtg. WPL 3171507 Contact Us For Availability
26
Leveler (Primer) WPL 350941 Contact Us For Availability
26
Screw WPL 4174756 Contact Us For Availability
26
Connector, Slipping WPL 4174898 Contact Us For Availability
26
White WPL 4319146 Contact Us For Availability
26
Almond WPL 4319147 Contact Us For Availability
26
Gray WPL 4319148 Contact Us For Availability
26
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
26
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
26
PAI WPL 786020 Contact Us For Availability
26
WPL 786032 WPL 786032 Contact Us For Availability
26
WPL 799832 WPL 799832 Contact Us For Availability
26
WPL 832985 WPL 832985 Contact Us For Availability
26
WPL 978883 WPL 978883 Contact Us For Availability
26
Back, Module WPL 3177560 Contact Us For Availability
26
Screw WPL 4174826 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
28
Tray, Glass WPL 4313690 Contact Us For Availability
29
Button, Plug WPL 3185085 Contact Us For Availability
29
Support, Turntable WPL 4365526 Contact Us For Availability
30
Button, Plug WPL 3182814 Contact Us For Availability
30
Motor, Turntable WPL 4357340 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
34
Vent, Lower Trim (Screw (2)) WPL 3180022 Contact Us For Availability
34
Vent, Lower Trim (Screw, White) WPL 3188409 Contact Us For Availability
34
Vent, Lower Trim (Black Model) WPL 3188504 Contact Us For Availability
34
Vent, Lower Trim (White Model) WPL 3188505 Contact Us For Availability
35
Vent, Tube (Upper, Female) (White Model) WPL 3181964 Contact Us For Availability
35
Vent, Tube (Upper, Female) (Black Model) WPL 3187388 Contact Us For Availability
36
Vent, Tube (Upper, Male) WPL 3187370 Contact Us For Availability
39
Screw WPL 4159445 Contact Us For Availability
39
Cover, Cap Tube WPL 4168203 Contact Us For Availability
40
Gasket, Turntable WPL 4313642 Contact Us For Availability
41
Screw WPL 4365530 Contact Us For Availability
43
Bottom, Oven Main WPL 3177551 Contact Us For Availability
45
Bracket, Conduit WPL 3177545 Contact Us For Availability
46
Insulation, Oven WPL 3185551 Contact Us For Availability
47
Insulation, Back WPL 3177872 Contact Us For Availability
× ![]()
