Model Whirlpool RM765PXAB1 – Common Parts & Diagrams
10 - DOOR AND LATCH
12 - UNIT

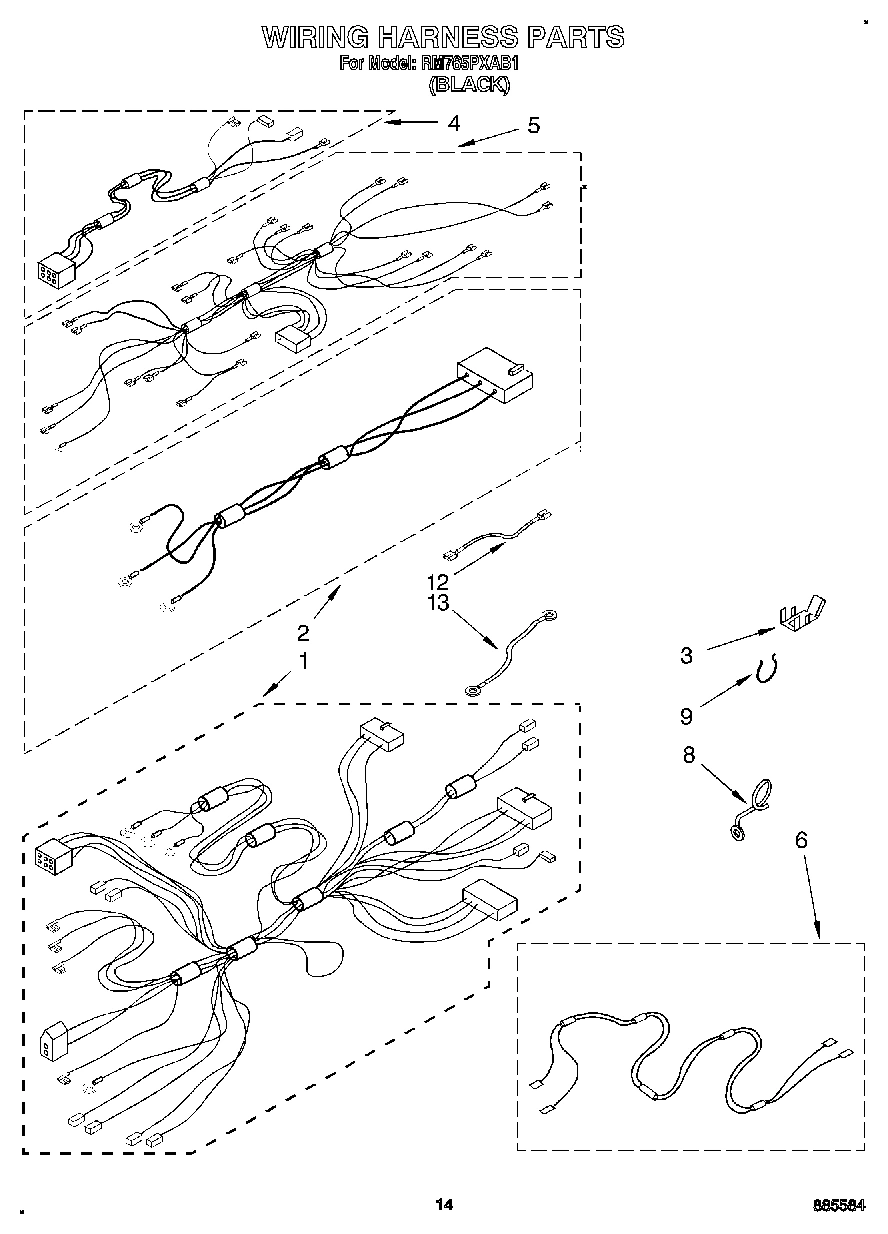

11 - WIRING HARNESS

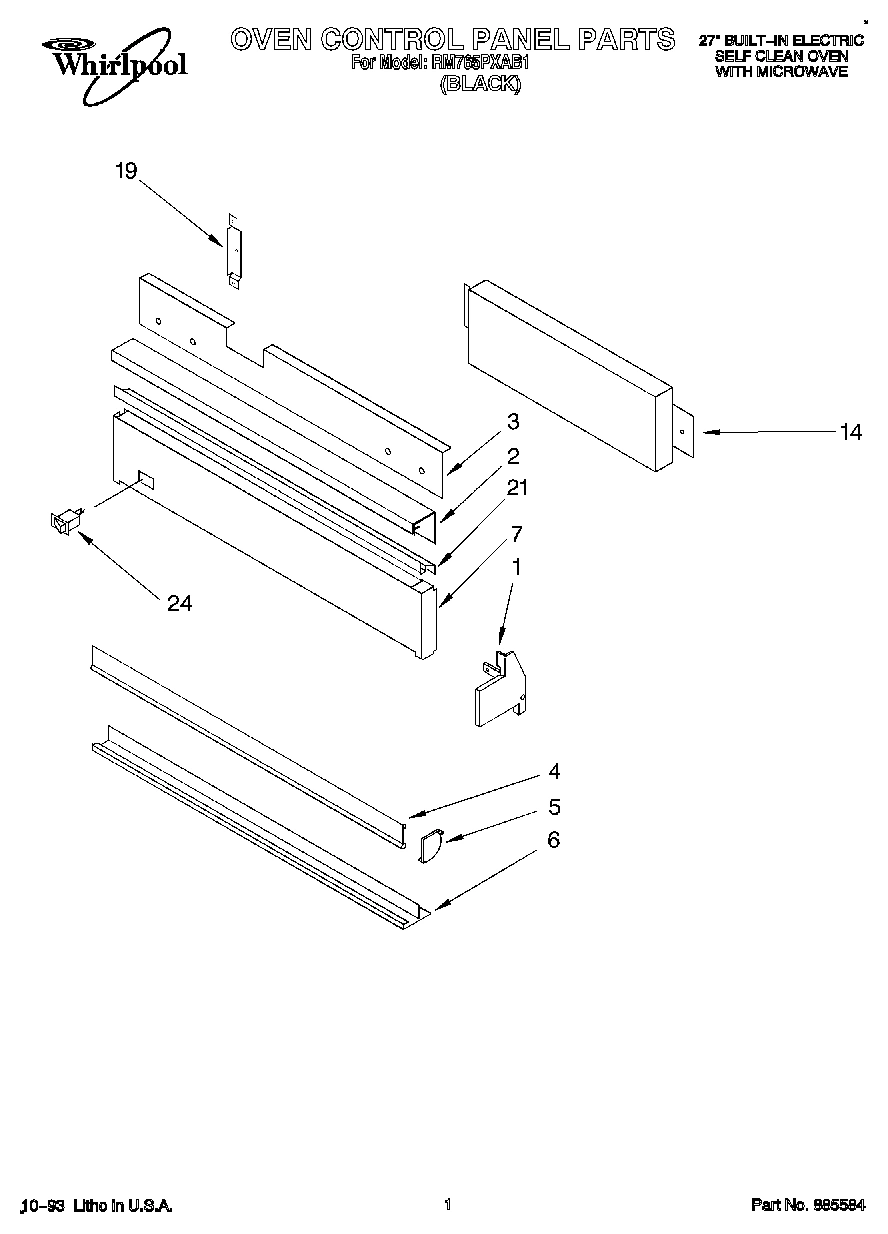

01 - OVEN CONTROL PANEL, LITERATURE

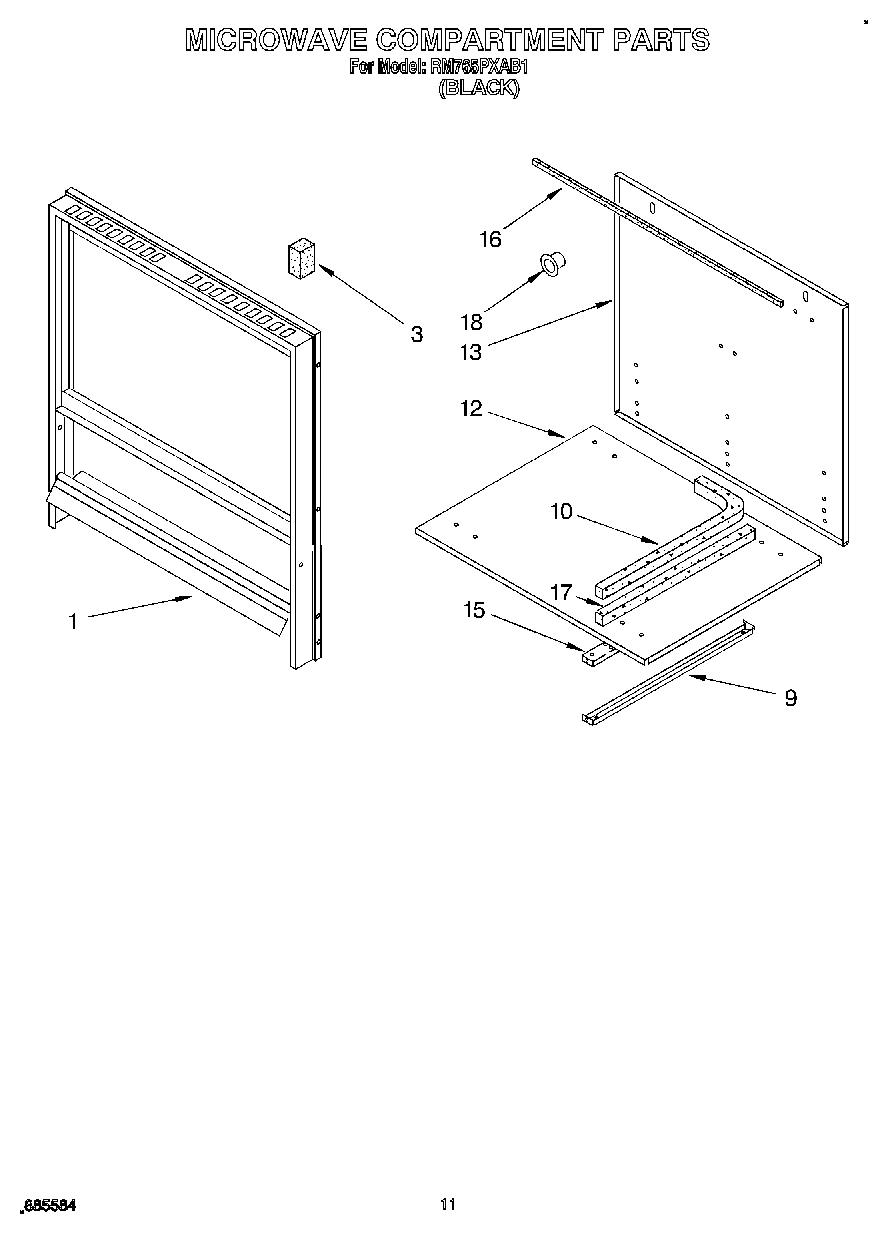

08 - MICROWAVE COMPARTMENT

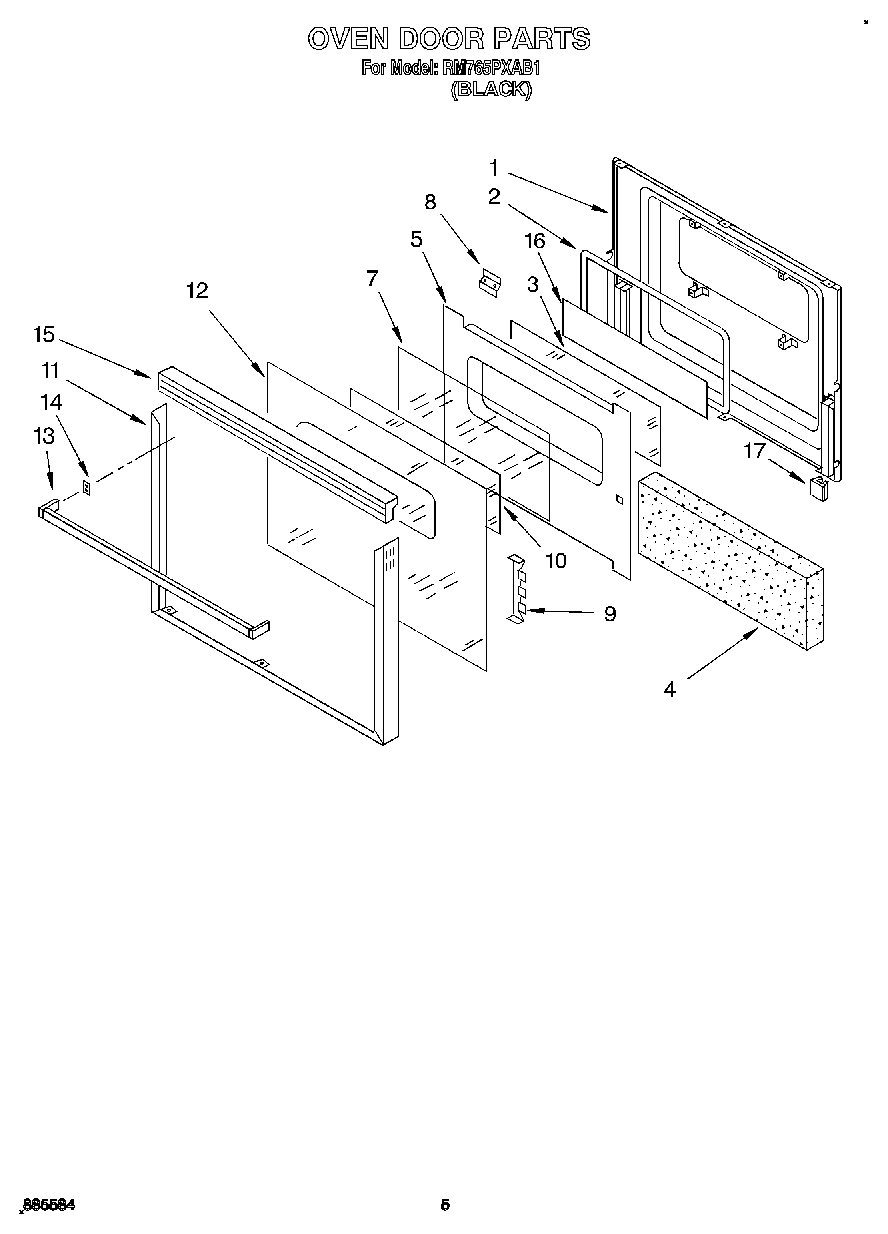

03 - OVEN DOOR

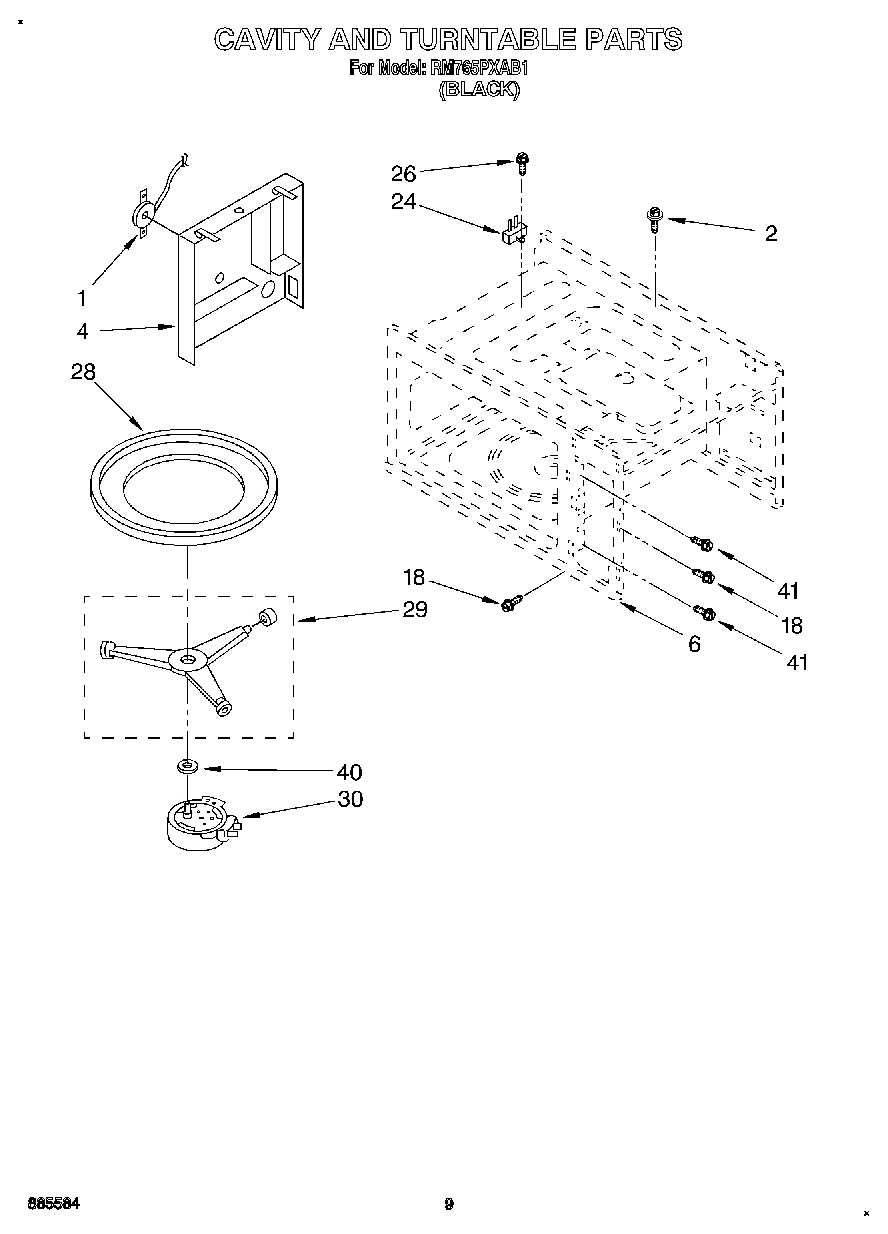

06 - CAVITY AND TURNTABLE

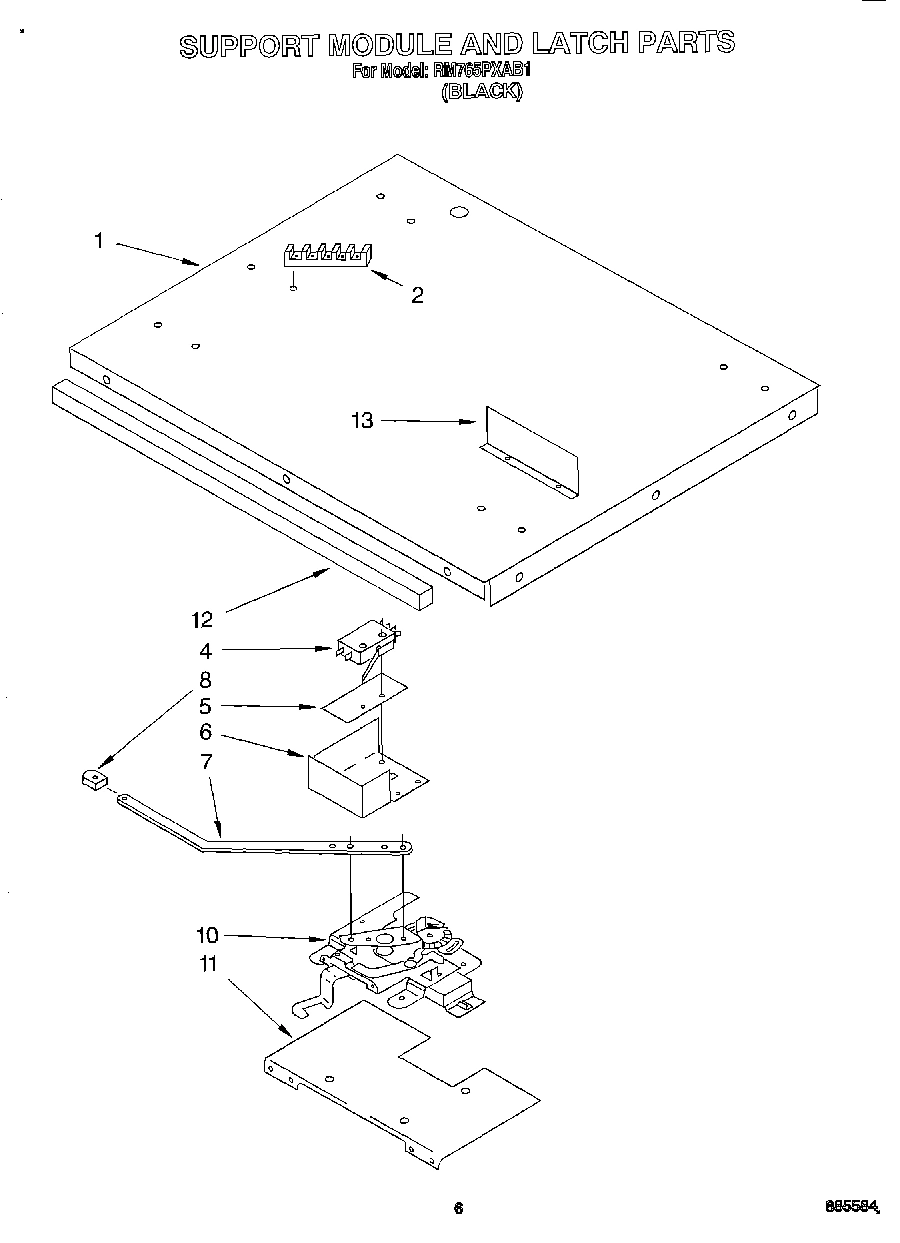

04 - SUPPORT MODULE AND LATCH

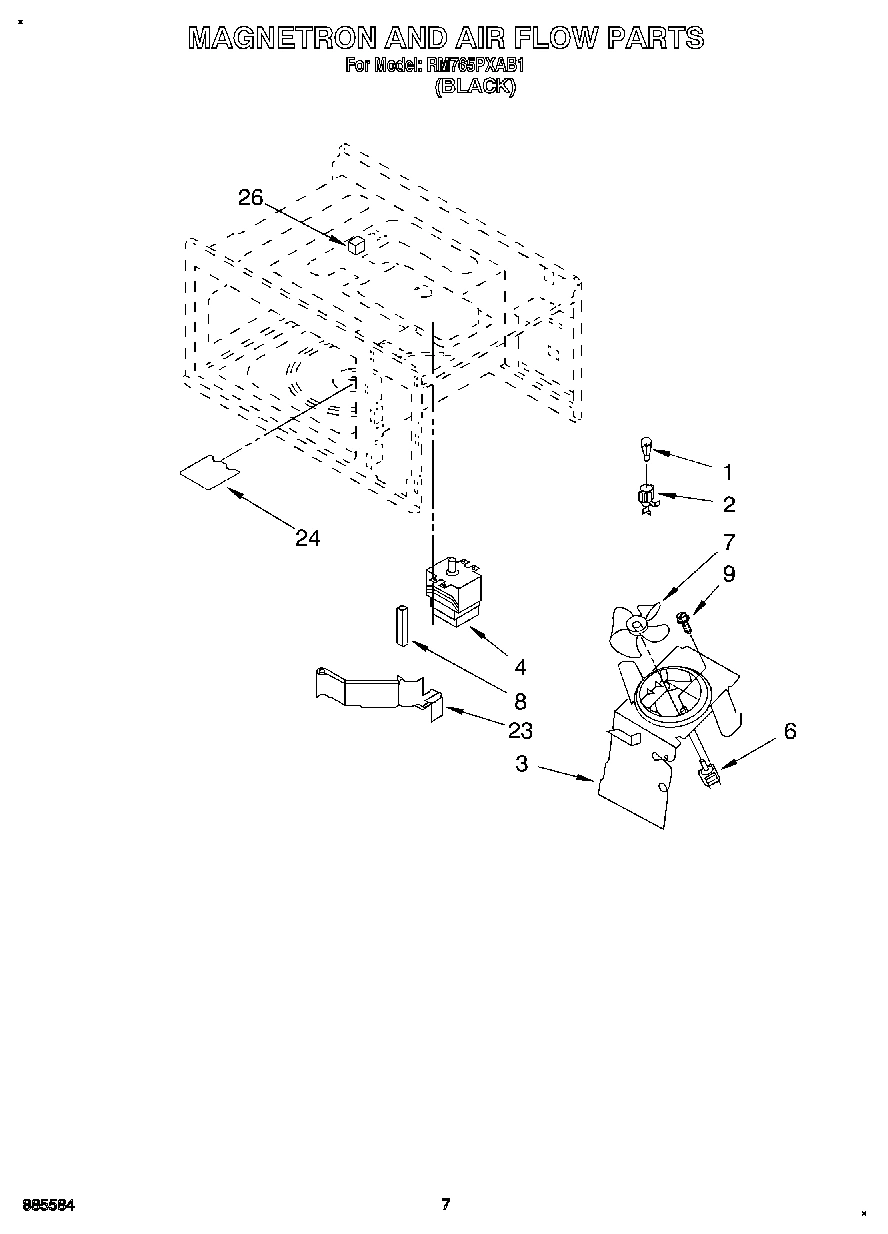

05 - MAGNETRON AND AIR FLOW, OPTIONAL

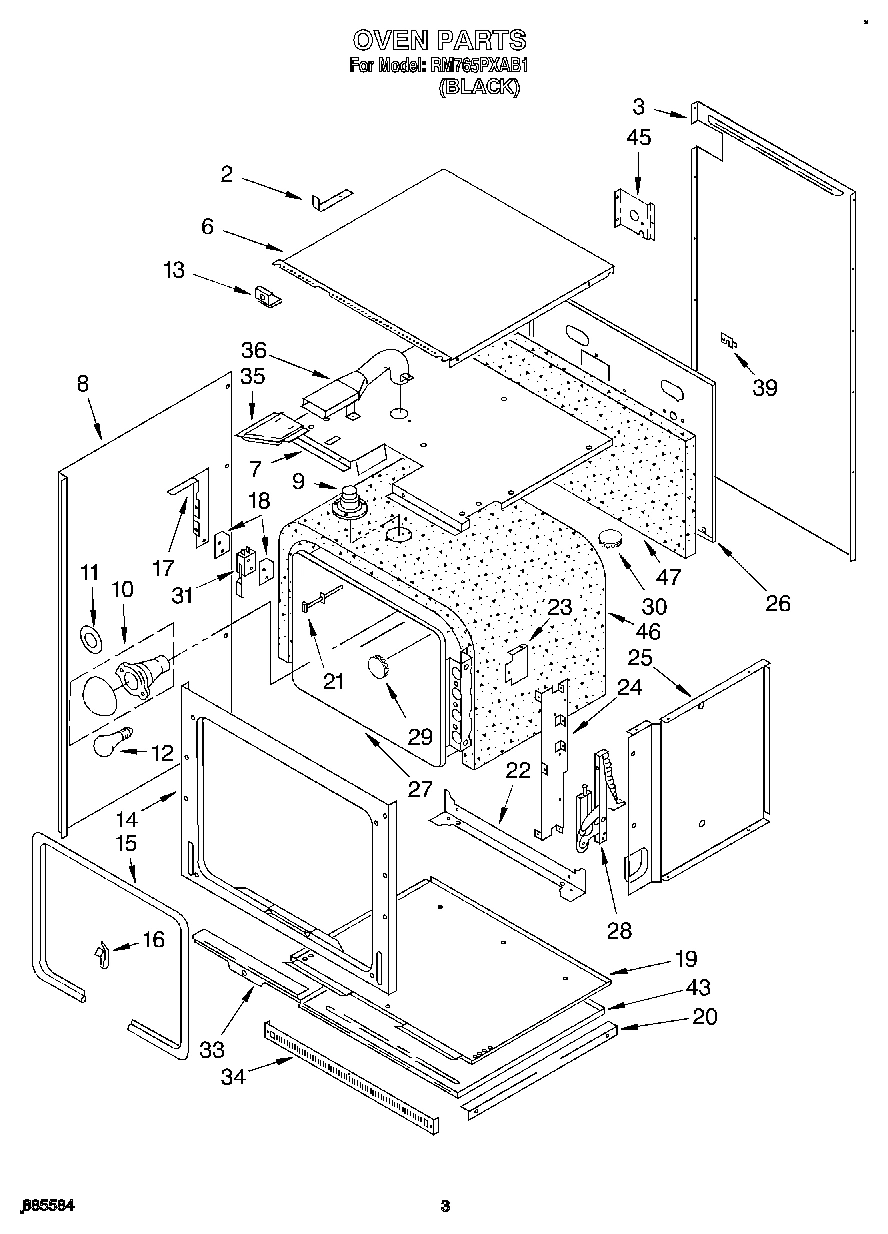

02 - OVEN

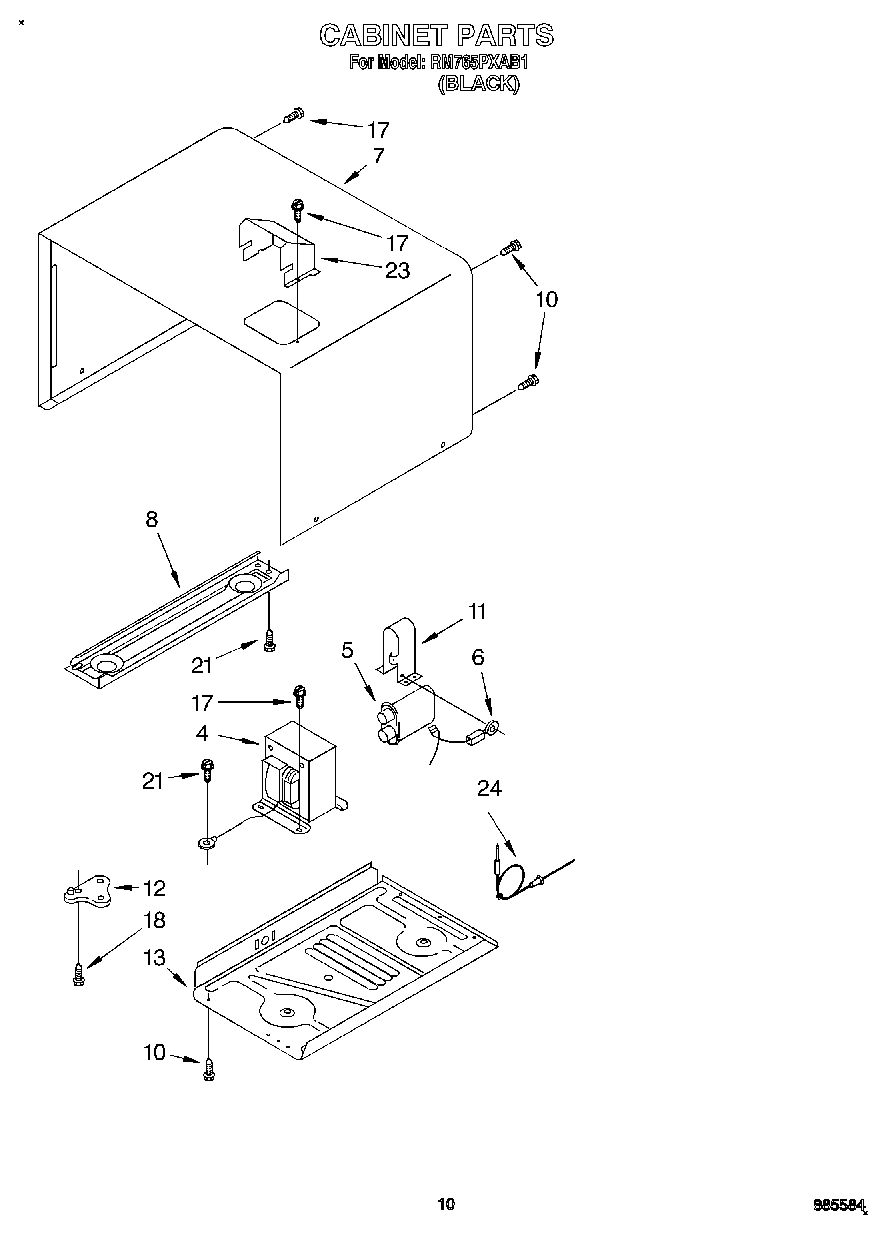

07 - CABINET

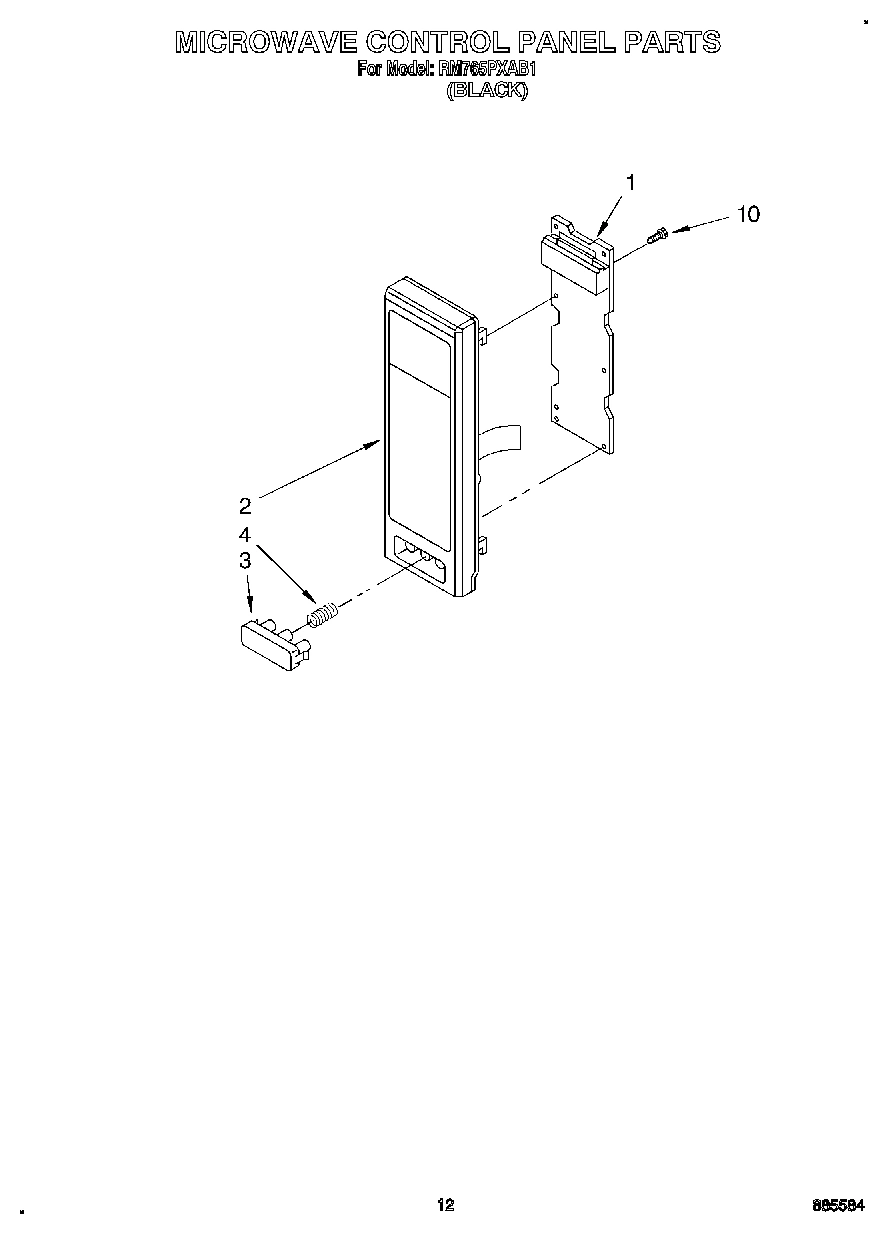

09 - MICROWAVE CONTROL PANEL
Common parts from model Whirlpool RM765PXAB1
Use & Care Guide (Lower Oven) WPL LIT3184425 Contact Us For Availability
Installation Instructions WPL LIT3184427 Contact Us For Availability
Use & Care Guide (Microwave) WPL LIT3184446 Contact Us For Availability
Tech Sheet WPL LIT3184448 Contact Us For Availability
1
Switch and Fuse Assy. WPL 4365543 Contact Us For Availability
1
End Cap (Left Hand) WPL 3181395 Contact Us For Availability
1
End Cap (Right Hand) WPL 3181396 Contact Us For Availability
1
Frame, Outer (Black Model) WPL 3187457 Contact Us For Availability
1
Support, Module WPL 3180330 Contact Us For Availability
1
Screw WPL 3178001 Contact Us For Availability
1
Liner, Door WPL 3185497 Contact Us For Availability
1
Sensor, Absolute Humidity WPL 4365549 Contact Us For Availability
1
Microcomputer WPL 4365560 Contact Us For Availability
2
Harness, Wire Main, Microwave WPL 3187144 Contact Us For Availability
2
Trim, Top (Screw (2)) WPL 312713 Contact Us For Availability
2
Trim, Top (Black Model) WPL 3181391 Contact Us For Availability
2
Gasket, Window WPL 3185462 Contact Us For Availability
2
Screw WPL 4174757 Contact Us For Availability
2
Socket, Lamp WPL 4313607 Contact Us For Availability
2
Brace, Back WPL 3187369 Contact Us For Availability
2
Control Panel (Black Model) WPL 4365563 Contact Us For Availability
3
Push Button (Black Model) WPL 4365564 Contact Us For Availability
3
Glass, Clear WPL 3185457 Contact Us For Availability
3
Trim, Oven Vent WPL 3187367 Contact Us For Availability
3
Seal, Foam (Top) WPL 3187143 Contact Us For Availability
3
Duct, Fan WPL 4313686 Contact Us For Availability
3
Cabinet, Back WPL 3177623 Contact Us For Availability
4
Screw WPL 3179116 Contact Us For Availability
4
Harness, Wire (Upper Latch) WPL 3183977 Contact Us For Availability
4
Door, Vent (Black Model) WPL 3181393 Contact Us For Availability
4
Insulation, Door WPL 3185460 Contact Us For Availability
4
Duct, Sensor WPL 4365557 Contact Us For Availability
4
Switch, Latch WPL 3178671 Contact Us For Availability
4
Screw (2) WPL 98106 Contact Us For Availability
4
Screw WPL 4365500 Contact Us For Availability
4
Magnetron WPL 4365544 Contact Us For Availability
4
Transformer WPL 4365545 Contact Us For Availability
5
Harness, Wire Microwave Power WPL 4365548 Contact Us For Availability
5
End Trim (Vent Door) Left Hand (Black Model R WPL 3148697 Contact Us For Availability
5
End Trim (Vent Door) Left Hand (Black Model) WPL 3148698 Contact Us For Availability
5
Retainer, Insulation WPL 3185437 Contact Us For Availability
5
Screw WPL 4173601 Contact Us For Availability
5
Insulator, Switch WPL 3178185 Contact Us For Availability
5
Capacitor WPL 4313605 Contact Us For Availability
6
Harness, Wire Door Switch (Lower Oven) WPL 3185130 Contact Us For Availability
6
Trim, Bottom WPL 3181397 Contact Us For Availability
6
screw (2) WPL 342043 Contact Us For Availability
6
Cavity, Oven (Not a Serviceable Part) WPL ARI123541A Contact Us For Availability
6
screw (2) WPL 254225 Contact Us For Availability
6
Guard, Latch WPL 3177662 Contact Us For Availability
6
Motor, Fan WPL 4313672 Contact Us For Availability
6
Cabinet, Top WPL 3178143 Contact Us For Availability
6
Rectifier WPL 4313671 Contact Us For Availability
7
Glass, Control (Black Panel) WPL 3184743 Contact Us For Availability
7
Glass, Reflective WPL 3185458 Contact Us For Availability
7
Handle, Latch WPL 3180409 Contact Us For Availability
7
Screw WPL 3185414 Contact Us For Availability
7
Blade, Fan WPL 4174669 Contact Us For Availability
7
Module, Top WPL 3183748 Contact Us For Availability
7
Outer Cabinet (Stainless Model) WPL 4357348 Contact Us For Availability
7
Outer Cabinet (Black Model) WPL 4365554 Contact Us For Availability
8
Standoff, Harness WPL 3179668 Contact Us For Availability
8
Latch, Strike WPL 3185438 Contact Us For Availability
8
Screw WPL 3183294 Contact Us For Availability
8
Knob, Latch Handle WPL 3184039 Contact Us For Availability
8
Cushion, Magnetron WPL 4313643 Contact Us For Availability
8
Side, Cabinet Left & Right Side WPL 3181695 Contact Us For Availability
8
Base Plate, Left Side WPL 4365552 Contact Us For Availability
9
Rail, Microwave WPL 3179973 Contact Us For Availability
9
Retainer, Glass WPL 3185439 Contact Us For Availability
9
Screw WPL 4313701 Contact Us For Availability
9
Tube, Vent WPL 3181699 Contact Us For Availability
10
Seal, Foam WPL 3184897 Contact Us For Availability
10
Glass, Clear WPL 3185459 Contact Us For Availability
10
Latch, Mechanism WPL 3178410 Contact Us For Availability
10
Screw, 4 x 16 mm WPL 4357320 Contact Us For Availability
10
Screw WPL 4313632 Contact Us For Availability
11
Frame, Door WPL 3180607 Contact Us For Availability
11
Plate, Mounting WPL 3177496 Contact Us For Availability
11
Screw WPL 4313663 Contact Us For Availability
11
Bracket, Capacitor WPL 4313681 Contact Us For Availability
12
Screw WPL 4174811 Contact Us For Availability
12
H.V. Wire WPL 4313679 Contact Us For Availability
12
Glass, Door (Black Model) WPL 3179498 Contact Us For Availability
12
Foam-Seal WPL 3187140 Contact Us For Availability
12
Hinge, Lower WPL 4313619 Contact Us For Availability
13
Sensor, Ground WPL 4365546 Contact Us For Availability
13
Back, Microwave Compartment WPL 3181694 Contact Us For Availability
13
Handle, Door (Black Model) WPL 3179481 Contact Us For Availability
13
Baffle WPL 3184950 Contact Us For Availability
13
Clip, Fastener WPL 3187456 Contact Us For Availability
13
Base Plate, Right Side WPL 4365551 Contact Us For Availability
14
Spacer, Door Handle WPL 3148282 Contact Us For Availability
14
Controls, Electronic WPL 3169256 Contact Us For Availability
14
Frame, Front WPL 3185860 Contact Us For Availability
15
Rail, Chassis (2) WPL 3179972 Contact Us For Availability
15
Trim, Door (Black Model) WPL 3185525 Contact Us For Availability
15
Screw (4) WPL 3179776 Contact Us For Availability
15
Seal, Door WPL 3179813 Contact Us For Availability
16
Seal, Foam WPL 3182051 Contact Us For Availability
16
Foil-Adhesive Backed WPL 3185472 Contact Us For Availability
16
Clip, Oven Seal WPL 3179848 Contact Us For Availability
17
Screw WPL 3185383 Contact Us For Availability
17
Seal, Foam WPL 3187142 Contact Us For Availability
17
Bumper, Door Glass WPL 3181701 Contact Us For Availability
17
Bracket, Switch WPL 3177681 Contact Us For Availability
17
Screw WPL 4313665 Contact Us For Availability
18
Screw WPL 3185648 Contact Us For Availability
18
Snap, Bushing WPL 3181919 Contact Us For Availability
18
Screw (Black) WPL 4365570 Contact Us For Availability
18
Screw (White) WPL 4365571 Contact Us For Availability
18
Insulator, Switch WPL 3177923 Contact Us For Availability
18
Screw WPL 4313664 Contact Us For Availability
19
Rail, Mounting WPL 3184911 Contact Us For Availability
19
Bottom, Modual WPL 3177621 Contact Us For Availability
20
Rail, Support (2) WPL 3179220 Contact Us For Availability
21
Trim, Control (2) WPL 3184881 Contact Us For Availability
21
Sensor, Heat WPL 3148440 Contact Us For Availability
21
Screw WPL 4164610 Contact Us For Availability
22
Support, Oven WPL 3177434 Contact Us For Availability
23
Duct, Magnetron WPL 4365553 Contact Us For Availability
23
Shield, Radiation WPL 3178612 Contact Us For Availability
23
Duct, Exhaust WPL 4365558 Contact Us For Availability
24
Screw WPL 3148443 Contact Us For Availability
24
Switch, Rocker (Black Model) WPL 3182717 Contact Us For Availability
24
Thermostat, Oven WPL 4313674 Contact Us For Availability
24
Cover, Wave Guide WPL 4313687 Contact Us For Availability
24
Bracket, Hinge WPL 3177433 Contact Us For Availability
24
Screw (6) WPL 3179795 Contact Us For Availability
24
Probe WPL 4365550 Contact Us For Availability
25
Side, Module (R.H. & L.H.) WPL 3177572 Contact Us For Availability
26
WPL 799344 WPL 799344 Contact Us For Availability
26
Screw WPL 4174826 Contact Us For Availability
26
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
26
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
26
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
26
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
26
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
26
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
26
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
26
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
26
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
26
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
26
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
26
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
26
Harvest Gold WPL 261890 Contact Us For Availability
26
Harvest Gold WPL 261891 Contact Us For Availability
26
Toast WPL 285365 Contact Us For Availability
26
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
26
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
26
Platinum WPL 285368 Contact Us For Availability
26
Hardware, Mtg. WPL 3171507 Contact Us For Availability
26
Leveler (Primer) WPL 350941 Contact Us For Availability
26
Screw WPL 4174756 Contact Us For Availability
26
Connector, Slipping WPL 4174898 Contact Us For Availability
26
White WPL 4319146 Contact Us For Availability
26
Almond WPL 4319147 Contact Us For Availability
26
Gray WPL 4319148 Contact Us For Availability
26
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
26
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
26
PAI WPL 786020 Contact Us For Availability
26
WPL 786032 WPL 786032 Contact Us For Availability
26
WPL 799832 WPL 799832 Contact Us For Availability
26
WPL 832985 WPL 832985 Contact Us For Availability
26
WPL 978883 WPL 978883 Contact Us For Availability
26
Back, Module WPL 3177560 Contact Us For Availability
27
Liner, Oven WPL 3185562 Contact Us For Availability
28
Tray, Glass WPL 4313690 Contact Us For Availability
28
Hinge, Door (2) WPL 3178298 Contact Us For Availability
29
Support, Turntable WPL 4365526 Contact Us For Availability
29
Button, Plug WPL 3185085 Contact Us For Availability
30
Motor, Turntable WPL 4357340 Contact Us For Availability
30
Button, Plug WPL 3182814 Contact Us For Availability
31
Screw (2) WPL 313489 Contact Us For Availability
31
Nut (2) WPL 4159117 Contact Us For Availability
31
Switch, Door WPL 4173553 Contact Us For Availability
33
Retainer, Seal WPL 3179587 Contact Us For Availability
34
Vent, Lower Trim (Screw (2)) WPL 3180022 Contact Us For Availability
34
Vent, Lower Trim (Black Model) WPL 3184924 Contact Us For Availability
34
Vent, Lower Trim (Screw) WPL 4168863 Contact Us For Availability
35
Vent, Tube (Upper, Female) WPL 3187388 Contact Us For Availability
36
Vent, Tube (Upper, Male) WPL 3187370 Contact Us For Availability
39
Screw WPL 4159445 Contact Us For Availability
39
Cover, Cap Tube WPL 4168203 Contact Us For Availability
40
Gasket, Turntable WPL 4313642 Contact Us For Availability
41
Screw WPL 4365530 Contact Us For Availability
43
Bottom, Oven Main WPL 3177551 Contact Us For Availability
45
Bracket, Conduit WPL 3177545 Contact Us For Availability
46
Insulation, Oven WPL 3185551 Contact Us For Availability
47
Screw WPL 3185647 Contact Us For Availability
47
Insulation, Back WPL 3177872 Contact Us For Availability
× ![]()
