Model Whirlpool RM286PXV1 – Common Parts & Diagrams

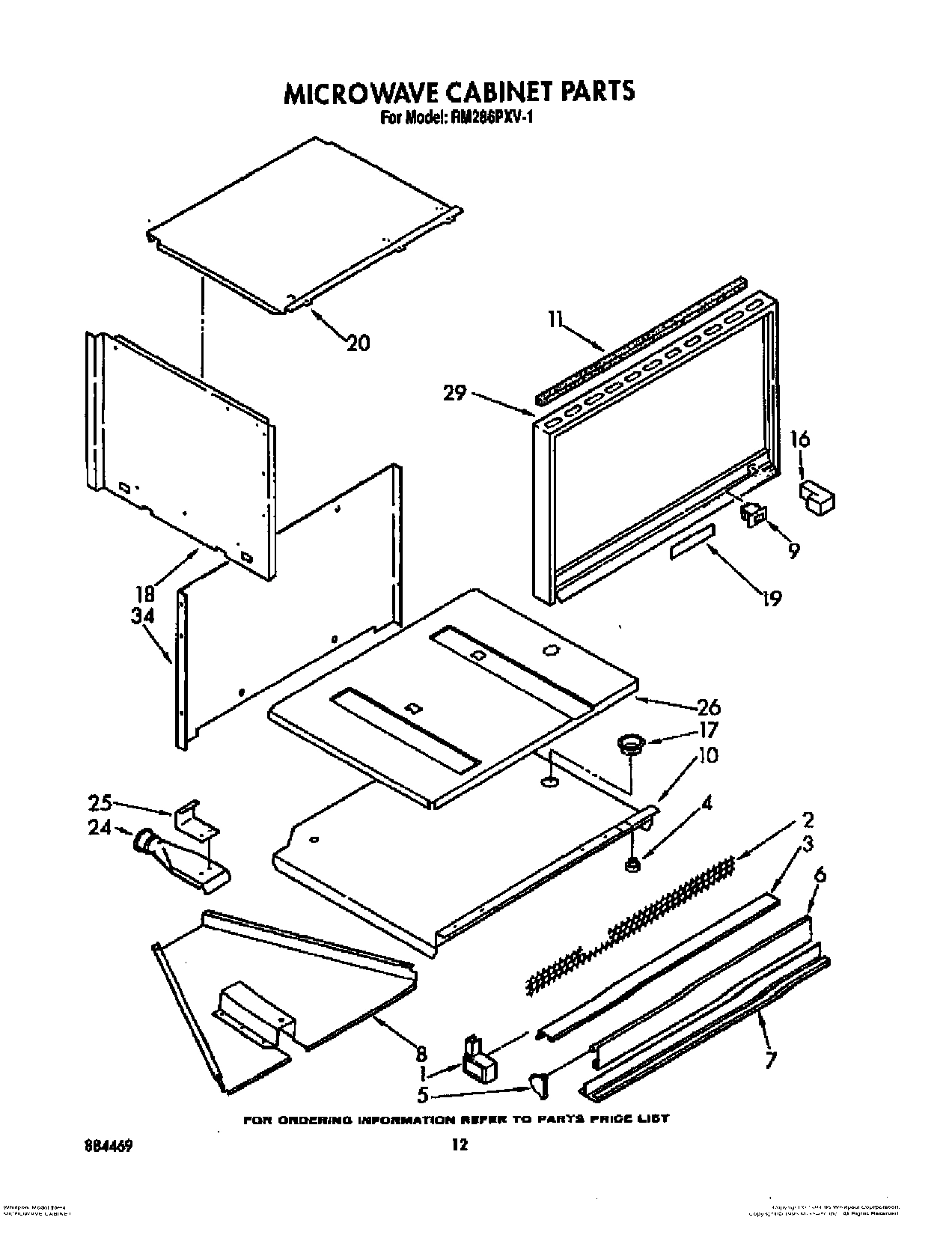

08 - MICROWAVE CABINET, LITERATURE AND OPTIONAL

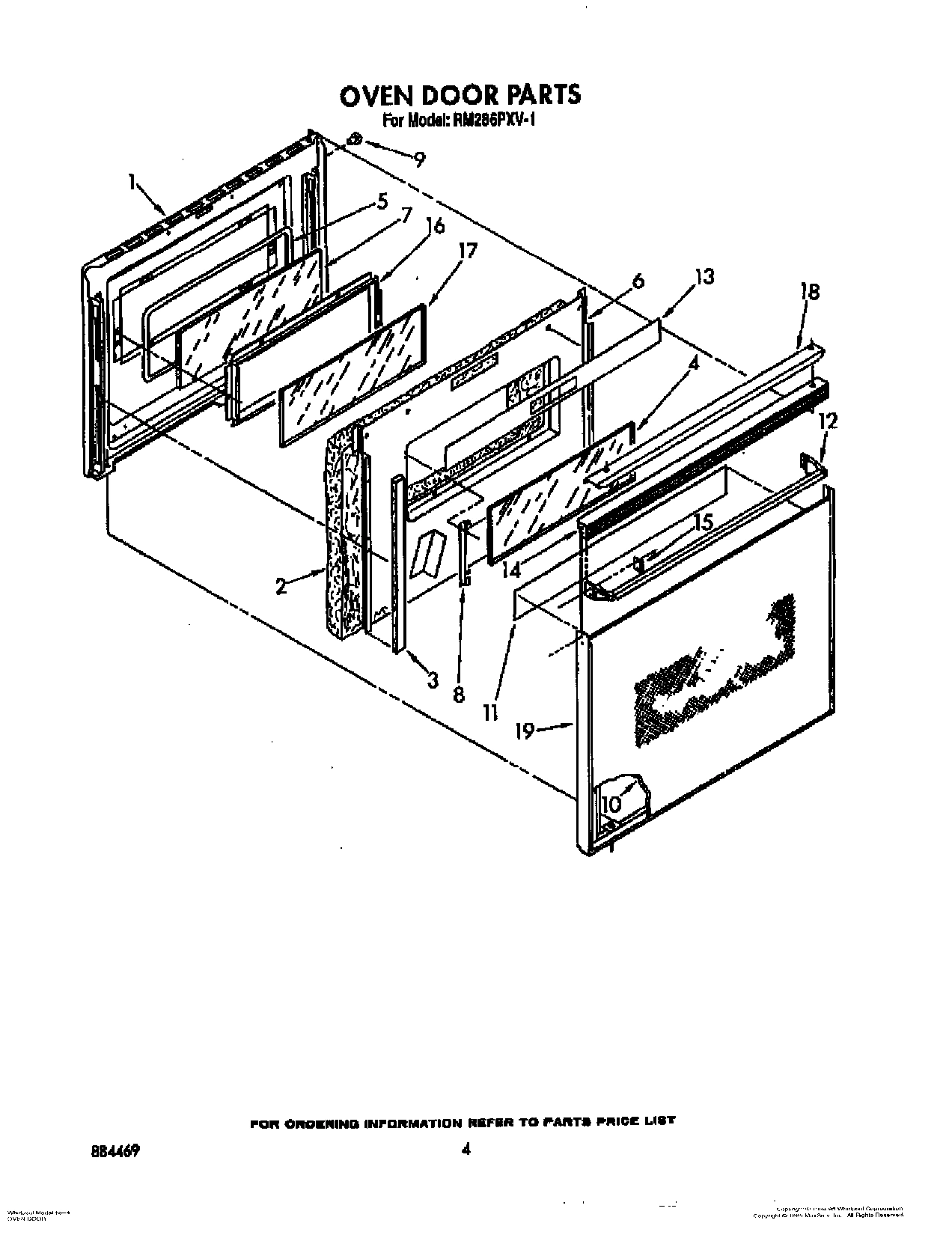

03 - OVEN DOOR

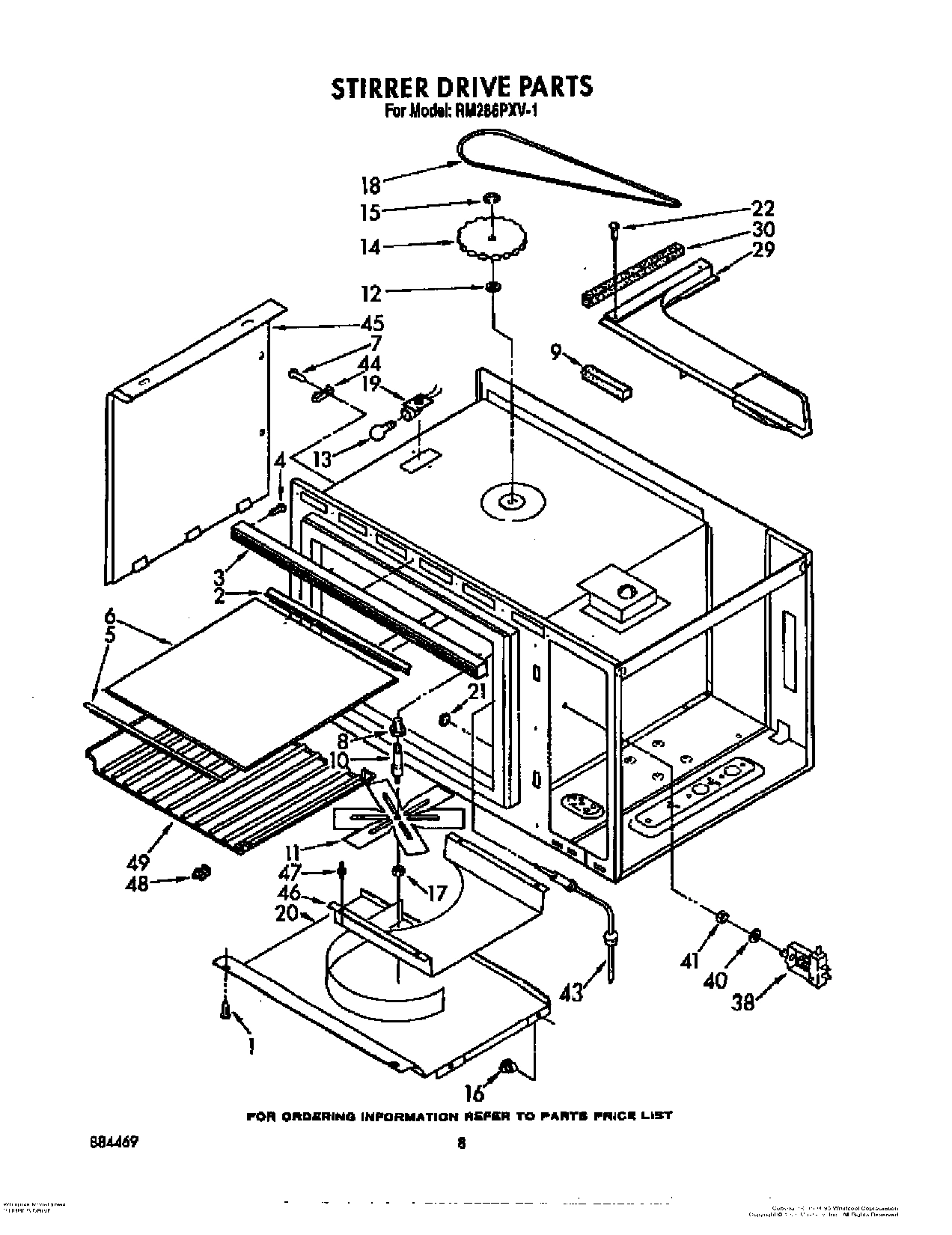

06 - STIRRER DRIVE

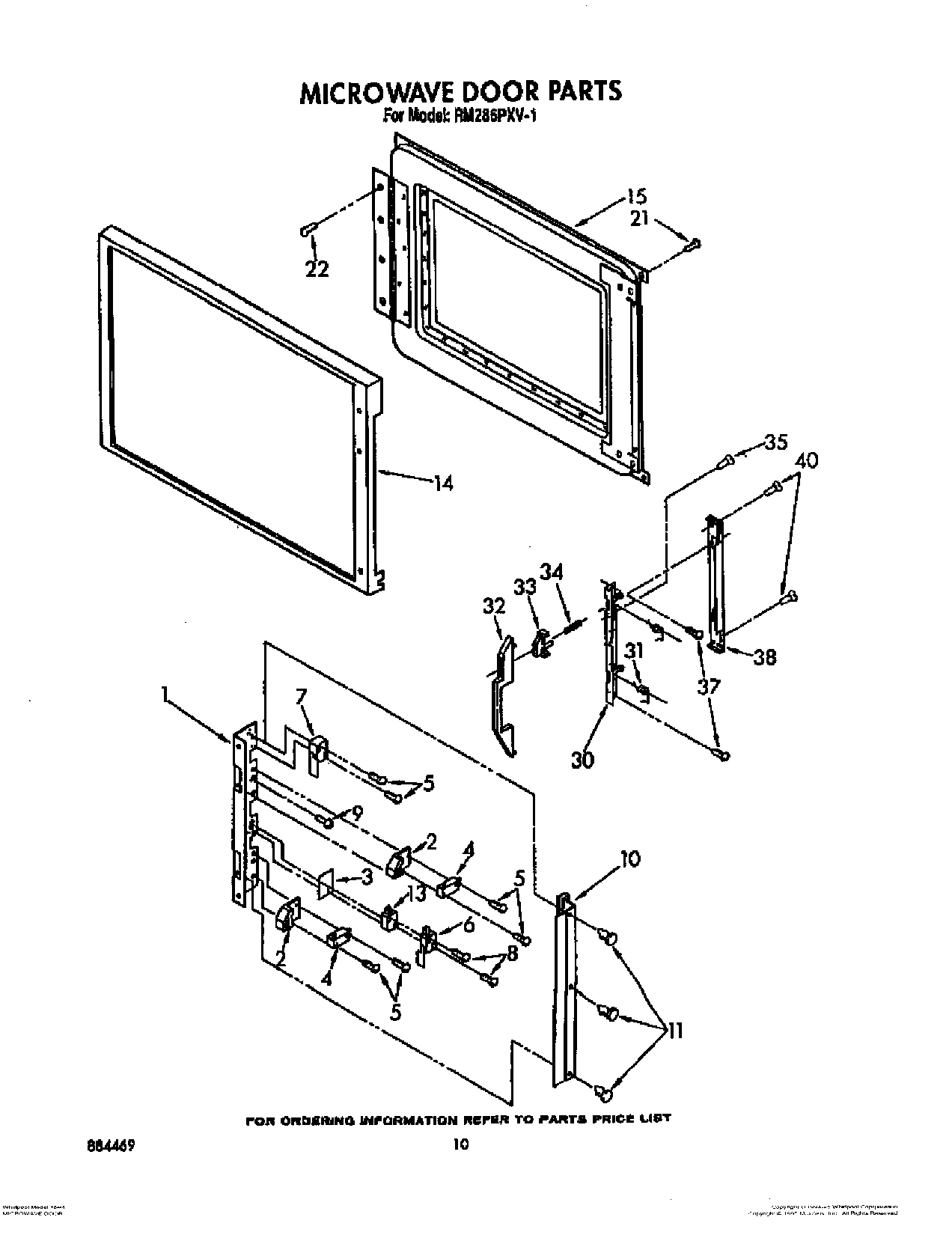

07 - MICROWAVE DOOR

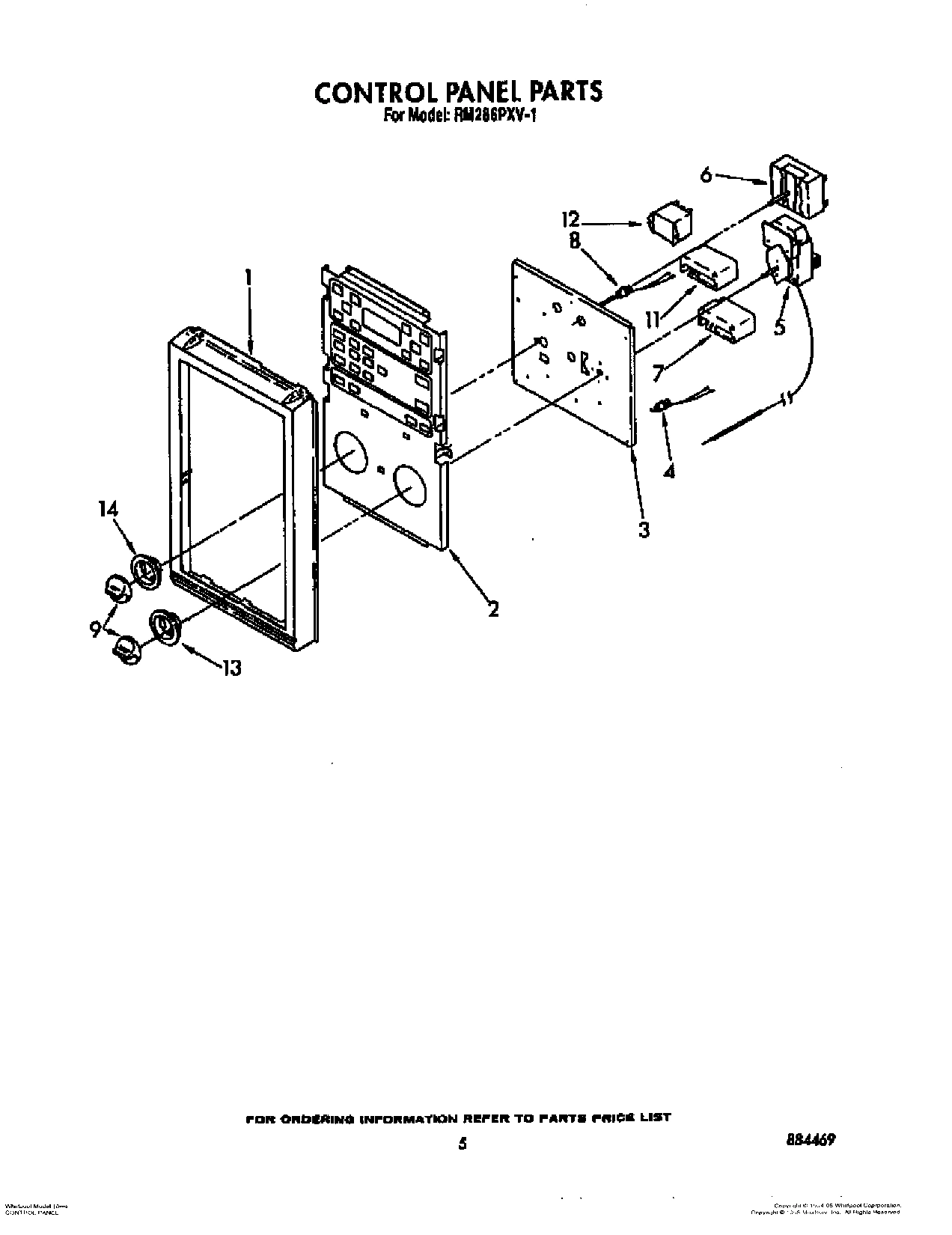

04 - CONTROL PANEL

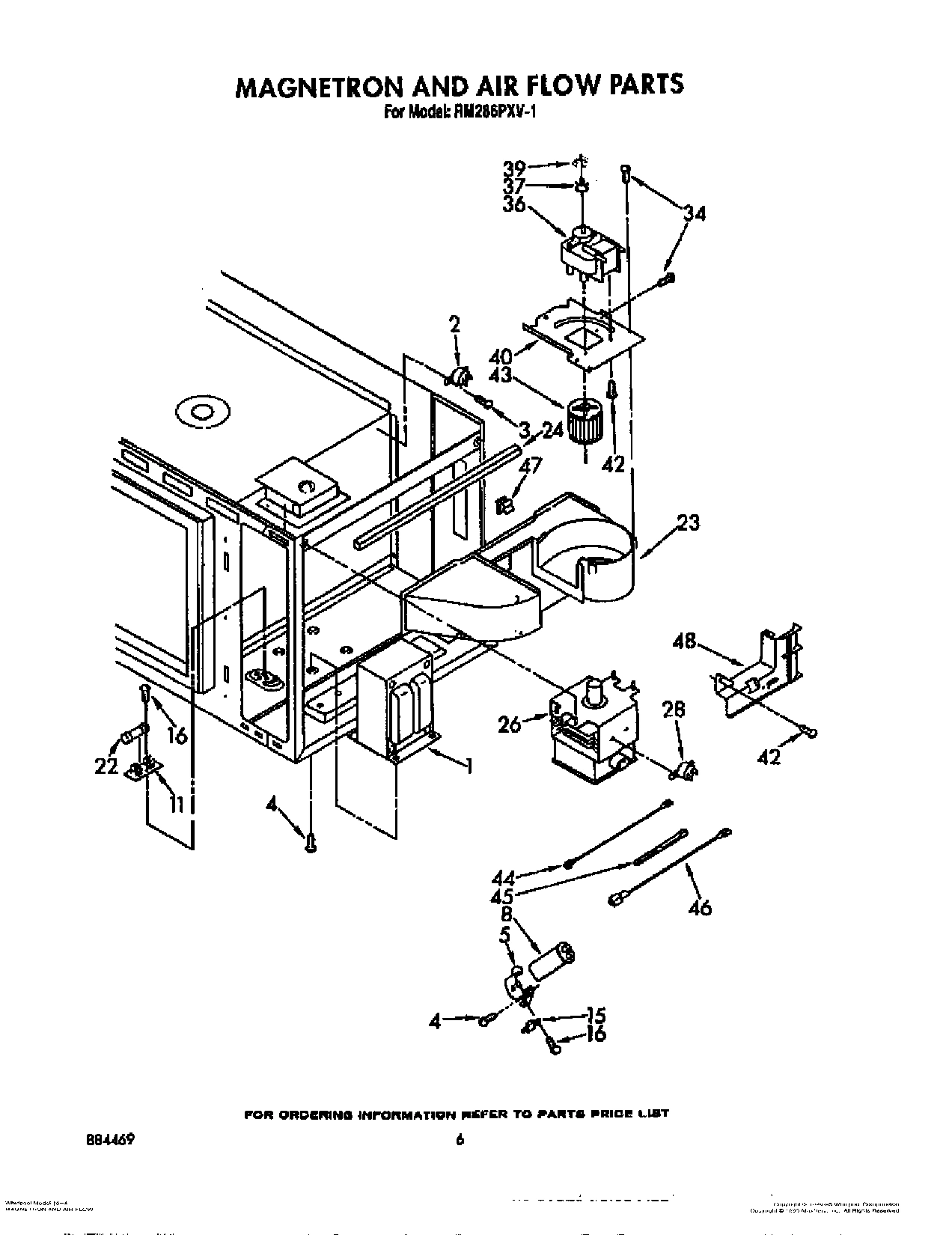

05 - MAGNETRON AND AIR FLOW

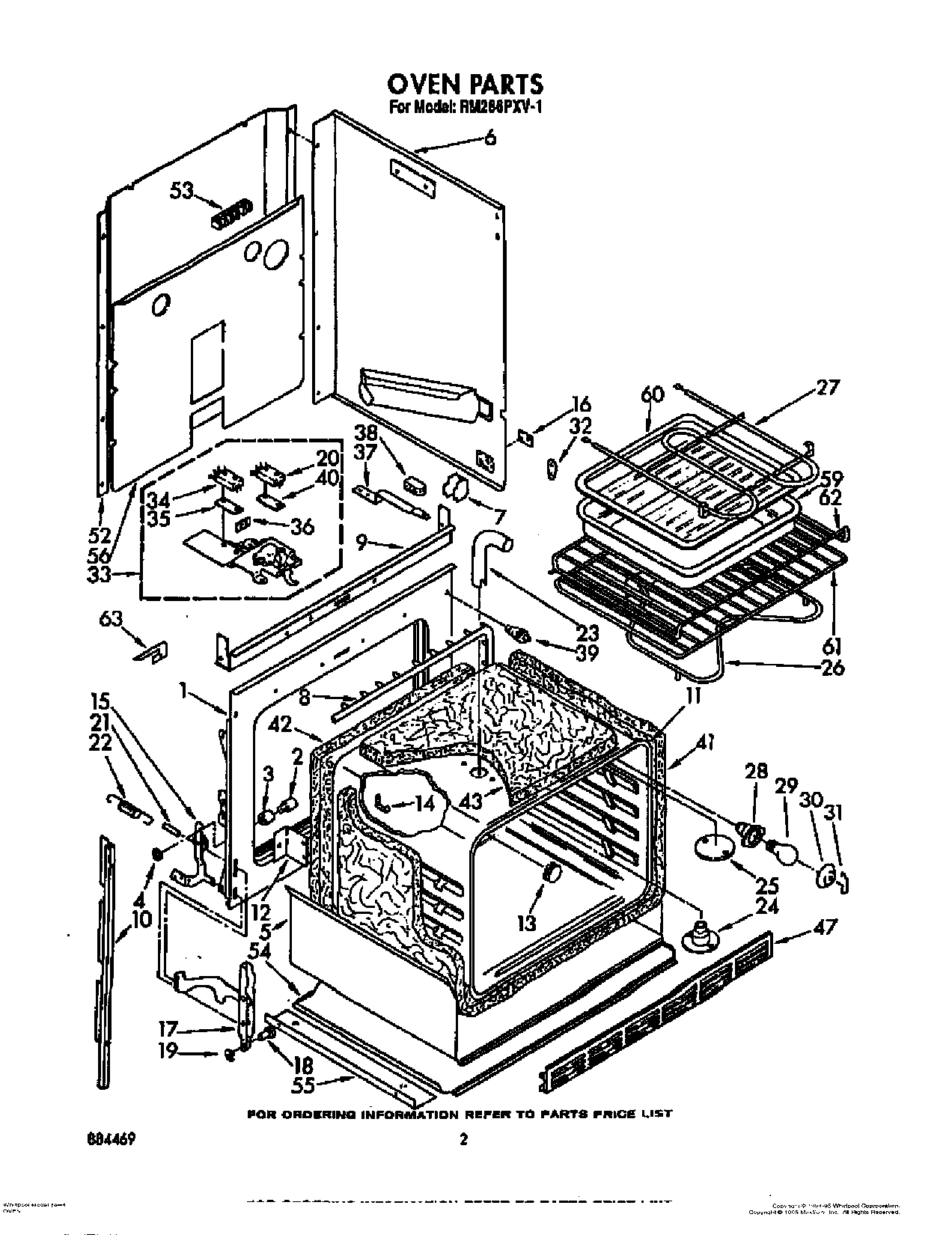

02 - OVEN

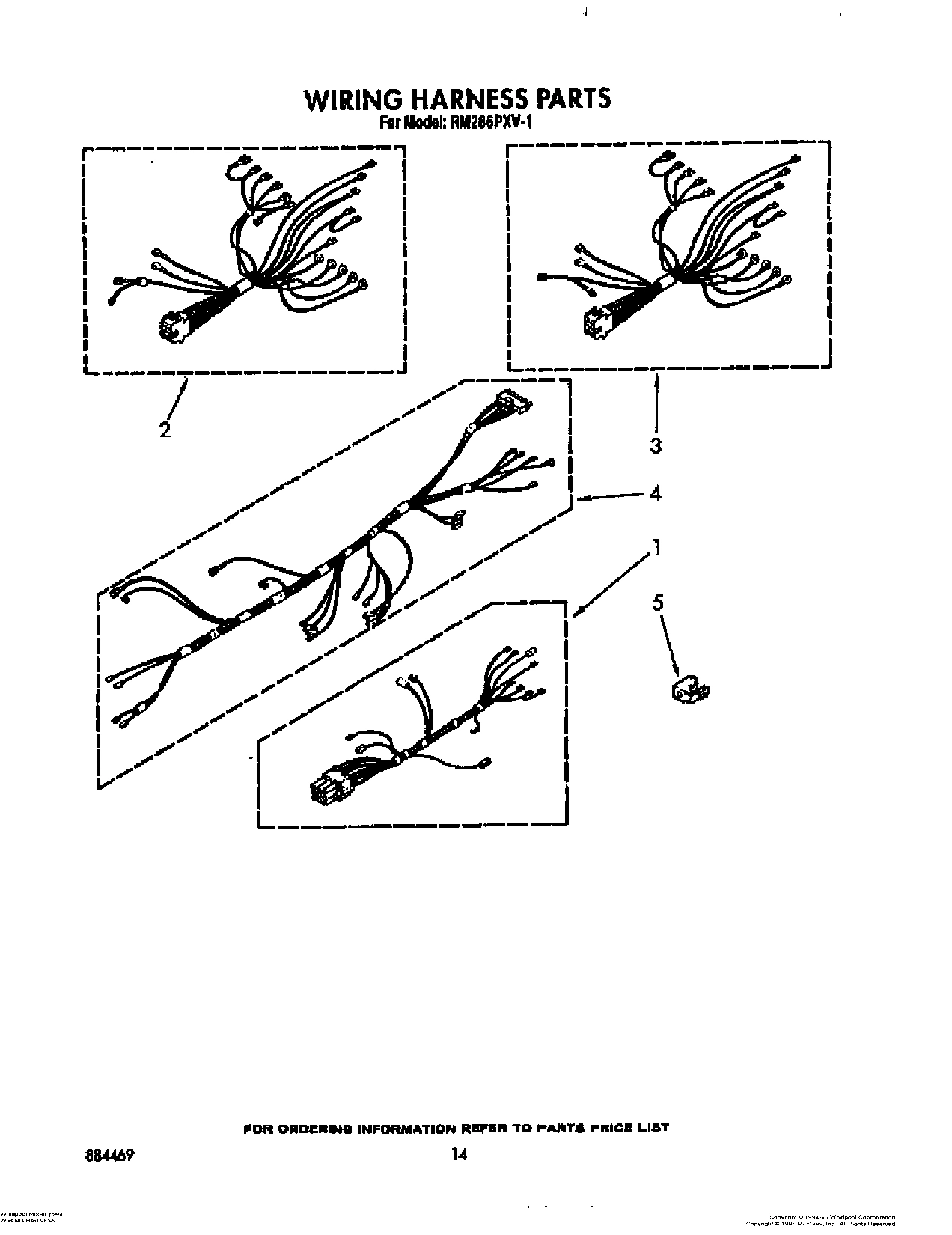

09 - WIRING HARNESS
Common parts from model Whirlpool RM286PXV1
WPL LIT311895 WPL LIT311895 Contact Us For Availability
WPL LIT312909 WPL LIT312909 Contact Us For Availability
WPL LIT312910 WPL LIT312910 Contact Us For Availability
WPL LIT313358 WPL LIT313358 Contact Us For Availability
WPL LIT3147287 WPL LIT3147287 Contact Us For Availability
WPL LIT3149026 WPL LIT3149026 Contact Us For Availability
WPL LIT884469 WPL LIT884469 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
1
Bracket, Catch WPL 311354 Contact Us For Availability
1
Frame, Control WPL 3149372 Contact Us For Availability
1
Transformer WPL 3147272 Contact Us For Availability
1
Frame, Front WPL 3172196 Contact Us For Availability
1
Harness, Wire (Oven Control) WPL 3147916 Contact Us For Availability
2
Insulation, Door WPL 3147951 Contact Us For Availability
2
Trim, Shelf (Rear) WPL 313615 Contact Us For Availability
2
Catch (2) WPL 311795 Contact Us For Availability
2
Module, Control WPL 3149891 Contact Us For Availability
2
Sensor, Gas WPL 3147060 Contact Us For Availability
2
Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability
2
Wiring Harness (Main) WPL 3147938 Contact Us For Availability
3
Seal, Flange (2) WPL 3148441 Contact Us For Availability
3
Deflector, Air WPL 3149299 Contact Us For Availability
3
Insulator WPL 313126 Contact Us For Availability
3
screw (2) WPL 313818 Contact Us For Availability
3
Bracket, Control WPL 3147282 Contact Us For Availability
3
Snubber, Door (2) WPL 309111 Contact Us For Availability
3
Wiring Harness Control (Microwave) WPL 3147559 Contact Us For Availability
4
Glass, Reflective WPL 3148178 Contact Us For Availability
4
Screw (3) WPL 3149794 Contact Us For Availability
4
Indicator, Light WPL 3149035 Contact Us For Availability
4
Screw, 10-32 x 1/2 WPL 312185 Contact Us For Availability
4
Pushnut (2) WPL 308306 Contact Us For Availability
4
Wiring Harness Main (Microwave) WPL 3147554 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Trim, Shelf (Front) WPL 313614 Contact Us For Availability
5
Screw, 4-40 x 3/4 Pan Head Thread Form (6) WPL 312717 Contact Us For Availability
5
Thermostat WPL 3148931 Contact Us For Availability
5
Bracket, Capacitor WPL 312619 Contact Us For Availability
5
Insulation Tray WPL 310770 Contact Us For Availability
5
Adaptor, Terminal WPL 3147832 Contact Us For Availability
6
Retainer, Window WPL 3148159 Contact Us For Availability
6
Shelf, Glass (Also Order No. 307576 silastic) WPL 313639 Contact Us For Availability
6
Switch, Light/ Monitor WPL 661145 Contact Us For Availability
6
Screw, 8-32 x 3/16 (2) WPL 308119 Contact Us For Availability
6
Switch, Selector WPL 3147235 Contact Us For Availability
6
Side Wrapper (Right Side) WPL 311006 Contact Us For Availability
6
Side Wrapper (Left Side) WPL 311009 Contact Us For Availability
7
Switch, Door WPL 313120 Contact Us For Availability
7
Switch, Bake (4) WPL 314210 Contact Us For Availability
7
Support, Side Wrapper (4) WPL 311774 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
8
Bushing, Stirrer WPL 312023 Contact Us For Availability
8
Screw, 4-40 x 10 (2) WPL 310211 Contact Us For Availability
8
Light, Indicator (2) WPL 3148566 Contact Us For Availability
8
Capacitor WPL 661004 Contact Us For Availability
8
Seal, Door WPL 3148284 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Seal, Foam WPL 3147599 Contact Us For Availability
9
Knob, Control (2) WPL 3150372 Contact Us For Availability
9
Baffle, Top Insulation WPL 310693 Contact Us For Availability
10
Glass, Panel WPL 3149049 Contact Us For Availability
10
Shaft, Stirrer WPL 312026 Contact Us For Availability
10
shield WPL 311360 Contact Us For Availability
10
Side Trim L.H. WPL 310685 Contact Us For Availability
10
Side Trim (R.H.) WPL 310689 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
11
Stirrer Blade WPL 313595 Contact Us For Availability
11
Fastener WPL 313740 Contact Us For Availability
11
Screw, No.6 WPL 314215 Contact Us For Availability
11
Switch, Broil WPL 314209 Contact Us For Availability
11
Oven (30`` Pyro) WPL 3172450 Contact Us For Availability
12
Handle, Door WPL 3149354 Contact Us For Availability
12
Washer, Nylon WPL 312025 Contact Us For Availability
12
Relay, Power WPL 314125 Contact Us For Availability
12
Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability
13
Shield, Door WPL 3148680 Contact Us For Availability
13
Switch, Miniature WPL 661144 Contact Us For Availability
13
Escutcheon, Thermostat WPL 3149686 Contact Us For Availability
13
Plug Button WPL 257314 Contact Us For Availability
14
screw (2) WPL 254225 Contact Us For Availability
14
screw (3) WPL 307748 Contact Us For Availability
14
Top, Door WPL 3149355 Contact Us For Availability
14
Pulley, Stirrer Blade WPL 311923 Contact Us For Availability
14
Frame, Door WPL 3171815 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Door, Inner WPL 3171531 Contact Us For Availability
15
Rectifier, High Voltage WPL 313830 Contact Us For Availability
15
Hinge Ear, R.H. WPL 328801 Contact Us For Availability
15
Hinge Ear, L.H. WPL 328802 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Inner Glass WPL 3148234 Contact Us For Availability
16
Plate, Side Panel (2) WPL 310659 Contact Us For Availability
17
Channel Arm (2) WPL 329713 Contact Us For Availability
18
Cap, Top WPL 3149473 Contact Us For Availability
19
Frame, Glass Panel WPL 3148235 Contact Us For Availability
19
Socket, Light WPL 330514 Contact Us For Availability
19
Ring, Retainer (2) WPL 307594 Contact Us For Availability
20
Stirrer Cover WPL 313563 Contact Us For Availability
20
Switch, Lock WPL 3148669 Contact Us For Availability
21
Plug, Hole (4) WPL 312215 Contact Us For Availability
22
Fastener WPL 310423 Contact Us For Availability
23
Air Duct (Horizontal) WPL 313578 Contact Us For Availability
23
Tube, Vent WPL 312697 Contact Us For Availability
24
Seal, Foam WPL 313752 Contact Us For Availability
24
Eliminator, Smoke WPL 310839 Contact Us For Availability
25
Support, Vent Tube WPL 312698 Contact Us For Availability
25
Plate, Cover WPL 310662 Contact Us For Availability
26
Panel, Support WPL 3147498 Contact Us For Availability
26
Magnetron WPL 660595 Contact Us For Availability
27
Screw (2) 10-32 x 5/8 (4) WPL 312318 Contact Us For Availability
28
Screw, WPL 312782 Contact Us For Availability
28
Thermal Protector WPL 661165 Contact Us For Availability
28
Socket, Oven Light WPL 660556 Contact Us For Availability
29
Frame, Outer WPL 3149802 Contact Us For Availability
29
Baffle, Air WPL 3147003 Contact Us For Availability
30
Seal, Foam WPL 313753 Contact Us For Availability
30
Latch Assembly WPL 329066 Contact Us For Availability
30
Cover, Light WPL 308039 Contact Us For Availability
31
Spring, Torsion (2) WPL 311352 Contact Us For Availability
31
Retainer, Light WPL 308038 Contact Us For Availability
32
Handle, Door WPL 3149218 Contact Us For Availability
32
Coverplate WPL 311982 Contact Us For Availability
33
Button, Door Handle WPL 3149219 Contact Us For Availability
33
Screw (2) WPL 311056 Contact Us For Availability
33
Latch Assembly WPL 3171148 Contact Us For Availability
34
WPL 799344 WPL 799344 Contact Us For Availability
34
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
34
Paint, Touch-Up 1 Oz. (Oven Liner) (Light Gra WPL 242757 Contact Us For Availability
34
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
34
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
34
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
34
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
34
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
34
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
34
14 Ga. 150~ Rating (White) WPL 242826 Contact Us For Availability
34
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
34
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
34
16 Ga. 80~ Rating WPL 242829 Contact Us For Availability
34
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
34
14 Ga. 150~ Rating (Yellow 12 Ga, 150~ c rati WPL 242832 Contact Us For Availability
34
Blue Gray WPL 242860 Contact Us For Availability
34
Black Glass (Grease) WPL 261582 Contact Us For Availability
34
WPL 261881 WPL 261881 Contact Us For Availability
34
WPL 261890 WPL 261890 Contact Us For Availability
34
WPL 261891 WPL 261891 Contact Us For Availability
34
WPL 285365 WPL 285365 Contact Us For Availability
34
WPL 285366 WPL 285366 Contact Us For Availability
34
WPL 285367 WPL 285367 Contact Us For Availability
34
WPL 285368 WPL 285368 Contact Us For Availability
34
WPL 3147491 WPL 3147491 Contact Us For Availability
34
WPL 350806 WPL 350806 Contact Us For Availability
34
WPL 350941 WPL 350941 Contact Us For Availability
34
WPL 591014 WPL 591014 Contact Us For Availability
34
WPL 786020 WPL 786020 Contact Us For Availability
34
WPL 786032 WPL 786032 Contact Us For Availability
34
WPL 799832 WPL 799832 Contact Us For Availability
34
WPL 832985 WPL 832985 Contact Us For Availability
34
WPL 978849 WPL 978849 Contact Us For Availability
34
WPL 978883 WPL 978883 Contact Us For Availability
34
Spring, Compression WPL 310197 Contact Us For Availability
34
Screw, 11-16 x 1/2 Double Load Space Thread ( WPL 346893 Contact Us For Availability
34
Safety Switch WPL 308185 Contact Us For Availability
34
Screw (2) WPL 98106 Contact Us For Availability
35
Insulator, Switch WPL 309245 Contact Us For Availability
36
Motor, Fan WPL 313641 Contact Us For Availability
36
Screw, 6 x 3/8 (2) WPL 309258 Contact Us For Availability
36
Terminal, Shield WPL 313035 Contact Us For Availability
37
Screw, 8-32 x 7/16 Hex Washer Head Thread For WPL 313820 Contact Us For Availability
37
Pulley, Motor WPL 311922 Contact Us For Availability
37
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
37
WPL 310825 WPL 310825 Contact Us For Availability
38
Probe Jack WPL 661209 Contact Us For Availability
38
End Cap WPL 3148298 Contact Us For Availability
38
WPL 246135 WPL 246135 Contact Us For Availability
38
WPL 311253 WPL 311253 Contact Us For Availability
39
WPL 310345 WPL 310345 Contact Us For Availability
39
``E`` Ring WPL 311999 Contact Us For Availability
40
Washer Probe WPL 313105 Contact Us For Availability
40
Screw, 8-22 Thread Form Truss Head (4) WPL 313823 Contact Us For Availability
40
Bracket, Motor WPL 313601 Contact Us For Availability
40
WPL 3147864 WPL 3147864 Contact Us For Availability
41
Nut WPL 313104 Contact Us For Availability
43
Probe, Temperature WPL 313527 Contact Us For Availability
43
Wheel, Blower WPL 3147223 Contact Us For Availability
44
Fuse, Thermal WPL 313855 Contact Us For Availability
44
Jumper, High Voltage Red (6-5/16``) WPL 313130 Contact Us For Availability
45
Screw, 8-32 x 1/2 (4) WPL 313816 Contact Us For Availability
45
Cover, Side WPL 3147004 Contact Us For Availability
46
Plate, Tuning WPL 313735 Contact Us For Availability
46
High Voltage Lead, Gray 7-11/16`` (2) WPL 3147863 Contact Us For Availability
47
screw WPL 312713 Contact Us For Availability
47
Support (4) WPL 313739 Contact Us For Availability
47
Clip WPL 311311 Contact Us For Availability
47
WPL 3149359 WPL 3149359 Contact Us For Availability
48
Extension, Air Duct WPL 3147262 Contact Us For Availability
49
rack, wire WPL 313663 Contact Us For Availability
52
WPL 3149542 WPL 3149542 Contact Us For Availability
53
WPL 308043 WPL 308043 Contact Us For Availability
53
WPL 3147001 WPL 3147001 Contact Us For Availability
54
WPL 310458 WPL 310458 Contact Us For Availability
55
WPL 311592 WPL 311592 Contact Us For Availability
56
WPL 311012 WPL 311012 Contact Us For Availability
61
WPL 308173 WPL 308173 Contact Us For Availability
62
WPL 308172 WPL 308172 Contact Us For Availability
63
WPL 309080 WPL 309080 Contact Us For Availability
63
WPL 310433 WPL 310433 Contact Us For Availability
63
WPL 310434 WPL 310434 Contact Us For Availability
63
WPL 3149328 WPL 3149328 Contact Us For Availability
63
WPL 3149142 WPL 3149142 Contact Us For Availability
× ![]()
