Model Maytag RM255BARB REFRIGERATOR – Common Parts & Diagrams
01 - ARCTIC/FRESH/SELECT ZONE COMPARTMENT
02 - ARCTIC/FRESH/SELECT ZONE DOORS

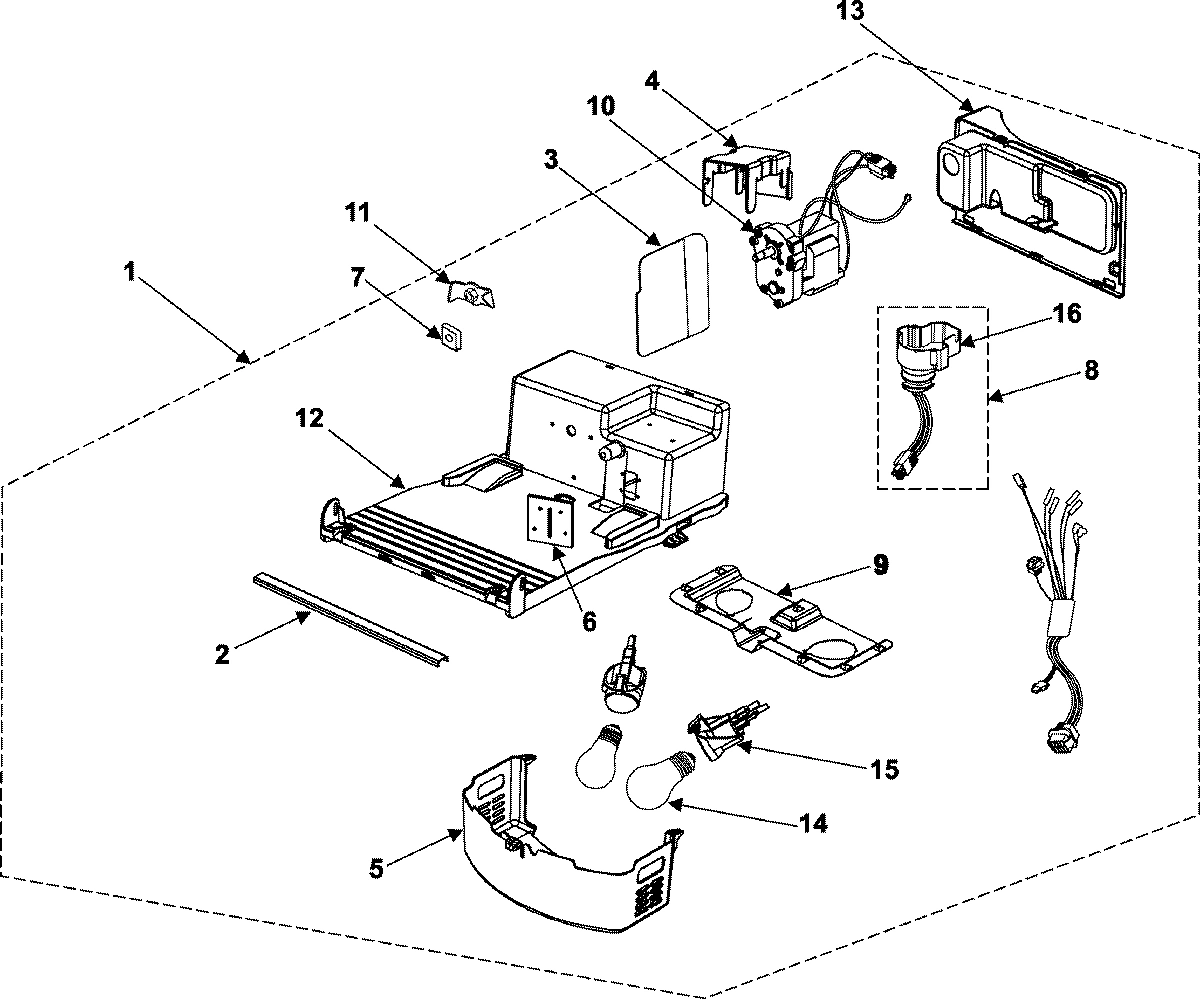

03 - ENCLOSURE

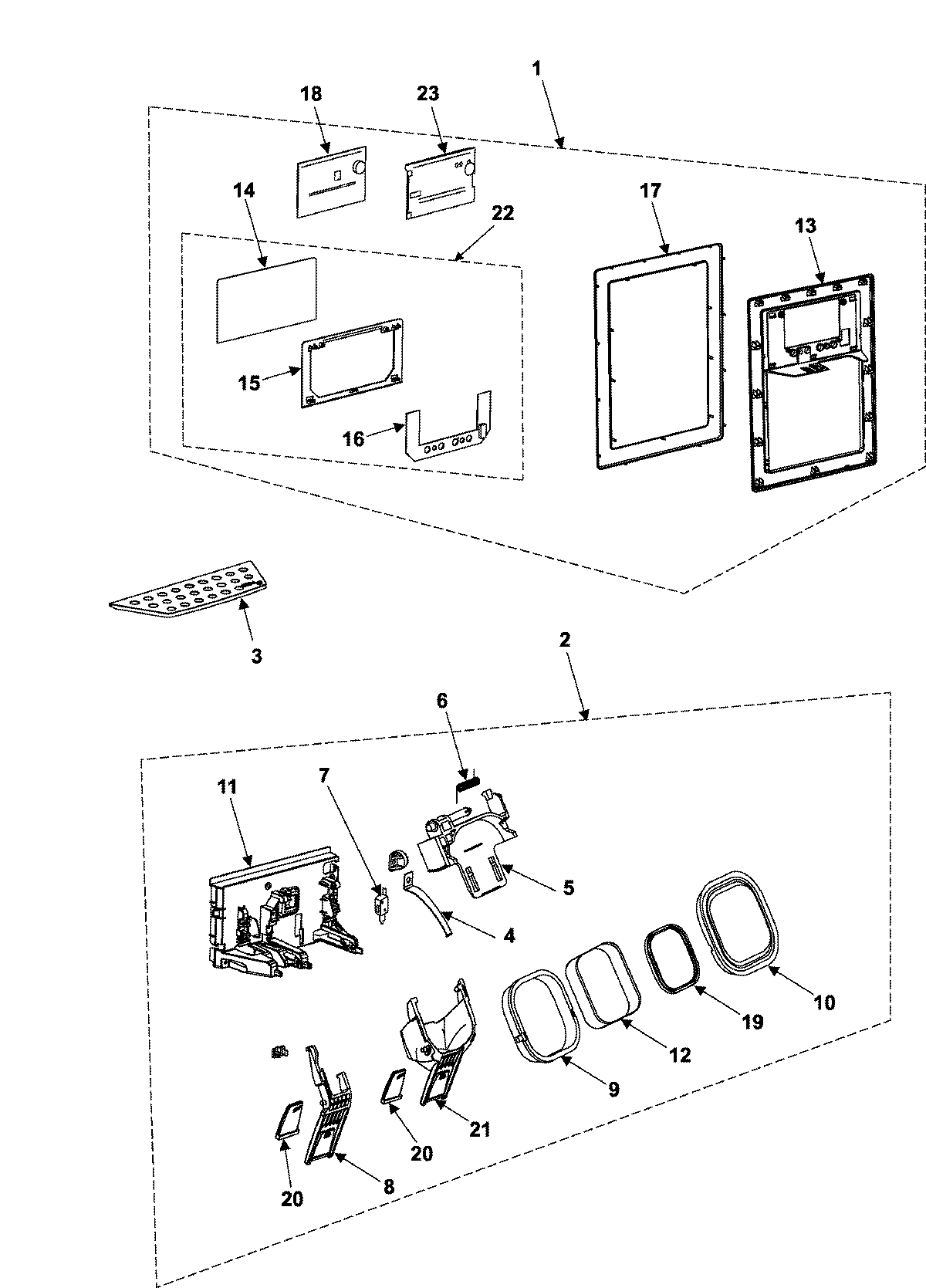

04 - FOUNTAIN

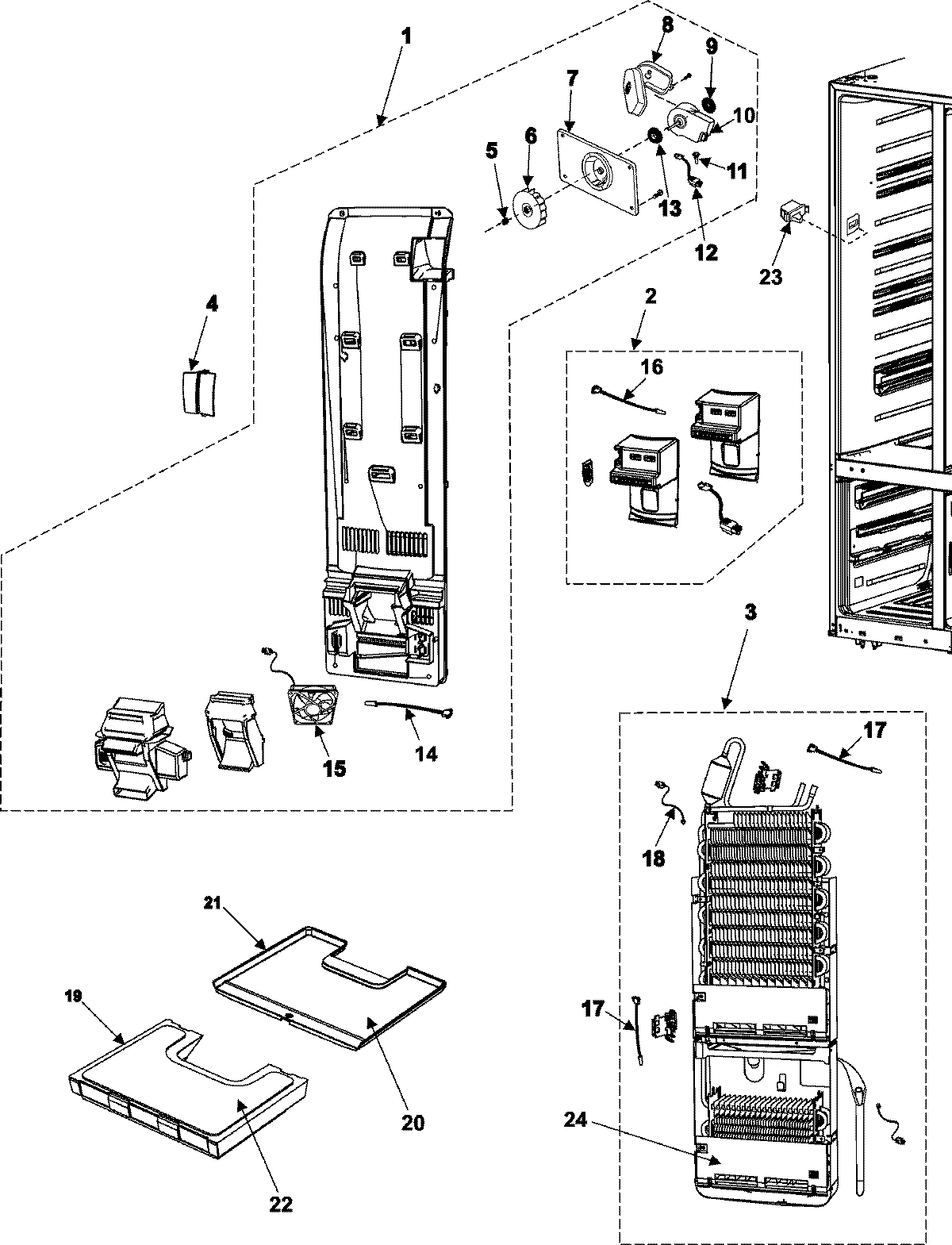

05 - FREEZER COMPARTMENT

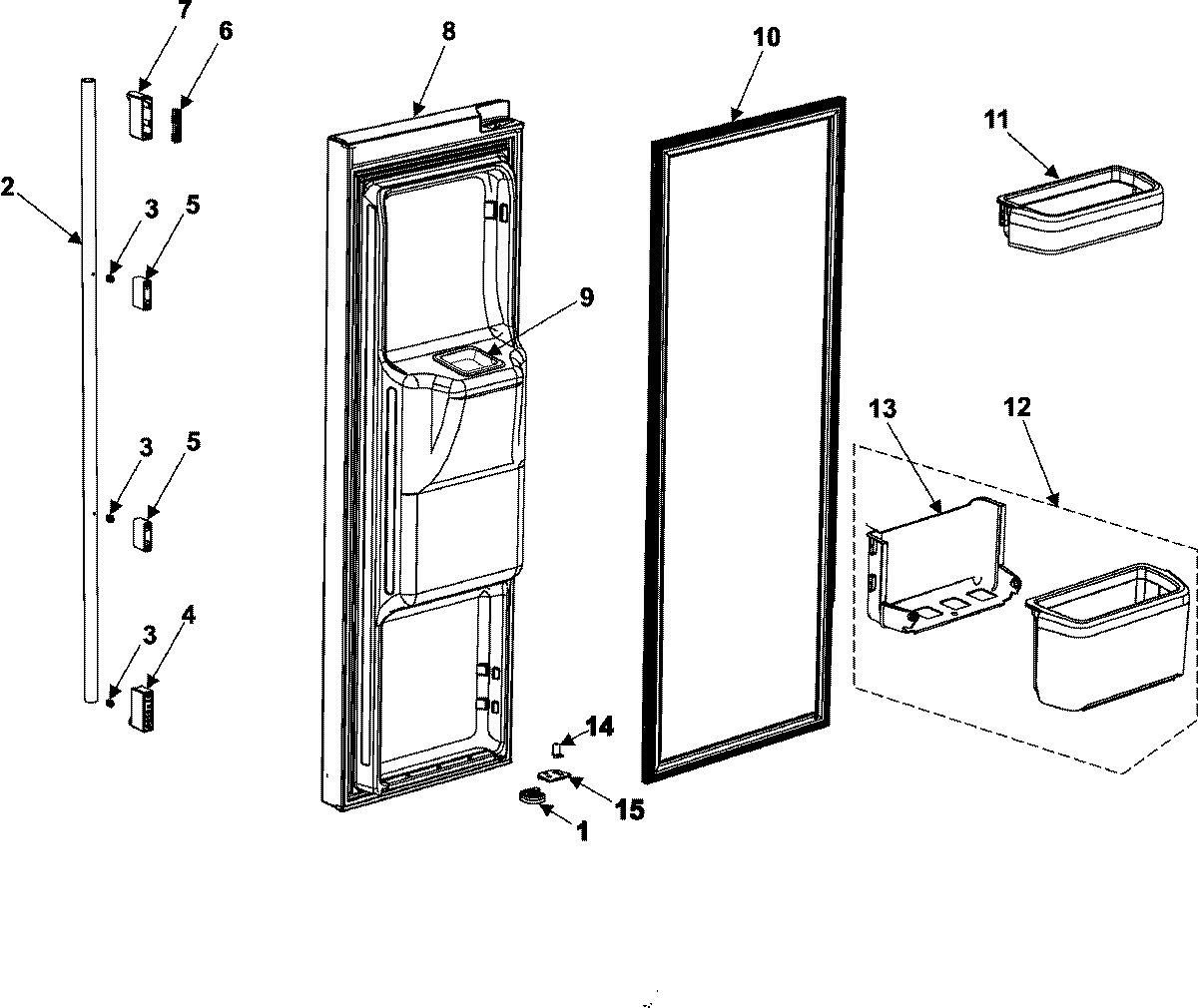

06 - FREEZER DOOR

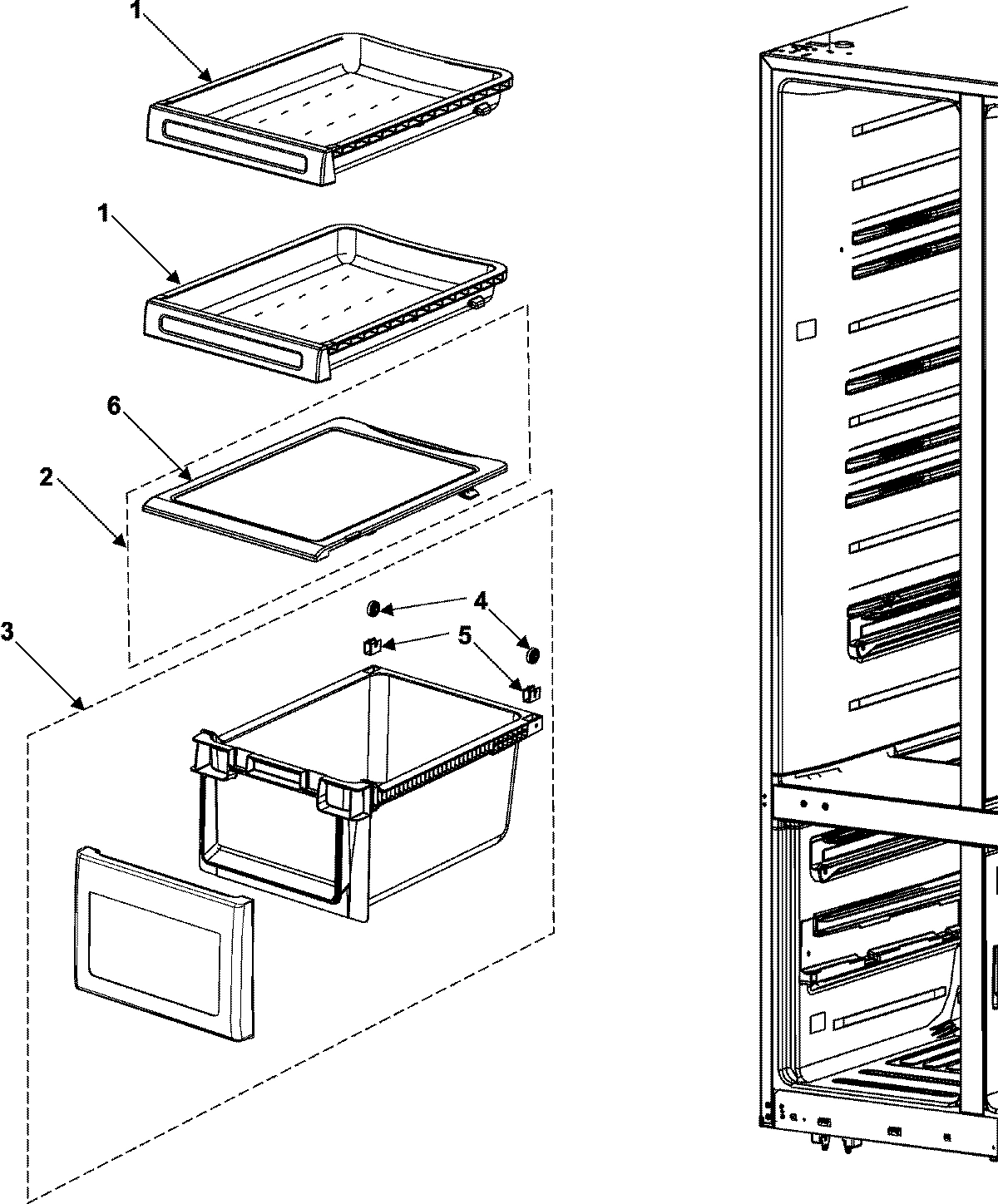

07 - FREEZER SHELVES

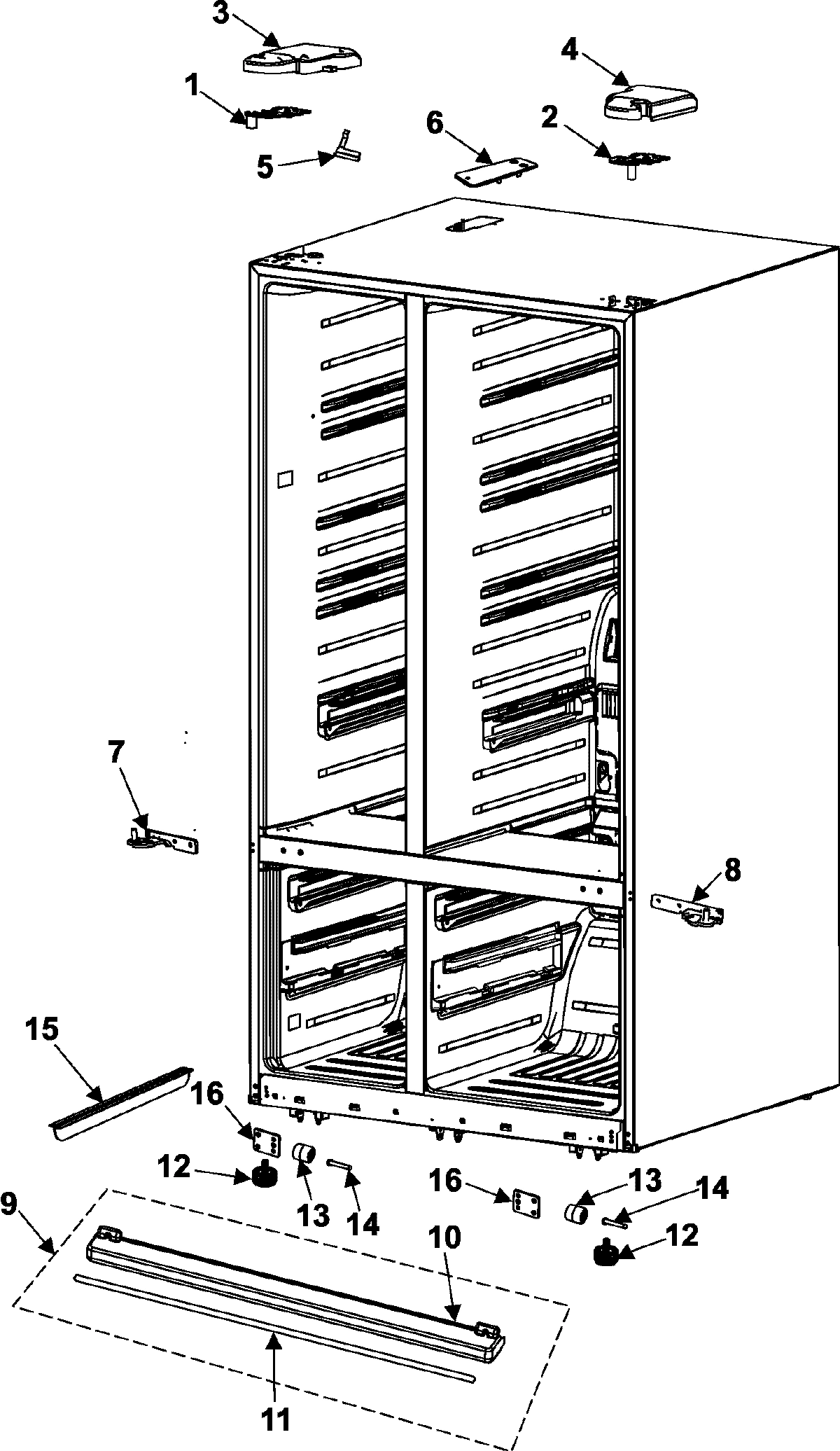

08 - HINGES/FRONT WHEELS

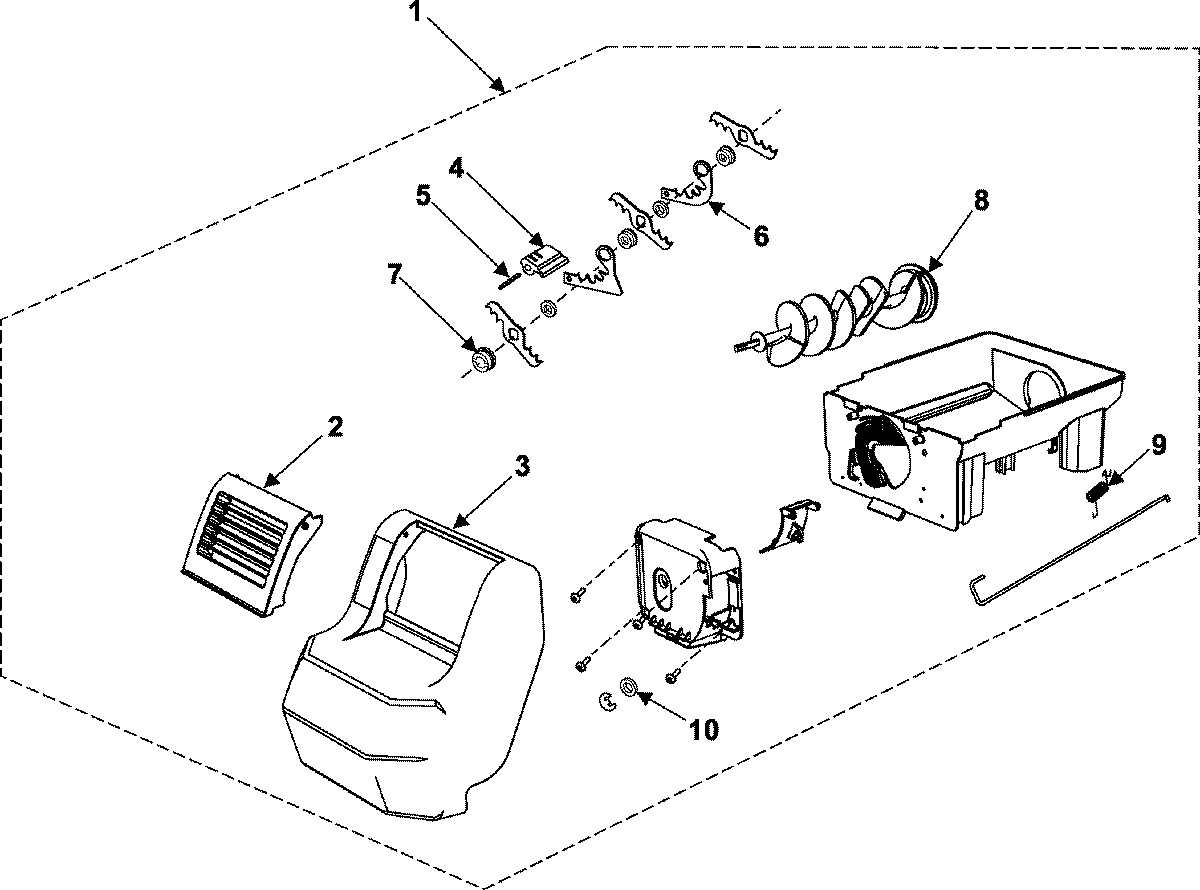

09 - ICE BIN

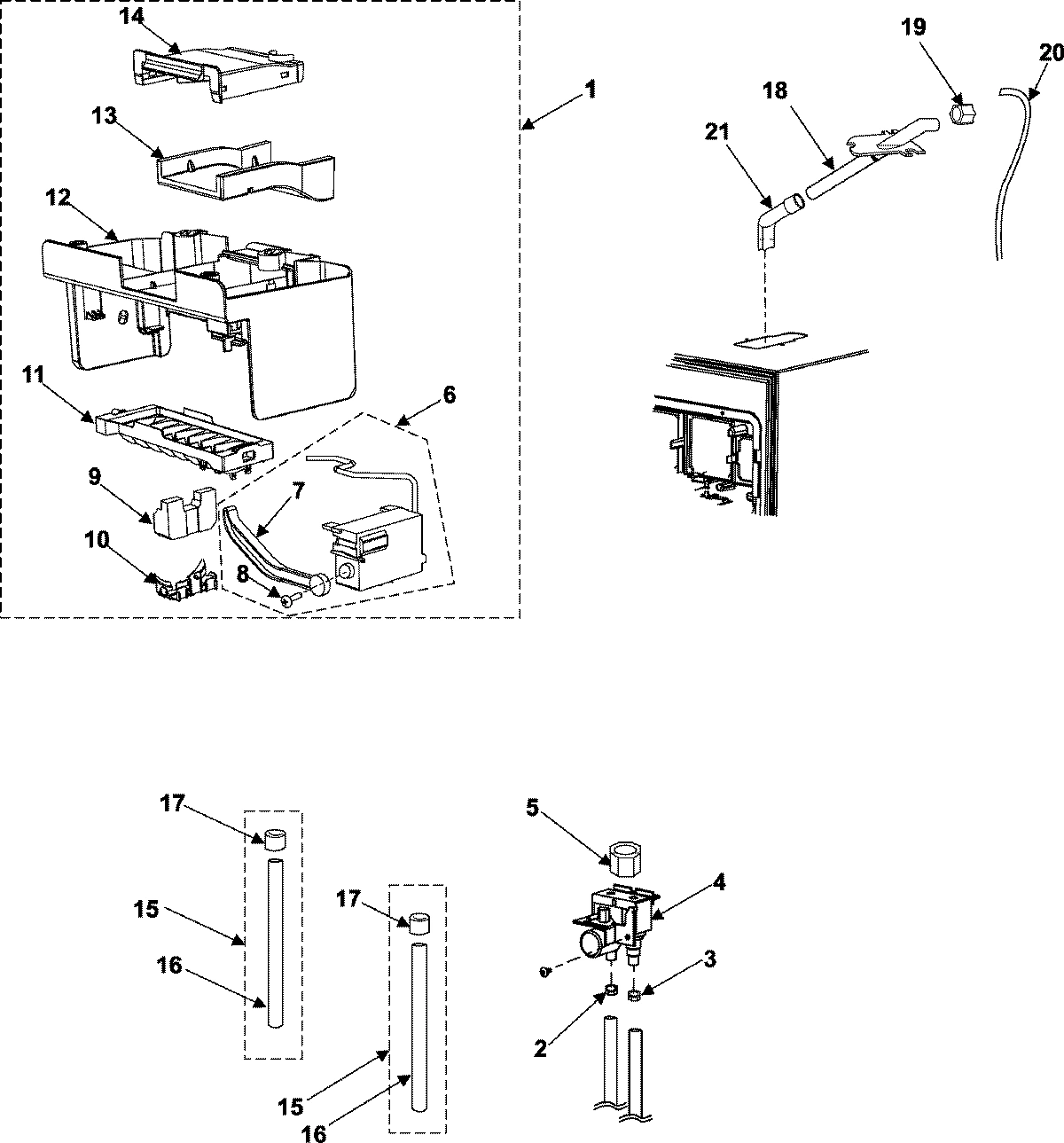

10 - ICE MAKER

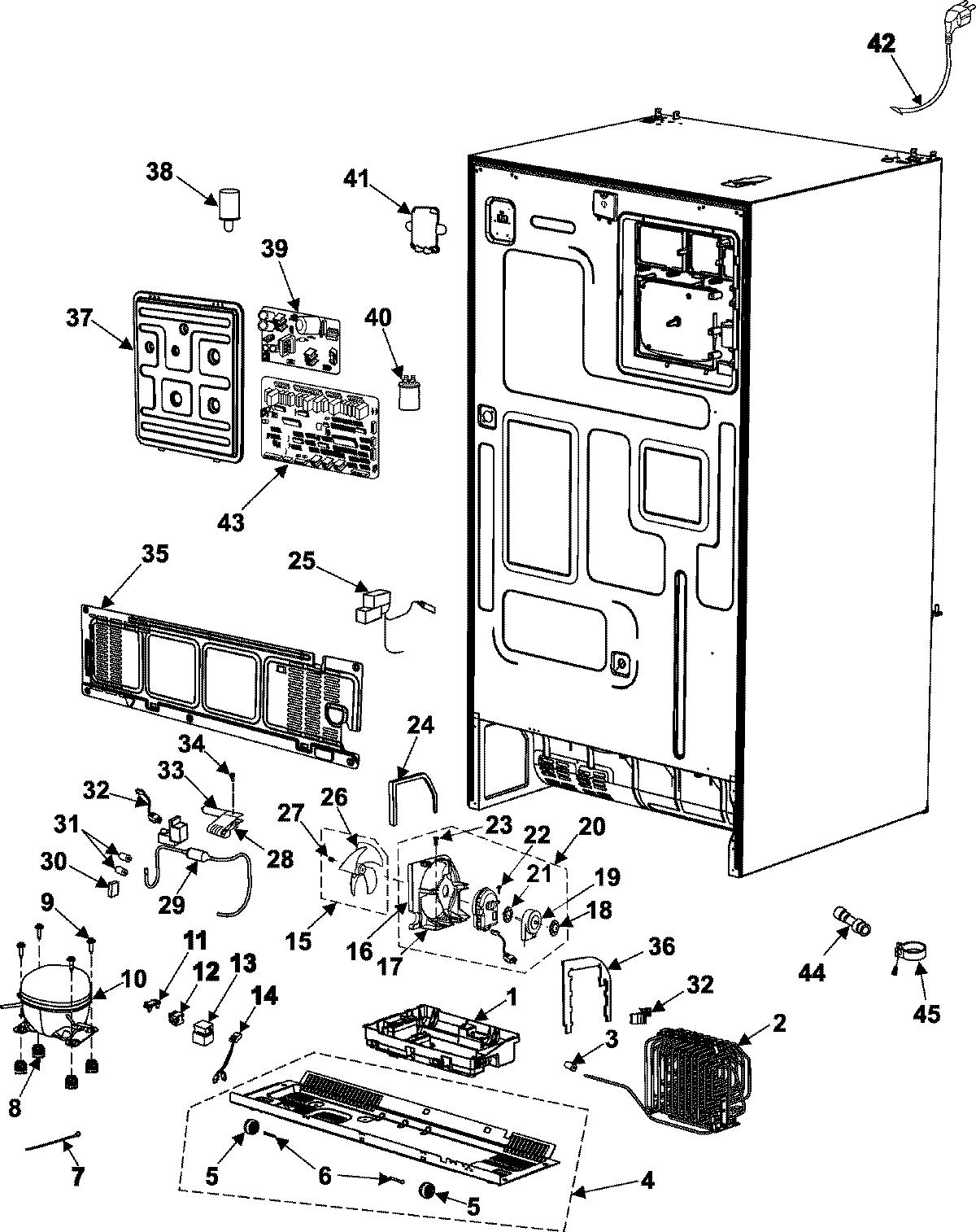

11 - MACHINE COMPARTMENT-COMPRESSOR

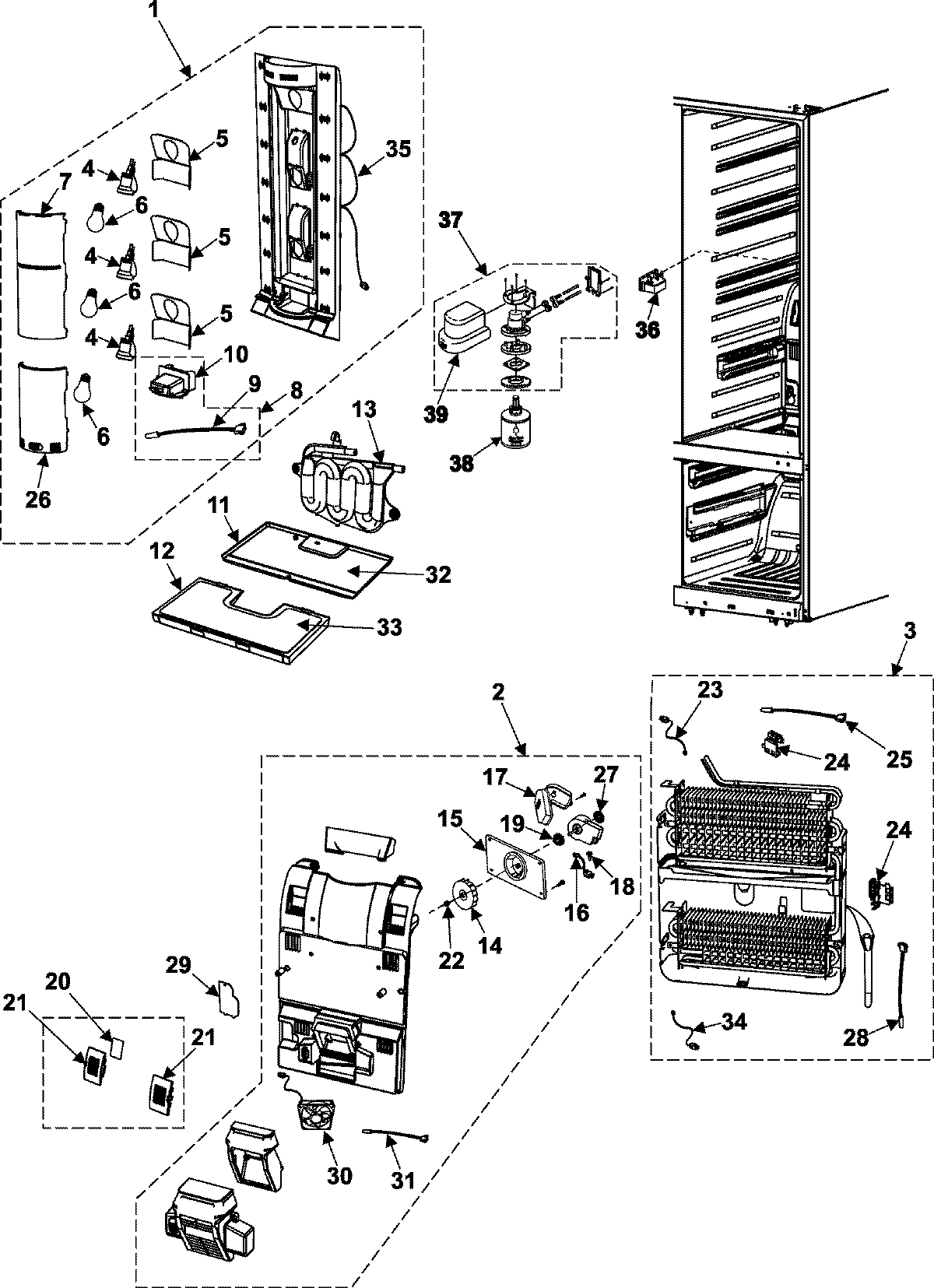

12 - REFRIGERATOR COMPARTMENT

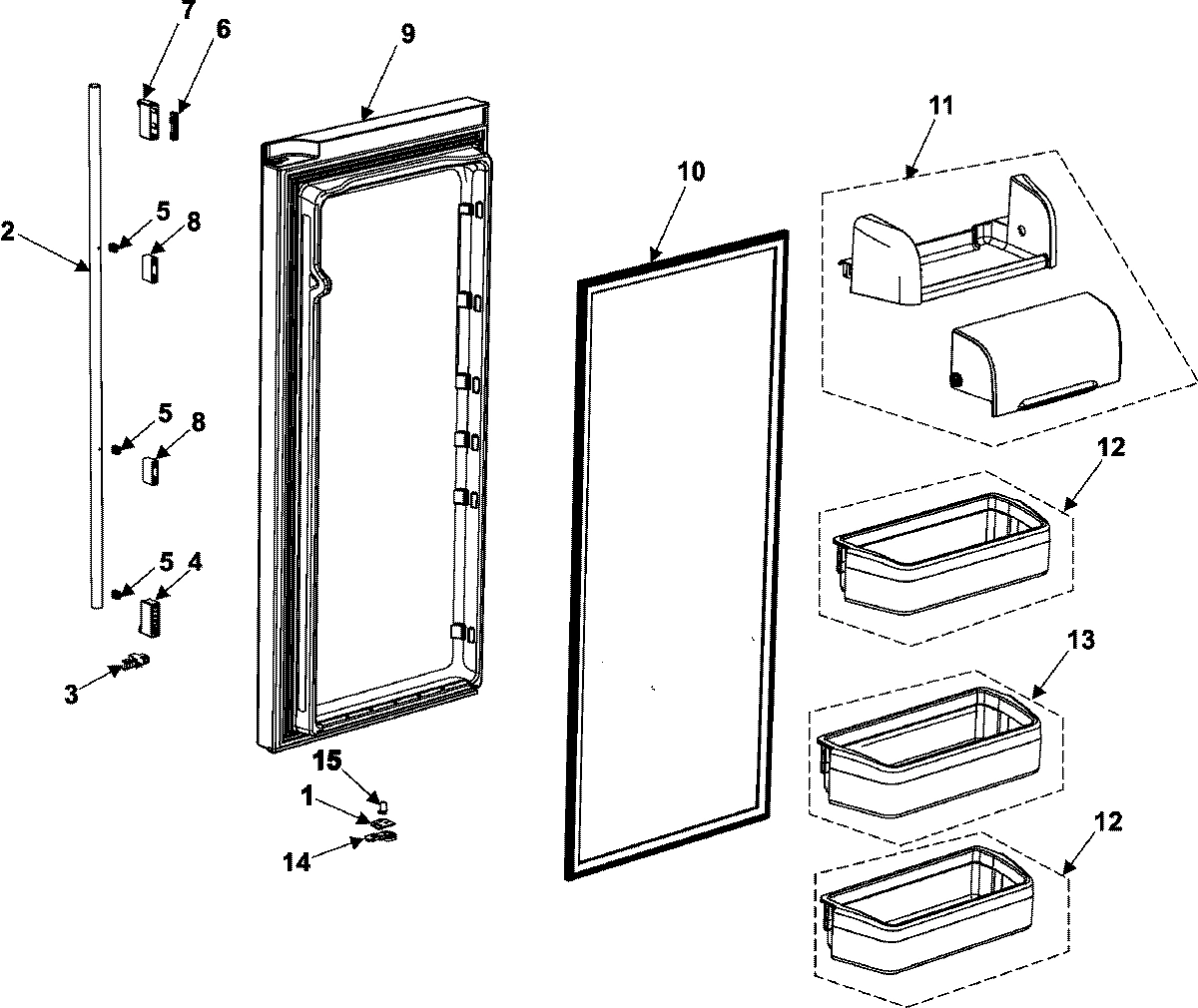

13 - REFRIGERATOR DOOR

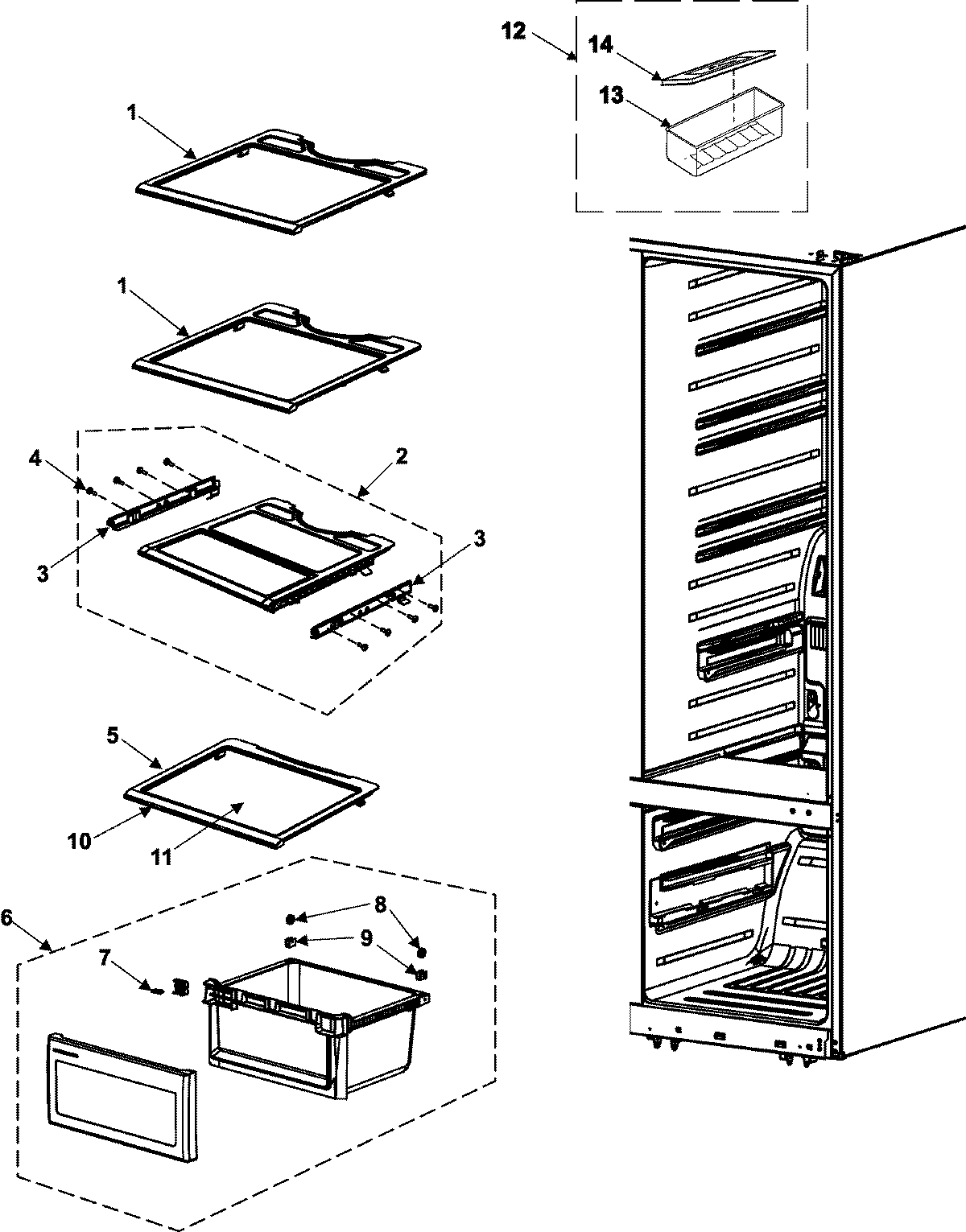

14 - REFRIGERATOR SHELVES
Common parts from model Maytag RM255BARB REFRIGERATOR
1
MAY DA63-02672A MAY DA63-02672A Contact Us For Availability
1
MAY DA97-03167A MAY DA97-03167A Contact Us For Availability
1
MAY DA41-00217B MAY DA41-00217B Contact Us For Availability
1
MAY DA97-03121D MAY DA97-03121D Contact Us For Availability
1
MAY DA97-03114A MAY DA97-03114A Contact Us For Availability
1
MAY DA97-02956A MAY DA97-02956A Contact Us For Availability
1
MAY DA97-03150A MAY DA97-03150A Contact Us For Availability
1
MAY DA97-03168B MAY DA97-03168B Contact Us For Availability
1
MAY DA97-03172A MAY DA97-03172A Contact Us For Availability
1
MAY 6009-001252 MAY 6009-001252 Contact Us For Availability
1
MAY DA97-03146A MAY DA97-03146A Contact Us For Availability
1
MAY DA97-03131A MAY DA97-03131A Contact Us For Availability
1
MAY DA61-02383A MAY DA61-02383A Contact Us For Availability
1
MAY DA67-01284A MAY DA67-01284A Contact Us For Availability
2
MAY DA61-00239A MAY DA61-00239A Contact Us For Availability
2
MAY DA61-02438A MAY DA61-02438A Contact Us For Availability
2
MAY DA97-03119A MAY DA97-03119A Contact Us For Availability
2
MAY DA97-03130A MAY DA97-03130A Contact Us For Availability
2
MAY DA64-01588A MAY DA64-01588A Contact Us For Availability
2
MAY DA97-02955A MAY DA97-02955A Contact Us For Availability
2
MAY DA63-50192A MAY DA63-50192A Contact Us For Availability
2
MAY DA97-03149A MAY DA97-03149A Contact Us For Availability
2
MAY DA63-02732A MAY DA63-02732A Contact Us For Availability
2
MAY DA71-20208A MAY DA71-20208A Contact Us For Availability
2
MAY DA63-40128A MAY DA63-40128A Contact Us For Availability
2
MAY DA97-03137A MAY DA97-03137A Contact Us For Availability
2
MAY DA97-03113A MAY DA97-03113A Contact Us For Availability
2
MAY DA97-03645A MAY DA97-03645A Contact Us For Availability
3
MAY DA61-02610A MAY DA61-02610A Contact Us For Availability
3
MAY DA61-02363A MAY DA61-02363A Contact Us For Availability
3
MAY DA67-01305A MAY DA67-01305A Contact Us For Availability
3
MAY DA97-03649A MAY DA97-03649A Contact Us For Availability
3
MAY DA63-01975B MAY DA63-01975B Contact Us For Availability
3
MAY DA61-02369A MAY DA61-02369A Contact Us For Availability
3
MAY DA97-03153B MAY DA97-03153B Contact Us For Availability
3
MAY DA97-02944A MAY DA97-02944A Contact Us For Availability
3
MAY DA63-02723A MAY DA63-02723A Contact Us For Availability
3
MAY DA97-03750A MAY DA97-03750A Contact Us For Availability
3
MAY DA63-02734A MAY DA63-02734A Contact Us For Availability
3
MAY DA71-20207A MAY DA71-20207A Contact Us For Availability
3
MAY DA63-40171B MAY DA63-40171B Contact Us For Availability
3
MAY DA97-03154B MAY DA97-03154B Contact Us For Availability
3
MAY DA67-01372A MAY DA67-01372A Contact Us For Availability
4
MAY DA67-01260A MAY DA67-01260A Contact Us For Availability
4
MAY DA63-02724B MAY DA63-02724B Contact Us For Availability
4
MAY DA67-01267A MAY DA67-01267A Contact Us For Availability
4
MAY DA63-02012A MAY DA63-02012A Contact Us For Availability
4
MAY DA47-40001C MAY DA47-40001C Contact Us For Availability
4
MAY DA61-01651A MAY DA61-01651A Contact Us For Availability
4
MAY DA63-02701A MAY DA63-02701A Contact Us For Availability
4
MAY DA63-02722A MAY DA63-02722A Contact Us For Availability
4
MAY DA71-20231A MAY DA71-20231A Contact Us For Availability
4
MAY DA62-00305A MAY DA62-00305A Contact Us For Availability
4
MAY DA97-02064A MAY DA97-02064A Contact Us For Availability
4
MAY 6002-001341 MAY 6002-001341 Contact Us For Availability
5
MAY DA97-02726A MAY DA97-02726A Contact Us For Availability
5
MAY DA63-00789A MAY DA63-00789A Contact Us For Availability
5
MAY DA63-02735A MAY DA63-02735A Contact Us For Availability
5
MAY DA63-01970A MAY DA63-01970A Contact Us For Availability
5
MAY DA71-20267A MAY DA71-20267A Contact Us For Availability
5
MAY DA60-90136A MAY DA60-90136A Contact Us For Availability
5
MAY DA74-00070A MAY DA74-00070A Contact Us For Availability
5
MAY DA61-02375A MAY DA61-02375A Contact Us For Availability
5
MAY DA67-01283A MAY DA67-01283A Contact Us For Availability
6
MAY DA63-02725A MAY DA63-02725A Contact Us For Availability
6
MAY DA73-00168A MAY DA73-00168A Contact Us For Availability
6
MAY DA61-01616A MAY DA61-01616A Contact Us For Availability
6
MAY DA31-00053A MAY DA31-00053A Contact Us For Availability
6
MAY DA61-00831A MAY DA61-00831A Contact Us For Availability
6
MAY DA64-00090B MAY DA64-00090B Contact Us For Availability
6
MAY DA63-01275C MAY DA63-01275C Contact Us For Availability
6
MAY DA31-20122B MAY DA31-20122B Contact Us For Availability
6
MAY DA59-00294A MAY DA59-00294A Contact Us For Availability
6
MAY DA71-20252A MAY DA71-20252A Contact Us For Availability
6
MAY DA60-90146A MAY DA60-90146A Contact Us For Availability
6
MAY 4713-001194 MAY 4713-001194 Contact Us For Availability
6
MAY DA97-02943A MAY DA97-02943A Contact Us For Availability
7
MAY DA97-03091A MAY DA97-03091A Contact Us For Availability
7
MAY DA67-00773A MAY DA67-00773A Contact Us For Availability
7
MAY DA61-02386A MAY DA61-02386A Contact Us For Availability
7
MAY DA97-03152A MAY DA97-03152A Contact Us For Availability
7
MAY DA60-30108A MAY DA60-30108A Contact Us For Availability
7
MAY DA61-00954A MAY DA61-00954A Contact Us For Availability
7
MAY DA39-20389E MAY DA39-20389E Contact Us For Availability
7
MAY DA63-02710A MAY DA63-02710A Contact Us For Availability
7
MAY DA64-00817A MAY DA64-00817A Contact Us For Availability
8
MAY 6002-001122 MAY 6002-001122 Contact Us For Availability
8
MAY DA66-10104A MAY DA66-10104A Contact Us For Availability
8
MAY DA91-02105A MAY DA91-02105A Contact Us For Availability
8
MAY DA97-02120B MAY DA97-02120B Contact Us For Availability
8
MAY DA66-00365A MAY DA66-00365A Contact Us For Availability
8
MAY DA61-00264A MAY DA61-00264A Contact Us For Availability
8
MAY DA63-02906A MAY DA63-02906A Contact Us For Availability
8
MAY DA91-02102A MAY DA91-02102A Contact Us For Availability
8
MAY DA61-02385B MAY DA61-02385B Contact Us For Availability
8
MAY DA97-03151B MAY DA97-03151B Contact Us For Availability
8
MAY DA65-00043A MAY DA65-00043A Contact Us For Availability
8
MAY DA63-02908A MAY DA63-02908A Contact Us For Availability
8
MAY DA97-03116A MAY DA97-03116A Contact Us For Availability
9
MAY DA71-20277A MAY DA71-20277A Contact Us For Availability
9
MAY DA97-01800X MAY DA97-01800X Contact Us For Availability
9
MAY DA61-02409A MAY DA61-02409A Contact Us For Availability
9
MAY DA63-01971A MAY DA63-01971A Contact Us For Availability
9
MAY DA67-01268A MAY DA67-01268A Contact Us For Availability
9
MAY DA97-03129A MAY DA97-03129A Contact Us For Availability
9
MAY DA61-20124C MAY DA61-20124C Contact Us For Availability
9
MAY DA60-20008A MAY DA60-20008A Contact Us For Availability
9
MAY DA32-10109Y MAY DA32-10109Y Contact Us For Availability
9
MAY DA91-02104A MAY DA91-02104A Contact Us For Availability
10
MAY DA64-01588B MAY DA64-01588B Contact Us For Availability
10
MAY DA31-00105A MAY DA31-00105A Contact Us For Availability
10
MAY DA61-01869A MAY DA61-01869A Contact Us For Availability
10
MAY DA63-01972A MAY DA63-01972A Contact Us For Availability
10
MAY DA97-01800U MAY DA97-01800U Contact Us For Availability
10
MAY DA63-02688A MAY DA63-02688A Contact Us For Availability
10
MAY DA60-40116A MAY DA60-40116A Contact Us For Availability
10
MAY DA96-00036B MAY DA96-00036B Contact Us For Availability
10
MAY W10126766 MAY W10126766 Contact Us For Availability
10
MAY DA63-02713A MAY DA63-02713A Contact Us For Availability
10
MAY DA97-01800V MAY DA97-01800V Contact Us For Availability
10
MAY DA67-00903C MAY DA67-00903C Contact Us For Availability
11
MAY DA97-03092A MAY DA97-03092A Contact Us For Availability
11
MAY DA64-01588C MAY DA64-01588C Contact Us For Availability
11
MAY DA61-01659B MAY DA61-01659B Contact Us For Availability
11
MAY DA63-02699A MAY DA63-02699A Contact Us For Availability
11
MAY DA97-03099A MAY DA97-03099A Contact Us For Availability
11
MAY DA64-00125A MAY DA64-00125A Contact Us For Availability
11
MAY DA63-02284A MAY DA63-02284A Contact Us For Availability
11
MAY DA35-10013Q MAY DA35-10013Q Contact Us For Availability
11
MAY DA97-03134B MAY DA97-03134B Contact Us For Availability
11
MAY DA97-03100A MAY DA97-03100A Contact Us For Availability
11
MAY DA67-01253M MAY DA67-01253M Contact Us For Availability
12
MAY DA63-02676A MAY DA63-02676A Contact Us For Availability
12
MAY DA67-01266A MAY DA67-01266A Contact Us For Availability
12
MAY DA61-02412A MAY DA61-02412A Contact Us For Availability
12
MAY DA62-00058E MAY DA62-00058E Contact Us For Availability
12
MAY DA97-03141A MAY DA97-03141A Contact Us For Availability
12
MAY DA61-02542A MAY DA61-02542A Contact Us For Availability
12
MAY DA34-10003S MAY DA34-10003S Contact Us For Availability
12
MAY DA97-03136B MAY DA97-03136B Contact Us For Availability
12
MAY DA97-03098A MAY DA97-03098A Contact Us For Availability
12
MAY DA97-02806A MAY DA97-02806A Contact Us For Availability
13
MAY DA97-02945A MAY DA97-02945A Contact Us For Availability
13
MAY DA63-02736A MAY DA63-02736A Contact Us For Availability
13
MAY DA63-02692A MAY DA63-02692A Contact Us For Availability
13
MAY DA61-01871A MAY DA61-01871A Contact Us For Availability
13
MAY DA62-01059A MAY DA62-01059A Contact Us For Availability
13
MAY DA63-01866A MAY DA63-01866A Contact Us For Availability
13
MAY DA47-00205A MAY DA47-00205A Contact Us For Availability
13
MAY DA97-02432C MAY DA97-02432C Contact Us For Availability
13
MAY DA97-03562A MAY DA97-03562A Contact Us For Availability
13
MAY DA63-02492A MAY DA63-02492A Contact Us For Availability
14
MAY 4713-001201 MAY 4713-001201 Contact Us For Availability
14
MAY DA63-02698A MAY DA63-02698A Contact Us For Availability
14
MAY DA61-01920A MAY DA61-01920A Contact Us For Availability
14
MAY DA63-02820A MAY DA63-02820A Contact Us For Availability
14
MAY DA39-00084D MAY DA39-00084D Contact Us For Availability
14
MAY DA31-00123A MAY DA31-00123A Contact Us For Availability
14
MAY DA61-02374A MAY DA61-02374A Contact Us For Availability
14
MAY DA63-02491A MAY DA63-02491A Contact Us For Availability
15
SEE NOTE GROMMET HINGE-MID CURRENTLY UN MAY Y00000000 Contact Us For Availability
15
MAY DA63-02724A MAY DA63-02724A Contact Us For Availability
15
MAY DA63-02694A MAY DA63-02694A Contact Us For Availability
15
MAY DA61-00417A MAY DA61-00417A Contact Us For Availability
15
MAY DA61-02373A MAY DA61-02373A Contact Us For Availability
15
MAY DA64-01731A MAY DA64-01731A Contact Us For Availability
15
MAY DA97-00359A MAY DA97-00359A Contact Us For Availability
16
MAY DA63-02726A MAY DA63-02726A Contact Us For Availability
16
MAY DA63-01412A MAY DA63-01412A Contact Us For Availability
16
MAY DA32-10105C MAY DA32-10105C Contact Us For Availability
16
MAY DA61-02461A MAY DA61-02461A Contact Us For Availability
16
MAY DA62-20001R MAY DA62-20001R Contact Us For Availability
16
MAY DA61-02355A MAY DA61-02355A Contact Us For Availability
17
MAY 6002-000588 MAY 6002-000588 Contact Us For Availability
17
MAY DA63-02725B MAY DA63-02725B Contact Us For Availability
17
MAY DA61-02356A MAY DA61-02356A Contact Us For Availability
17
MAY DA63-00951C MAY DA63-00951C Contact Us For Availability
17
MAY DA61-02349A MAY DA61-02349A Contact Us For Availability
18
MAY DA63-02675A MAY DA63-02675A Contact Us For Availability
18
MAY DA63-02727A MAY DA63-02727A Contact Us For Availability
18
MAY DA41-00312A MAY DA41-00312A Contact Us For Availability
18
MAY DA63-40167A MAY DA63-40167A Contact Us For Availability
18
MAY DA47-00133E MAY DA47-00133E Contact Us For Availability
18
MAY DA61-00764A MAY DA61-00764A Contact Us For Availability
18
MAY DA62-00068D MAY DA62-00068D Contact Us For Availability
18
MAY DA97-00708J MAY DA97-00708J Contact Us For Availability
19
MAY DA97-03093A MAY DA97-03093A Contact Us For Availability
19
MAY DA91-02103A MAY DA91-02103A Contact Us For Availability
19
MAY DA62-00058F MAY DA62-00058F Contact Us For Availability
19
MAY DA63-01808A MAY DA63-01808A Contact Us For Availability
19
MAY DA97-03135B MAY DA97-03135B Contact Us For Availability
19
MAY DA63-01274A MAY DA63-01274A Contact Us For Availability
20
MAY DA61-02324A MAY DA61-02324A Contact Us For Availability
20
MAY DA97-01800W MAY DA97-01800W Contact Us For Availability
20
MAY DA66-00352A MAY DA66-00352A Contact Us For Availability
20
MAY DA63-02708A MAY DA63-02708A Contact Us For Availability
20
MAY DA62-00040E MAY DA62-00040E Contact Us For Availability
20
MAY DA97-03145A MAY DA97-03145A Contact Us For Availability
20
MAY DA02-40034A MAY DA02-40034A Contact Us For Availability
21
MAY DA97-03094A MAY DA97-03094A Contact Us For Availability
21
MAY DA66-00354A MAY DA66-00354A Contact Us For Availability
21
MAY DA97-03132A MAY DA97-03132A Contact Us For Availability
21
MAY DA63-02928A MAY DA63-02928A Contact Us For Availability
21
MAY DA63-02707A MAY DA63-02707A Contact Us For Availability
22
MAY DA34-00039A MAY DA34-00039A Contact Us For Availability
22
MAY DA97-03632A MAY DA97-03632A Contact Us For Availability
22
MAY DA61-20128A MAY DA61-20128A Contact Us For Availability
22
MAY DA62-01010A MAY DA62-01010A Contact Us For Availability
22
MAY DA67-01279A MAY DA67-01279A Contact Us For Availability
23
MAY DA61-02604A MAY DA61-02604A Contact Us For Availability
23
MAY DA63-02810A MAY DA63-02810A Contact Us For Availability
23
MAY DA34-10120E MAY DA34-10120E Contact Us For Availability
23
MAY 6003-000003 MAY 6003-000003 Contact Us For Availability
23
MAY DA47-00133F MAY DA47-00133F Contact Us For Availability
24
MAY DA61-02658A MAY DA61-02658A Contact Us For Availability
24
MAY DA63-02728A MAY DA63-02728A Contact Us For Availability
24
MAY DA61-00453A MAY DA61-00453A Contact Us For Availability
25
MAY DA31-00112A MAY DA31-00112A Contact Us For Availability
25
MAY DA61-02351A MAY DA61-02351A Contact Us For Availability
25
MAY DA97-03125A MAY DA97-03125A Contact Us For Availability
25
MAY DK31-00005B MAY DK31-00005B Contact Us For Availability
25
MAY DA32-10105R MAY DA32-10105R Contact Us For Availability
26
MAY DA63-02711A MAY DA63-02711A Contact Us For Availability
27
MAY DA63-02717A MAY DA63-02717A Contact Us For Availability
27
MAY DA63-01146A MAY DA63-01146A Contact Us For Availability
28
MAY 4713-001172 MAY 4713-001172 Contact Us For Availability
28
MAY DA32-00006M MAY DA32-00006M Contact Us For Availability
29
MAY DA63-02712A MAY DA63-02712A Contact Us For Availability
29
MAY DA61-02587A MAY DA61-02587A Contact Us For Availability
29
MAY DA97-03433A MAY DA97-03433A Contact Us For Availability
29
MAY DA61-02707A MAY DA61-02707A Contact Us For Availability
30
MAY DA63-02717B MAY DA63-02717B Contact Us For Availability
30
MAY DA31-00125A MAY DA31-00125A Contact Us For Availability
30
MAY DA72-60040W MAY DA72-60040W Contact Us For Availability
31
MAY DA32-00011C MAY DA32-00011C Contact Us For Availability
31
MAY DA63-40171D MAY DA63-40171D Contact Us For Availability
32
MAY DA63-02907A MAY DA63-02907A Contact Us For Availability
32
MAY DA63-02709A MAY DA63-02709A Contact Us For Availability
33
MAY DK71-00025C MAY DK71-00025C Contact Us For Availability
33
MAY DA62-01011A MAY DA62-01011A Contact Us For Availability
33
MAY DA67-01278A MAY DA67-01278A Contact Us For Availability
34
MAY 6002-000213 MAY 6002-000213 Contact Us For Availability
34
MAY DA47-00133G MAY DA47-00133G Contact Us For Availability
35
MAY DA62-00719M MAY DA62-00719M Contact Us For Availability
35
MAY DA97-01947C MAY DA97-01947C Contact Us For Availability
35
MAY DA96-00213A MAY DA96-00213A Contact Us For Availability
36
MAY DA62-01034A MAY DA62-01034A Contact Us For Availability
37
MAY DA97-03307A MAY DA97-03307A Contact Us For Availability
37
MAY DA97-03301A MAY DA97-03301A Contact Us For Availability
38
MAY DA27-00009B MAY DA27-00009B Contact Us For Availability
38
MAY DA29-00012B MAY DA29-00012B Contact Us For Availability
39
MAY DA41-00320A MAY DA41-00320A Contact Us For Availability
39
MAY DA63-02776A MAY DA63-02776A Contact Us For Availability
40
MAY 2501-001045 MAY 2501-001045 Contact Us For Availability
41
MAY DA63-00586A MAY DA63-00586A Contact Us For Availability
42
MAY DA39-10165E MAY DA39-10165E Contact Us For Availability
43
MAY DA41-00318A MAY DA41-00318A Contact Us For Availability
44
MAY DA62-20111C MAY DA62-20111C Contact Us For Availability
45
MAY DA65-20110B MAY DA65-20110B Contact Us For Availability
× ![]()
