Model Maytag RLS342-OF GAS RANGE – Common Parts & Diagrams

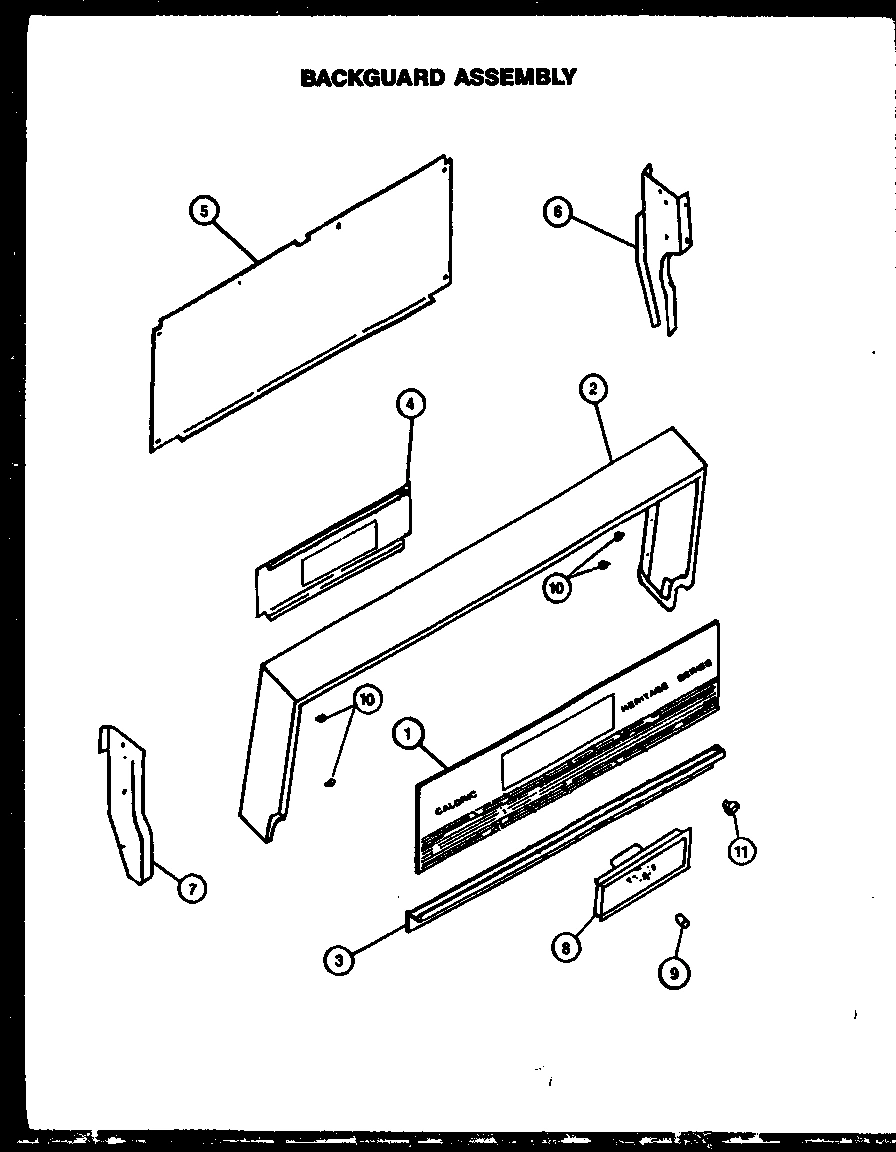

01 - BACKGUARD ASSY

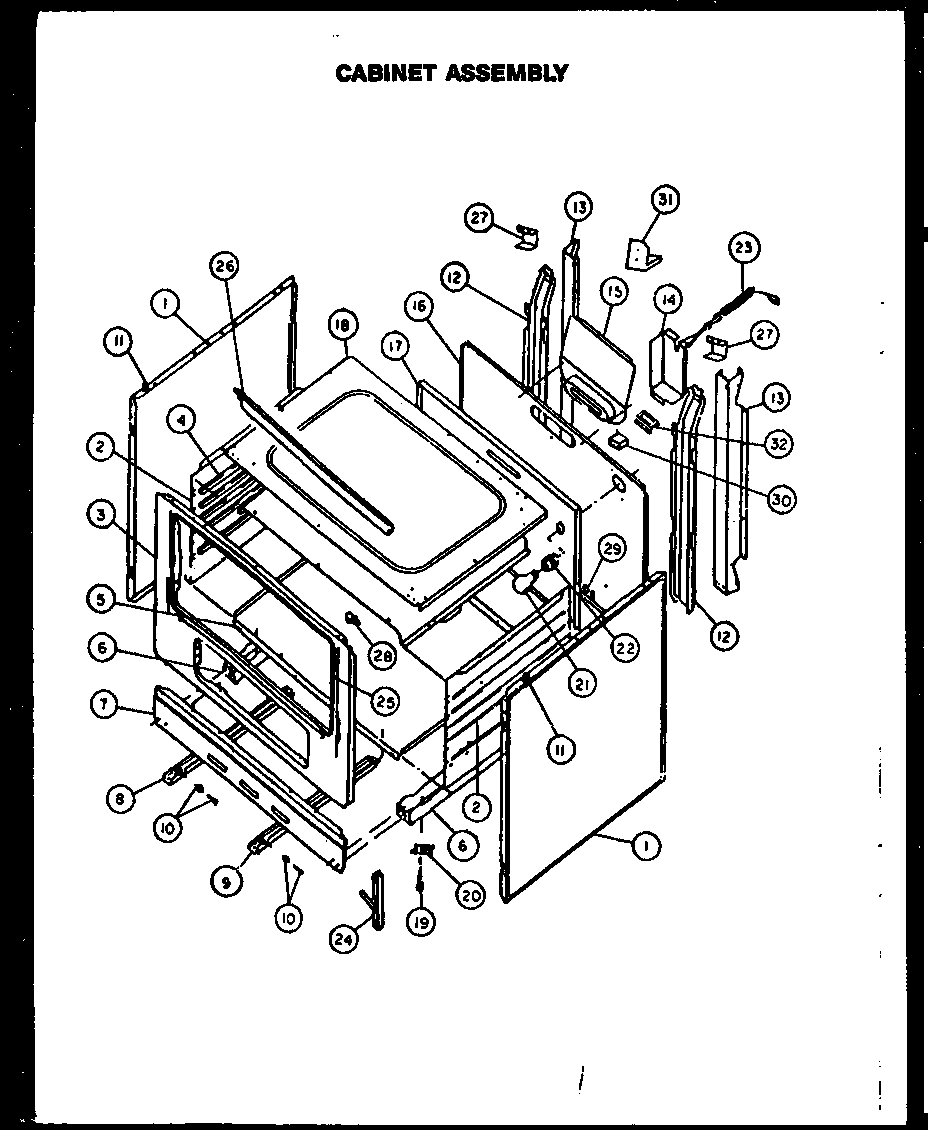

02 - Page 1

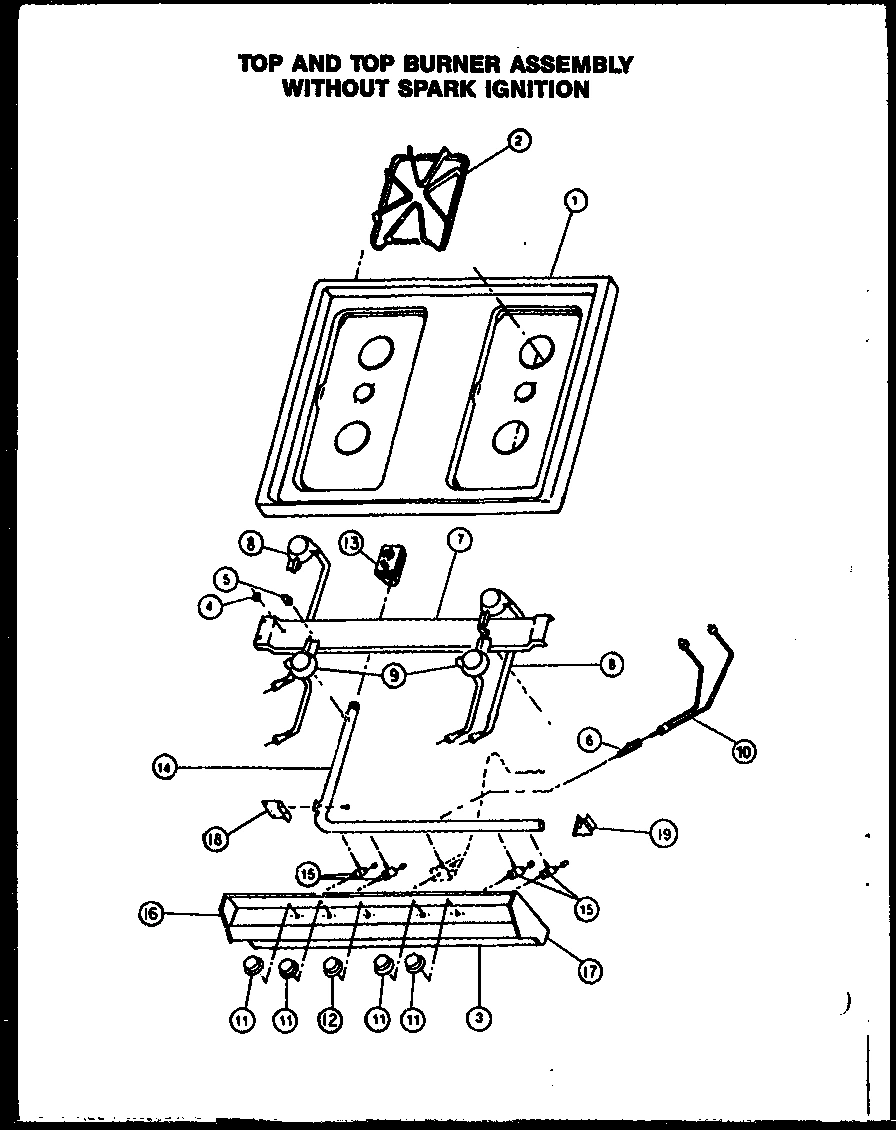

03 - TOP & TOP BURNER ASSY WITHOUT SPARK IGN
Common parts from model Maytag RLS342-OF GAS RANGE
1
MAY 0055002 MAY 0055002 Contact Us For Availability
1
MAY 311003H MAY 311003H Contact Us For Availability
1
MAY 311003L MAY 311003L Contact Us For Availability
1
MAY 311003W MAY 311003W Contact Us For Availability
1
MAY 310082H MAY 310082H Contact Us For Availability
1
MAY 310082L MAY 310082L Contact Us For Availability
1
MAY 310082W MAY 310082W Contact Us For Availability
2
MAY 0057322 MAY 0057322 Contact Us For Availability
2
MAY 311807E MAY 311807E Contact Us For Availability
2
MAY 60529 MAY 60529 Contact Us For Availability
3
MAY Y0086956 MAY Y0086956 Contact Us For Availability
3
MAY Y0311880 MAY Y0311880 Contact Us For Availability
3
MAY Y0311849 MAY Y0311849 Contact Us For Availability
4
MAY 88885CG MAY 88885CG Contact Us For Availability
4
MAY 0088650 MAY 0088650 Contact Us For Availability
5
MAY Y0311051 MAY Y0311051 Contact Us For Availability
5
MAY 57313 MAY 57313 Contact Us For Availability
6
MAY 0088065 MAY 0088065 Contact Us For Availability
6
MAY 0310806 MAY 0310806 Contact Us For Availability
6
SEE NOTE FILTER PART OF PILOT HARNESS MAY Y00000000 Contact Us For Availability
7
MAY 0088066 MAY 0088066 Contact Us For Availability
7
MAY 0052744 MAY 0052744 Contact Us For Availability
7
MAY 311024E MAY 311024E Contact Us For Availability
8
MAY 0310522 MAY 0310522 Contact Us For Availability
8
MAY Y0086715 MAY Y0086715 Contact Us For Availability
9
MAY Y0310523 MAY Y0310523 Contact Us For Availability
9
MAY Y0086716 MAY Y0086716 Contact Us For Availability
10
MAY Y0088788 MAY Y0088788 Contact Us For Availability
10
MAY Y0088793 MAY Y0088793 Contact Us For Availability
11
MAY 0311086 MAY 0311086 Contact Us For Availability
11
MAY Y0055027 MAY Y0055027 Contact Us For Availability
12
MAY 0052742 MAY 0052742 Contact Us For Availability
12
MAY Y0055029 MAY Y0055029 Contact Us For Availability
13
MAY 0056477 MAY 0056477 Contact Us For Availability
13
MAY Y0088783 MAY Y0088783 Contact Us For Availability
14
MAY Y0311845 MAY Y0311845 Contact Us For Availability
15
MAY 0088718 MAY 0088718 Contact Us For Availability
15
MAY Y0056117 MAY Y0056117 Contact Us For Availability
15
MAY Y56115 MAY Y56115 Contact Us For Availability
16
MAY Y0311046 MAY Y0311046 Contact Us For Availability
16
MAY 0311855 MAY 0311855 Contact Us For Availability
17
MAY 88889CG MAY 88889CG Contact Us For Availability
17
MAY Y0041785 MAY Y0041785 Contact Us For Availability
17
MAY Y0311854 MAY Y0311854 Contact Us For Availability
18
MAY 0311881 MAY 0311881 Contact Us For Availability
18
MAY Y0311811 MAY Y0311811 Contact Us For Availability
19
MAY Y0088651 MAY Y0088651 Contact Us For Availability
19
MAY 0311810 MAY 0311810 Contact Us For Availability
20
MAY Y0088571 MAY Y0088571 Contact Us For Availability
24
MAY Y0311852 MAY Y0311852 Contact Us For Availability
25
MAY Y0311770 MAY Y0311770 Contact Us For Availability
26
MAY Y0311883 MAY Y0311883 Contact Us For Availability
27
MAY 0310217 MAY 0310217 Contact Us For Availability
28
MAY 0088050 MAY 0088050 Contact Us For Availability
NI
MAY 0310234 MAY 0310234 Contact Us For Availability
NI
MAY 310239 MAY 310239 Contact Us For Availability
NI
MAY 0310038 MAY 0310038 Contact Us For Availability
NI
MAY Y0310039 MAY Y0310039 Contact Us For Availability
NI
MAY Y0310040 MAY Y0310040 Contact Us For Availability
× ![]()
